REVIT_Dynamo Project- 3

1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.

1st ans)

Aim:-To use dynamo and create a set of sinusodial points and create a curve and create a surface out of the curve

Tools:-code block,list,line by star and end ppoint,product,add,sine,number slider,point by coordinate

Procedure:-

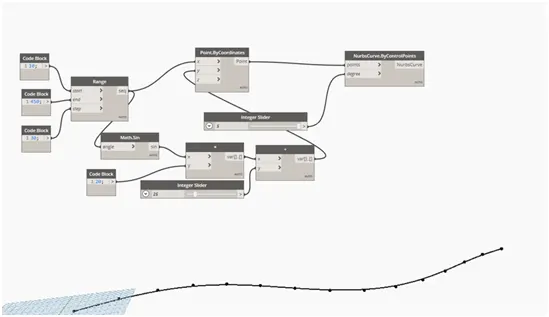

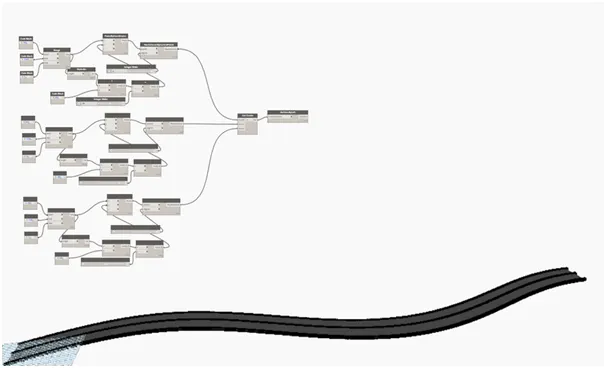

Step 1:-We need to use code block , range and sine commands and then create a curve

STep 2:-Then we can amplify the curve using the product and we need to add command

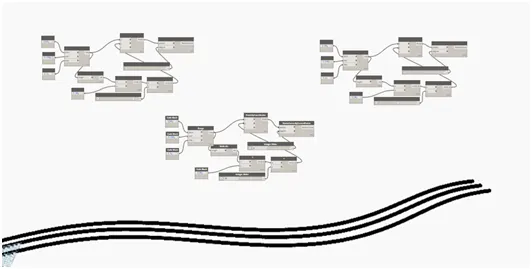

Step 3:-We need to copy paste the commands and amplify the curves

Step 4:-We need to list all the notes by using surface by loft and then create a surface on the curves combined

Result:-We got the desired result

2) Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders to slide through the height of the wall and length of the wall.

2nd ans)

Aim:-To create a conceptual layout of floor plan in dynamo.USe the tools available in dynamo link the lines to approprate model in elemets in revit by choosing the wall types and wall parameters .We need to make use of the slide through the height of the wall and length of the wall

Tools used:-Wall , point by coordinates,number slider,line bys start and end point and level

Procedure:-

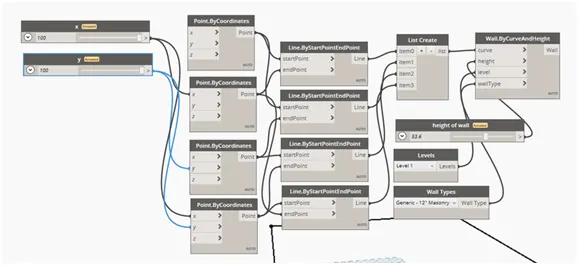

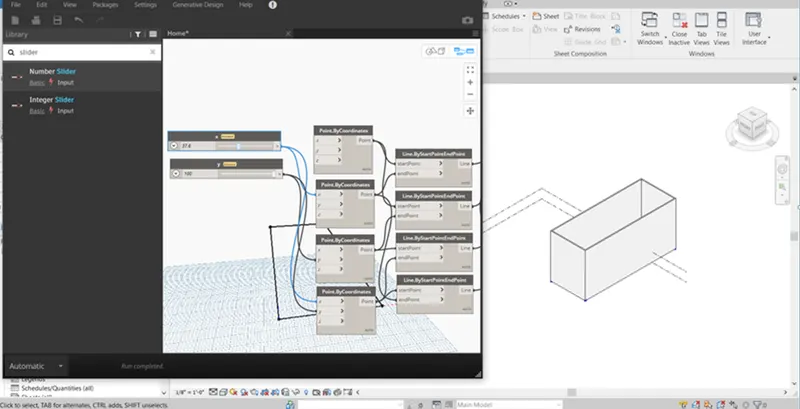

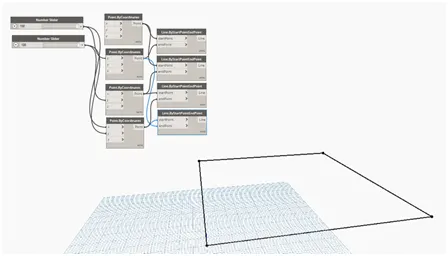

Step 1:-We need to use slider and by pint by coordinates we need to place 4 points as shown in the image

Step 2:-We need to connect the 4 points , make lines by using line by start and end point

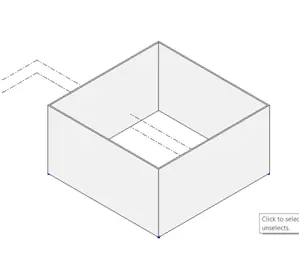

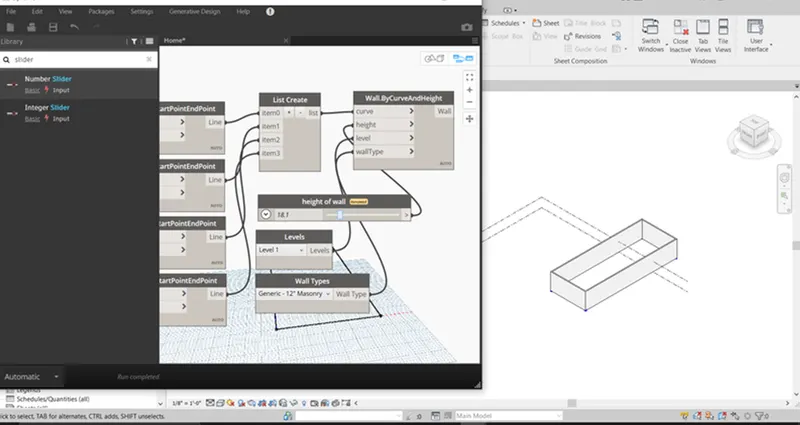

Step 3:-We need to add all line to the list and use a wall by curve and height commands to make a wall

Step 4:-We need to change the height or distance between walls and use x and height of wall sliders

Result:-We got the desired result

3) Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block

3rd ans)

Aim:-To create an array of model elements in revit and use dynamo to vary the properties of model elements by using the slider or code block

Tools used:-number slider,family instance set rotation and model elements

Procedure:-

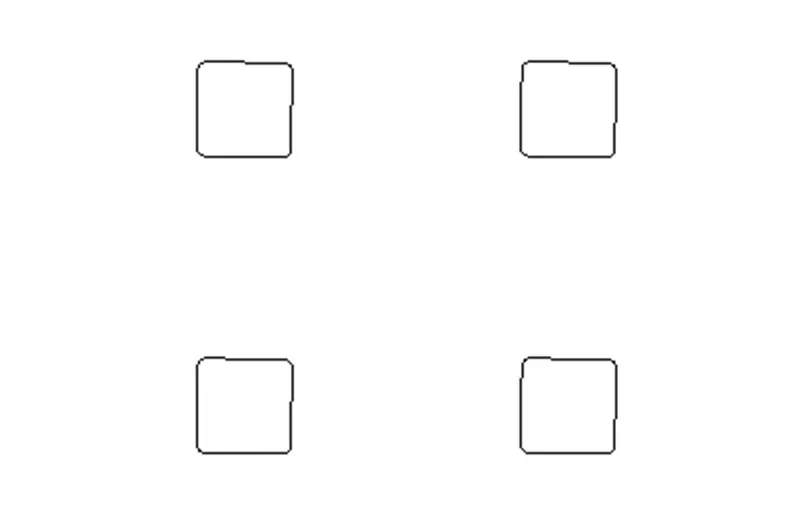

Step 1:-To create an array of model elements in revit

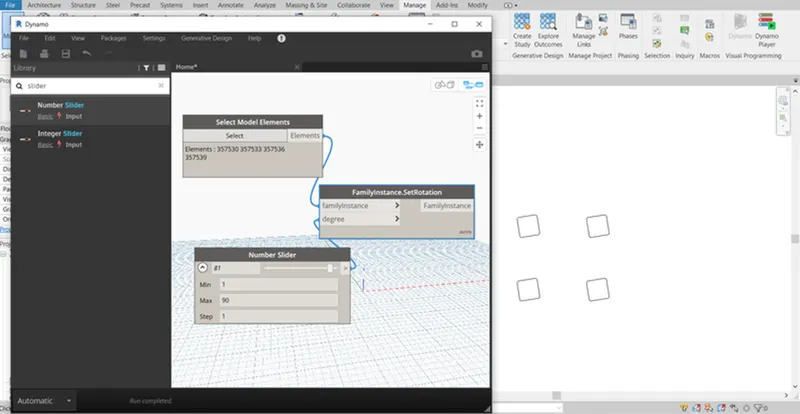

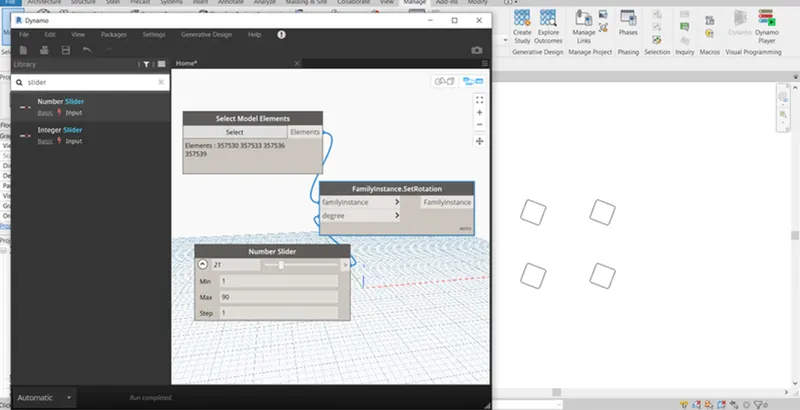

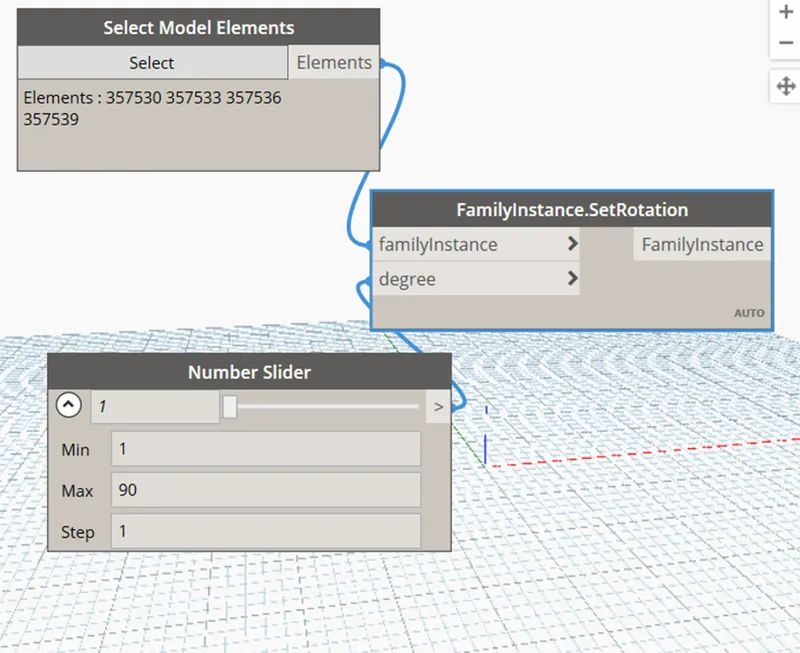

Step 2:-Now we need to open dynamo and insert model elemts command , number slider and family instance set rotation

Step 3:-Select the click ok option from model elemts in dynamo and select the elemets on the revit file

Step 4:-Now align

Step 5:-Now we can move the number slider to rotate the elemts

Result:-We got the desired result

4) 4) Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric column

4th ans)

Aim:-To 4) Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. To Use triangular bent or square shaped panels to add finish to the parametric column

Tools used:-Conceptional mass,create form,divide surface and line

Procedure:-

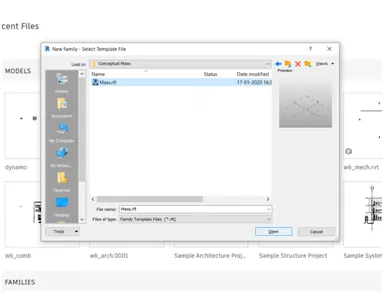

Step 1:-We need to open the new family of conceptual mass

Step 2;-We now need to go to the nort elevation and draw a line and specify points on the line

Step 3:-On the ppints we need to draw polygons

Step 4:-Now by selecting all items we need to use create form toolos

Step 5:-Now we need to select the created mass and click divide surface

Step 6:-Now from properties select triangle bent

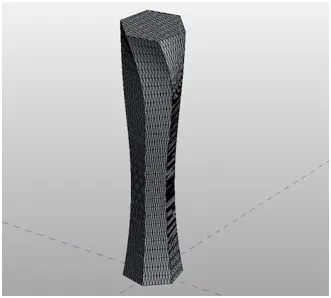

Step 7:-Now the parametric column is created

Result:-The desired result is obtained

5) Use Dynamo to work on developing a Parametric Stadium. List your parameters and use the visual programming approach to complete the modelling, You can use the concepts discussed in parametric high rise tower in class for reference.

5th ans)

Aim:-To use the dynamo to work on developing a parametreic stadium.We need to list the parameters and use the visual programming approach to complete the modelling and we can use the concepts discussed in parametric highrise tower in the class for reference

Tools used:-Number slider,surface by loft,point by coordinate,list create,circle by centre point radius

Procedure:-

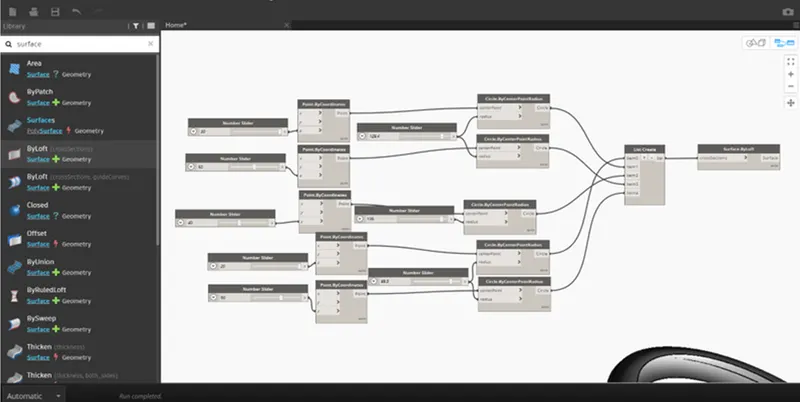

Step 1:-We need to open number slider and point by coordinate

Step 2:-Now with proper heighht we can make the points on the z-axis

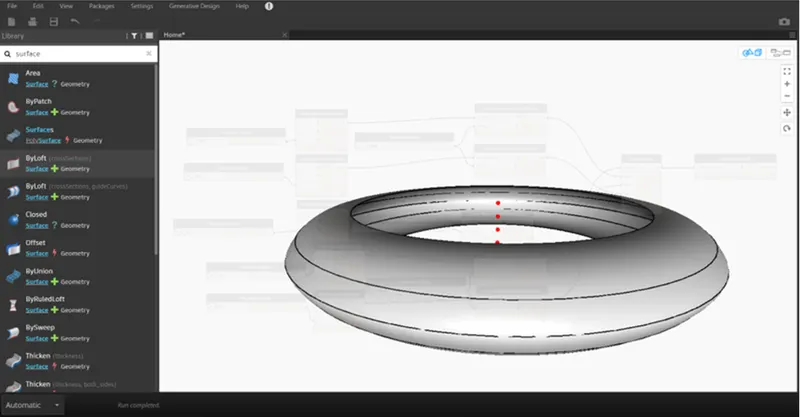

Step 3:-Now by using circle by point radius join the ppoints apply the radius as mentioned in the image

Step 4:-Now increase or decrease the radius by using the number slider

Step 5:-Now the desired stadium is made

Result:-We got the desired result
