Reinforcement detailing of Columns from ETABS output

The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment Resisting Frame. The following challenge deals specifically with two columns at the following grid intersections.

1. 3A
2. 3B

• Provide details of longitudinal reinforcement for the two columns, from foundation to terrace level. Sketch the column cross sectional & elevation details or draft it using autocad software.
• Show shear reinforcement & lapping details as per special confining reinforcement provision of clause 8.1 of IS 13920 - 2016.

AIM:-

Providing the longitudinal and shear reinforcement details for the both the columns using Etabs result.

PROCEDURE:-

• Download the challenge file.
• Open the file in the Etabs.

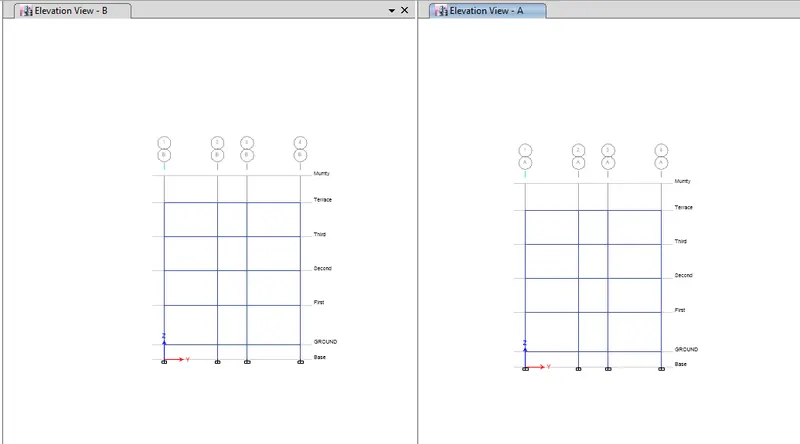

• Change the model to the elevation view.
• Add other window to display both the column 3A and 3B.

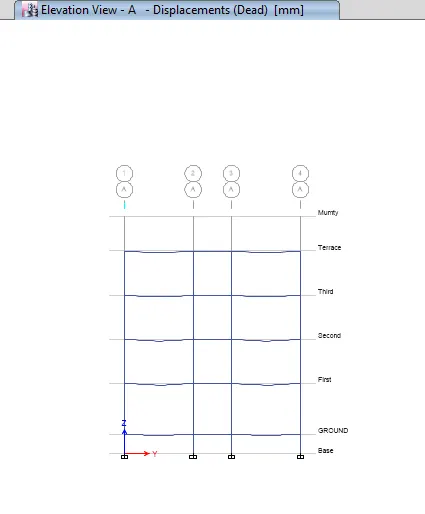

• Now Run the analysis.

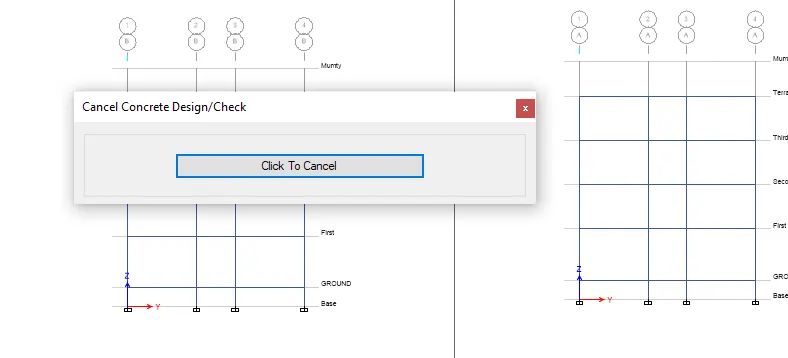

• Next click on the start design/check.

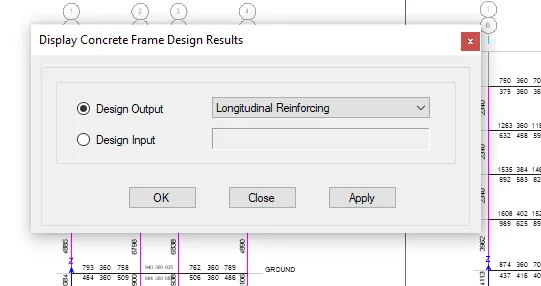

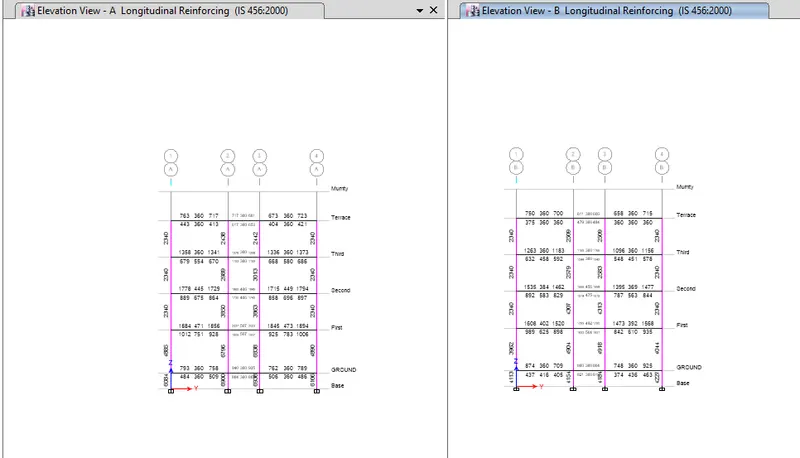

• Now click o display design info and click on longutidinal reinforcement.

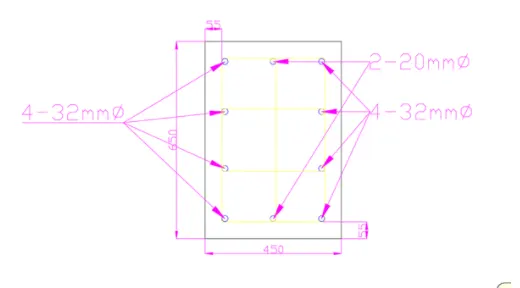

1.Column 3A

Maximum Ast=7027mm2

Provide 8 bars of 32mm=6446mm2

And 2 bars of 20mm=628mm2

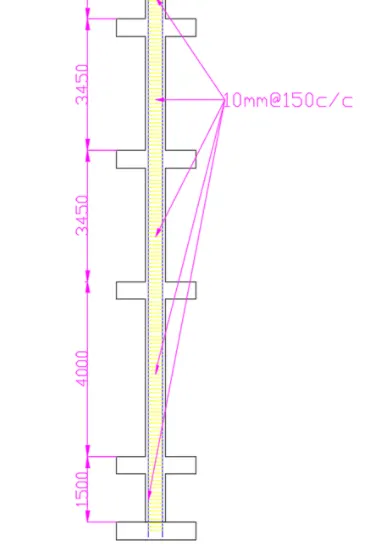

Provide the 10mm stirrups with the 150mm for zone c.

As the width is greater than 300mm confining reinforcement is provided in both the direction.

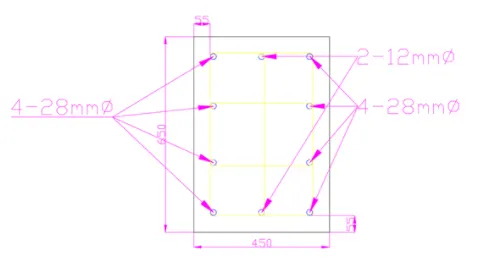

2.Column 3B

Maximum Ast=5046mm2

Provide 8 bars of 28mm=4920 mm2

And 2 bars of 12mm=226 mm2

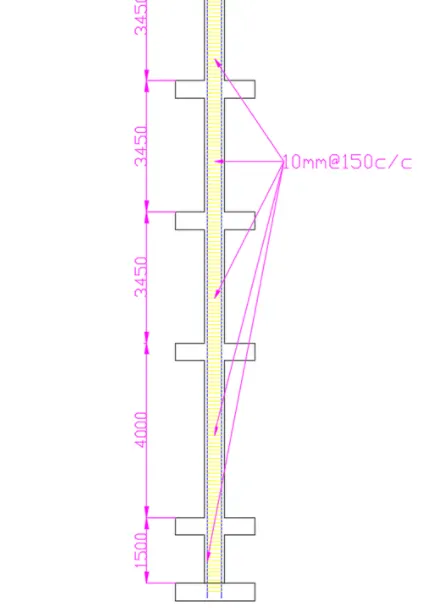

Provide the 10mm stirrups with the 150mm for zone c

RESULT:-

Column reinforcement and shear reinforcement was provided and columns sectional and cross-sectional view was provided in the AutoCAD.
