Reinforcement detailing of Columns from ETABS output

ANSWER

AIM

To provide the reinforcement details of Longitudinal and Shear Reinforcement for the Two columns from foundation to Terrace level.

PROCEDURE

STEP 1

• open the G+4 building model.
• To define the Concrete frame Design tool.

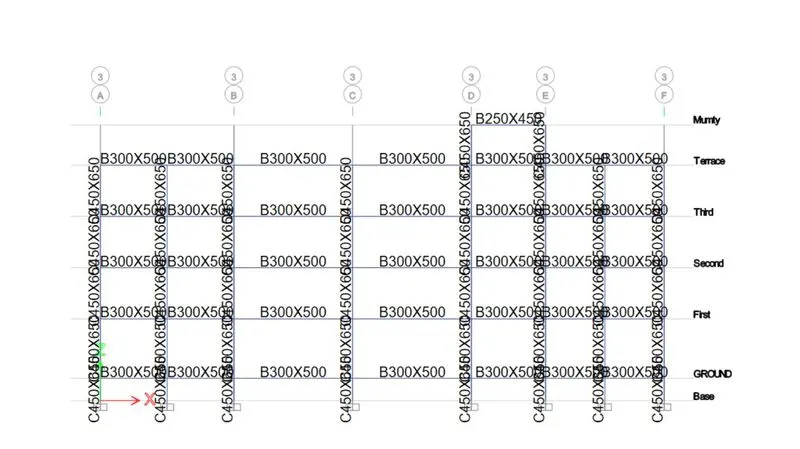

• Run the analysis and check the details about the structure.
• choose the Design output Results.

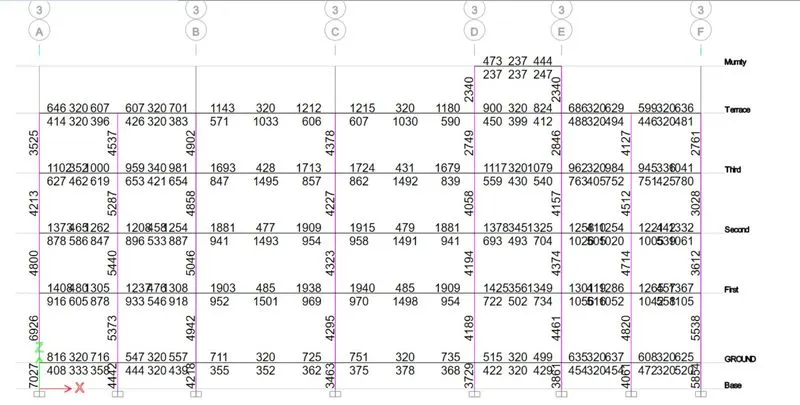

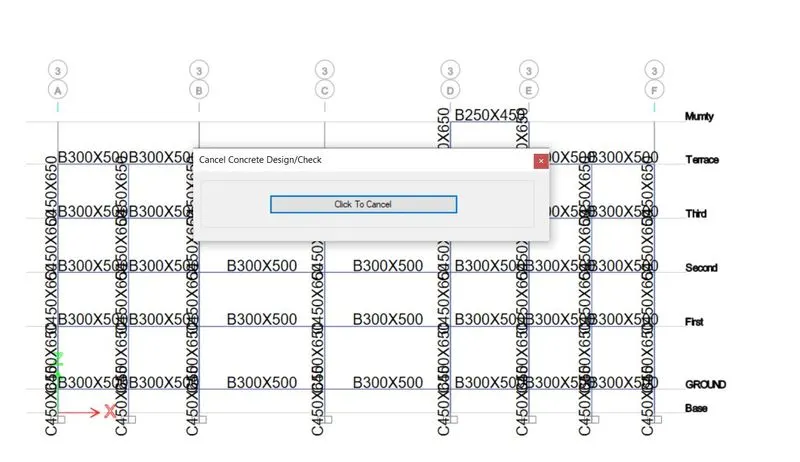

• after that we get the results of all reinforcement details in Design as shown below.

STEP 2

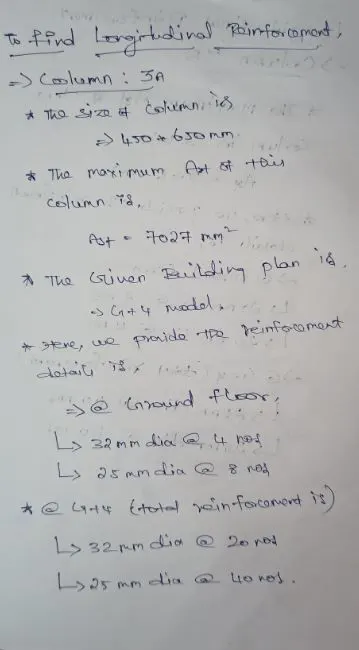

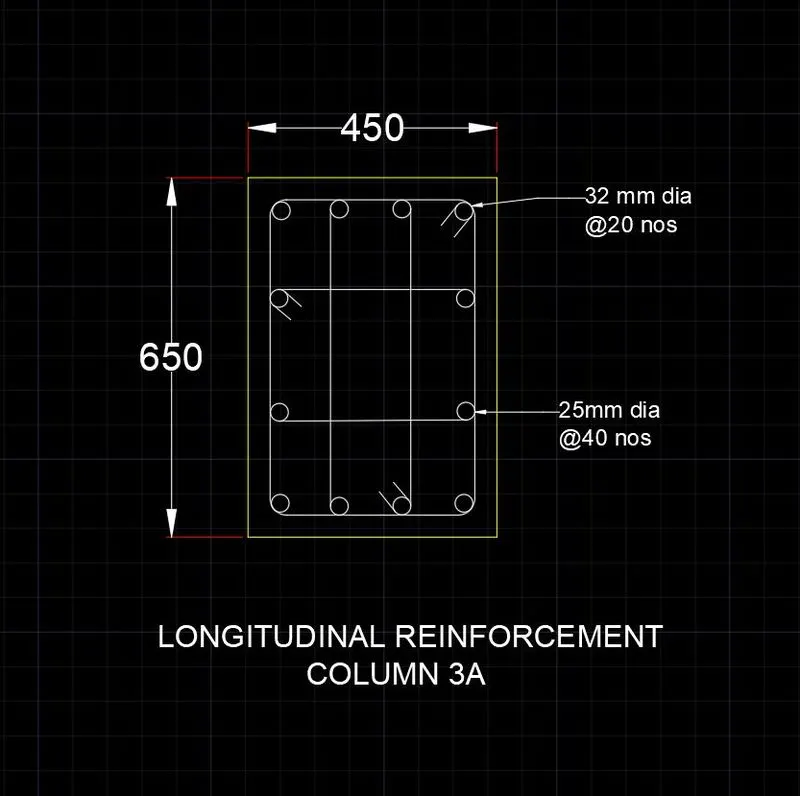

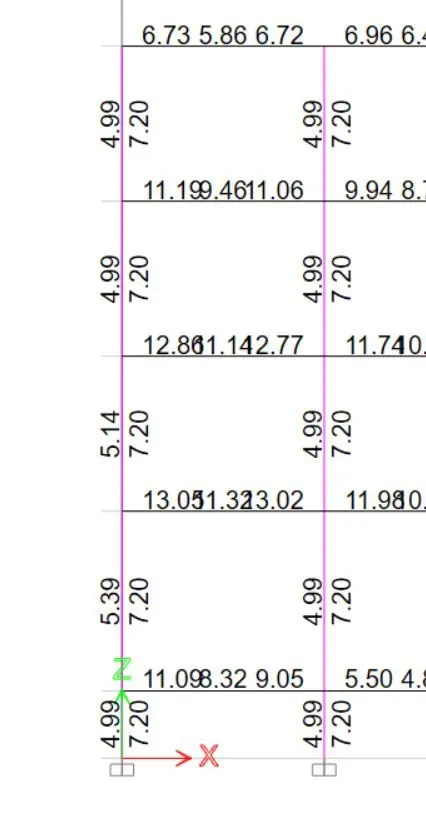

• Go to design and we select the Longitudinal reinforcement of Column 3A.

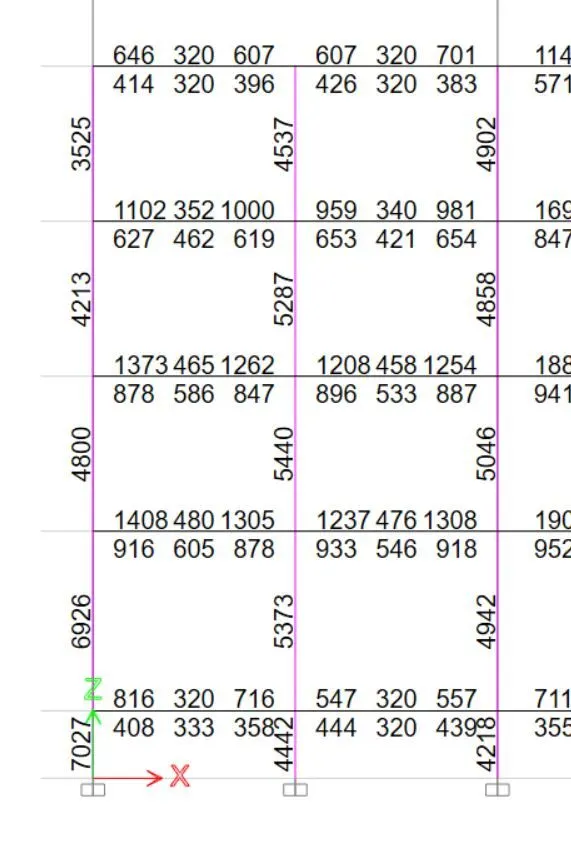

• To check and notice all longitudinal value through base to terrace.
• To take reference from IS 13920:2016.

STEP 3

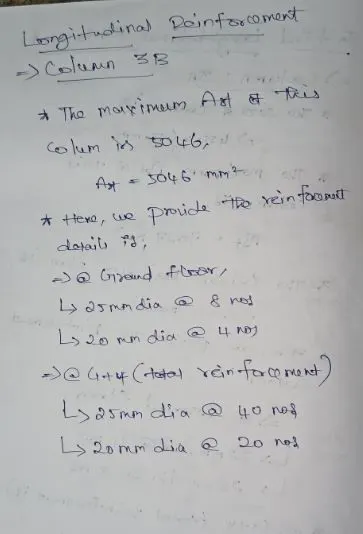

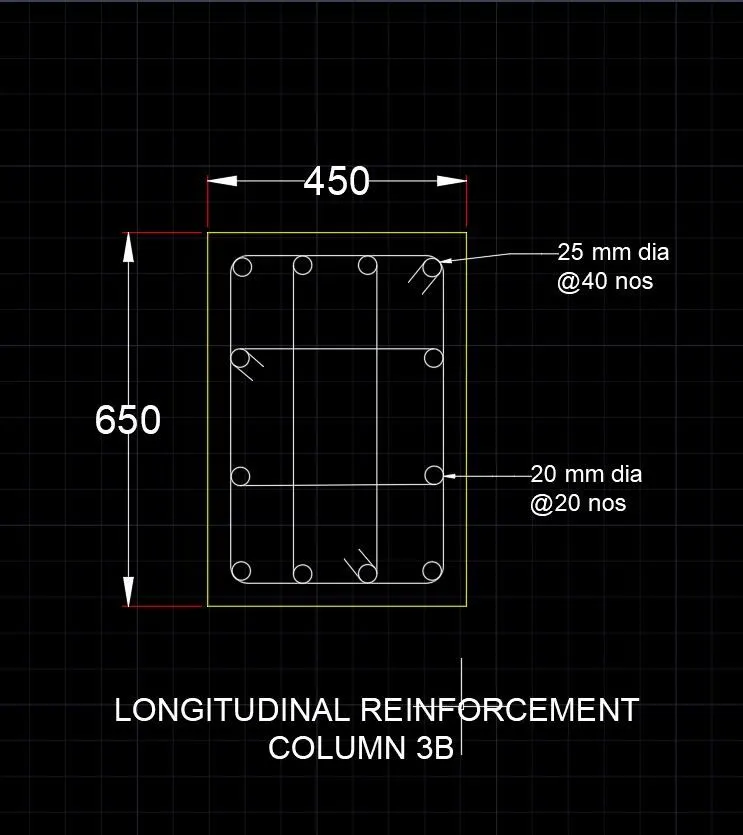

• To find longitudinal reinforcement details of column 3B
• to take reference from IS 13920:2016.

STEP 4

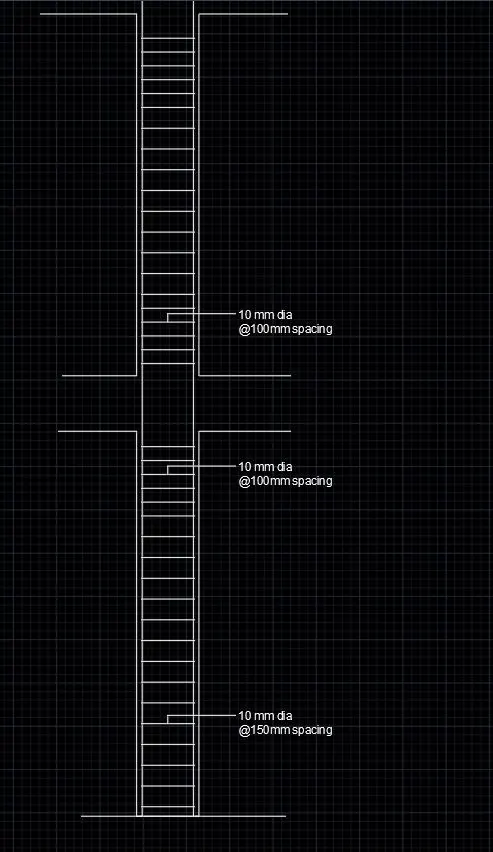

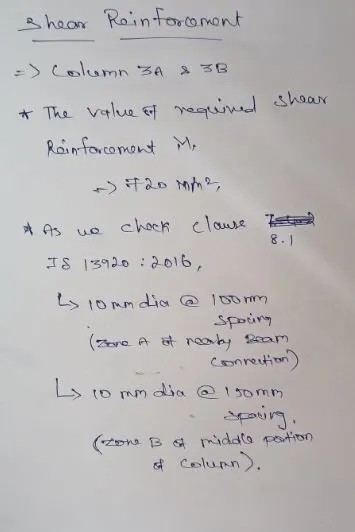

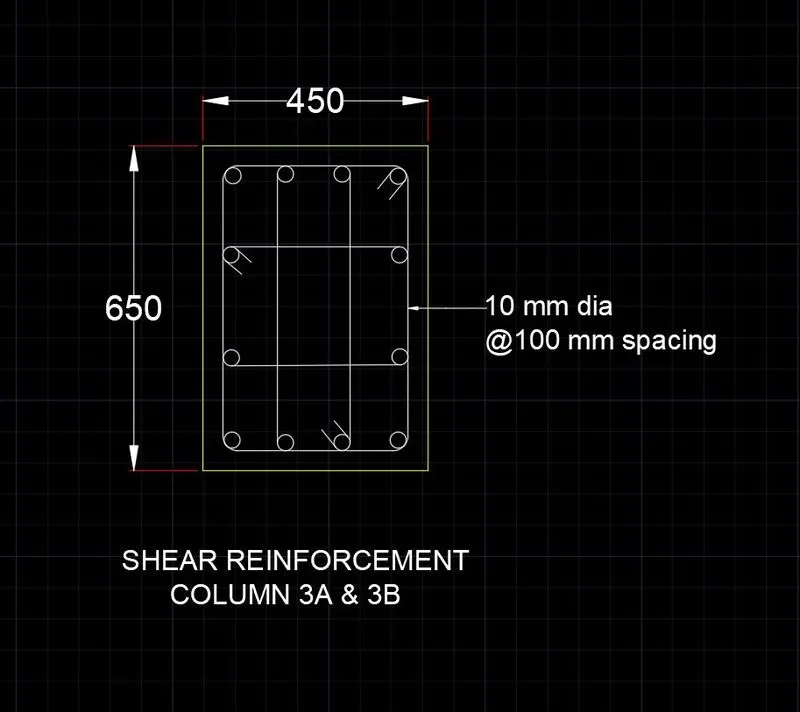

• To Find the shear reinforcement Details of both Column 3A and 3B.
