Reinforcement detailing of Columns from ETABS output
Reinforcement detailing of Columns from ETABS output.
Reinforcement detailing of columns in Etabs 2018.
The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment Resisting Frame. The following challenge deals specifically with two columns at the following grid intersections.
- 3A
- 3B

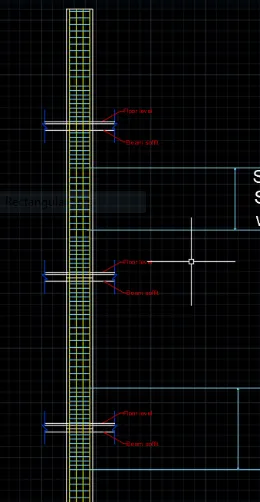

- Provide details of longitudinal reinforcement for the two columns, from foundation to terrace level. Sketch the column cross sectional & elevation details or draft it using autocad software.

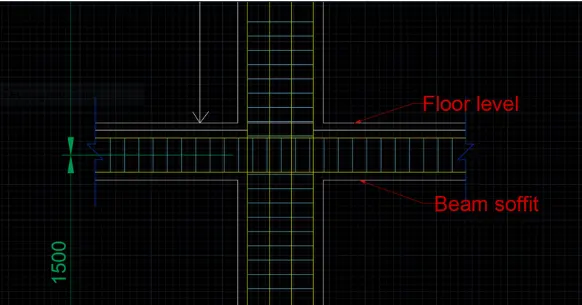

- Show shear reinforcement & lapping details as per special confining reinforcement provision of clause 8.1 of IS 13920 - 2016.
Ans:
Number of Longitudinal Bars
- Four within rectangular or circular ties.
- Six enclosed by spirals or for columns of special moment frames held by circular hoops.
- Three within triangular ties.
The highest of the Longitudinal reinforcement of the column from the Base to Terrace;

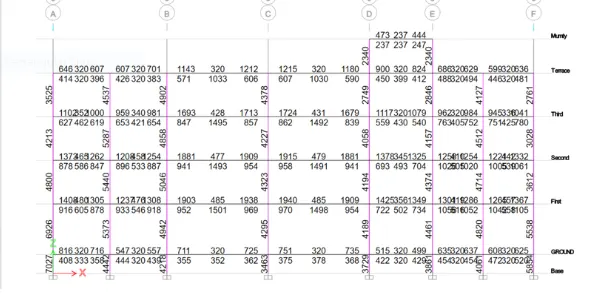

That is the highest of 7027,6926,4800,4213,3525 = 7027mm2 is Provided for the Column.

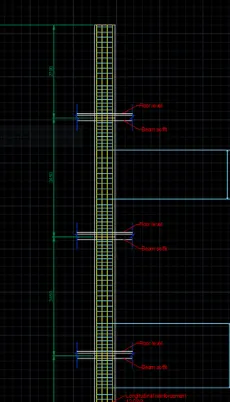

The reinforcement detailing for the Column is shown below:
Total no of longitudinal bars = (Total Asc of column)/(Asc of the any dia bar per meter)
Provide 12 bars of 28 mm diameter for the column =615.752*12 =7389mm2 >7027mm2

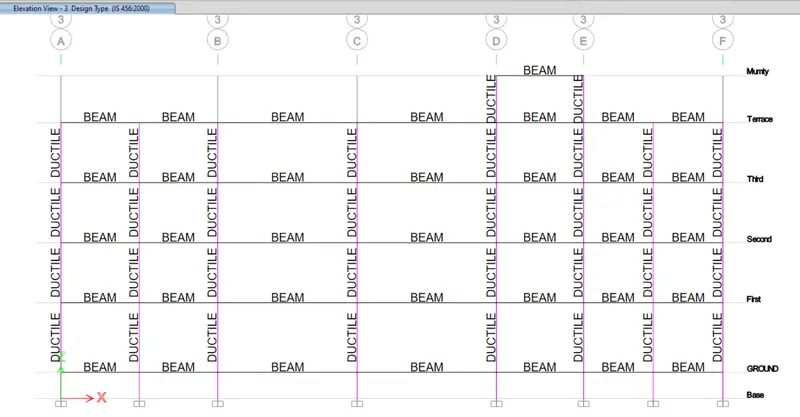

Open a G+4 Etab file
- Click the Concrete Frame Design tool
- Select the Display Design Info option
- Choose design output as Longitudinal Reinforcement

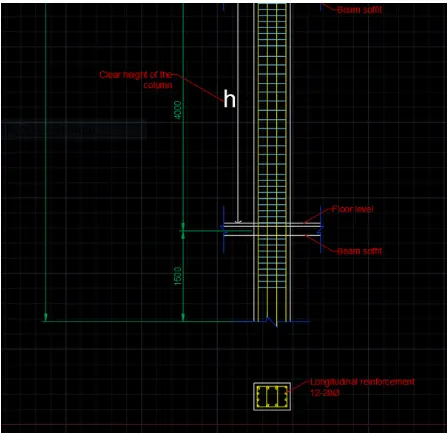

The reinforcement detailing for the Column is shown below:
Total no of longitudinal bars = (Total Asc of column)/(Asc of the any dia bar per meter)
Provide 8 bars of 25 mm diameter for the column = 490.87*8 = 3927mm2 and
Provide 4 bars of 20 mm diameter for the column = 314.16*4 = 1256.64mm2
Total =3927 + 1257 =5180 mm2 > 5046 mm2
