Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code
AIM OF THE PROJECT:
To Sketch a G+1 floor residential plan, according to Vaastu Shastra, and list down the names of the structural drawings required to be provided to the site for construction.
Also, assume the sizes of the structural elements (Column, Beam, Slab, etc.,) and accordingly calculate the individual corresponding loads from the members as per IS code.

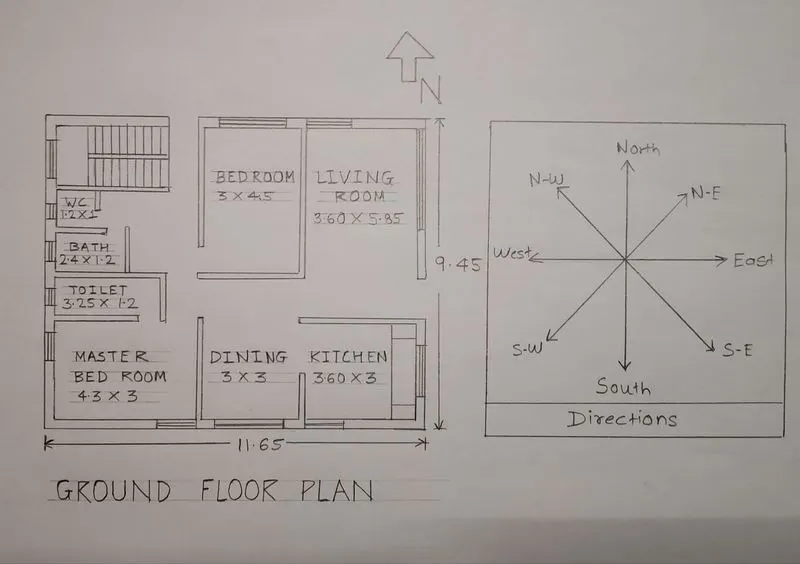

Ground Floor Plan :

(Dimension are in meters)
Dimension of Ground Floor Plan-
Living room-3.60 x 5.85m
Kitchen room-3.60 x3m
Dining room-3m x 3m
Master bedroom- 4.3 x 3m
Bedroom- 3m x 4.5m
Toilet- 3.25m x 1.2m
Bath- 2.4m x 1.2m
WC-1.2m x 1m

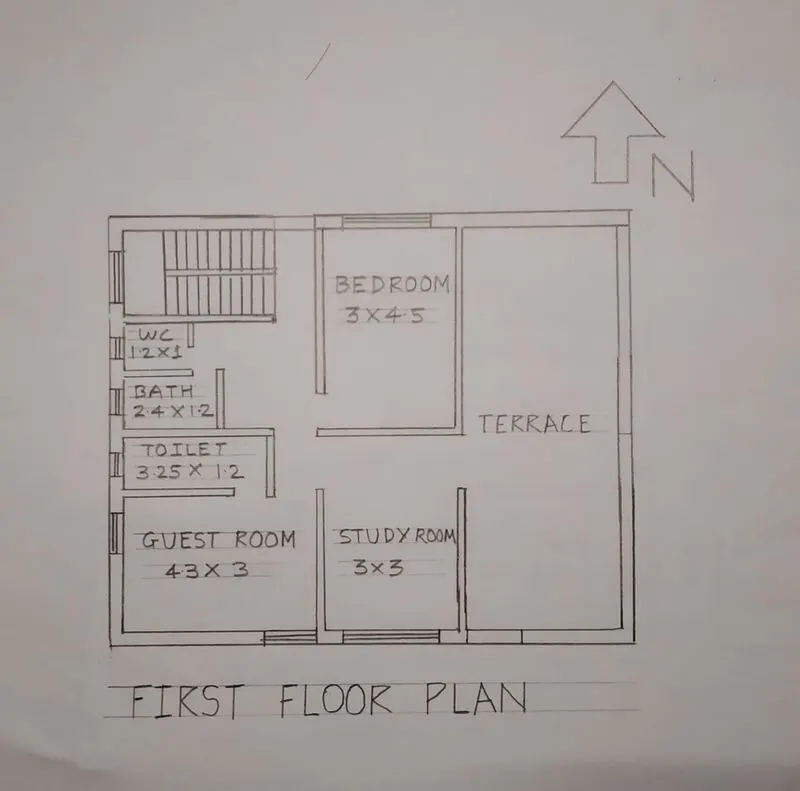

First Floor Plan-

(Dimensionss are in meters)
Dimension of First Floor plan-
Guest room-4.3 m x 3m
Study Room-3m x3m
Bedroom-3m x 4.5m
Toilet- 3.25m x 1.2m
Bath- 2.4m x 1.2m
Wc- 1.2m x 1m
Other Dimensions
-Thickness of Internal wall-0.15m(150mm)
-Thickness of External wall-0.23m(250mm)
-Thickness of slab-0.23m(230mm)
-Dimension of column-0.3m x0.3m
-Dimension of beam-0.3m x 0.45m
-Height of wall of each floor-3m
Vastu shastra followe during planning is -
- Entrance of the house is provided in the east direction which is the symbol of progress in the life.
- Living room is placed in north east direction.
- Master bedroom is placed in south west position this direction brings good health and prosperity.
- Kitchen is placed in south east direction
- Study room is placed in east direction
- Staircase is placed at Northwest corner
- Bathroom ,WC and toilet is placed in west direction.

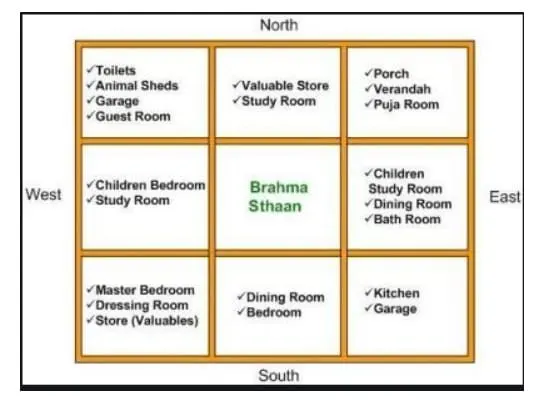

Concept of Vastu:

List of drawings provided at the construction project
-Center line drawing.
-Footing and column layout with reinforcement details.
-Column schedule with reinforecement details.
-Plinth beam layout with reinforcement deatils.
-First floor beam layout with reinforcement details.
-Lift pit headroom reinforcement details.
-Center line drawing.
-Floor plsns.
-Fondation plan.
-Design drawing.
-Block plan.
-Roof slab layout.
-Column layout.
-Site plan.
-Column section.
-Septic tank design.
-Overhead water tank design.
-Plinth beam section.
-Flooring plan.
-Furniture plan.
-Road drainage plan.
-Setting out paln.
-Sections drawings and buildings.
-Plumbing deatils.
-Electrification details.
Calculation of loads-
(A) Dead load calculations.
1.Dead load of columns-
Dimension of columns=0.3m x 0.3m(300m x 300m)
Height of column = (slab thickness x 2)+(Height of wall for each floor x 2)
=(0.25 x 2) + (3 x 2) = 6.5m
Total volume of concrete = 0.3 x 0.3 x 6.5=0.585 cubic m
Unit weight of Rcc = 25 KN/cubic m
Unit weight of building material used in construction work as per IS 875 (part 1)
Dead load of column = 25 x 0.585=14.62KN
2.Dead load of beams-
Dimenson of beam = 0.3m x 0.45m(300mm x 450mm)
Total volume of concrete= 0.3x 0.45 x 1=0.135 cubic m
Unit weight of Rcc= 25 KN/cubic m
Unit weight of building material used in construction work as per IS 875 (part 1)
Dead load of beam = 25 x 0.135=3.375 KN
3.Dead load of slab-
Slab is always designed for the span of 1m
Hence assume size of slab as 1m x 1m.
Thickness of slab =0.25m
Density of RCC=25 KN/ cubic m.
Self weight of slab = 1 x 1 x 0.25 x 25=6.25KN
4.Dead load of walls
-Dead load of external wall
Thickness of external wall = 0.23m (230mm)
Unit weight of brick wall = 20KN/ cubic m
Unit weight of Building material used in Construction work as per IS 875(part 1)
Height of wall= 3 m
Load of wall on beam = 3 x 0.23 x20=13.8 KN
-Dead load on inernal wall
Thickness of internal wall = 0.15m (150mm)
Unit weight of Building material used in Construction work as per IS 875(part 1)
Height of wall= 3 m
Load of wall on beam = 3 x 0.15 x20=9 KN
(B) Live load calculations-
(According to IS 875 part 2)
Bed room = 2 KN/sq m
Living room = 2KN/ sq m
Bath = 2KN/sq m
Terrace = 3KN/ sq m
Toilet = 2KN/ sq m
Staircase = 3KN/ sq m
Study room = 2KN/sq m
Kitchen = 2KN/ sq m
(C) Wind load calculation-
Wind load is desighned only when the height of the building exceeds 10m.
The height of designed building is 6.5m which is less than 10m.
so , the calculation of wind load is not required.
Refrences and IS codes used for the design-
IS 875:1987 , Part 1 for Dead load
IS 875:1987 , Part 2 for Live load
IS 875:1987 , Part 3 for Wind load
IS 456:2000,for reinforcement concrete.
Results-
-The plan is prepared by the vastu shastra concepts considering all the principles and consideration of vastu shastra.
-The load calculation are done as per the IS load considerations.
