Creating a Floor plan, Footing detail and Isometric view using AutoCad
Creating a Floor plan, Footing detail and Isometric view using AutoCad.
AIM: To Creating a Floor plan, Footing detail and Isometric view using AutoCad.
INTRDUCTION: The main objectives of this assignment is to get in touch with various tools in autocad like rectangle , line , polyline and modification tools like copy,move ,offset and modes like snap and ortho. This tool will be understood by creating a footing detail ,two bedroom building.Cross section of two bedroom building showing foundation details and isometric view of step and gable wall.

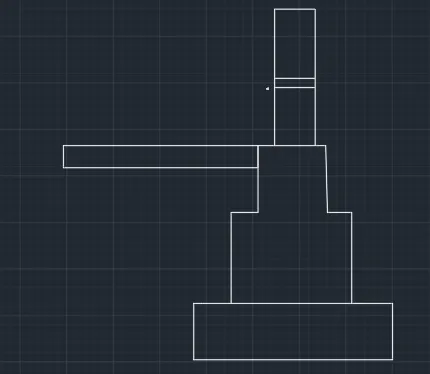

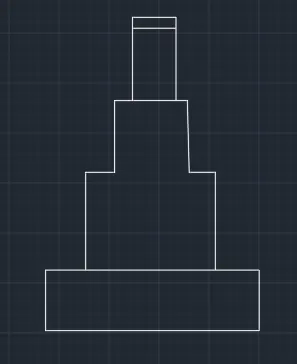

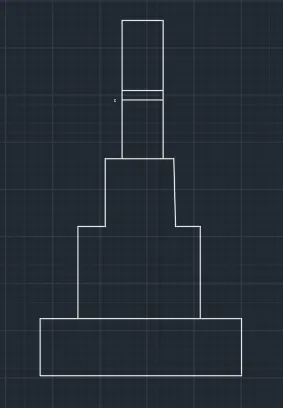

PART 1: Cross Section of load bearing wall over spread footing
The step by step procedure for drawing C.S of Load bearing wall over spread footing is as follows.
PROCEDURE:
Type Rec or Rectangle in the command line and press Enter.
Specify the first corner of the rectangle .
Type Rec or Rectangle in the command line and press Enter.
Specify the first corner of the rectangle.
Enter D for Dimensions.
Enter the length: .90
Enter the width: .25
Specify the other corner.
Type L in the command line and press Enter.
Specify the start point a.
Specify next point: @.20, 0
Specify next point:@0, .40
Specify next point:@.05,0
Specify next point:@0, .40
Specify next point:@.05, 0
Specify next point:@0, .60
Specify next point:@.30, 0
Specify next point:@0, -.60
Specify next point:@.05, 0
Specify next point:@0, -.40
Specify next point:@.05, 0
Specify next point:@ 0,-.40
Type L in the command line and press Enter.
Specify the start point b.
Specify next point: @0, .05
Specify next point:@.30, 0
Specify next point:@0,-.05
Type L in the command line and press Enter.
Specify the start point c.
Specify next point: @0, 1
Specify next point:@.30, 0
Specify next point:@0,-1
Type L in the command line and press Enter.
Specify the start point d.
Specify next point: @-.30, 0
Specify next point:@-.05, 0
Specify next point: @-1.15, 0
Specify next point:@0, -.15
Specify next point:@1.15, 0
Type L in the command line and press Enter.
Specify the start point e.
Specify next point: @.30, 0
Specify next point:@0, .15
Specify next point: @.30, 0
Specify next point:@0, .15
Specify next point: @.30, 0
Specify next point:@0, .15
Specify next point: @.30, 0
Type L in the command line and press Enter.
Specify the start point f.
Specify next point: @1, 0
Specify next point:@0, -.60
Specify next point: @-.95, 0

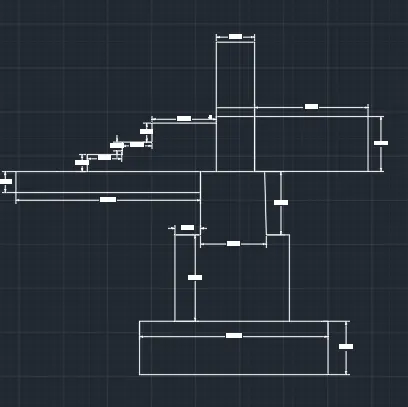

Give the dimensions as per the drawing using dimension command from the command bar.
The C.S of Load bearing wall over spread footing is completed.

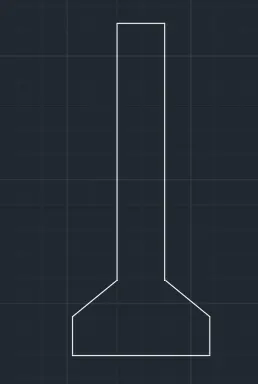

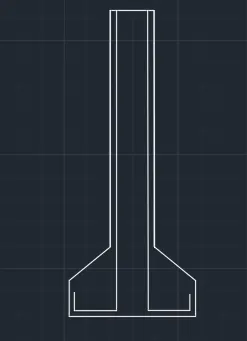

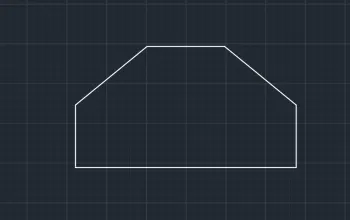

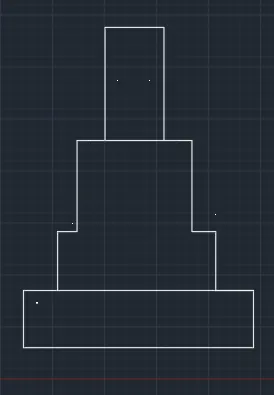

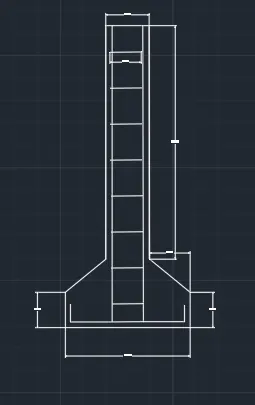

Part II: C. S of isolated footing
The step by step procedure for drawing C.S of isolated footing is as follows.
PROCEDURE:
The step by step procedure for drawing C.S of isolated footing is as follows.
PROCEDURE:
Type Rec or Rectangle in the command line and press Enter.
Specify the first corner of the rectangle.
Enter D for Dimensions.
Enter the length: 1
Enter the width: .30
Specify the other corner.
Type CHA or CHAMFER in the command line and press enter
Enter D for Distance
Specify first chamfer distance:.25
Specify second chamfer distance:.38
Select the first line ab and second line as
Repeat the same step on opposite side on line and
Delete line
Type L in the command line and press Enter.
Specify the start point .
Specify next point:@0, 1.60
Specify next point:@.24, 0
Specify next point:@0, -1.60
Type L in the command line and press Enter.
Specify the start point .
Specify next point:@.04,0
Specify next point:@0, -1.96
Specify next point:@-.38,0
Specify next point:@0,.04
Type L in the command line and press Enter.
Specify the start point
Specify next point:@-.04, 0
Specify next point:@0, -1.96
Specify next point:@.38,0
Specify next point:@0,.04
Type L in the command line and press Enter.
Specify the start point .
Specify next point:@.12, 0
Type O or offset on the command line and press Enter.
Specify the value of offset distance:.20
Select the object to offset
(We need to select the line with a small square cursor.)
Move the cursor inside to place the line and continue till required.
Give the dimensions as per the drawing using dimension command from the command bar.
The C.S of the isolated footing is completed

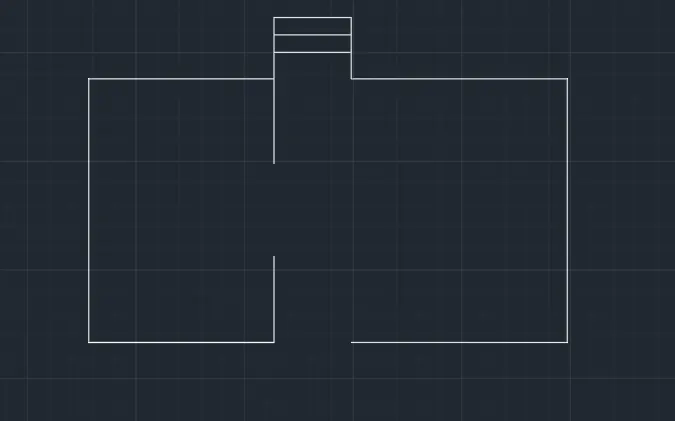

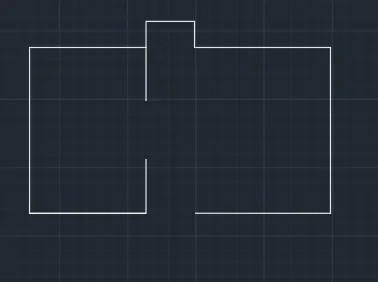

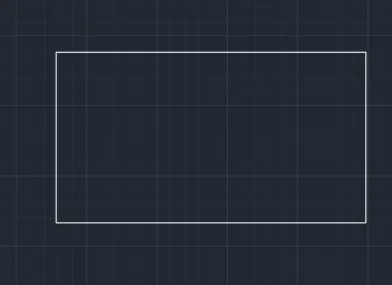

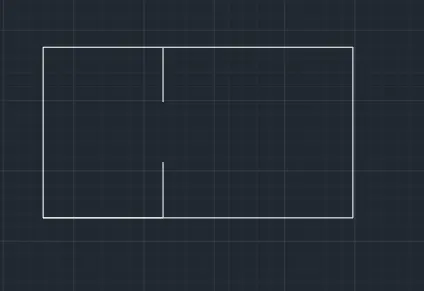

PART III: LINE DIAGRAM OF A TWO BEDROOM BUILDING
The step by step procedure for drawing line diagram of two bedroom building is as follows.
PROCEDURE:
Type L in the command line and press Enter.
Specify the start point .
Specify next point: @0, 1.80
Specify next point:@-3.60,0
Specify next point:@0, -3.60
Specify next point:@3.60, 0
Specify next point:@1, 0
Specify next point:@4.20, 0
Specify next point:@0, 3.60
Specify next point:@-4.20, 0
Specify next point:-1,
Delete the lines bc and de
Type PL in the command line and press Enter.
Specify the first point of the polyline b
Specify the next point:@0, .30
Specify the next point:@1, 0
Specify the next point: @0, -.30
Type CO in the command line and press Enter
Select the above polyline and specify the base point and paste it as required
The above two steps is to be followed here also in the same manner
Give the dimensions as per the drawing using dimension command from the command bar.
The line diagram of two bedroom building is completed

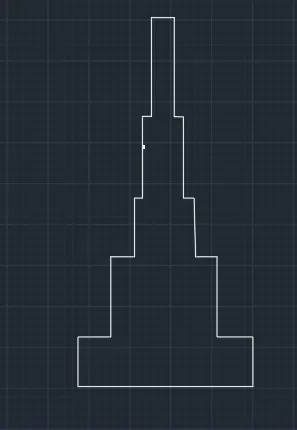

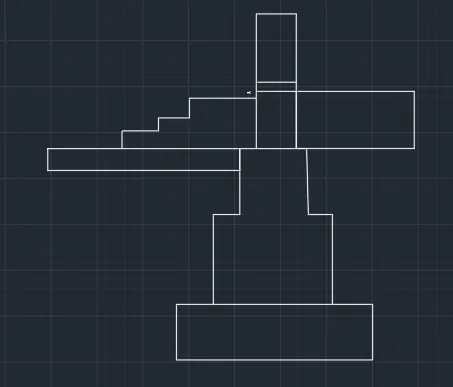

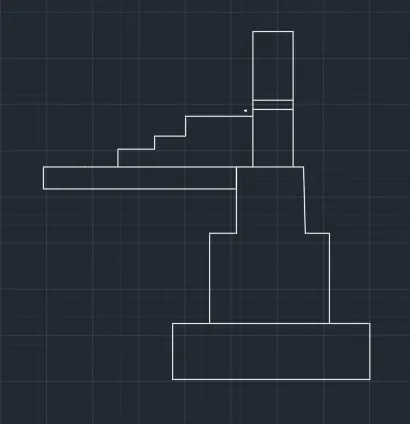

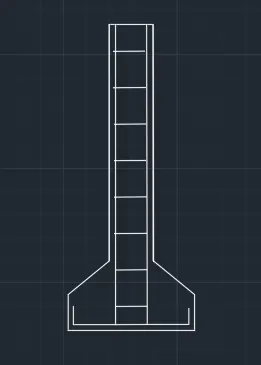

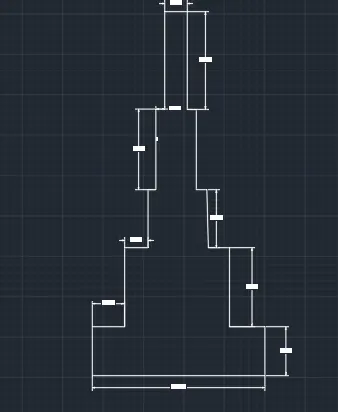

PART IV: C.S. OF LOAD BEARING WALL SHOWING FOUNDATION DETAILS
The step by step procedure for drawing C. S of load bearing wall is as follows
Type L in the command line and press Enter.
Specify the start point .
Specify next point: @0, .45
Specify next point:@.15, 0
Specify next point: @0, .40
Specify next point: @.05, 0
Specify next point: @0, .30
Specify next point: @.05, 0
Specify next point: @0, .60
Specify next point: @.05, 0
Specify next point: @0, 1
Specify next point: @.30, 0
Specify next point: @0, -1
Specify next point: @.05, 0
Specify next point: @0, -.60
Specify next point: @.05, 0
Specify next point: @0, -.30
Specify next point: @.05,0
Specify next point: @0, -.30
Specify next point: @.05, 0
Specify next point: @0, -.40
Specify next point: @.15, 0
Specify next point: @0, -.45
Specify next point: @-.90, 0.
Give the dimensions as per the drawing using dimension command from the command bar.
The C. S of load bearing wall is completed

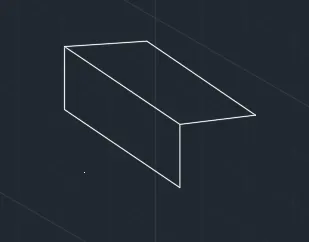

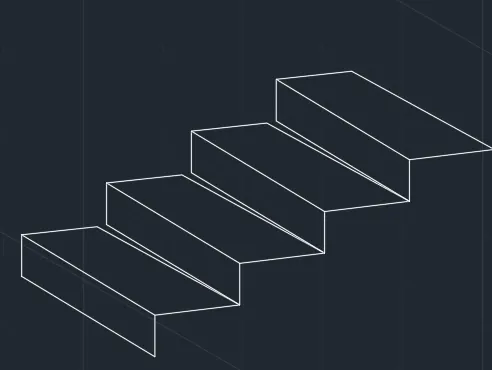

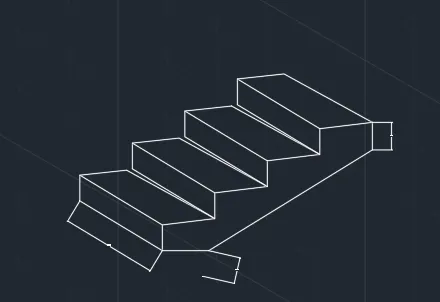

PART V: ISOMETRIC VIEW OF STEPS
The step by step procedure for drawing isometric view of steps is as follows.
Procedure:
Type DS in the command line and press enter.
Unpick snap on and grid on options
Tick on isometric snap in snap type.
This will activates the isometric screen.
Type PL in the command line and press Enter.
Specify the start point .
Take isoplane left
Specify the next point:1 ,curser towards NW
Take isoplane right
Specify the next point:.15, curser towards N
Specify the next point:1, curser towards SE
Specify the next point:.15, curser towards E
Type PL in the command line and press Enter.
Specify the start point b.
Take isoplane top
Specify the next point:.30, curser towards NE
Specify the next point:1, curser towards NW
Specify the next point:.30, curser towards SW
Type CO in the command line and press enter.
Select the complete step and press enter
Select as the base point and place it 4 times at the positions
Type L in the command line and press Enter.
Specify the start point:
Take isoplane right
Specify the next point: .15, curser towards S
Type L in the command line and press Enter.
Specify the start point:
Take isoplane right
Specify the next point:.30, curser towards NE
Type L in the command line and press Enter.
Specify the start point:
Specify the start point:
Give the dimensions as per the drawing using dimension command from the command bar.
The Isometric view of step is completed

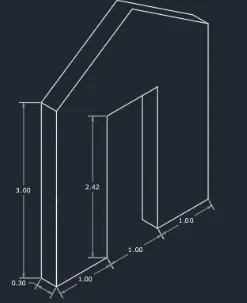

PART VI: ISOMETRIC VIEW OF GABLE WALL
The step by step procedure for drawing isometric view of gable wall is as follows.
PROCEDURE:
Type DS in the command line and press enter.
Unpick snap on and grid on options
Tick on isometric snap in snap type.
This will activates the isometric screen.
Type L in the command line and press Enter.
Specify the start point .
Take isoplane left
Specify the next point:.30 ,curser towards NW
Specify the next point:3, curser towards N
Specify the next point:.30, curser towards SE
Specify the next point:.3, curser towards E
Type L in the command line and press Enter.
Specify the start point a.
Take isoplane top
Specify the next point:1 ,curser towards NE
Specify the next point:1 ,curser towards NE
Specify the next point:1 ,curser towards NE
Delete the line BC
Type L in the command line and press Enter.
Specify the start point .
Take isoplane right
Specify the next point:2.42 ,curser towards N
Take isoplane top
Specify the next point:1 ,curser towards NE
Specify the next point:2.42 ,curser towards E
Type L in the command line and press Enter.
Specify the start point c.
Take isoplane left
Specify the next point:.30 ,curser towards NW
Take isoplane right
Specify the next point:2.12 ,curser towards N
Type L in the command line and press Enter.
Specify the start point a.
Take isoplane top
Specify the next point:1.5 ,curser towards NE
Take isoplane right
Specify the next point:3.25 ,curser towards N
Type L in the command line and press Enter.
Specify the start point .
Take isoplane left
Specify the next point:.30 ,curser towards NW

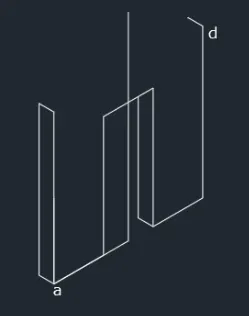

Type L in the command line and press Enter.
Specify the start point d.
Specify the next point: e
Specify the next point: f
Delete the line: eg and ag
Type L in the command line and press Enter.
Specify the start point h.
Specify the next point: i
Specify the next point: j
Give the dimensions as per the drawing using dimension command from the command bar.
The Isometric view of gable wall is completed
RESULTS
Created a Floor plan, Footing detail and Isometric view using AutoCAD and had good understanding about various tools in AutoCAD like the rectangle, polylines, modifications tools like copy, move, offset, Chamfor and modes like snap mode and ortho mode
