Reinforcement detailing of Columns from ETABS output

AIM: -

Run the analysis and design the RCC Moment ResistingFrame.

Provide details of longitudinal and shear reinforcement for the two Columns.

Sketch the Column elevation details or draft it using autocad software.

Show shear reinforcement & lapping details as per special confining reinforcement provision of clause 8.1 of IS 13920 - 2016.

PROCEDURE: -

Open the given file in ETABS

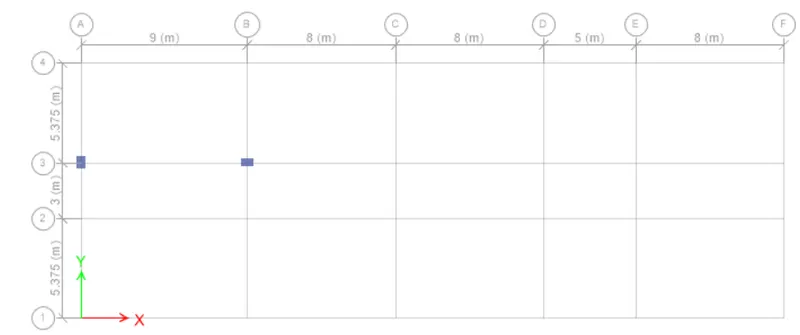

Select 3A and 3B columns from the model

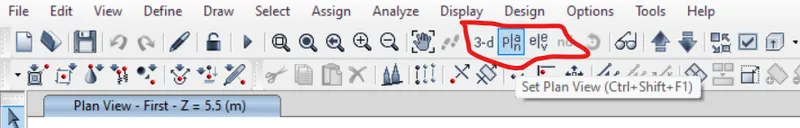

Select CTRL+SHIFT+F1

Click on Elevation tab

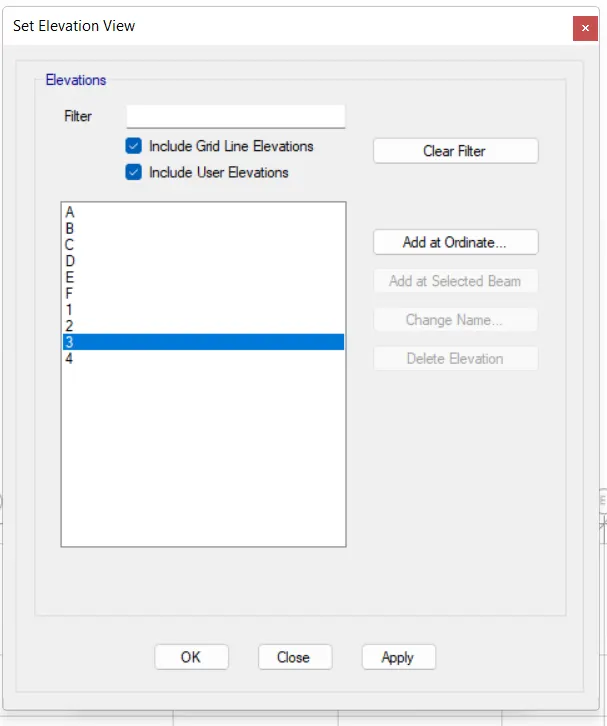

Set Elevatio View dialogue box opens

Click on Elevaion 3

Click on APPLY

Press OK

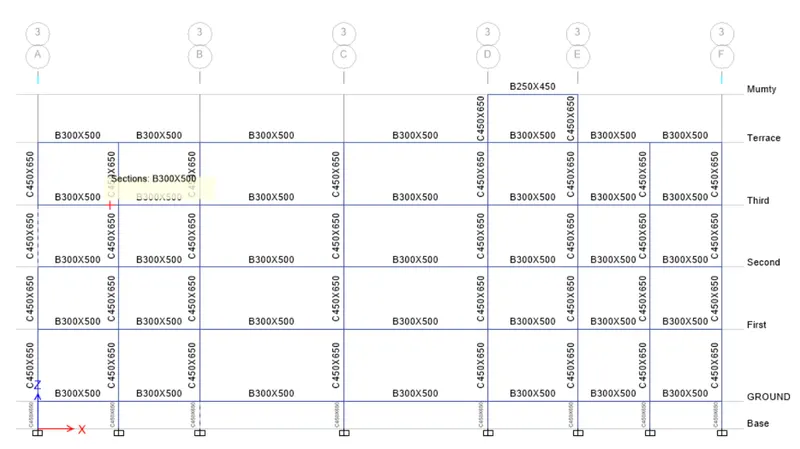

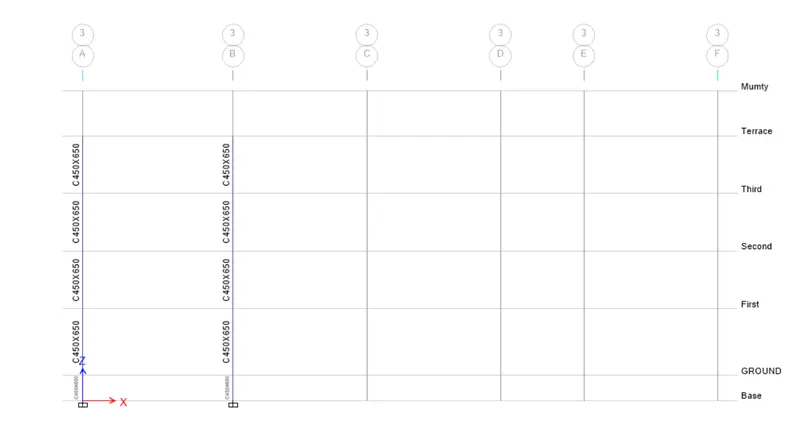

Selected columns in the selected Elevation view appears on the screen.

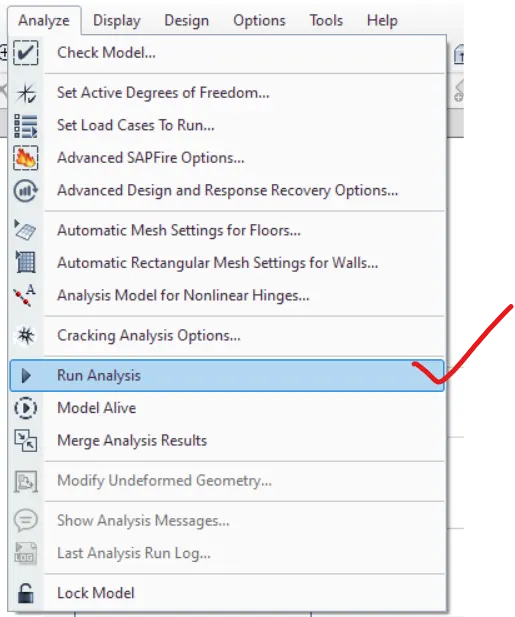

Click on Analyse Tab

Click on Run Analysis

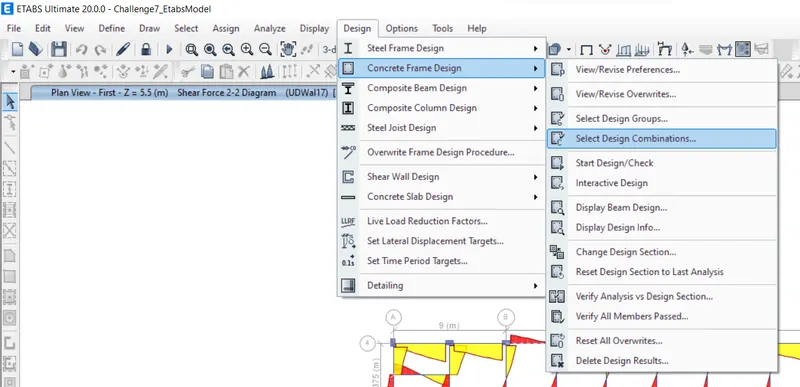

Click on DESIGN TAB

Click on Concrete Frame Design

Select Design Combinations

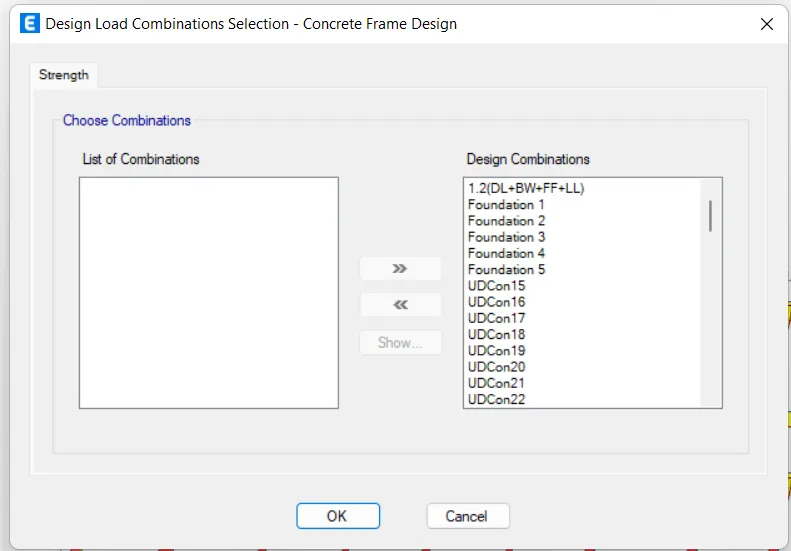

Design Load Combinations dialogue box opens

Choose the Combinations

Press OK

Click on DESIGN TAB

Click on Concrete Frame Design

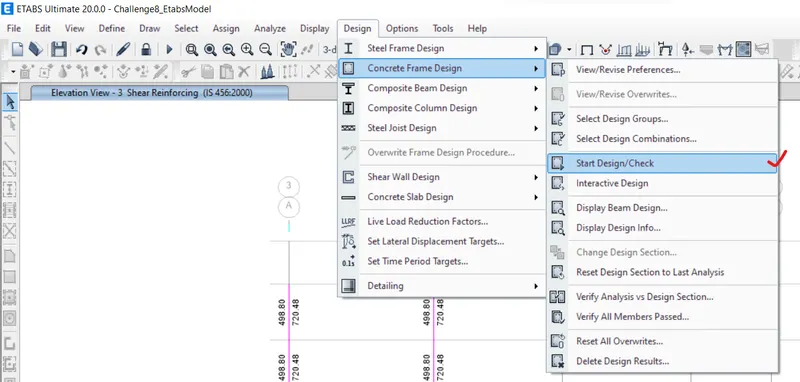

Select Start/Design Check

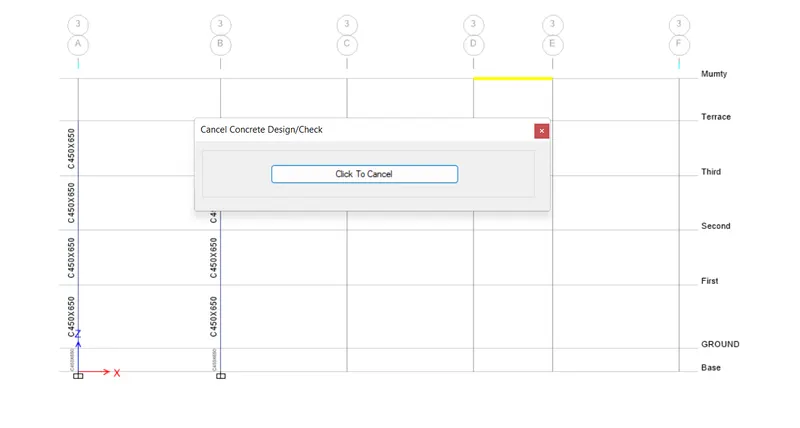

System designs the frame

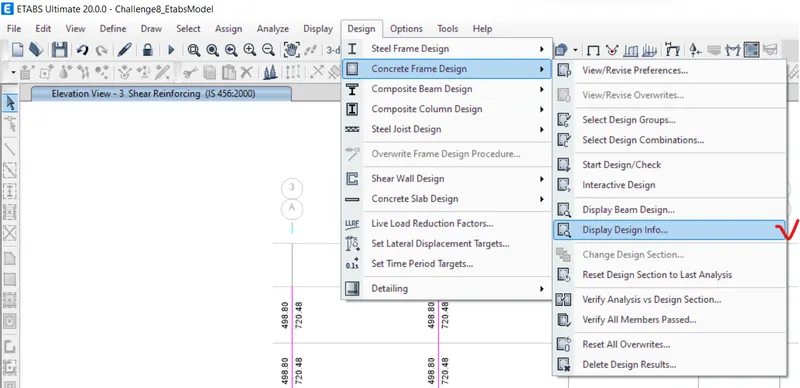

Click on DESIGN TAB

Click on Concrete Frame Design

Select Display Design Info

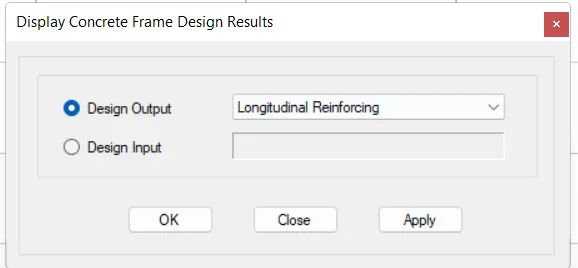

Display Concrete FrameDesign Results dialogue box opens

Design output: Longitudinal Reinforcing

Click on APPLY

Press OK

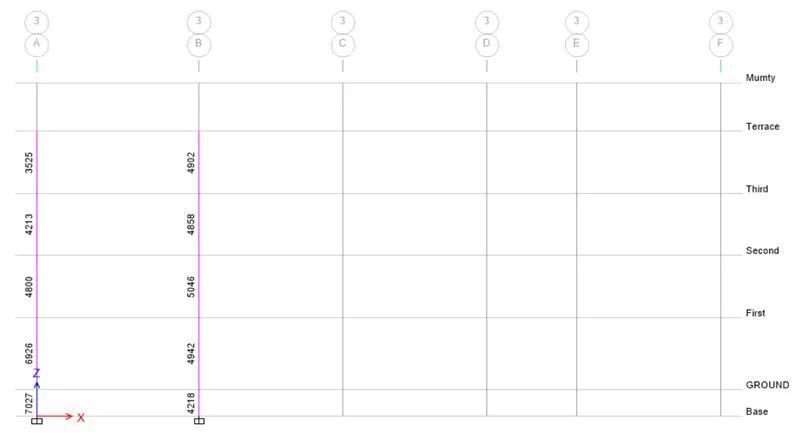

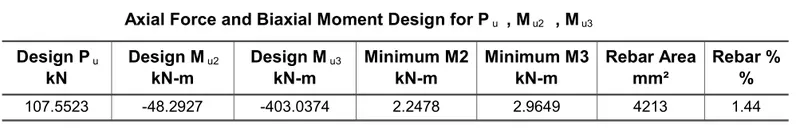

3A & 3B-Longitudinal Reinforcement

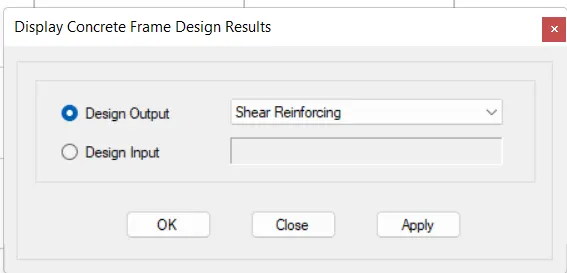

Display Concrete FrameDesign Results dialogue box opens

Design output: Shear Reinforcing

Click on APPLY

Press OK

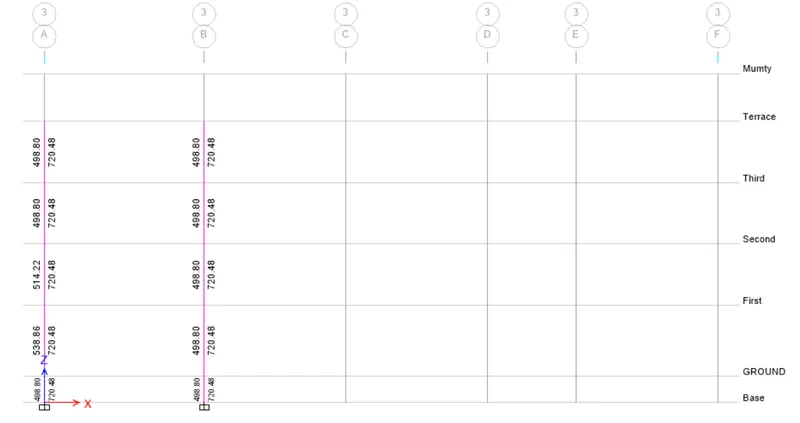

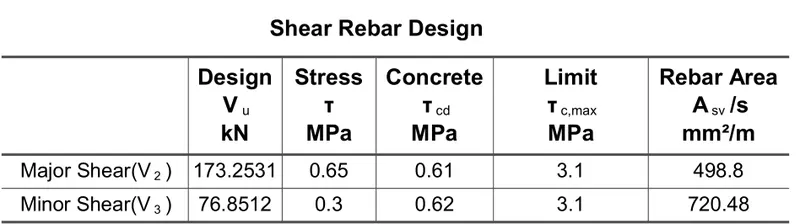

3A & 3B- Shear Reinforcement

COLUMN DESIGN As per IS 13920

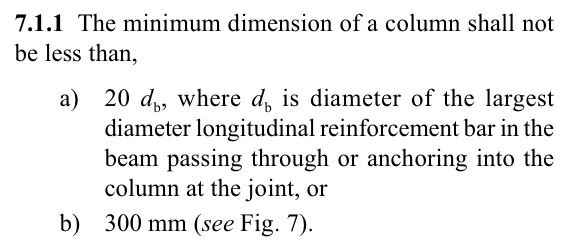

Clause 7.1.1

width >300mm

>20*20(Largest diameter longitudinal reinforcement in the beam)

Provided width of column= 400m

450mm > 400mm...........O.K.

Clause 7.1.2

Aspect Ratio:

Width/depth >0.45

450/650 = 0.69

0.69>0.45..................O.K.

IS 456 Clause 26.5.3.1

Minimum Reinforcement= 0.8%bD

= (0.8*450*650)/100

Ast(min)=2340mm2

Maximmum Reinforcement= 4%bD

= (4*450*650)/100

Ast(max)=11700mm2

Ast(min) < Ast(prov) < Ast(max)

2340mm2<4213mm2<11700mm2

Provide 9 no's 25mm dia bars.

PITCH (SPACING):

IS 456 Clause 26.5.3.1

g) Spacing <300mm

TRANSVERSE REINFORCEMENT

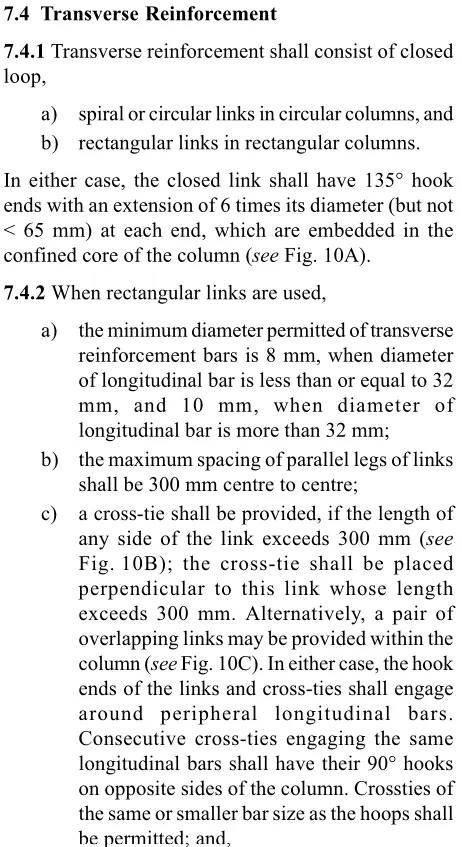

IS 13920 Clause 7.4.2

Spacing= min(300mm, least lateral dimension/2)

= min (300mm, 450/2)

= min (300mm,225mm)

Provide 2 legged 10mm dia at 200mm c/c

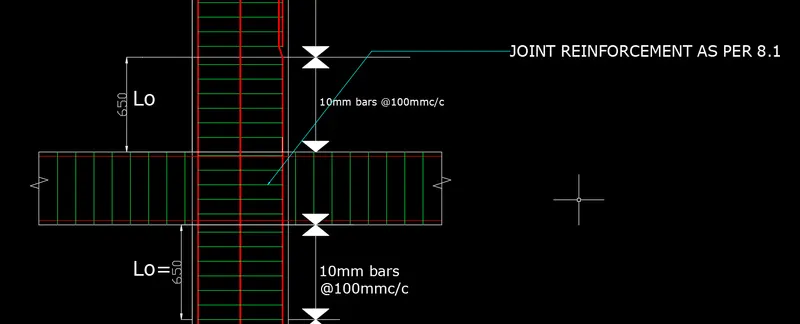

SPECIAL CONFINING REINFORCEMENT

Lo not less than-

1. Larger column dimension = 650mm
2. 1/6 of clear span of column = 491mm
3. 450 mm

Provide Lo of 650mm

Confinement spacing not more than-

1. ¼ of smaller column dimension = 450/4 = 112mm
2. 6 times of dia of column main bar= 6*25 = 150mm
3. 100mm

Provide 100mm spacing

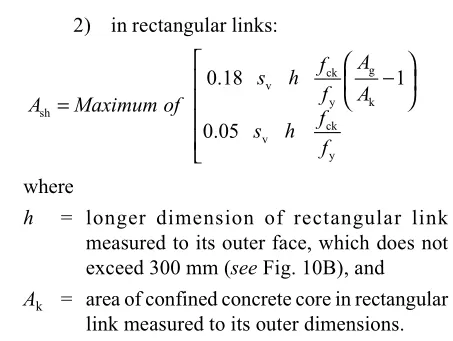

Ash = 180mm2

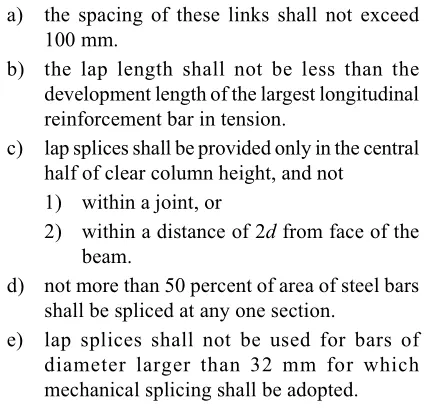

LAP SPLICING:

Anchorage Length:

`L_d=(0.87*f_y*d)/(4*tau_(bd)`

= `(0.87⋅415⋅d)/(4⋅(1.6)⋅1.4)`

= 40d

Anchorage Length = Ld +10d -8d

(Allowance for 90 degree bend = 8d)

X =42d

X =42*25

X =1050mm

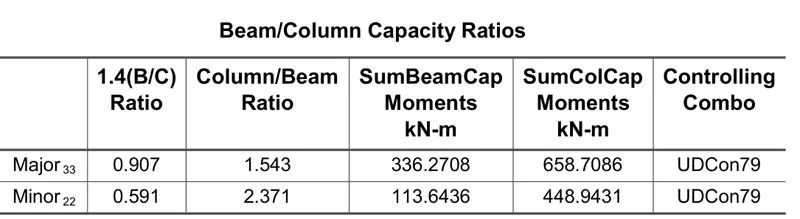

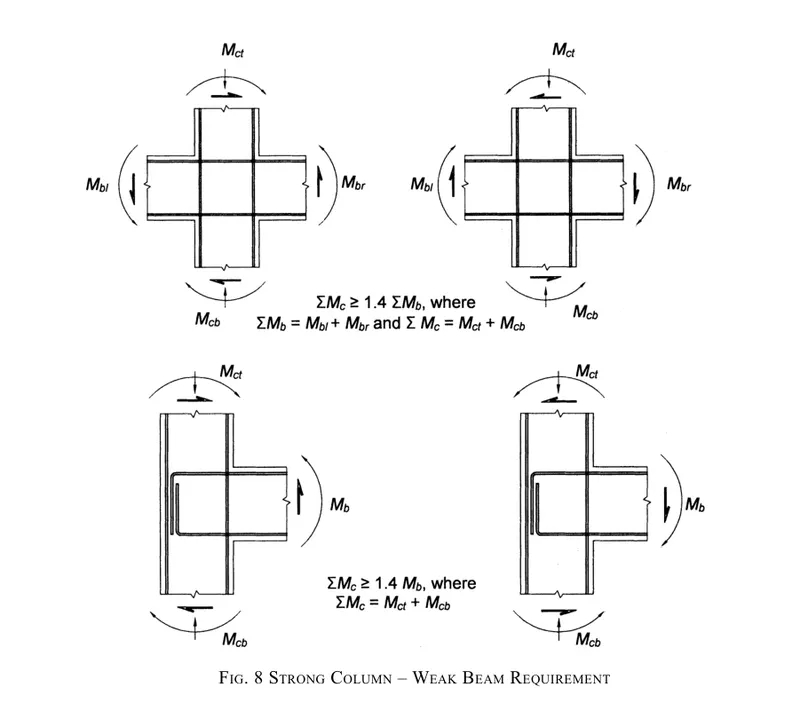

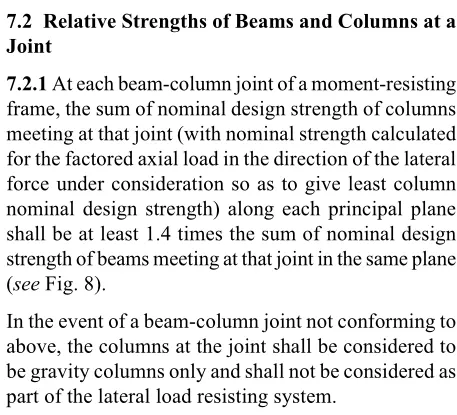

STRONG COLUMN-WEAK BEAM REQUIREMENT:

RESULT: -

• Ran the analysis of the model.

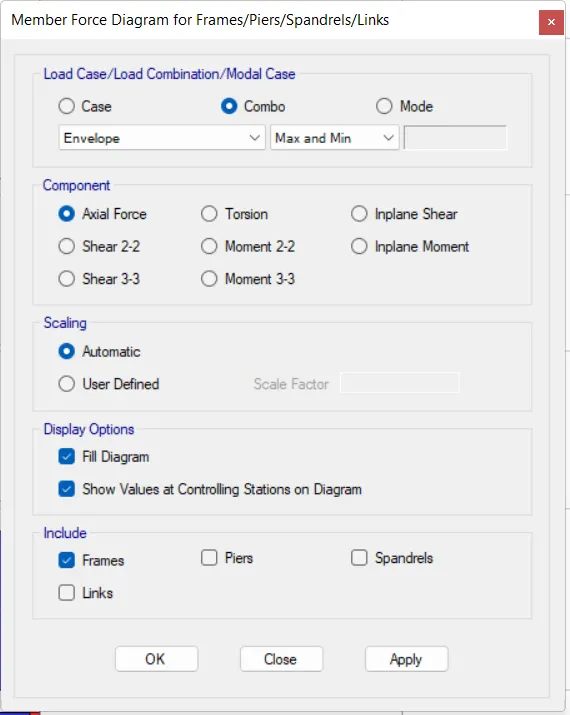

Created ENVLOPE load case to see maximum and minimum forcesat any section.

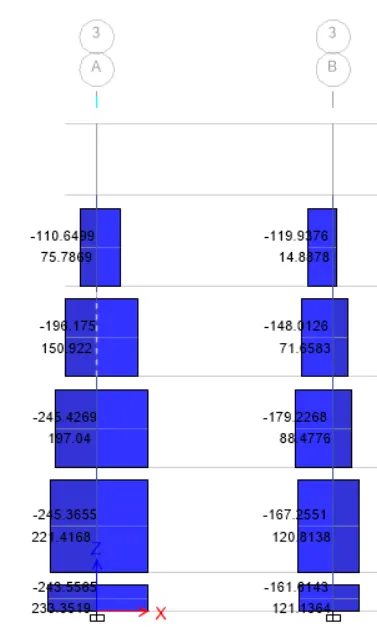

Shear 2-2

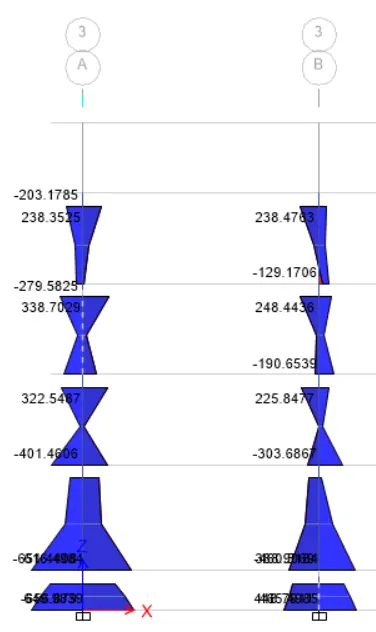

MOMENT 3-3

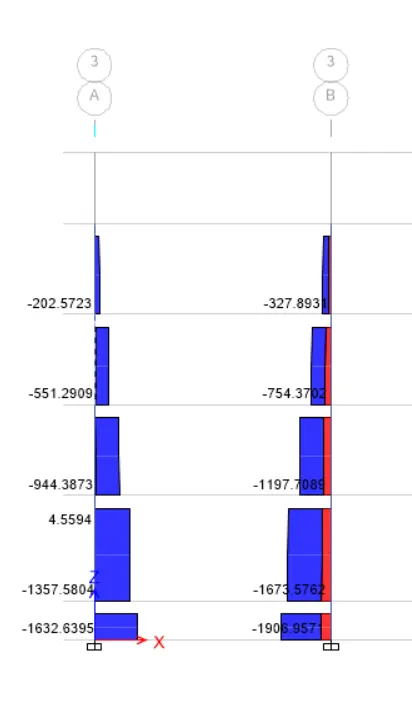

AXIAL FORCE

• Provided details of longitudinal reinforcement for the two columns (3A and 3B), from foundation to terrace level.

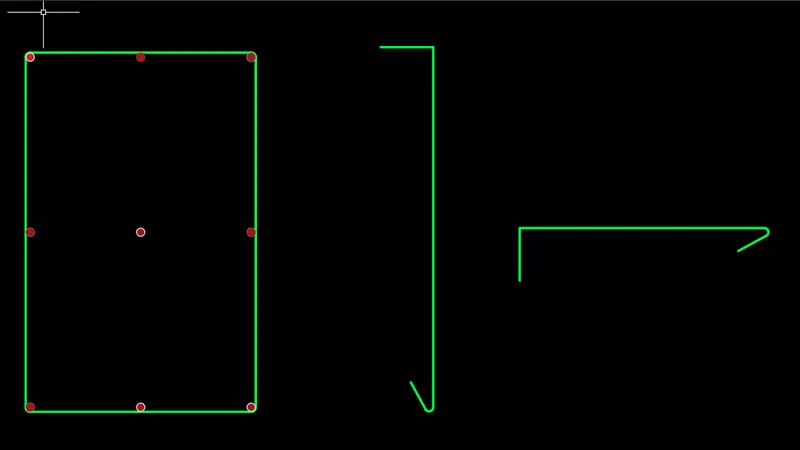

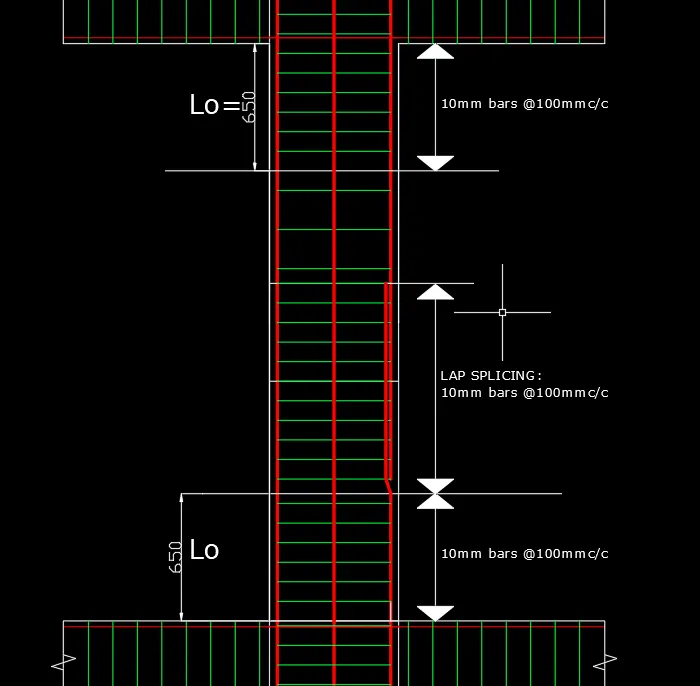

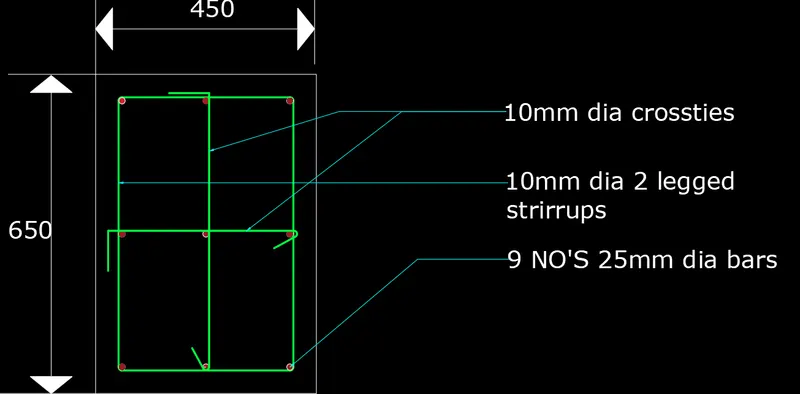

• Shown the column cross sectional & elevation details using AutoCAD software.
• Shown shear reinforcement & lapping details as per special confining reinforcement provision of clause 8.1 of IS 13920 - 2016.
