INTRODUCTION: Reinforced concrete beams are structural elements that designed to carry transverse external loads. The loads cause bending moment, shear forces and in some cases torsion across their length.Moreover, concrete is strong in compression and very weak in tension. Thus, Steel reinforcement used to take…
Arun Kumar
updated on 07 Aug 2023
INTRODUCTION:
Reinforced concrete beams are structural elements that designed to carry transverse external loads. The loads cause bending moment, shear forces and in some cases torsion across their length.Moreover, concrete is strong in compression and very weak in tension. Thus, Steel reinforcement used to take up tensile stresses in reinforced concrete beams. Furthermore, beams support the loads from slabs, other beams, walls, and columns. They transfer the loads to the columns supporting them. Additionally, beams can be simply supported, continuous, or cantilevered. they can be designed as rectangular, square, T-shaped, and L-shaped sections. Beams can be singly reinforced or doubly reinforced. The latter are used if the depth of the beam is restricted. Finally, in this article, the design of rectangular reinforced concrete beam will be presented.
As per clause 6.3.3 design shear force will be 107.62KN
Maximum shear force =85.67KN
RESULT:
The beams are designed successfully in detail from the Etabs software.

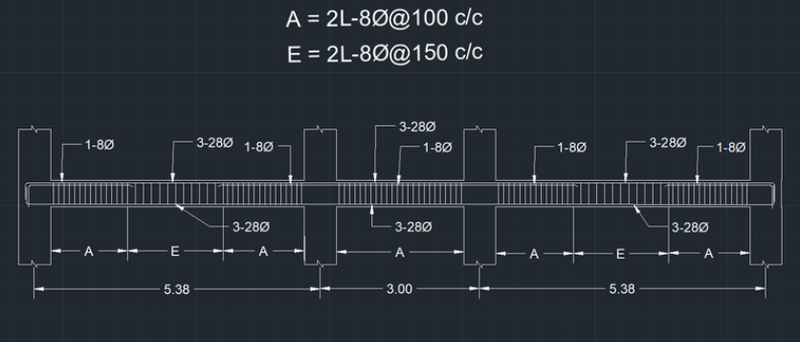

Provided the details of longitudinal and shear reinforcement for the two continuous beams.
And also calculated the value of maximum shear force in the continuous beams using the Etabs software.
As per clause 6.3.3 design shear force will be 107.62KN
Maximum shear force =85.67KN
