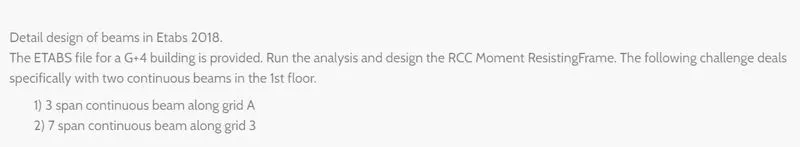

Reinforcement Detailing of Beams from ETABS output

ANSWER

STEP 1

• open the model of G+4 building

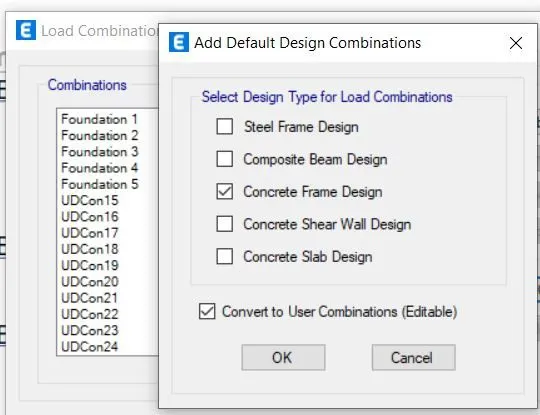

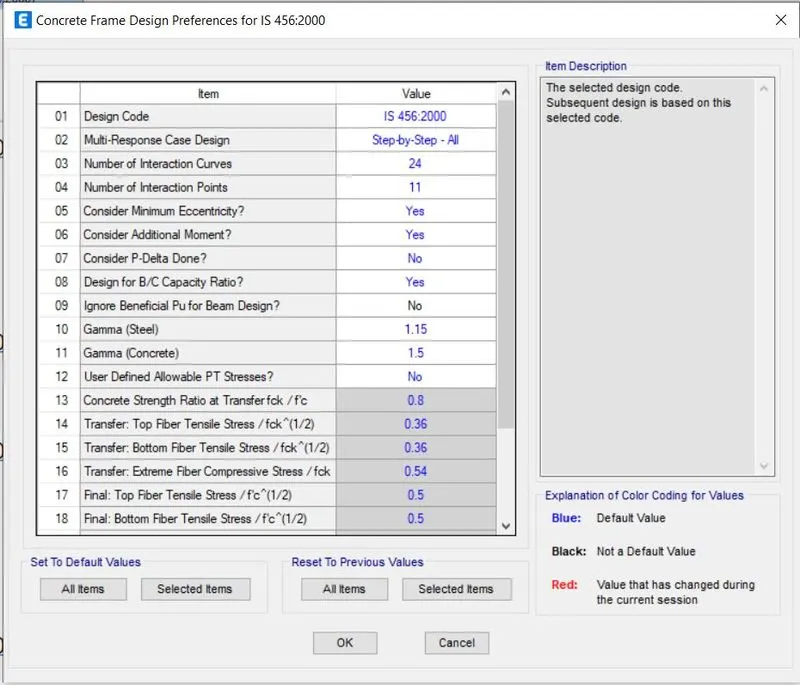

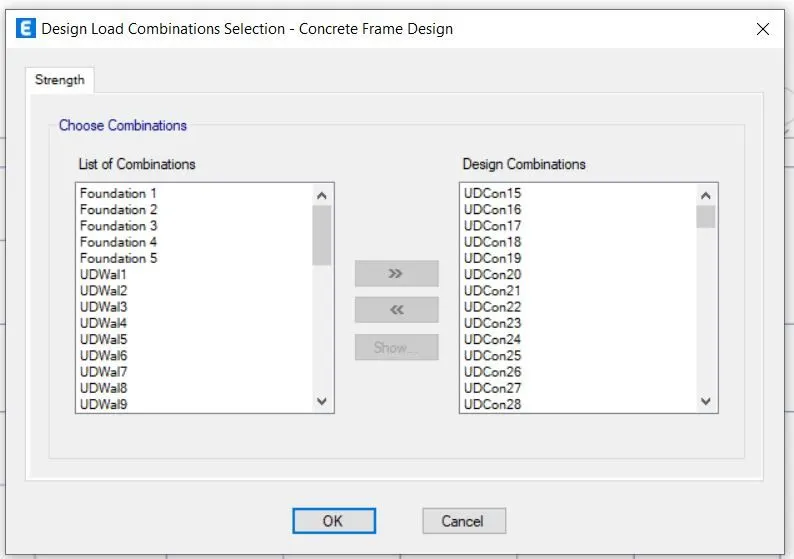

• To choose the load combination about a structure.
• select design > Load combination > set to concrete frame design
• click ok.

STEP 2

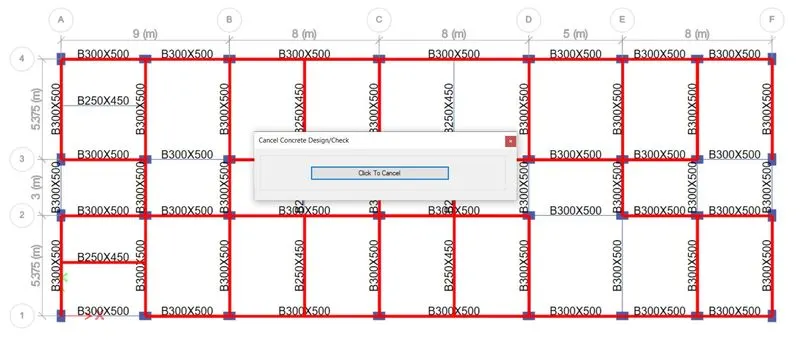

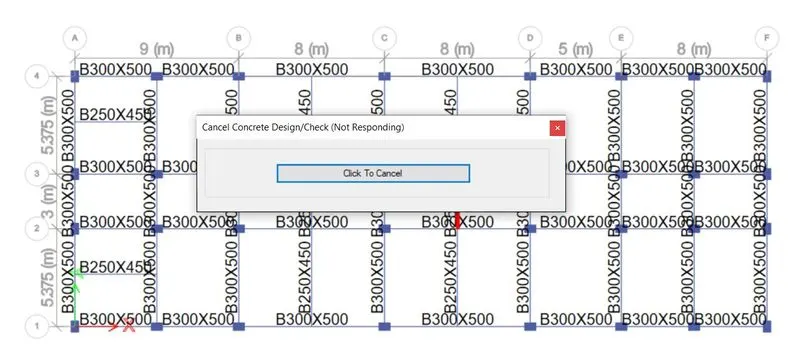

• After, we get to the analysis process on structure.
• once the analysis is done, go to the appropriate plan view.
• Then to checking the structural frame concrete design.

STEP 3

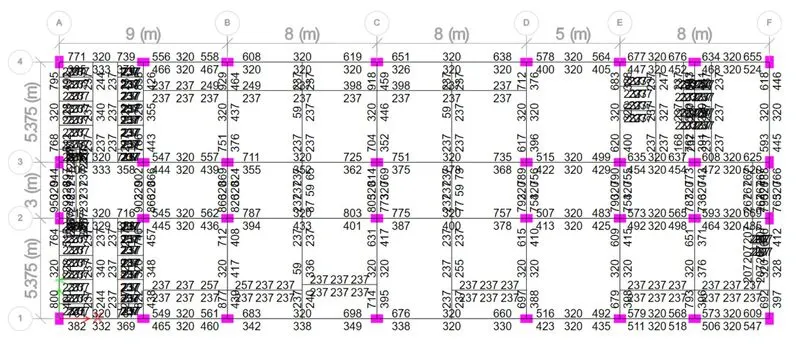

• After checked the design, go and view the analysing design column and beam details.

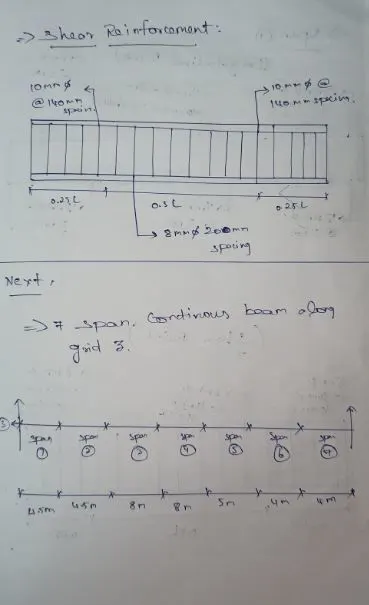

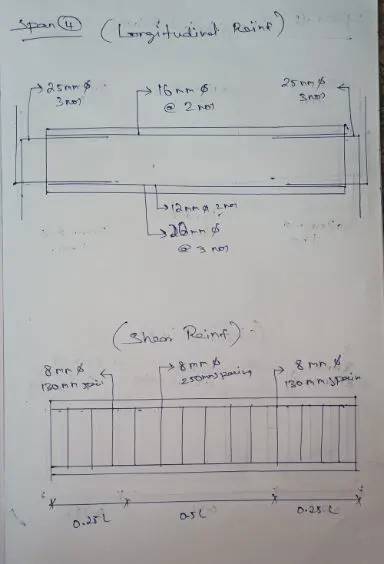

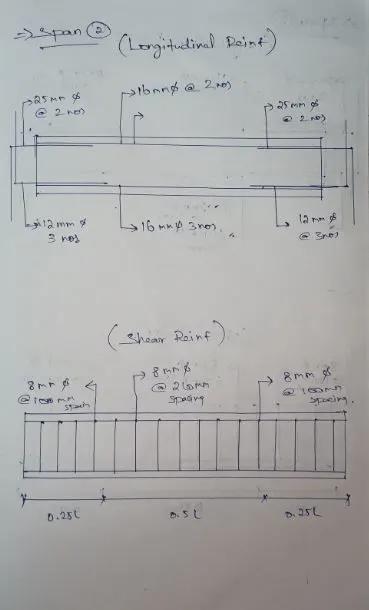

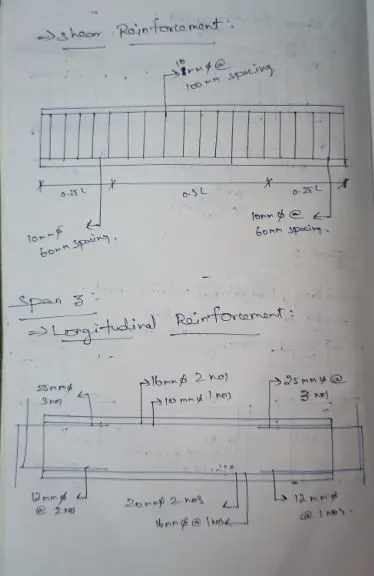

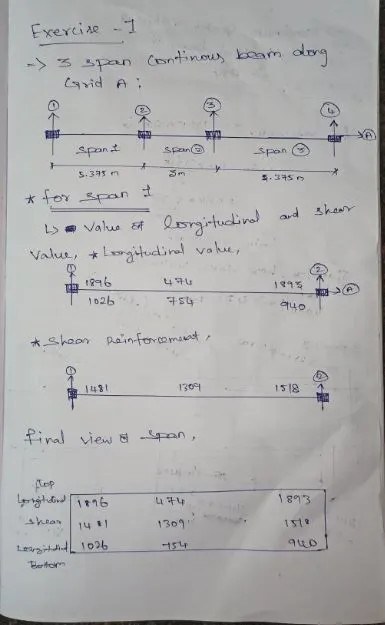

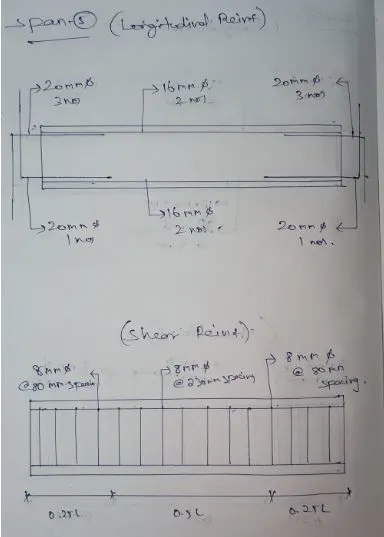

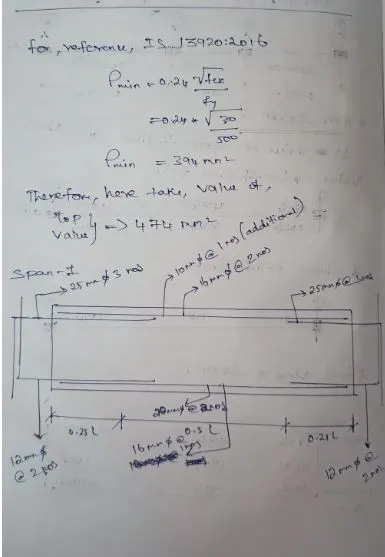

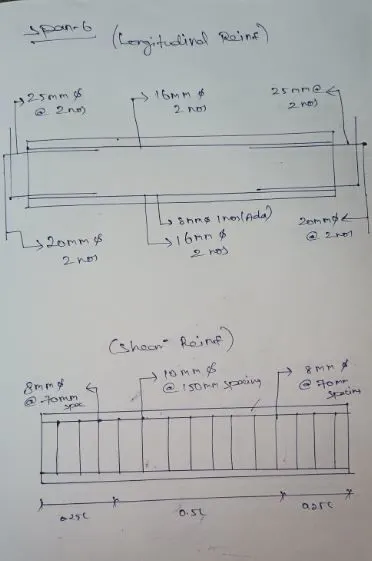

• for here, we choose the Grid 3 and Grid A for providing the longitudinal and shear reinforcement details as per IS 13920, IS 1893.

STEP 4

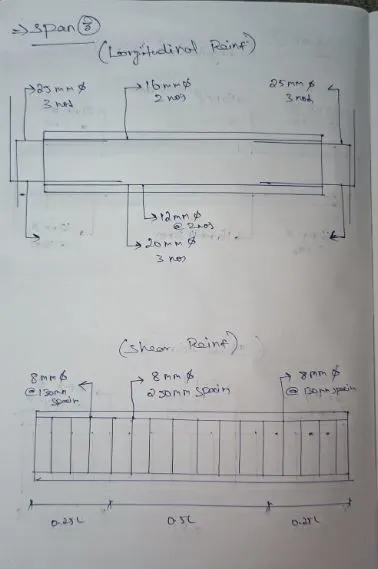

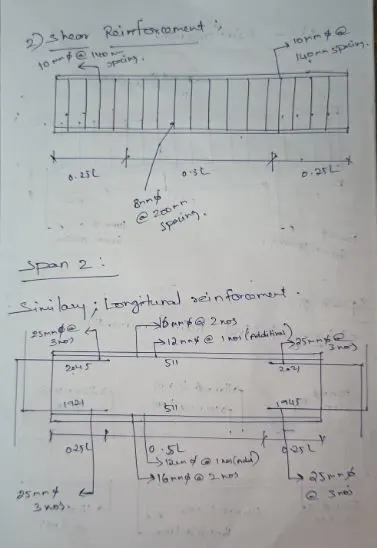

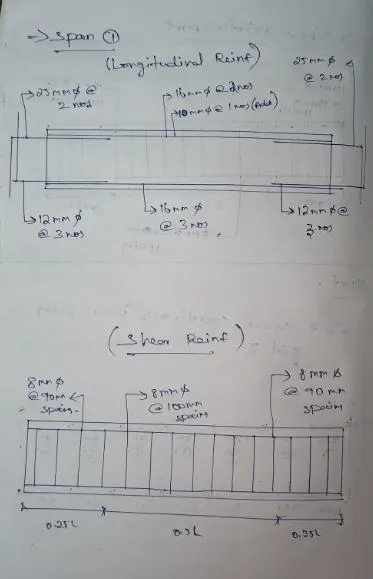

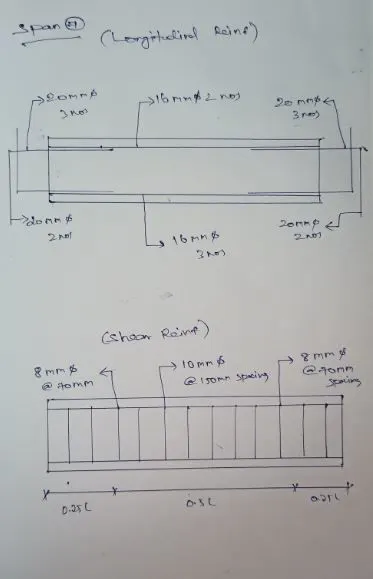

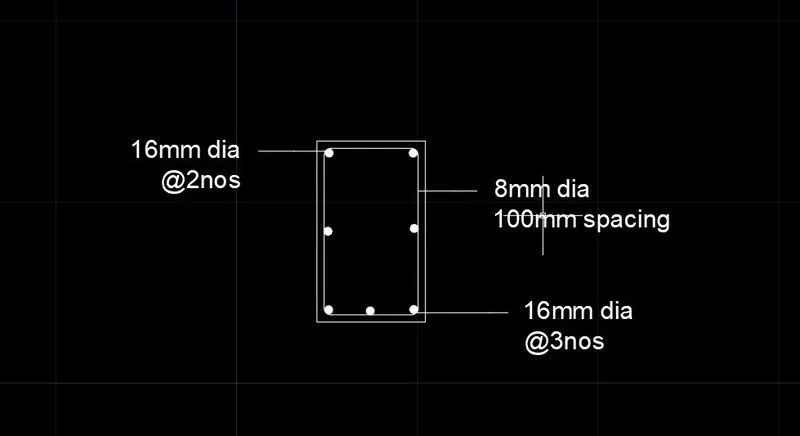

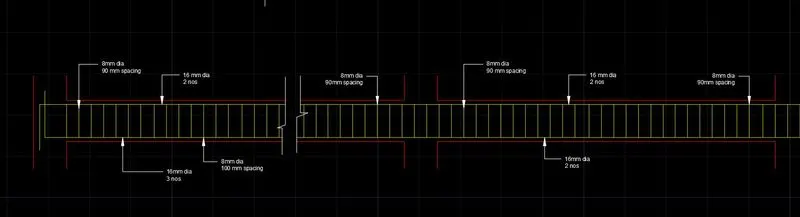

• The AutoCAD view of Reinforcement details is

STEP 5

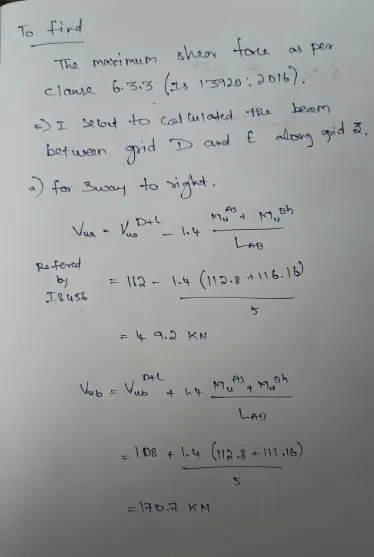

• To find the maximum shear force as per IS 13920-2016
• As we select the beam between Grid D and E along Grid 3

STEP 6

• Go to plan view.
• Right click the particular beam and to get a concrete beam design information table
• Then we select that same beam design combination.

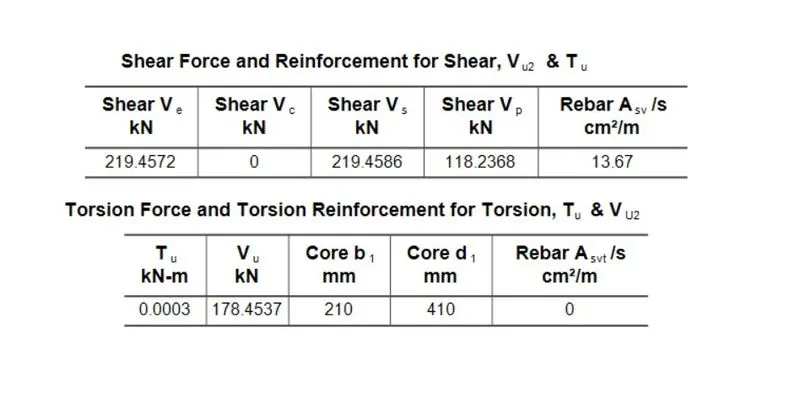

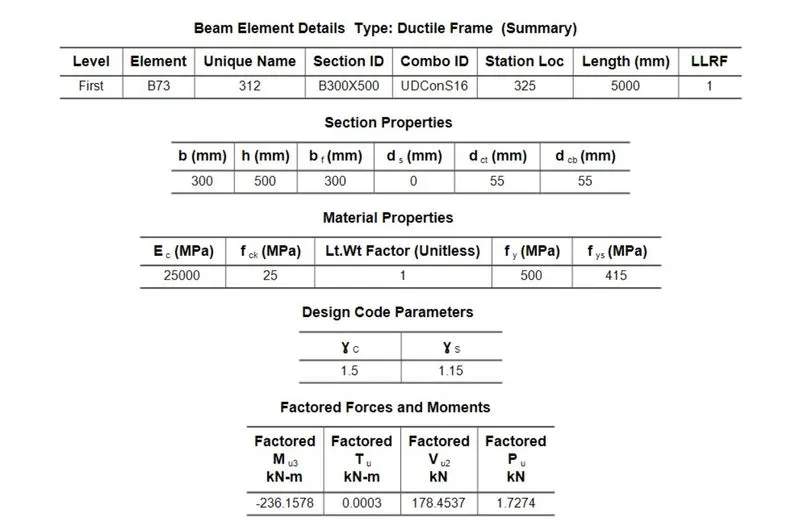

• To click the Details option to get all design and capacity forces.
• then to compare the value to above calculated value.
• check ok
