Radar Mast & Final Assembly of Yacht

Project Report:

1. Title of the Project:- Modelling Sunseeker Predator Yacht
2. Objective:- The goal of this project is to learn SolidWorks easy and fast way. Learn and use all the commands that are required for industrial work.
3. Introduction:- Yacht is a large and usually expensive boat, used for racing or for traveling around for pleasure. In this project, we are modeling a luxury yacht using soldwork.

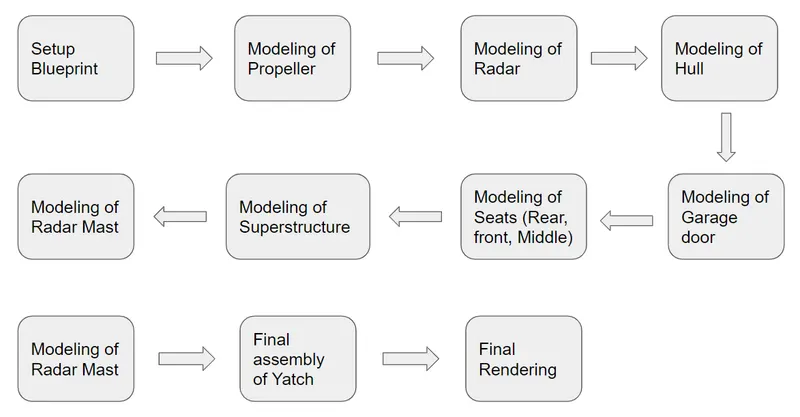

4. Design methodology/Flowcharts

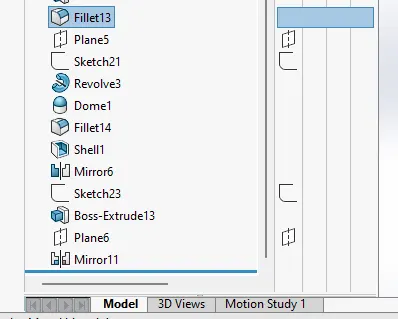

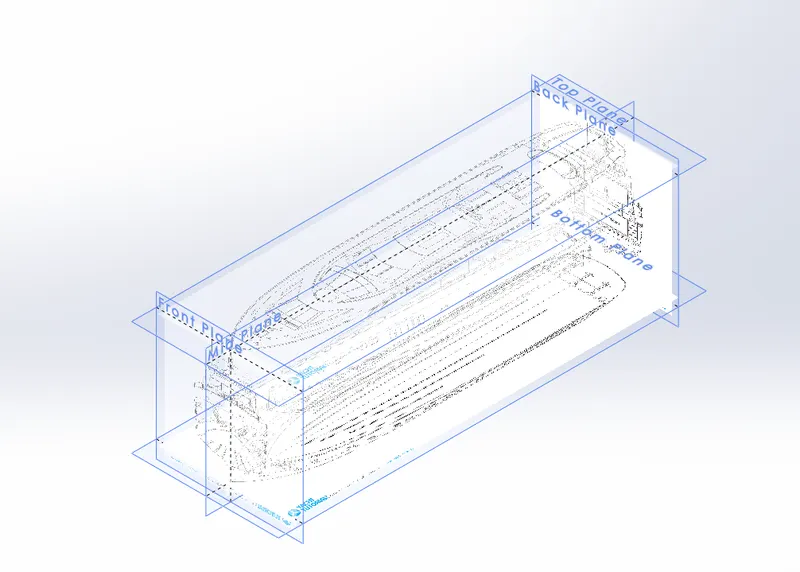

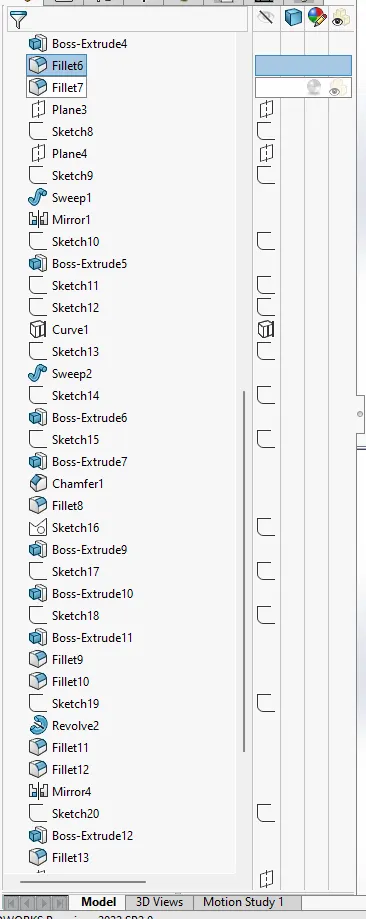

5. Description:Executing this project was really challenging. I have used different types of commands/SolidWorks tools. To import the blueprint I used sketchtool and plane. The frequently used commands for solid parts are Extrude, sketch, fillet, chamfer, sweep, mirror, combine, and curve. For creating surfaces we use extrude, fill, loft, swept surface, knit, and trim surface. For creating sketch we used line, circle, rectangle, spline, and different types of constraints.

Blueprint

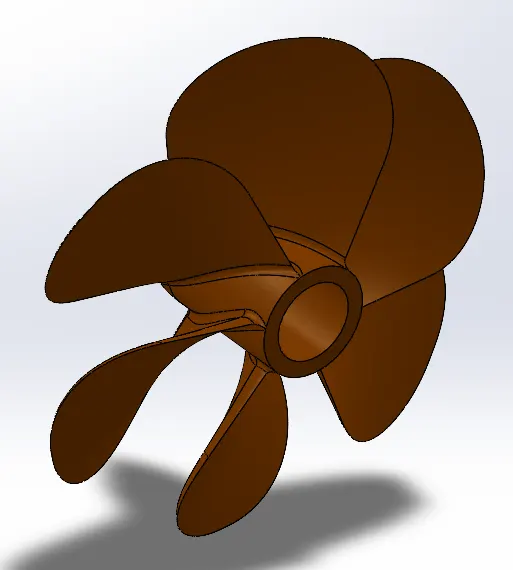

Propeller

Rader

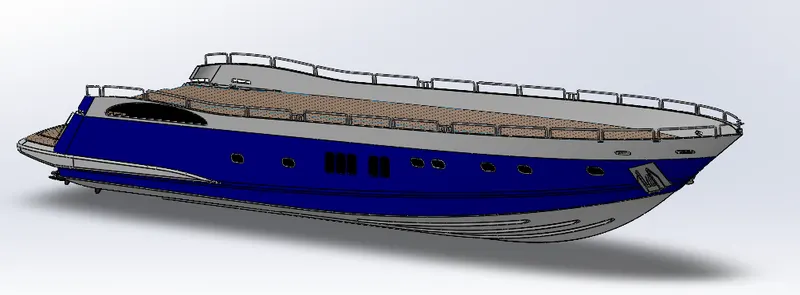

Hull

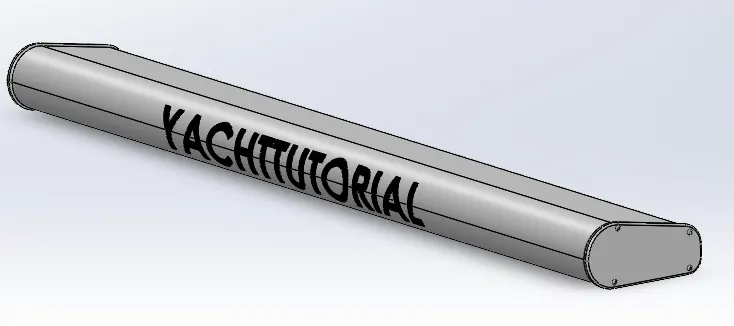

Grage Door

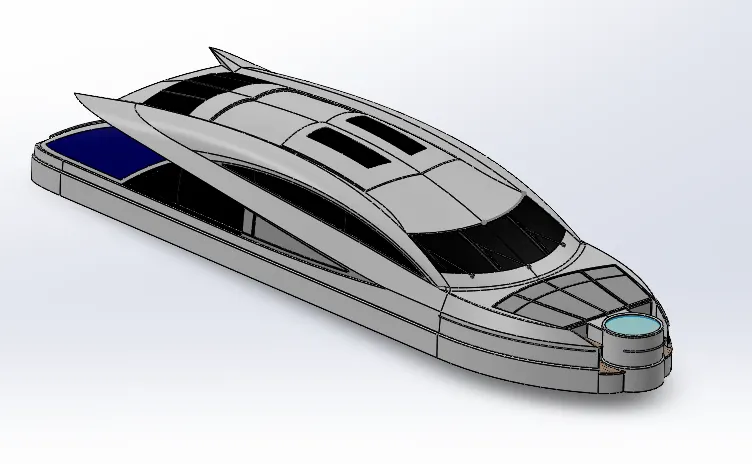

Superstructure:

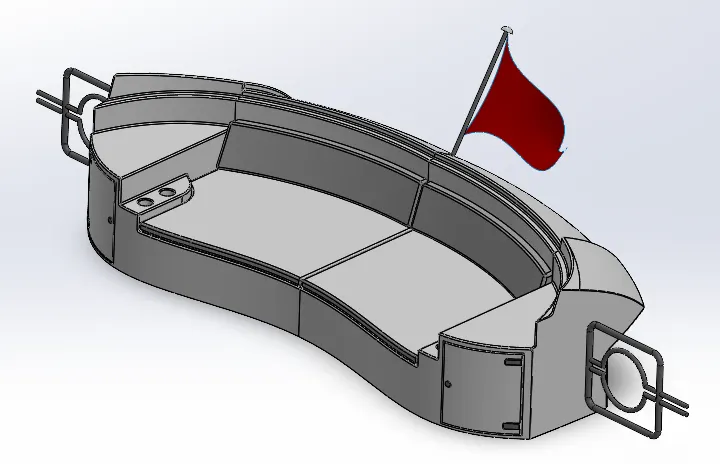

Front Seat

Rear Seat

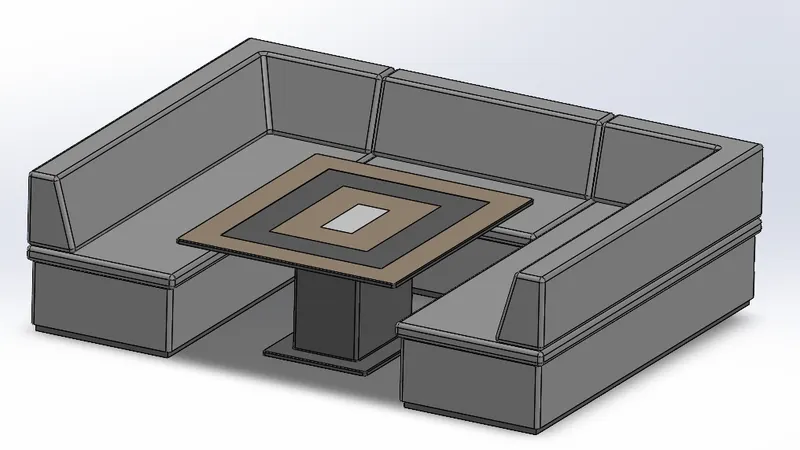

Middle seat

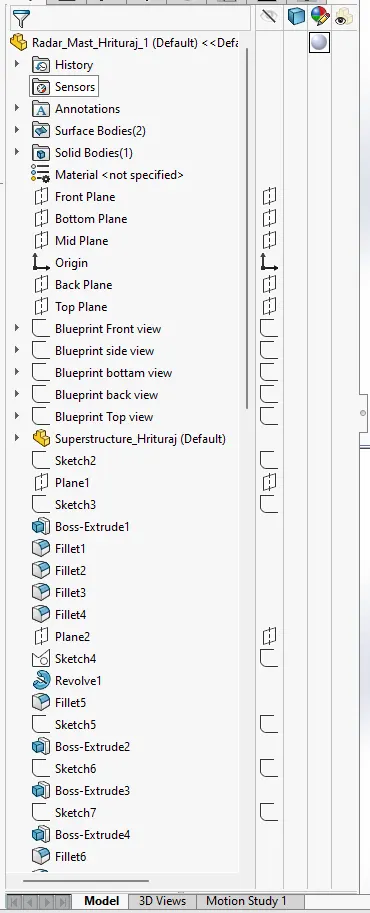

Radar Mast

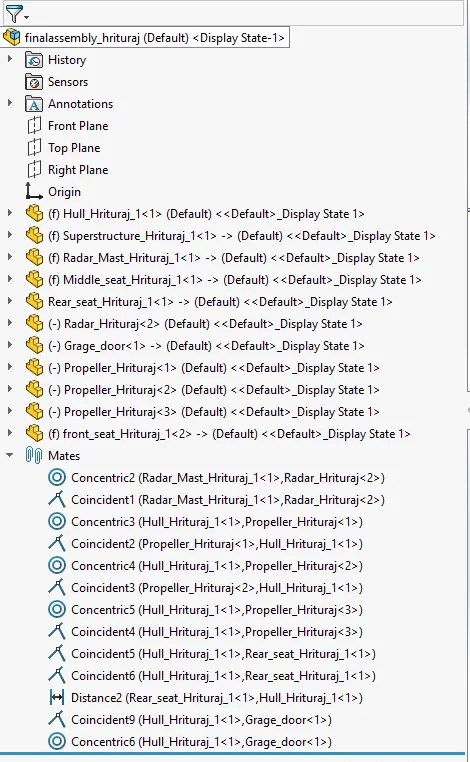

Yacht Assembly

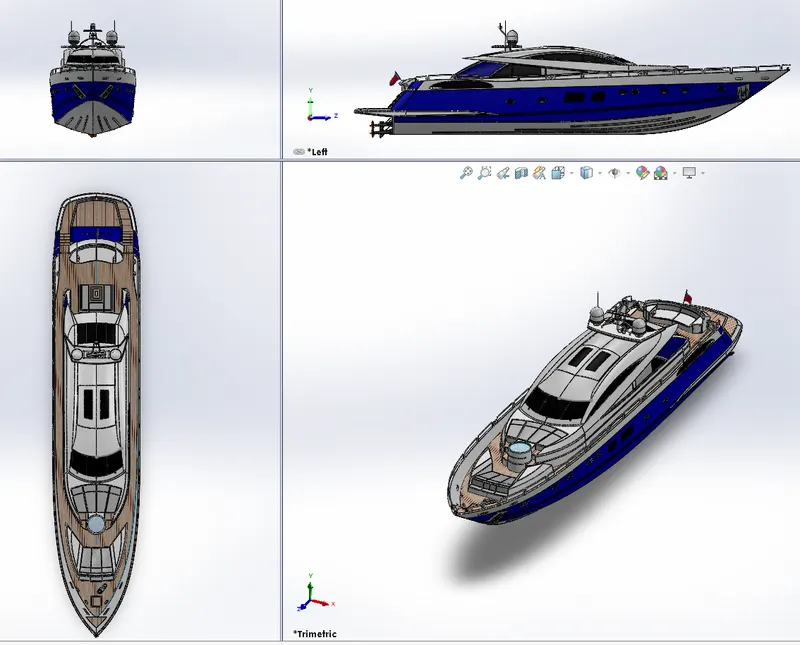

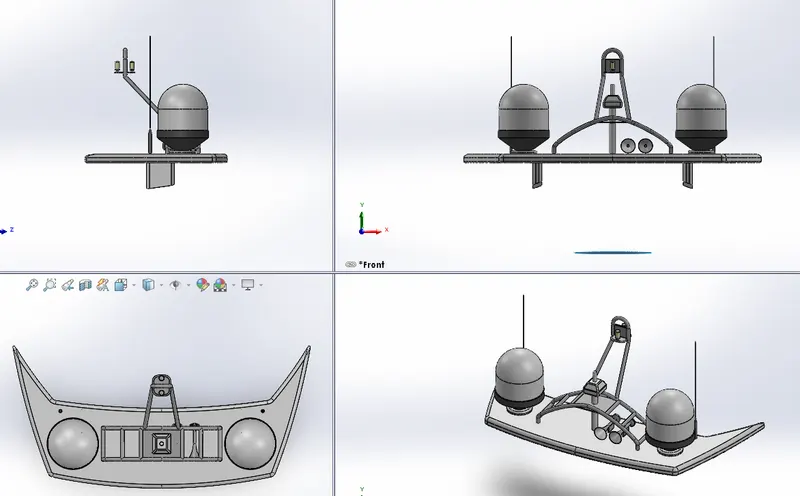

6. Final Assembly (Side view, Front View, Top view, Isometric View)

7. CONCLUSION :

After completing this project I have good knowledge of commands in Solidworks and I am able to relate to other CAD software creo and UG NX also.
