Radar Mast & Final Assembly of Yacht

RADRA MAST AND FINAL ASSEMBLY OF YACHT

AIM:

• To model Radar mast of an Yacht using SolidWorks.
• To Assemble all components of the Yacht using SolidWorks.
• TO Render final assembly to get photorealistic model using solidworks photoview 360 or solidworks visualise.

1. RADAR MAST

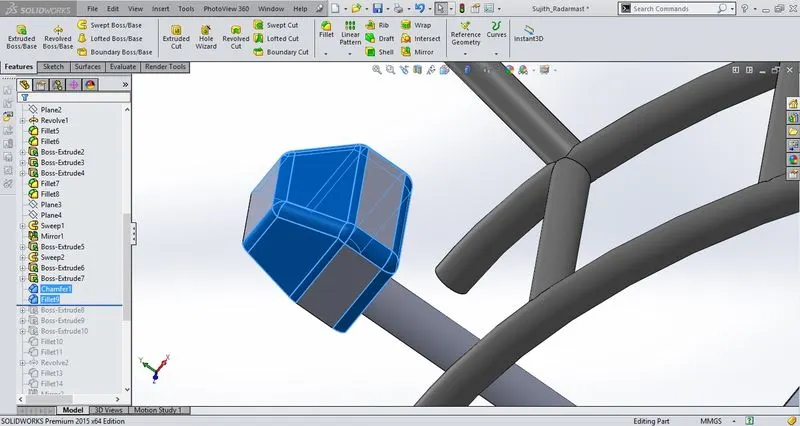

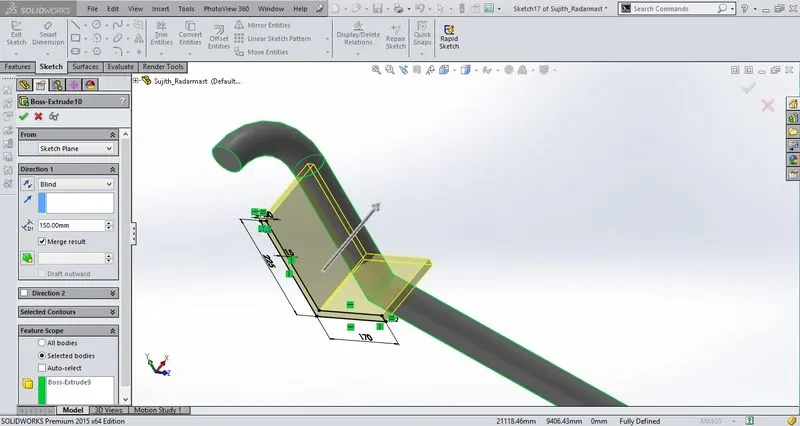

• The following part is modelled as per the dimensions provided.

TOOLS USED:

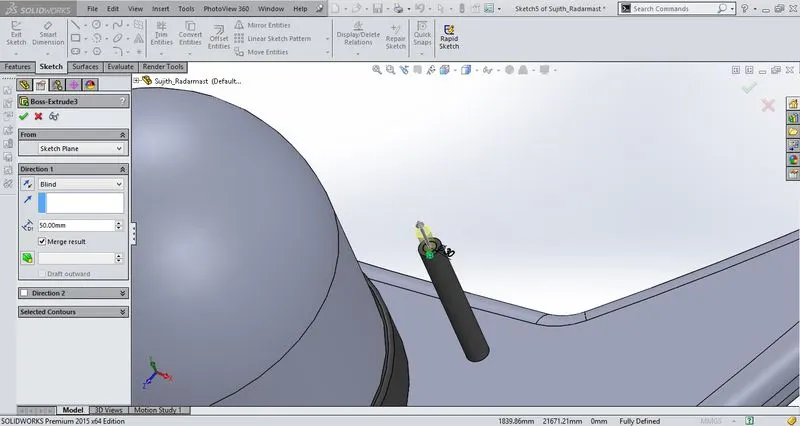

• Extrude
• Fillet

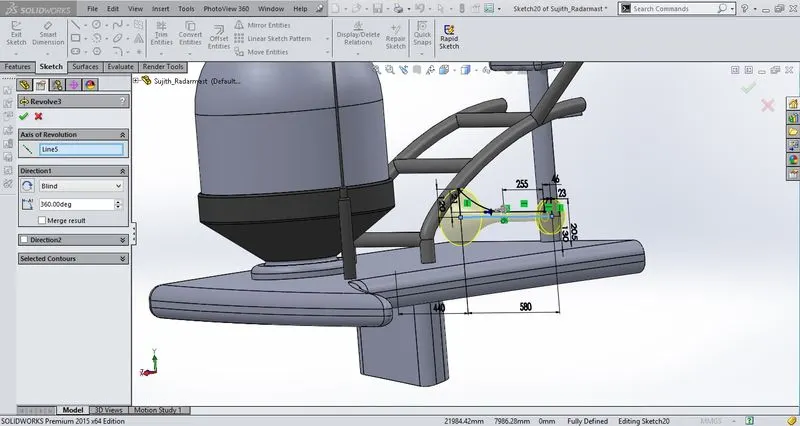

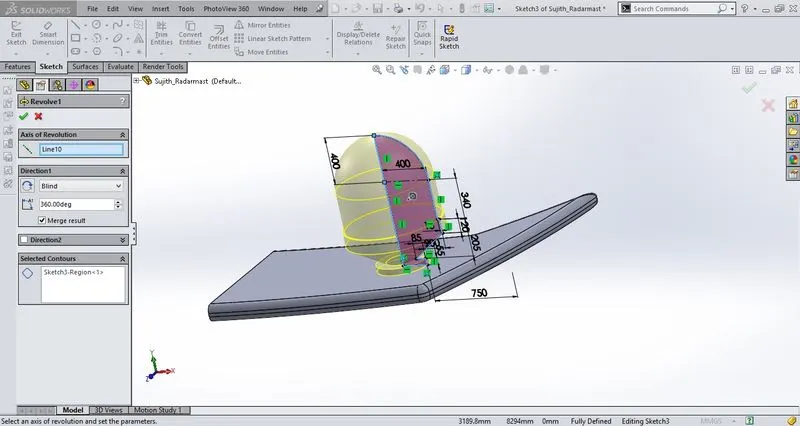

• Revolve
• Sweep
• Shell

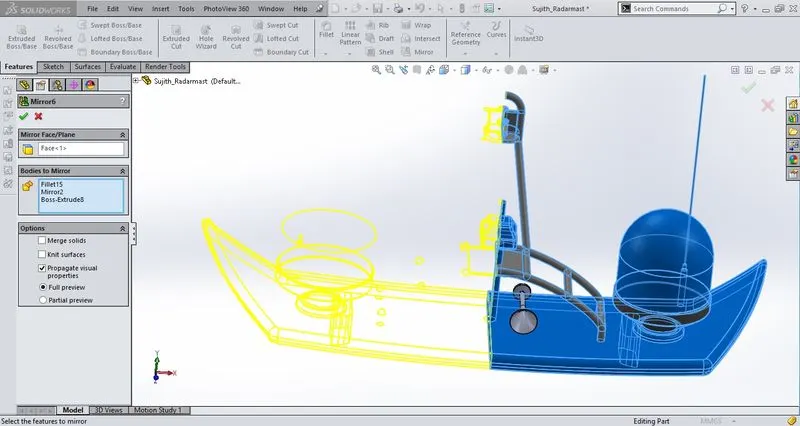

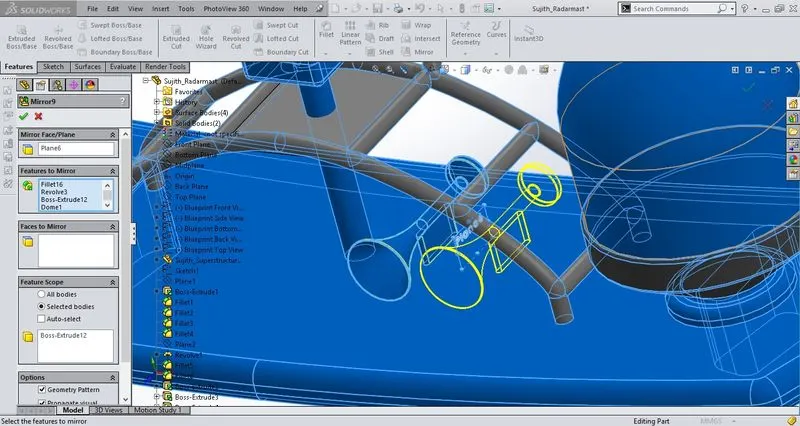

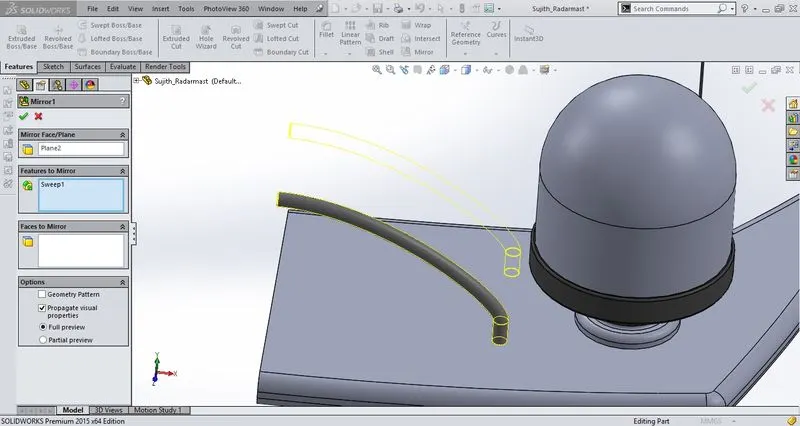

• Mirror

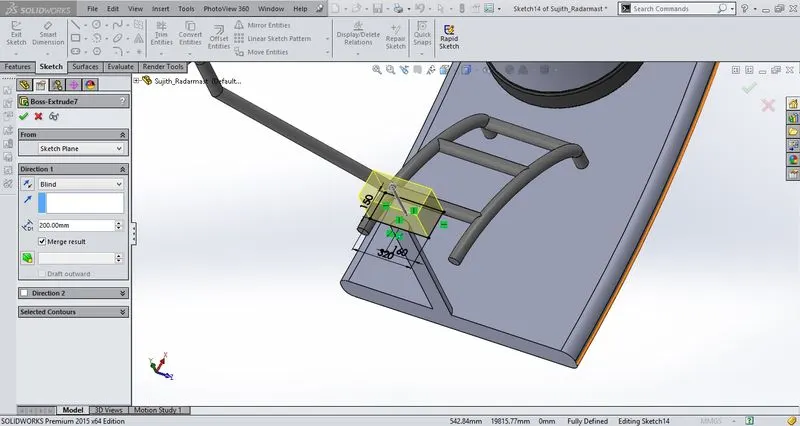

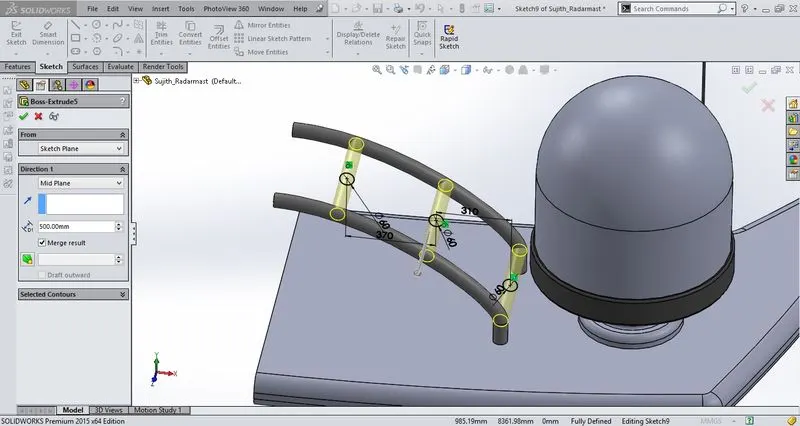

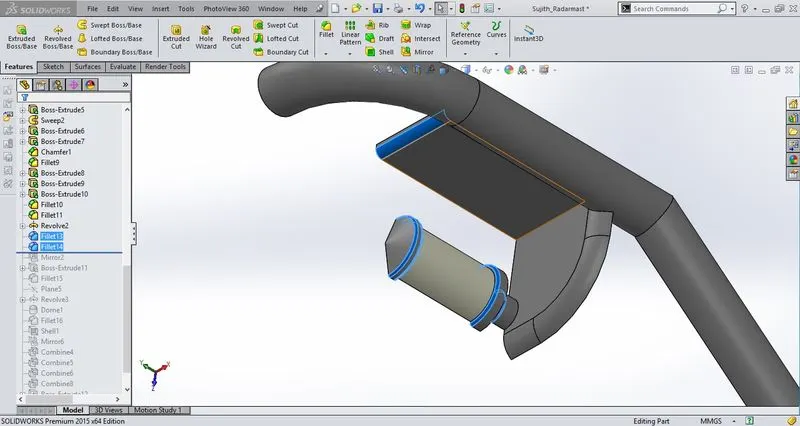

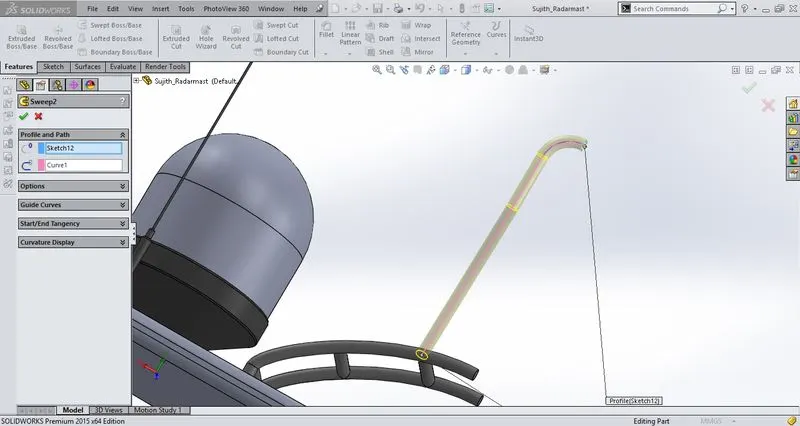

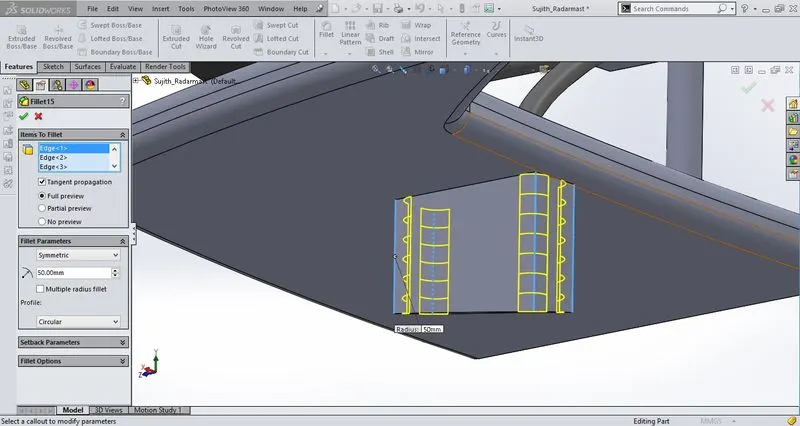

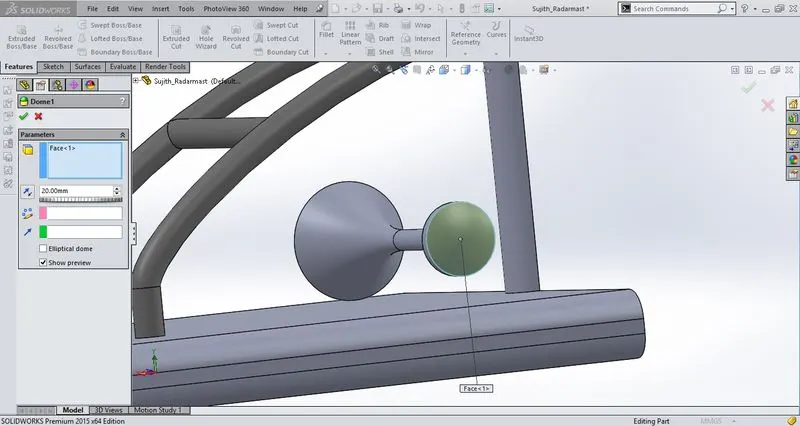

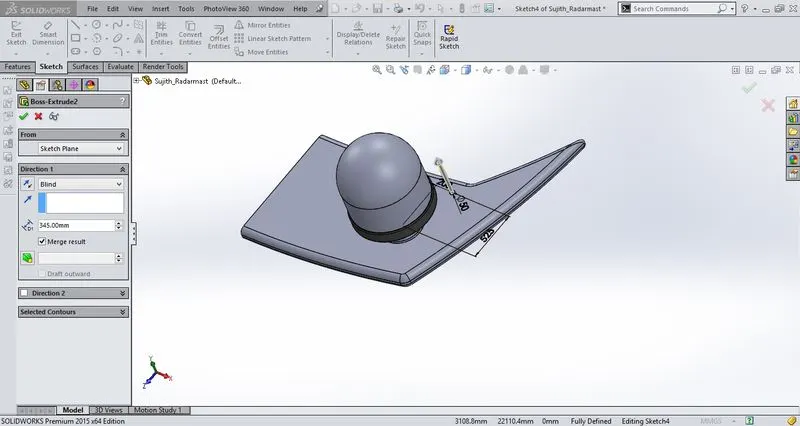

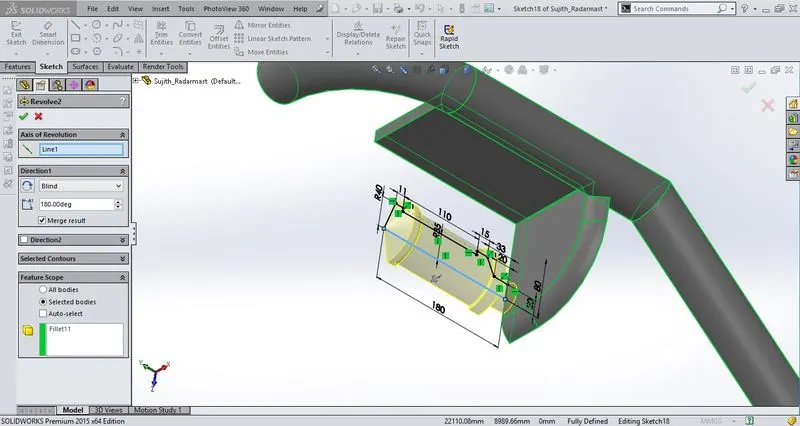

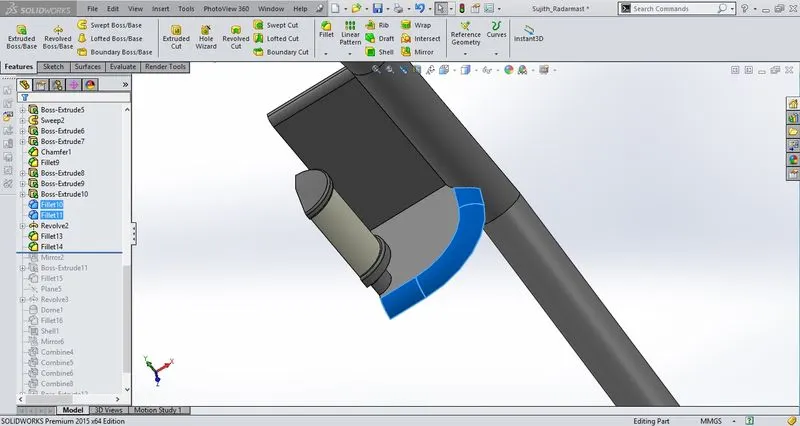

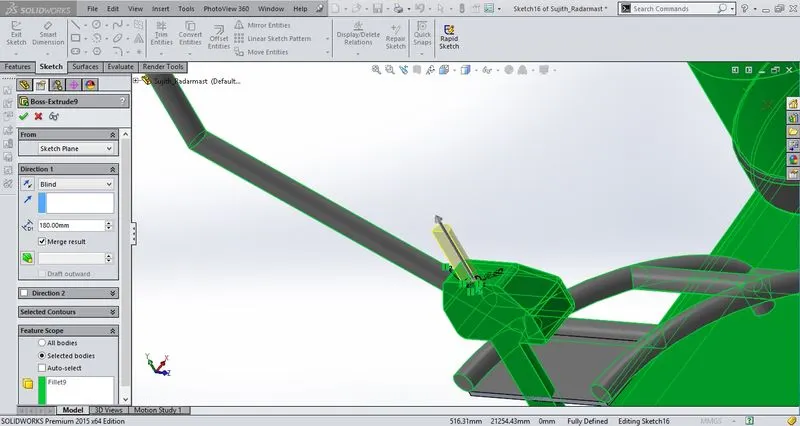

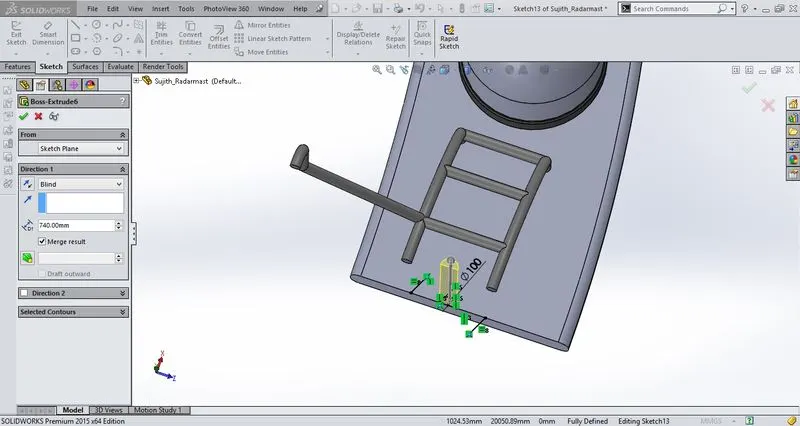

PROCEDURE:

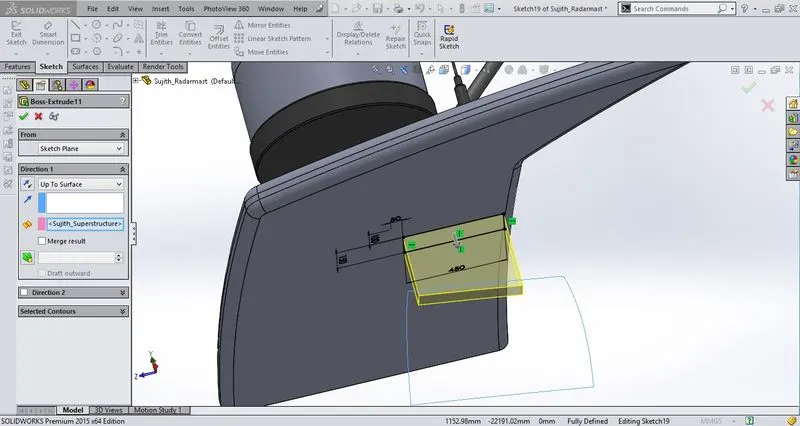

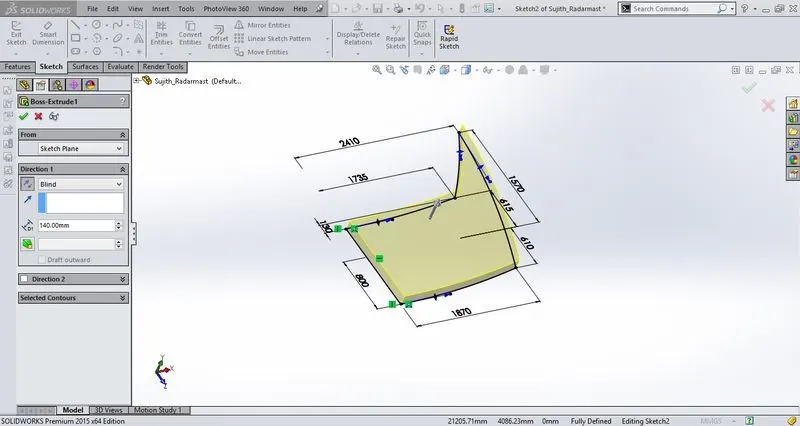

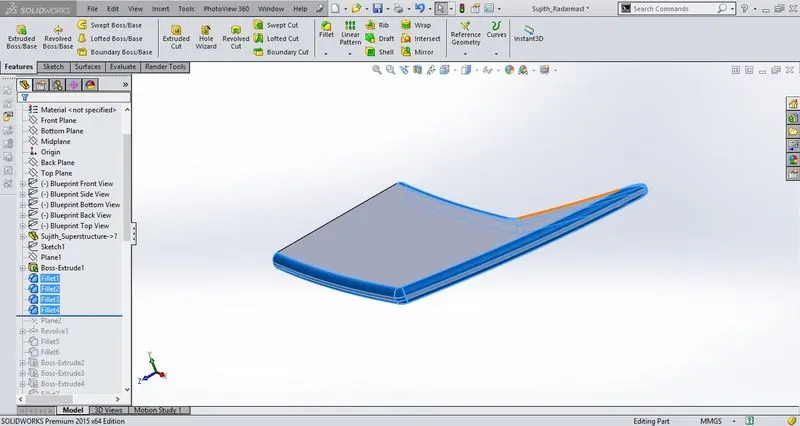

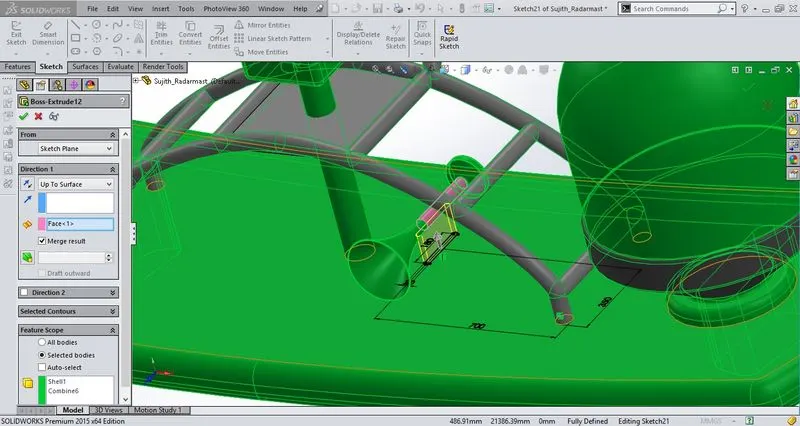

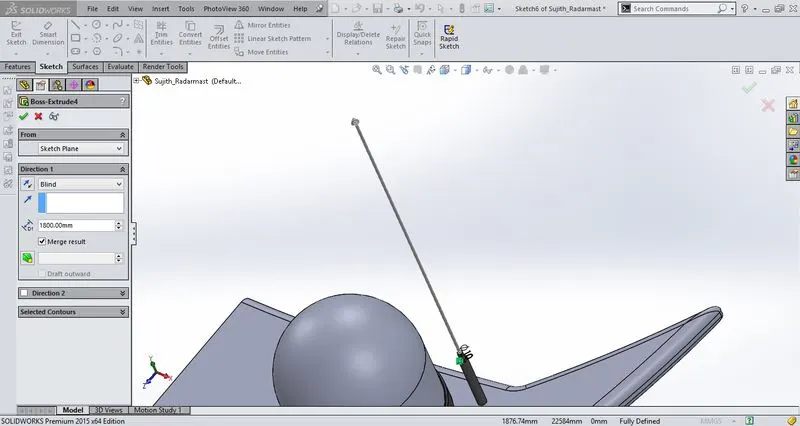

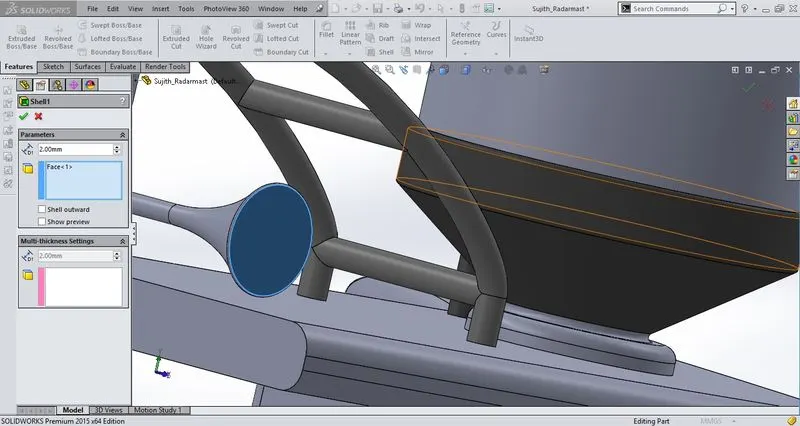

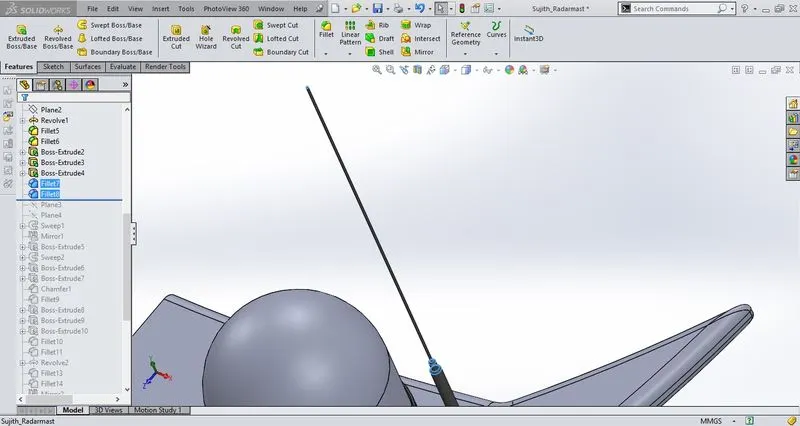

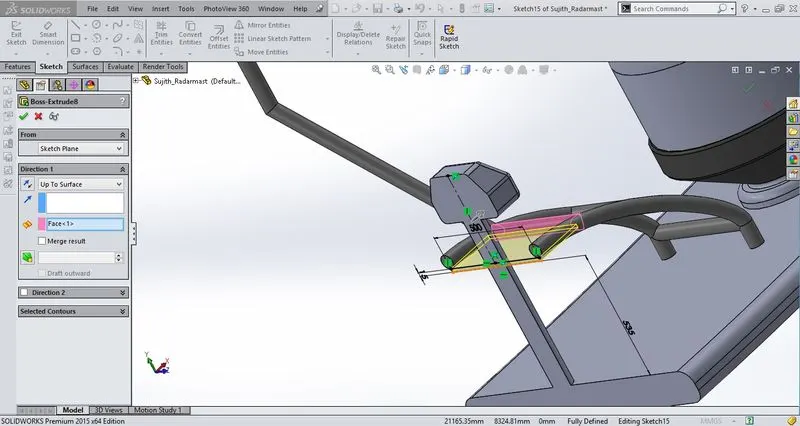

• Use the surface from the Superstructure as a base to this component and follow the steps and features below.

• Give appropriate colours for the faces and body by clicking on the appearance icon.

OUTPUT VIEW:

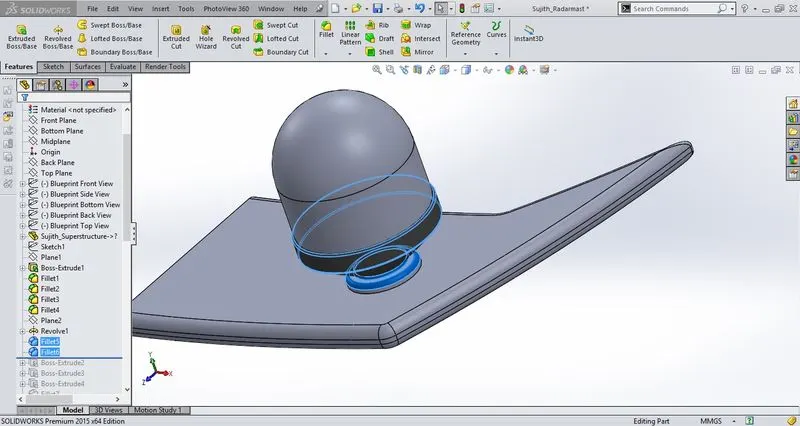

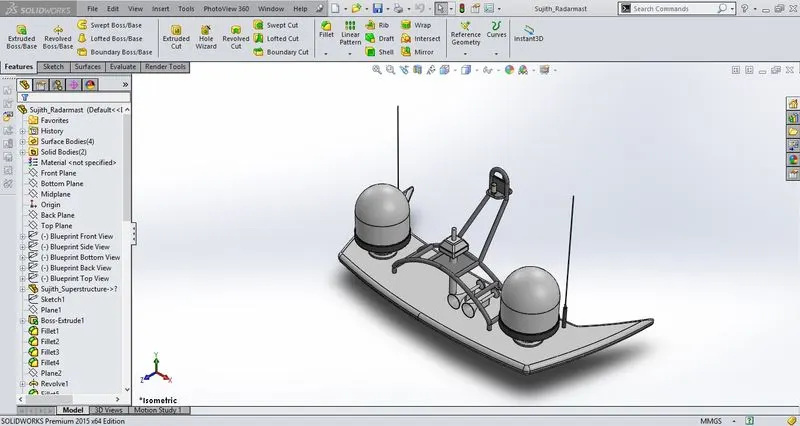

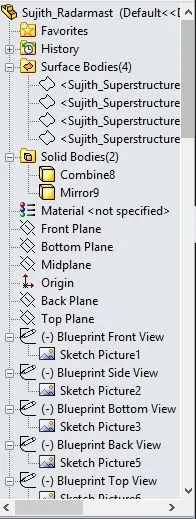

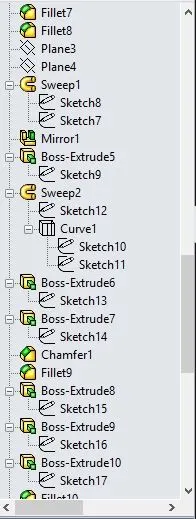

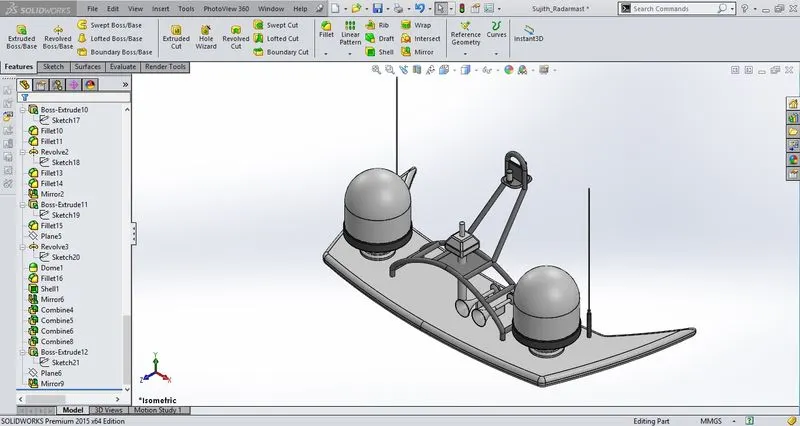

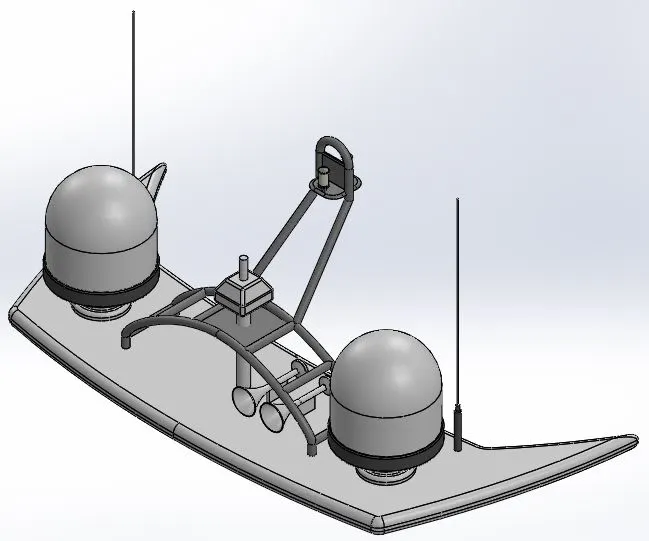

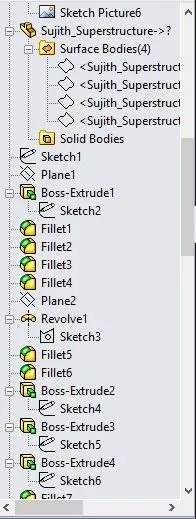

• FEATURE TREE AND ISOMETRIC VIEW

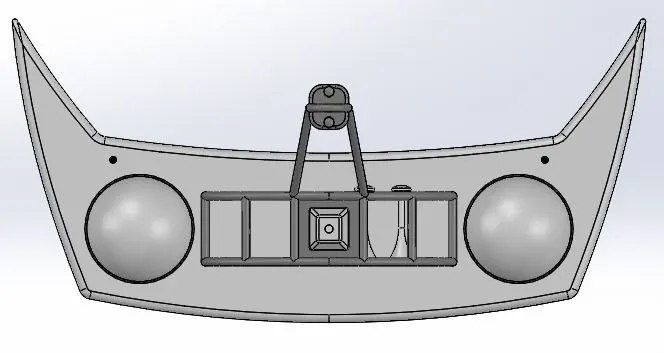

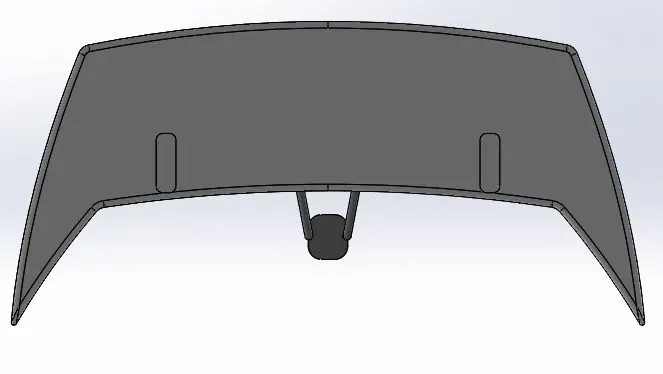

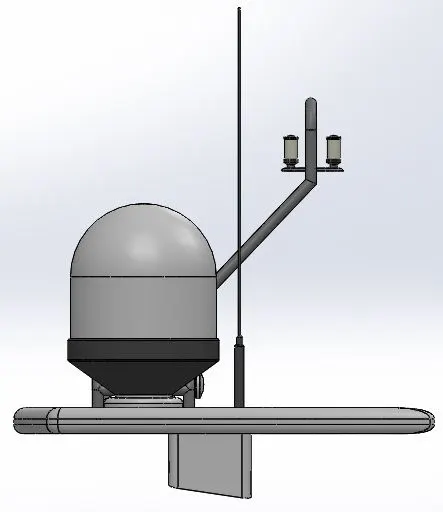

• TOP AND BOTTOM VIEW

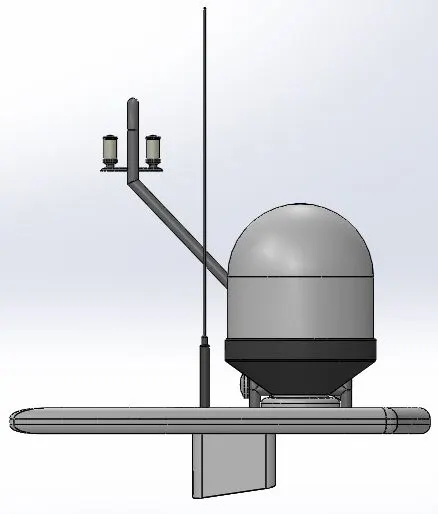

• LEFT AND RIGHT SIDE VIEW

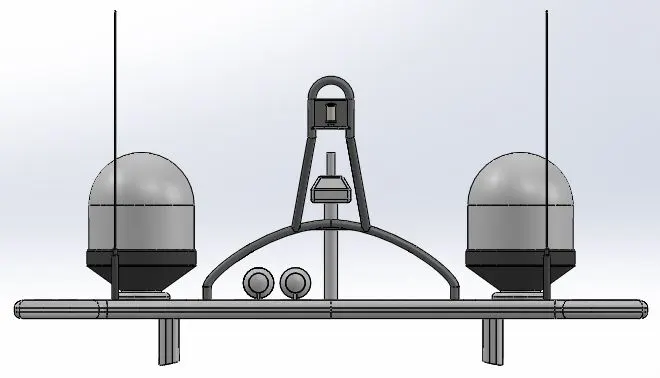

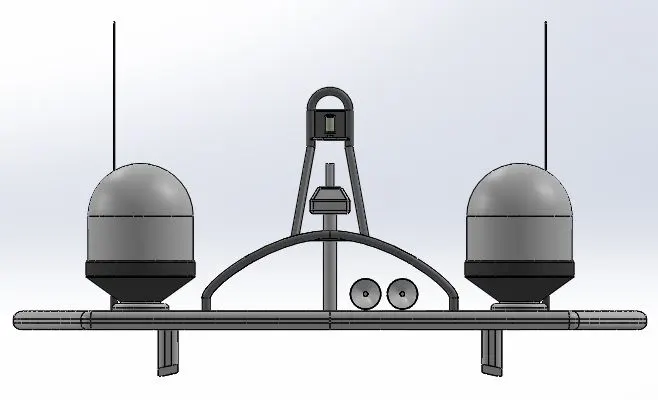

• FRONT AND BACK VIEW

3D MODELLING, ASSEMBLY, AND PHOTOREALISTIC RENDERING OF SUNSEEKER PREDATOR YACHT

OBJECTIVE:

• To model individual part of sunseeker predator yacht with proper dimensioning and relevant features in Solidworks.
• To assemble all the parts using appropriate mates.
• Rendering final assembly to get photorealistic model using solidworks photoview 360 or solidworks visualise.

INTRODUCTION:

• Solidworks is a 3D CAD and CAE software developed by Dassault Systems. It provides dedicated tools and workflows that streamline the design and development of products. It is used for sketching, part modelling, sheet metal design, simulation, mold design, and other computer-aided manufacturing processes.
• Solidworks Visualize is a standalone computer application majorly employed to create photorealistic or non-photorealistic renders. It is also used for post-processing images and even creating basic presentation animations.
• Sunseeker Predator Yacht - Sunseeker International is a British luxury performance motor yacht brand. Originally named Poole Power Boats, the company was founded by brothers Robert and John Braithwaithe in 1969, The company changed its name to Sunseeker International in 1985 and has become a global icon. Its headquarters and main assembly facility is in Poole Harbour, at Poole in Dorset, England. A Predator is poised and dynamic. Offering performance, agility, and exceptional handling, with a low-profile silhouette that cuts through the water. Complete with joystick control and 34-knot capability, she will provide an exhilarating, one-of-a-kind driving experience in a well-appointed surroundings. Over two spacious decks, both modern and classic designs blend harmoniously to exceed even the highest of expectations. On the main deck, expansive windows allow plenty of natural light to illuminate both the dining and separate seating areas. Below deck, three double suites, plus twin bed guest cabin comfortably accommodate up to eight guests. The cockpit features a blend of contemporary style, design, and modern technologies, while the flybridge is just assumptuous and innovative. Rarely overshadowed, never outrun. It leaves all others in its wake.

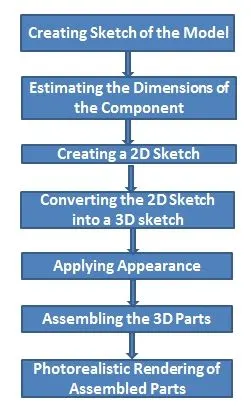

DESIGN METHODOLOGY:

FEATURES AND TOOLS USED IN MODELLING OF YACHT:

• Creating 2D Sketch - 2D Sketch is created on XY, XZ, or YZ planes. With the help of a 2D sketch, we create 3D features. The status of the sketch can be determined by color codes. If the sketch is black then it is fully defined, if the sketch is blue then it is under-defined, if the sketch is red then it is called over-defined.
• Extruded Boss/Bass - Using this feature we can create a solid which has the same boundary as that of the 2D sketch that we are using for extrusion.
• Knit Surface - Using this feature two or more than two surfaces can be joined and converted into a single entity.
• Trim Surface - Using this feature we can remove unnecessary surfaces.
• Extend Surface - Using this feature we can extend the surface using its edge.
• Fill Surface - Using this feature we can create the surface in the close boundary.
• Surface Extrude - Using this feature any 2D sketch can be extruded to create a surface.
• Revolved Boss/Bass - This feature is used to create a solid 3d model around an axis. With this feature, we can create cylindrical shapes.

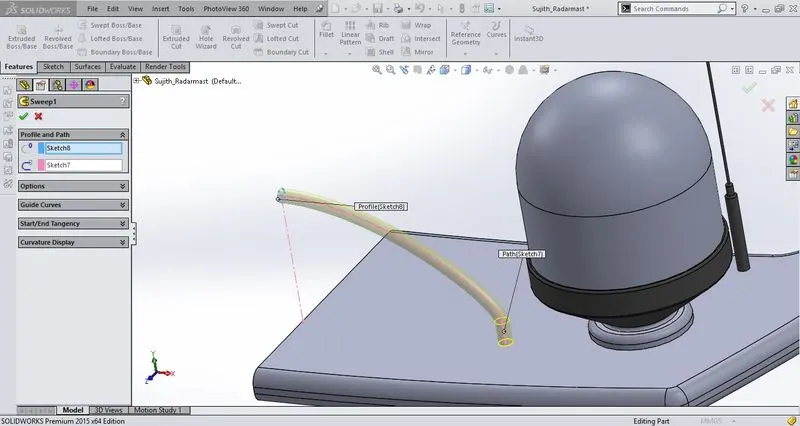

• Swept Boss/Bass - Using this feature we can create complex hollow pipes, curved rods, tubes, twisted parts. Inputs for this feature are a path and sketch perpendicular to that path.
• Extruded Cut - Using this feature we remove solid which has the same boundaries as of that of the 2D sketch, this feature is used to create hollow surfaces.
• Lofted Boss/Bass - This feature is used to add materials between two or more profiles with ease. Inputs for this feature are cross-section and guide curve.
• Fillet - This feature is used to create smooth edges.
• Chamfer - This feature is used to create cuts (45-degree angle with the normal surface), or make edges or corners (vertex) of the 3D model straight.
• Circular Pattern - Using this feature we can create patterns of a feature, body, or face in a circular manner.

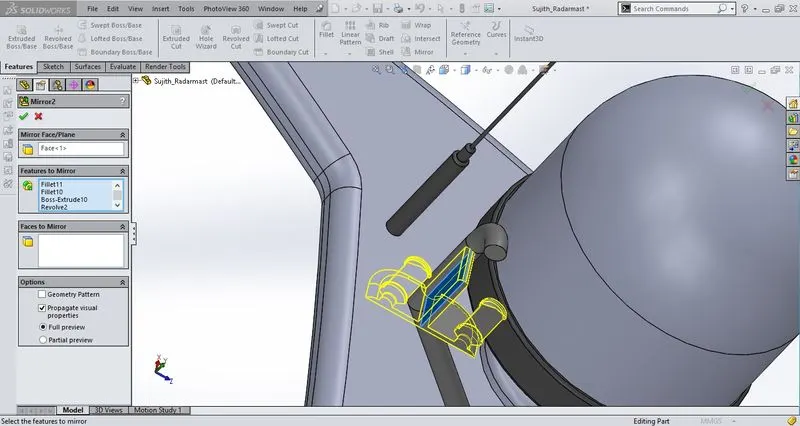

• Mirror - This feature is used to copy features across planes.
• Curve-driven Pattern -This feature is used to create patterns along a planar or 3D curve.
• Draft - We use this feature to provide taper on specified angles, using a neutral plane or parting line.
• Convert Entities - This feature is used to create a replica of a sketch entity or its dimensions in the same plane or another coordinate.
• Shell - This feature is used to create the spherical shape or Dome on 3D parts or shapes.
• Split - This feature is used to cut the part across some sketch boundary and to remove that part from the main model.
• Reference Geometry - This feature is used to create plans, axes, coordinate systems, and points.
• Projected Curves - This feature is used to create one 3D curve from two 2D curves drawn on different plans.

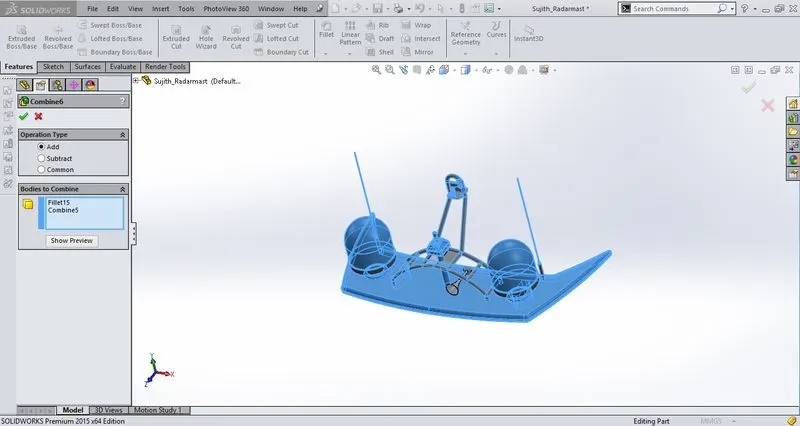

• Combine - This feature is used to join two or more solid bodies into a single entity.

COMPONENTS:

Sunseeker Predator Yacht consist of

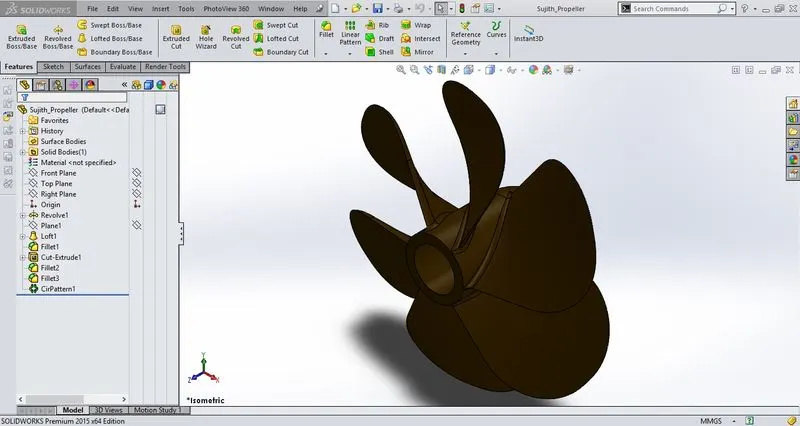

1. PROPELLER

• Tools used to create Propeller are Revolve, Surface Loft, Fillet, Cut Extrude, Circular Pattern.

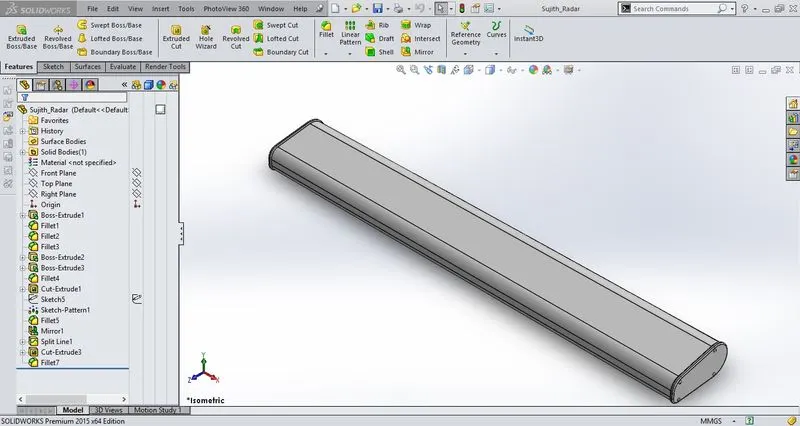

2. RADAR

• Tools used to create Radar are 2D sketch, Extruded Boss/Base, Fillet, Cut Extrude, Sketch Pattern, Mirror, Split line.

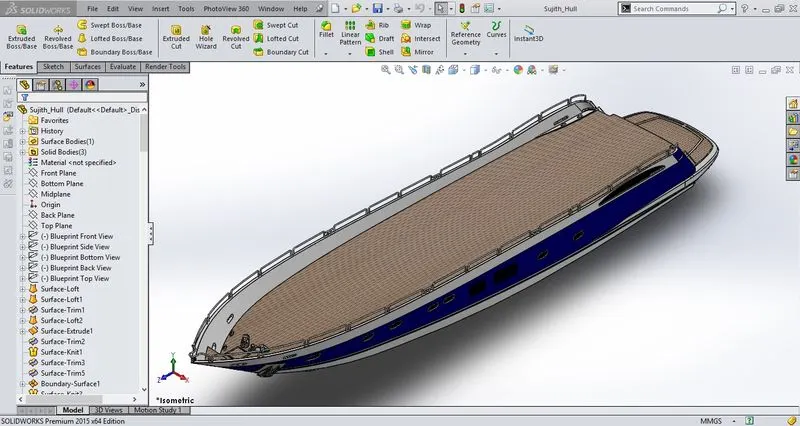

3. HULL

• Tools used to create Hull are 2D Sketch, Projected curve, Surface Loft, Surface trim, Surface Extrude, Surface Knit, Surface Fill, Boundary Surface, Shell, Boss Extrude, Surface Extrude, Cut Extrude , Chamfer, Fillet, Sweep, Revolve, Extrude Thin, Linear Pattern, Split, Split line.

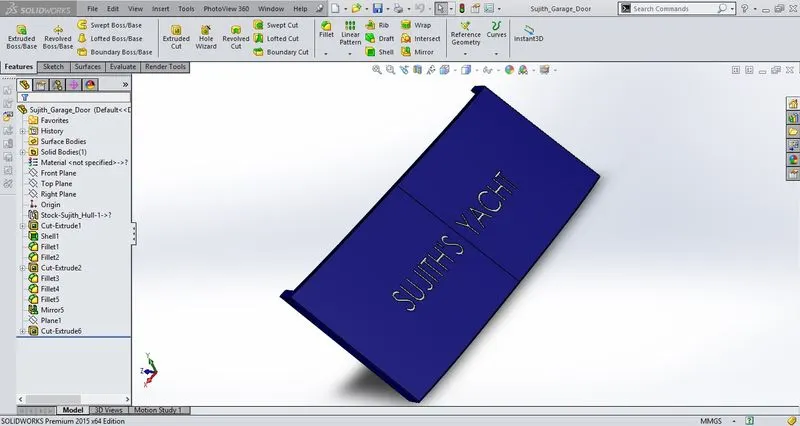

4. GARAGE DOOR

• Tools used to create Garage door are Extrude cut, Shell, Fillet, Mirror.

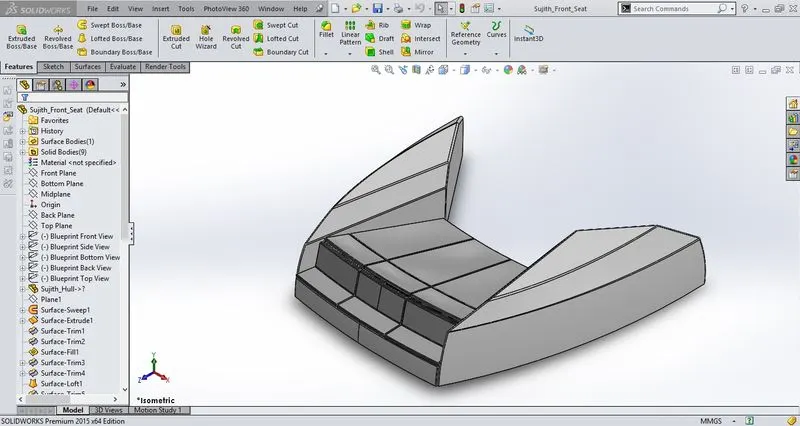

5. FRONT SEAT

• Tools used to create front seat are Surface Sweep, Surface Extrude, Surface Trim, Surface Fill, Surface Loft, Surface knit, Chamfer, Fillet, Dome, Mirror, Cut Extrude, Revolve boss/base.

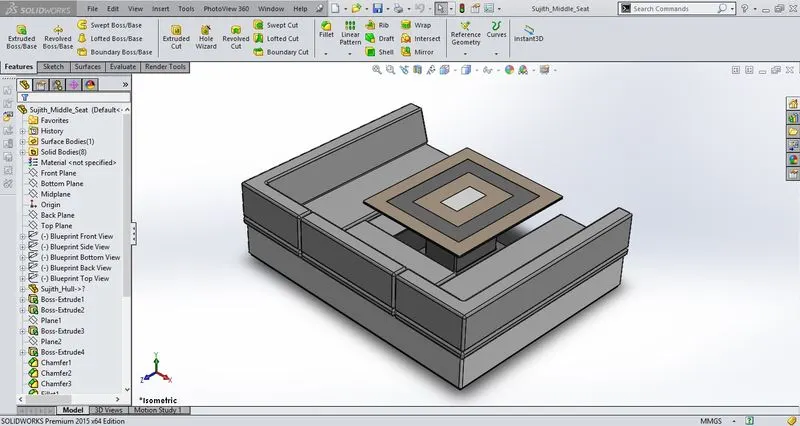

6. MIDDLE SEAT

• Tools used to create middle seat are Extrude Boss/Base, Chamfer, Fillet, Mirror, Cut Extrude.

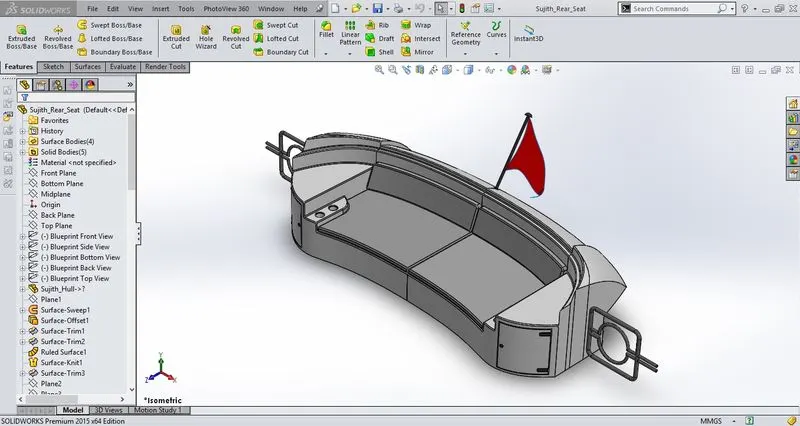

7. REAR SEAT

• Tools used to create Rear seat are Surface sweep, Surface offset, Surface knit, Surface trim, Surface loft, chamfer, fillet, 3D sketch.

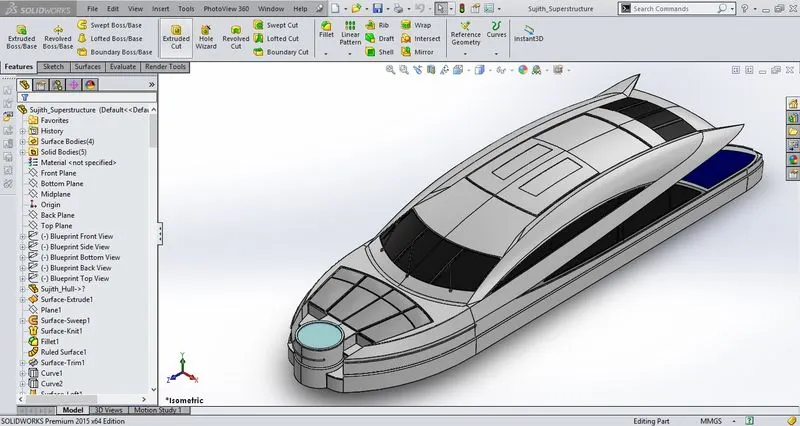

8. SUPERSTRUCTURE

• Tools used to create superstructure are Surface Sweep, Surface Extrude, Surface Trim, Surface Fill, Surface Loft, Surface knit, Ruled Surface, Fillet, Chamfer, Mirror, Cut Extrude, Extrude boss/base, Dome, Split Line, Projected Curve.

9. RADAR MAST

• Tools used to create Radar Mast are Extrude, Fillet, Revolve , Sweep, Shell, Mirror.

YACHT ASSEMBLY:

• The above mentioned components were assembled with appropriate mates to get the final assembly of sunseeker predator yacht.
• Since the components Front, Middle, and Rear Seats, Superstructure and Radar mast were designed using a surface body as reference with respect to the Hull, it is fixed automatically in the assembly.
• Whereas, components like Propeller, Radar and Garage door were assembled by using mates Feature.

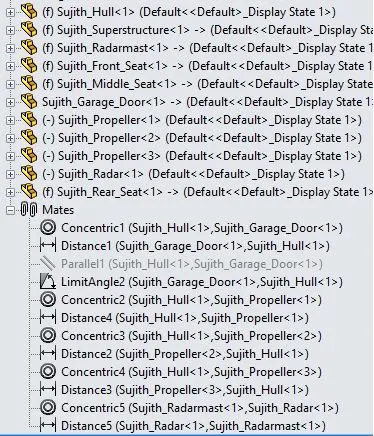

• Applied Mate Features

OUTPUT VIEW:

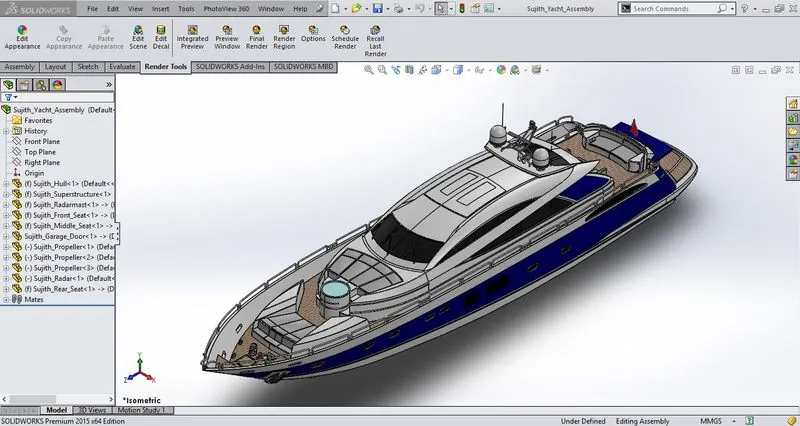

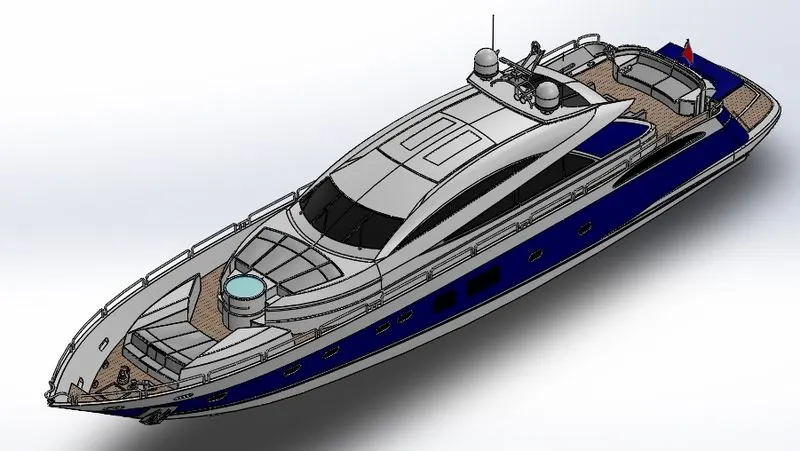

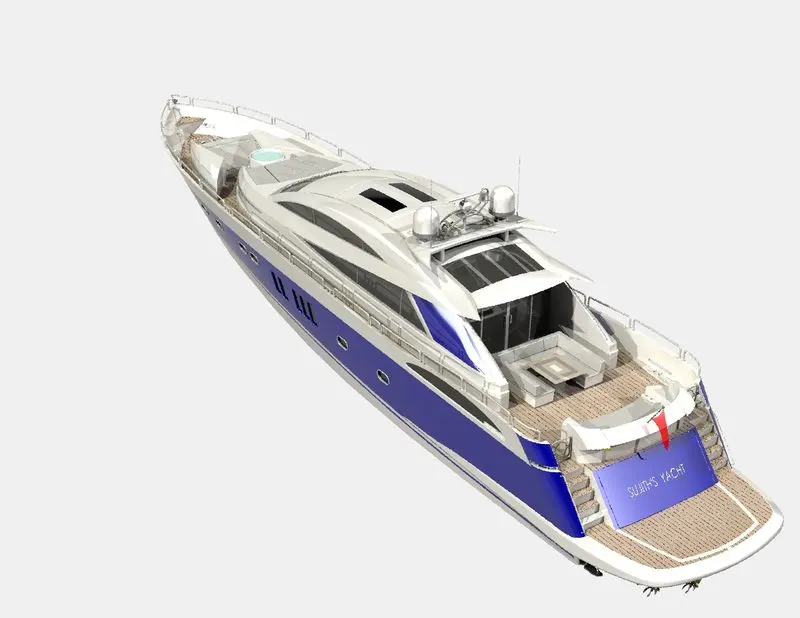

• ISOMETRIC VIEW

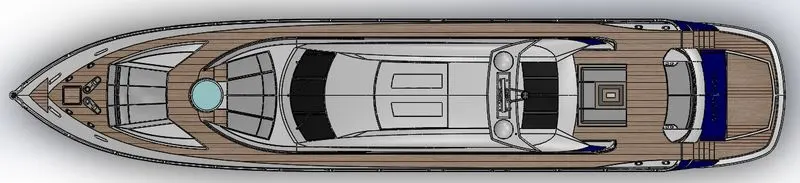

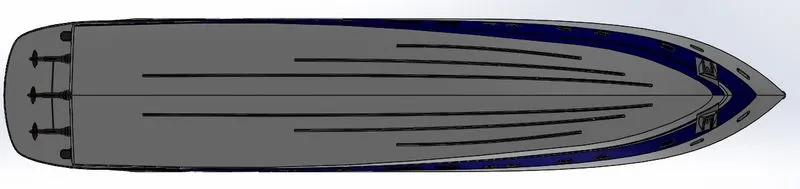

• TOP AND BOTTOM VIEW

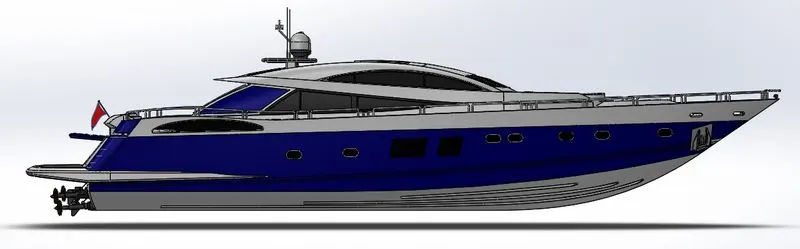

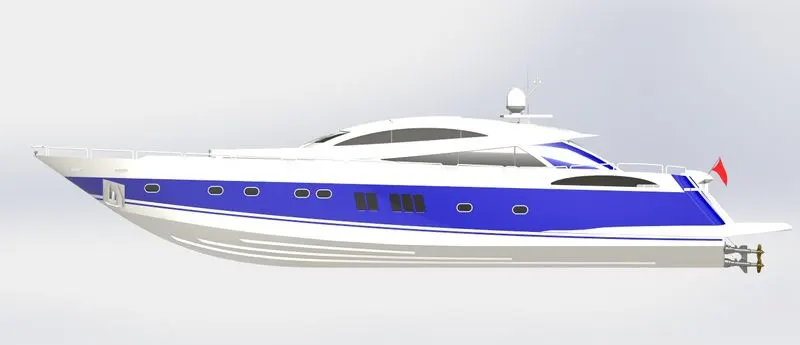

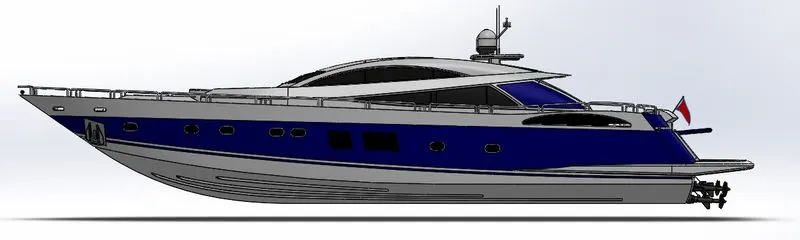

• LEFT AND RIGHT SIDE VIEW

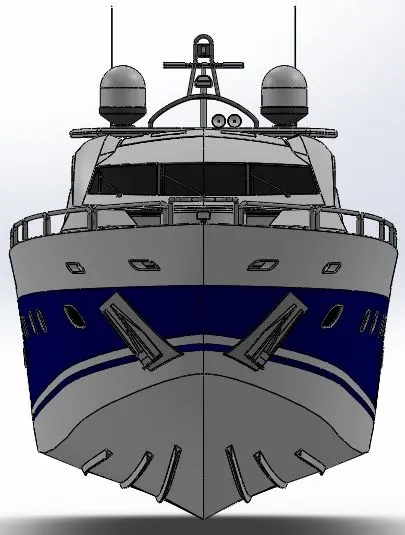

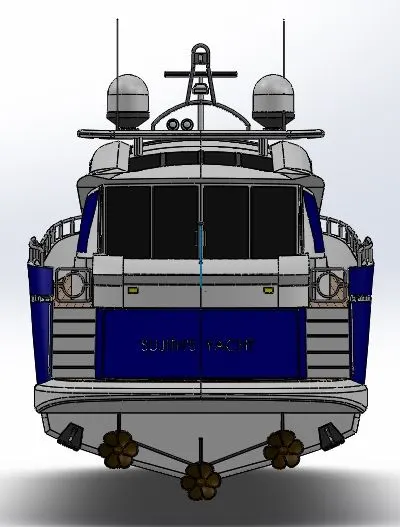

• FRONT AND BACK VIEW

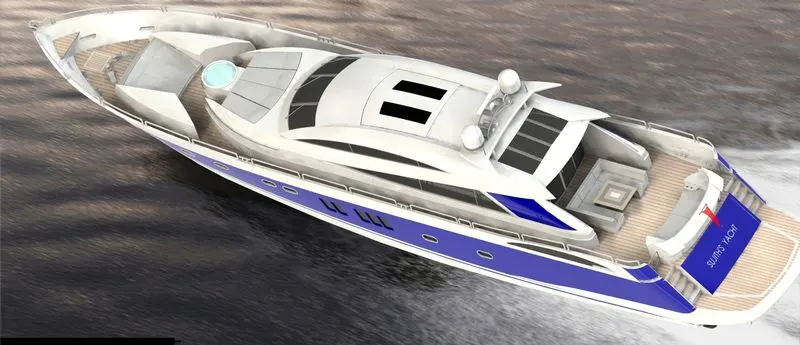

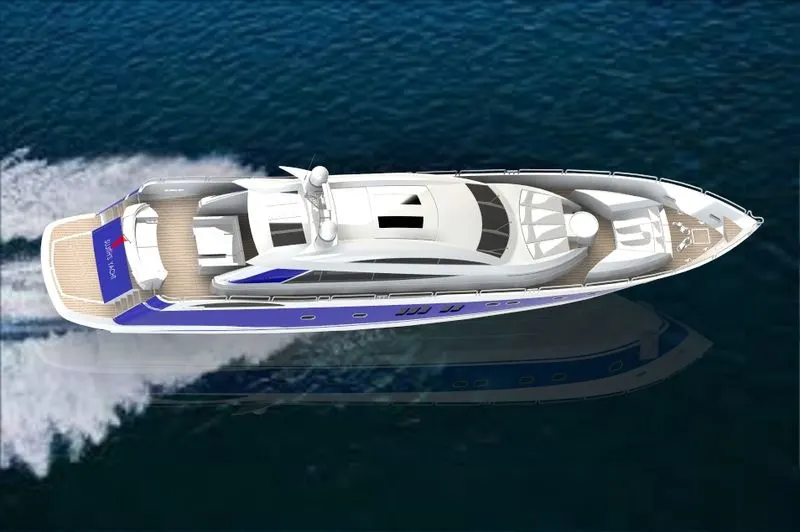

RENDERED IMAGES:

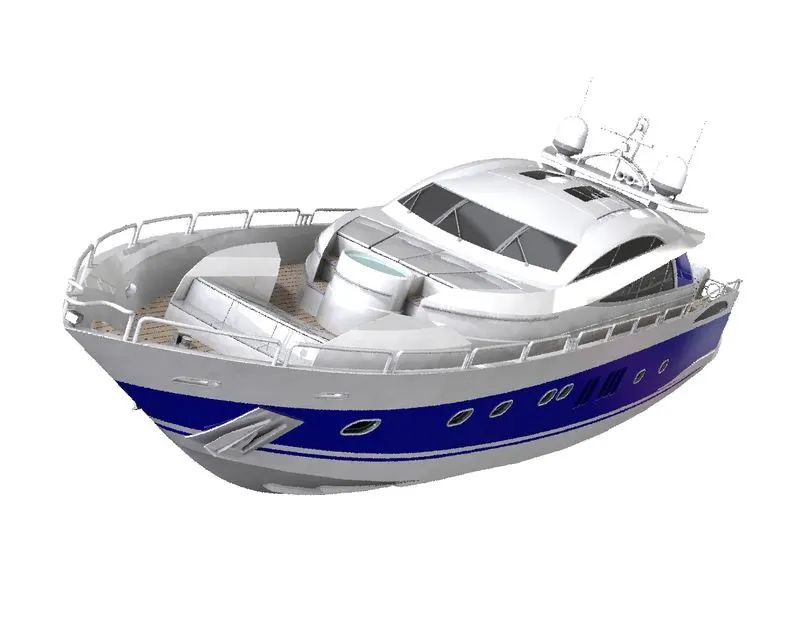

• CAMERA VIEWS

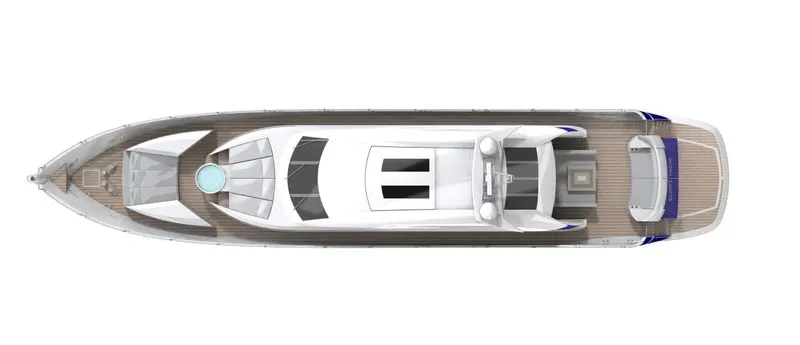

• TOP VIEW

• SIDE VIEW

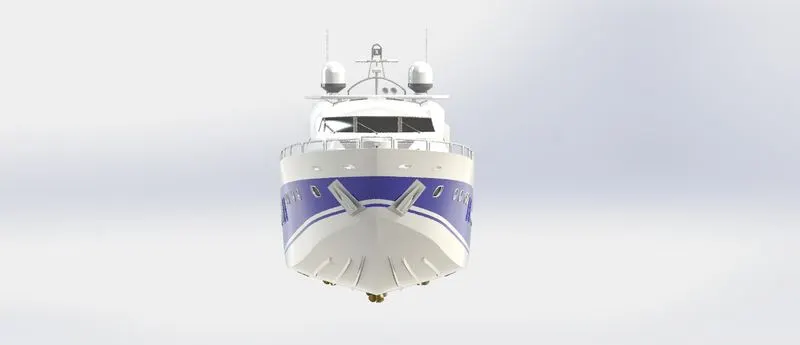

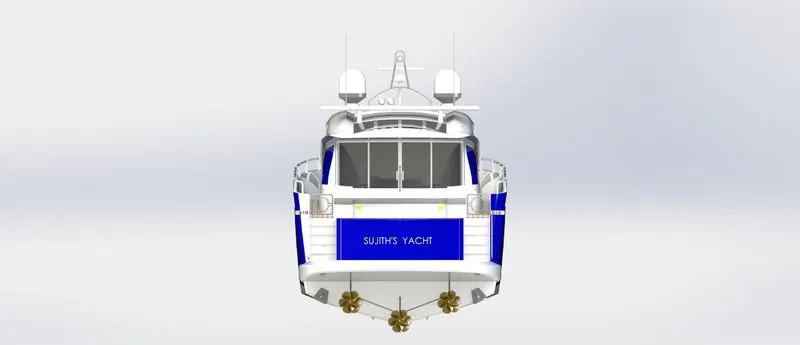

• FRONT AND BACK

CONCLUSION:
By this project i have learned-

• To design a part or a model with proper 2D sketching and dimensioning.
• To make a fully defined sketch,
• To model a part or component using different features like surface modelling and solid modelling etc..
• To make an assembly by using proper mates.
• To make a photo realistic view of a model by using photoview.360 and solidworks visualize.
