Radar Mast & Final Assembly of Yacht
DESIGN AND ASSEMBLE OF A SUNSEEKER YACHT
Objective:
The main aim is to design and assembly of a sunseeker predator yacht by using the methodology of 2D sketch, 3D modeling and photo rendering by using solid works.
Introduction:
Yacht is a sailing boat for cruising, pleasure and racing. There is no definite purpose for construction of this power vessel, based on the requirement of customers facilities structural cabins can be modified and also adding pools, helipads and luxuries facilities can be arranged.
In earlier years boats can be constructed by wood, this process is easy and faster method by using conventional planks over rib continues.
yachts made with the WEST system plies of wood strips, soaked in epoxy and applied over the boat frame it provides a durable, lightweight and robust hull.
At present metals can be used for construction of boats, Metal hulls from steel or aluminum offer the opportunity for welding components to a completely watertight hull. Both metals are vulnerable to damage due to electrolysis. Steel is easy to repair in boatyards around the world, whereas aluminum is a much lighter material.

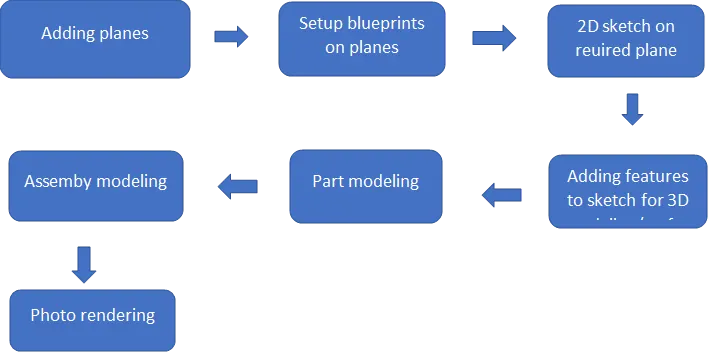

Design methodology:
Adding planes:
To add planes and given offset to required positioning for blueprint setup.
Blueprints setup:
To provide blueprints setup for reference the model and make 2D drawings for part modeling.
2D sketch:
To create geometry using 2D sketch by selecting the plane for drawing and given offset distance to the plane and using tools interface for drawings to given dimension for defining the sketch for modeling.
Part modeling:
It Demonstrates the design methods, tools, and features commonly used to make parts.
Parts to model:
- Propeller
- Radar
- Hull
- Garage door
- Front seat
- Middle seat
- Rear seat
- Superstructure
- Radar mast

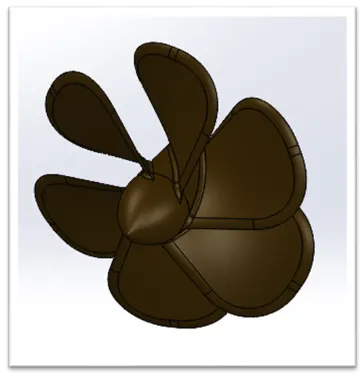

Propeller:
Propeller is a device with a rotating hub and radiating blades that are set at a pitch to form a helical spiral, when rotated it exerts linear thrust upon a working fluid, such as water or air.
Propellers are used to pump fluid through a pipe or duct, or to create thrust to propel a boat through water or an aircraft through air. The blades are specially shaped so that their rotational motion through the fluid causes a pressure difference between the two surfaces of the blade
by Bernoulli's principle which exerts force on the fluid. Most marine propellers are screw propellers with helical blades rotating on a propeller shaft with an approximately horizontal axis.
Tools used to model propeller:
- Revolve
- Lofted base
- Cut extrude
- Fillet
- Circular pattern
Radar:
Radar is a detection system that uses radio waves to determine the distance (ranging), angle, and radial velocity.
It can be used to detect aircraft, ships, spacecraft, guided missiles, motor vehicles, weather formations, and terrain.
A radar system consists of a transmitter producing electromagnetic waves in the radio or microwaves.

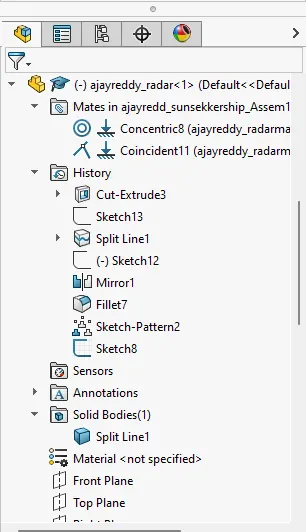

Tools used to model radar:
- Boss extrudes
- Fillet
- Cut extrude
- Sketch pattern
- Mirror
- Split line
Radar
Hull:
A hull is bottom portion of ship to stream through water, it can be constructed based on the requirement and performance.
They are usually displacement hulls. V or arc-bottom chine boats have a V shape between 6 and 23 degrees. This is called the deadrise angle. The flatter shape of a 6-degree hull will plane with less wind or a lower-horsepower engine but will pound more in waves. The deep V form (between 18 and 23 degrees) is only suited to high-powered planning boats.
They require more powerful engines to lift the boat onto the plane but give a faster, smoother ride in waves. Displacement chined hulls have more wetted surface area, hence more drag, than an equivalent round-hull form, for any given displacement.
The watertight body of a boat, or flying boat. The hull may open at the top (such as a dinghy), or it may be fully or partially covered with a deck. A top the deck may be a deckhouse and other superstructures, such as a funnel, derrick, or mast. The line where the hull meets the water surface is called the waterline.
Tools used to model hull:
- Blue print setup
- 2D sketch
- Spline
- Projected curve
- Lofted surface
- Trim surface
- Creating plane
- Surface extend
- Filled surface
- Surface extrude
- Extrude cut
- Fillet
- Boss extrude
- Sweep
- Chamfer
- Shell
- Dome
- Helix/spiral
- Linear pattern
- Delete face
- Revolve
- Combine
- Cut extrude thin
- Split
- Mirror

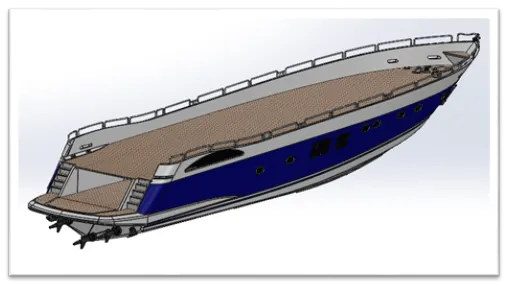

HULL
Garage door:
It can be used to protect the garage from dust, stream water not to occur any damage to vehicles in the garage.
It protects the garage as a shield.
Tools used to model a garage door:
The cut portion from the hull body can be extracted and make a garage door from it.
- Cut extrude
- Fillet
- Sketch Tools are circle
- Boss extrude
- Mirror

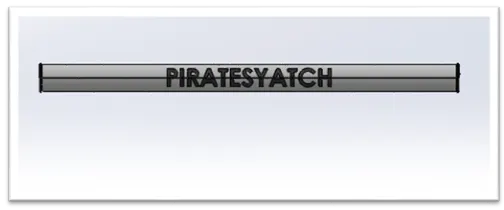

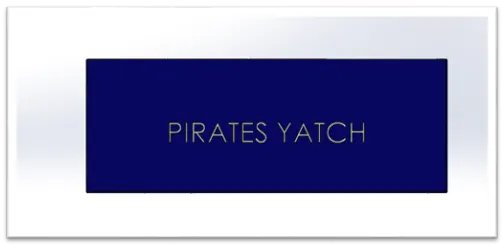

GARAGE DOOR
Seats:
Seats can be model by using the deck surface of the hull.
Front seat:
Front seat can model by using
- Sketch
- Surface sweep
- Extrude surface
- Trim surface
- Filled surface
- Lofted surface
- Knit surface
- chamfer
- Revolve
- Cut extrude thin
- Fillet
- Dome
- Mirror
FRONT SEAT

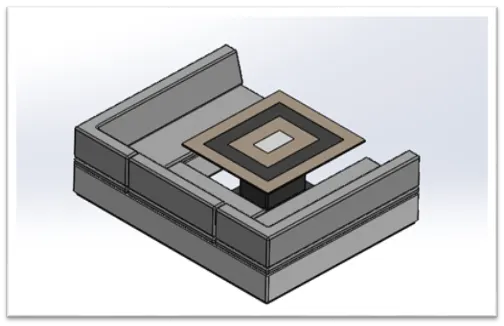

Middle seat:
Tools used to model a middle seat are
- Sketch
- Boss extrude
- Creating plane
- Chamfer
- Fillet
- Mirror
- Cut extrude

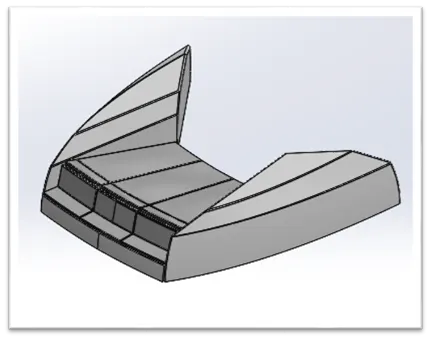

MIDDLE SEAT
Rear seat:
To model a rear seat by using
- By referring the deck of the hull and make model the rear seat on it
- Sketch
- Surface sweep
- Surface offset
- Trim surface
- Ruled surface
- Lofted surface
- Knit surface
- Surface extend
- Surface extrude
- Boss extrude
- Cut extrude
- Chamfer
- Fillet
- Plane
- Mirror
- Revolve
- 3D sketch

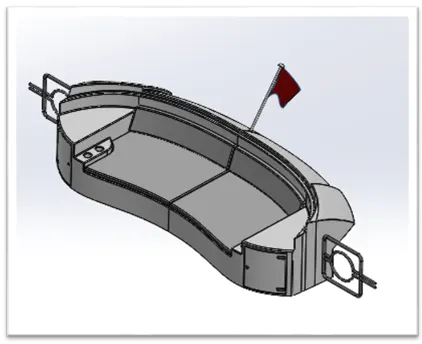

REAR SEAT
Superstructure of yacht:
Superstructure is visibility for Navigation and taking into other considerations like Superstructure is to house living areas, offices, cooking areas and essential stores. On this page we are generalizing accommodation. There is no hard and fast rule as to where to place cabins, offices etc.
It is just a big building and all essential things are inside protected from weather. I have added pictures below from a ship’s plan to give you general idea.
Tools used to model a structure:
- To design a superstructure of a yacht by using surface of the deck
- Sketch
- Creating planes
- Surface extrude
- Creating plane
- 3D sketch
- Surface sweep
- Knit surface
- Fillet
- Ruled surface
- Trim surface
- Projected curves
- Lofted surface
- Filled surface
- Surface extrude
- Surface extend
- Delete face
- Dome
- Cut extrude
- Split line
- Boss extrude
- Extrude thin
- Mirror
- chamfer

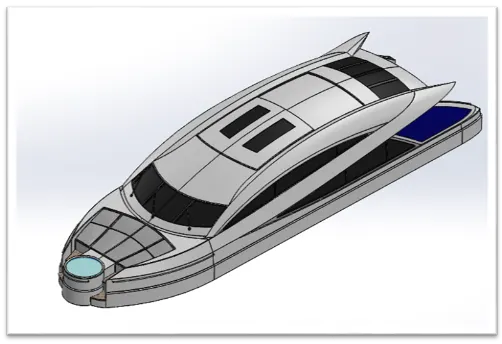

Superstructure of yacht
Radar mast:
It support the platform of the ships derrick and hold the necessary equipment’s like such as radars, receiver, navigation light, ship horns, derricks flag hoist and in case of foremast, it can be constructed by high tensile and rigidity material for balancing and withstand the load of this equipment.
Tools to model the radar mast:
- Sketch
- Plane
- Extrude boss/base
- Fillet
- Swept boss/base
- Mirror
- Curve
- Chamfer
- Revolved boss/base
- Dome
- Shell
- Combine

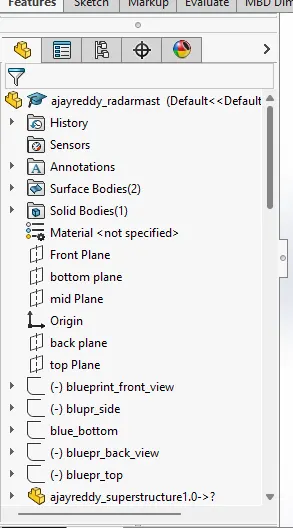

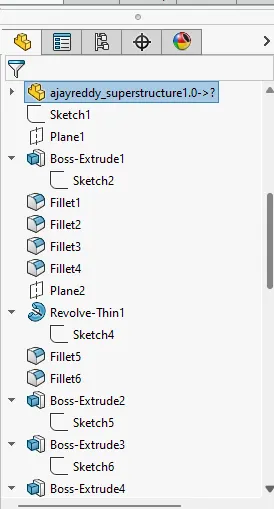

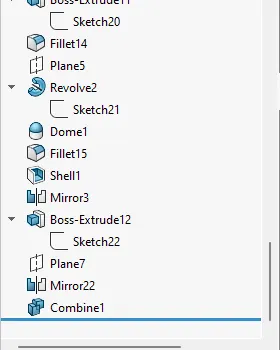

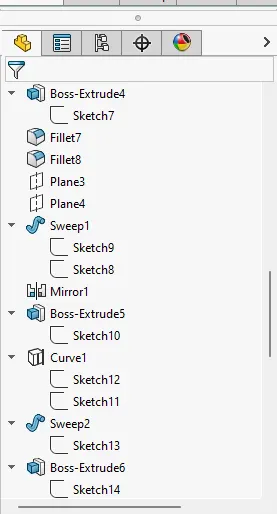

Radar Mast tree:

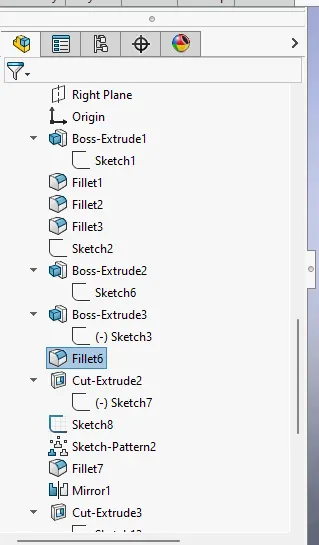

TREE 1

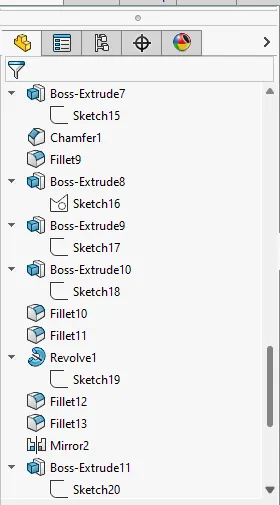

TREE 2
TREE 3
TREE 4
TREE 5

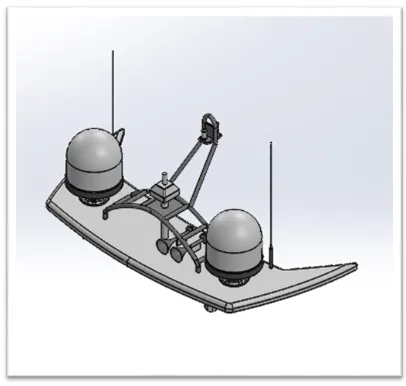

RADARMAST ISOMETRIC VIEW

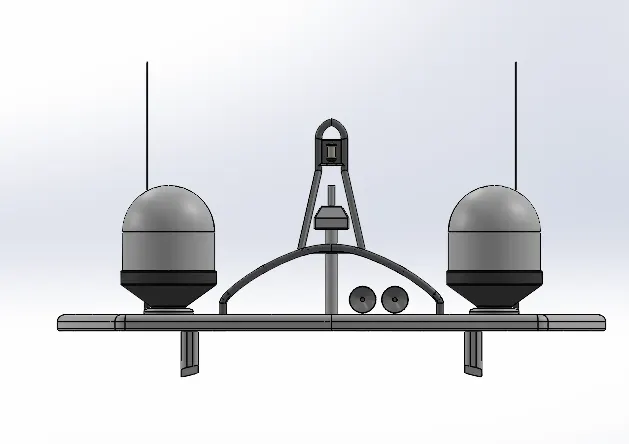

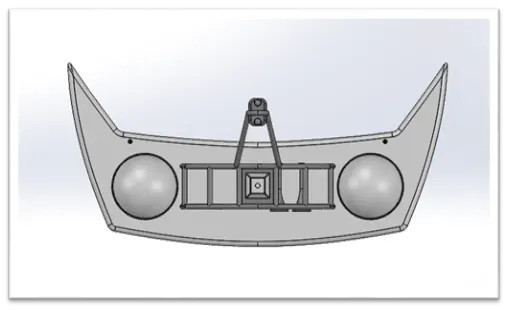

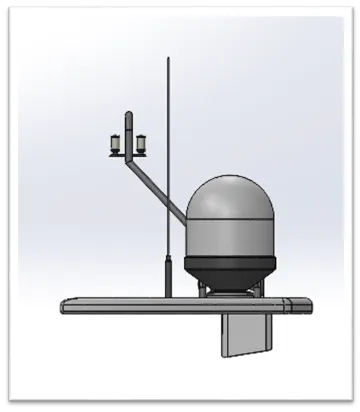

RADARMAST FRONT VIEW
TOP VIEW
SIDE VIEW
Assembly modeling:
In assembly part models can be made together by using mate relation to the components and to get a ship and it Shows how to add parts to an assembly, specify mates, and use in-context design methods.

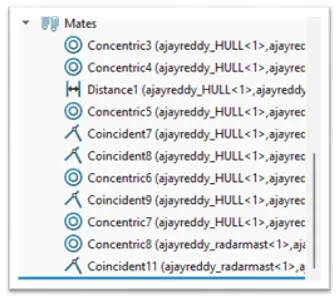

Mates:
Mates used to specify the relationship of two parts of the planes for creating an assembly.

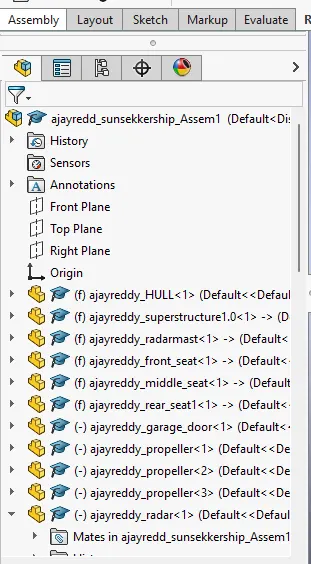

Assembly of sunseeker ship:
TREE 1
TREE 2
TREE 3
TREE 4
ISOMETRIC VIEW
TOP VIEW

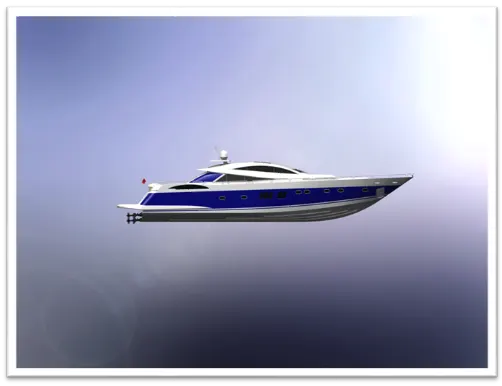

Photo rendering of a ship:
In photo view 360 assemble ship can used for adding scenes, decals, lights, appearances, and camera for rendering the ship for realistic photo view.

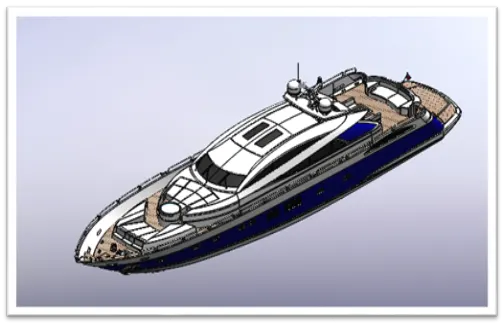

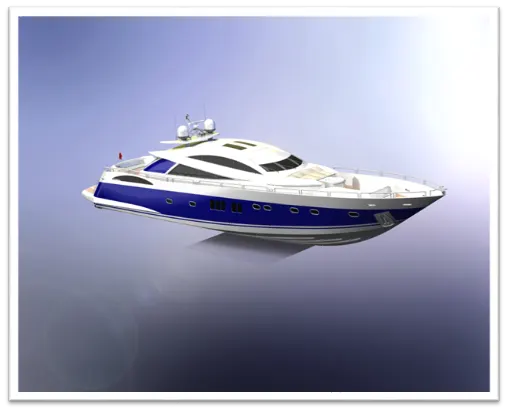

ISOMETRIC VIEW

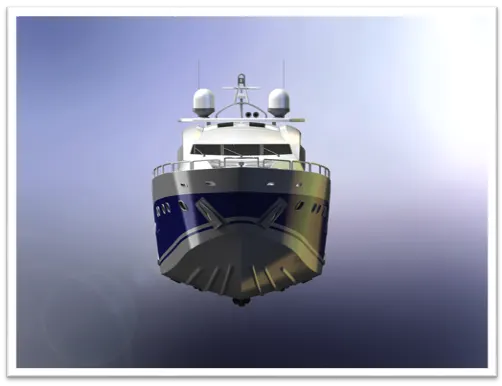

FRONT VIEW
SIDE VIEW

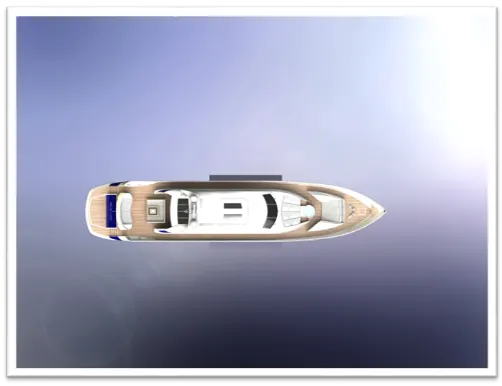

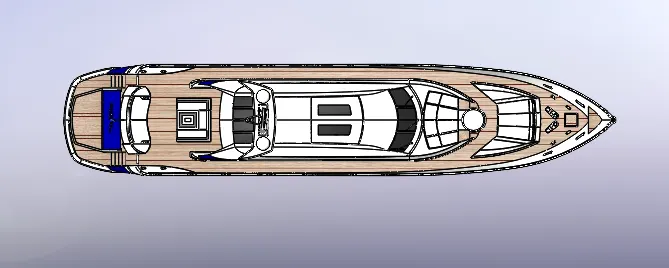

TOP VIEW

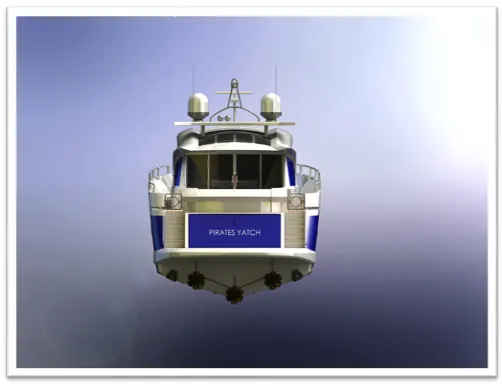

BACK VIEW

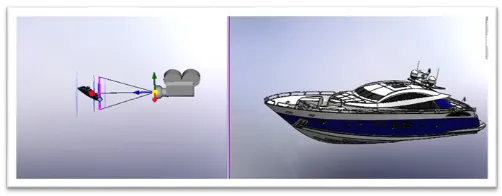

CAMERA SETUP
Conclusion:
To design and rendering of a ship by using solidworks and visualization, in this project to learn a tool methodology, features like solid modeling and surface modeling, and photo rendering of the model by using photo view and solidworks visualization.
