Project - Speed Control of a Direct Current (DC) motor

* steps for the simulink model for the dc motor design are shown below:-

1) %parameter for finding the desired characteristic
J=0.01; %movement of inertia of the rotor in kgm^2
B=0.1; %motor viscous friction constant in Nms
Km=0.01; % Back EMF condtant in v/radins/s
Kt=0.01; % Motor torque constant Nm/Ampere
Ra=1.0; %Armature resistance in ohm
La=0.5; %Armature inductance in henry

2) % finding the values of matrix A and B
A=[-B/J Kt/J;-Km/La -Ra/La];
Bmatrix=[0;1/La];

3) %finding the value of zeta
zeta = 0.8;

4) %finding the value of frequency
fn=1;

Wn=2*pi*fn;

5) %finding the roots by using roots command
P=roots([1 12.5664 39.44]);

6) %use the place command for finding the poles
K=place(A, Bmatrix, P);

7) Kp=6.8780; %value of Kp
Kd=0.832; %value od Kd
Ki=22; %value of Ki

8) In that challenge instead using plot command i used the scope block ti show the direct result.

please find the attatched file of the dc motor control design and also i attatched the script file.

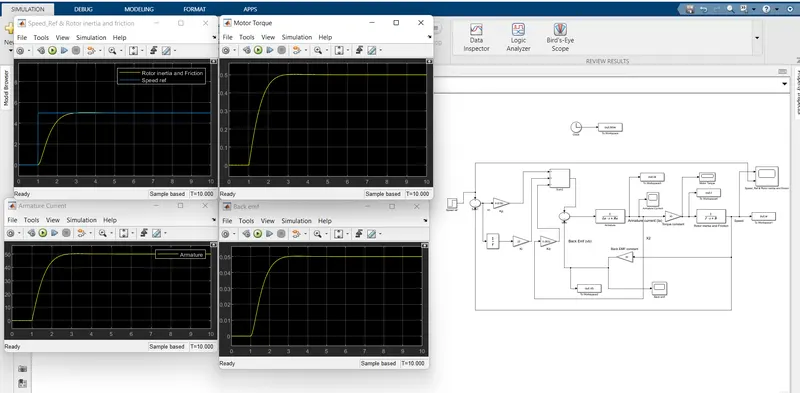

final project module in that image.

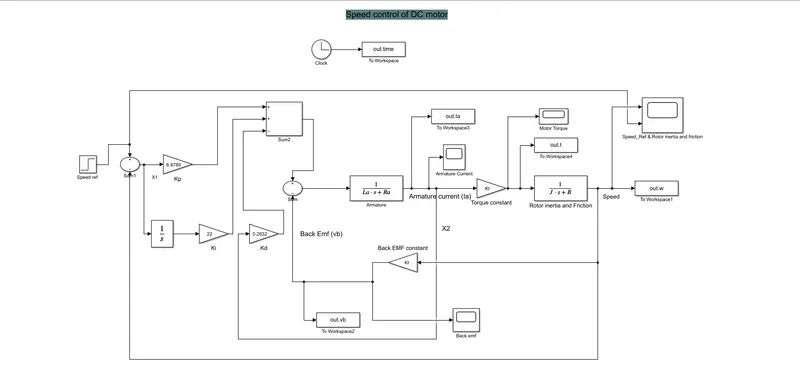

Speed control for DC motor module shown below.

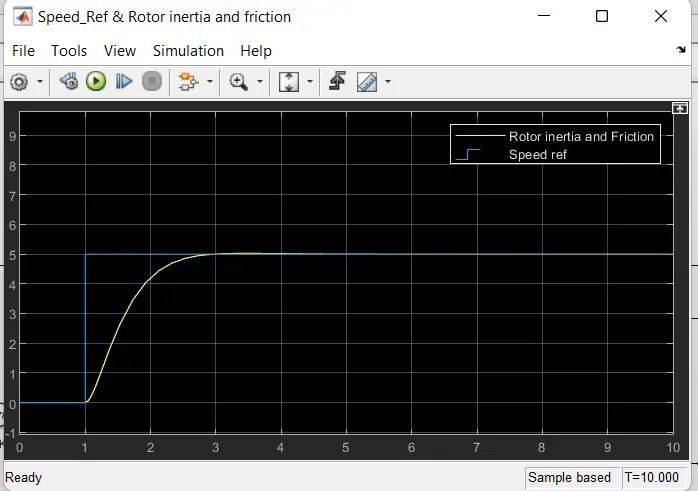

Speed ref and rotor inertia friction graph shown below:-

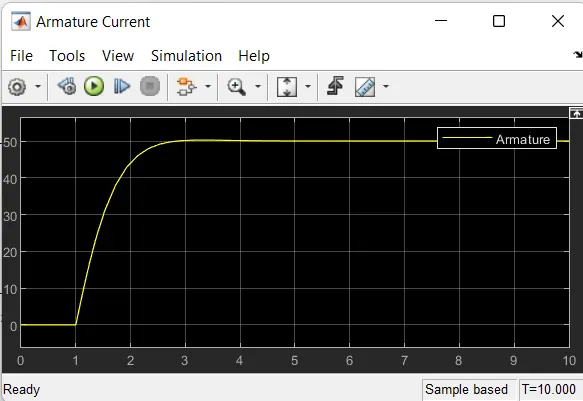

Armature current graph shown in below:-

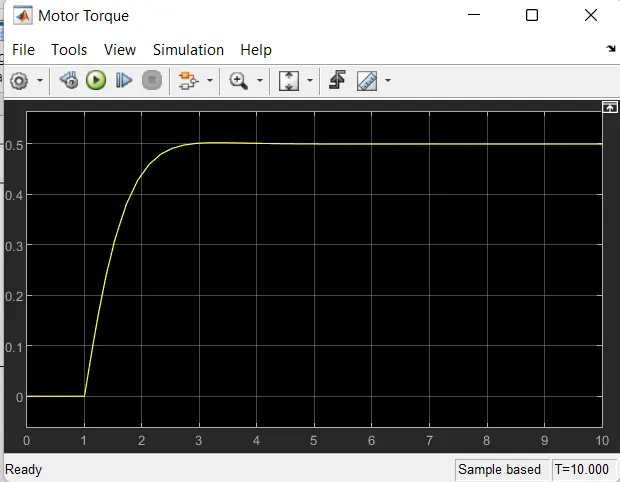

Motor Torque graph shown below:-

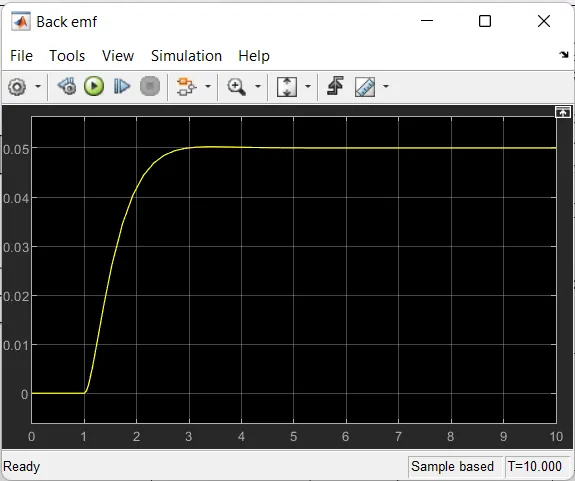

Back emf graph shown below:-
