Project - Data Handling and Interpolation
Script file-
f = xlsread('VI.xlsx') % read thee excel file in matlab
v = f(:,1); % read the column 1 as voltage
i = f(:,2) % read the column 2 as current
x = [-17.3:0.1:0.9] % defined the range
y = interp1(v,i,x) % interpolation command used to interpolate values
plot(v,i,'m',x,y) % plot command used to plot graph
grid; %grid on
xlabel('Voltage_in_volts'); % label the x axis as voltage
ylabel('Current_in_amp'); % label the y axix as current
title('VI_interpolation') % title given
z = [VI]
filename = fopen('interpolation_output.txt','w'); %save the output file as a text file,'w' as write access
fprintf(filename,'%d \t',y);
fclose(filename); %closing the fileOutput command window-
>> matlab_project
f =
-17.3000 -28.0000
-17.1000 -24.0000
-17.0000 -19.0000
-16.8000 -14.0000
-16.5000 -9.0000
-16.0000 -6.0000
-15.0000 -4.0000
-14.0000 -3.0000
-12.0000 -2.0000
-10.0000 -1.3000
-8.0000 -1.0000
-5.0000 -0.6000
-2.0000 -0.3000
-0.2000 -0.1000
0.0900 0
0.1900 0
0.2700 0
0.3900 0.0100
0.4300 0.0300
0.5000 0.1700
0.5500 0.4200
0.6000 1.2300
0.6200 1.9900
0.6500 3.9100
i =
-28.0000
-24.0000
-19.0000
-14.0000
-9.0000
-6.0000
-4.0000
-3.0000
-2.0000
-1.3000
-1.0000
-0.6000
-0.3000
-0.1000
0
0
0
0.0100
0.0300
0.1700
0.4200
1.2300
1.9900
3.9100
x =
Columns 1 through 13
-17.3000 -17.2000 -17.1000 -17.0000 -16.9000 -16.8000 -16.7000 -16.6000 -16.5000 -16.4000 -16.3000 -16.2000 -16.1000
Columns 14 through 26
-16.0000 -15.9000 -15.8000 -15.7000 -15.6000 -15.5000 -15.4000 -15.3000 -15.2000 -15.1000 -15.0000 -14.9000 -14.8000
Columns 27 through 39
-14.7000 -14.6000 -14.5000 -14.4000 -14.3000 -14.2000 -14.1000 -14.0000 -13.9000 -13.8000 -13.7000 -13.6000 -13.5000
Columns 40 through 52
-13.4000 -13.3000 -13.2000 -13.1000 -13.0000 -12.9000 -12.8000 -12.7000 -12.6000 -12.5000 -12.4000 -12.3000 -12.2000
Columns 53 through 65
-12.1000 -12.0000 -11.9000 -11.8000 -11.7000 -11.6000 -11.5000 -11.4000 -11.3000 -11.2000 -11.1000 -11.0000 -10.9000
Columns 66 through 78
-10.8000 -10.7000 -10.6000 -10.5000 -10.4000 -10.3000 -10.2000 -10.1000 -10.0000 -9.9000 -9.8000 -9.7000 -9.6000
Columns 79 through 91
-9.5000 -9.4000 -9.3000 -9.2000 -9.1000 -9.0000 -8.9000 -8.8000 -8.7000 -8.6000 -8.5000 -8.4000 -8.3000
Columns 92 through 104
-8.2000 -8.1000 -8.0000 -7.9000 -7.8000 -7.7000 -7.6000 -7.5000 -7.4000 -7.3000 -7.2000 -7.1000 -7.0000
Columns 105 through 117
-6.9000 -6.8000 -6.7000 -6.6000 -6.5000 -6.4000 -6.3000 -6.2000 -6.1000 -6.0000 -5.9000 -5.8000 -5.7000
Columns 118 through 130
-5.6000 -5.5000 -5.4000 -5.3000 -5.2000 -5.1000 -5.0000 -4.9000 -4.8000 -4.7000 -4.6000 -4.5000 -4.4000
Columns 131 through 143
-4.3000 -4.2000 -4.1000 -4.0000 -3.9000 -3.8000 -3.7000 -3.6000 -3.5000 -3.4000 -3.3000 -3.2000 -3.1000
Columns 144 through 156
-3.0000 -2.9000 -2.8000 -2.7000 -2.6000 -2.5000 -2.4000 -2.3000 -2.2000 -2.1000 -2.0000 -1.9000 -1.8000
Columns 157 through 169
-1.7000 -1.6000 -1.5000 -1.4000 -1.3000 -1.2000 -1.1000 -1.0000 -0.9000 -0.8000 -0.7000 -0.6000 -0.5000
Columns 170 through 182
-0.4000 -0.3000 -0.2000 -0.1000 0 0.1000 0.2000 0.3000 0.4000 0.5000 0.6000 0.7000 0.8000
Column 183
0.9000
y =
Columns 1 through 13
-28.0000 -26.0000 -24.0000 -19.0000 -16.5000 -14.0000 -12.3333 -10.6667 -9.0000 -8.4000 -7.8000 -7.2000 -6.6000
Columns 14 through 26
-6.0000 -5.8000 -5.6000 -5.4000 -5.2000 -5.0000 -4.8000 -4.6000 -4.4000 -4.2000 -4.0000 -3.9000 -3.8000
Columns 27 through 39
-3.7000 -3.6000 -3.5000 -3.4000 -3.3000 -3.2000 -3.1000 -3.0000 -2.9500 -2.9000 -2.8500 -2.8000 -2.7500
Columns 40 through 52
-2.7000 -2.6500 -2.6000 -2.5500 -2.5000 -2.4500 -2.4000 -2.3500 -2.3000 -2.2500 -2.2000 -2.1500 -2.1000
Columns 53 through 65
-2.0500 -2.0000 -1.9650 -1.9300 -1.8950 -1.8600 -1.8250 -1.7900 -1.7550 -1.7200 -1.6850 -1.6500 -1.6150
Columns 66 through 78
-1.5800 -1.5450 -1.5100 -1.4750 -1.4400 -1.4050 -1.3700 -1.3350 -1.3000 -1.2850 -1.2700 -1.2550 -1.2400
Columns 79 through 91
-1.2250 -1.2100 -1.1950 -1.1800 -1.1650 -1.1500 -1.1350 -1.1200 -1.1050 -1.0900 -1.0750 -1.0600 -1.0450
Columns 92 through 104
-1.0300 -1.0150 -1.0000 -0.9867 -0.9733 -0.9600 -0.9467 -0.9333 -0.9200 -0.9067 -0.8933 -0.8800 -0.8667
Columns 105 through 117
-0.8533 -0.8400 -0.8267 -0.8133 -0.8000 -0.7867 -0.7733 -0.7600 -0.7467 -0.7333 -0.7200 -0.7067 -0.6933
Columns 118 through 130
-0.6800 -0.6667 -0.6533 -0.6400 -0.6267 -0.6133 -0.6000 -0.5900 -0.5800 -0.5700 -0.5600 -0.5500 -0.5400
Columns 131 through 143
-0.5300 -0.5200 -0.5100 -0.5000 -0.4900 -0.4800 -0.4700 -0.4600 -0.4500 -0.4400 -0.4300 -0.4200 -0.4100
Columns 144 through 156
-0.4000 -0.3900 -0.3800 -0.3700 -0.3600 -0.3500 -0.3400 -0.3300 -0.3200 -0.3100 -0.3000 -0.2889 -0.2778
Columns 157 through 169
-0.2667 -0.2556 -0.2444 -0.2333 -0.2222 -0.2111 -0.2000 -0.1889 -0.1778 -0.1667 -0.1556 -0.1444 -0.1333
Columns 170 through 182
-0.1222 -0.1111 -0.1000 -0.0655 -0.0310 0 0 0.0025 0.0150 0.1700 1.2300 NaN NaN
Column 183
NaN
z =
24×2 table
VVolt ImAmp
_____ _____
-17.3 -28
-17.1 -24
-17 -19
-16.8 -14
-16.5 -9
-16 -6
-15 -4
-14 -3
-12 -2
-10 -1.3
-8 -1
-5 -0.6
-2 -0.3
-0.2 -0.1
0.09 0
0.19 0
0.27 0
0.39 0.01
0.43 0.03
0.5 0.17
0.55 0.42
0.6 1.23
0.62 1.99
0.65 3.91

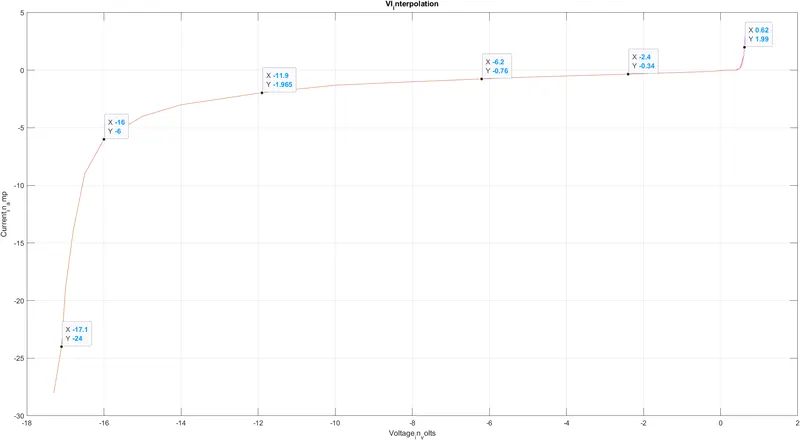

>> Graph-
