Project - Data Handling and Interpolation

PROJECT

DATA HANDLING AND INTERPOLATION

Project :

In a laboratory experiment, data of voltage and current has been recorded and the same is attached in an excel file ( Click on this link VI.xlsx ). Read the excel file in the Matlab program and perform the interpolation in the range of -17.3:0.1:0.9. Generate the interactive plot for the interpolated data and store them in a text file.

Key Highlights:

• Graphical solutions are more visual and appealing
• Interpolation of data
• Read excel file
• Write to text file

Deliverables:

• Find missing data and save it in text
• Interpolate the data set
• Save your program and attach the same.
• Save txt file and upload in attachment

Ans:

Interpolation:

The key matlab functions to help with interpolation are: inter1 and inter2

In engineering applications, we run into situations where some X-Y data migh not be available. In those situations, one can use interpolation to determine the ‘Y’ values corresponding to a specific set of 'X' values

The interpolation options include: linear, cubic & spline among the others.

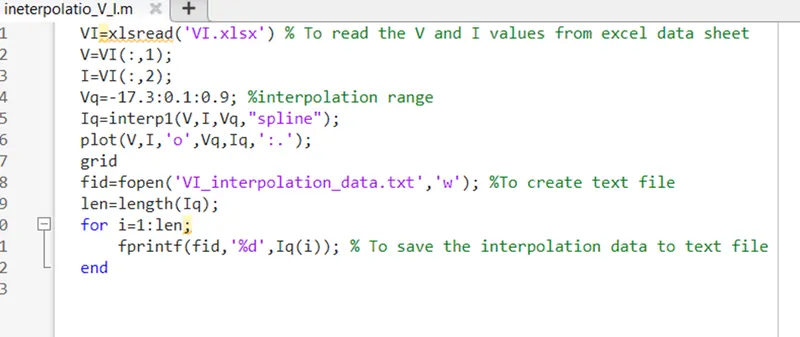

Matlab script for interpolate the data by using given voltage and current values to perform interpolation in the range of -17.3:0.1:0.9 is shown below.

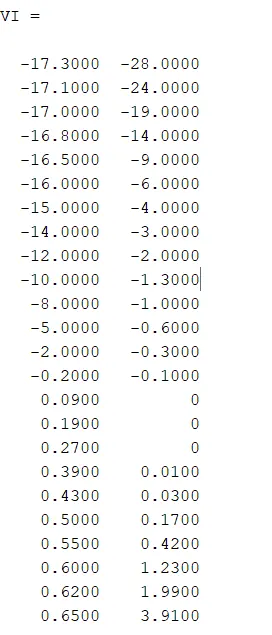

VI=xlsread('VI.xlsx') % To read the V and I values from excel data sheet

V=VI(:,1);

I=VI(:,2);

Vq=-17.3:0.1:0.9; %interpolation range

Iq=interp1(V,I,Vq,"spline");

plot(V,I,'o',Vq,Iq,':.');

grid

fid=fopen('VI_interpolation_data.txt','w'); %To create text file

len=length(Iq);

for i=1:len;

fprintf(fid,'%d',Iq(i)); % To save the interpolation data to text file

end

Plot of interpolation data:

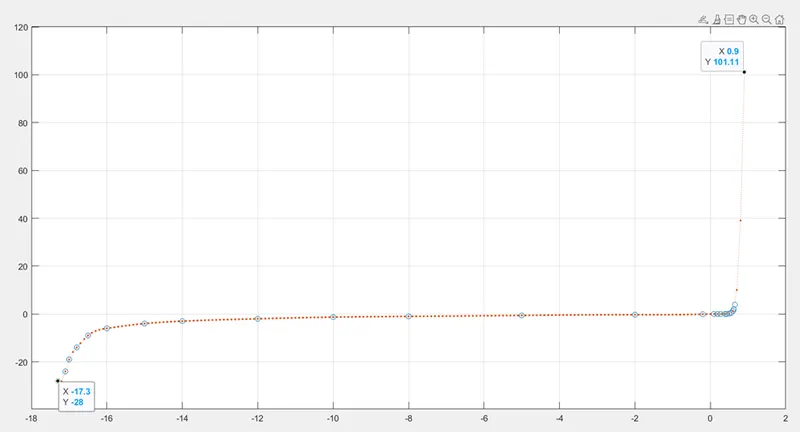

In the above plot dot line showing the interpolation data from -17.3 to 0.9 at voltage -17.3 the current is -28mA and at voltage 0.9 the current is 101.22 mA. The circles are showing given data of voltage and current values.
