Project

AIM :-

To carry out system level simulation of an all terrain vehicle.

Introduction :-

An all-terrain vehicle (ATV) is defined as a motorized off-highway vehicle designed to travel on four low-pressure or non-pneumatic tires, having a seat designed to be straddled by the operator and handlebars for steering control.

Case 1.

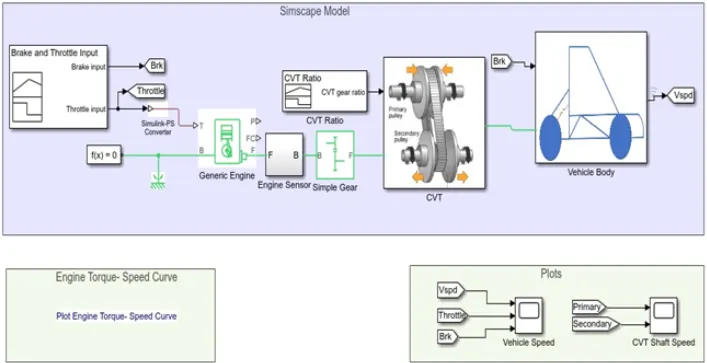

Simulink model for BAJA ATV with CVT :-

Componentsin the model :-

CVT:-

A CVT transmission, or continuously variable transmission, seamlessly changes through an unending range of effective gear ratios while you drive, whereas other kinds of mechanical transmissions offer a fixed number of gear ratios and have hard shifts between each.

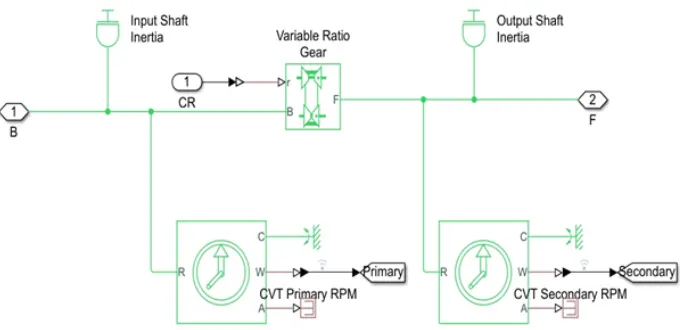

CVT Block :-

Variable Transmission Ratio:-

Engine :-

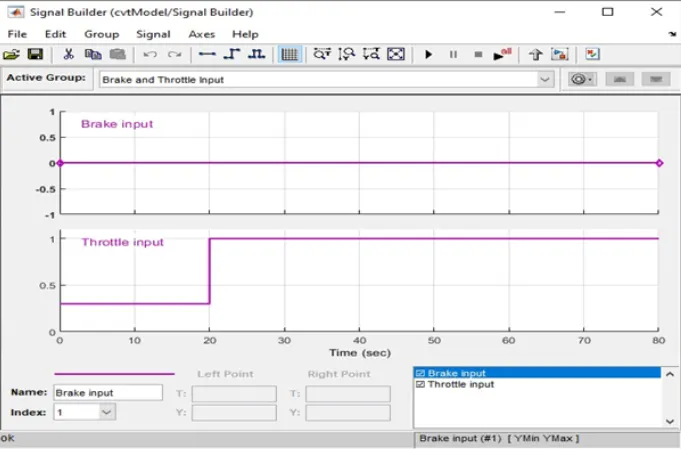

Input signal :-

A signal builder is used to create signal for brake & throttle.

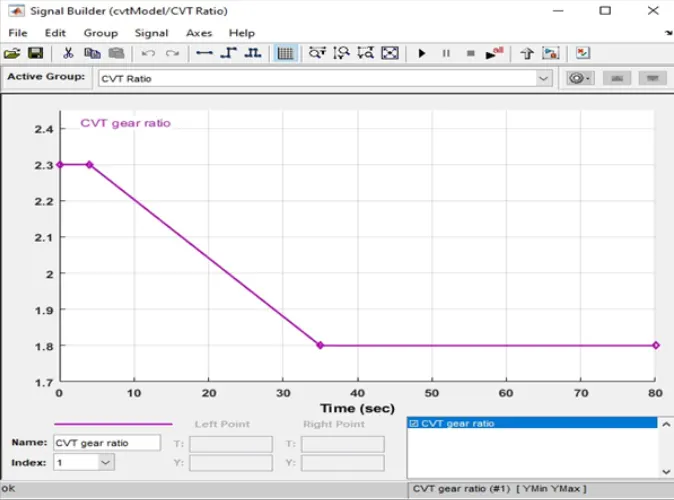

CVT gear ratio input :-

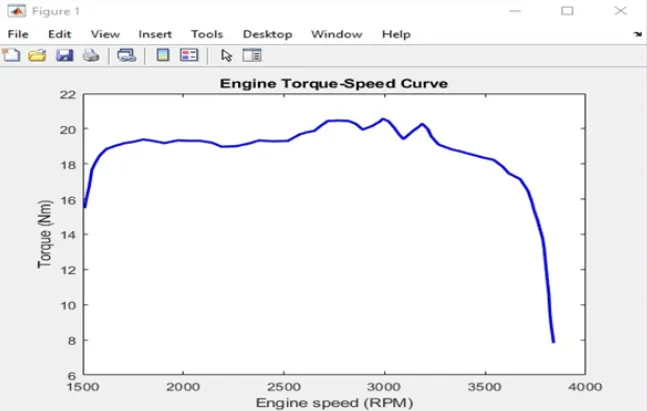

Torque vs RPM input :-

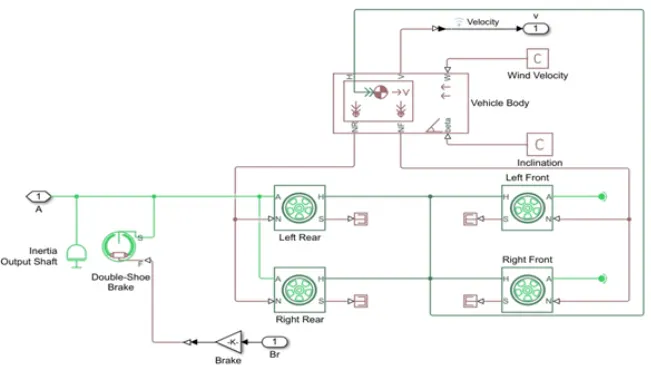

Vehicle Body :-

Output :-

Case 1:-

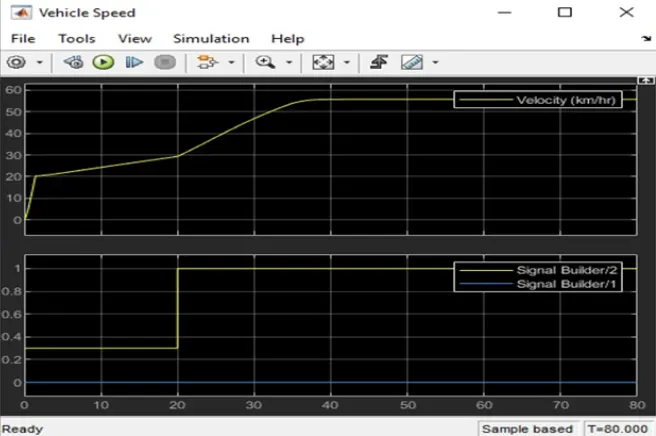

Vehicle speed:-

From the graph we can see that max speed of vehicle is 55km/hr at full throttle=1 after 30 seconds & remain constant.

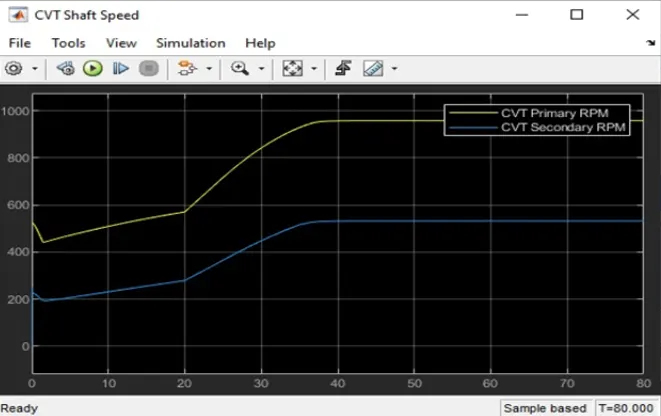

CVT shaft rpm :-

This shows the variation in angular velocities of input & output shafts of variable gear transmission system.

Case 2.

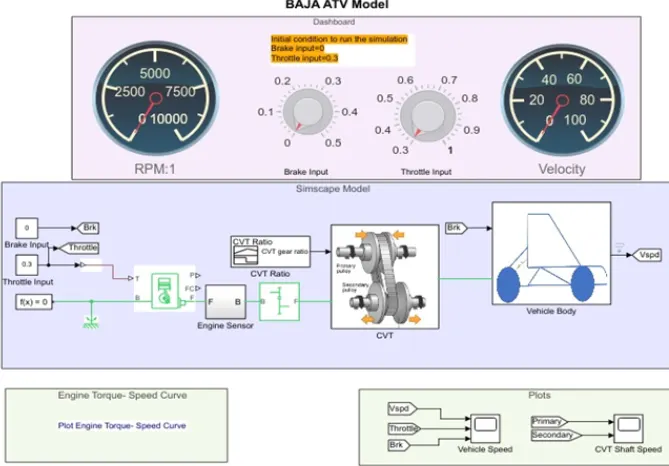

Simulink model for BAJA ATV with CVT using dashboard :-

This dashboard contains knobs to control inputs. In this throttle & brka are not provided using signal builder.

Output:-

Case 2

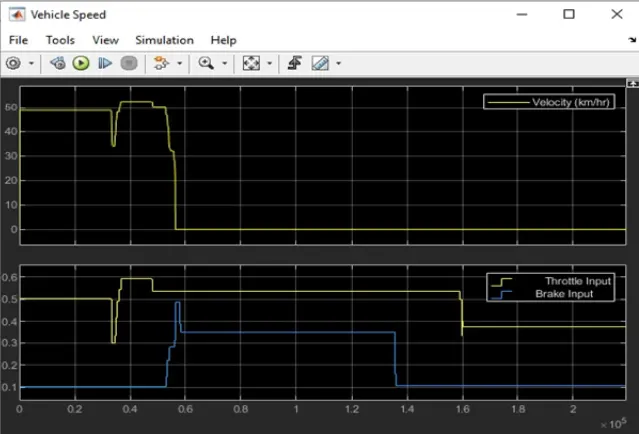

Vehicle speed:-

It shows that velocity of the vehicle increases drastically from 0 to 50 kmphwhen throttle value is 0.5 & brake input is 0. Once braking value increases from 0.1 to 0.5, the velocity of the vehicle decreases to 0 at constant throttle value.

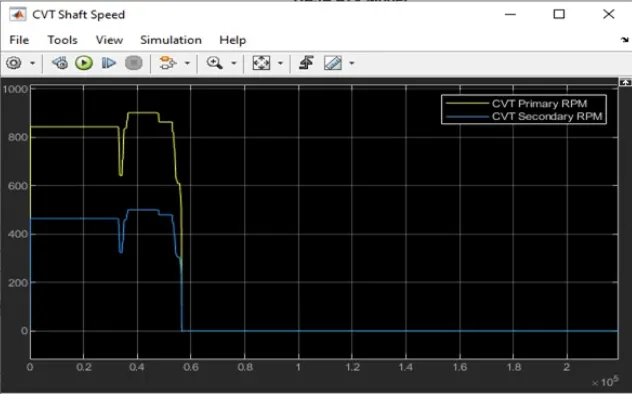

CVT shaft rpm:-

Conclusion :-

We have analysed different model of atv with cvt & recorded the outputs with respect to variations in input throttle & brake .
