Project

The Motor blower assembly consists of 5 Parts which are first created as part files and later on assembled in an assembly file using different constraints.

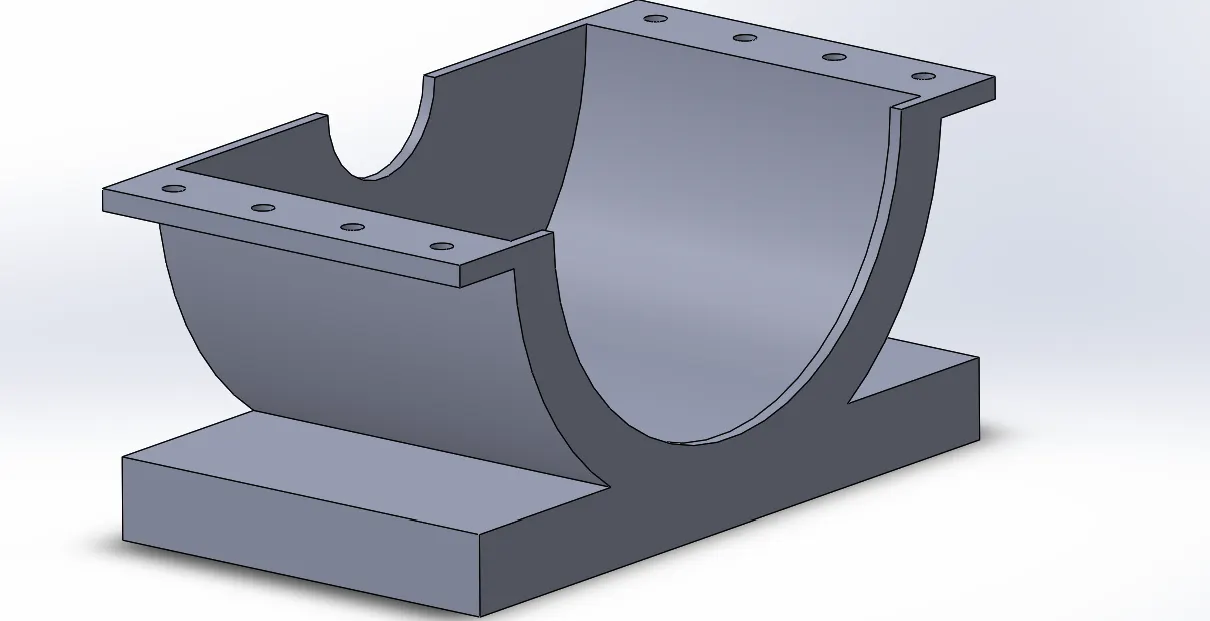

LOWER HOUSING:

The lower housing was created using different features like Extrude, shell, cut and mirror.

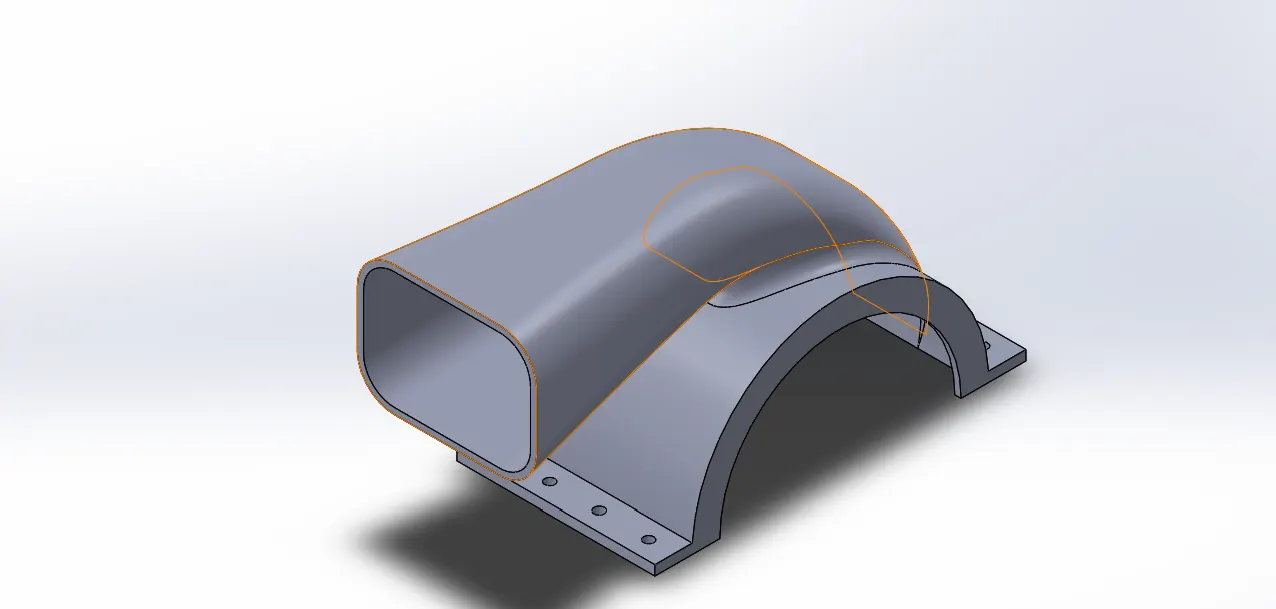

UPPER HOUSING:

The upper housing was created using features extrude, shell, mirror, extrude cut, and fillet.

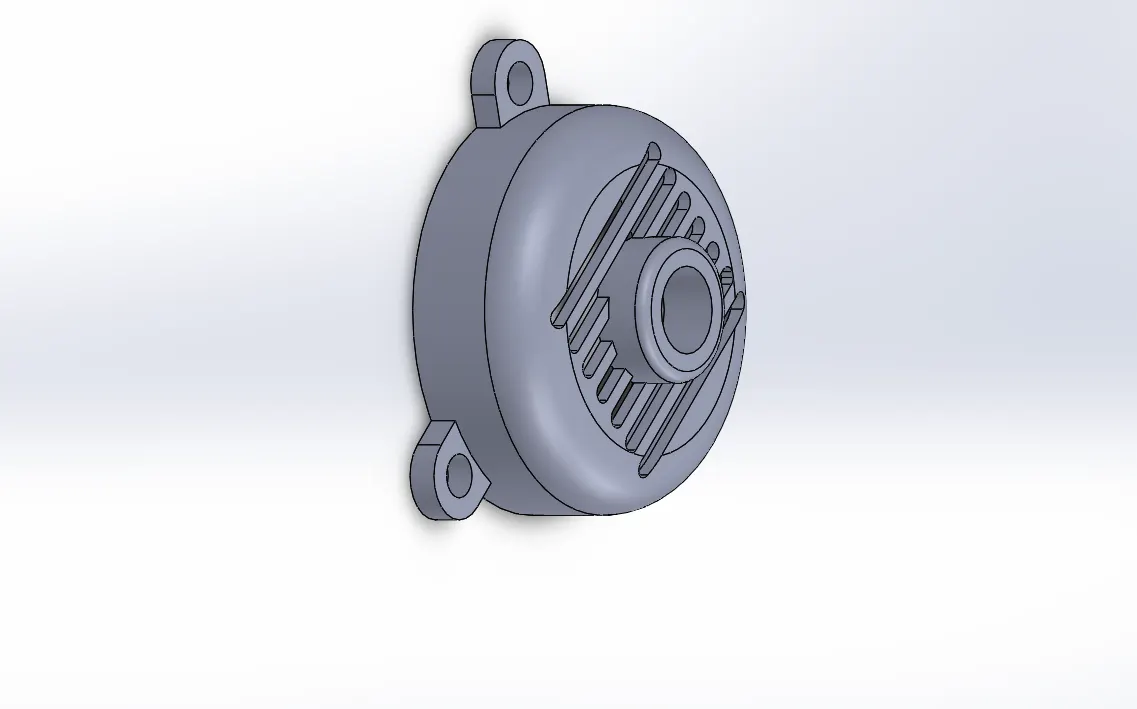

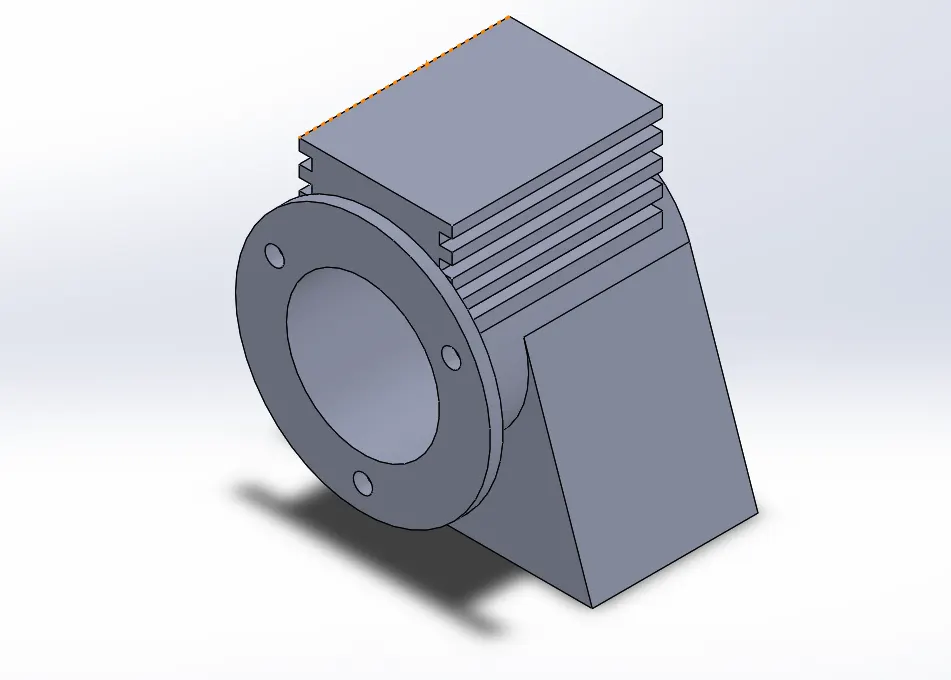

MOTOR:

The motor was created using Solidworks part features.

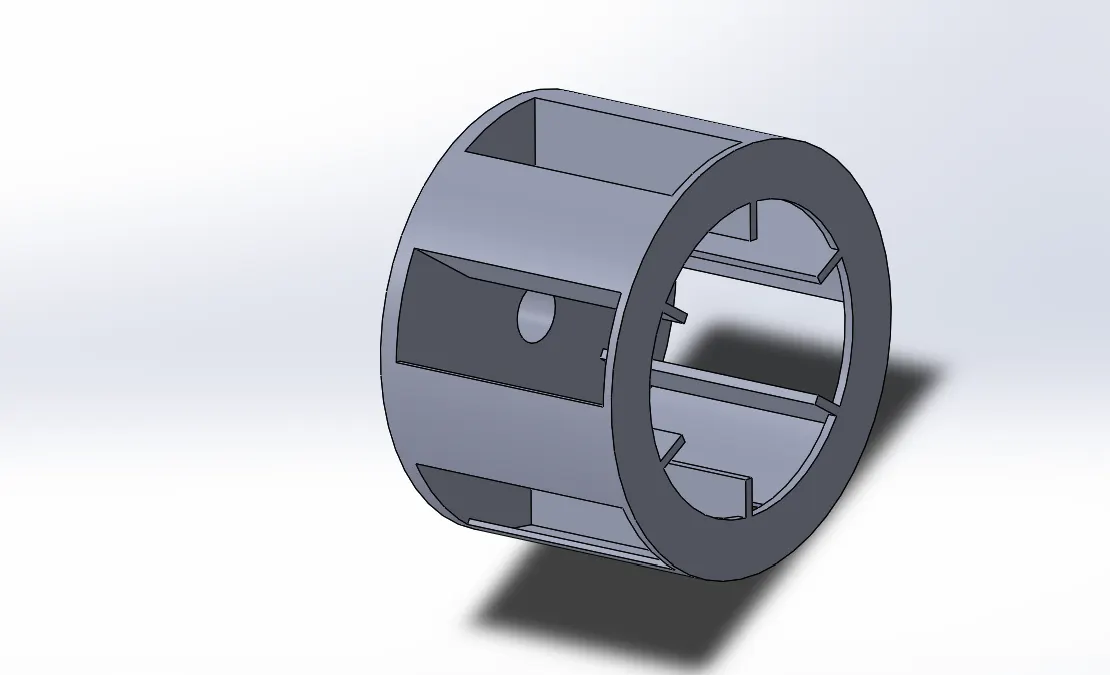

BLOWER:

The blower was created using SolidWorks Features.

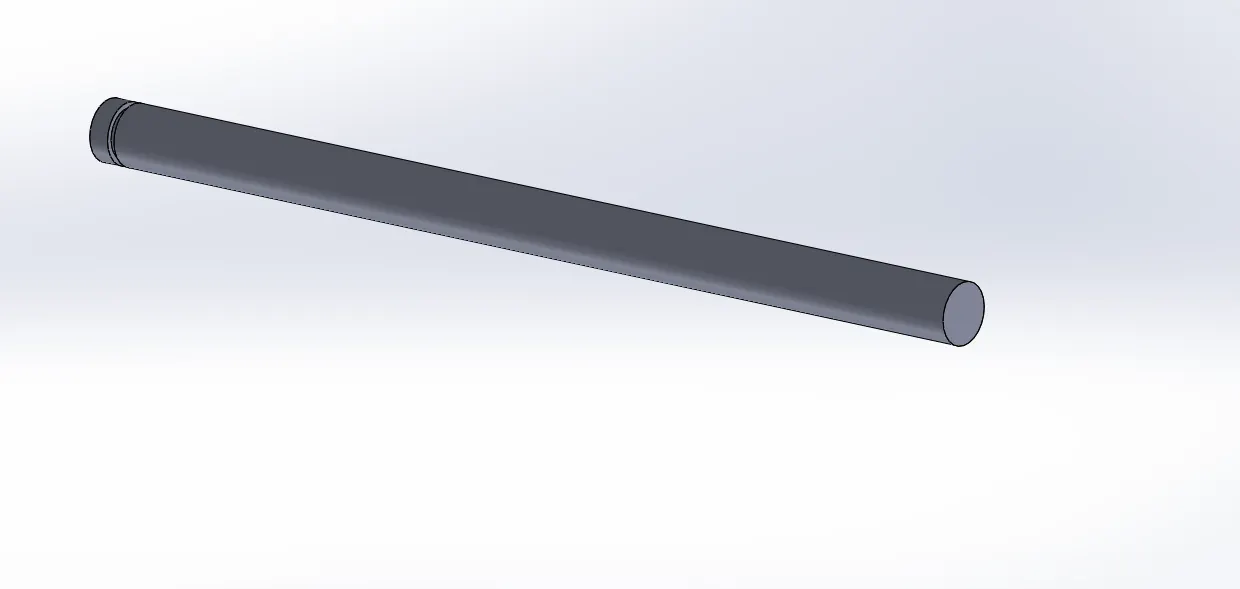

SHAFT:

The shaft was created using the extrude feature.

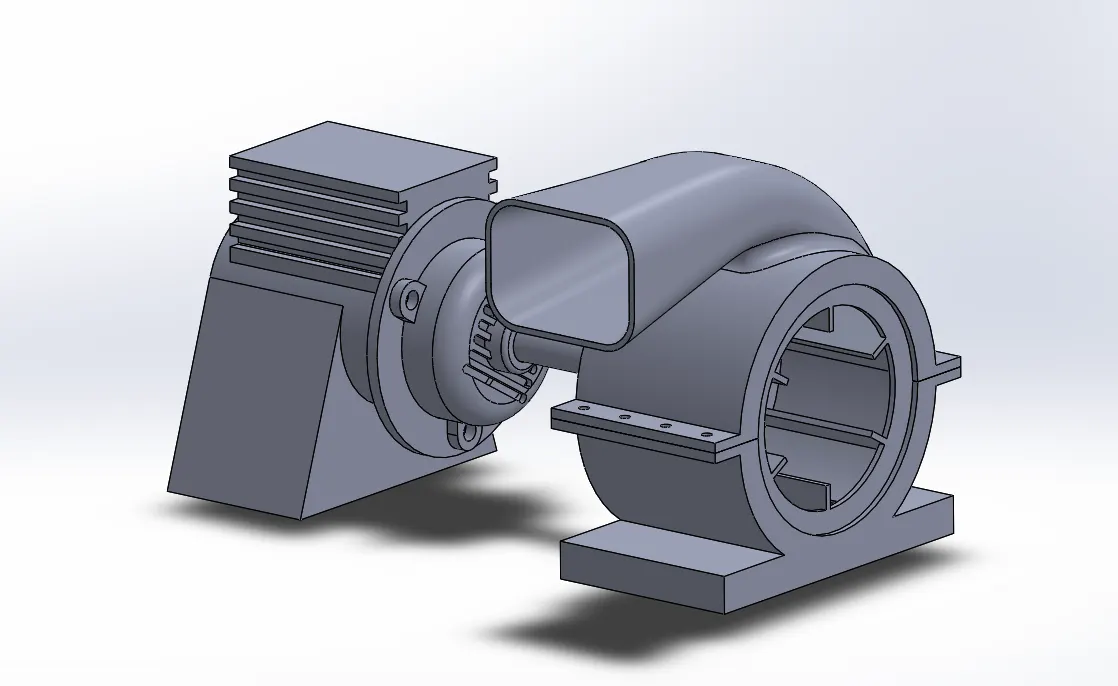

ASSEMBLY:

After creating all the different part files they are assembled in an assembly file by using different constraints like coincidence, concentric, distance, parallel, and constraint.

The assembly views are:

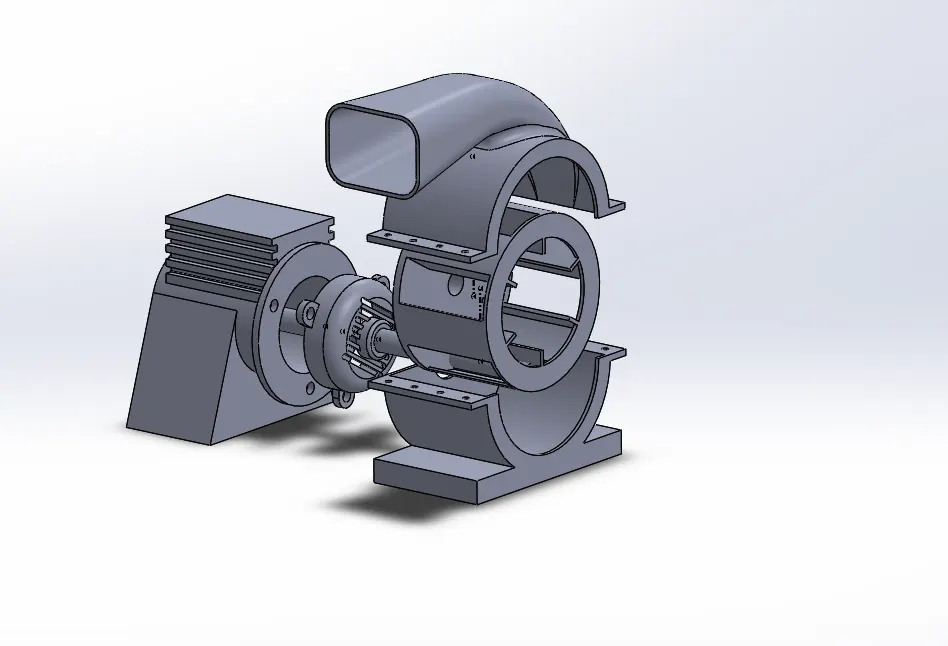

Exploded View Of Assembly

Drawing Parts And Assembly, Drawing Views Of Parts and Assembly will be Given In the Attached zip file.
