Project 2 - V&V SW Analysis II

EMB LIVE BATCH : ABHINAYA

1 Static code analysis

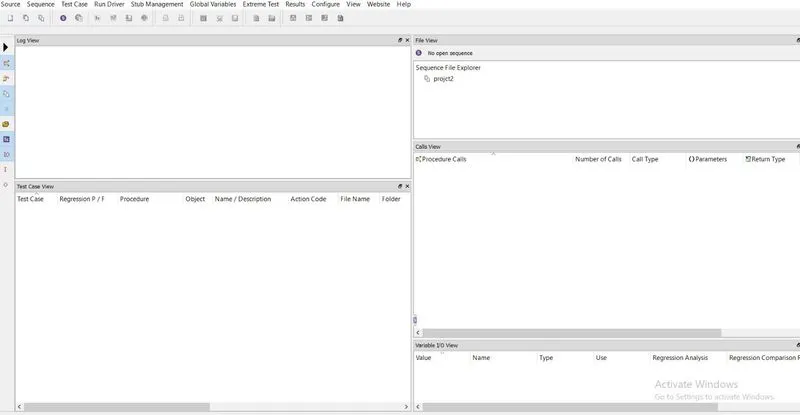

1. Open LDRA tool and load the file Ggrocer.c through source-> single file.
2. Select the Ggrocers.c file and click ok.
3. Create a sequence and give a name for the sequence.
4. Enable code coverage for the sequence and click ok.

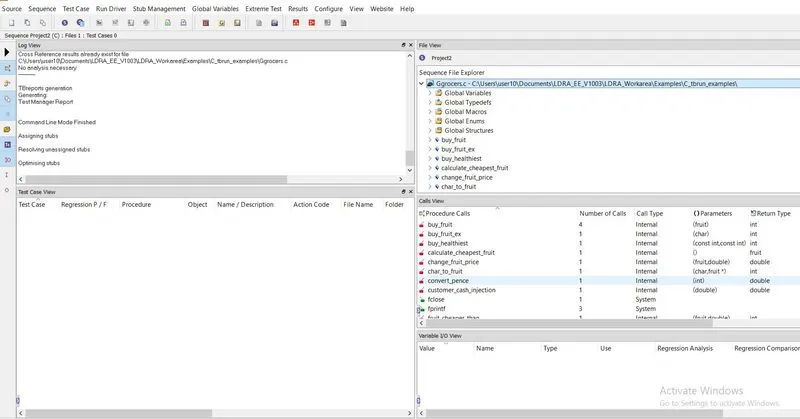

5. For static analysis go to source and select run static analysis.
6. After completion of static analysis get the test manager report from Results.

Result is attached below:- (project2 static analysis_Test Manager Report )

2 A

Integration Testing

1. Open LDRA tool and choose source-> multiple files.
2. A window will popup and give a name and choose system.
3. Create a sequence and give a name for the sequuence.
4. Enable code coverage and click ok.
5. Make the files as under black box testing.
6. Run static analysis.
7. After completion, now go to configure o menu bar and select analysis configure --> select static option.
8. In the new window, click on find/create and select the path of .dat file.
9. Under Macro, click on find/create and select the path for the file.
10. Click apply and then ok.
11. Run static analysis.
12. After completion get the test manager report from results.

Result is attached below:- (project2 integration test_Test Manager Report)

2 B

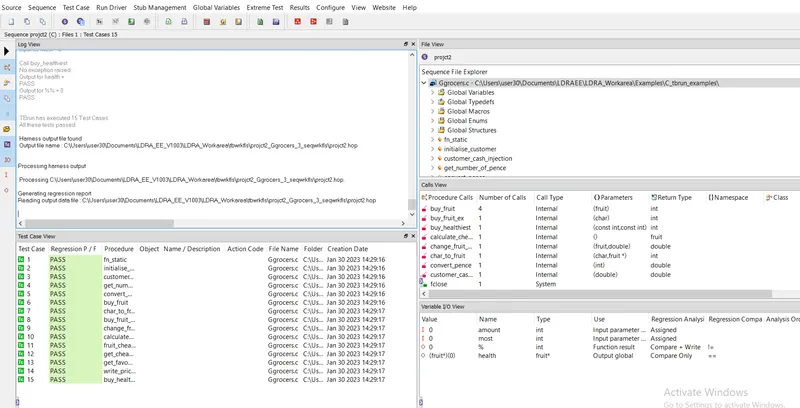

After performing automation test on Ggrocers.c

1. Go to source

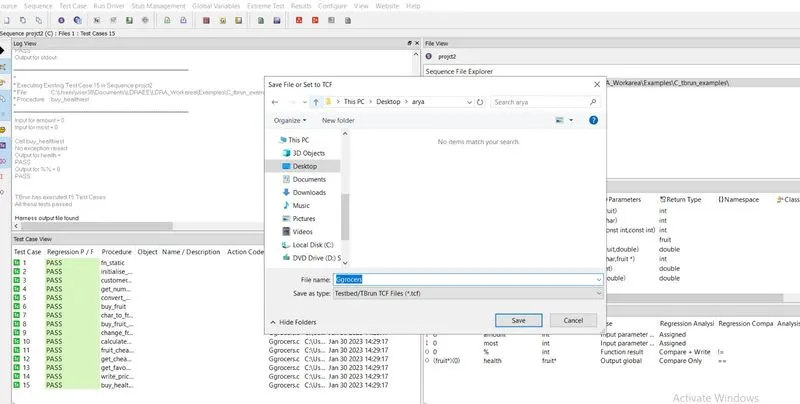

2. Click on save as or set as tcf.
3. Select the path
4. click save.

Result is attached below:- (Ggrocers.tcf)
