Project 2 - Modeling of 3 phase Induction Motor Drive

Question

This project is focused towards electric vehicle application using an Induction Motor. Student will have to take following steps for a successful model:

1. Model 3 Phase Inverter using Simulink (model the parasitic as well) with a switching frequency of 10Khz using 3 phase Squirrel Cage Induction motor, using V/F method, open loop

Design Parameters:

1. Power = 100 HP
2. DC Voltage = 800 V
3. Output Voltage = 460 VRMS – line to line
4. Initial Speed = 1500 RPM
5. Final Speed = 1000 RPM
6. Initial Load Torque = 10 Nm
7. Final Torque=20 Nm
8. Torque Step Time = 0.1 secs

For Induction Motor model – use Asynchronous Machine from Simulink with Squirrel Cage Preset Model – 05 , for 100HP Motor

For back emf to speed relation, assume a linear rate from 0.25 to 1, with speed changing from 500 RPM to 2000 RPM

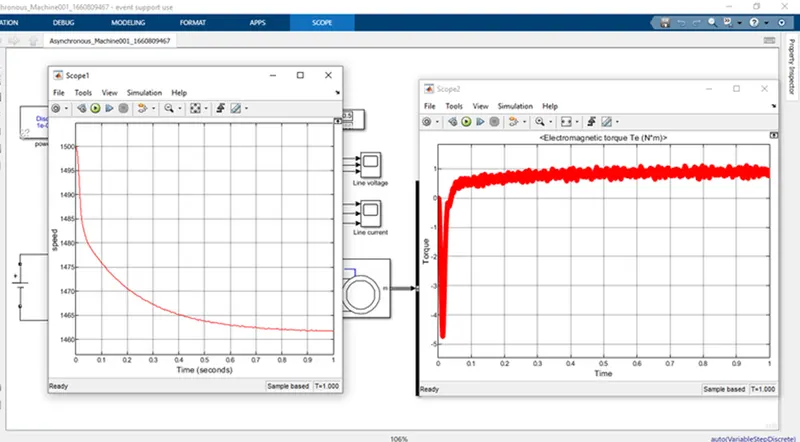

Plot speed, stator voltage (line to line) and frequency.

Plot stator line voltage, phase current

2. Use the 3 phase inductor motor theory to derive the transfer function of 3 phase Induction Motor
3. Model 3 phase induction motor with a 3 phase inverter using Direct Torque control using an Average Model, Implement both torque and flux control to achieve desired power.

Design Parameters:

1. Initial Speed = 0 RPM
2. Flux Target = 2.5 webers
3. DC Voltage = 500 V;
4. Fundamental Frequency = 60 Hz
5. Speed Step Time = 0.01 secs
6. Determine fundamental speed based upon fundamental frequency
7. Determine the switching sequence for direct torque control
8. Moment of Inertia = 0.1 Kgm^2
9. Load Torque Initial = 0 Nm
10. Final Load Torque = 50 Nm
11. Torque Step Time = 0.03 secs

Motor Parameters: (Create an Average Model)

1. Stator Resistance = 0.5 Ohms
2. Rotor Resistance = 0.2 Ohms
3. Stator Leakage Inductance = 20 mH
4. Rotor Leakage Inductance = 10 mH
5. Magnetizing Inductance = 200 mH
6. Number of Poles = 4
7. Torque to Speed

Your Answers

This project is focused towards electric vehicle application using an Induction Motor. Student will have to take following steps for a successful model:

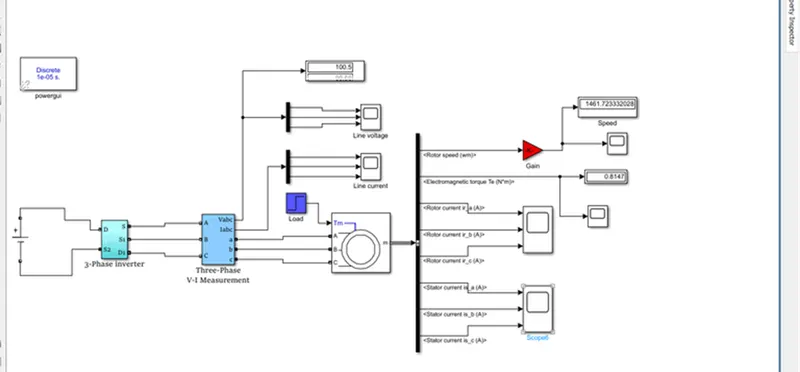

1. Model 3 Phase Inverter using Simulink (model the parasitic as well) with a switching frequency of 10Khz using 3 phase Squirrel Cage Induction motor, using V/F method, open loop

Design Parameters:

1. Power = 100 HP
2. DC Voltage = 800 V
3. Output Voltage = 460 VRMS – line to line
4. Initial Speed = 1500 RPM
5. Final Speed = 1000 RPM
6. Initial Load Torque = 10 Nm
7. Final Torque=20 Nm
8. Torque Step Time = 0.1 secs

For Induction Motor model – use Asynchronous Machine from Simulink with Squirrel Cage Preset Model – 05 , for 100HP Motor

For back emf to speed relation, assume a linear rate from 0.25 to 1, with speed changing from 500 RPM to 2000 RPM

Plot speed, stator voltage (line to line) and frequency.

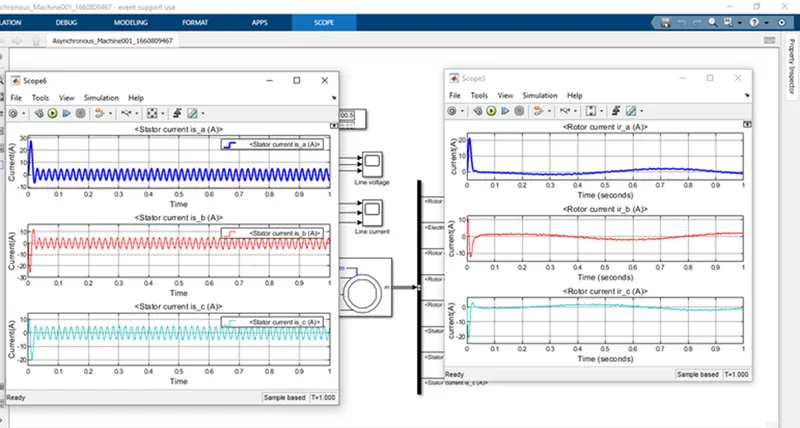

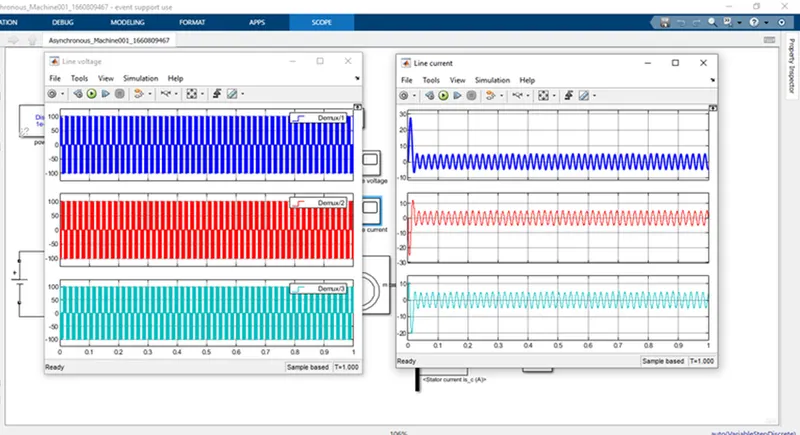

Plot stator line voltage, phase current

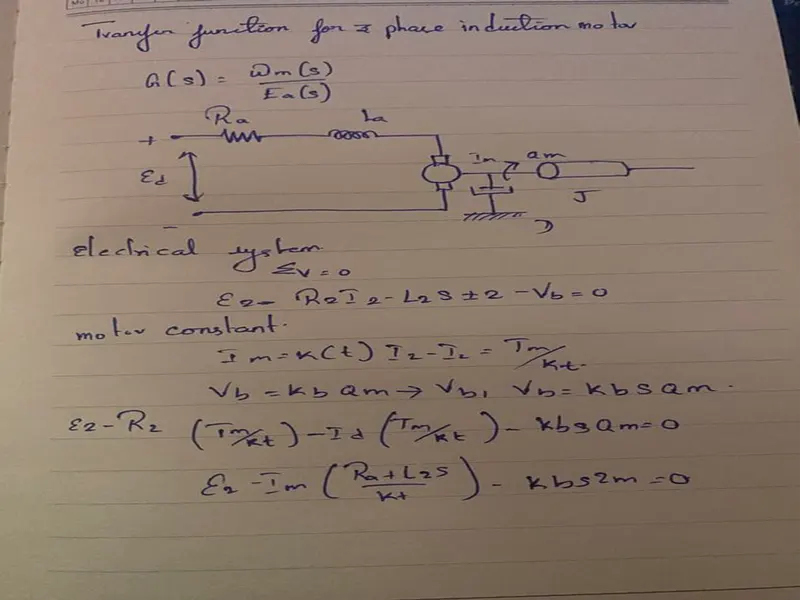

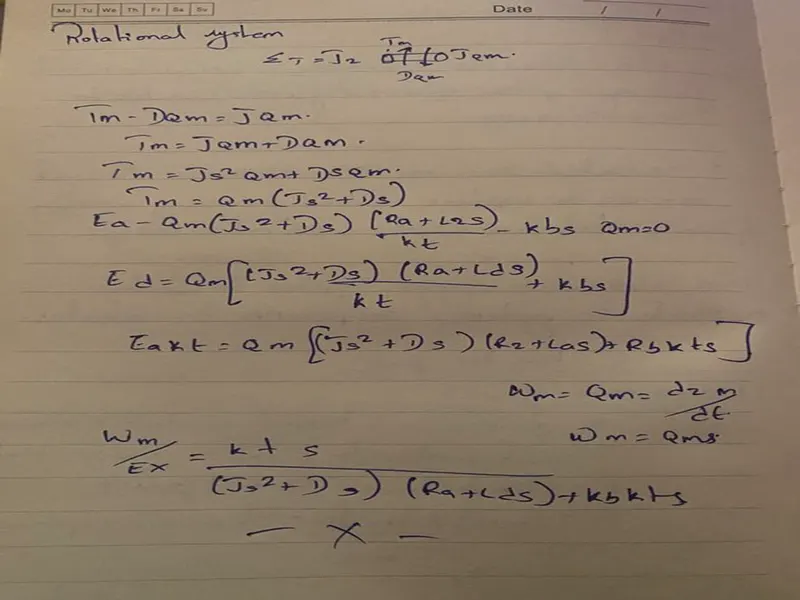

2. Use the 3 phase inductor motor theory to derive the transfer function of 3 phase Induction Motor

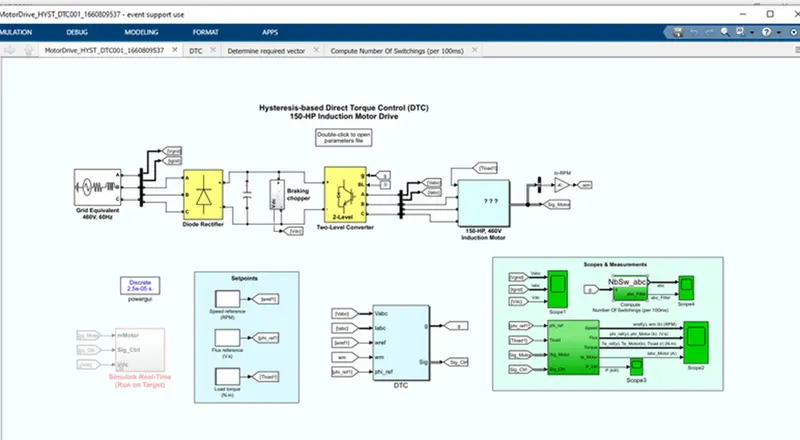

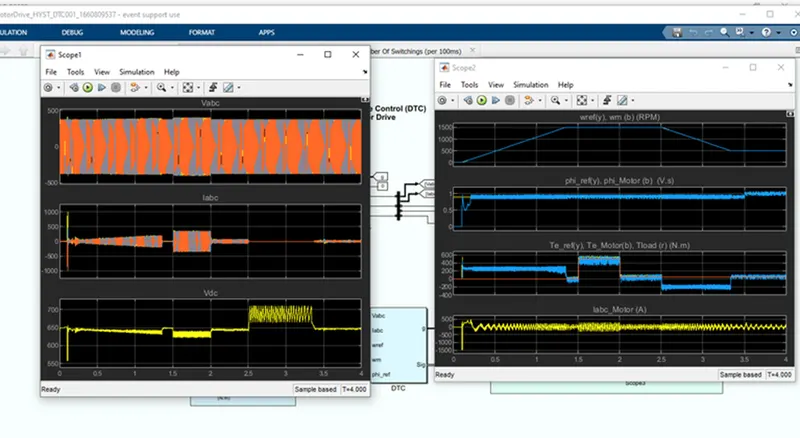

3. Model 3 phase induction motor with a 3 phase inverter using Direct Torque control using an Average Model, Implement both torque and flux control to achieve desired power.

Design Parameters:

1. Initial Speed = 0 RPM
2. Flux Target = 2.5 webers
3. DC Voltage = 500 V;
4. Fundamental Frequency = 60 Hz
5. Speed Step Time = 0.01 secs
6. Determine fundamental speed based upon fundamental frequency
7. Determine the switching sequence for direct torque control
8. Moment of Inertia = 0.1 Kgm^2
9. Load Torque Initial = 0 Nm
10. Final Load Torque = 50 Nm
11. Torque Step Time = 0.03 secs

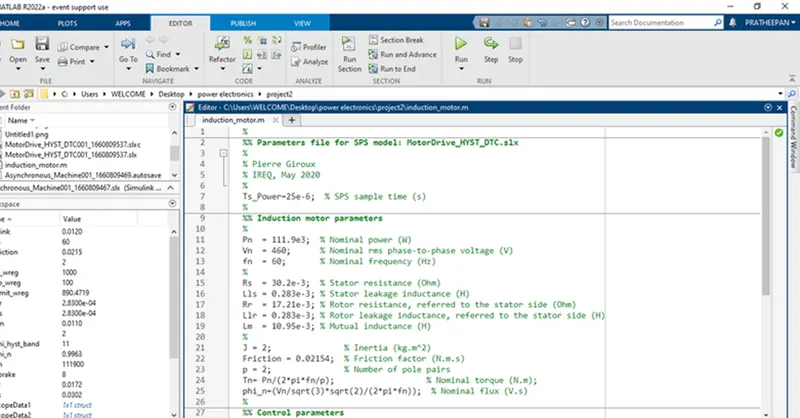

Motor Parameters: (Create an Average Model)

1. Stator Resistance = 0.5 Ohms
2. Rotor Resistance = 0.2 Ohms
3. Stator Leakage Inductance = 20 mH
4. Rotor Leakage Inductance = 10 mH
5. Magnetizing Inductance = 200 mH
6. Number of Poles = 4
7. Torque to Speed
