Project-2-Meshing of Door Inner Panel Challenge
Aim:
Midmesh the side door with a global of 4 units and given the quality.
|
S.N |
Quality Criteria |
Value |
|
1 |
Aspect Ratio |
5 |
|
2 |
Skewness |
45 |
|
3 |
Warping |
15 |
|
4 |
Taper |
0.5 |
|
5 |
Min. Length |
2 Units |
|
6 |
Max. Length |
6 Units |
|
7 |
Min angle Quad |
45 |
|
8 |
Max angle Quad |
135 |
|
9 |
Min angle Tria |
20 |
|
10 |
Max angle Tria |
120 |
|
10 |
Tria % |
10 |
Procedure:
-
Imported the geometry.
-

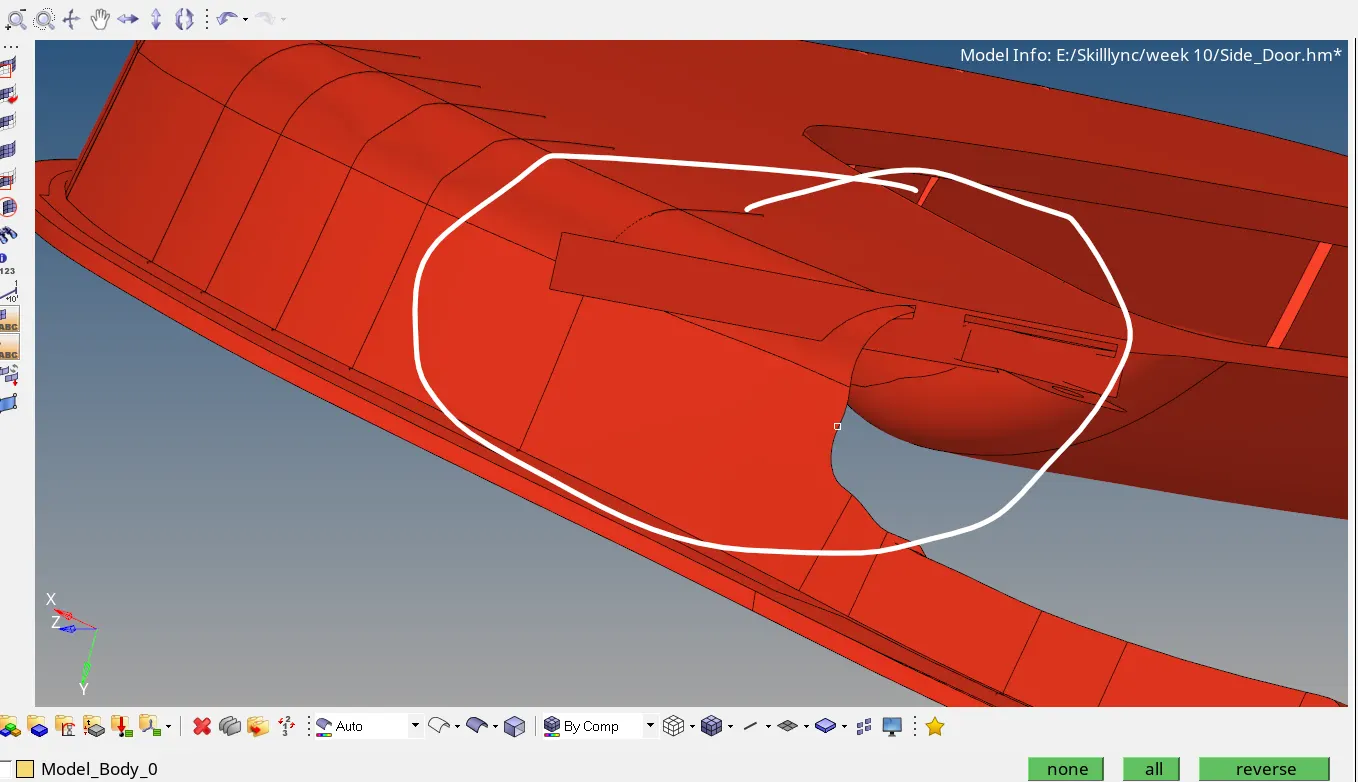

Checked the geometry and it's not closed in some areas (Fig. 1), either way, I created and mid-surface.
Fig. 1
-

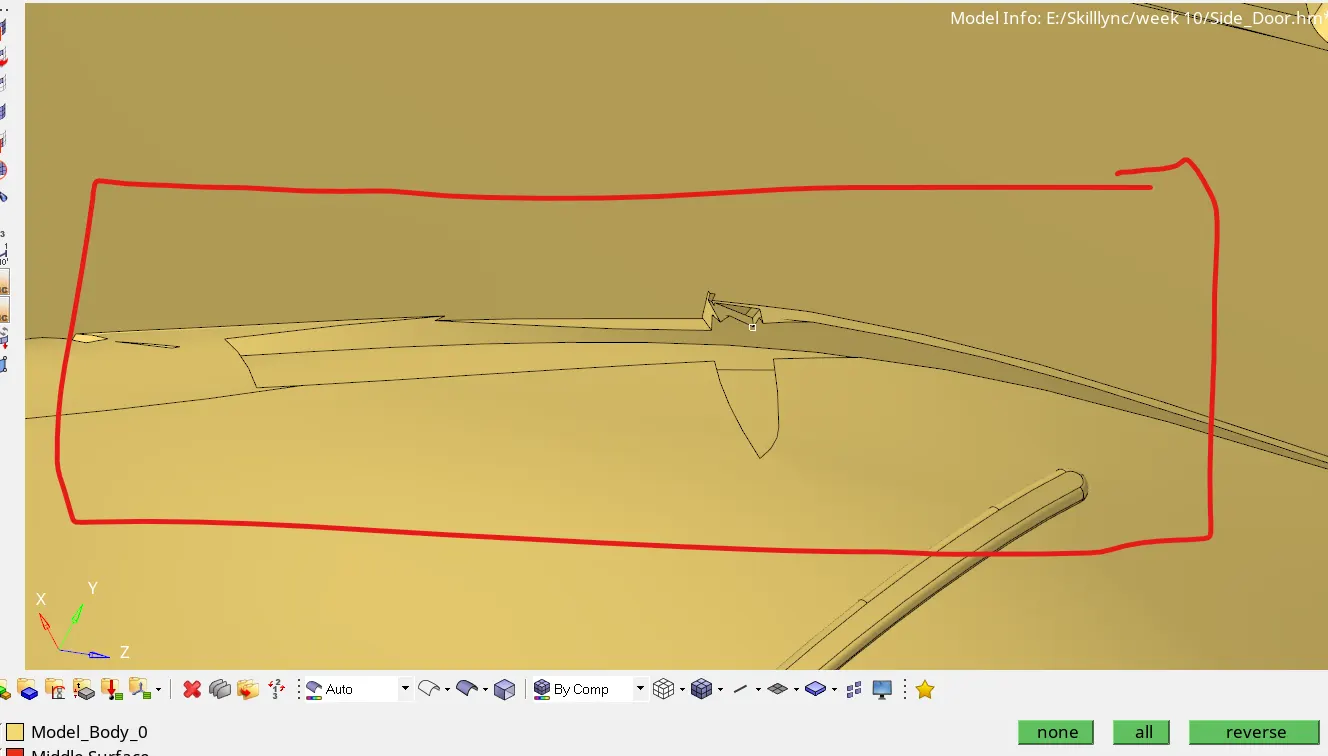

The created mid surface does not come perfect some surfaces like below figure 2
Fig 2
-

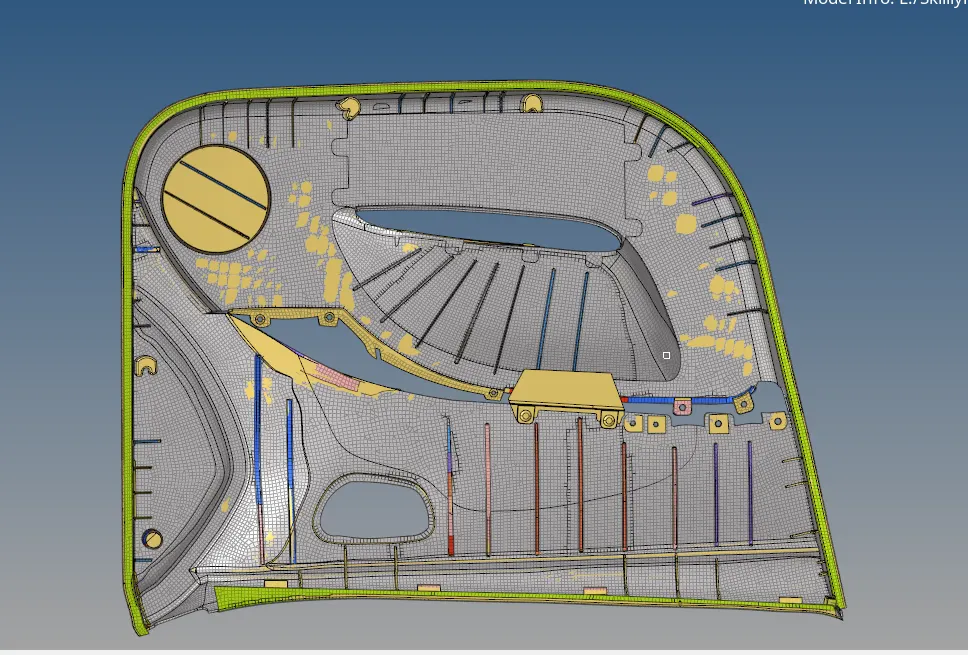

I created auto midmesh by selecting the surface.
-
Some ribs are not captured, so I created geometry ribs side mesh the 2D offset option and gave ribs thickness half as value.
-
Cleared the quality.
-
In order to check connectivity problems by using the penetration option.
Conclusion:
I learned to do the surface clearing and create mid-surface and mid-mesh.
