Project 2 - Measuring distance of an object using ultrasonic sensor (HC-SR04)

Overview of the Project:

In this project, the implementation of code for “Measuring distance of an object using ultrasonic distance sensor (HC-SR04).

Goals:

• Measuring the distance of an object using Ultrasonic Distance Sensor (HC-SR04)
• Usage of Input Capture Mode

Ultrasonic distance sensor (HC-SR04).

An ultrasonic sensor is an electronic device that measures the distance of a target object by emitting ultrasonic sound waves, and converts the reflected sound into an electrical signal. Ultrasonic waves travel faster than the speed of audible sound (i.e. the sound that humans can hear). Ultrasonic sensors have two main components: the transmitter (which emits the sound using piezoelectric crystals) and the receiver (which encounters the sound after it has travelled to and from the target).

Atmega32:

ATmega328P provides the following features: 32K bytes of in-system programmable flash with read-while-write
capabilities, 1K bytes EEPROM, 2K bytes SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three
flexible Timer/Counters with compare modes, internal and external interrupts, a serial programmable USART, a byteoriented 2-wire serial interface, an SPI serial port, a 6-channel 10-bit ADC (8 channels in TQFP and QFN/MLF packages), a
programmable watchdog timer with internal oscillator, and five software selectable power saving modes. The idle mode
stops the CPU while allowing the SRAM, Timer/Counters, USART, 2-wire serial interface, SPI port, and interrupt system to
continue functioning. The power-down mode saves the register contents but freezes the oscillator, disabling all other chip
functions until the next interrupt or hardware reset. In power-save mode, the asynchronous timer continues to run, allowing
the user to maintain a timer base while the rest of the device is sleeping.

LCD:

LCD (Liquid Crystal Display) is a type of flat panel display which uses liquid crystals in its primary form of operation. LEDs have a large and varying set of use cases for consumers and businesses, as they can be commonly found in smartphones, televisions, computer monitors and instrument panels.

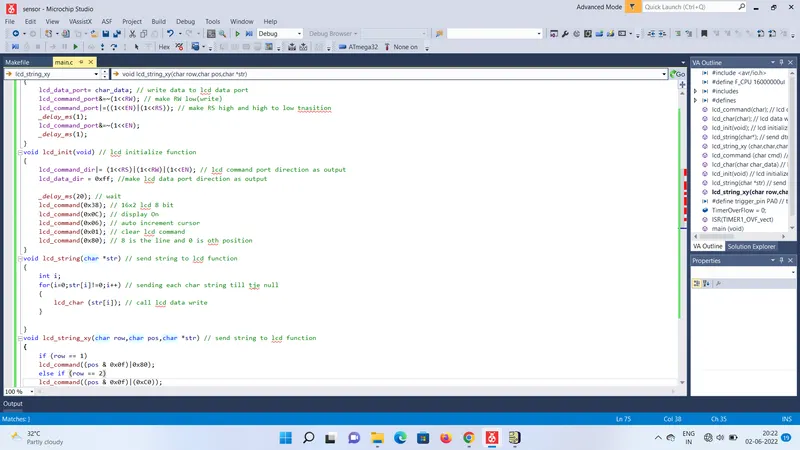

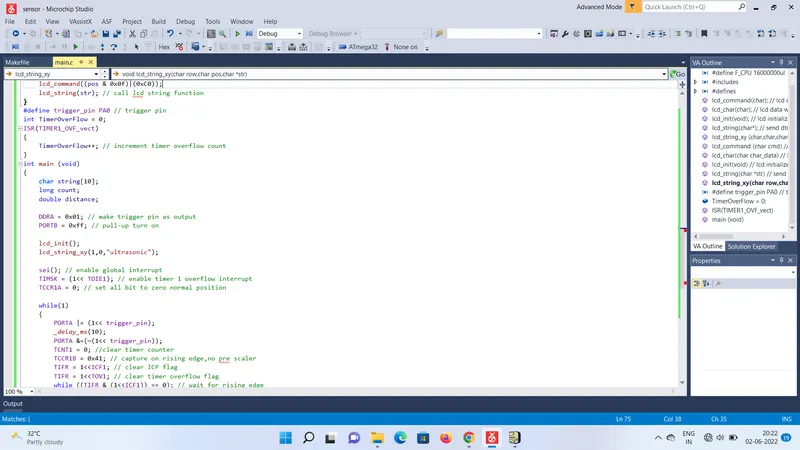

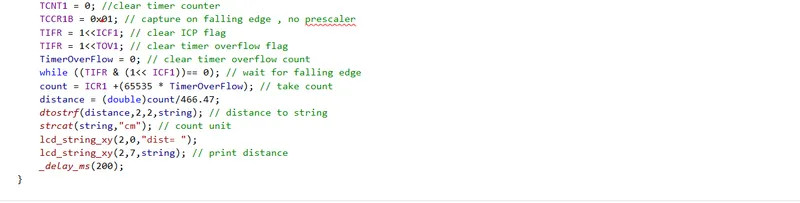

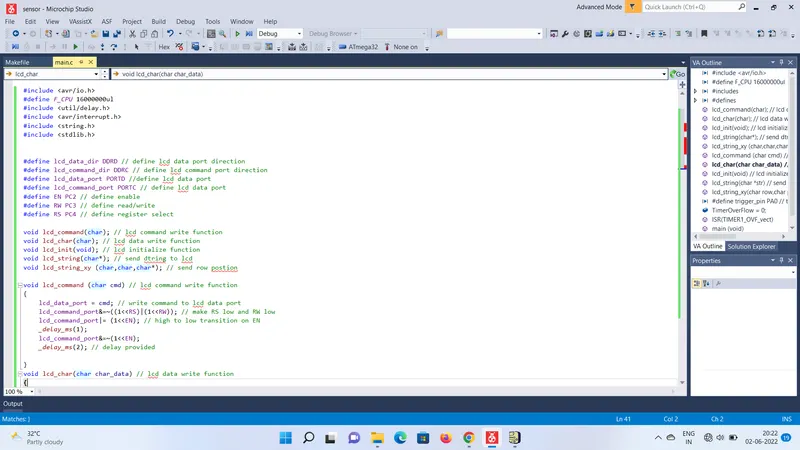

CODE:

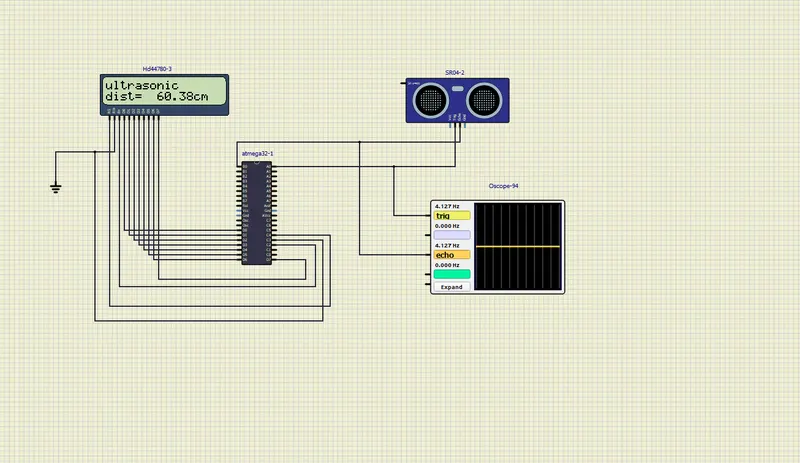

Simulation:

Here the .hex file is uploadee in the atmega32 and the simulation is being runned...the scope variable is used to know the hz values.the distance of the object is showed in the display.

Outcomes:

The students will get the Knowledge on Ultrasonic sensor (HC-SR04) to measure the distance travelled by wave to the object, the hardware connection of Atmega328p and HC-SR04 and how to use input capture mode of Timer1.
