Project 2 - Implement the Code for controlling the retraction and extension of Airplane’s landing gear

Implement the Code for controlling the retraction and extension of Airplane’s landing gear.

Overview of the Project:

In this project a finite state machine(FSM) is used to manage the retraction and extension of an landing gear of an airplane.

Actually an airplane has three gear of landing.

1.Nose gear

2.left gear

3.Right gear

key highlights of the project:

There is an hydraulic pump which is exerting pressure to the gears to bring down or pull it up which is eletically driven.

Goals:

1.Valves direction can be controlled.

2.Contolling and extension of an airplanes landing gear.

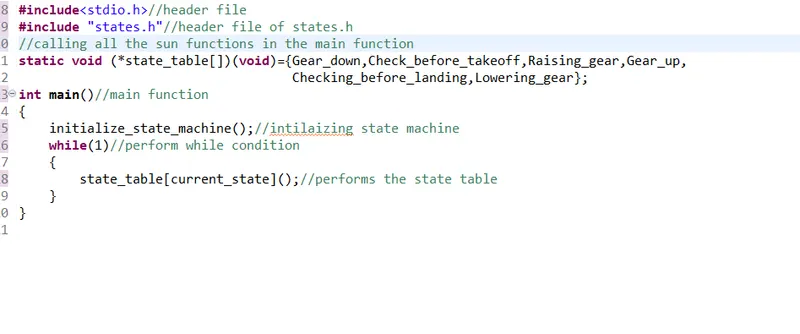

Main function Program:

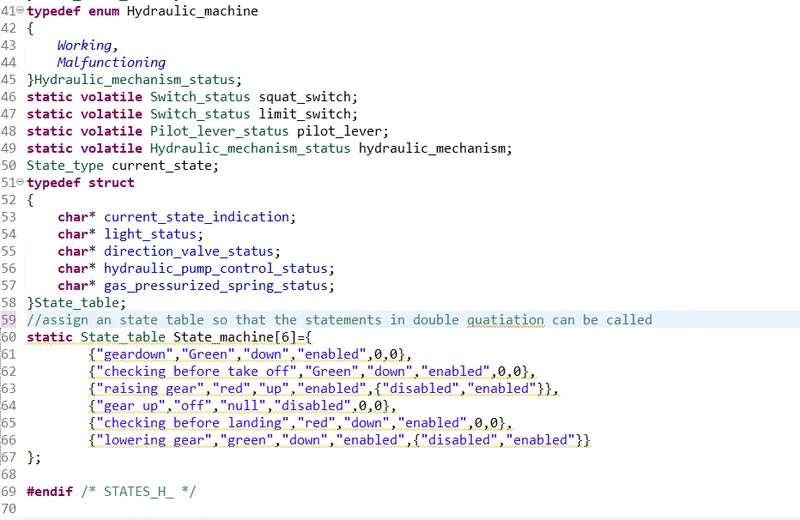

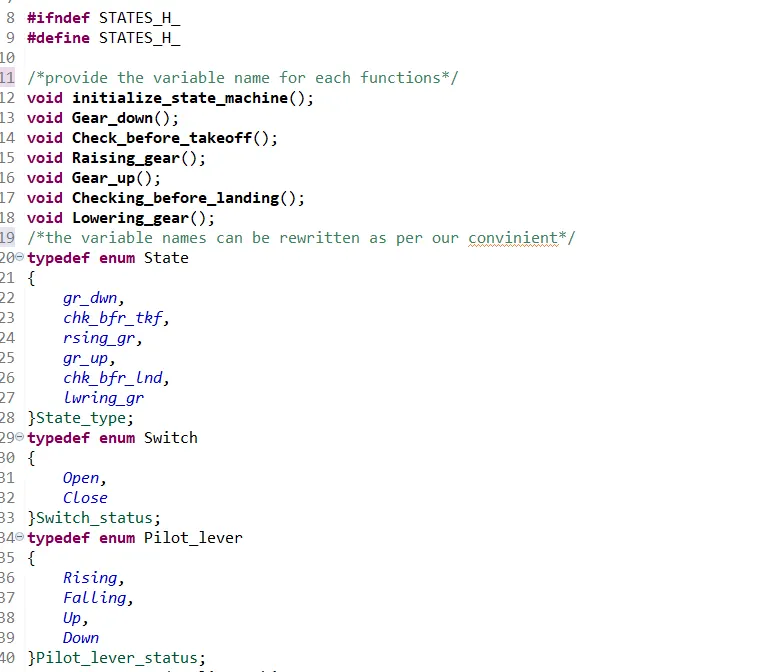

Header file:

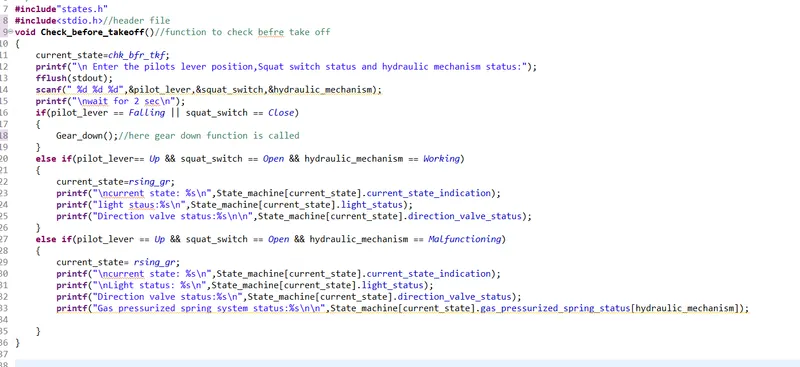

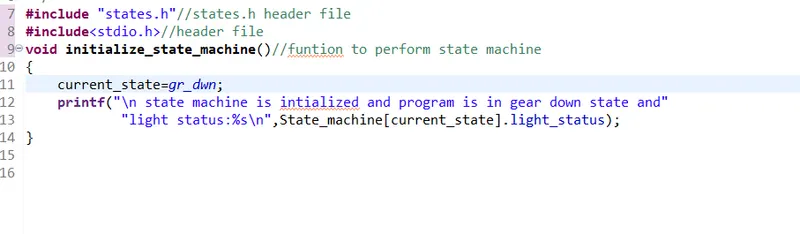

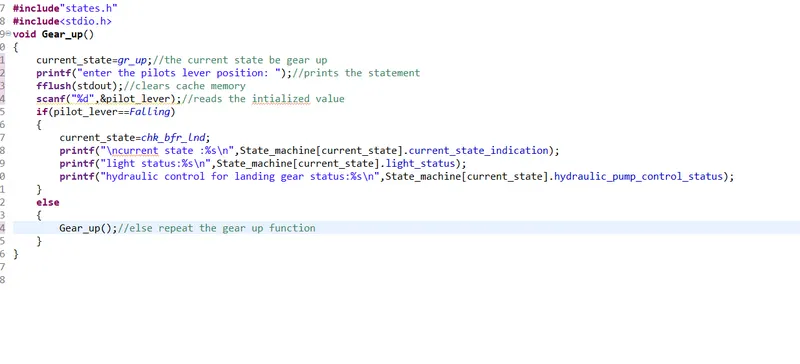

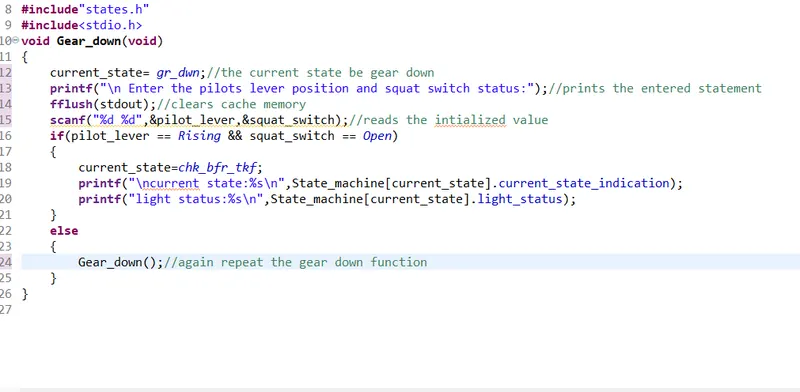

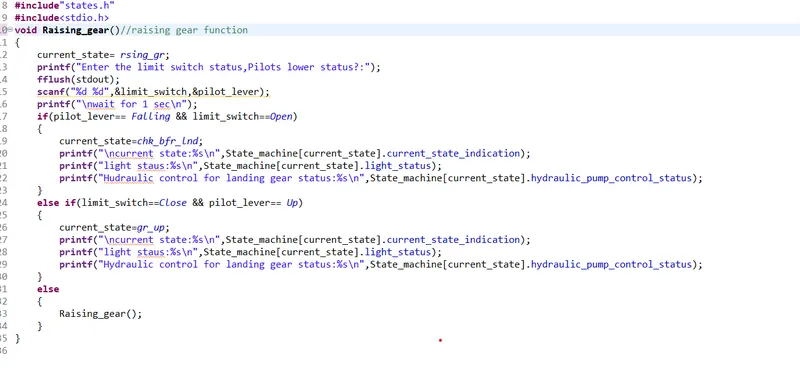

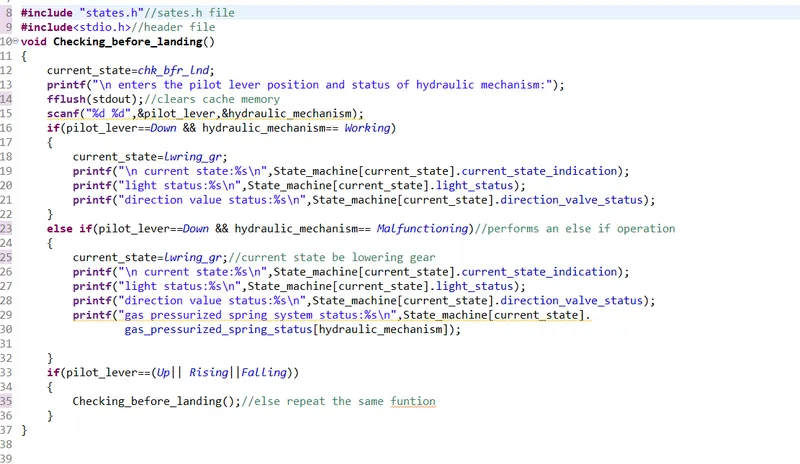

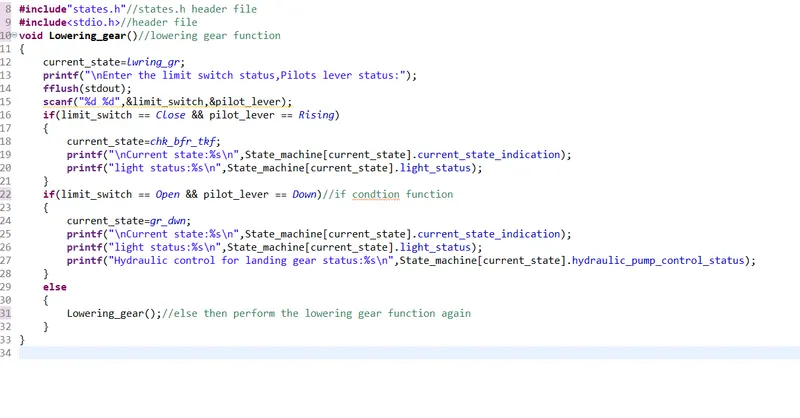

Source file:

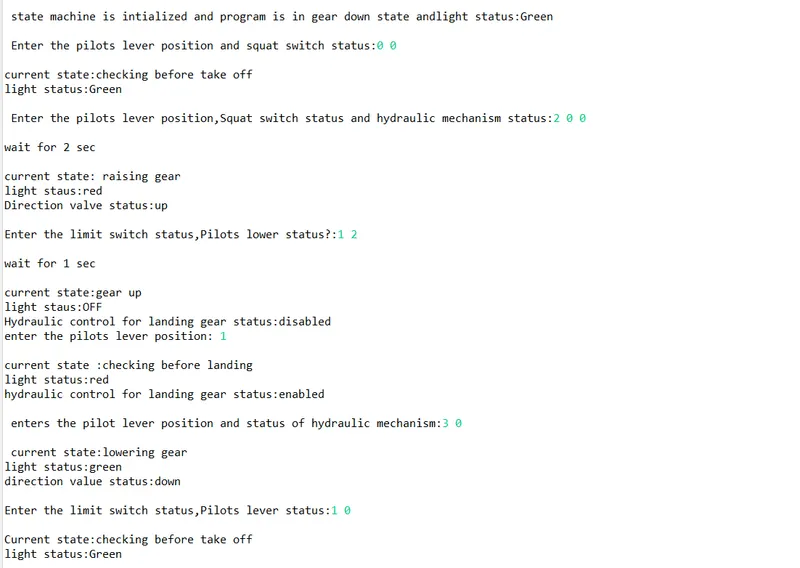

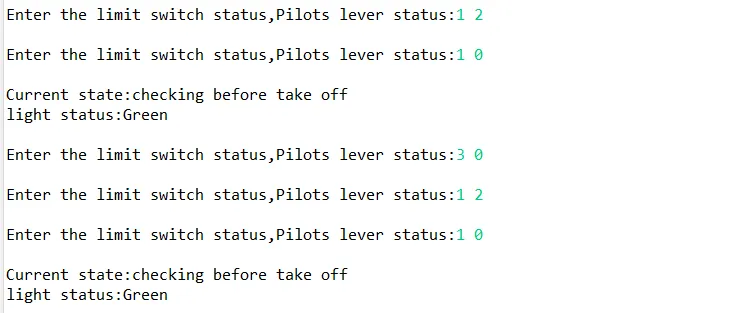

OUTPUT:

Expected Outcomes:

The student will be getting the Knowledge of Finite State Machine algorithm which is used to achieve the control over the retraction and extension of Airplane’s landing gear using the switch and gear states of Airplane.
