Project 2 - Implement the Code for controlling the retraction and extension of Airplane’s landing gear

PROJECT 2

AIM : Implement the code for controlling the retraction and extension of Airoplan's landing gear.

Code :

main.c

#include <stdio.h>//Header file
#include "State.h" //Created header file

static void (*state_table[])(void)={Gear_Down,Checking_Before_Takeoff,Raising_Gear,Gear_Up,Checking_Before_Landing,Lowering_Gear};
//Variables

int main()
{
   Init_State_Machine();//Function calling
   while(1)//Loop
   {
       state_table[current_state]();
   }
    return 0;
}

State.h

#ifndef STATE_H_
#define STATE_H_//define

#include<stdio.h>//Header file for standard i/o library

//function

void Init_State_Machine();

void Gear_Down();

void Checking_Before_Takeoff ();

void Raising_Gear();

void Gear_Up();

void Checking_Before_Landing();

void Lowering_Gear();

typedef enum State
{
//States
GR_DWN,

CHK_BFR_TKFF,

RSING_GR,

GR_UP,

CHK_BFR_LND,

LWRNG_GR

}State_Type;

typedef enum Switch {

Open,

Close//Plane is in ground

}Switch_Status;

typedef enum Pilot_Lever
{
Rising,

Falling,

UP,

DOWN

}Pilot_Lever_Status;

typedef enum Hydraulic_Mechanism

{

Working,

Malfunctioning

}Hydraulic_Mechanism_Status;

/* -input for changing the State----- */

static volatile Switch_Status squat_switch;
static volatile Switch_Status limit_switch;
static volatile Pilot_Lever_Status pilot_lever;
static volatile Hydraulic_Mechanism_Status hydraulic_mechanism;

State_Type current_state;

typedef struct

{

char* current_state_indication;

char* light_status;

char* direction_valve_status;

char* hydraulic_pump_control_status;

//char* gas_pressurized_spring_status[2];

}State_Table;

static State_Table State_Machine [6] = {

{"Gear Down", "Green", "Down", "Enabled" },//{0,0}

{"Checking Before Take Off", "Green", "Down", "Enabled"},

{"Raising Gear", "Red", "Up", "Enabled"},

{"Gear Up", "Off", "0","Disabled"},

{"Checking Before Landing", "Red", "Down", "Enabled"},

{"Lowering Gear", "Green", "Down", "Enabled"}

};

#endif /* STATES_H_ */

Gear_down.c

#include "State.h"
void Gear_Down(void)

{
current_state = GR_DWN;

printf("\nCurrent State: %s\n", State_Machine [current_state]. current_state_indication);
printf("\nEnter the Pilot's Lever Position and Squat Switch Status:");
fflush(stdout);

scanf("%d %d", &pilot_lever, &squat_switch);

if(pilot_lever == Rising && squat_switch == Open)

{

current_state = CHK_BFR_TKFF;

printf("\nCurrent State: %s\n", State_Machine [current_state]. current_state_indication);
printf("Light Status: %s\n", State_Machine [current_state].light_status);

}

else

{

Gear_Down();
}

}

Lowering_Gear.c

#include "State.h"

void Lowering_Gear(){
//State
current_state = LWRNG_GR;

printf("\nCurrent State: %s\n",State_Machine[current_state].current_state_indication);
printf("\nEnter the Limit Switch Status, Pilots Leaver Status:");

fflush(stdout);

scanf("%d %d",&limit_switch,&pilot_lever);//taking i/p from the user

if(pilot_lever == Rising)
{
current_state= CHK_BFR_TKFF;

printf("\nCurrent State: %s\n",State_Machine[current_state].current_state_indication);
printf("Light Status:%s\n",State_Machine[current_state].light_status);

}

if(limit_switch == Open)
{
current_state= GR_DWN;

printf("\nCurrent State: %s\n",State_Machine[current_state].current_state_indication);

printf("Light Status:%s\n",State_Machine[current_state].light_status);

printf("Hydraulic Control for Landing Gear Status:%s\n",State_Machine[current_state].hydraulic_pump_control_status);
}

if(limit_switch == Close)
{
Lowering_Gear();
}}

Init_State_Machine.c

#include  "State.h"

void Init_State_Machine()//func
{
//System Initialized and its in State A
current_state = GR_DWN;

printf("\nState Machine is initialized & Program is in Gear_Down State & Light Status",State_Machine [current_state].light_status);


}

Checking_Before_Takeoff.c

#include "State.h"

void Checking_Before_Takeoff()//func
{
current_state = CHK_BFR_TKFF;
printf("\nCurrent State : %s\n",State_Machine[current_state].current_state_indication);
printf("\nEnter the Pilot's Lever Position,Squat Switch Status and Hydraulic Mechanism Status:");
fflush(stdout);
scanf("%d %d %d",&pilot_lever,&squat_switch,&hydraulic_mechanism);
printf("\nWait for 2 secs\n");
if(pilot_lever == Falling || squat_switch == Close)
{
Gear_Down();
}

else if(pilot_lever == UP && squat_switch == Open && hydraulic_mechanism == Working)
{
current_state = RSING_GR;
printf("\nCurrent State : %s\n",State_Machine[current_state].current_state_indication);
printf("Light Status:%s\n",State_Machine[current_state].light_status);
printf("Direction Valve Status:%s\n\n",State_Machine[current_state].direction_valve_status);
}

else if(pilot_lever == UP && squat_switch == Open && hydraulic_mechanism == Malfunctioning)
{
current_state = RSING_GR;
printf("\nCurrent State : %s\n",State_Machine[current_state].current_state_indication);
printf("Light Status:%s\n",State_Machine[current_state].light_status);
printf("Direction Valve Status:%s\n",State_Machine[current_state].direction_valve_status);
//printf("Gas Pressurized Spring System Status:%s\n",State_Machine[current_state].gas_pressurized_spring_status[hydraulic_mechanism]);
}
}

Gear_up.c

#include "State.h"

void Gear_Up()//func
{
current_state = GR_UP;

printf("\nCurrent State: %s\n",State_Machine[current_state].current_state_indication);
printf("\nEnter the Pilot's Lever Position:");

fflush(stdout);

scanf("%d",&pilot_lever);

if(pilot_lever == Falling)
{
current_state = CHK_BFR_LND;

printf("\nCurrent State: %s\n",State_Machine[current_state].current_state_indication);
printf("Light Status:%s\n",State_Machine[current_state].light_status);
printf("Hydraulic Control for Landing Gear Status:%s\n",State_Machine[current_state].hydraulic_pump_control_status);

}

else
{
Gear_Up();
}
}

Raising_Gear.c

#include "State.h"

void Raising_Gear()//func
{
current_state = RSING_GR;
printf("\nCurrent State : %s\n",State_Machine[current_state].current_state_indication);
printf("\nEnter the Limit Switch Status,Pilots Leaver Status:");
fflush(stdout);
scanf("%d %d",&limit_switch,&pilot_lever);
printf("\nWait for 1 sec\n");
if(pilot_lever == Falling && limit_switch == Open)
{
current_state = CHK_BFR_LND;
printf("\nCurrent State : %s\n",State_Machine[current_state].current_state_indication);
printf("Light Status:%s\n",State_Machine[current_state].light_status);
printf("Hydraulic Control for Landing Gear Status:%s\n",State_Machine[current_state].hydraulic_pump_control_status);

}
else if(limit_switch == Close && pilot_lever == UP)
{
current_state = GR_UP;
printf("\nCurrent State : %s\n",State_Machine[current_state].current_state_indication);
printf("Light Status:%s\n",State_Machine[current_state].light_status);
printf("Hydraulic Control for Landing Gear Status:%s\n",State_Machine[current_state].hydraulic_pump_control_status);
}

else
{
Raising_Gear();
}
}

Checking_Before_Landing.c

#include "State.h"

void Checking_Before_Landing()//func

{

current_state = CHK_BFR_LND;

printf("\nCurrent State: %s\n",State_Machine[current_state].current_state_indication);
printf("\nEnter the Pilot's Lever Position and Status of Hydraulic Mechanism:");
fflush(stdout);

scanf("%d %d",&pilot_lever,&hydraulic_mechanism);

if(pilot_lever == DOWN && hydraulic_mechanism == Working)
{
current_state = LWRNG_GR;
printf("\nCurrent State: %s\n",State_Machine[current_state].current_state_indication);
printf("Light Status:%s\n",State_Machine[current_state].light_status);
printf("Direction Valve Status:%s\n",State_Machine[current_state].direction_valve_status);

}

else if(pilot_lever == DOWN && hydraulic_mechanism == Malfunctioning)
{
current_state=LWRNG_GR;
printf("\nCurrent State: %s\n", State_Machine [current_state].current_state_indication);
printf("Light Status:%s\n", State_Machine [current_state].light_status);
printf("Direction Valve Status:%s\n", State_Machine [current_state]. direction_valve_status);
//printf("Gas Pressurized Spring System Status:%s\n", State_Machine[current_state].gas_pressurized_spring_status);
}

if(pilot_lever == (UP || Rising ||  Falling))
{
Checking_Before_Landing();
}}

Output :

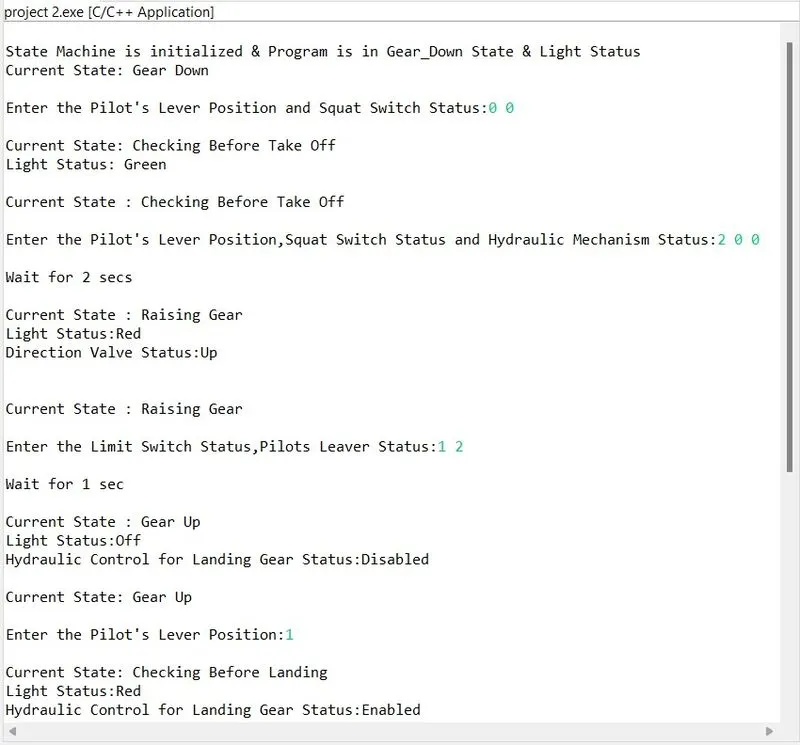

Snap off console -

Output in text -

State Machine is initialized & Program is in Gear_Down State & Light Status
Current State: Gear Down

Enter the Pilot's Lever Position and Squat Switch Status:0 0

Current State: Checking Before Take Off
Light Status: Green

Current State : Checking Before Take Off

Enter the Pilot's Lever Position,Squat Switch Status and Hydraulic Mechanism Status:2 0 0

Wait for 2 secs

Current State : Raising Gear
Light Status:Red
Direction Valve Status:Up

Current State : Raising Gear

Enter the Limit Switch Status,Pilots Leaver Status:1 2

Wait for 1 sec

Current State : Gear Up
Light Status:Off
Hydraulic Control for Landing Gear Status:Disabled

Current State: Gear Up

Enter the Pilot's Lever Position:1

Current State: Checking Before Landing
Light Status:Red
Hydraulic Control for Landing Gear Status:Enabled

Current State: Checking Before Landing

Enter the Pilot's Lever Position and Status of Hydraulic Mechanism:3 0

Current State: Lowering Gear
Light Status:Green
Direction Valve Status:Down

Current State: Lowering Gear

Enter the Limit Switch Status, Pilots Leaver Status:0 1

Current State: Gear Down
Light Status:Green
Hydraulic Control for Landing Gear Status:Enabled

Current State: Gear Down

Enter the Pilot's Lever Position and Squat Switch Status:
