Project 2 - Implement the Code for controlling the retraction and extension of Airplane’s landing gear

Aim of the project:

The main objective of this project is to write Embedded c Codings for controlling the retraction and extension of Airplane’s landing gear and this can be implemented using Finite State Machine (FSM) concept.

Tools Used:

PC with STM32 or Online GDB debugging tool

Description of the System & Algorithm:

• Actually an airplane has 3 gears[Nose,Left,Right] for landing.There is a hydraulic pumpwhich is extracting pressure to the gears to bring it down or pull it up and that pump is electrically driven.
• Every leg of the Gear has one limit switch and nose gear has one extra squat switch to determin whether the airplane is in ground or not.
• A direction valve is controlled by the software to allow the hydraulic pressure to either raise or lower the landing gear.
• Every Gear has one light. When Gear is up - light status is off; When gear is down - light is Green;Gear Raising/lowering - red color light.
• Dont retract the gear if the plane is on the ground.
• The case of failure of squat switch is ignored and failure of hydraulic system - gas pressurized springs can be used for gear extension.
• So considering all these case, FSM is the most efficient algorithm since it gives a mathematical way of computation for the problem.

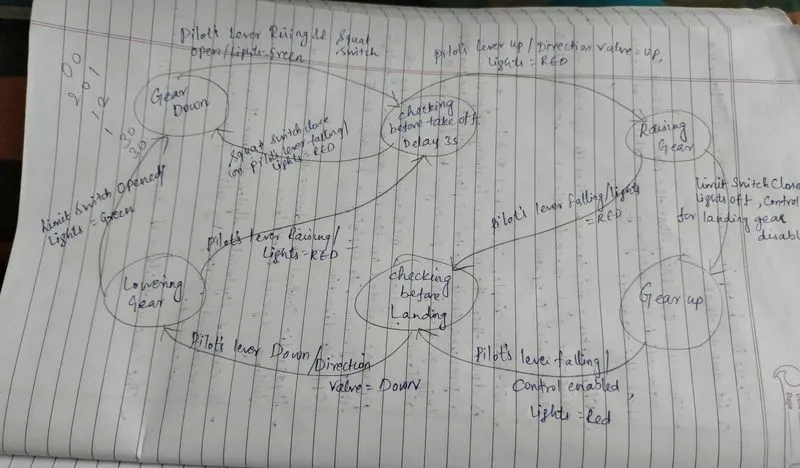

The algorithm developed consists of 7 states and its assumed to take any one of these 7 states @ any instant of time based on user inputs:

state 1: Initialization of state machine

state2:Gear down state

state3 : Checking before take off

state4: raising gear

state5: Gear up

state6:checking befoore landing

state 7: lowering gear

Program:

/*
 * project2.c
 *
 *  Created on: 15-Sep-2022
 *      Author: Kavitha
 */
# include
# include

void Init_State_Machine();
void Gear_Down();
void Checking_Before_Takeoff();
void Raising_Gear();
void Gear_up();
void Checking_Before_Landing();
void Lowering_Gear();

typedef enum State
{
GR_DWN,
CHK_BFR_TKFF,
RSING_GR,
GR_UP,
CHK_BFR_LND,
LWRNG_GR
}State_Type;

typedef enum Switch
{
	open,
	close  //plane is in ground
}Switch_Status;

typedef enum Pilot_Lever
{
	Rising,
	Falling,
	Up,
	Down
}Pilot_Lever_Status;

typedef enum Hydraulic_Mechanism
{
Working,
Malfunctioning
}Hydraulic_Mechanism_Status;

//Inputs for changing the state
static volatile Switch_Status squat_switch;
static volatile Switch_Status limit_switch;
static volatile Pilot_Lever_Status pilot_lever;
static volatile Hydraulic_Mechanism_Status hydraulic_mechanism;

State_Type current_state;

typedef struct
{
char*current_state_indication;
char*light_status;
char*direction_valve_status;
char*hydraulic_pump_control_status;
char*gas_pressurized_spring_status[2];
}State_Table;

static State_Table State_Machine[6]={
		{"Gear Down","Green","Down","Enabled",{NULL,NULL}},
		{"Checking Before Take Off","Green","Down","Enabled",{NULL,NULL}},
		{"Raising Gear","Red","Up","Enabled",{"Disabled","Enabled"}},
		{"Gear Up","Off","Null","Disabled",{NULL,NULL}},
		{"Checking Before Landing","Red","Down","Enabled",{NULL,NULL}},
		{"Lowering Gear","Green","Down","Enabled",{"Disabled","Enabled"}}
};

void Gear_Down(void)
{
printf("In Gear Down State \n");
current_state = GR_DWN;
printf("\n Enter the pilots Lever Position and Squat Switch Status: ");
fflush(stdout);
scanf("%d %d",&pilot_lever,&squat_switch);
if(pilot_lever == Rising && squat_switch == open)
{
current_state = CHK_BFR_TKFF;
printf("\n current state: %s \n", State_Machine[current_state].current_state_indication);
printf("\n Light Status:%s \n",State_Machine[current_state].light_status);
}
else
{
	Gear_Down();
}
}

void Checking_Before_Takeoff()
{
current_state = CHK_BFR_TKFF;
printf("\n Enter the pilots Lever Position and Squat Switch Status and Hydraulic Mechanism Status: ");
fflush(stdout);
scanf("%d %d %d",&pilot_lever,&squat_switch,&hydraulic_mechanism);
printf("\n Wait for 2 seconds \n");
if(pilot_lever == Falling || squat_switch == close)
{
	Gear_Down();
}
else if (pilot_lever == Up && squat_switch == open && hydraulic_mechanism == Working)
{
	current_state = RSING_GR;
	printf("\n current_state: %s \n", State_Machine[current_state].current_state_indication);
	printf("\n Light Status:%s \n",State_Machine[current_state].light_status);
	printf("Direction Valve Status:%s \n", State_Machine[current_state].direction_valve_status);
}
else if(pilot_lever == Up && squat_switch == open && hydraulic_mechanism == Malfunctioning)
{
	current_state = RSING_GR;
		printf("\n current_state: %s \n", State_Machine[current_state].current_state_indication);
		printf("\n Light Status:%s \n",State_Machine[current_state].light_status);
		printf("Direction Valve Status:%s \n", State_Machine[current_state].direction_valve_status);
		printf("Gas Pressurized Spring System Status:%s \n", State_Machine[current_state].gas_pressurized_spring_status[hydraulic_mechanism]);
	}
}

void Raising_Gear()
{
current_state = RSING_GR;
printf("\n Enter the limit switch status and pilot_lever Status: ");
fflush(stdout);
scanf("%d %d", &limit_switch, &pilot_lever);
printf("\n Wait for 1 seconds \n");
if(pilot_lever == Falling && limit_switch == open)
{
	current_state = CHK_BFR_LND;
	printf("\n current_state: %s \n", State_Machine[current_state].current_state_indication);
	printf("\n Light Status:%s \n",State_Machine[current_state].light_status);
	printf("Hydraulic Control for landing Gear Status:%s \n", State_Machine[current_state].hydraulic_pump_control_status);
}
else if(limit_switch == close && pilot_lever == Up)
{
	current_state = GR_UP;
		printf("\n current_state: %s \n", State_Machine[current_state].current_state_indication);
		printf("\n Light Status:%s \n",State_Machine[current_state].light_status);
		printf("Hydraulic Control for landing Gear Status:%s \n", State_Machine[current_state].hydraulic_pump_control_status);
	}
else
{
	Raising_Gear();
}
}

void Gear_up()
{
	current_state = GR_UP;
	printf("\n Enter the pilots Lever Position: ");
	fflush(stdout);
	scanf("%d",&pilot_lever);

	if(pilot_lever == Falling)
	{
		current_state = CHK_BFR_LND;
			printf("\n current_state: %s \n", State_Machine[current_state].current_state_indication);
			printf("\n Light Status:%s \n",State_Machine[current_state].light_status);
			printf("Hydraulic Control for landing Gear Status:%s \n", State_Machine[current_state].hydraulic_pump_control_status);
	}

	else
	{
		Gear_up();
	}
	}

void Checking_Before_Landing()
{
current_state = CHK_BFR_LND;
printf("\n Enter the pilots Lever Position and Hydraulic Mechanism Status: ");
fflush(stdout);
scanf("%d %d",&pilot_lever,&hydraulic_mechanism);

if(pilot_lever == Down && hydraulic_mechanism == Working)
{
	current_state = LWRNG_GR;
				printf("\n current_state: %s \n", State_Machine[current_state].current_state_indication);
				printf("\n Light Status:%s \n",State_Machine[current_state].light_status);
				printf("Direction Valve Status:%s \n", State_Machine[current_state].direction_valve_status);
}
else if(pilot_lever == Down && hydraulic_mechanism == Malfunctioning)
{
	current_state = LWRNG_GR;
	printf("\n current_state: %s \n", State_Machine[current_state].current_state_indication);
	printf("\n Light Status:%s \n",State_Machine[current_state].light_status);
	printf("Direction Valve Status:%s \n", State_Machine[current_state].direction_valve_status);
	printf("Gas Pressurized Spring System Status:%s \n", State_Machine[current_state].gas_pressurized_spring_status[hydraulic_mechanism]);
}
 if(pilot_lever == (Up || Rising || Falling))
{
	Checking_Before_Landing();
	}
}

void Lowering_Gear()
{
current_state = LWRNG_GR;
printf("\n Enter the pilots Lever Position and Limit Switch Status: ");
fflush(stdout);
scanf("%d %d", &pilot_lever, &limit_switch);

if(pilot_lever == Rising)
{
	current_state = CHK_BFR_TKFF;
	printf("\n current_state: %s \n", State_Machine[current_state].current_state_indication);
	printf("\n Light Status:%s \n",State_Machine[current_state].light_status);
}
if (pilot_lever == Down && limit_switch == open)
{
	current_state = GR_DWN;
	printf("\n current_state: %s \n", State_Machine[current_state].current_state_indication);
	printf("\n Light Status:%s \n",State_Machine[current_state].light_status);
	printf("Hydraulic Control for landing Gear Status:%s \n", State_Machine[current_state].hydraulic_pump_control_status);
}
if(limit_switch == close)
{
	Lowering_Gear();
	}
}

void Init_State_Machine()
{
	current_state = GR_DWN;
	printf("State Machine is Initialized and Program is in Gear Down state & Light Status is: Green\n");
}

int main()
{
Init_State_Machine();
while(1)
{
	switch(current_state)
		{
		case 0: Gear_Down();
		break;
		case 1:Checking_Before_Takeoff();
		break;
		case 2:Raising_Gear();
		break;
		case 3: Gear_up ();
		break;
		case 4:Checking_Before_Landing();
		break;
		case 5: Lowering_Gear();
		break;
		default:break;
		}
}
}

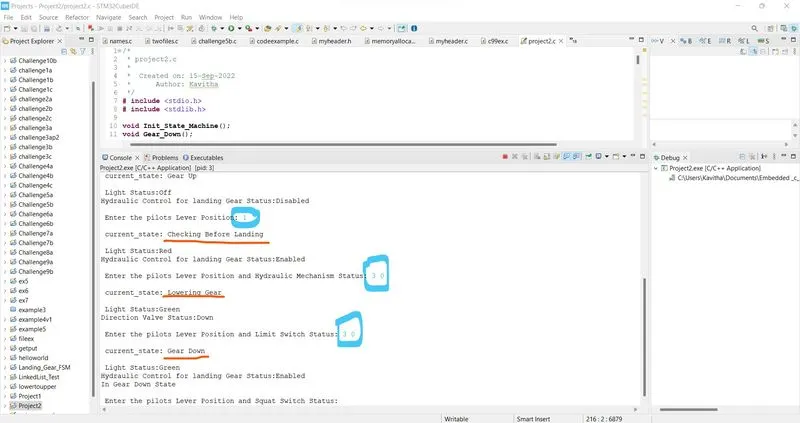

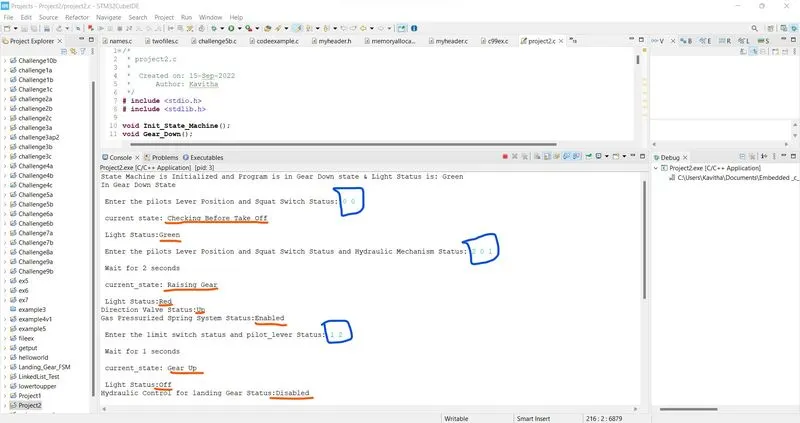

Output/Results:

Conclusion:

Thus using the Finite State Machine concept, Embedded C program has been successfully written and verified using STM32 IDE for controlling the retraction and extension of Airplane’s landing gear.
