Project 2 - Implement the Code for controlling the retraction and extension of Airplane’s landing gear
Offline
Implement the code for controlling the retraction and extension of Airplane's landing gear
Program:
/* Program for Airplanes landing gear */
#include
#include
typedef enum {
gear_down,
checking_before_take_off,
rising_gear,
gear_up,
checking_before_landing,
lowering_gear
//checking_before_landing,
//raising_gear
//checking_before_take_off,
//checking_before_landing
}state_type;//naming the enum
typedef enum {
close,
open
//close
}Switch;//naming the enum
//typedef enum Light{
//off,
//red,
//green
//}color;
typedef enum {
lowering,
rising
}Lever;//naming the enum
static volatile Switch Squat; //using the enum as datatype
//static volatile int Color;
static volatile Lever Pilot; //using the enum as datatype
state_type current_state; //using the enum as datatype
void init_state_machine()
{
current_state=gear_down;
char light[100]="green"; //giving output to print output
printf("the position of the gear is %s\n",light);
}
void Gear_down()
{
current_state=gear_down;
printf("pilot_lever and squat_switch:");
fflush(stdout);
scanf("%d\n %d",&Pilot,&Squat);
if(Pilot==rising&&Squat==open){//condition checking two at a time
char pilot_lever[100]="Rising"; //giving output to print output
char light[100]="Green"; //giving output to print output
//pilot_lever[100]="Rising";
char squat_switch[100]="Open"; //giving output to print output
printf("light:%s\n",light);
printf("pilot lever:%s\n", pilot_lever);
printf("squat_switch:%s",squat_switch);
current_state=checking_before_take_off;
}
if(Pilot==lowering&&Squat==close){
char light[100]="Red"; //giving output to print output
char pilot_lever[100]="Lowering"; //giving output to print output
//char light[100]="Red";
//char pilot_lever[100]="Rising";
char squat_switch[100]="Close"; //giving output to print output
printf("light:%s\n",light);
printf("pilot_lever:%s\n",pilot_lever);
printf("squat_switch:%s",squat_switch);
current_state=gear_down;
}
}
void Checking_Before_take_off(){
current_state=checking_before_take_off;
printf("\npilot_lever and squat_switch:");
fflush(stdout);
scanf("%d\n %d",&Pilot, &Squat);
if(Pilot==rising&&Squat==close){//condition checking two at a time
char light[100]="Red"; //giving output to print output
char pilot_lever[100]="Rising"; //giving output to print output
char squat_switch[100]="Closed"; //giving output to print output
printf("light:%s\n",light);
printf("pilot lever:%s\n",pilot_lever);
printf("squat_switch:%s",squat_switch);
current_state=rising_gear;
}
}
void Rising_gear(){
current_state=rising_gear;
printf("\npilot_lever and squat_switch:");
fflush(stdout);
scanf("%d\n %d",&Pilot, &Squat);
if(Pilot==rising&&Squat==close){//condition checking two at a time
char light[100]="Off"; //giving output to print output
char pilot_lever[100]="Rising"; //giving output to print output
char squat_switch[100]="Closed"; //giving output to print output
printf("light:%s\n",light);
printf("pilot lever:%s\n",pilot_lever);
printf("squat_switch:%s",squat_switch);
current_state=gear_up;
}
if(Pilot==lowering&&Squat==close){
char light[100]="Red"; //giving output to print output
char pilot_lever[100]="Lowering"; //giving output to print output
char squat_switch[100]="Closed"; //giving output to print output
printf("light:%s\n",light);
printf("pilot lever:%s\n",pilot_lever);
printf("squat_switch:%s",squat_switch);
current_state=checking_before_landing;
}
}
void Gear_up(){
current_state=gear_up;
printf("\npilot_lever and squat_switch:");
fflush(stdout);
scanf("%d\n %d",&Pilot, &Squat);
if(Pilot==lowering&&Squat==close){//condition checking two at a time
char light[100]="Red"; //giving output to print output
char pilot_lever[100]="Lowering"; //giving output to print output
char squat_switch[100]="Closed"; //giving output to print output
printf("light:%s\n",light);
printf("pilot lever:%s\n",pilot_lever);
printf("squat_switch:%s",squat_switch);
current_state=checking_before_landing;
}
}
void Checking_before_landing(){
current_state=checking_before_landing;
printf("\npilot_lever and squat_switch:");
fflush(stdout);
scanf("%d\n %d",&Pilot, &Squat);
if(Pilot==lowering&&Squat==close){//condition checking two at a time
char light[100]="Red"; //giving output to print output
char pilot_lever[100]="Lowering"; //giving output to print output
char squat_switch[100]="Closed"; //giving output to print output
printf("light:%s\n",light);
printf("pilot lever:%s\n",pilot_lever);
printf("squat_switch:%s",squat_switch);
current_state=lowering_gear;
}
}
void Lowering_gear(){
current_state=lowering_gear;
printf("\npilot_lever and squat_switch:");
fflush(stdout);
scanf("%d\n %d",&Pilot, &Squat);
if(Pilot==rising&&Squat==open){//condition checking two at a time
char light[100]="Green"; //giving output to print output
char pilot_lever[100]="Rising"; //giving output to print output
char squat_switch[100]="Opened"; //giving output to print output
printf("light:%s\n",light);
printf("pilot lever:%s\n",pilot_lever);
printf("squat_switch:%s",squat_switch);
current_state=gear_down;
}
if(Pilot==rising&&Squat==open){
char light[100]="Red"; //giving output to print output
char pilot_lever[100]="Rising"; //giving output to print output
char squat_switch[100]="Opened"; //giving output to print output
printf("light:%s\n",light);
printf("pilot lever:%s\n",pilot_lever);
printf("squat_switch:%s",squat_switch);
current_state=checking_before_take_off;
}
}
static void(*state_table[])(void)={Gear_down,Checking_Before_take_off,Rising_gear,Gear_up,Checking_before_landing,
Lowering_gear,}; //here we mentioning in small letters to calling
//functions
int main()
{
init_state_machine();
while(1){
state_table[current_state]();
}
return 0;
}

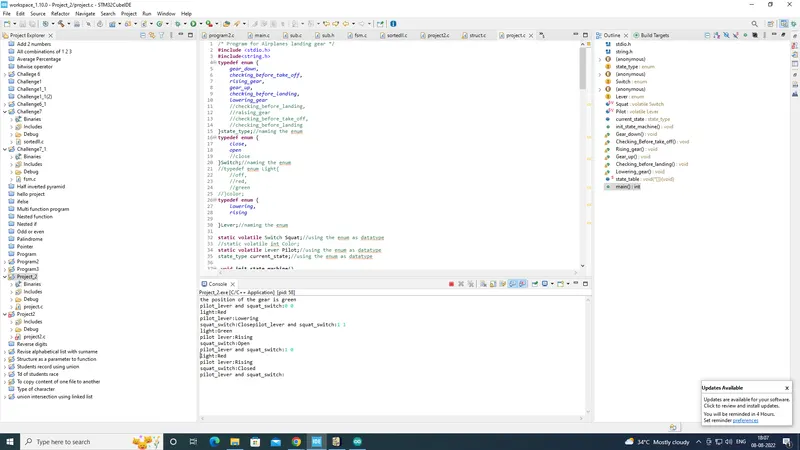

Output:
