Project 2-Highway Assistant-Lane Changing Assistant
Aim:
Model Development of a feature of Highway Assistant-Lane Changing Assistant using MATLAB and Simulink as per MAAB guidelines. producing Model Advisor Report as well as generating Code using AUTOSAR Coder.
Objective:
. Model Development in MATLAB Simulink as per MAAB guidelines.
. Code Generation using Autosar Coder.
. Creation of Simulink Data Dictionary.
• Mapping all the input & output signals into the Autosar Editor.
Highway assistent - lane changing assistant :
Introduction to the feature:-
The Highway Assistant supports the driver and takes over the longitudinal and lateral guidance of the vehicle in monotonous driving situations on highways. The partially automated function can automatically start, accelerate, brake as well as steer the vehicle to a certain extent. The driver has to permanently supervise the system and be ready to take over the complete control of the vehicle at any time.
Drivers are taught to assess surrounding traffic before changing lanes by checking their rearview and side mirrors and looking over each shoulder. However, even for those who follow this sequence of checks, the vehicle's blind spot - the area alongside and just behind the vehicle-is a constant source of danger and often the cause of serious accidents. Even vehicles approaching quickly from behind can pose a risk. To make changing lanes safer, this feature has been developed.
Basic Working Principle:
Highway Assistant is a partially automated driving function for a speed range of up to 180 km/h (112 mph) on highways. It combines the radar-based longitudinal guidance of Adaptive Cruise Control (ACC) with the video-based lateral guidance of lane-keeping support in one system. Highway Assistant can be supplemented by an automatic lane change initiated and monitored by the driver in a speed range of 60 -130 km/h (35-80 mph).
The Lane Change Assistant works by using two mid-range radar sensors that are concealed in the rear bumper-one on the left, one on the right. These two sensors monitor the area alongside and behind the car. Powerful control software collates the sensor information to create a complete picture of all traffic in the area behind the vehicle. Whenever another vehicle approaches at speed from behind or is already present in the blind spot, a signal such as a warning light in the side mirror alerts the driver to the hazard. Should the driver still activate the turn signal to change lanes, the system issues an additional acoustic and/or haptic warning.
Collabration and signal Data List:-
Input signal:-
| Name of the Signal | Data Type | Range |
| Highway_Input_Signal | uint8 | 0-255 |
| Enable_Display | uint8 | 0-255 |
| Input_Switch | uint8 | 0-255 |
| Lane_Input_Signal | uint8 | 0-255 |
Local signal:-
Local Signals:
|
Name of the Signal |
Data Type |
Range |
|
Highway_Display_Mode_1 |
uint8 |
0 - 255 |
|
Highway_Display_Mode_2 |
uint8 |
0 – 255 |
|
Highway_Display_Mode_3 |
uint8 |
0 – 255 |
|
Highway_Display_Mode_4 |
uint8 |
0 – 255 |
|
Lane_Display_Mode_1 |
uint8 |
0 – 255 |
|
Lane_Display_Mode_2 |
uint8 |
0 – 255 |
|
Lane_Display_Mode_3 |
uint8 |
0 – 255 |
|
Lane_Display_Mode_4 |
uint8 |
0 – 255 |
Output Signals:
|
Name of the Signal |
Data Type |
Range |
|
Display_Mode_1 |
uint8 |
0 - 255 |
|
Display_Mode_2 |
uint8 |
0 – 255 |
|
Display_Mode_3 |
uint8 |
0 – 255 |
|
Display_Mode_4 |
uint8 |
0 - 255 |
Requirement No 1 [Highway_DisplayUnit]:
Inputs to this particular subsystem are “Highway_Input_Signal”, “Enable_Display”, “Input_Switch”. These three input signals, when assigned to a particular value will give output signals of specific value. The output signals are “Highway_Display_Mode_1”, “Highway_Display_Mode_2”, “Highway_Display_Mode_3”, “Highway_Display_Mode_4”. The requirement must be implemented in the form of a Stateflow logic.
|
Condition |
Action |
|
Highway_Input_Signal = 1 Enable_Display = off Input_Switch = on |
Highway_Display_Mode_1 = 232 Highway_Display_Mode_2 = 183 Highway_Display_Mode_3 = 41 Highway_Display_Mode_4 = 94 |
|
Highway_Input_Signal = 1 Enable_Display = on Input_Switch = on |
Highway_Display_Mode_1 = 213 Highway_Display_Mode_2 = 183 Highway_Display_Mode_3 = 9 Highway_Display_Mode_4 = 94 |
Requirement No 2 [Lane_DisplayUnit]:
Inputs to this particular subsystem are “Enable_Display”, “Input_Switch”, “Lane_Input_Signal”. These three input signals, when assigned to a particular value will give output signals of specific value. The output signals are “Lane_Display_Mode_1”, “Lane_Display_Mode_2”, “Lane_Display_Mode_3”, “Lane_Display_Mode_4”. The requirement must be implemented in the form of Stateflow logic.
|
Condition |
Action |
|
Lane_Input_Signal= 6 Enable_Display = off Input_Switch = on |
Lane_Display_Mode_1 = 132 Lane_Display_Mode_2 = 185 Lane_Display_Mode_3 = 54 Lane_Display_Mode_4 = 67 |
|
Lane_Input_Signal= 6 Enable_Display = on Input_Switch = on |
Lane_Display_Mode_1 = 127 Lane_Display_Mode_2 = 248 Lane_Display_Mode_3 = 186 Lane_Display_Mode_4 = 84 |
Requirement No 3:
Signals coming from both subsystems “Highway_Display_Mode_1” & “Lane_Display_Mode_1” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2nd input to the switch block. Corresponding output from this particular switch block is output signal “Display_Mode_1”.
Signals coming from both subsystems “Highway_Display_Mode_2” & “Lane_Display_Mode_2” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2nd input to the switch block. Corresponding output from this particular switch block is output signal “Display_Mode_2”.
Signals coming from both subsystems “Highway_Display_Mode_3” & “Lane_Display_Mode_3” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2nd input to the switch block. Corresponding output from this particular switch block is output signal “Display_Mode_3”.
Signals coming from both subsystems “Highway_Display_Mode_4” & “Lane_Display_Mode_4” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2nd input to the switch block. Corresponding output from this particular switch block is output signal “Display_Mode_4”.
Procedure and stapes :-

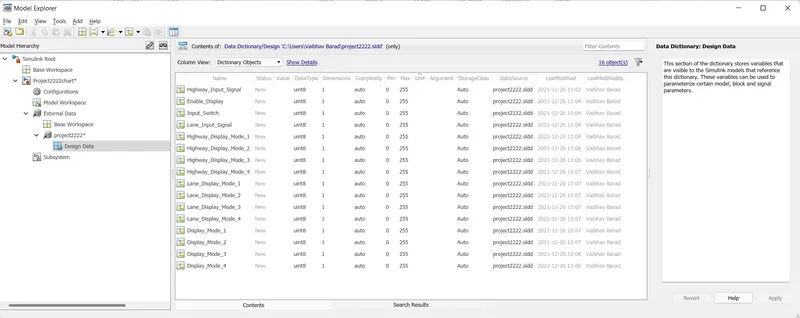

The first step is the creation of the Simulink Data Dictionary File from the given calibration and signal data list. Then data dictionary should be linked to the specified simulink model.

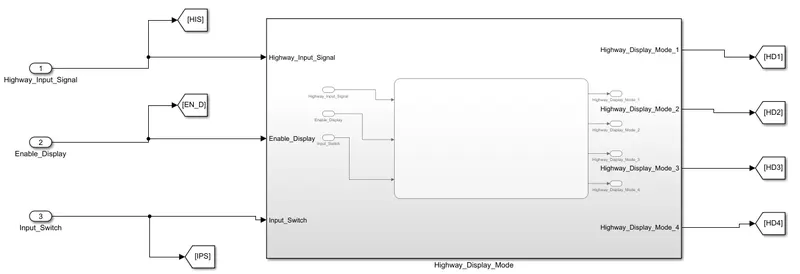

As per the first requirement, the first subsystem will have three inputs. They are Highway_Input_Signal, Enable Display, and Input_Switch.

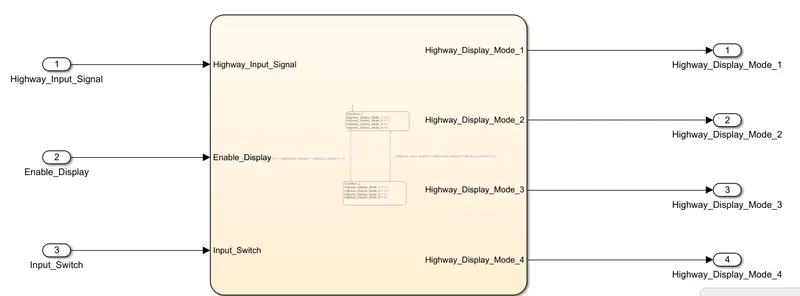

The input further goes to the chart. The chart will have the output as Highway_Display_Mode_1, Highway_Display_Mode_2, Highway_Display_Mode_3, and Highway_Display_Mode_4.

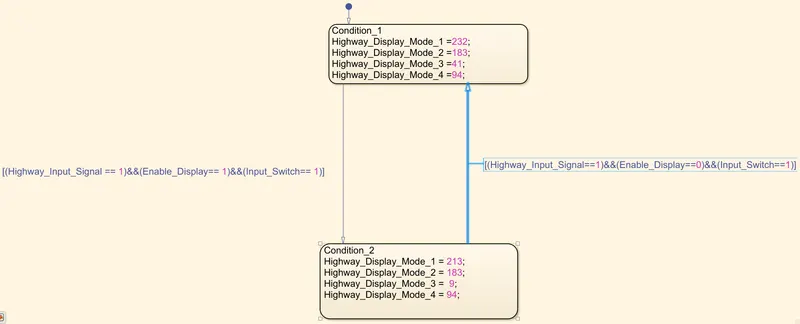

Inside the chart, we will implement Highway_Input_Signal, Enable_Display, and Input_Switch using AND blocks. The output is given in the State.
On the stateflow logic wriiten we will be able to solve the input and outport

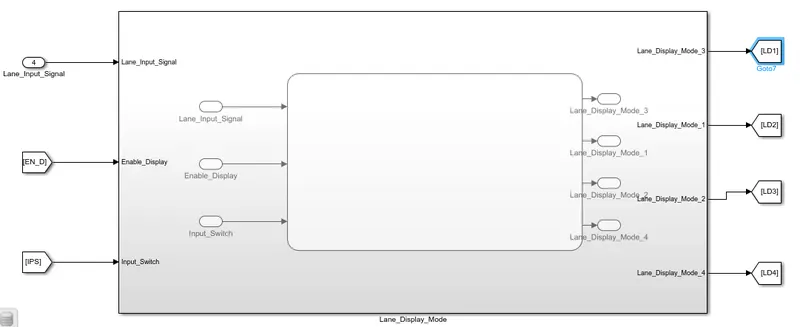

As per requirement 2, we will enable the subsystem using Lane_Input_Signal for a value of 6. Input for the block will be Input Switch and Enable display. Here, from and to blocks are used to make connections easy and readable.
EN_D=Enable Display, IPS= Input Switch, HIS Highway_Input Signal, HD1= Highway_Display_1 HD4- Highway_Display_4. LD1= Lane Display_1.... LD4- Lane_Display_4

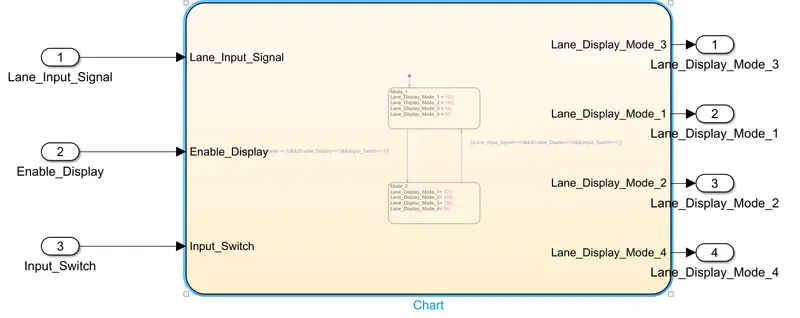

These inputs will further go to Chart, where the Stateflow logic will be written. The output of the chart are Lane_Display_Mode_1, Lane_Display_Mode_2, Lane_Display_Mode_3, Lane_Display_Model _4.

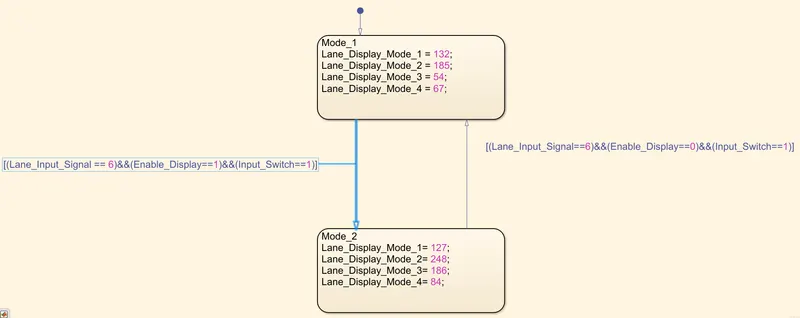

The main output is written inside the State for lane display mode

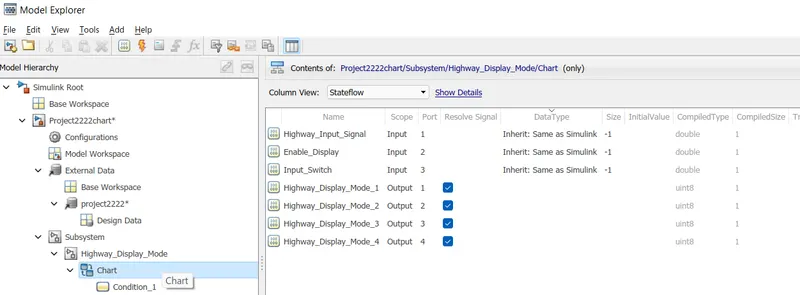

the input and output signal are resolved.

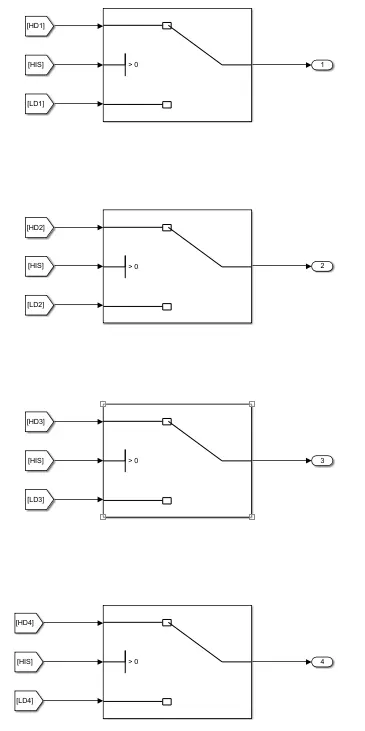

The output of the Highway_Display_Mode and Lane_Display_Mode are provided to the Switch block. That is in total 4 switch blocks are used. The conditional input signal is taken as Highway_Input_Signal for all the blocks.

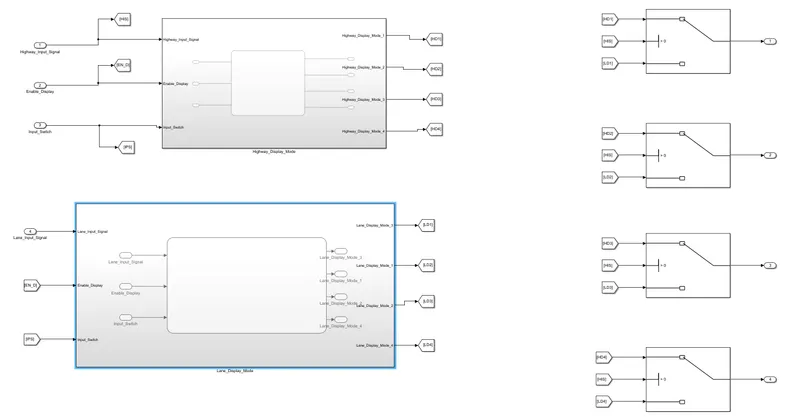

The main model:-
to get a better look we will put all the subsystem into one system :-

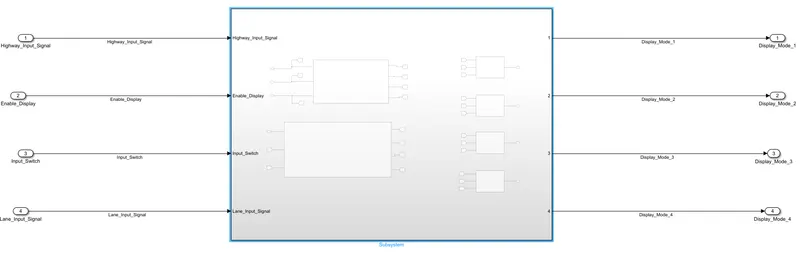

To give a better look we will put all this in a single subsystem. For better visualization, we will mask the subsystem with the appropriate.
Then we will make the model in compliance with the AUTOSAR. So, all the input & output signals will be mapped into the Autosar Editor.

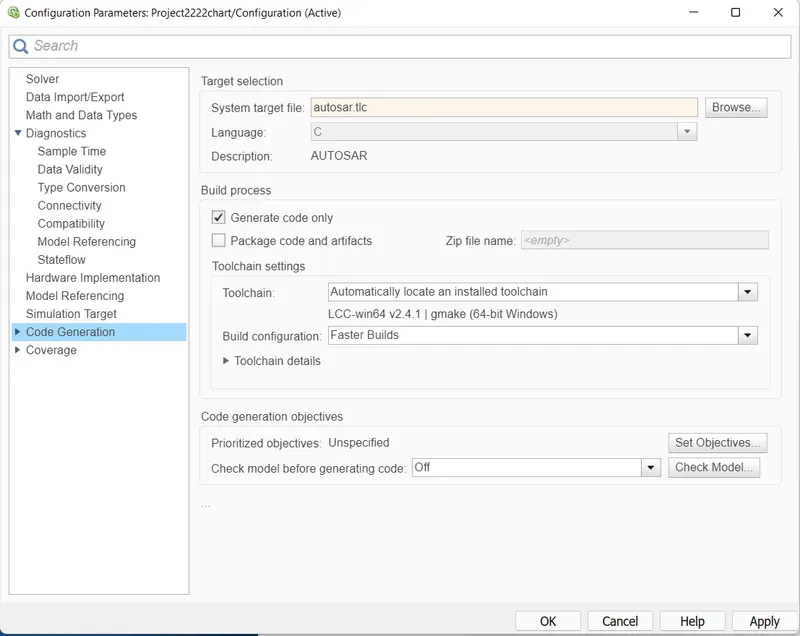

But prior to that, we will set the Systern target file as autosar.ticWe will make sure that in Solver we will set the solver to Fixed-Step.

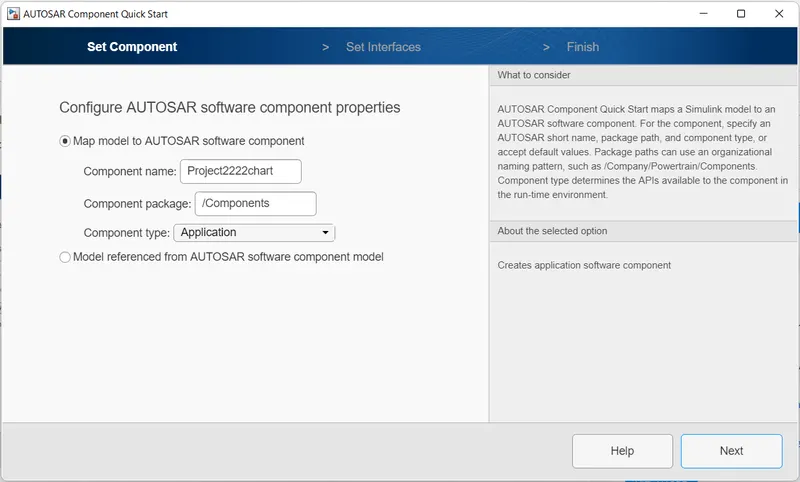

Then under app will the select AUTOSAR component.
This will open code autosar SW component.

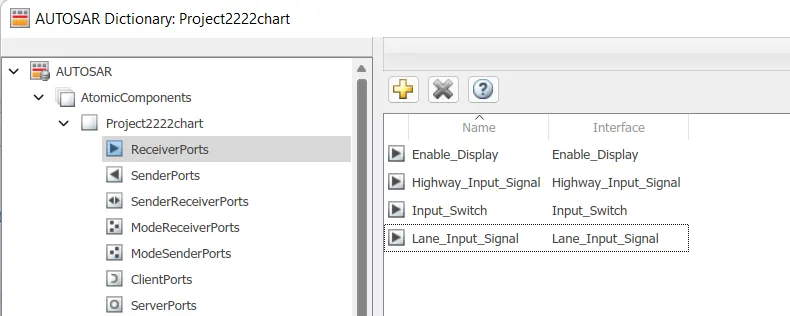

For the reciver port of the model that is input the port with prifix Rp

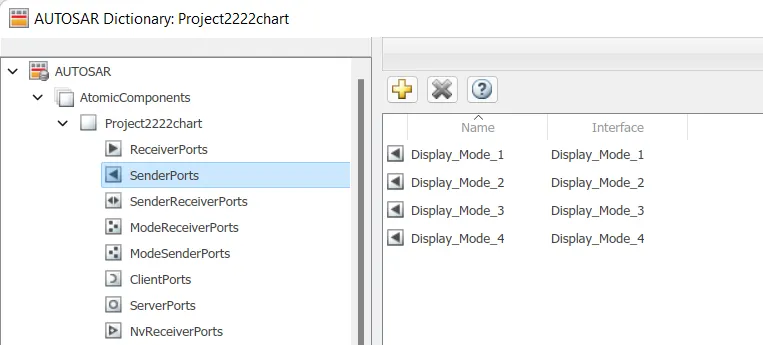

For the sender port model that is output

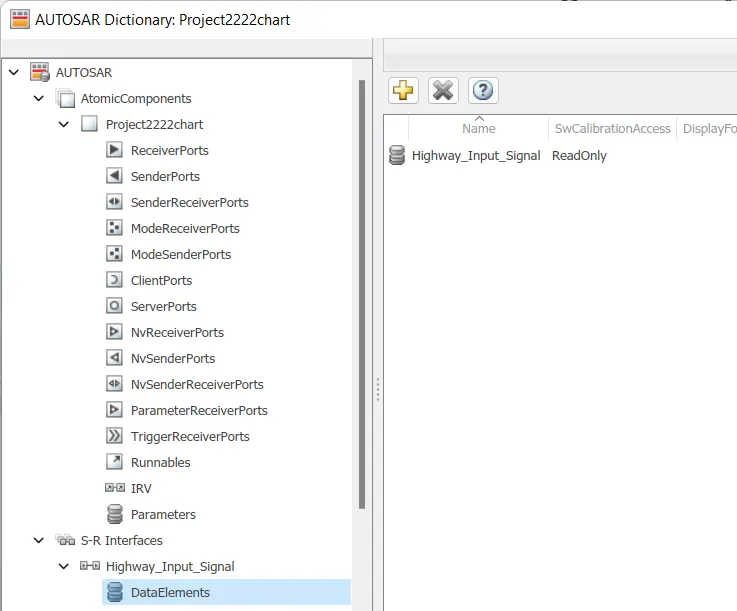

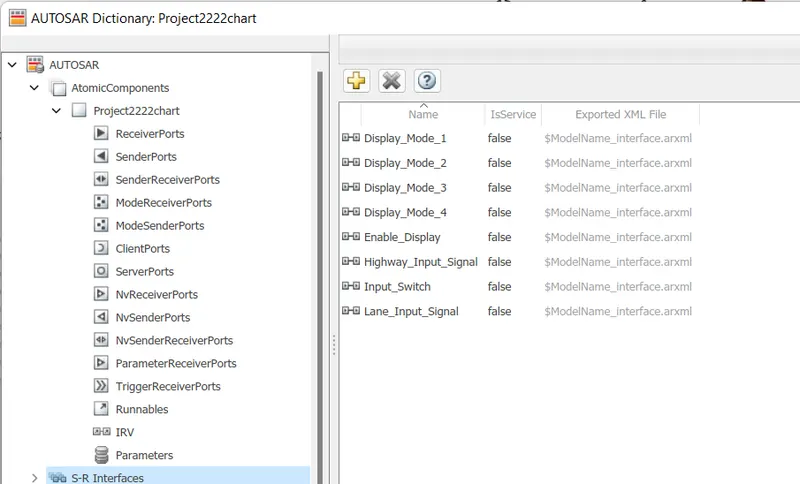

for the S-R interfarance in the model

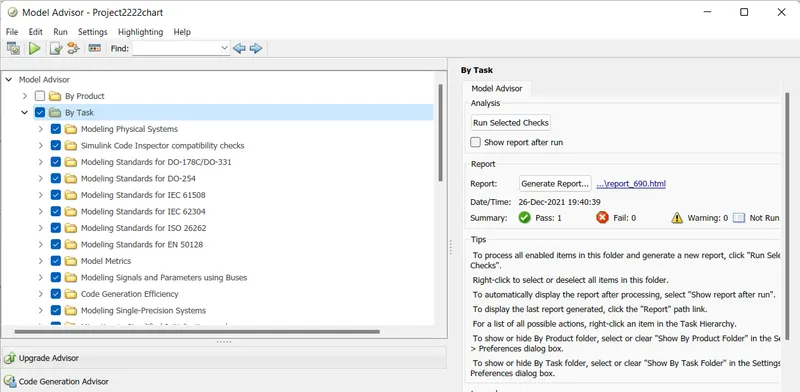

Once the mapping is done we will check for the model Advior the code was genrted sucessfully running it.

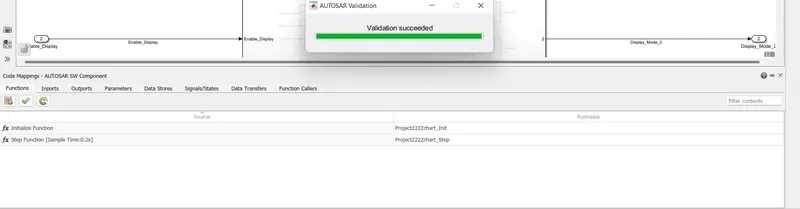

Then the model was validate with AUTOSAR coplance
+

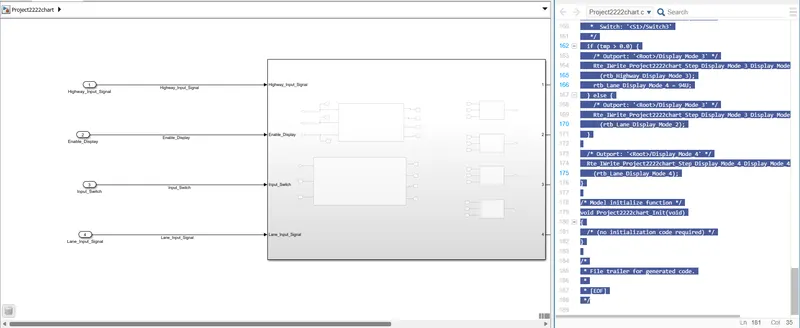

Code Genration:-
/*
* File: Project2222chart.c
*
* Code generated for Simulink model 'Project2222chart'.
*
* Model version : 1.5
* Simulink Coder version : 9.3 (R2020a) 18-Nov-2019
* C/C++ source code generated on : Sun Dec 26 19:35:06 2021
*
* Target selection: autosar.tlc
* Embedded hardware selection: Intel->x86-64 (Windows64)
* Code generation objectives: Unspecified
* Validation result: Not run
*/
#include "Project2222chart.h"
#include "Project2222chart_private.h"
/* Named constants for Chart: '/Chart' */
#define Project2222chart_IN_Condition_1 ((uint8)1U)
#define Project2222chart_IN_Condition_2 ((uint8)2U)
/* Named constants for Chart: '/Chart' */
#define Project2222chart_IN_Mode_1 ((uint8)1U)
#define Project2222chart_IN_Mode_2 ((uint8)2U)
/* Block states (default storage) */
DW_Project2222chart_T Project2222chart_DW;
/* Model step function */
void Project2222chart_Step(void)
{
uint8 rtb_Highway_Display_Mode_1;
uint8 rtb_Lane_Display_Mode_3;
uint8 rtb_Lane_Display_Mode_1;
uint8 rtb_Highway_Display_Mode_3;
uint8 rtb_Lane_Display_Mode_2;
uint8 rtb_Lane_Display_Mode_4;
float64 tmp;
/* Chart: '/Chart' incorporates:
* Inport: '/Enable_Display'
* Inport: '/Highway_Input_Signal'
* Inport: '/Input_Switch'
*/
if (Project2222chart_DW.is_active_c3_Project2222chart == 0U) {
Project2222chart_DW.is_active_c3_Project2222chart = 1U;
Project2222chart_DW.is_c3_Project2222chart = Project2222chart_IN_Condition_1;
rtb_Highway_Display_Mode_1 = 232U;
rtb_Highway_Display_Mode_3 = 41U;
} else if (Project2222chart_DW.is_c3_Project2222chart ==
Project2222chart_IN_Condition_1) {
if ((Rte_IRead_Project2222chart_Step_Highway_Input_Signal_Highway_Input_Signal
() == 1.0) &&
(Rte_IRead_Project2222chart_Step_Enable_Display_Enable_Display() == 1.0)
&& (Rte_IRead_Project2222chart_Step_Input_Switch_Input_Switch() == 1.0))
{
Project2222chart_DW.is_c3_Project2222chart =
Project2222chart_IN_Condition_2;
rtb_Highway_Display_Mode_1 = 213U;
rtb_Highway_Display_Mode_3 = 9U;
} else {
rtb_Highway_Display_Mode_1 = 232U;
rtb_Highway_Display_Mode_3 = 41U;
}
} else {
/* case IN_Condition_2: */
if ((Rte_IRead_Project2222chart_Step_Highway_Input_Signal_Highway_Input_Signal
() == 1.0) &&
(Rte_IRead_Project2222chart_Step_Enable_Display_Enable_Display() == 0.0)
&& (Rte_IRead_Project2222chart_Step_Input_Switch_Input_Switch() == 1.0))
{
Project2222chart_DW.is_c3_Project2222chart =
Project2222chart_IN_Condition_1;
rtb_Highway_Display_Mode_1 = 232U;
rtb_Highway_Display_Mode_3 = 41U;
} else {
rtb_Highway_Display_Mode_1 = 213U;
rtb_Highway_Display_Mode_3 = 9U;
}
}
/* End of Chart: '/Chart' */
/* Chart: '/Chart' incorporates:
* Inport: '/Enable_Display'
* Inport: '/Input_Switch'
* Inport: '/Lane_Input_Signal'
*/
if (Project2222chart_DW.is_active_c1_Project2222chart == 0U) {
Project2222chart_DW.is_active_c1_Project2222chart = 1U;
Project2222chart_DW.is_c1_Project2222chart = Project2222chart_IN_Mode_1;
rtb_Lane_Display_Mode_1 = 132U;
rtb_Lane_Display_Mode_2 = 185U;
rtb_Lane_Display_Mode_3 = 54U;
rtb_Lane_Display_Mode_4 = 67U;
} else if (Project2222chart_DW.is_c1_Project2222chart ==
Project2222chart_IN_Mode_1) {
if ((Rte_IRead_Project2222chart_Step_Lane_Input_Signal_Lane_Input_Signal() ==
6.0) && (Rte_IRead_Project2222chart_Step_Enable_Display_Enable_Display()
== 1.0) &&
(Rte_IRead_Project2222chart_Step_Input_Switch_Input_Switch() == 1.0)) {
Project2222chart_DW.is_c1_Project2222chart = Project2222chart_IN_Mode_2;
rtb_Lane_Display_Mode_1 = 127U;
rtb_Lane_Display_Mode_2 = 248U;
rtb_Lane_Display_Mode_3 = 186U;
rtb_Lane_Display_Mode_4 = 84U;
} else {
rtb_Lane_Display_Mode_1 = 132U;
rtb_Lane_Display_Mode_2 = 185U;
rtb_Lane_Display_Mode_3 = 54U;
rtb_Lane_Display_Mode_4 = 67U;
}
} else {
/* case IN_Mode_2: */
if ((Rte_IRead_Project2222chart_Step_Lane_Input_Signal_Lane_Input_Signal() ==
6.0) && (Rte_IRead_Project2222chart_Step_Enable_Display_Enable_Display()
== 0.0) &&
(Rte_IRead_Project2222chart_Step_Input_Switch_Input_Switch() == 1.0)) {
Project2222chart_DW.is_c1_Project2222chart = Project2222chart_IN_Mode_1;
rtb_Lane_Display_Mode_1 = 132U;
rtb_Lane_Display_Mode_2 = 185U;
rtb_Lane_Display_Mode_3 = 54U;
rtb_Lane_Display_Mode_4 = 67U;
} else {
rtb_Lane_Display_Mode_1 = 127U;
rtb_Lane_Display_Mode_2 = 248U;
rtb_Lane_Display_Mode_3 = 186U;
rtb_Lane_Display_Mode_4 = 84U;
}
}
/* End of Chart: '/Chart' */
/* Switch: '/Switch' incorporates:
* Inport: '/Highway_Input_Signal'
* Switch: '/Switch1'
* Switch: '/Switch2'
*/
tmp =
Rte_IRead_Project2222chart_Step_Highway_Input_Signal_Highway_Input_Signal();
if (tmp > 0.0) {
/* Outport: '/Display_Mode_1' */
Rte_IWrite_Project2222chart_Step_Display_Mode_1_Display_Mode_1
(rtb_Highway_Display_Mode_1);
rtb_Lane_Display_Mode_1 = 183U;
} else {
/* Outport: '/Display_Mode_1' */
Rte_IWrite_Project2222chart_Step_Display_Mode_1_Display_Mode_1
(rtb_Lane_Display_Mode_3);
}
/* End of Switch: '/Switch' */
/* Outport: '/Display_Mode_2' */
Rte_IWrite_Project2222chart_Step_Display_Mode_2_Display_Mode_2
(rtb_Lane_Display_Mode_1);
/* Switch: '/Switch2' incorporates:
* Switch: '/Switch3'
*/
if (tmp > 0.0) {
/* Outport: '/Display_Mode_3' */
Rte_IWrite_Project2222chart_Step_Display_Mode_3_Display_Mode_3
(rtb_Highway_Display_Mode_3);
rtb_Lane_Display_Mode_4 = 94U;
} else {
/* Outport: '/Display_Mode_3' */
Rte_IWrite_Project2222chart_Step_Display_Mode_3_Display_Mode_3
(rtb_Lane_Display_Mode_2);
}
/* Outport: '/Display_Mode_4' */
Rte_IWrite_Project2222chart_Step_Display_Mode_4_Display_Mode_4
(rtb_Lane_Display_Mode_4);
}
/* Model initialize function */
void Project2222chart_Init(void)
{
/* (no initialization code required) */
}
/*
* File trailer for generated code.
*
* [EOF]

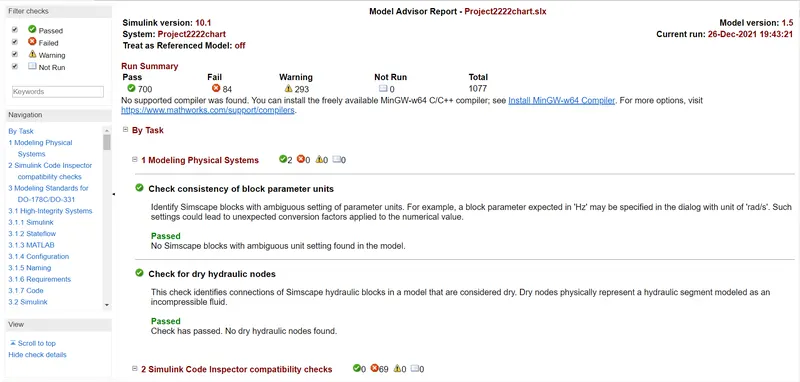

*/Model Advisor Report:-
