Project 2-Highway Assistant-Lane Changing Assistant

TITLE:To develop Highway Assistant – Lane Changing Assistant algorithm with the given requirements by using MATLAB na SIMULINK and generating an AUTOSAR code

The given requirements are

Highway Assistant – Lane Changing Assistant

Introduction to the Feature:

The Highway Assistant supports the driver and takes over the longitudinal and lateral guidance of the vehicle in monotonous driving situations on highways. The partially automated function can automatically start, accelerate, brake as well as steer the vehicle to a certain extent. The driver has to permanently supervise the system and be ready to take over the complete control of the vehicle at any time.

Drivers are taught to assess surrounding traffic before changing lanes by checking their rearview and side mirrors and looking over each shoulder. However, even for those who follow this sequence of checks, the vehicle's blind spot – the area alongside and just behind the vehicle – is a constant source of danger and often the cause of serious accidents. Even vehicles approaching quickly from behind can pose a risk. To make changing lanes safer, this feature has been developed.

Basic Working Principle:

Highway Assistant is a partially automated driving function for a speed range of up to 180 km/h (112 mph) on highways. It combines the radar-based longitudinal guidance of Adaptive Cruise Control (ACC) with the video-based lateral guidance of lane keeping support in one system. Highway Assistant can be supplemented by an automatic lane change initiated and monitored by the driver in a speed range of 60 – 130 km/h (35 – 80 mph).

The lane Change Assistant works by using two mid-range radar sensors that are concealed in the rear bumper – one on the left, one on the right. These two sensors monitor the area alongside and behind the car. Powerful control software collates the sensor information to create a complete picture of all traffic in the area behind the vehicle.Whenever another vehicle approaches at speed from behind or is already present in the blind spot, a signal such as a warning light in the side mirror alerts the driver to the hazard. Should the driver still activate the turn signal with the intention of changing lanes, the system issues an additional acoustic and/or haptic warning.

Problem Statement:

To develop one specific requirement of Highway Assistant – Lane Changing Assistant algorithm. Please note that the whole Highway Assistant – Lane Changing Assistant is a very huge algorithm & only one small part of the logic is implemented here. Idea is to familiarize with concepts of Autosar Software Component Development in MATLAB Environment by following the Model Based Development guidelines. The Project must be done keeping in mind the following processes & steps.

• This model must be developed in MATLAB Simulink per MBD guidelines.
• Code Generation Profile must be Autosar Coder.
• Simulink Data Dictionary must be created for the model & must be linked to the model.
• All the input & output signals must be mapped into the Autosar Editor.
• Model Advisor Report is mandatory & this will be followed by Code Generation.

Input Signals:

Name of the Signal	Data Type	Range
Highway_Input_Signal	uint8	0 - 255
Enable_Display	uint8	0 – 255
Input_Switch	uint8	0 – 255
Lane_Input_Signal	uint8	0 - 255

Local Signals:

Name of the Signal	Data Type	Range
Highway_Display_Mode_1	uint8	0 - 255
Highway_Display_Mode_2	uint8	0 – 255
Highway_Display_Mode_3	uint8	0 – 255
Highway_Display_Mode_4	uint8	0 – 255
Lane_Display_Mode_1	uint8	0 – 255
Lane_Display_Mode_2	uint8	0 – 255
Lane_Display_Mode_3	uint8	0 – 255
Lane_Display_Mode_4	uint8	0 – 255

Output Signals:

Name of the Signal	Data Type	Range
Display_Mode_1	uint8	0 - 255
Display_Mode_2	uint8	0 – 255
Display_Mode_3	uint8	0 – 255
Display_Mode_4	uint8	0 - 255

Requirement No 1 [Highway_DisplayUnit]:

Inputs to this particular subsystem are “Highway_Input_Signal”, “Enable_Display”, “Input_Switch”. These three input signals, when assigned to a particular value will give output signals of specific value. The output signals are “Highway_Display_Mode_1”, “Highway_Display_Mode_2”, “Highway_Display_Mode_3”, “Highway_Display_Mode_4”. The requirement must be implemented in the form of a Stateflow logic.

Condition	Action
Highway_Input_Signal = 1 Enable_Display = off Input_Switch = on	Highway_Display_Mode_1 = 232 Highway_Display_Mode_2 = 183 Highway_Display_Mode_3 = 41 Highway_Display_Mode_4 = 94
Highway_Input_Signal = 1 Enable_Display = on Input_Switch = on	Highway_Display_Mode_1 = 213 Highway_Display_Mode_2 = 183 Highway_Display_Mode_3 = 9 Highway_Display_Mode_4 = 94

Requirement No 2 [Lane_DisplayUnit]:

Inputs to this particular subsystem are “Enable_Display”, “Input_Switch”, “Lane_Input_Signal”. These three input signals, when assigned to a particular value will give output signals of specific value. The output signals are “Lane_Display_Mode_1”, “Lane_Display_Mode_2”, “Lane_Display_Mode_3”, “Lane_Display_Mode_4”. The requirement must be implemented in the form of Stateflow logic.

Condition	Action
Lane_Input_Signal= 6 Enable_Display = off Input_Switch = on	Lane_Display_Mode_1 = 132 Lane_Display_Mode_2 = 185 Lane_Display_Mode_3 = 54 Lane_Display_Mode_4 = 67
Lane_Input_Signal= 6 Enable_Display = on Input_Switch = on	Lane_Display_Mode_1 = 127 Lane_Display_Mode_2 = 248 Lane_Display_Mode_3 = 186 Lane_Display_Mode_4 = 84

Requirement No 3:

Signals coming from both subsystems “Highway_Display_Mode_1” & “Lane_Display_Mode_1” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2^nd input to the switch block. Corresponding output from this particular switch block is output signal “Display_Mode_1”.

Signals coming from both subsystems “Highway_Display_Mode_2” & “Lane_Display_Mode_2” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2^nd input to the switch block. Corresponding output from this particular switch block is output signal “Display_Mode_2”.

Signals coming from both subsystems “Highway_Display_Mode_3” & “Lane_Display_Mode_3” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2^nd input to the switch block. Corresponding output from this particular switch block is output signal “Display_Mode_3”.

Signals coming from both subsystems “Highway_Display_Mode_4” & “Lane_Display_Mode_4” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2^nd input to the switch block. Corresponding output from this particular switch block is output signal “Display_Mode_4”.

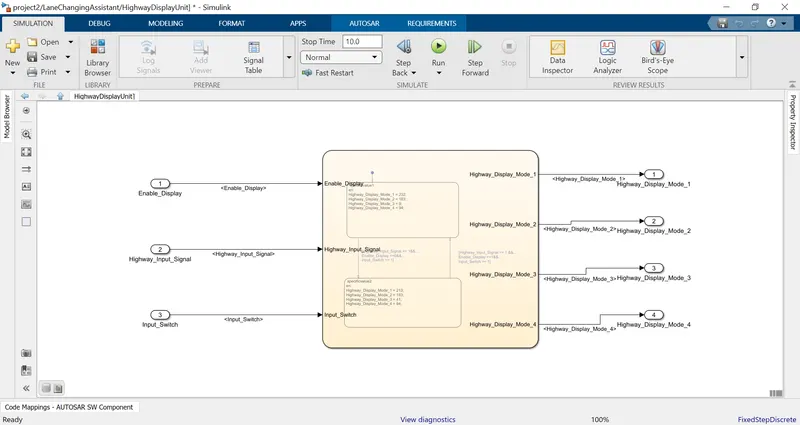

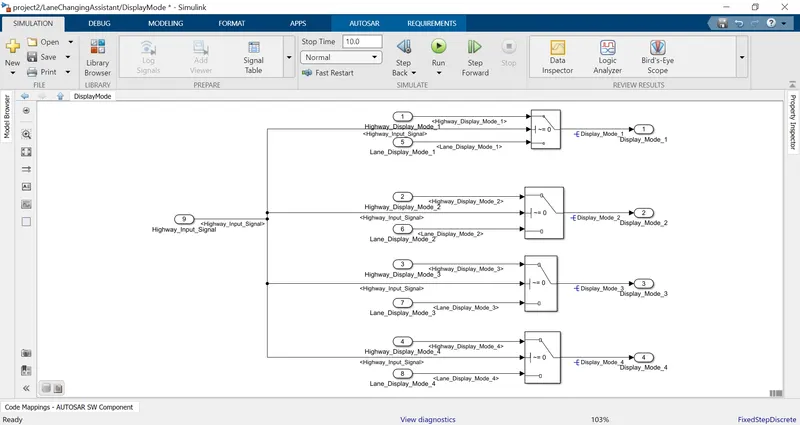

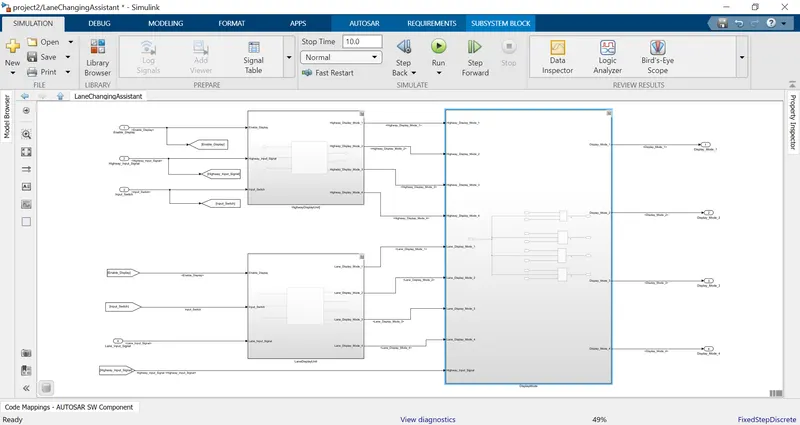

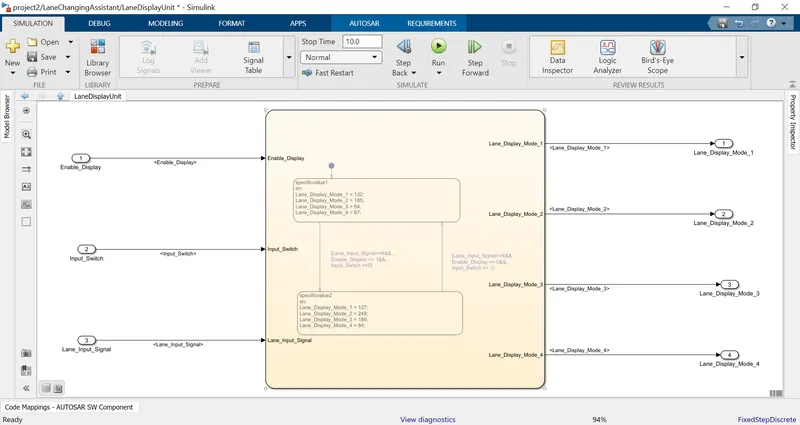

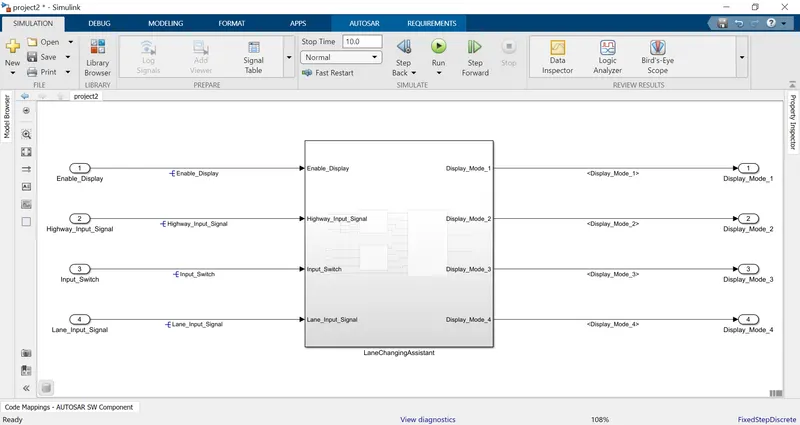

The Developed model in simulink is:

The requirement tagging is done and its tracebality report is attached below

Requirement No 1 [Highway_DisplayUnit]:

Requirement No 2 [Lane_DisplayUnit]:

Requirement No 3:

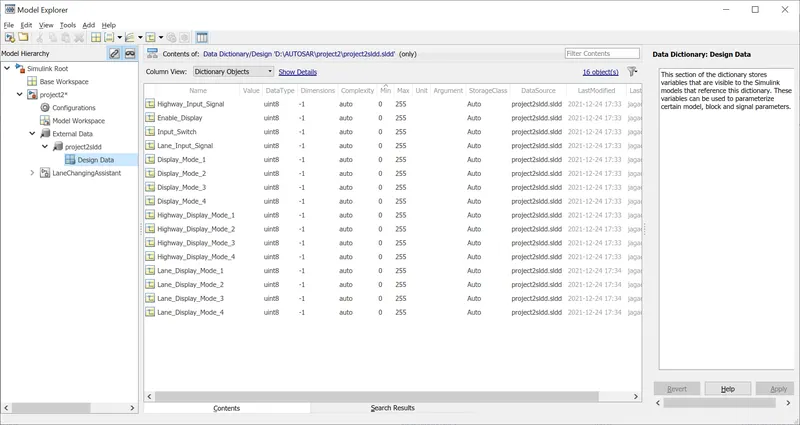

SIMILINK DATA DICTIONARY(SLDD):

1.SLDD is created as per given requirements and its storage class is also kept to auto since we are using this ti generate AUTOSAR CODE.

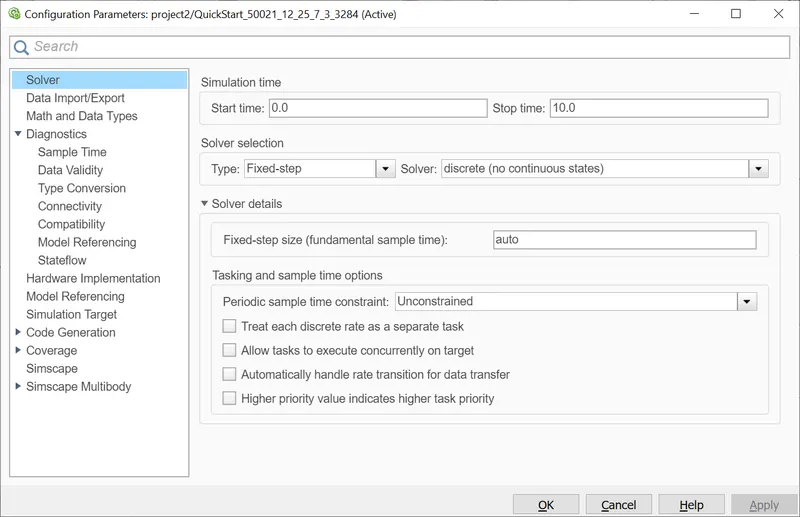

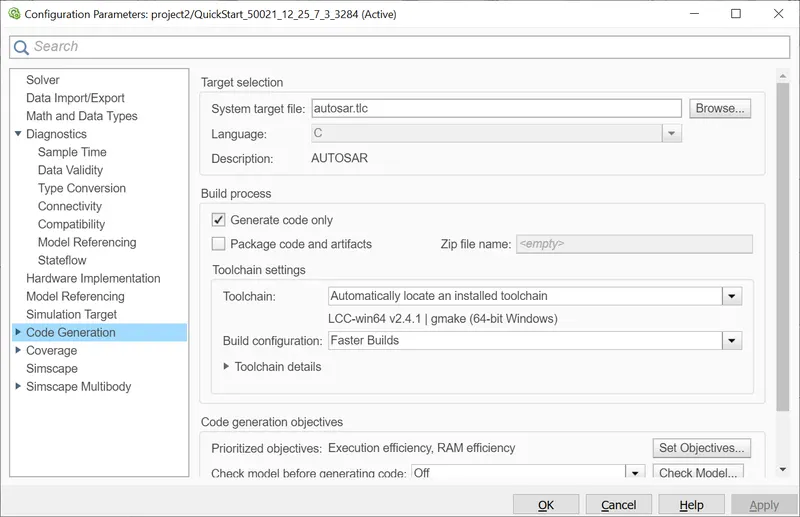

The model configuration parameters for AUTOSAR CODE generation are

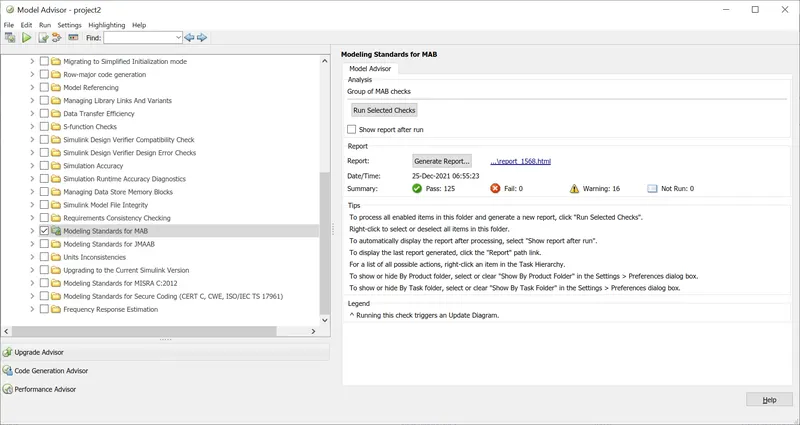

Mdeladvisor check has been reun to check the simulink model as per the MAB guidlines.

The report is:

TO generate an AUTOSAR CODE the port mapping has to be done and the sender and reciever ports has to be given and runnables has to be defined the fellowing pictures shows the settings

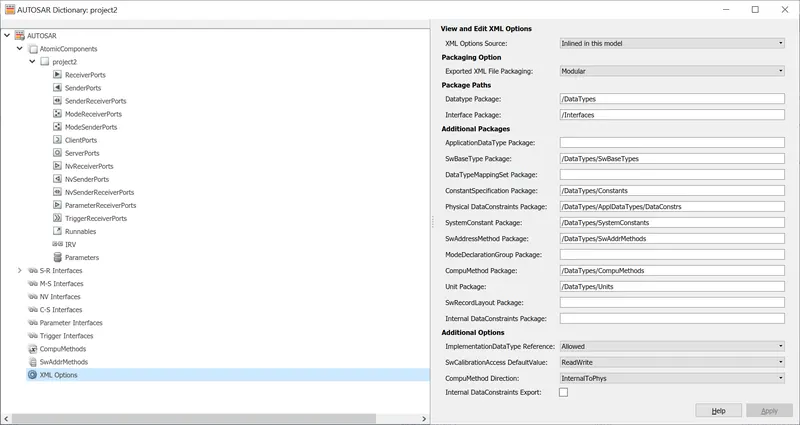

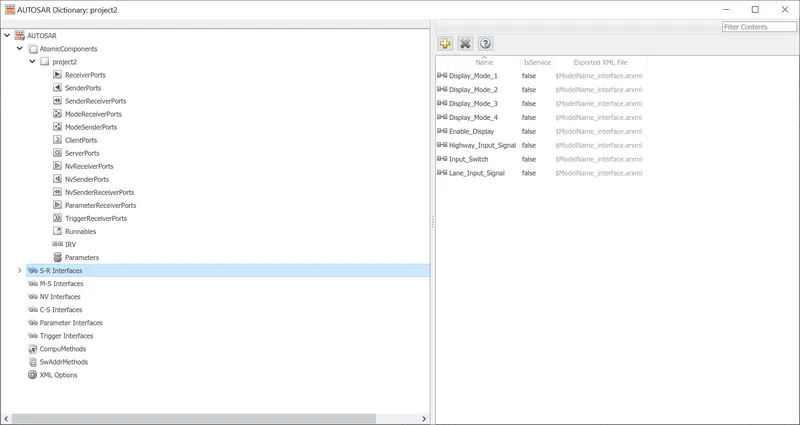

AUTOSAR data dictionary

INTERFACES:

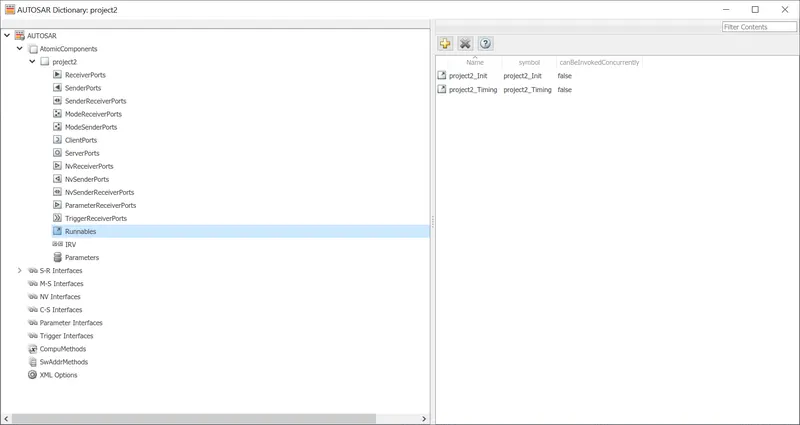

RUNNABLES:

'

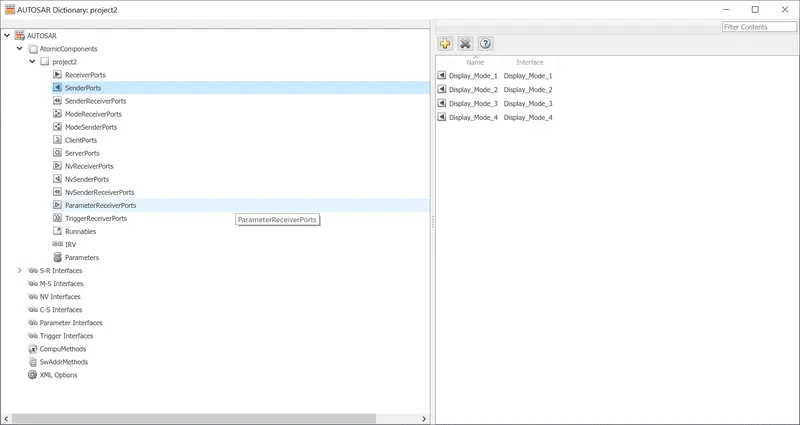

SENDERPORTS:

'

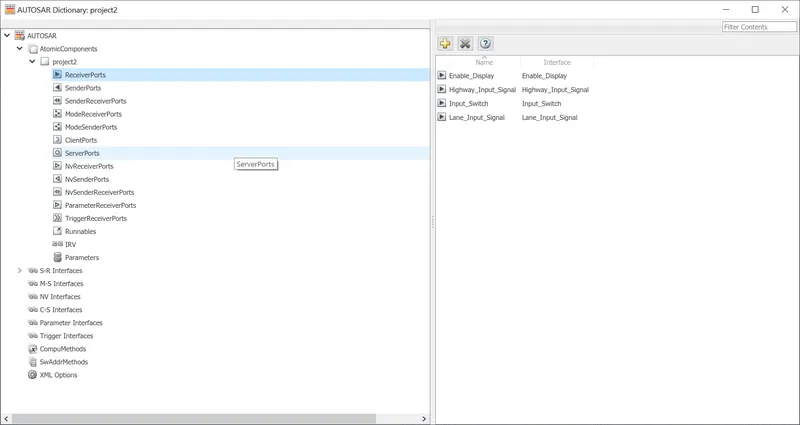

RECEIVER PORTS:

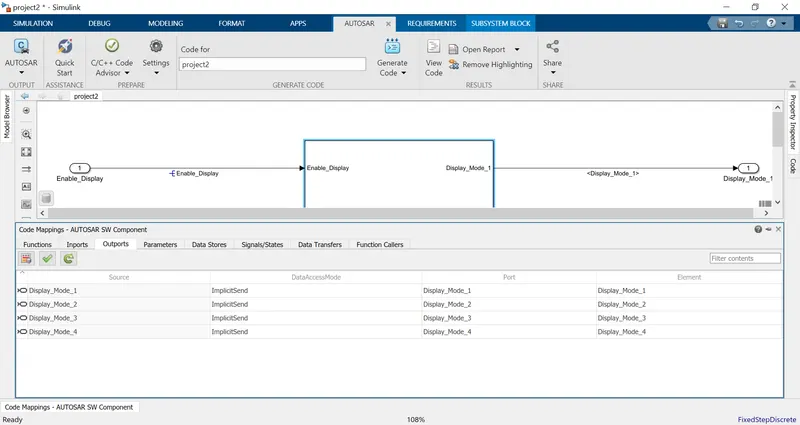

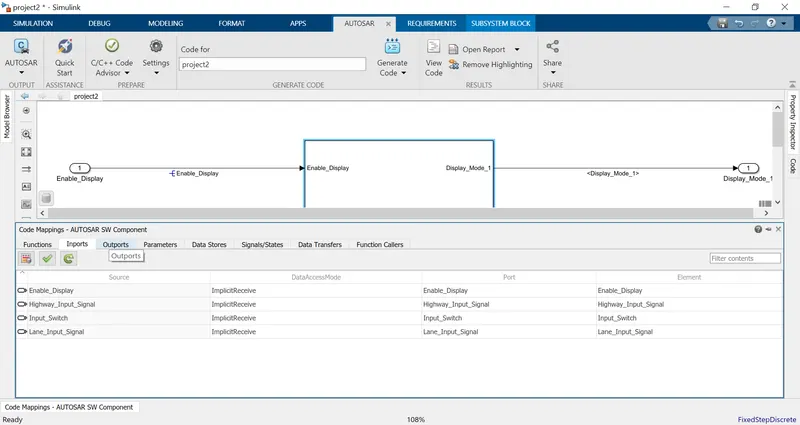

INPORTS AND OUTPORTS MAPPING:

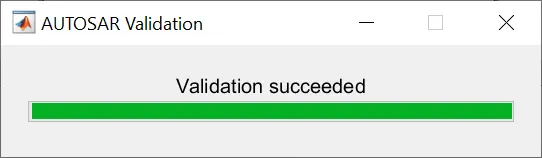

validating :

Generating the code

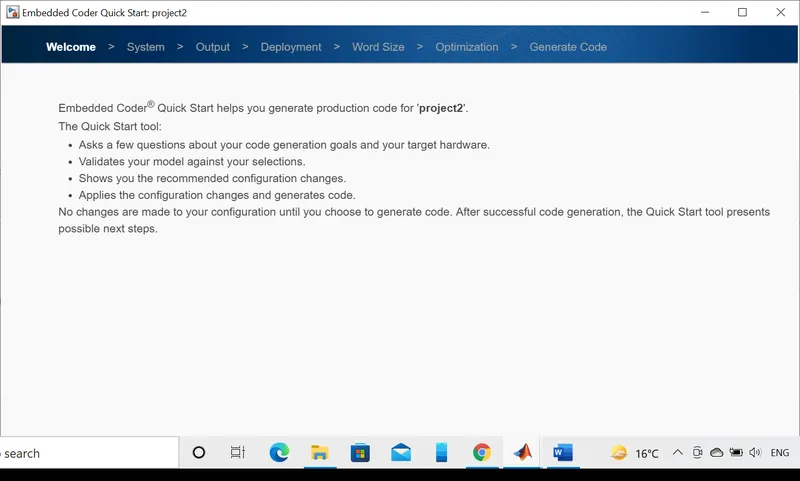

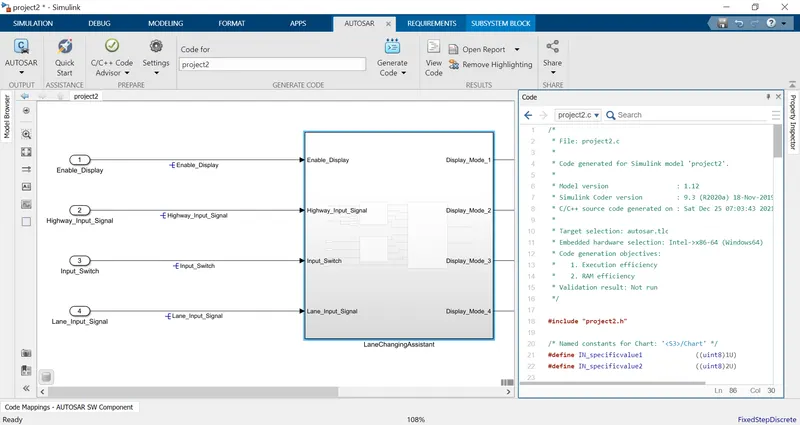

By using the quick start we generate the code and the generated AUTOSAR code is

/*
 * File: project2.c
 *
 * Code generated for Simulink model 'project2'.
 *
 * Model version                  : 1.12
 * Simulink Coder version         : 9.3 (R2020a) 18-Nov-2019
 * C/C++ source code generated on : Sat Dec 25 07:03:43 2021
 *
 * Target selection: autosar.tlc
 * Embedded hardware selection: Intel->x86-64 (Windows64)
 * Code generation objectives:
 *    1. Execution efficiency
 *    2. RAM efficiency
 * Validation result: Not run
 */

#include "project2.h"

/* Named constants for Chart: '<S3>/Chart' */
#define IN_specificvalue1              ((uint8)1U)
#define IN_specificvalue2              ((uint8)2U)

/* Block signals and states (default storage) */
DW rtDW;

/* Model step function */
void project2_Timing(void)
{
  sint32 rtb_Highway_Display_Mode_1;
  sint32 rtb_Lane_Display_Mode_1;
  sint32 rtb_Lane_Display_Mode_2;
  sint32 rtb_Highway_Display_Mode_3;
  sint32 rtb_Lane_Display_Mode_3;
  sint32 rtb_Lane_Display_Mode_4;
  uint8 tmp;
  sint32 tmp_0;

  /* Chart: '<S3>/Chart' incorporates:
   *  Inport: '<Root>/Enable_Display'
   *  Inport: '<Root>/Highway_Input_Signal'
   *  Inport: '<Root>/Input_Switch'
   */
  if (rtDW.is_active_c3_project2 == 0U) {
    rtDW.is_active_c3_project2 = 1U;
    rtDW.is_c3_project2 = IN_specificvalue1;
    rtb_Highway_Display_Mode_1 = 232;
    rtb_Highway_Display_Mode_3 = 9;
  } else if (rtDW.is_c3_project2 == IN_specificvalue1) {
    rtb_Highway_Display_Mode_1 = 232;
    rtb_Highway_Display_Mode_3 = 9;
    if ((Rte_IRead_project2_Timing_Highway_Input_Signal_Highway_Input_Signal() ==
         1) && (Rte_IRead_project2_Timing_Enable_Display_Enable_Display() == 0) &&
        (Rte_IRead_project2_Timing_Input_Switch_Input_Switch() == 1)) {
      rtDW.is_c3_project2 = IN_specificvalue2;
      rtb_Highway_Display_Mode_1 = 213;
      rtb_Highway_Display_Mode_3 = 41;
    }
  } else {
    /* case IN_specificvalue2: */
    rtb_Highway_Display_Mode_1 = 213;
    rtb_Highway_Display_Mode_3 = 41;
    if ((Rte_IRead_project2_Timing_Highway_Input_Signal_Highway_Input_Signal() ==
         1) && (Rte_IRead_project2_Timing_Enable_Display_Enable_Display() == 1) &&
        (Rte_IRead_project2_Timing_Input_Switch_Input_Switch() == 1)) {
      rtDW.is_c3_project2 = IN_specificvalue1;
      rtb_Highway_Display_Mode_1 = 232;
      rtb_Highway_Display_Mode_3 = 9;
    }
  }

  /* End of Chart: '<S3>/Chart' */

  /* Chart: '<S4>/Chart1' incorporates:
   *  Inport: '<Root>/Enable_Display'
   *  Inport: '<Root>/Input_Switch'
   *  Inport: '<Root>/Lane_Input_Signal'
   */
  if (rtDW.is_active_c1_project2 == 0U) {
    rtDW.is_active_c1_project2 = 1U;
    rtDW.is_c1_project2 = IN_specificvalue1;
    rtb_Lane_Display_Mode_1 = 132;
    rtb_Lane_Display_Mode_2 = 185;
    rtb_Lane_Display_Mode_3 = 54;
    rtb_Lane_Display_Mode_4 = 67;
  } else if (rtDW.is_c1_project2 == IN_specificvalue1) {
    rtb_Lane_Display_Mode_1 = 132;
    rtb_Lane_Display_Mode_2 = 185;
    rtb_Lane_Display_Mode_3 = 54;
    rtb_Lane_Display_Mode_4 = 67;
    if ((Rte_IRead_project2_Timing_Lane_Input_Signal_Lane_Input_Signal() == 6) &&
        (Rte_IRead_project2_Timing_Enable_Display_Enable_Display() == 1) &&
        (Rte_IRead_project2_Timing_Input_Switch_Input_Switch() == 0)) {
      rtDW.is_c1_project2 = IN_specificvalue2;
      rtb_Lane_Display_Mode_1 = 127;
      rtb_Lane_Display_Mode_2 = 248;
      rtb_Lane_Display_Mode_3 = 186;
      rtb_Lane_Display_Mode_4 = 84;
    }
  } else {
    /* case IN_specificvalue2: */
    rtb_Lane_Display_Mode_1 = 127;
    rtb_Lane_Display_Mode_2 = 248;
    rtb_Lane_Display_Mode_3 = 186;
    rtb_Lane_Display_Mode_4 = 84;
    if ((Rte_IRead_project2_Timing_Lane_Input_Signal_Lane_Input_Signal() == 6) &&
        (Rte_IRead_project2_Timing_Enable_Display_Enable_Display() == 0) &&
        (Rte_IRead_project2_Timing_Input_Switch_Input_Switch() == 1)) {
      rtDW.is_c1_project2 = IN_specificvalue1;
      rtb_Lane_Display_Mode_1 = 132;
      rtb_Lane_Display_Mode_2 = 185;
      rtb_Lane_Display_Mode_3 = 54;
      rtb_Lane_Display_Mode_4 = 67;
    }
  }

  /* End of Chart: '<S4>/Chart1' */

  /* Switch: '<S2>/Switch' incorporates:
   *  Inport: '<Root>/Highway_Input_Signal'
   *  Switch: '<S2>/Switch1'
   *  Switch: '<S2>/Switch2'
   *  Switch: '<S2>/Switch4'
   */
  tmp_0 = Rte_IRead_project2_Timing_Highway_Input_Signal_Highway_Input_Signal();
  if (tmp_0 != 0) {
    tmp = (uint8)rtb_Highway_Display_Mode_1;
  } else {
    tmp = (uint8)rtb_Lane_Display_Mode_1;
  }

  /* End of Switch: '<S2>/Switch' */

  /* Outport: '<Root>/Display_Mode_1' */
  Rte_IWrite_project2_Timing_Display_Mode_1_Display_Mode_1(tmp);

  /* Switch: '<S2>/Switch1' */
  if (tmp_0 != 0) {
    tmp = 183U;
  } else {
    tmp = (uint8)rtb_Lane_Display_Mode_2;
  }

  /* Outport: '<Root>/Display_Mode_2' */
  Rte_IWrite_project2_Timing_Display_Mode_2_Display_Mode_2(tmp);

  /* Switch: '<S2>/Switch2' */
  if (tmp_0 != 0) {
    tmp = (uint8)rtb_Highway_Display_Mode_3;
  } else {
    tmp = (uint8)rtb_Lane_Display_Mode_3;
  }

  /* Outport: '<Root>/Display_Mode_3' */
  Rte_IWrite_project2_Timing_Display_Mode_3_Display_Mode_3(tmp);

  /* Switch: '<S2>/Switch4' */
  if (tmp_0 != 0) {
    tmp = 94U;
  } else {
    tmp = (uint8)rtb_Lane_Display_Mode_4;
  }

  /* Outport: '<Root>/Display_Mode_4' */
  Rte_IWrite_project2_Timing_Display_Mode_4_Display_Mode_4(tmp);
}

/* Model initialize function */
void project2_Init(void)
{
  /* (no initialization code required) */
}

/*
 * File trailer for generated code.
 *
 * [EOF]
 */

Conclusion:

Hence an SIMULINK model is developed and verified as per standards and its AUTOSAR code is generated for the Highway Assistant – Lane Changing Assistant algorithm.as per the given requirements.
