Project 2-Highway Assistant-Lane Changing Assistant

 Solution:-

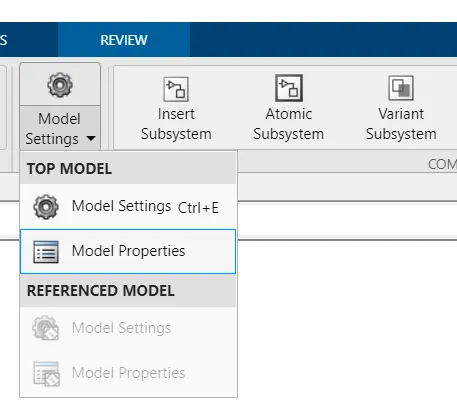

Goto Model Setting then in Model Properties.

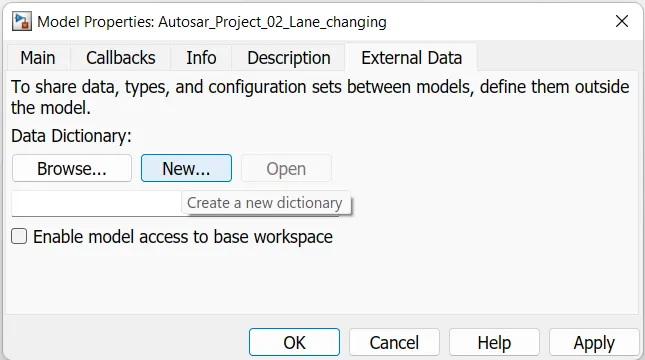

 Create New SLDD

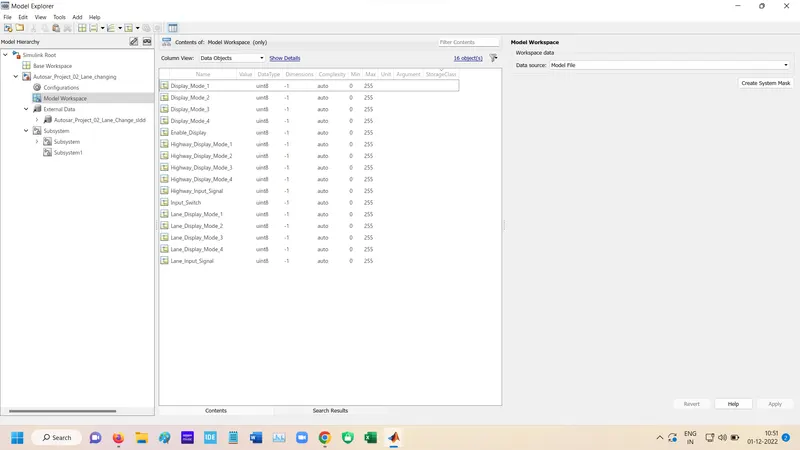

Putting Data in SLDD

Simulation Block According to Requirement

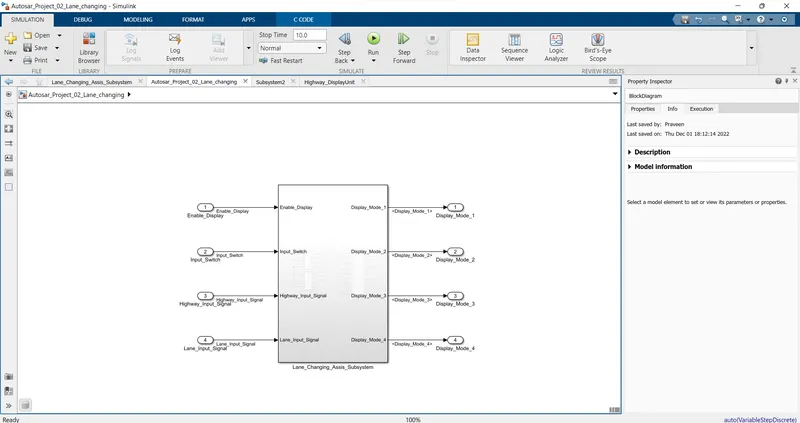

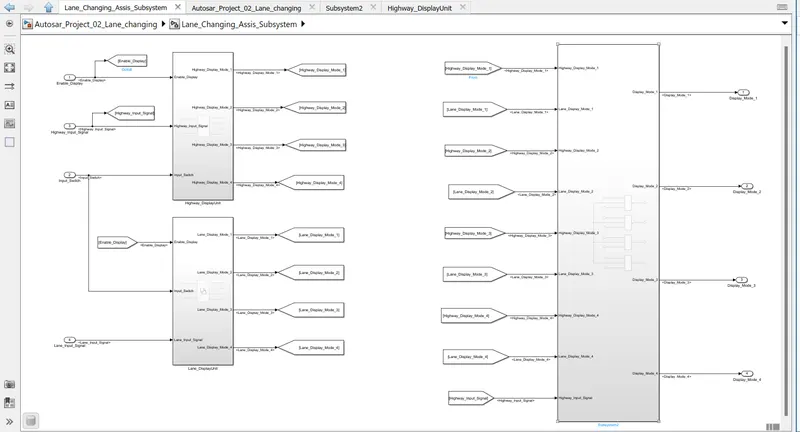

In main Subsysytem Simulation Block Arrage

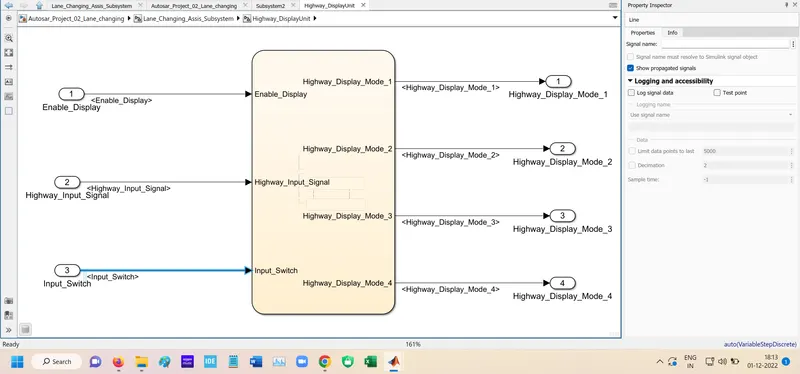

Highway_Display Subsystem

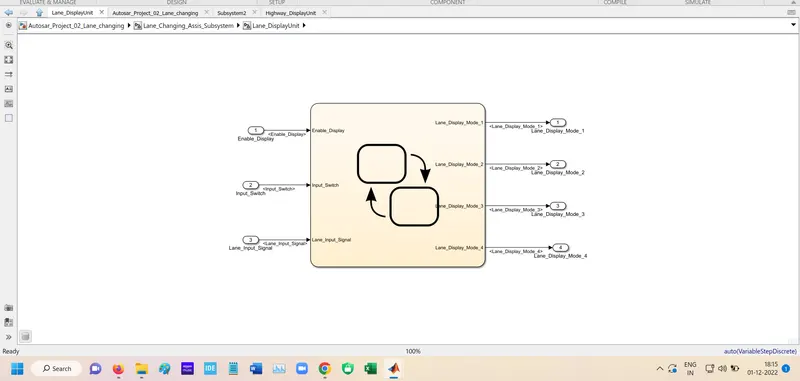

Lane Display unit Subsystem

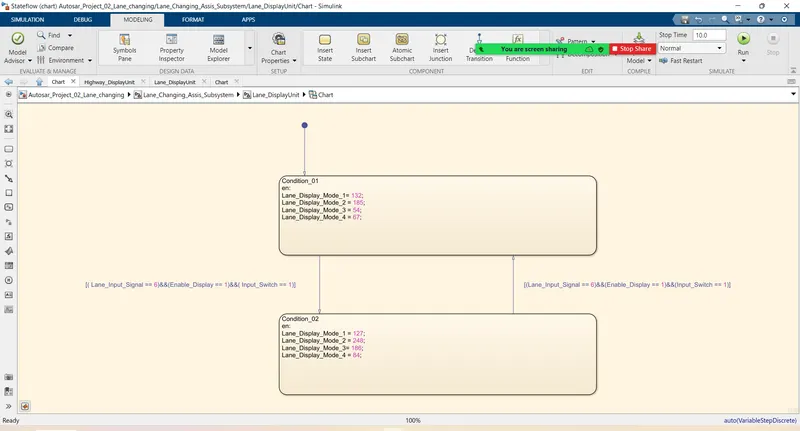

Chart for the Lane Display Unit

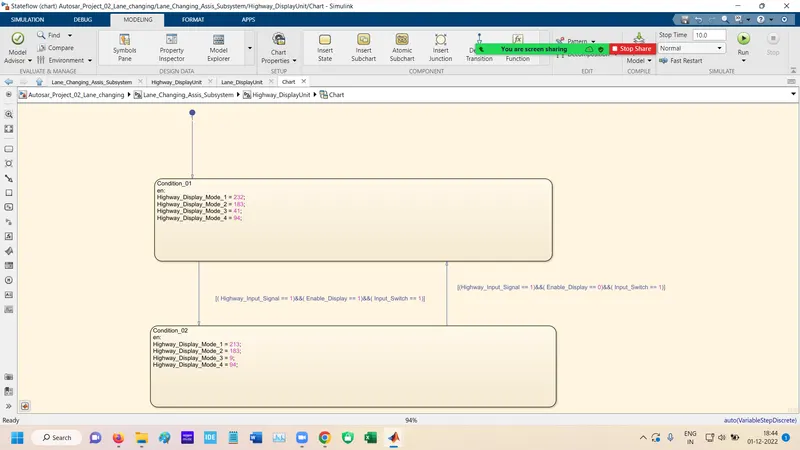

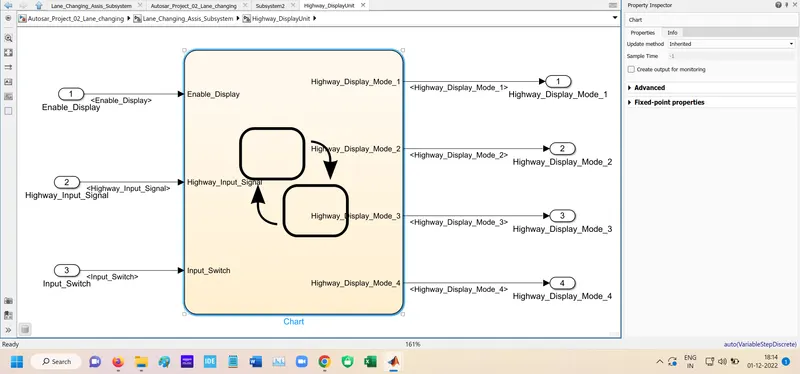

Chart for highway Display Unit

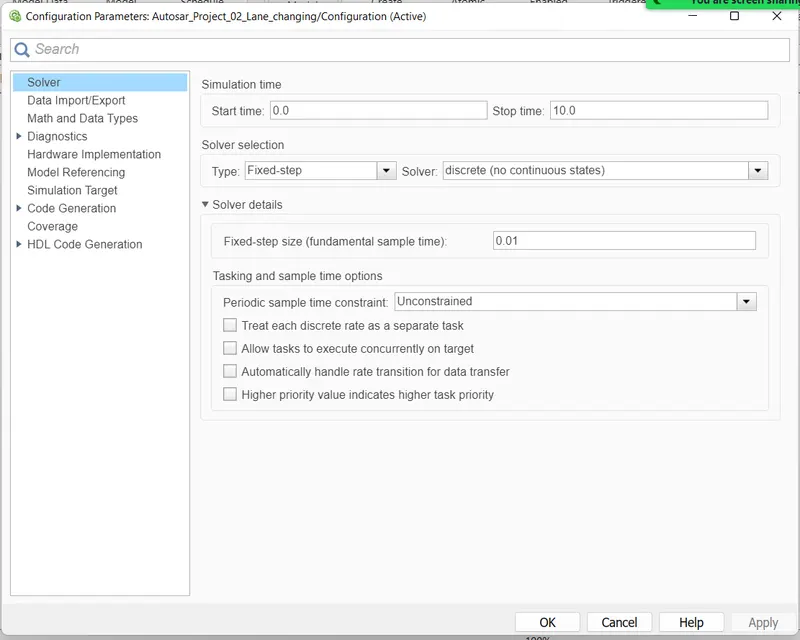

Configration parameter Setting

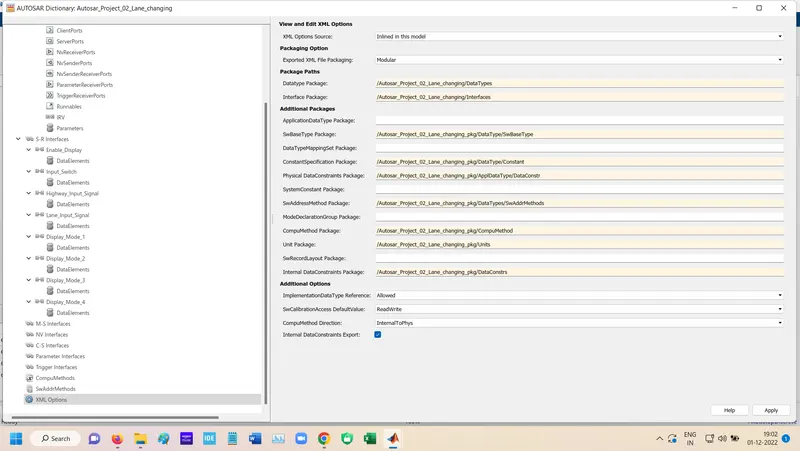

XML Options Settings

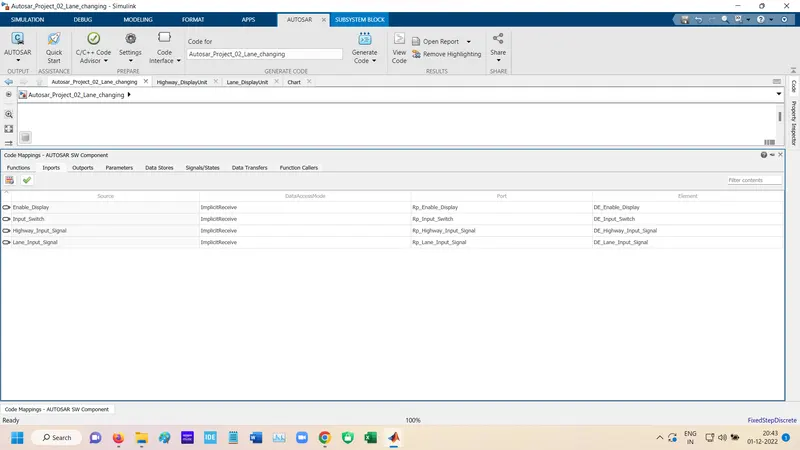

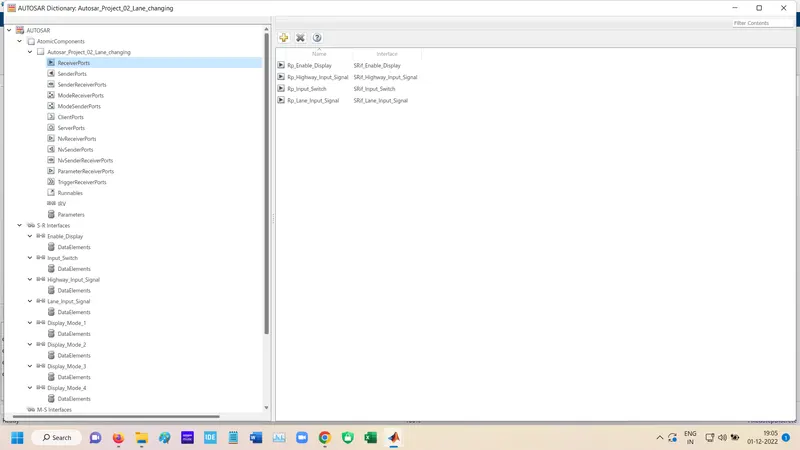

Reciver port mapping

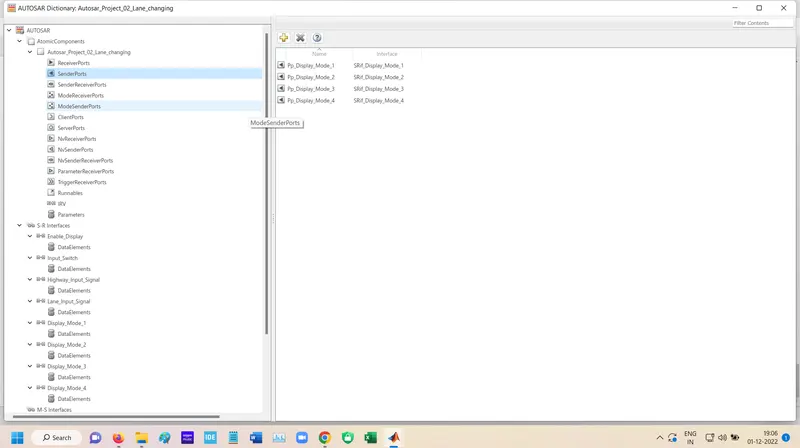

Sender port Mapping

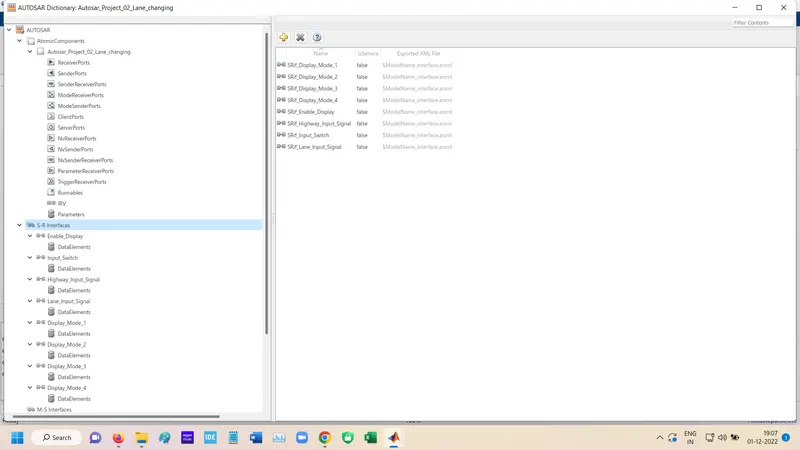

S_R interface mapping

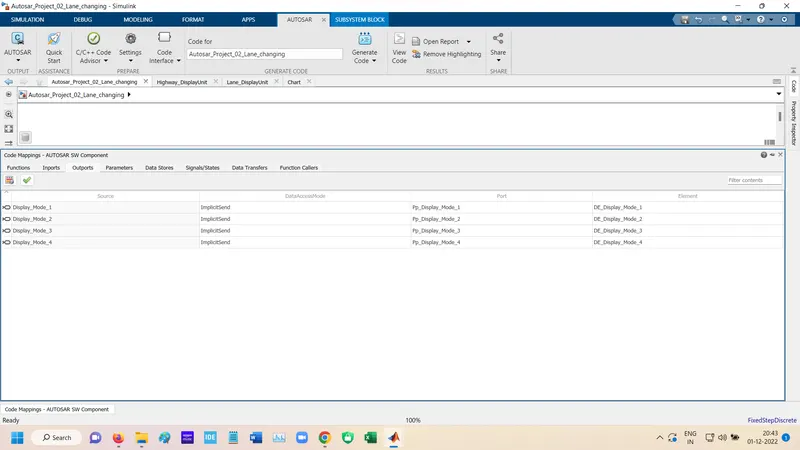

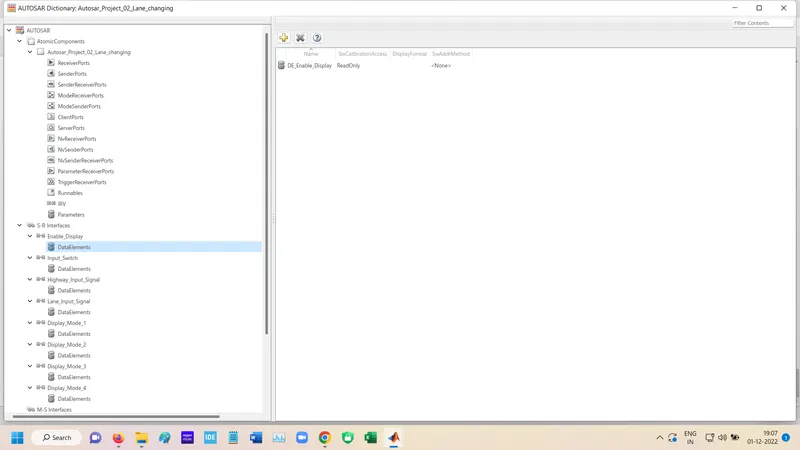

DataElement mapping

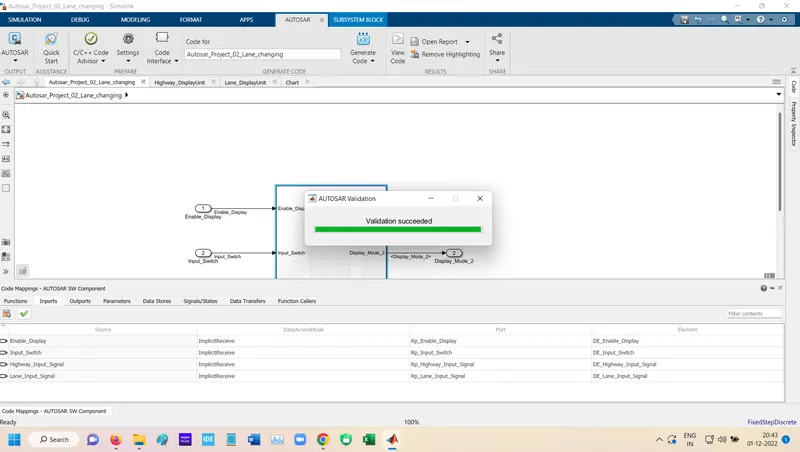

Validation Success report

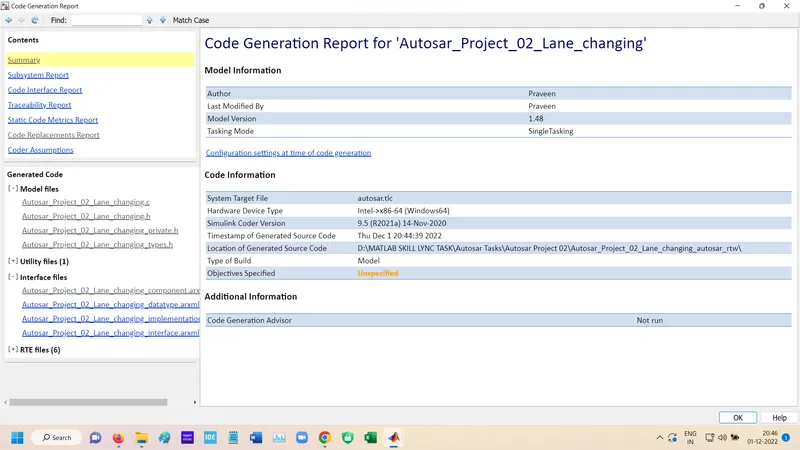

Code Genration

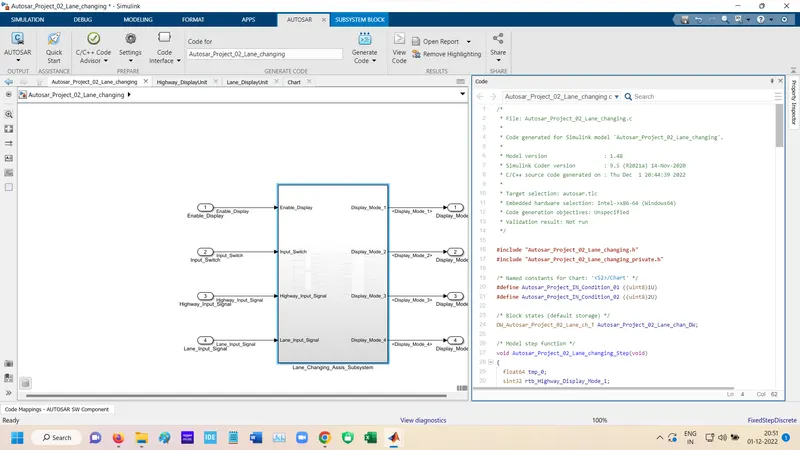

Code Genrate:-
