Project 2-Highway Assistant-Lane Changing Assistant

Highway Assistant – Lane Changing Assistant

Introduction to the Feature:

The Highway Assistant supports the driver and takes over the longitudinal and lateral guidance of the vehicle in monotonous driving situations on highways. The partially automated function can automatically start, accelerate, brake as well as steer the vehicle to a certain extent. The driver has to permanently supervise the system and be ready to take over complete control of the vehicle at any time.

Drivers are taught to assess surrounding traffic before changing lanes by checking their rearview and side mirrors and looking over each shoulder. However, even for those who follow this sequence of checks, the vehicle's blind spot – the area alongside and just behind the vehicle – is a constant source of danger and often the cause of serious accidents. Even vehicles approaching quickly from behind can pose a risk. To make changing lanes safer, this feature has been developed.

Basic Working Principle:

Highway Assistant is a partially automated driving function for a speed range of up to 180 km/h (112 mph) on highways. It combines the radar-based longitudinal guidance of Adaptive Cruise Control (ACC) with the video-based lateral guidance of lane-keeping support in one system. Highway Assistant can be supplemented by an automatic lane change initiated and monitored by the driver in a speed range of 60 – 130 km/h (35 – 80 mph).

The Lane Change Assistant works by using two mid-range radar sensors that are concealed in the rear bumper – one on the left, and one on the right. These two sensors monitor the area alongside and behind the car. Powerful control software collates the sensor information to create a complete picture of all traffic in the area behind the vehicle. Whenever another vehicle approaches at speed from behind or is already present in the blind spot, a signal such as a warning light in the side mirror alerts the driver to the hazard. Should the driver still activate the turn signal with the intention of changing lanes, the system issues an additional acoustic and/or haptic warning.

Problem Statement:

To develop one specific requirement of the Highway Assistant – Lane Changing Assistant algorithm. Please note that the whole Highway Assistant – Lane Changing Assistant is a very huge algorithm & only one small part of the logic is implemented here. Idea is to familiarize me with concepts of Autosar Software Component Development in MATLAB Environment by following the Model-Based Development guidelines. The Project must be done keeping in mind the following processes & steps.

• This model must be developed in MATLAB Simulink per MBD guidelines.
• Code Generation Profile must be Autosar Coder.
• Simulink Data Dictionary must be created for the model & must be linked to the model.
• All the input & output signals must be mapped into the Autosar Editor.
• Model Advisor Report is mandatory & this will be followed by Code Generation.

Requirement No 1 [Highway_DisplayUnit]:

Inputs to this particular subsystem are “Highway_Input_Signal”, “Enable_Display”, and “Input_Switch”. These three input signals, when assigned to a particular value will give output signals of a specific value. The output signals are “Highway_Display_Mode_1”, “Highway_Display_Mode_2”, “Highway_Display_Mode_3”, “Highway_Display_Mode_4”. The requirement must be implemented in the form of a Stateflow logic.

Condition	Action

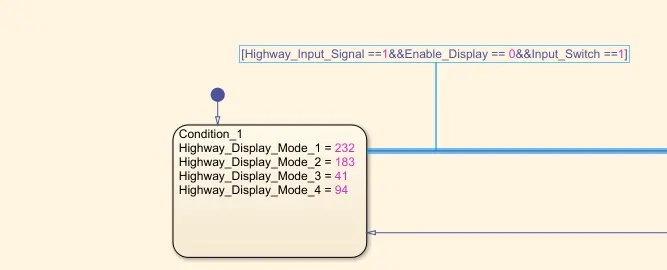

Highway_Input_Signal = 1 Enable_Display = off Input_Switch = on	Highway_Display_Mode_1 = 232 Highway_Display_Mode_2 = 183 Highway_Display_Mode_3 = 41 Highway_Display_Mode_4 = 94

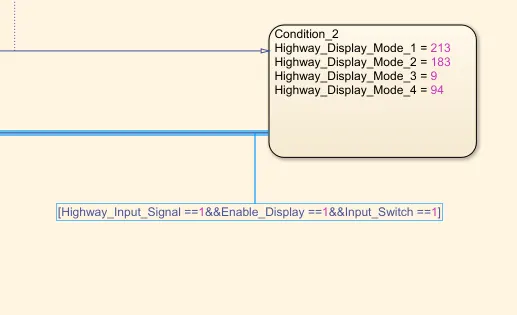

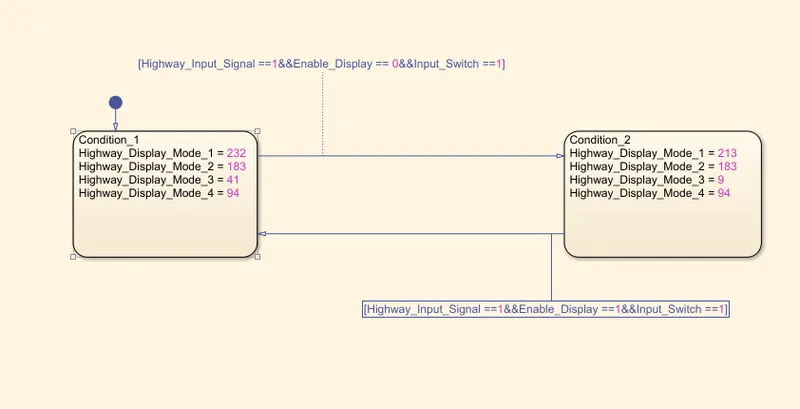

Highway_Input_Signal = 1 Enable_Display = on Input_Switch = on	Highway_Display_Mode_1 = 213 Highway_Display_Mode_2 = 183 Highway_Display_Mode_3 = 9 Highway_Display_Mode_4 = 94

Requirement No 2 [Lane_DisplayUnit]:

Inputs to this particular subsystem are “Enable_Display”, “Input_Switch”, and “Lane_Input_Signal”. These three input signals, when assigned to a particular value will give output signals of a specific value. The output signals are “Lane_Display_Mode_1”, “Lane_Display_Mode_2”, “Lane_Display_Mode_3”, “Lane_Display_Mode_4”. The requirement must be implemented in the form of Stateflow logic.

Condition	Action
Lane_Input_Signal= 6 Enable_Display = off Input_Switch = on	Lane_Display_Mode_1 = 132 Lane_Display_Mode_2 = 185 Lane_Display_Mode_3 = 54 Lane_Display_Mode_4 = 67
Lane_Input_Signal= 6 Enable_Display = on Input_Switch = on	Lane_Display_Mode_1 = 127 Lane_Display_Mode_2 = 248 Lane_Display_Mode_3 = 186 Lane_Display_Mode_4 = 84

Requirement No 3:

Signals coming from both subsystems “Highway_Display_Mode_1” & “Lane_Display_Mode_1” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2^nd input to the switch block. Corresponding output from this particular switch block is the output signal “Display_Mode_1”.

Signals coming from both subsystems “Highway_Display_Mode_2” & “Lane_Display_Mode_2” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2^nd input to the switch block. Corresponding output from this particular switch block is the output signal “Display_Mode_2”.

Signals coming from both subsystems “Highway_Display_Mode_3” & “Lane_Display_Mode_3” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2^nd input to the switch block. Corresponding output from this particular switch block is the output signal “Display_Mode_3”.

Signals coming from both subsystems “Highway_Display_Mode_4” & “Lane_Display_Mode_4” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2^nd input to the switch block. Corresponding output from this particular switch block is the output signal “Display_Mode_4”.

AIM:

To create a Simulink model with given requirements.

EXPLANATION:

• with the given requirements the Simulink model is created.

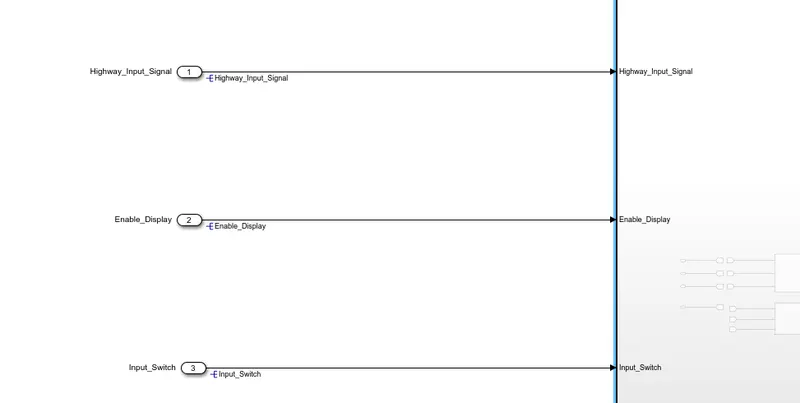

Requirement No 1 [Highway_DisplayUnit]:

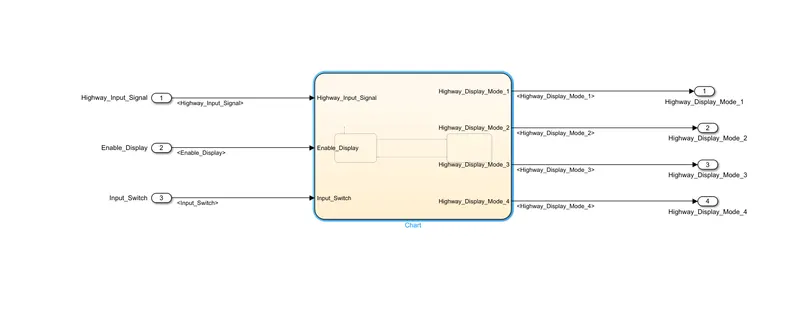

• Inputs to this particular subsystem are Highway_Input_Signal, Enable_Display and Input_Switch.

• There are condition statements and action statements given for Stateflow.
• first condition and action statements are

Condition	Action
Lane_Input_Signal= 6 Enable_Display = off Input_Switch = on	Lane_Display_Mode_1 = 132 Lane_Display_Mode_2 = 185 Lane_Display_Mode_3 = 54 Lane_Display_Mode_4 = 67

• second condition and action statements are

Condition	Action
Lane_Input_Signal= 6 Enable_Display = on Input_Switch = on	Lane_Display_Mode_1 = 127 Lane_Display_Mode_2 = 248 Lane_Display_Mode_3 = 186 Lane_Display_Mode_4 = 84

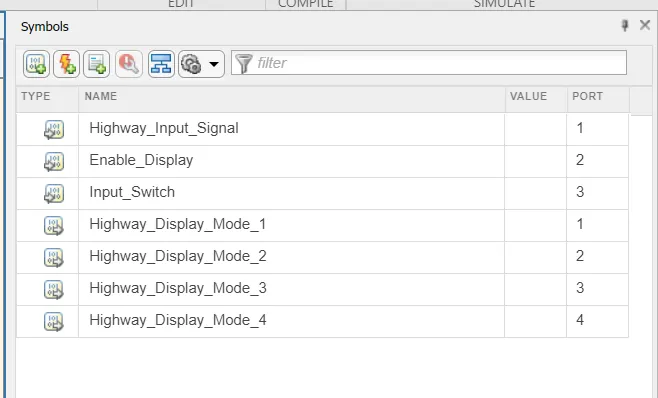

• The inputs and outputs are defined in the symbols pane.

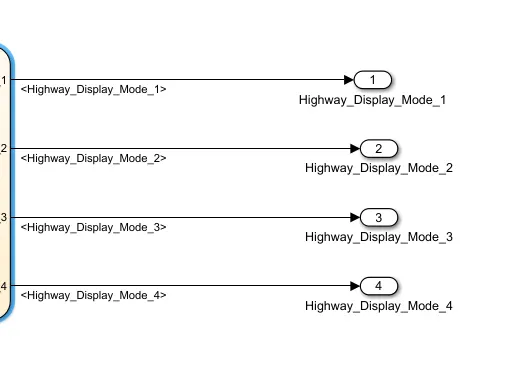

• The output from the signals is “Highway_Display_Mode_1”, “Highway_Display_Mode_2”, “Highway_Display_Mode_3”, “Highway_Display_Mode_4”.

• Requirement-1 is created.

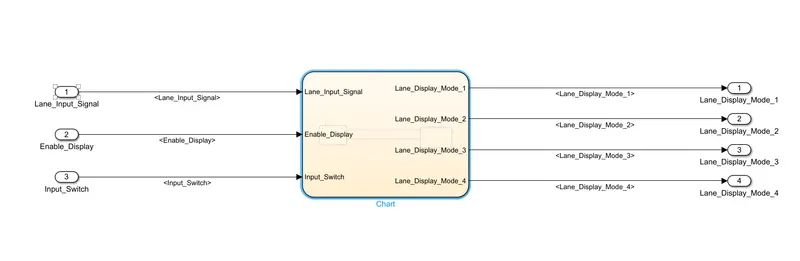

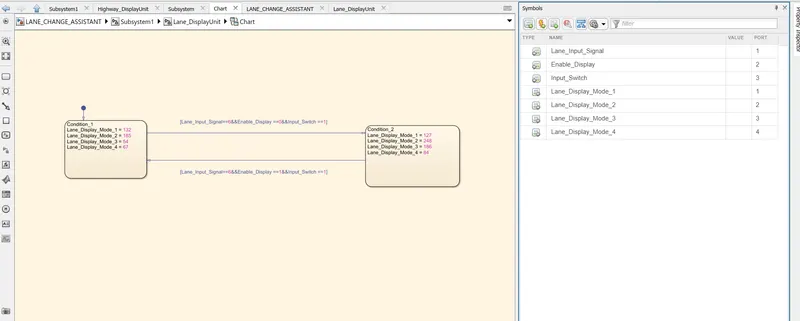

Requirement No 2 [Lane_DisplayUnit]:

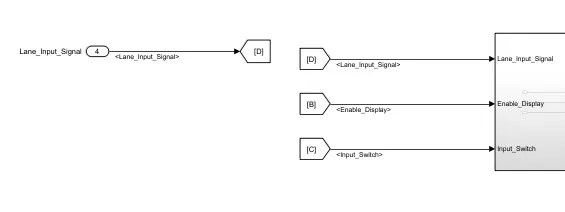

• Inputs to this particular subsystem are Enable_Display, Input_Switch and Lane_Input_Signal.

• There are condition statements and action statements given for Stateflow.
• first condition and action statements are

Condition	Action

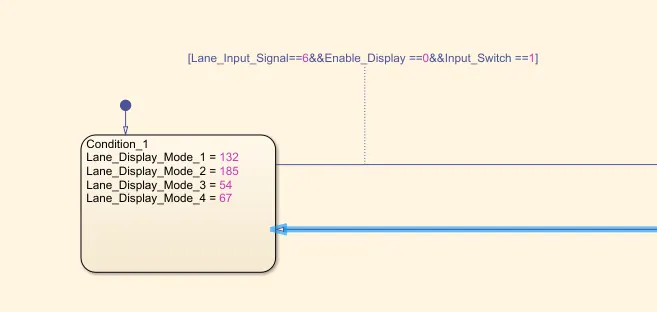

Lane_Input_Signal= 6 Enable_Display = off Input_Switch = on	Lane_Display_Mode_1 = 132 Lane_Display_Mode_2 = 185 Lane_Display_Mode_3 = 54 Lane_Display_Mode_4 = 67

• second condition and action statements are

Condition	Action

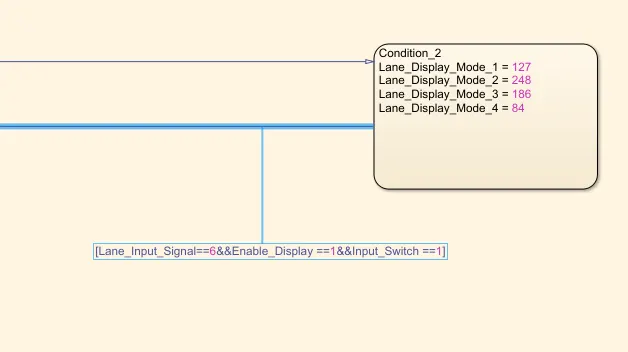

Lane_Input_Signal= 6 Enable_Display = on Input_Switch = on	Lane_Display_Mode_1 = 127 Lane_Display_Mode_2 = 248 Lane_Display_Mode_3 = 186 Lane_Display_Mode_4 = 84

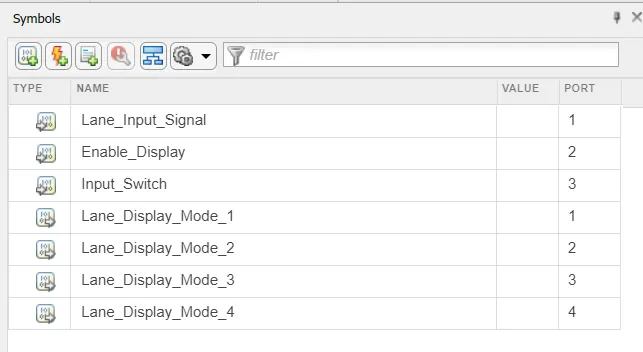

• The inputs and outputs are defined in the symbols pane.

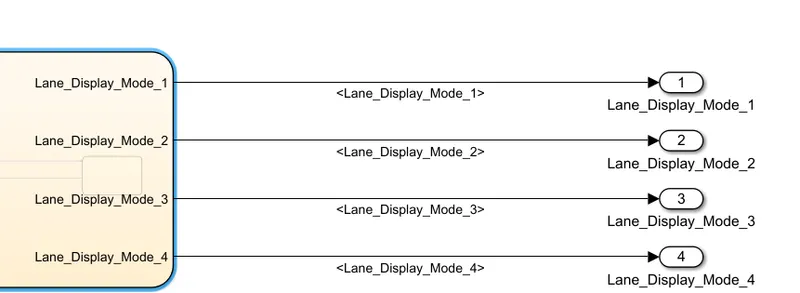

• The output signals are “Lane_Display_Mode_1”, “Lane_Display_Mode_2”, “Lane_Display_Mode_3”, “Lane_Display_Mode_4”.

• Requirement-2 is created.

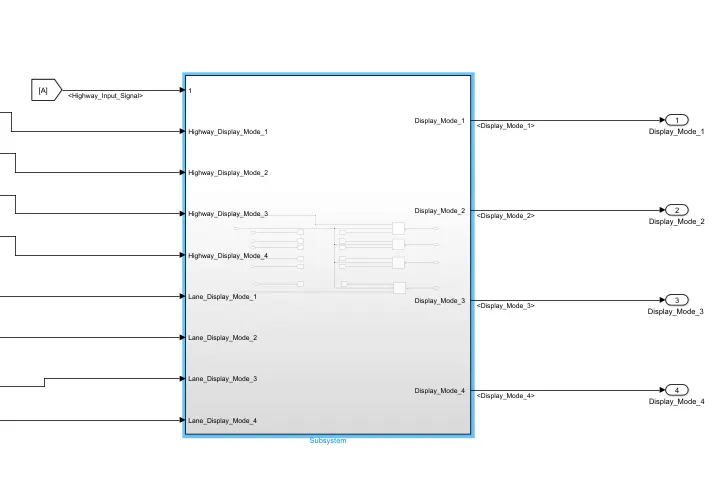

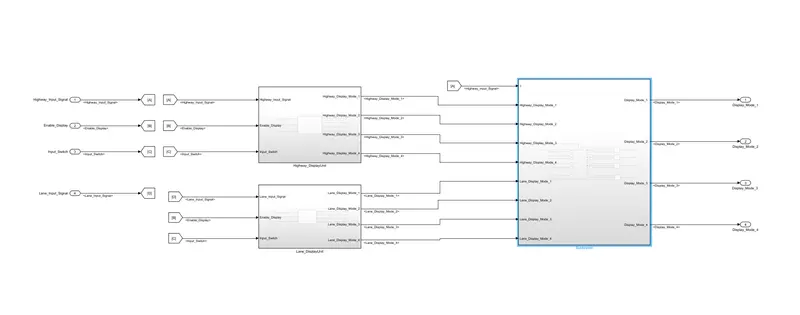

Requirement No 3:

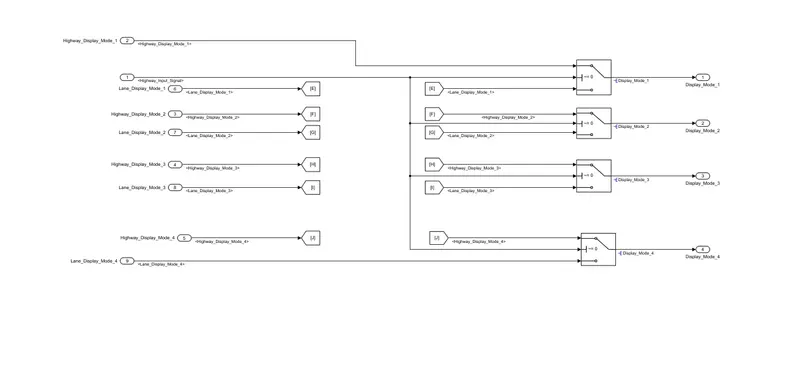

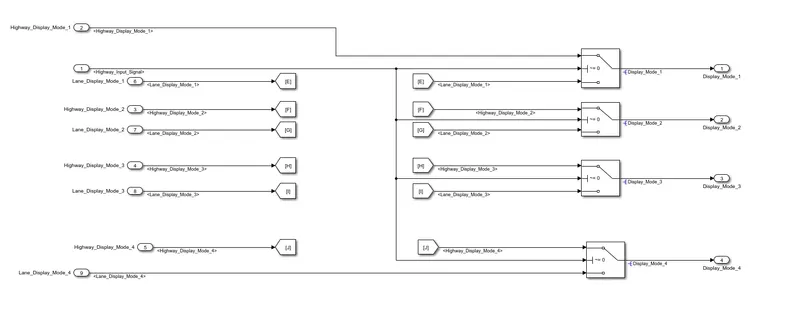

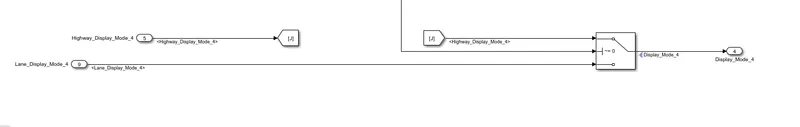

• Signals coming from both subsystems Highway_Display_Mode_1 & Lane_Display_Mode_1 are given as inputs to a switch block which will have input signal Highway_Input_Signal given as 2^nd input to the switch block. The corresponding output from this particular switch block is the output signal Display_Mode_1.

• Signals coming from both subsystems Highway_Display_Mode_2 & Lane_Display_Mode_2 are given as inputs to a switch block which will have input signal Highway_Input_Signal given as second input to the switch block. The corresponding output from this particular switch block is the output signal Display_Mode_2.

• Signals coming from both subsystems Highway_Display_Mode_3 & Lane_Display_Mode_3 are given as inputs to a switch block which will have input signal Highway_Input_Signal given as second inputs to the switch block. The corresponding output from this particular switch block is the output signal Display_Mode_3.

• Signals coming from both subsystems Highway_Display_Mode_4 & Lane_Display_Mode_4 are given as inputs to a switch block which will have input signal Highway_Input_Signal given as second input to the switch block. The corresponding output from this particular switch block is the output signal Display_Mode_4.

• Requirements-3 is created.

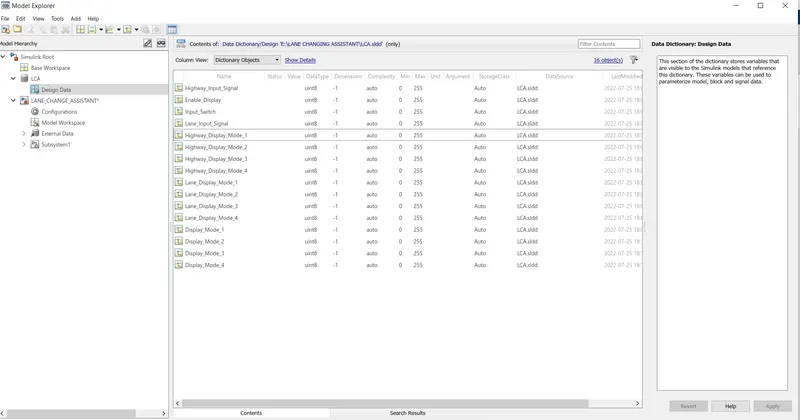

• The SLDD is created for the Simulink model.

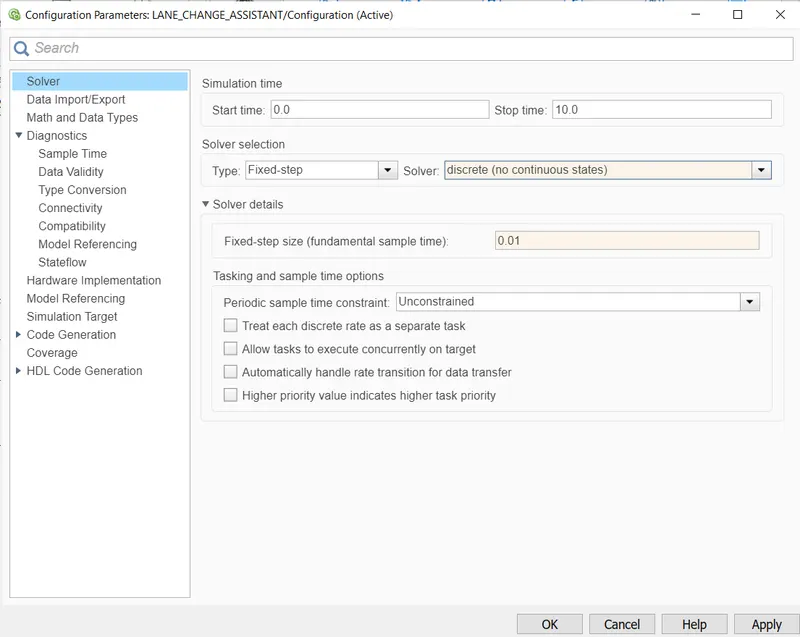

• change the solver settings in the configuration parameters settings.

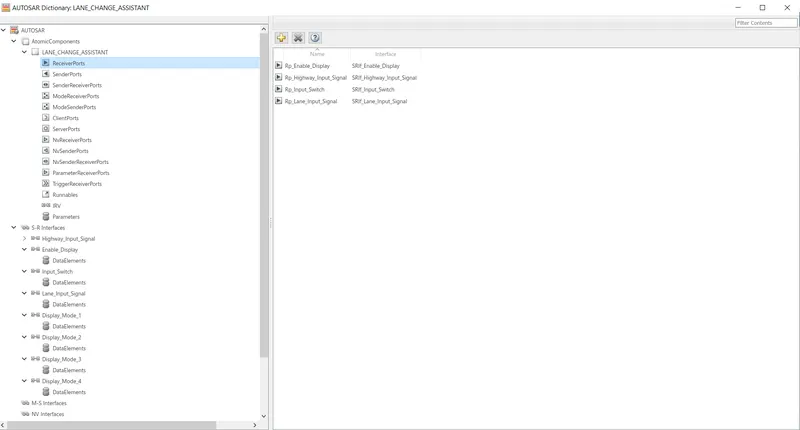

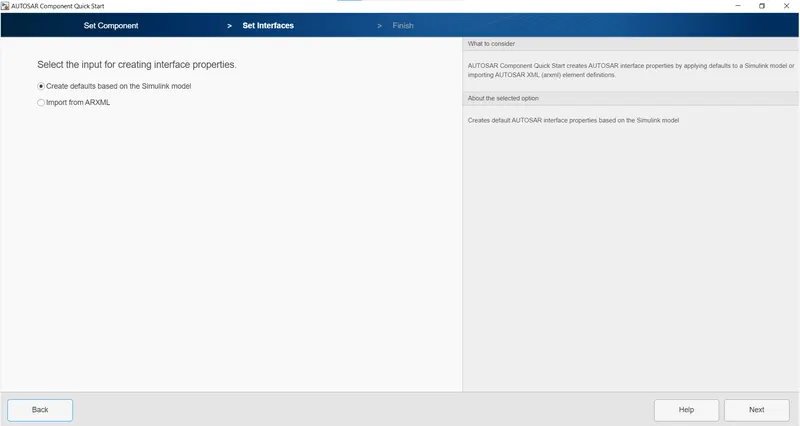

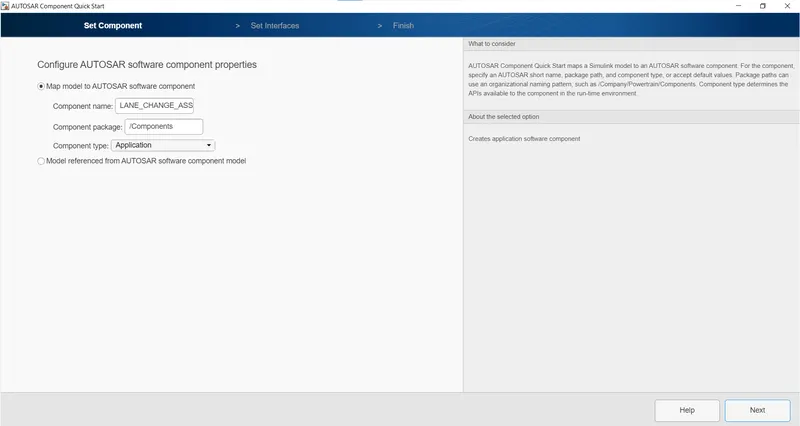

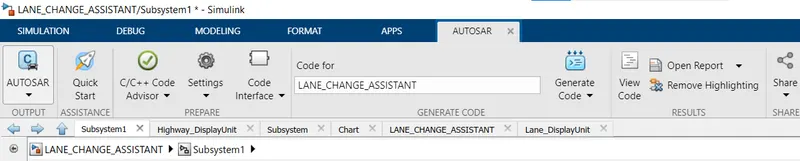

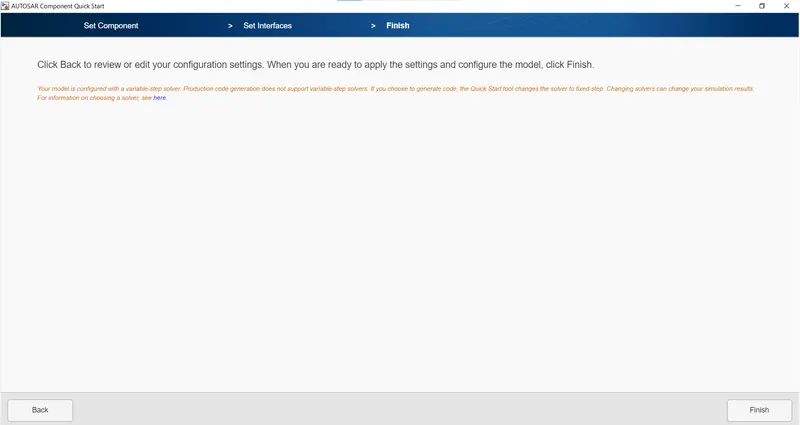

• create an autosar dictionary. by opening Autosar component in apps

• The inputs are given in receiver ports.

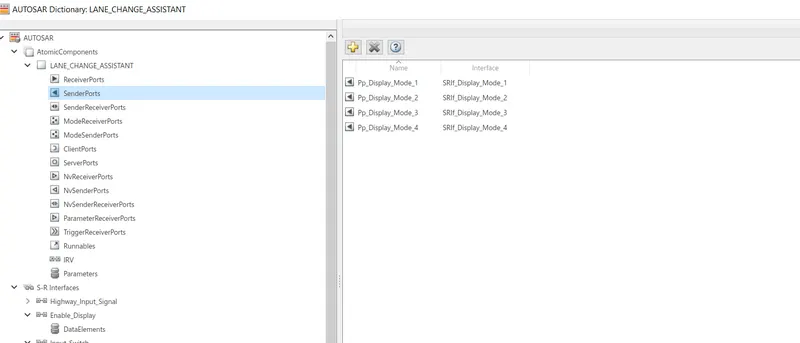

• The output is given in sender ports.

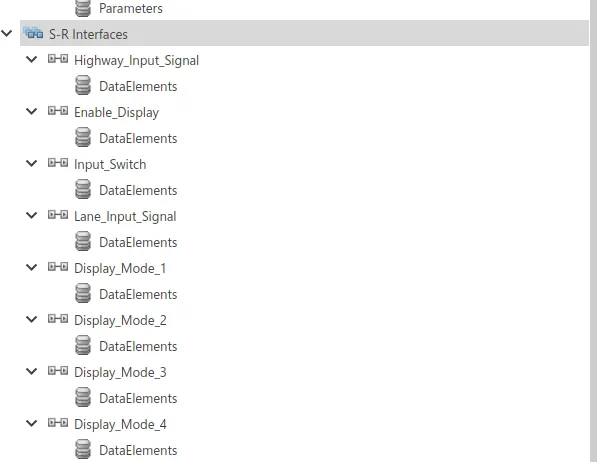

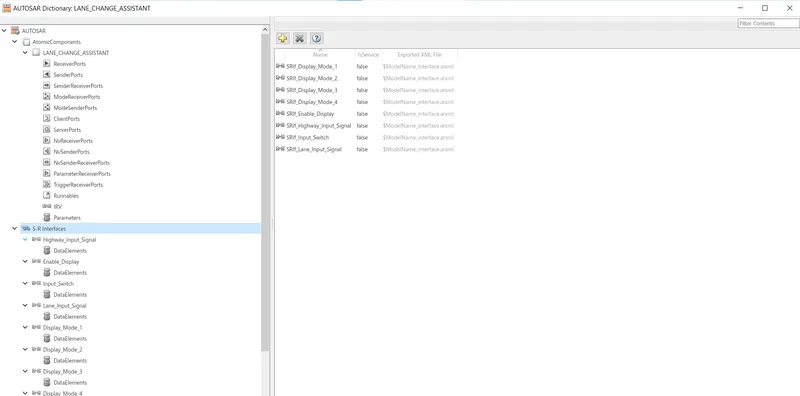

• Interfaces are created for each input and output.

• for each interface, a data element is assigned.

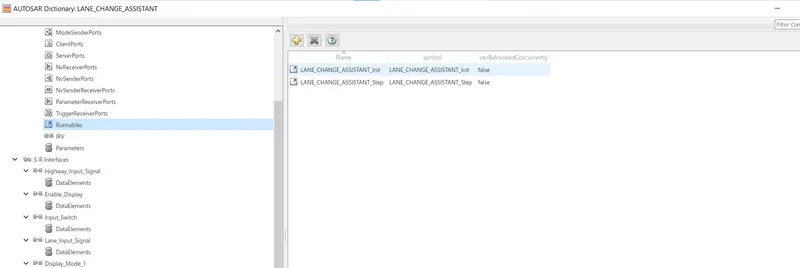

• Runnables are created.

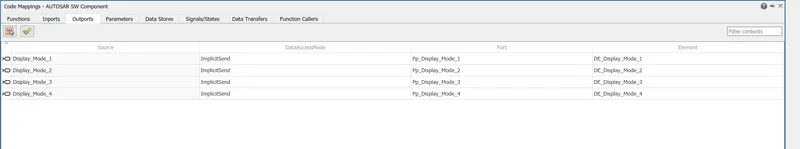

• the inports and outports are mapped.

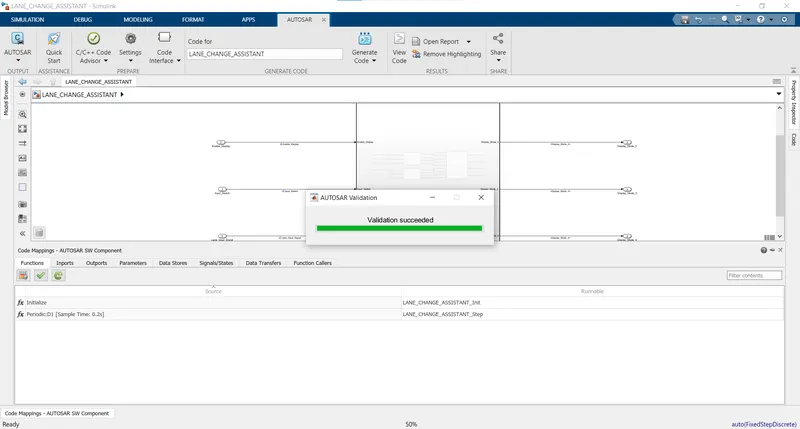

• validate the Autosar dictionary.

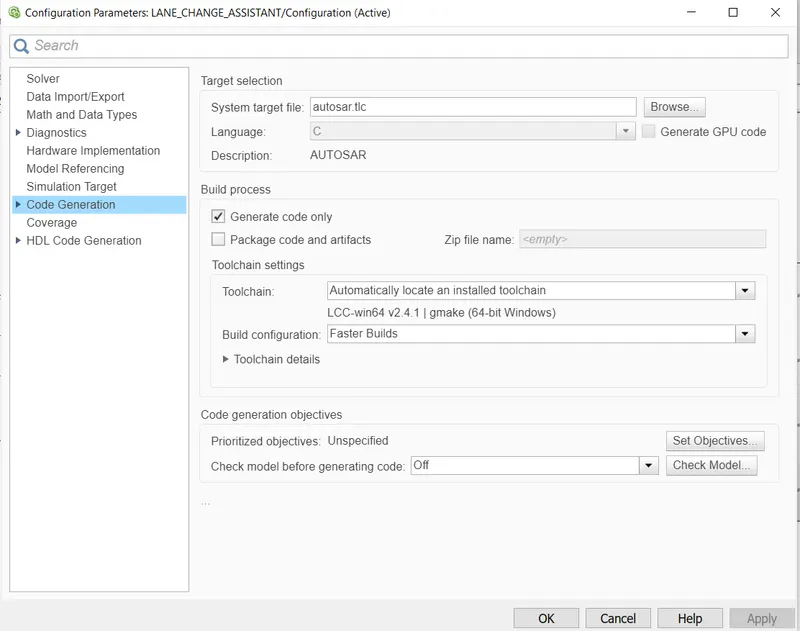

• change the code generation settings in the configuration parameter settings.

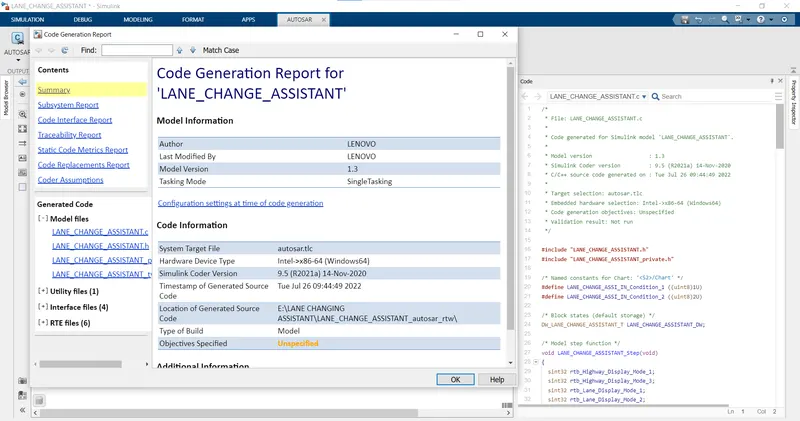

• The code is generated.

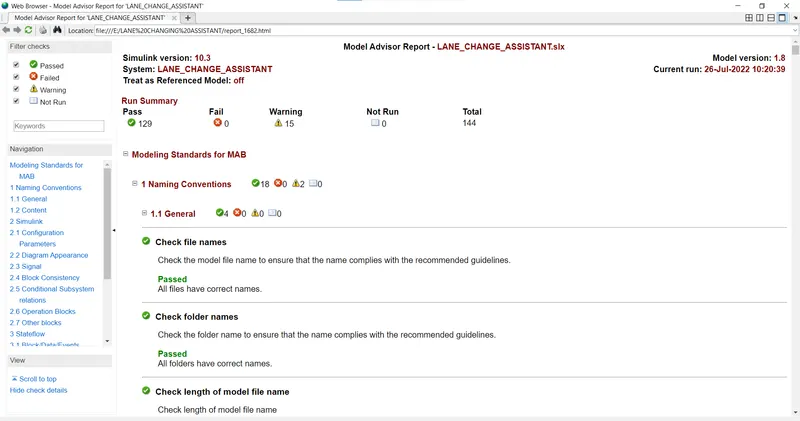

• model advisory check is done for created the Simulink model.
