Project 2-Highway Assistant-Lane Changing Assistant
*IM CHENNAI SKILL CENTER STUDENT*
1.
AIM:To develop one specific requirement of Highway Assistant – Lane Changing Assistant algorithm.
Highway Assistant – Lane Changing Assistant
Introduction to the Feature:
The Highway Assistant supports the driver and takes over the longitudinal and lateral guidance of the vehicle in monotonous driving situations on highways. The partially automated function can automatically start, accelerate, brake as well as steer the vehicle to a certain extent. The driver has to permanently supervise the system and be ready to take over the complete control of the vehicle at any time.
Drivers are taught to assess surrounding traffic before changing lanes by checking their rearview and side mirrors and looking over each shoulder. However, even for those who follow this sequence of checks, the vehicle's blind spot – the area alongside and just behind the vehicle – is a constant source of danger and often the cause of serious accidents. Even vehicles approaching quickly from behind can pose a risk. To make changing lanes safer, this feature has been developed.
Basic Working Principle:
Highway Assistant is a partially automated driving function for a speed range of up to 180 km/h (112 mph) on highways. It combines the radar-based longitudinal guidance of Adaptive Cruise Control (ACC) with the video-based lateral guidance of lane keeping support in one system. Highway Assistant can be supplemented by an automatic lane change initiated and monitored by the driver in a speed range of 60 – 130 km/h (35 – 80 mph).
The lane Change Assistant works by using two mid-range radar sensors that are concealed in the rear bumper – one on the left, one on the right. These two sensors monitor the area alongside and behind the car. Powerful control software collates the sensor information to create a complete picture of all traffic in the area behind the vehicle.Whenever another vehicle approaches at speed from behind or is already present in the blind spot, a signal such as a warning light in the side mirror alerts the driver to the hazard. Should the driver still activate the turn signal with the intention of changing lanes, the system issues an additional acoustic and/or haptic warning.

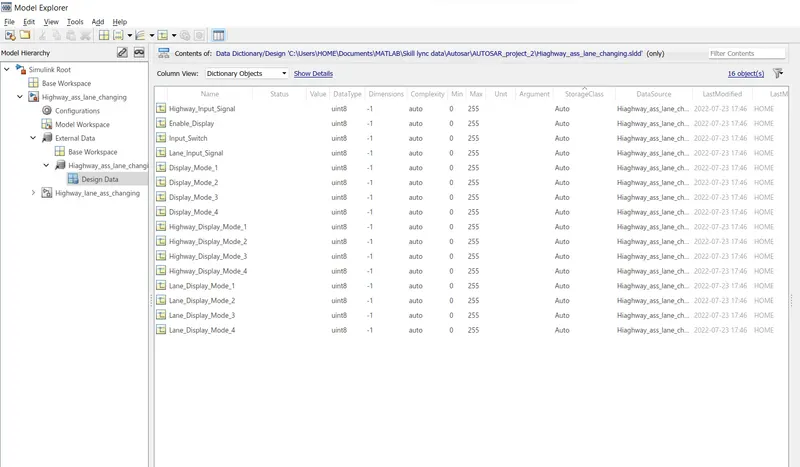

SLDD file creation using the dta given:
Highway Assistant – Lane Changing Assistant:

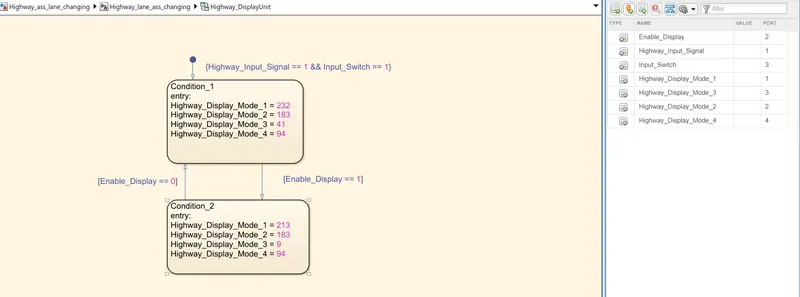

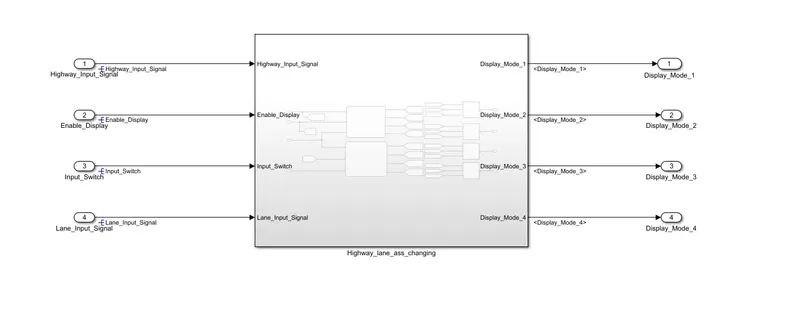

Requirement No 1 [Highway_DisplayUnit]:

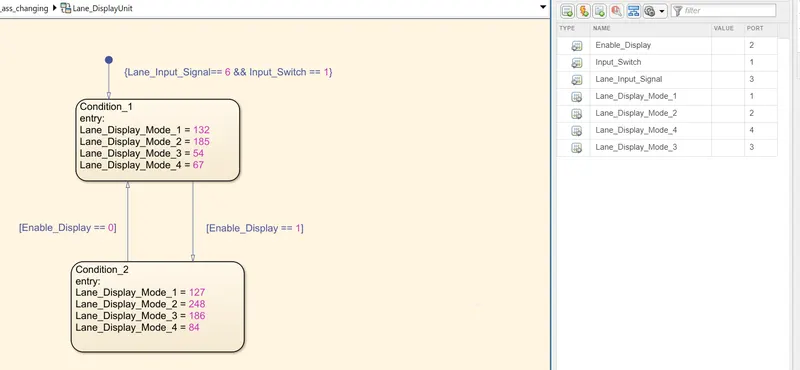

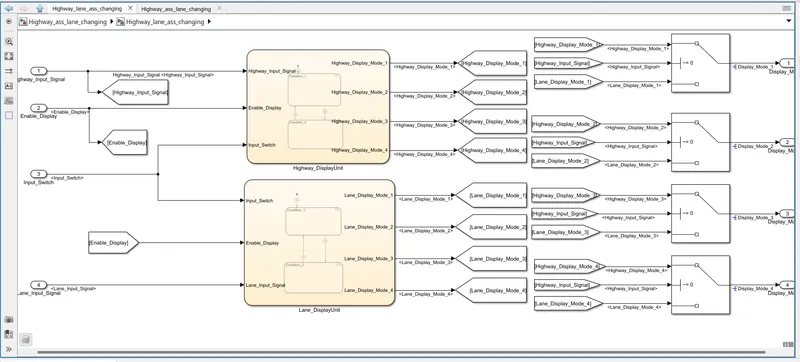

Requirement No 2 [Lane_DisplayUnit]:
Requirement No 3:

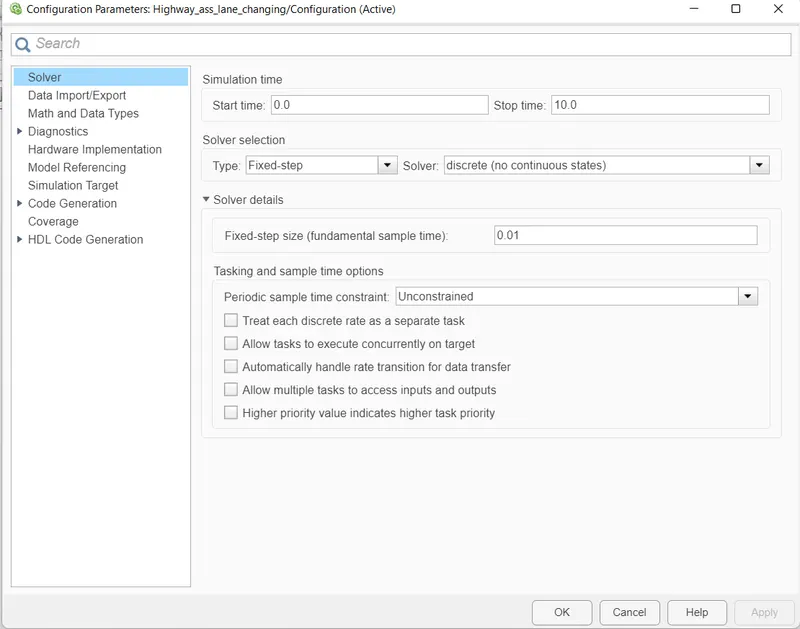

SOLVER CONFIGURATION SETTINGS:

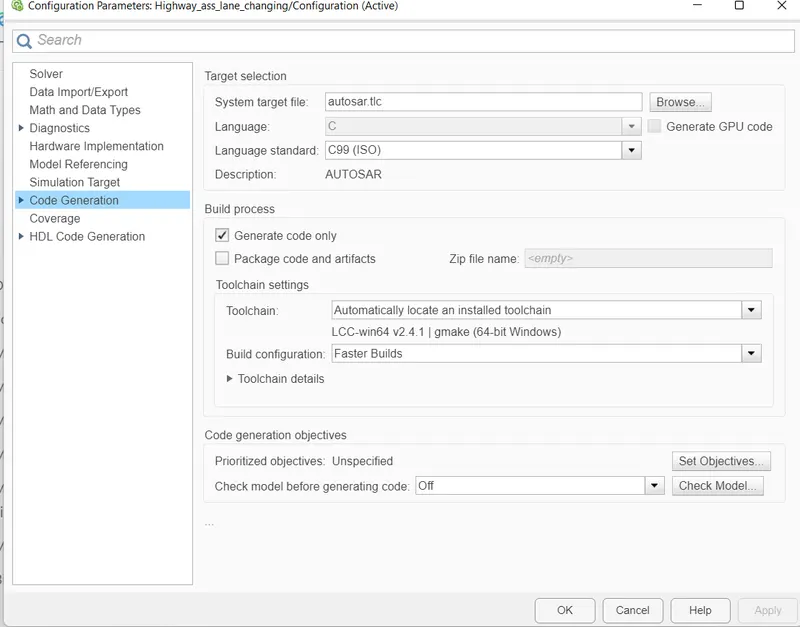

CODE generation settings- setting system target file to autosar.tlc.

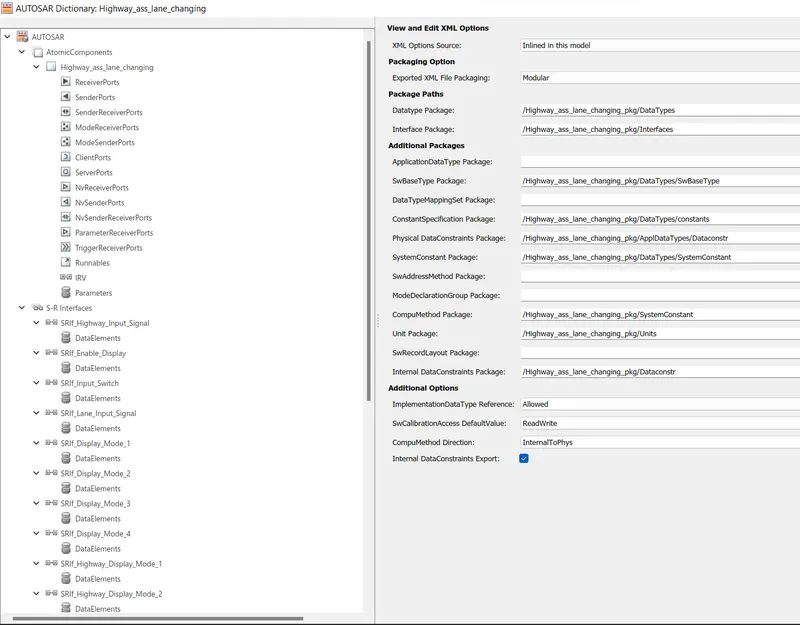

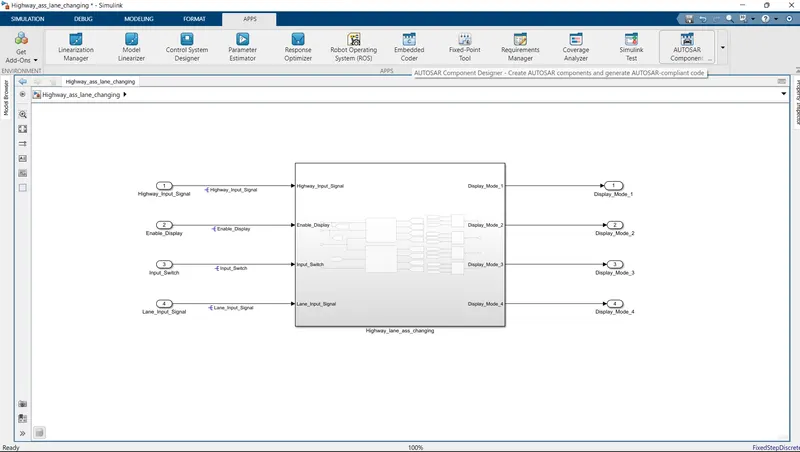

APPS ->AUTOSAR components
CODE Mappings-AUTOSAR SW components popup:

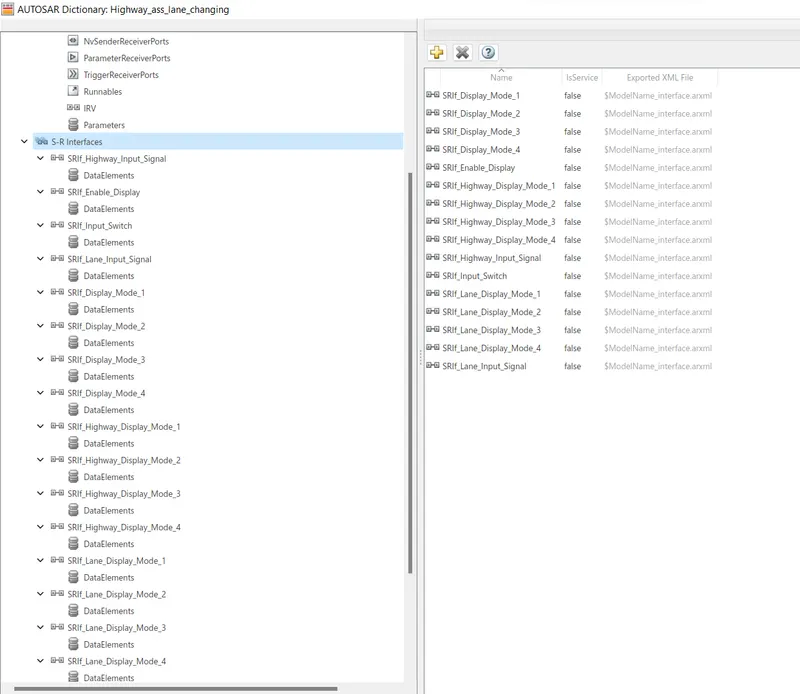

ADDING S-R INTERFACES:

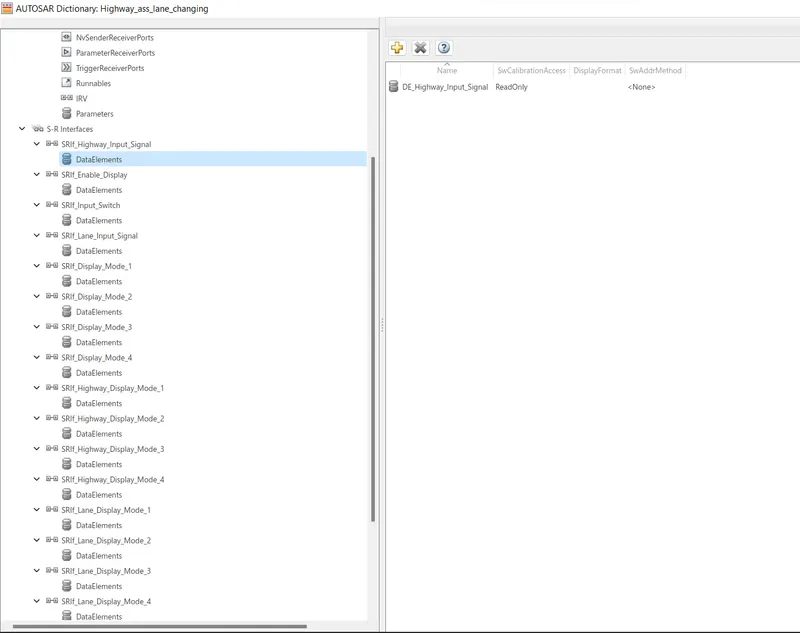

ADDING DATA ELEMENTS TO S-R INTERFACES:

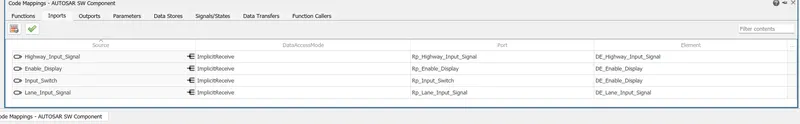

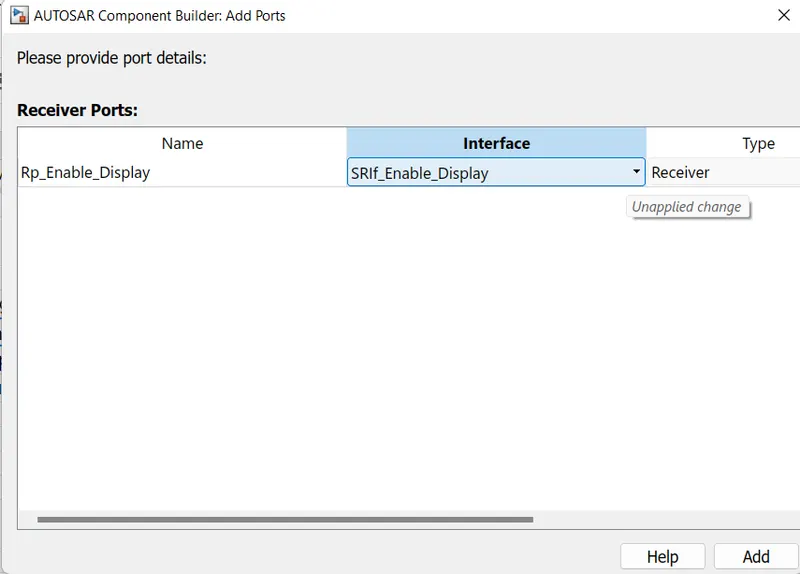

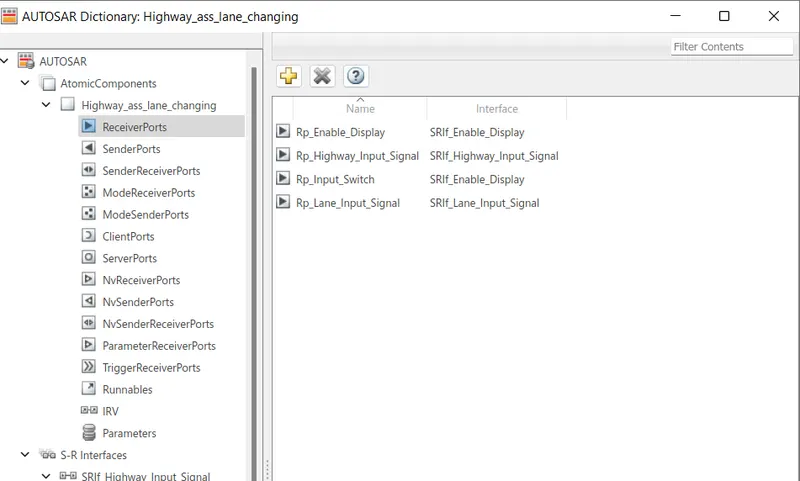

ADDING RECIEVER PORTS AND CHOOSE APROPREATE INTERFACES:

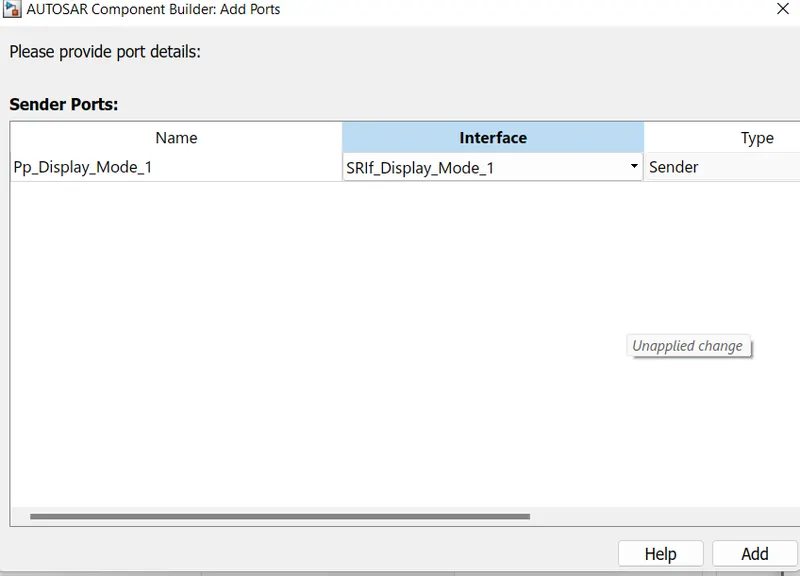

ADDING SENDER PORTS AND CHOOSE APPROPRIATE INTERFACE:

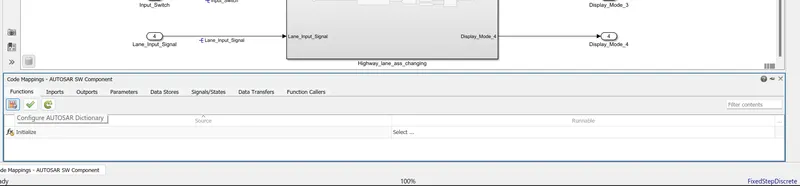

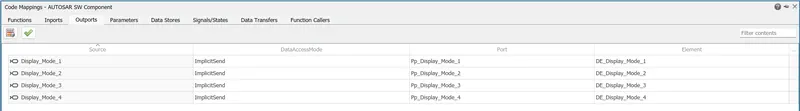

CODE MAPPING:

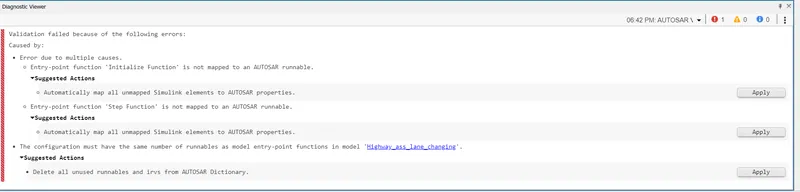

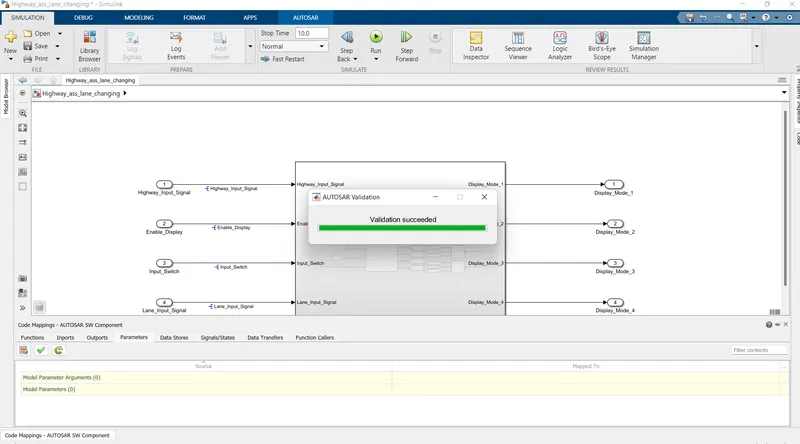

VALIDATION:

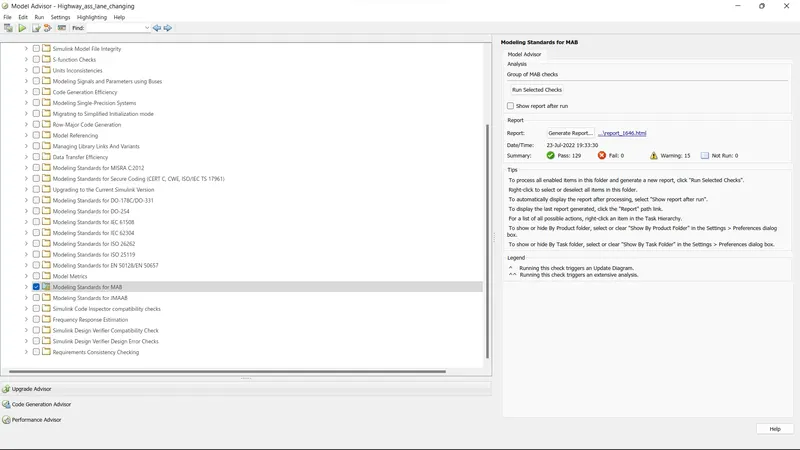

MOLDEL ADVISOR CHECK:

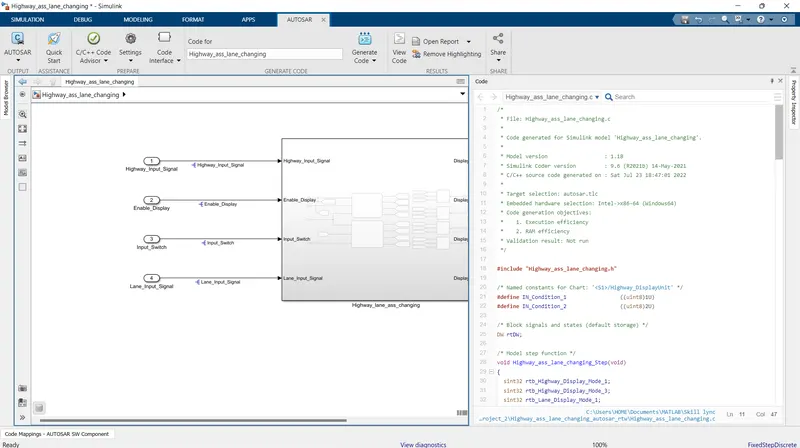

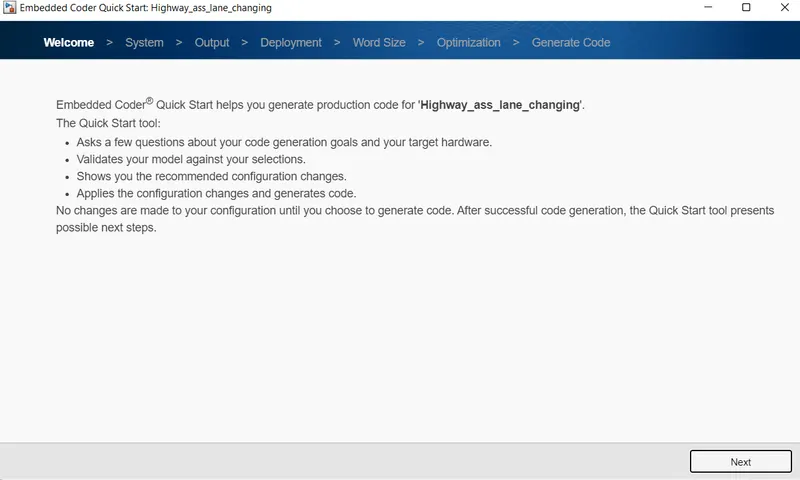

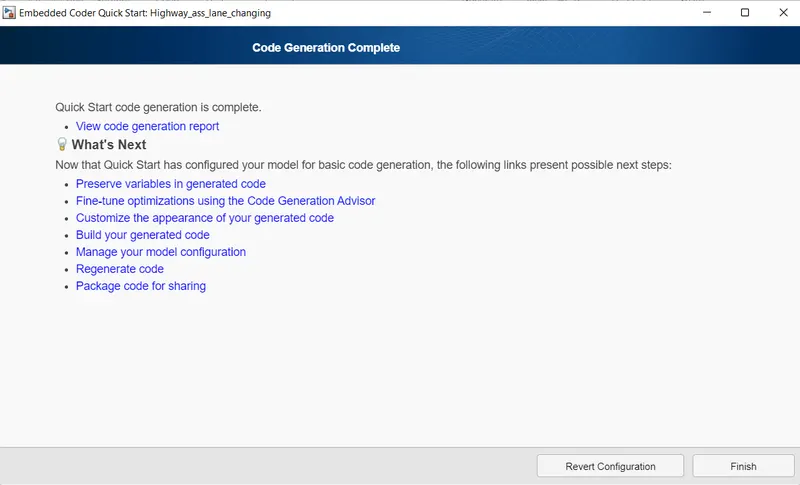

CODE GENERATION:
