Project 2-Highway Assistant-Lane Changing Assistant
Objective :
- To developed model in MATLAB Simulink per MBD guidelines.
- Code Generation Profile must be Autosar Coder.

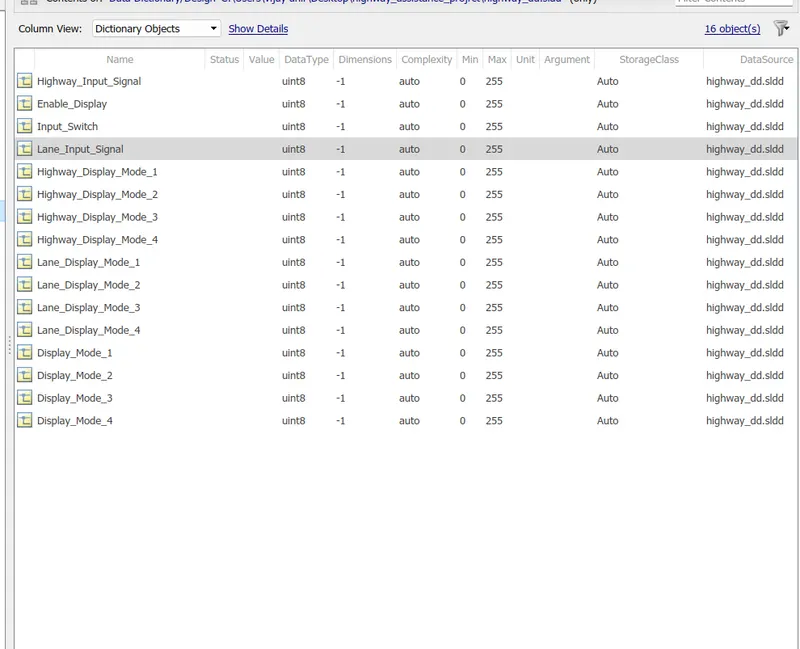

- Simulink Data Dictionary must be created for the model & must be linked to the model.
- All the input & output signals must be mapped into the Autosar Editor.
- Model Advisor Report is mandatory & this will be followed by Code Generation.
Basic Working Principle:
Highway Assistant is a partially automated driving function for a speed range of up to 180 km/h (112 mph) on highways. It combines the radar-based longitudinal guidance of Adaptive Cruise Control (ACC) with the video-based lateral guidance of lane keeping support in one system. Highway Assistant can be supplemented by an automatic lane change initiated and monitored by the driver in a speed range of 60 – 130 km/h (35 – 80 mph).
The lane Change Assistant works by using two mid-range radar sensors that are concealed in the rear bumper – one on the left, one on the right. These two sensors monitor the area alongside and behind the car. Powerful control software collates the sensor information to create a complete picture of all traffic in the area behind the vehicle.Whenever another vehicle approaches at speed from behind or is already present in the blind spot, a signal such as a warning light in the side mirror alerts the driver to the hazard. Should the driver still activate the turn signal with the intention of changing lanes, the system issues an additional acoustic and/or haptic warning.
Steps involved in modeling :
Model Configuration setting :

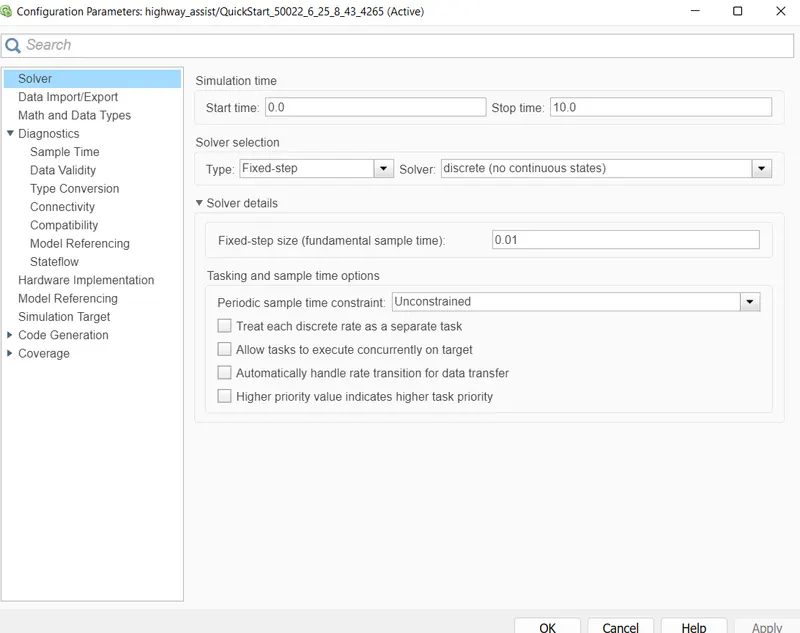

- In solver select , type as fixed type and solver as discrete.

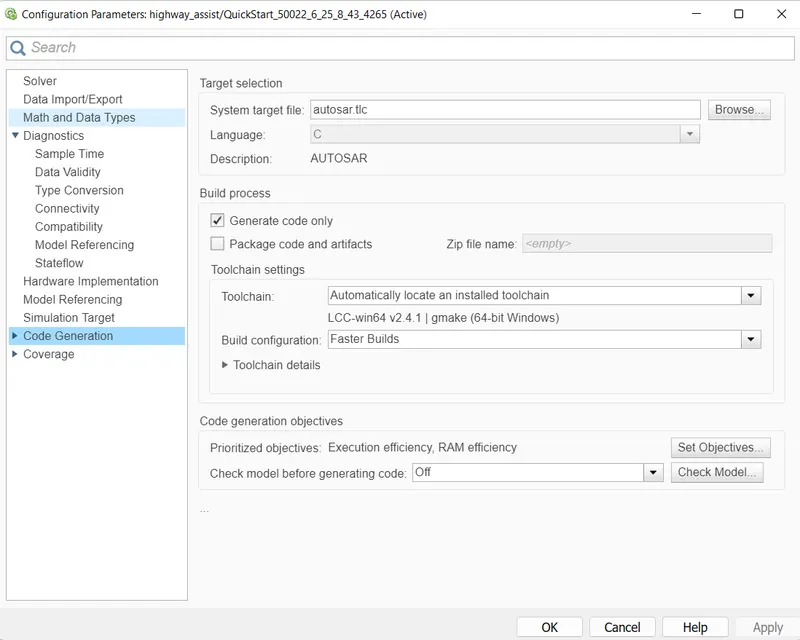

- in code generation , in system target file select autosar.tlc.
- Creating SLDD file .
- Simulink main block:

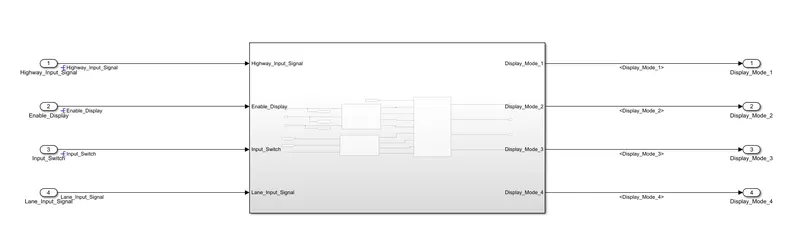

- It has four input signals.
- It has four output signals.
Subsystem of Highway assistance
Requirement 1:
Requirement No 1 [Highway_DisplayUnit]:

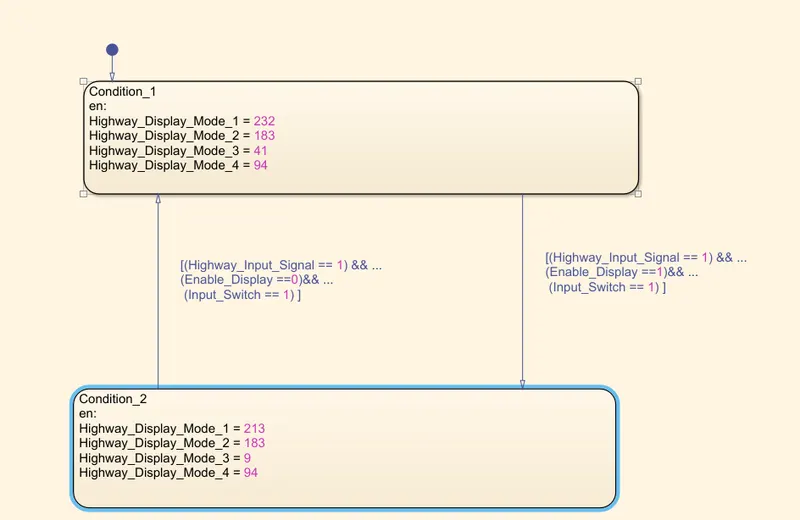

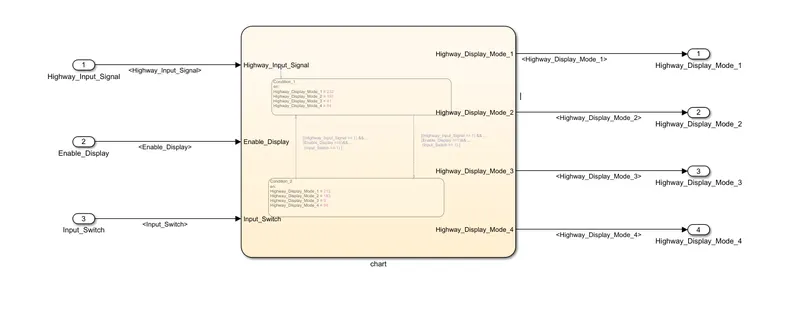

Inputs to this particular subsystem are “Highway_Input_Signal”, “Enable_Display”, “Input_Switch”. These three input signals, when assigned to a particular value will give output signals of specific value. The output signals are “Highway_Display_Mode_1”, “Highway_Display_Mode_2”, “Highway_Display_Mode_3”, “Highway_Display_Mode_4”. The requirement must be implemented in the form of a Stateflow logic.
|
Condition |
Action |
|
Highway_Input_Signal = 1 Enable_Display = off Input_Switch = on |
Highway_Display_Mode_1 = 232 Highway_Display_Mode_2 = 183 Highway_Display_Mode_3 = 41 Highway_Display_Mode_4 = 94 |
|
Highway_Input_Signal = 1 Enable_Display = on Input_Switch = on |
Highway_Display_Mode_1 = 213 Highway_Display_Mode_2 = 183 Highway_Display_Mode_3 = 9 Highway_Display_Mode_4 = 94 |
Requirement 2:
Requirement No 2 [Lane_DisplayUnit]:

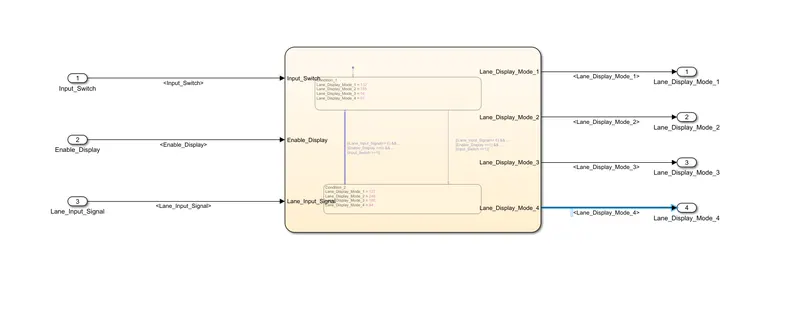

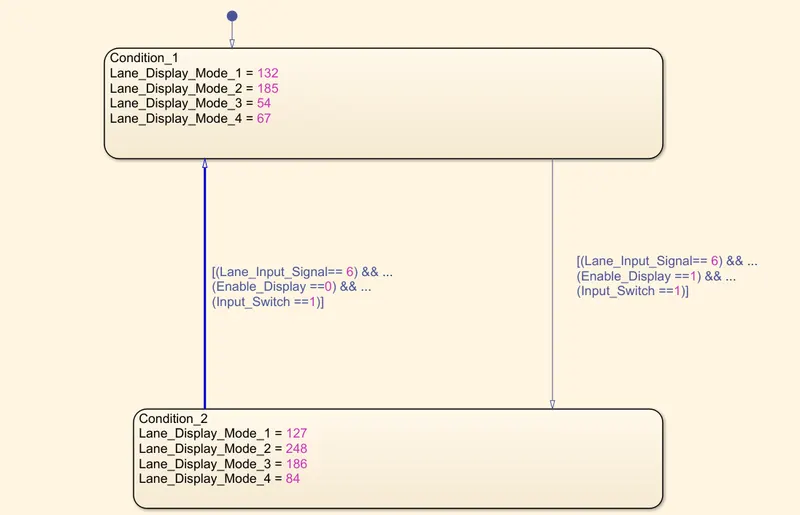

Inputs to this particular subsystem are “Enable_Display”, “Input_Switch”, “Lane_Input_Signal”. These three input signals, when assigned to a particular value will give output signals of specific value. The output signals are “Lane_Display_Mode_1”, “Lane_Display_Mode_2”, “Lane_Display_Mode_3”, “Lane_Display_Mode_4”. The requirement must be implemented in the form of Stateflow logic.
|
Condition |
Action |
|
Lane_Input_Signal= 6 Enable_Display = off Input_Switch = on |
Lane_Display_Mode_1 = 132 Lane_Display_Mode_2 = 185 Lane_Display_Mode_3 = 54 Lane_Display_Mode_4 = 67 |
|
Lane_Input_Signal= 6 Enable_Display = on Input_Switch = on |
Lane_Display_Mode_1 = 127 Lane_Display_Mode_2 = 248 Lane_Display_Mode_3 = 186 Lane_Display_Mode_4 = 84 |
Requirement No 3:

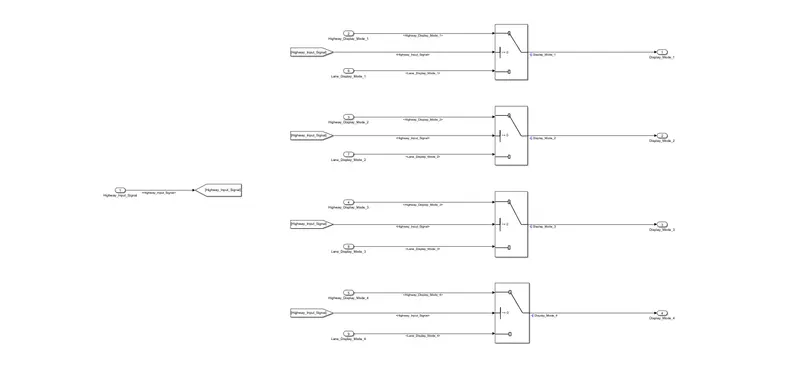

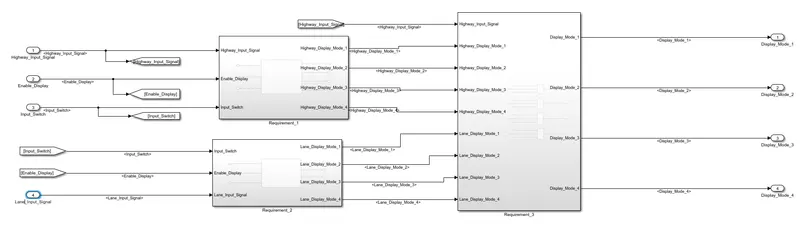

Signals coming from both subsystems “Highway_Display_Mode_1” & “Lane_Display_Mode_1” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2nd input to the switch block. Corresponding output from this particular switch block is output signal “Display_Mode_1”.
Signals coming from both subsystems “Highway_Display_Mode_2” & “Lane_Display_Mode_2” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2nd input to the switch block. Corresponding output from this particular switch block is output signal “Display_Mode_2”.
Signals coming from both subsystems “Highway_Display_Mode_3” & “Lane_Display_Mode_3” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2nd input to the switch block. Corresponding output from this particular switch block is output signal “Display_Mode_3”.
Signals coming from both subsystems “Highway_Display_Mode_4” & “Lane_Display_Mode_4” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2nd input to the switch block. Corresponding output from this particular switch block is output signal “Display_Mode_4”.
Port MApping :

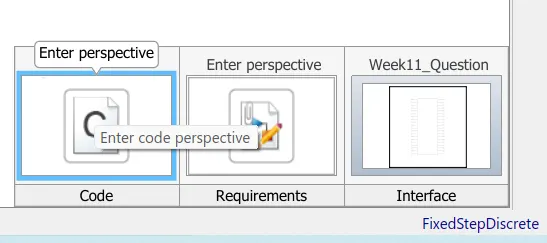

- Now select on code enter perspective.
- Now click on code Mapping at bottom left of screen.

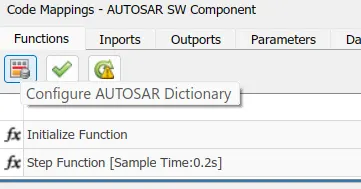

- Now select configure autosar dictionary.

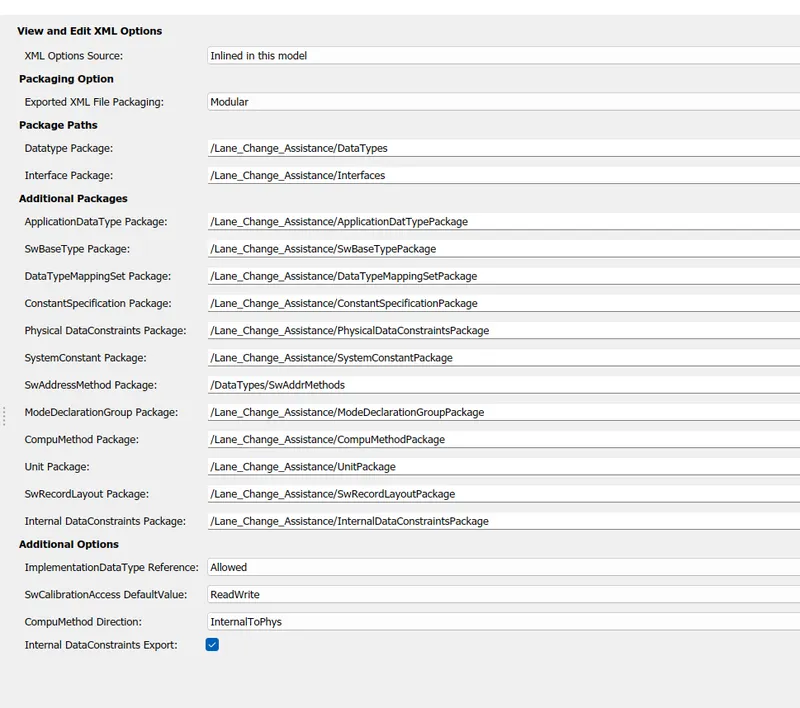

- Filling data in xml option.

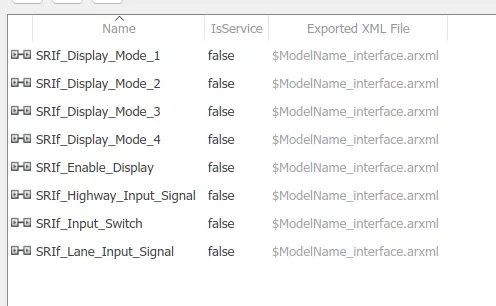

- now select SR interface and SRif input and output :

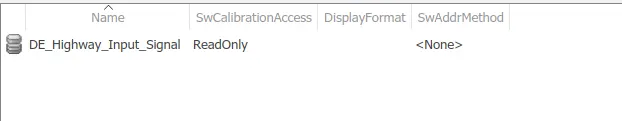

- Select each output and input values and fill data element as DE input and output accordingly.

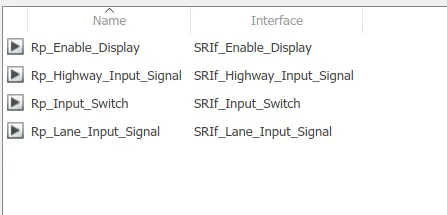

- Select received port and fill Rp value.

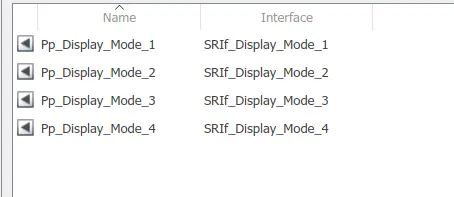

- Now select sendportsnand add all pp output values.

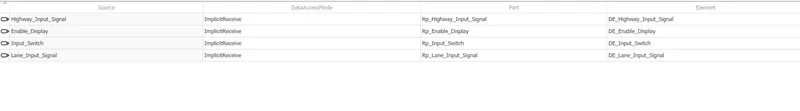

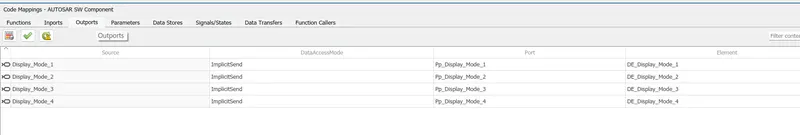

- Fill all data in input port.
- Fill all data in output port.

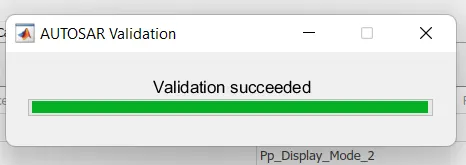

- Port maping is successfully done .

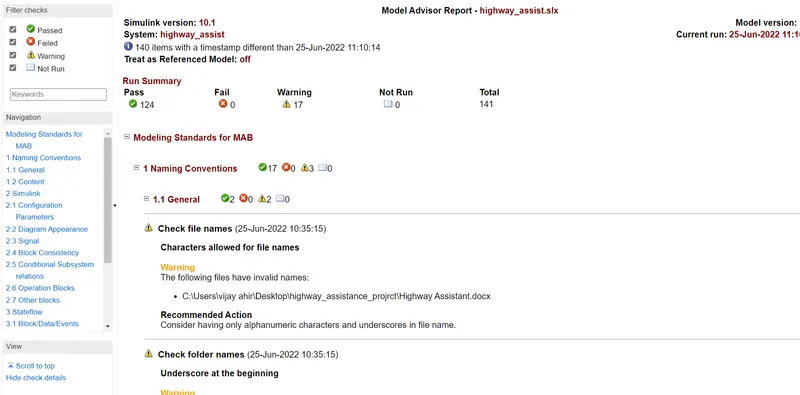

- Model advisor check For given model .
Generation of code.

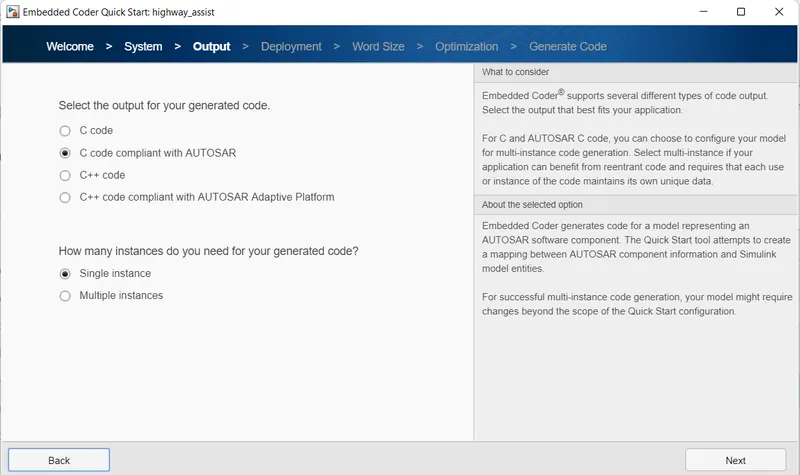

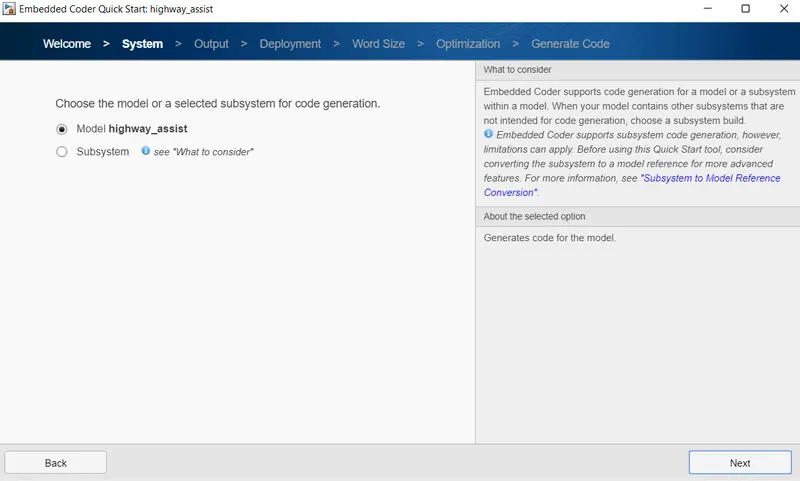

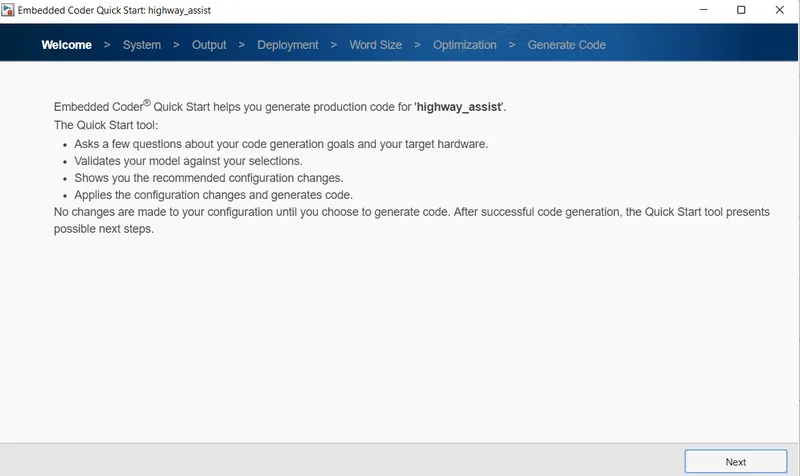

- Select quick start.
Now click on next.
Now click on next.
Now click on next.
Code generated.
/*
* File: highway_assist.c
*
* Code generated for Simulink model 'highway_assist'.
*
* Model version : 1.15
* Simulink Coder version : 9.3 (R2020a) 18-Nov-2019
* C/C++ source code generated on : Sat Jun 25 08:43:45 2022
*
* Target selection: autosar.tlc
* Embedded hardware selection: Intel->x86-64 (Windows64)
* Code generation objectives:
* 1. Execution efficiency
* 2. RAM efficiency
* Validation result: Not run
*/
#include "highway_assist.h"
/* Named constants for Chart: '/chart' */
#define IN_Condition_1 ((uint8)1U)
#define IN_Condition_2 ((uint8)2U)
/* Block signals and states (default storage) */
DW rtDW;
/* Model step function */
void highway_assist_Timing(void)
{
uint8 rtb_Highway_Display_Mode_1;
uint8 rtb_Lane_Display_Mode_1;
uint8 rtb_Lane_Display_Mode_2;
uint8 rtb_Highway_Display_Mode_3;
uint8 rtb_Lane_Display_Mode_3;
uint8 rtb_Lane_Display_Mode_4;
sint32 tmp;
/* Chart: '/chart' incorporates:
* Inport: '/Enable_Display'
* Inport: '/Highway_Input_Signal'
* Inport: '/Input_Switch'
*/
if (rtDW.is_active_c3_highway_assist == 0U) {
rtDW.is_active_c3_highway_assist = 1U;
rtDW.is_c3_highway_assist = IN_Condition_1;
rtb_Highway_Display_Mode_1 = 232U;
rtb_Highway_Display_Mode_3 = 41U;
} else if (rtDW.is_c3_highway_assist == IN_Condition_1) {
rtb_Highway_Display_Mode_1 = 232U;
rtb_Highway_Display_Mode_3 = 41U;
if ((Rte_IRead_highway_assist_Timing_Rp_Highway_Input_Signal_DE_Highway_Input_Signal
() == 1) &&
(Rte_IRead_highway_assist_Timing_Rp_Enable_Display_DE_Enable_Display() ==
1) && (Rte_IRead_highway_assist_Timing_Rp_Input_Switch_DE_Input_Switch()
== 1)) {
rtDW.is_c3_highway_assist = IN_Condition_2;
rtb_Highway_Display_Mode_1 = 213U;
rtb_Highway_Display_Mode_3 = 9U;
}
} else {
/* case IN_Condition_2: */
rtb_Highway_Display_Mode_1 = 213U;
rtb_Highway_Display_Mode_3 = 9U;
if ((Rte_IRead_highway_assist_Timing_Rp_Highway_Input_Signal_DE_Highway_Input_Signal
() == 1) &&
(Rte_IRead_highway_assist_Timing_Rp_Enable_Display_DE_Enable_Display() ==
0) && (Rte_IRead_highway_assist_Timing_Rp_Input_Switch_DE_Input_Switch()
== 1)) {
rtDW.is_c3_highway_assist = IN_Condition_1;
rtb_Highway_Display_Mode_1 = 232U;
rtb_Highway_Display_Mode_3 = 41U;
}
}
/* End of Chart: '/chart' */
/* Chart: '/Chart' incorporates:
* Inport: '/Enable_Display'
* Inport: '/Input_Switch'
* Inport: '/Lane_Input_Signal'
*/
if (rtDW.is_active_c1_highway_assist == 0U) {
rtDW.is_active_c1_highway_assist = 1U;
rtDW.is_c1_highway_assist = IN_Condition_1;
rtb_Lane_Display_Mode_1 = 132U;
rtb_Lane_Display_Mode_2 = 185U;
rtb_Lane_Display_Mode_3 = 54U;
rtb_Lane_Display_Mode_4 = 67U;
} else if (rtDW.is_c1_highway_assist == IN_Condition_1) {
if ((Rte_IRead_highway_assist_Timing_Rp_Lane_Input_Signal_DE_Lane_Input_Signal
() == 6.0) &&
(Rte_IRead_highway_assist_Timing_Rp_Enable_Display_DE_Enable_Display() ==
1) && (Rte_IRead_highway_assist_Timing_Rp_Input_Switch_DE_Input_Switch()
== 1)) {
rtDW.is_c1_highway_assist = IN_Condition_2;
rtb_Lane_Display_Mode_1 = 127U;
rtb_Lane_Display_Mode_2 = 248U;
rtb_Lane_Display_Mode_3 = 186U;
rtb_Lane_Display_Mode_4 = 84U;
} else {
rtb_Lane_Display_Mode_1 = 132U;
rtb_Lane_Display_Mode_2 = 185U;
rtb_Lane_Display_Mode_3 = 54U;
rtb_Lane_Display_Mode_4 = 67U;
}
} else {
/* case IN_Condition_2: */
