Project 2 - Development of TFT Cluster Speedometer Software Component

Zip file is attached for the following:

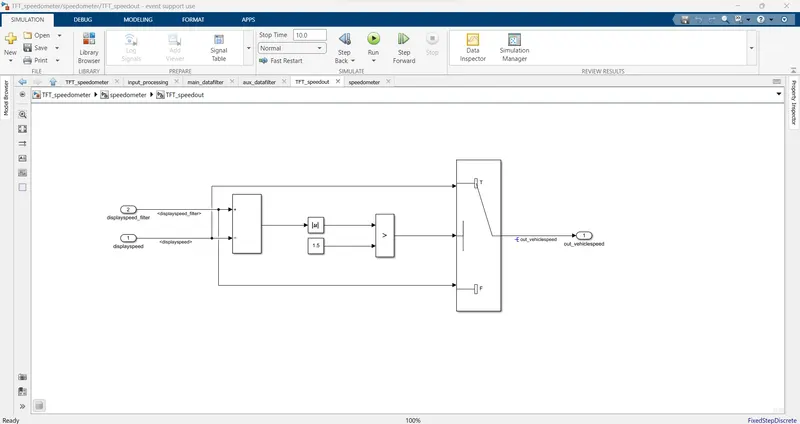

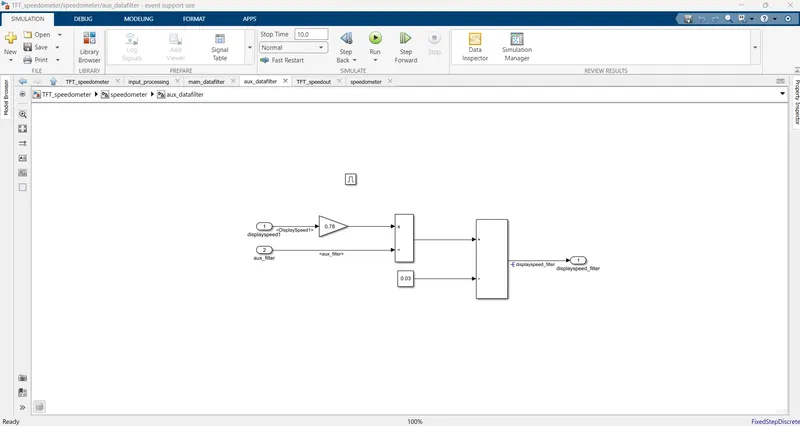

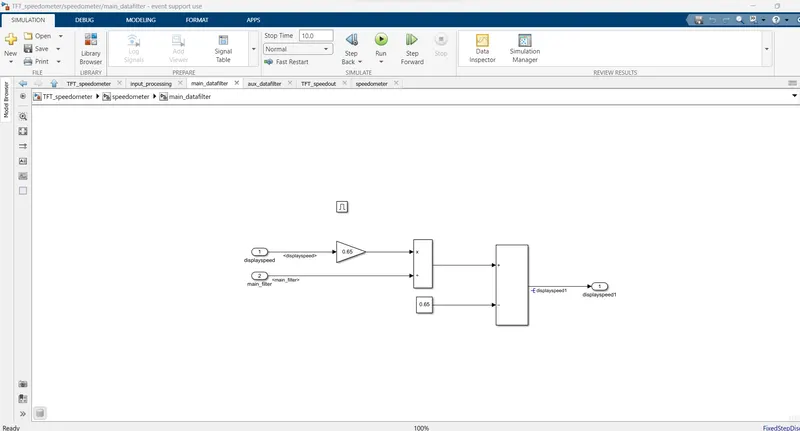

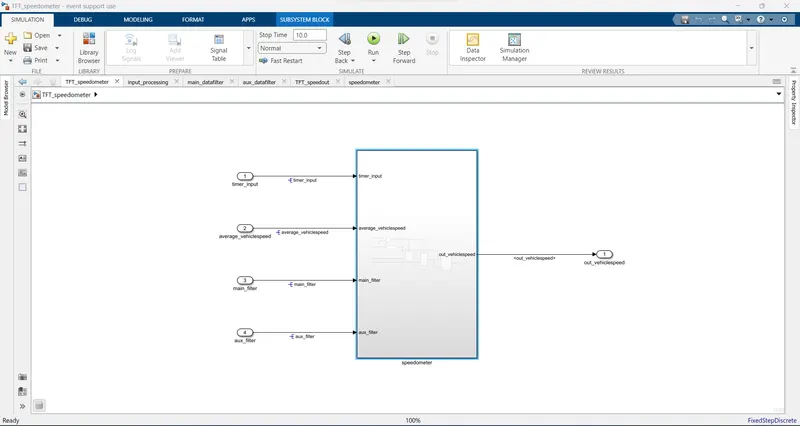

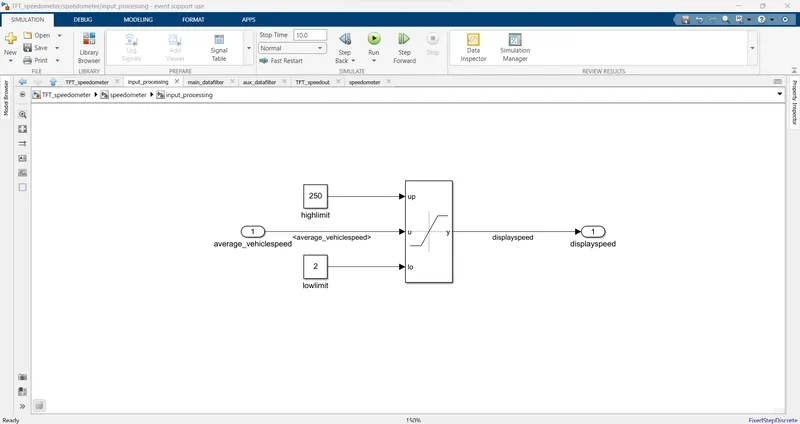

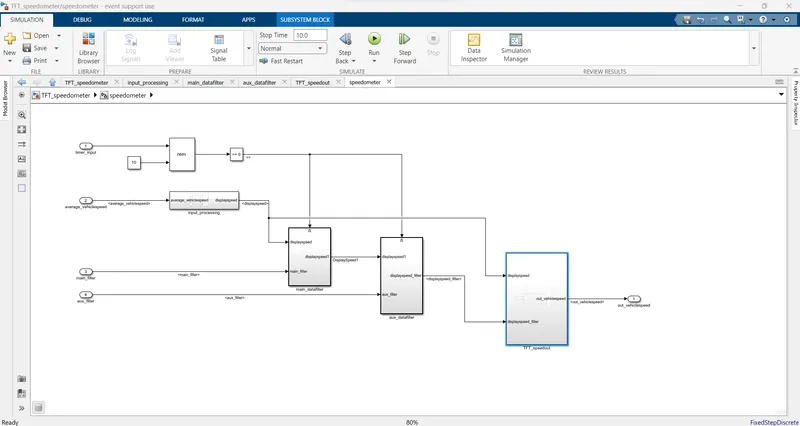

Simulink model created and attached

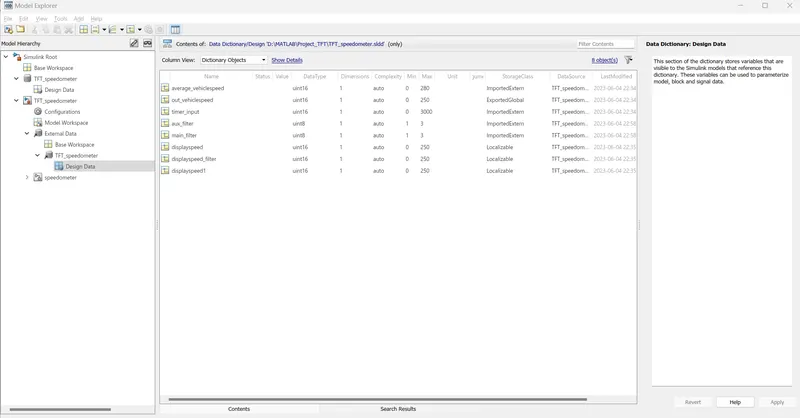

SLDD file created and attached

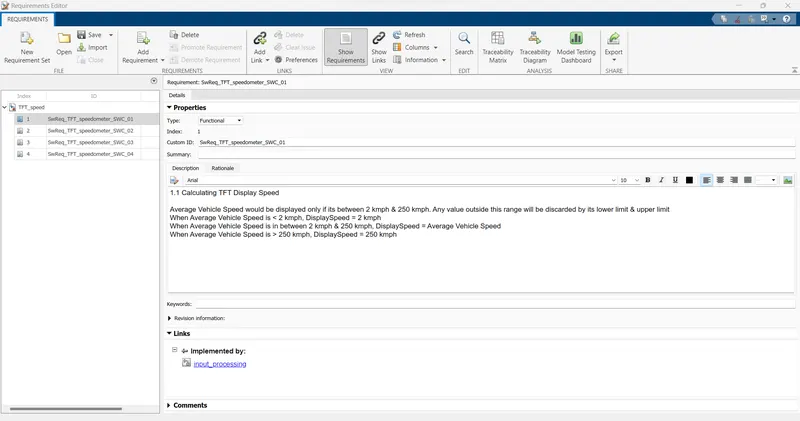

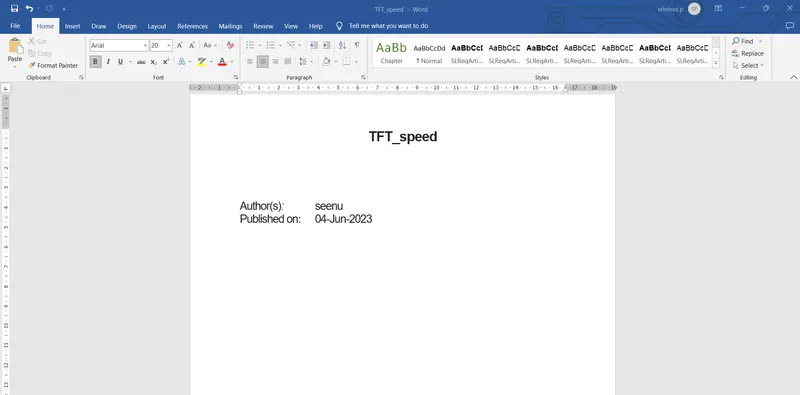

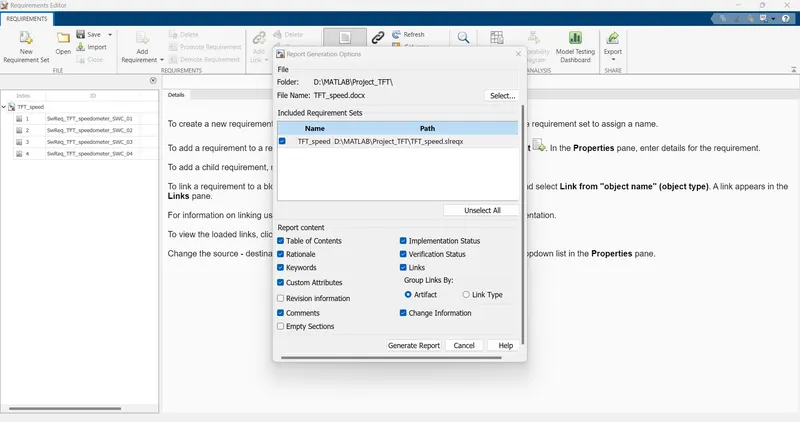

Requirement tagging carried out

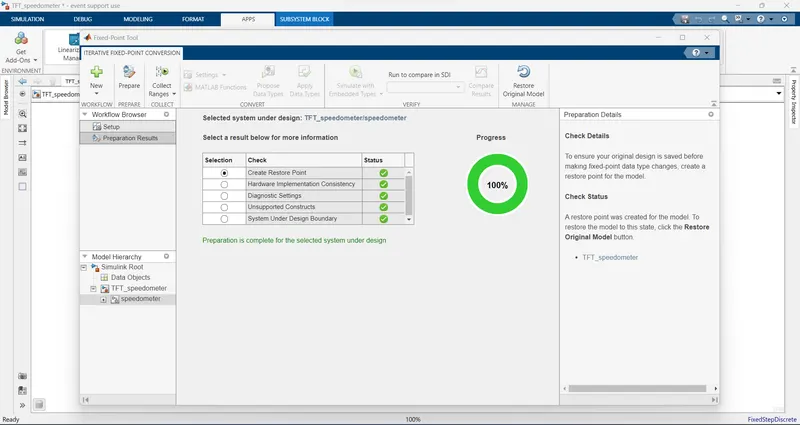

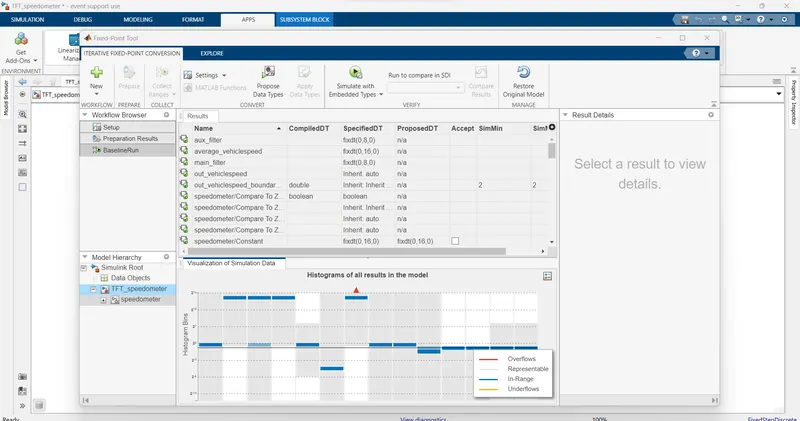

Fixed-point Tool created and report added.

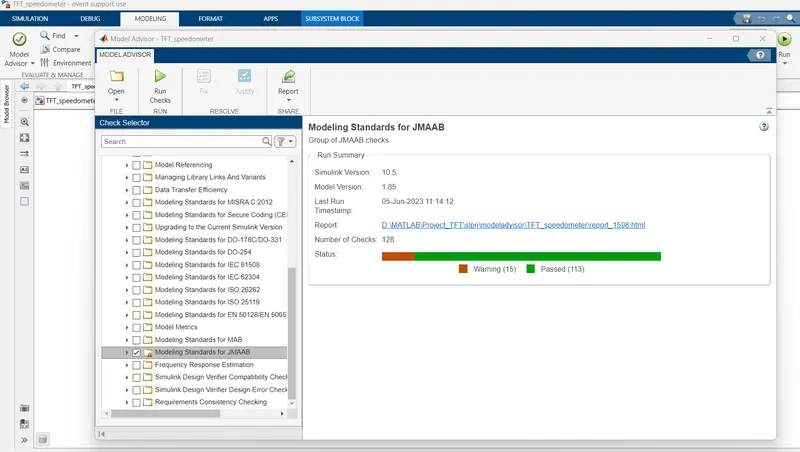

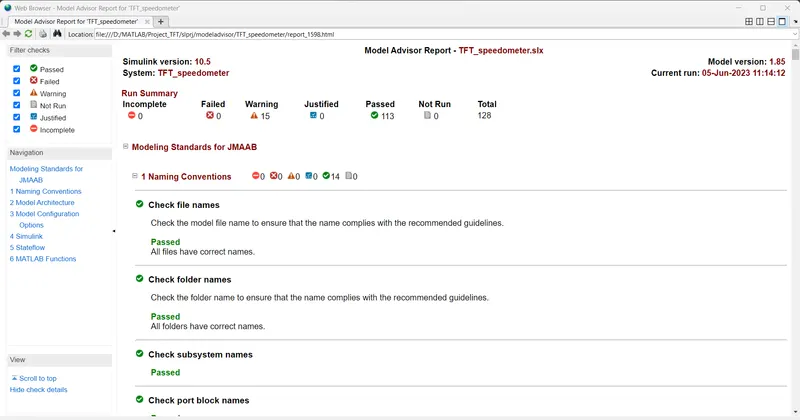

Model advisor - JMAAB compliance carreid out and report added

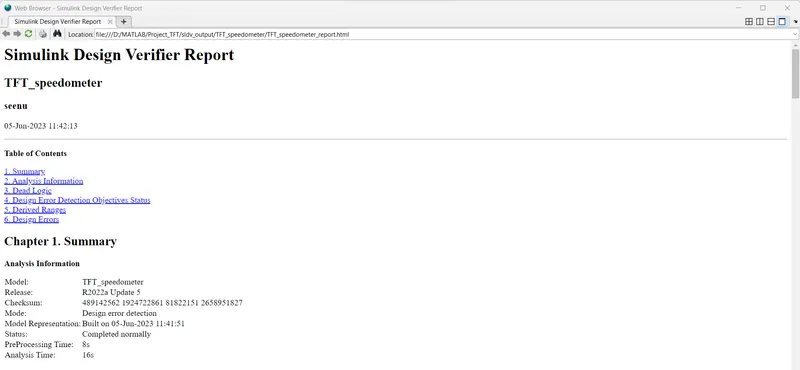

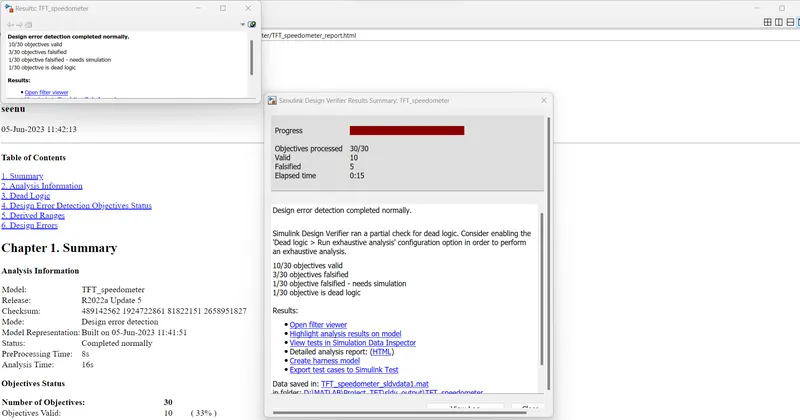

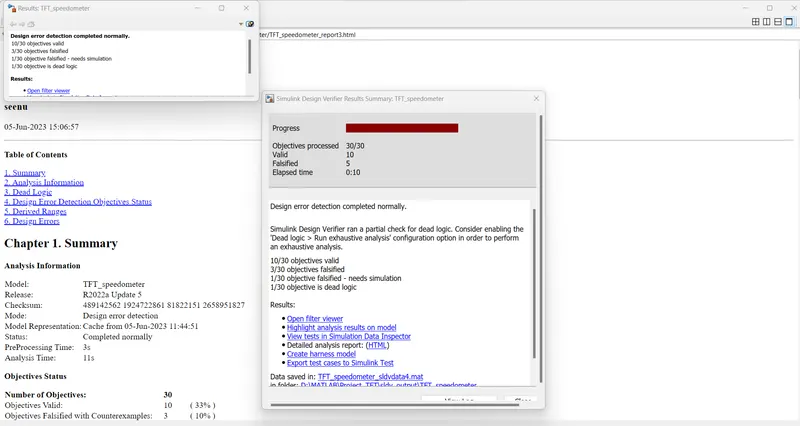

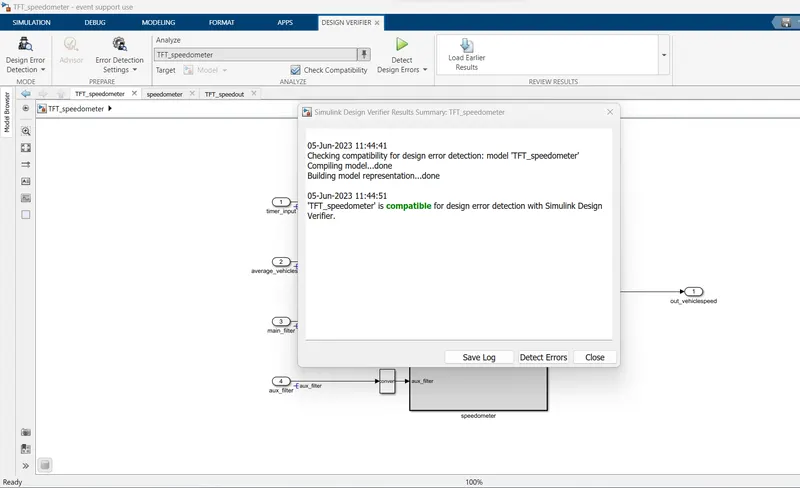

SLDV Design error detection report added

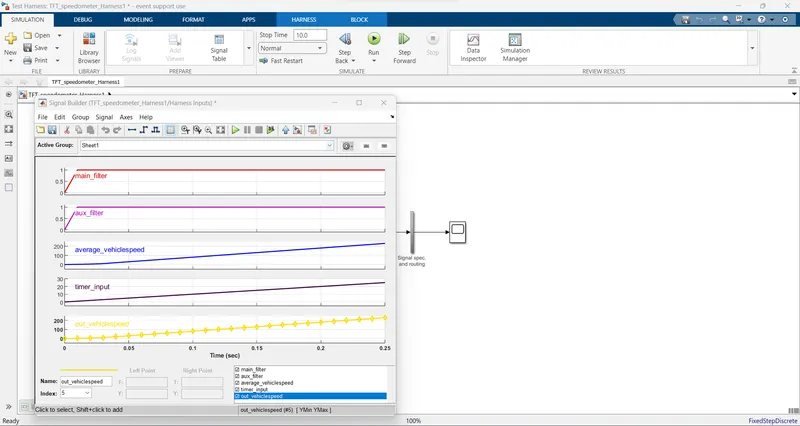

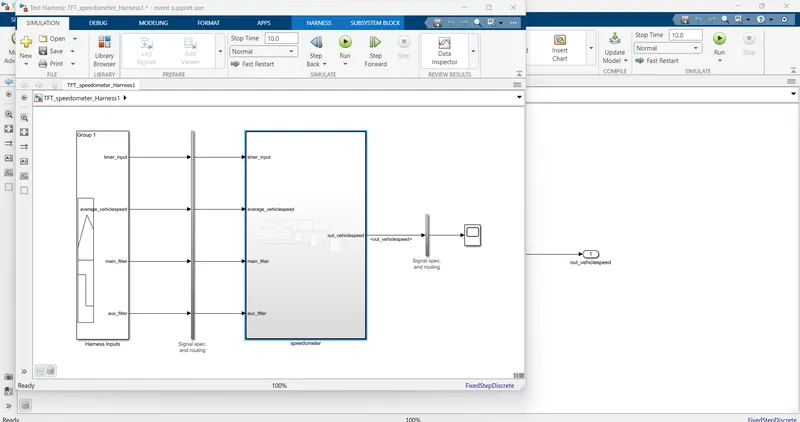

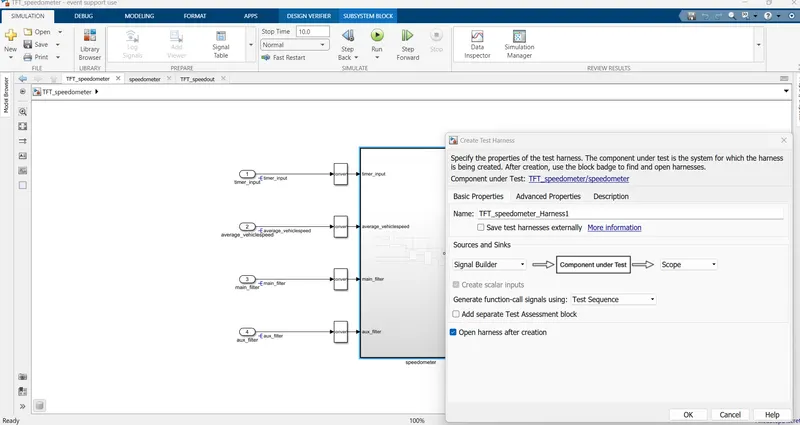

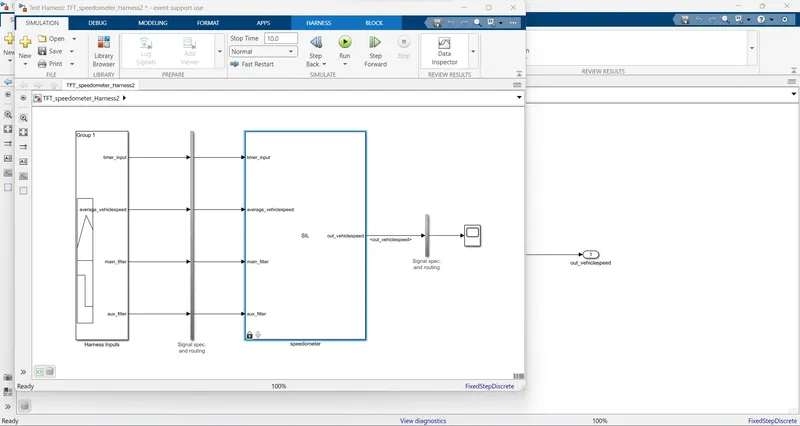

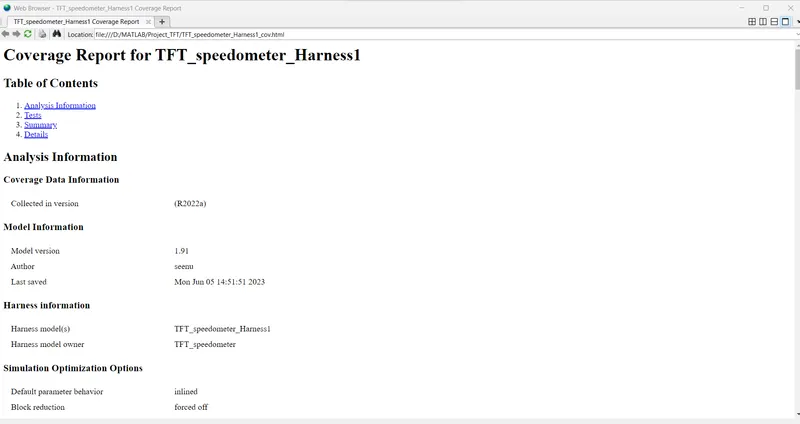

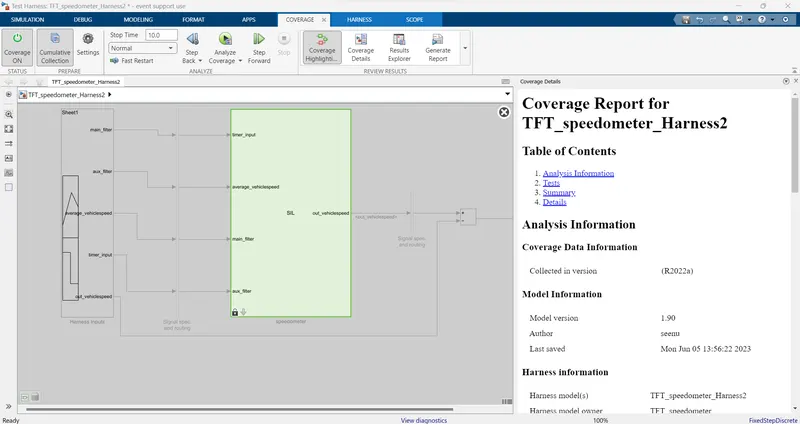

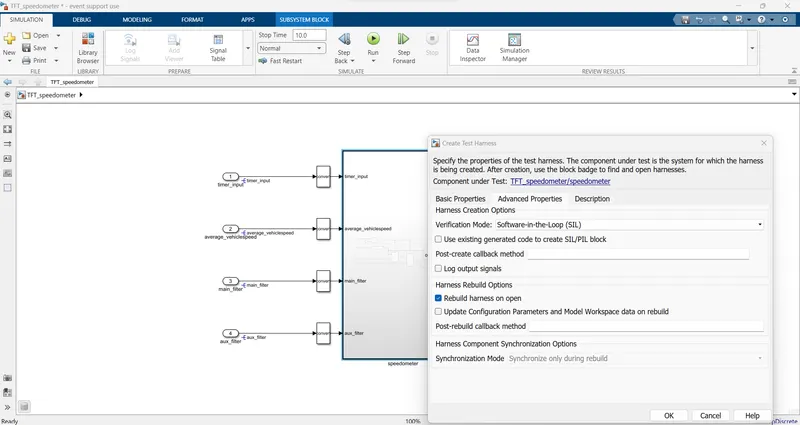

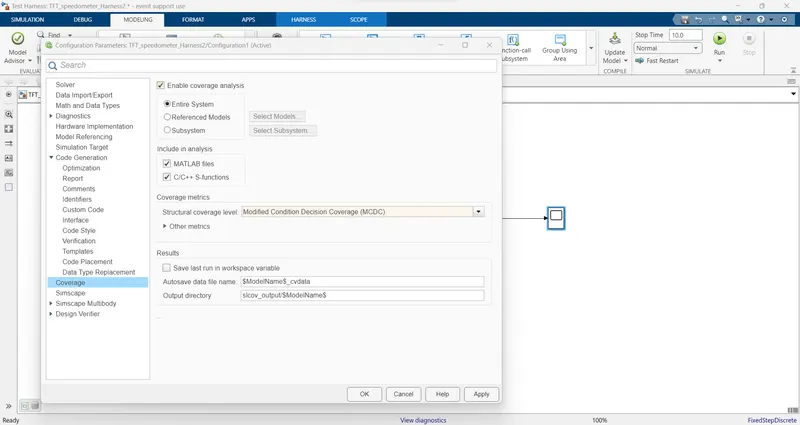

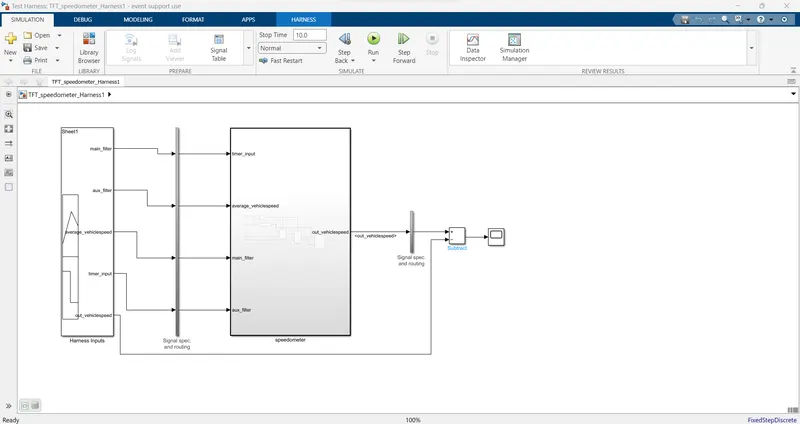

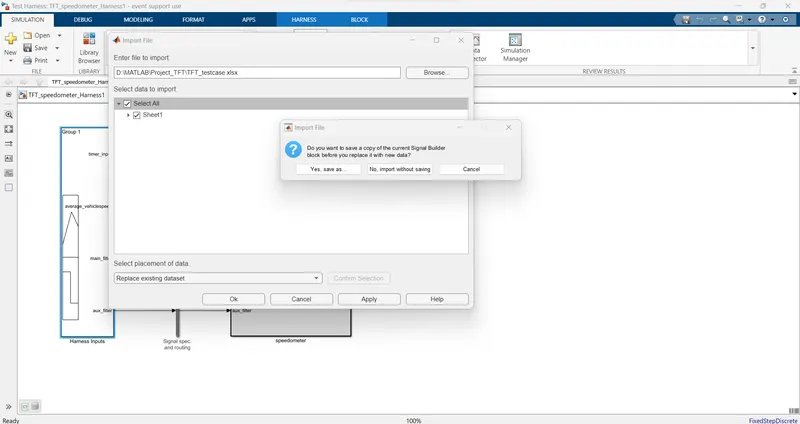

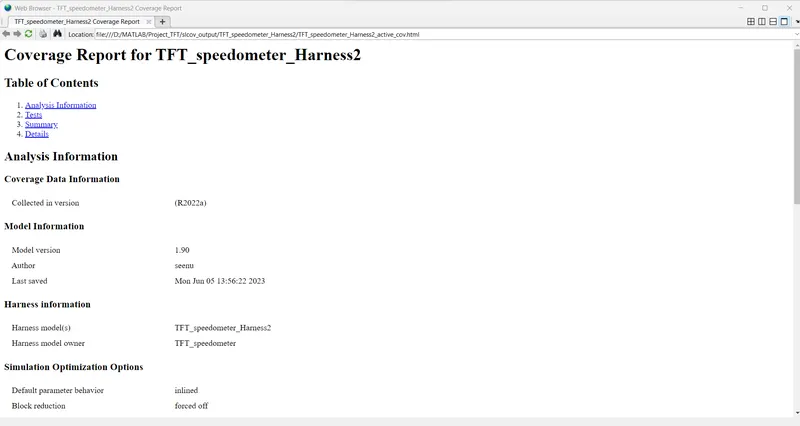

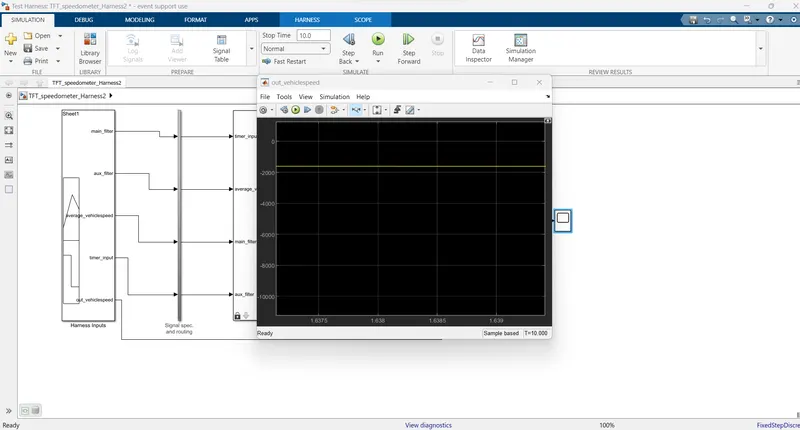

Functional test case, MIL, SIL harness created and coverage Reports added

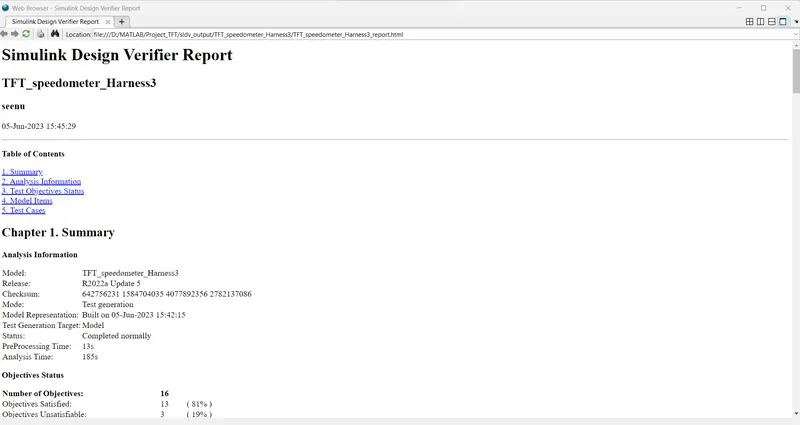

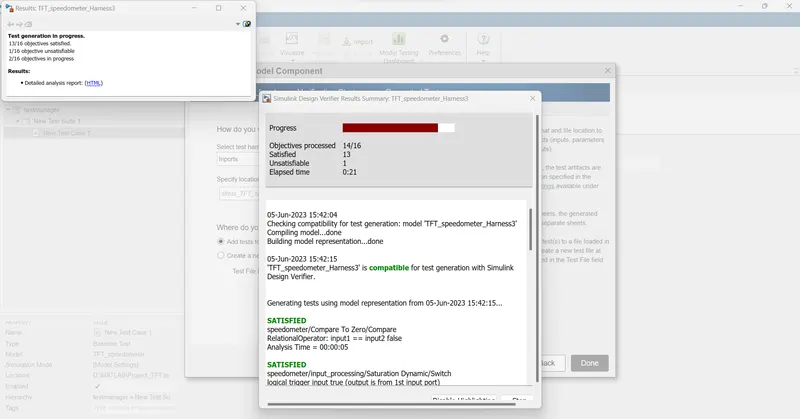

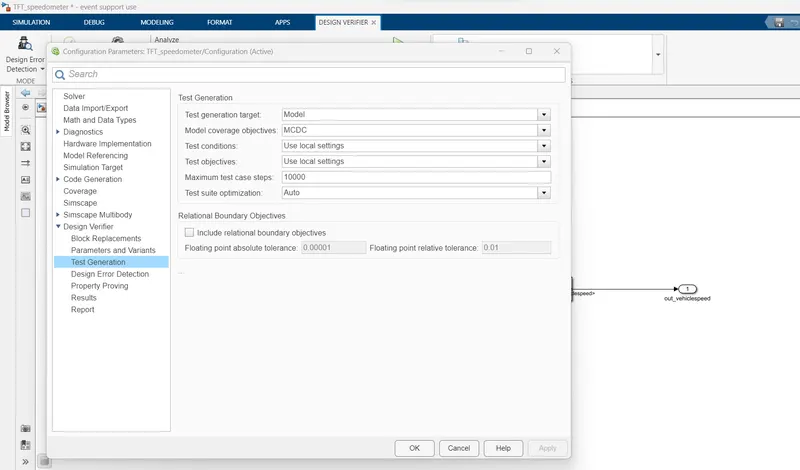

SLDV test generation report added

Auto-code generation report, .c & .h codes added

Poly space analysis report described

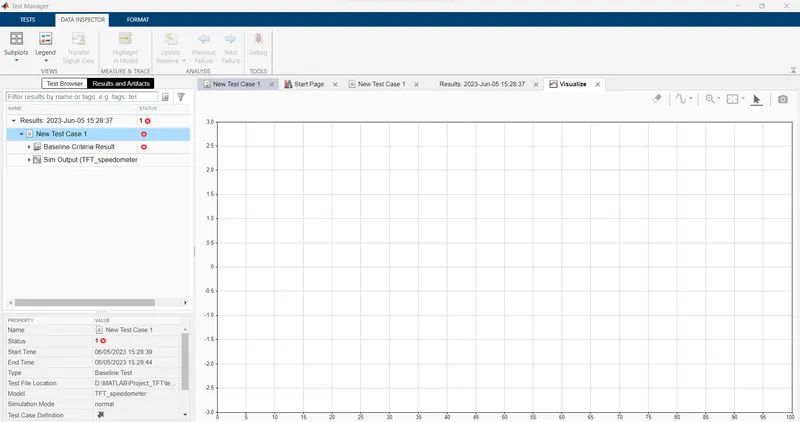

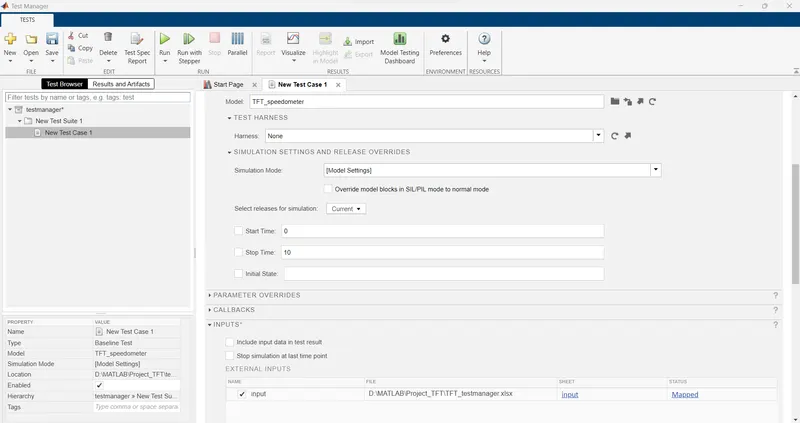

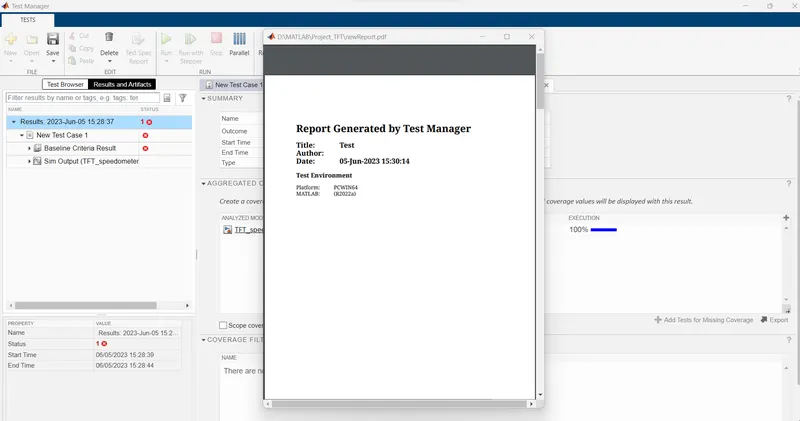

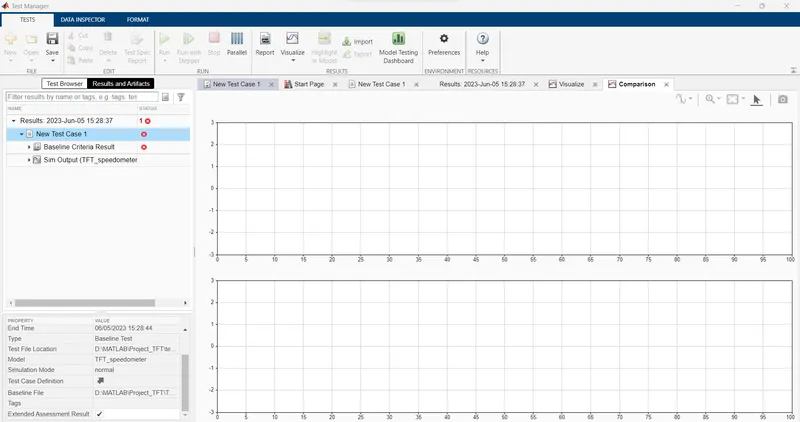

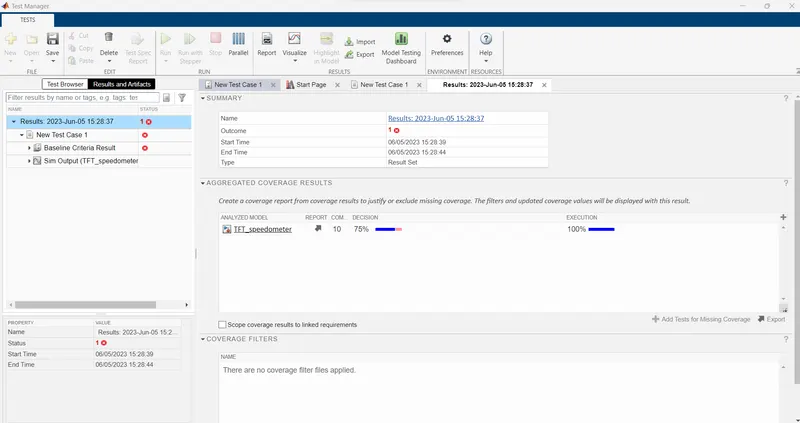

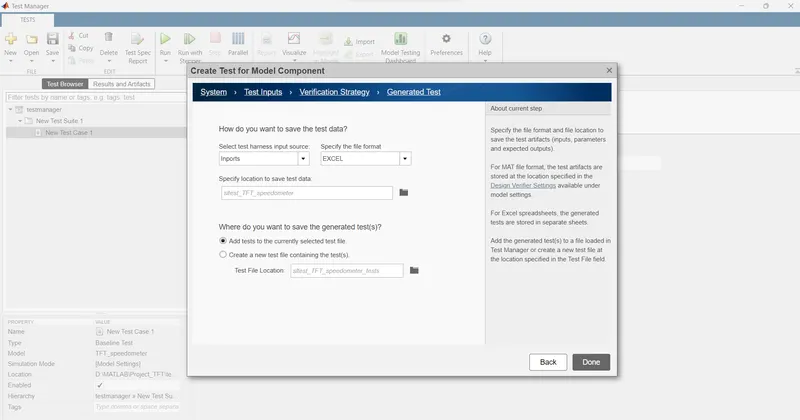

Test manager reports – baseline & back-to-back testing are added

Polyspace anaylsis report:

Open poly space software.

Start new project.

Enter name of project and author name.

Browse location of file. Click next.

Project would be linked to source folder.

In configuration, select source code language as C, compiler as generic , target processor type.

Under coding standards, enable Check MISRA C:2004.

Under Bug finder analysis, enable find defects.

Under reporting tab, enable generate report and format fo out put.

Run Bug finder.

Result shows with graphical visualization regarding code covered by analysis, how many defects found, what are the MISRA C: 2004 violation by rule.

In result view, status could be changed such as unreviewed, to investigate, to fix, justified, no action planned, not a defect, other.

In source window, error positions were showed.
