Project 2 Adaptive Cruise Control

1. Aim: To develop an Adaptive Cruise Control feature as per the Requirement Document using MATLAB Simulink.

Description:

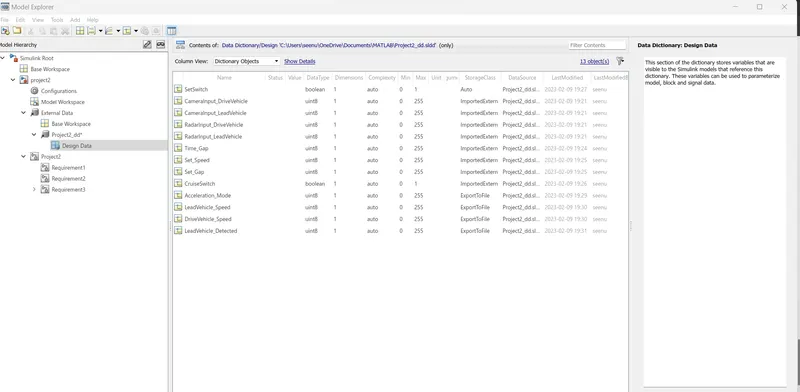

Developed SLDD as per the given data in the question. The file is attached to the zip folder.

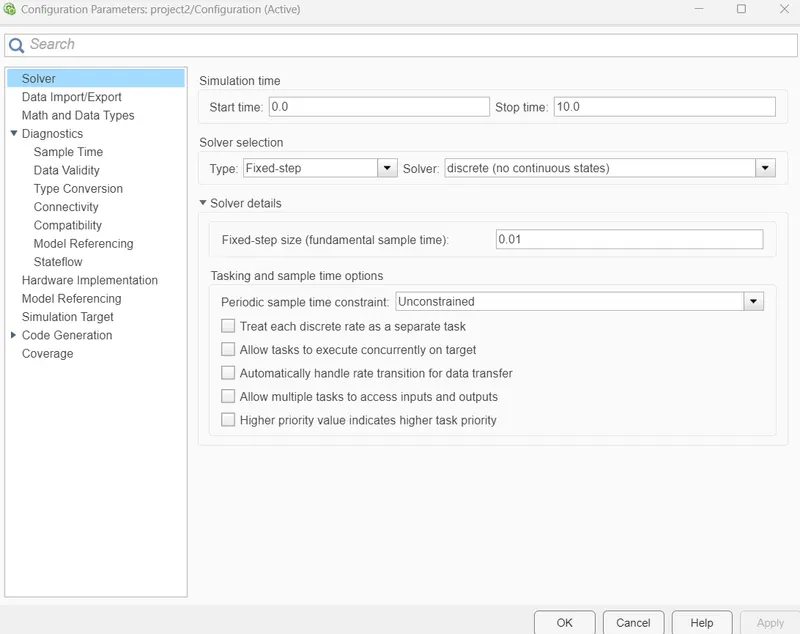

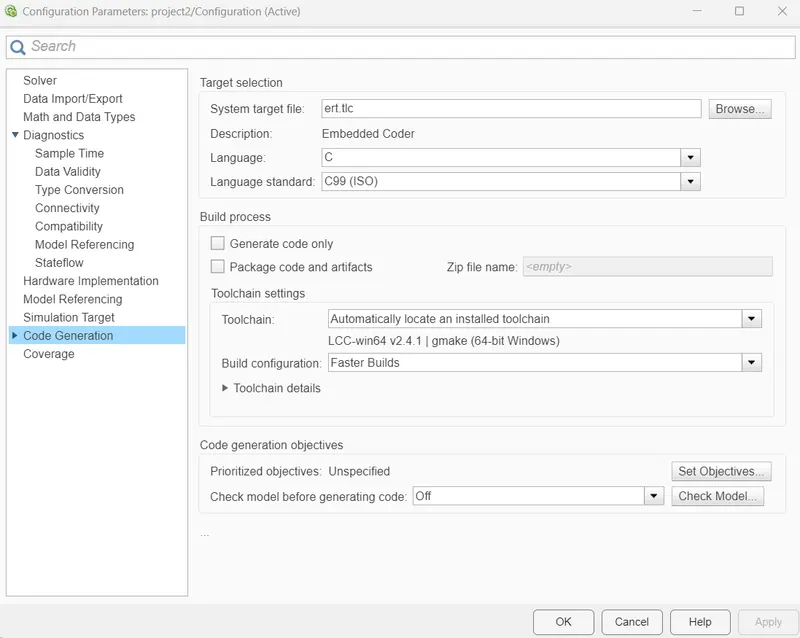

Settings were changed in the configurations settings as per the requirement given in the question:

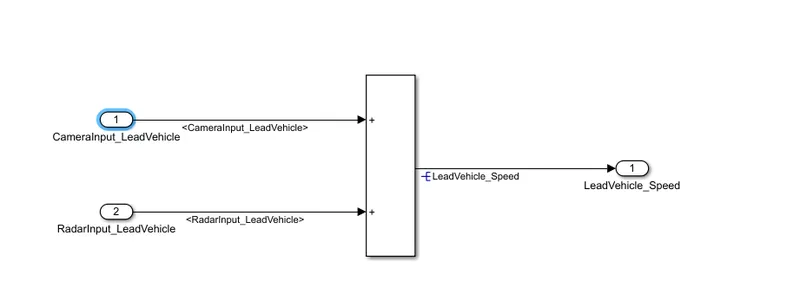

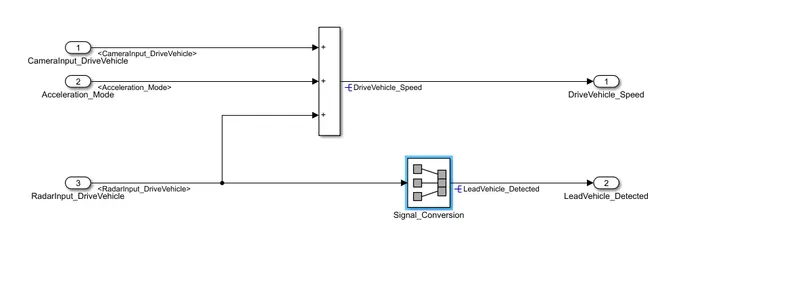

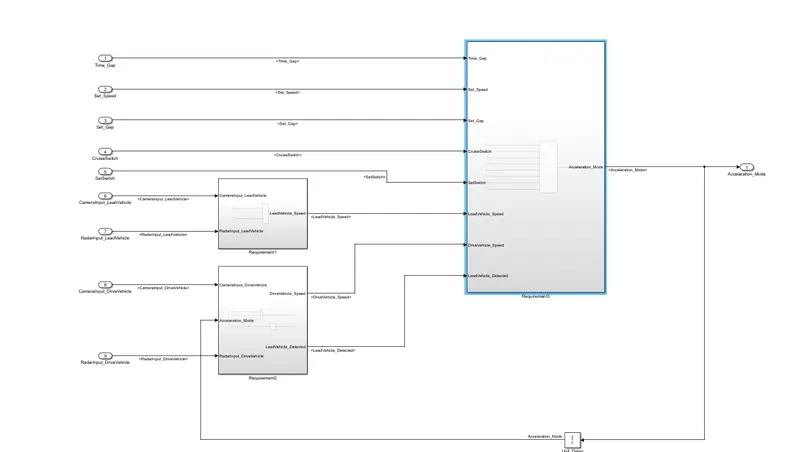

Developed MATLAB Simulink model to meet the three requirements. Attached the model with a zip folder consists of all relevant files. Built 4 Subsystems; 1 each for 3 requirements and one subsystem for the whole model.

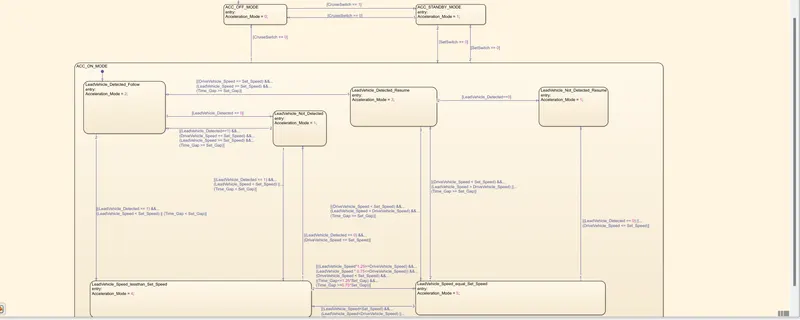

Inside the Requirement 3 subsystem, I implemented as state machine logic in Simulink.

After that, I resolved and propagated signal requirements.

Carried out the Requirement tagging & Traceability. The word file is attached to the zip file.

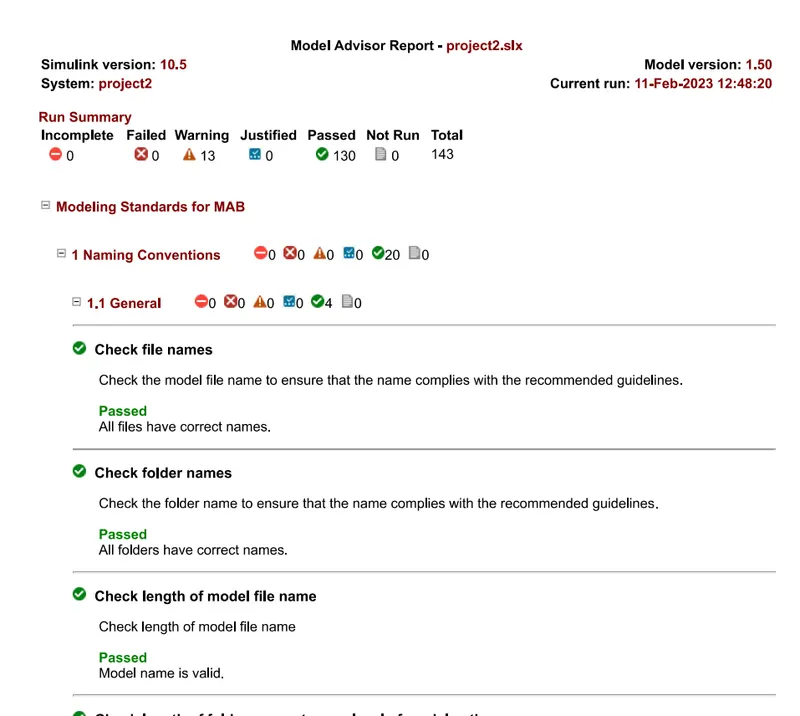

Model advisor checks and code generation were carried out. Resolved some of the warnings and Found no failures, 13 Warnings.

A zip file containing all the files including the model is attached.
