Project 1 - Wiper control system and Vehicle speed calculation for ABS using Wheel Speed sensor

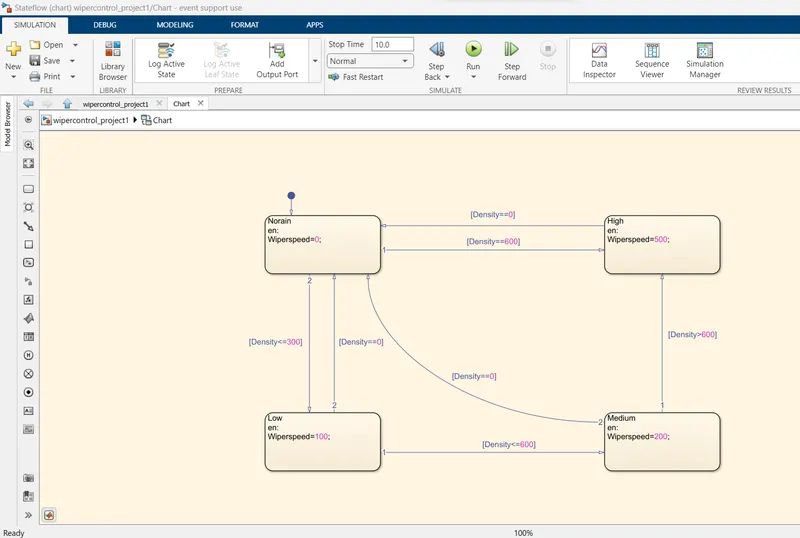

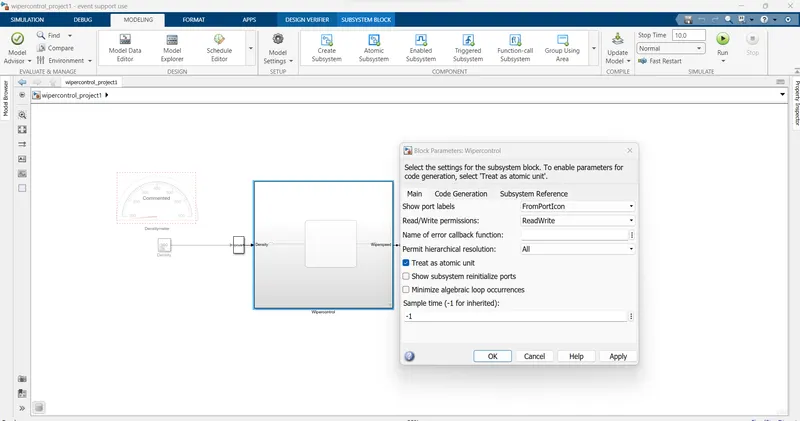

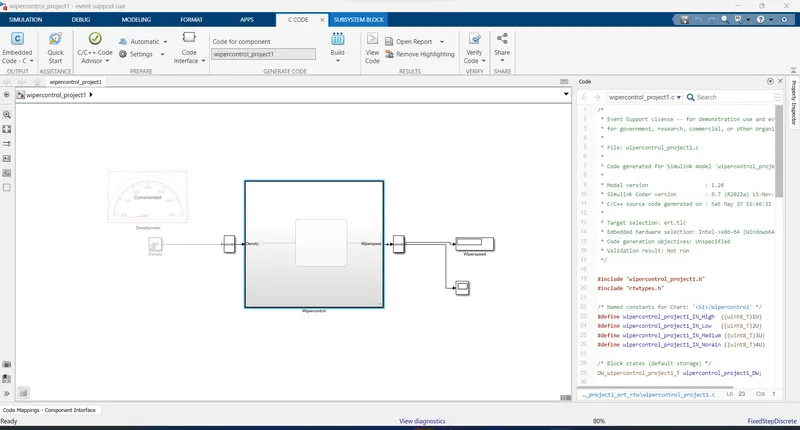

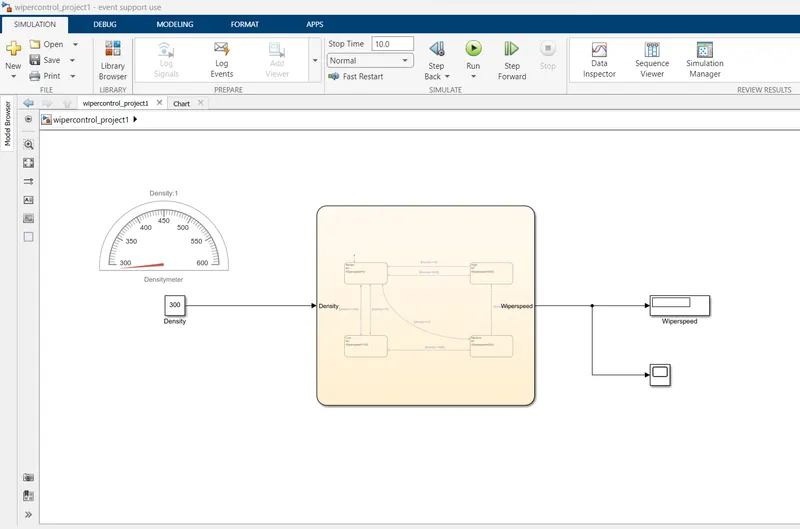

1. Simulink model created.

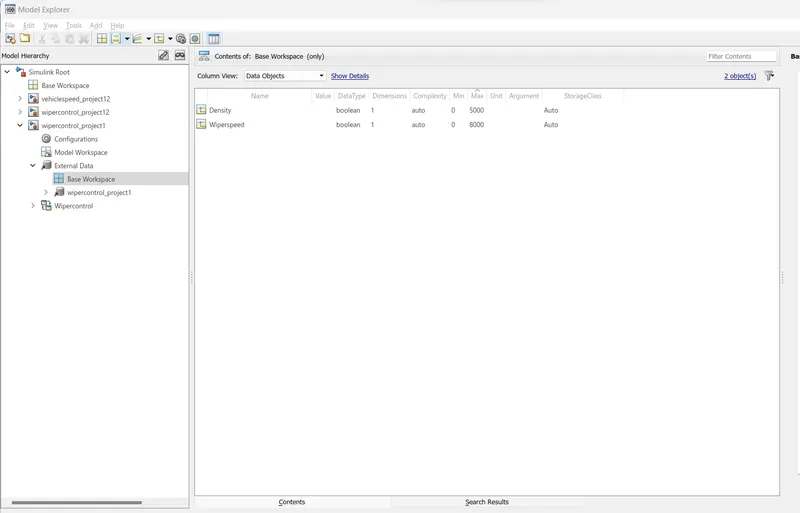

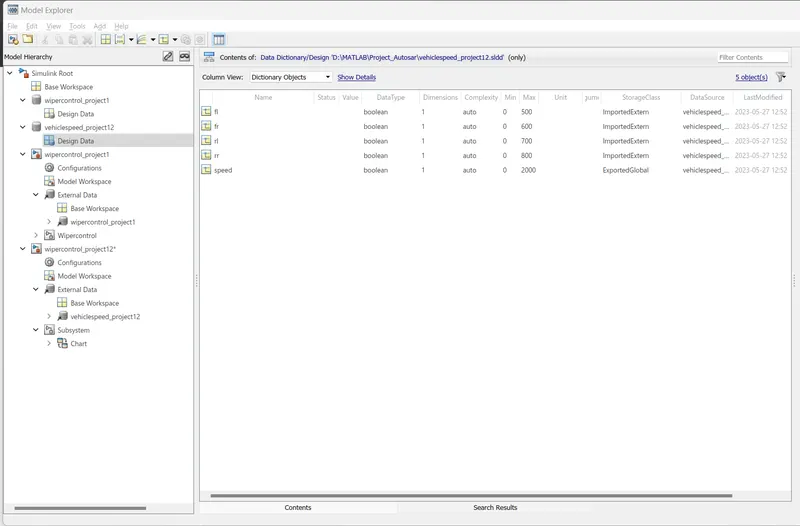

Created SLDD file.

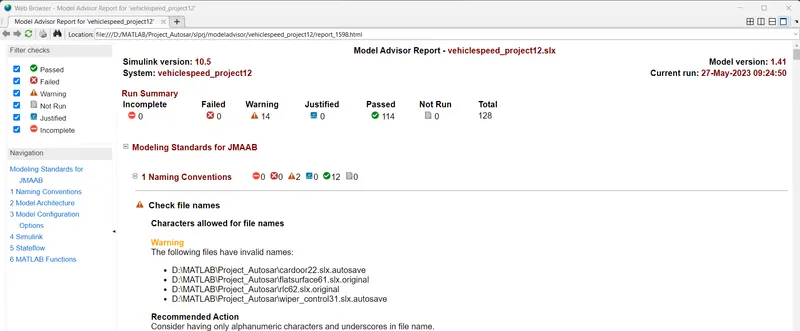

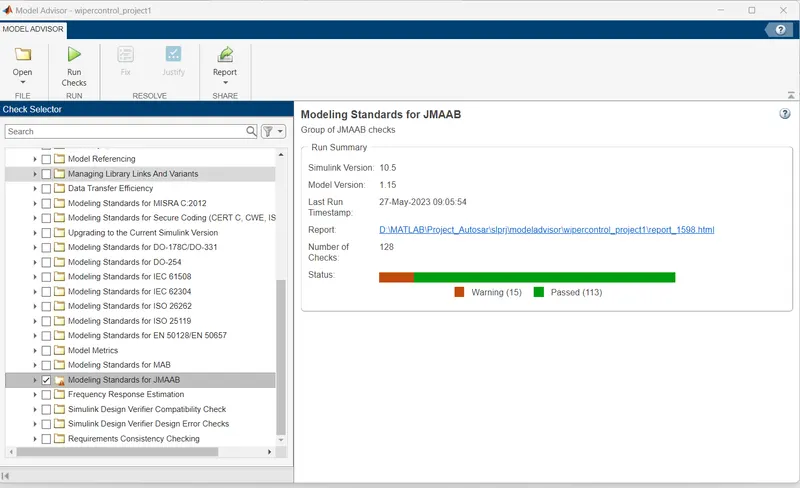

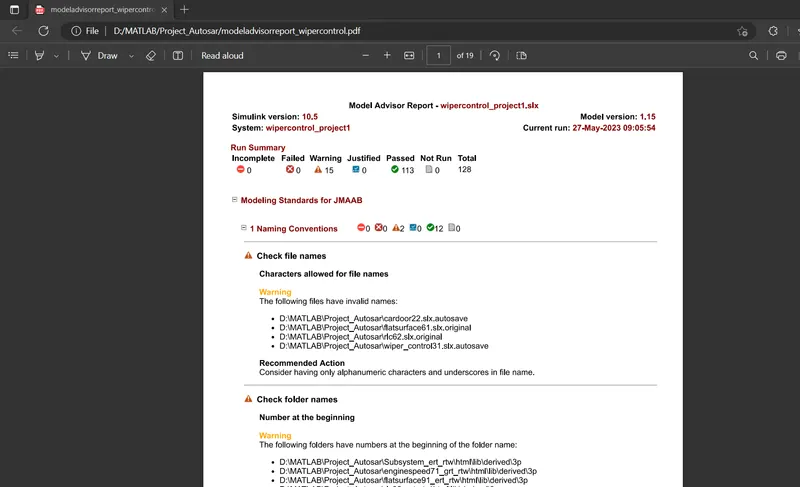

Moder advisor report generated.

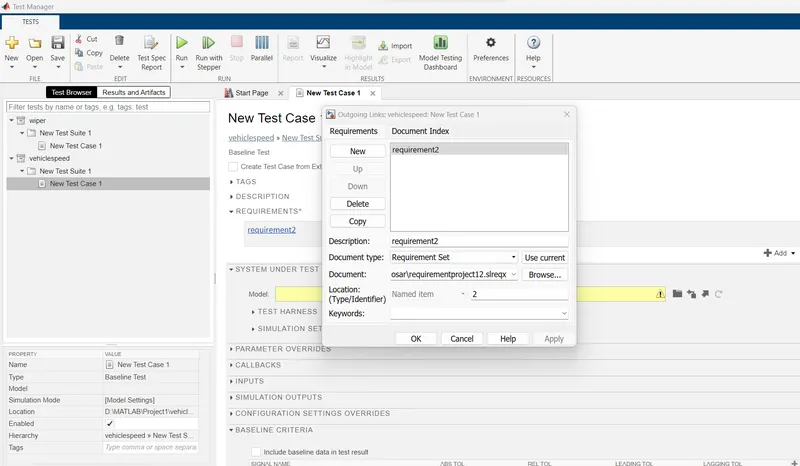

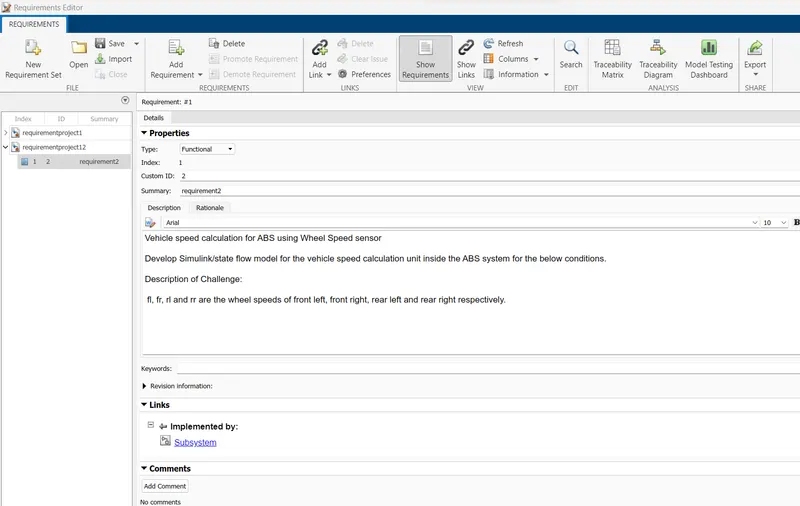

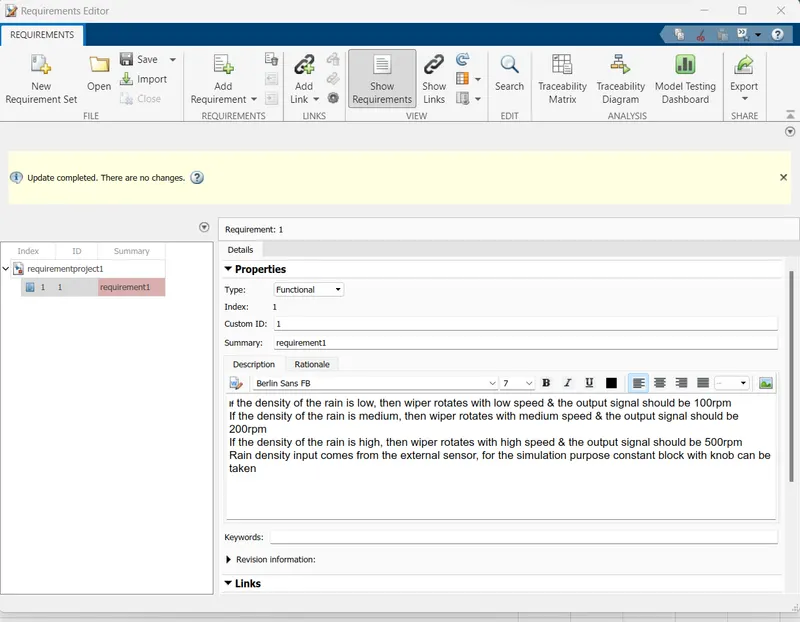

Requirement tagged.

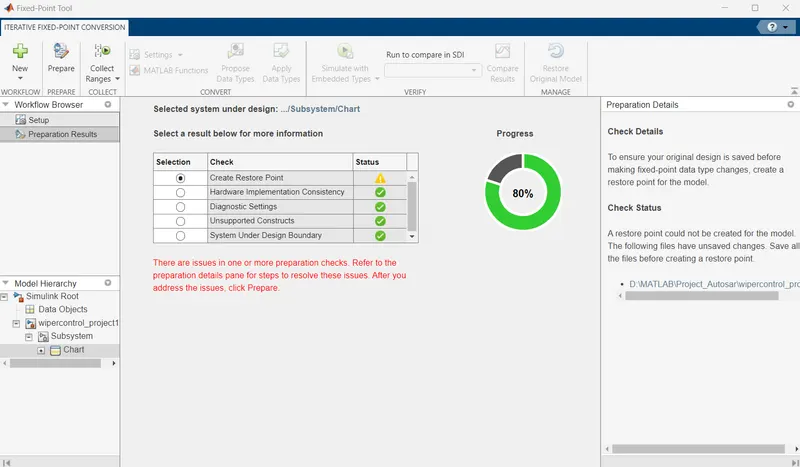

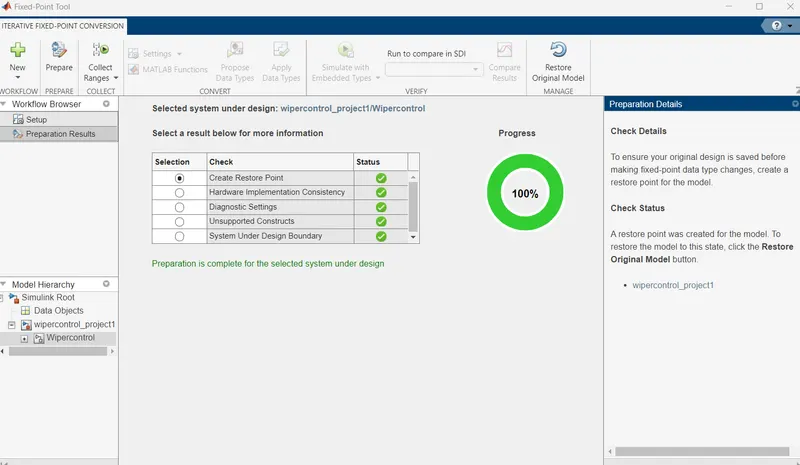

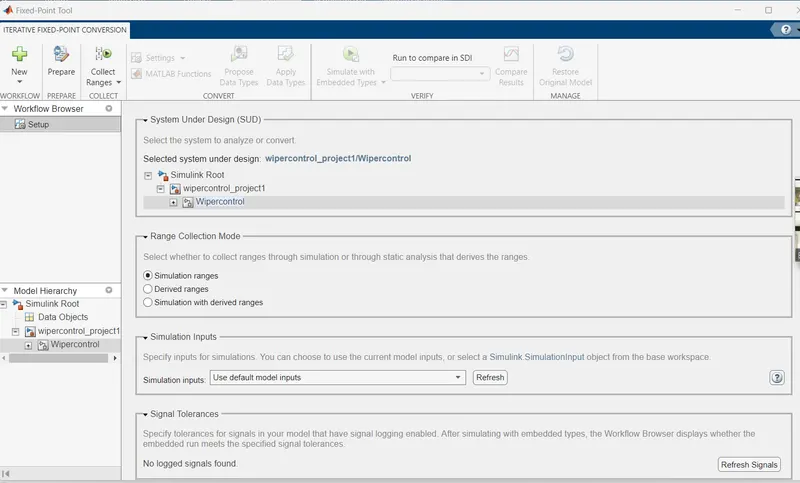

Fixed point tool analysed.

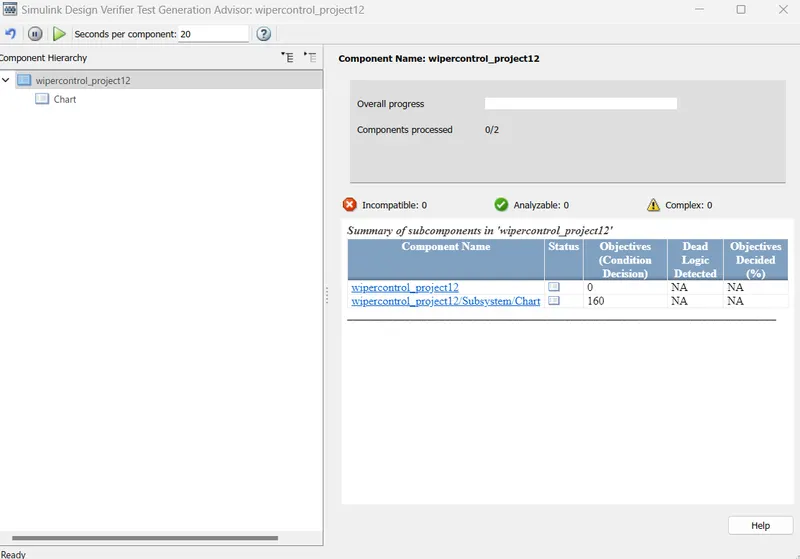

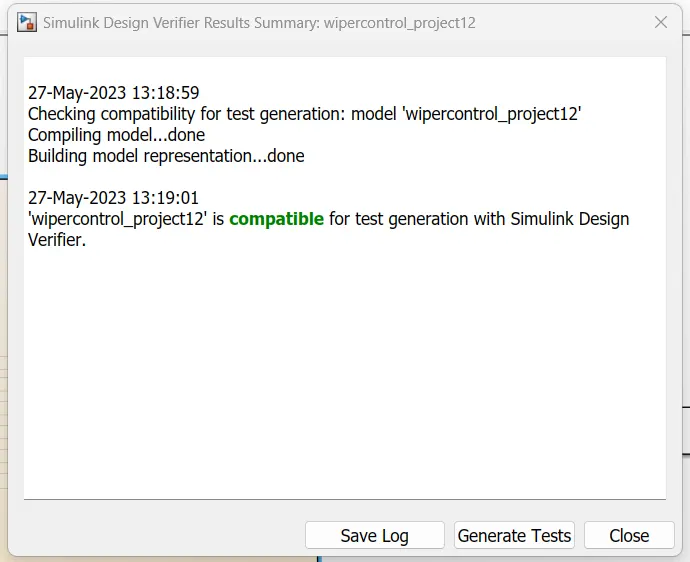

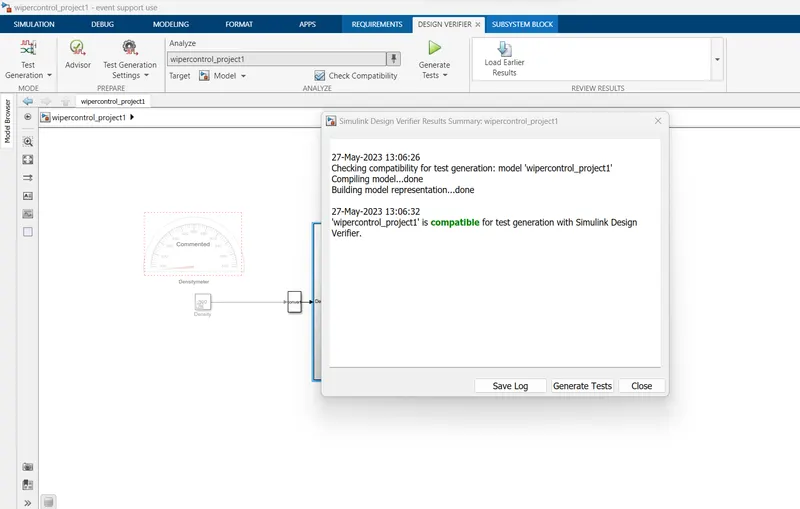

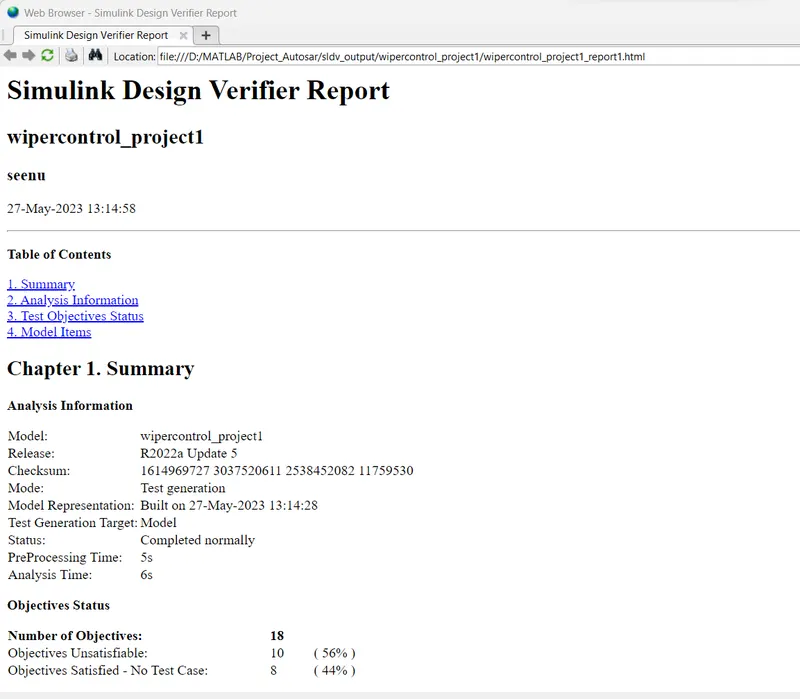

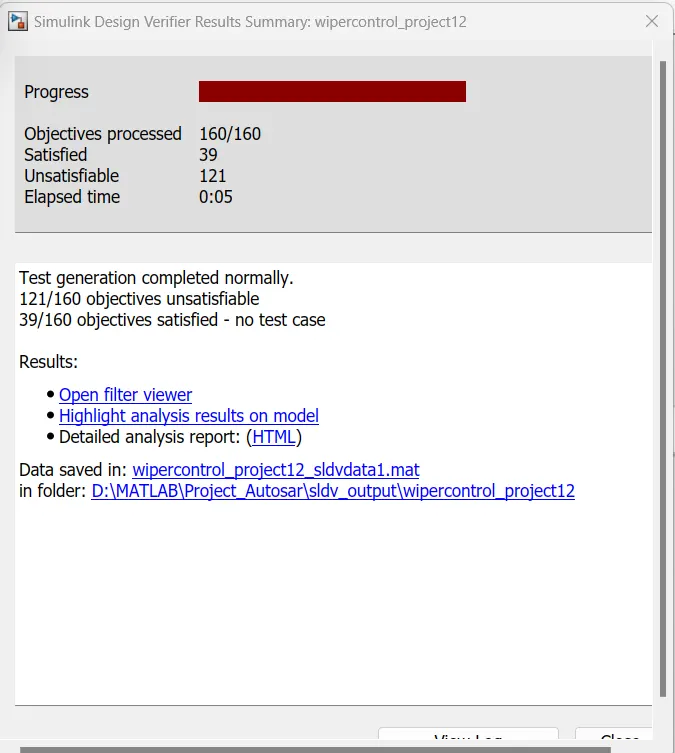

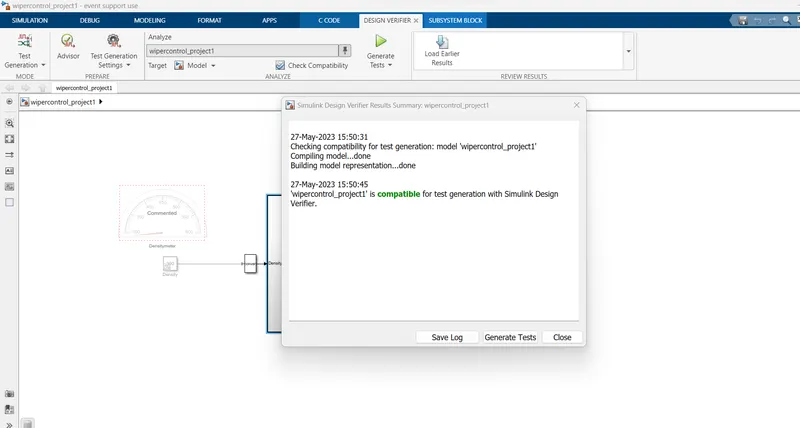

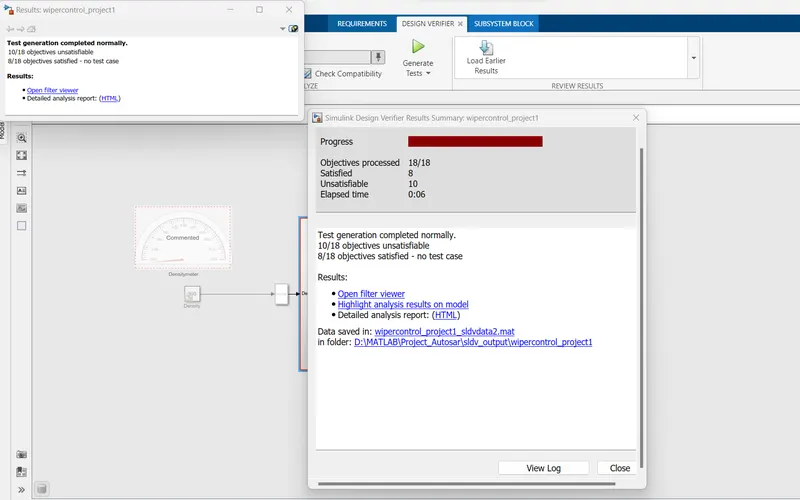

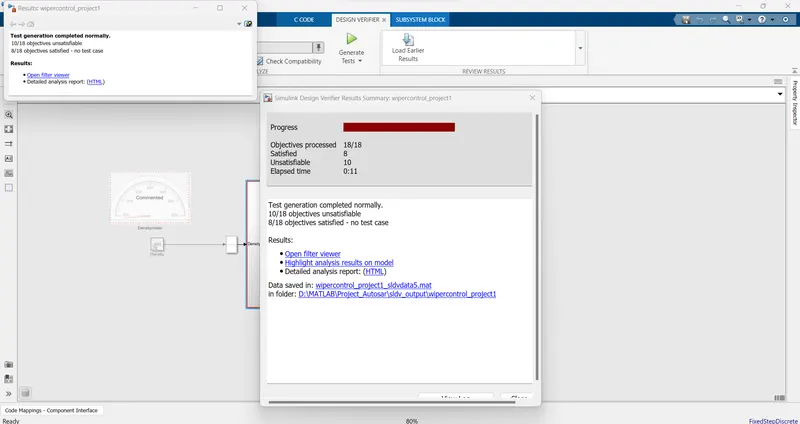

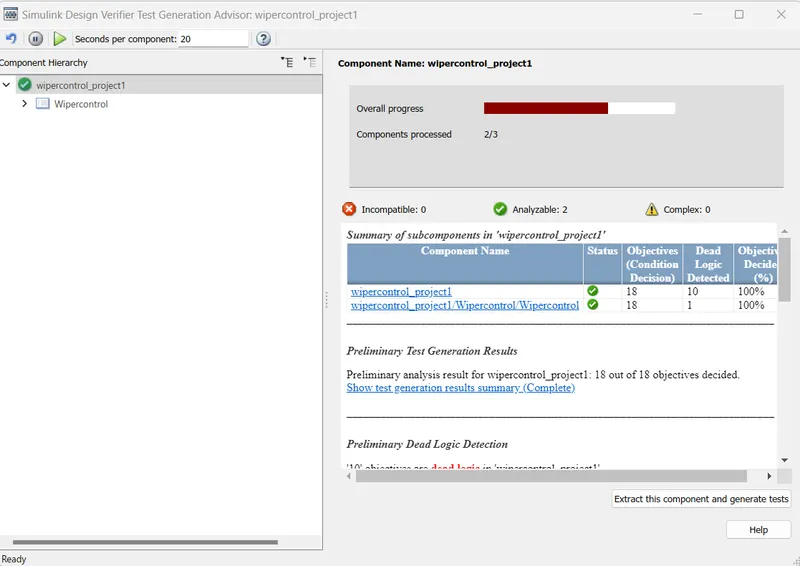

SLDV design error detection report attached.

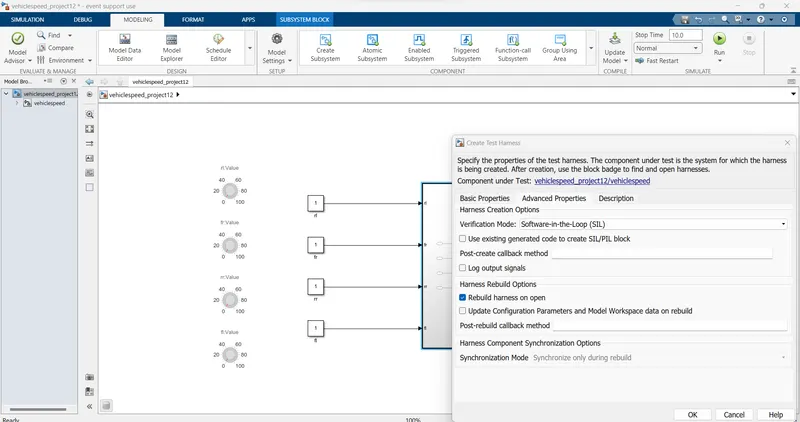

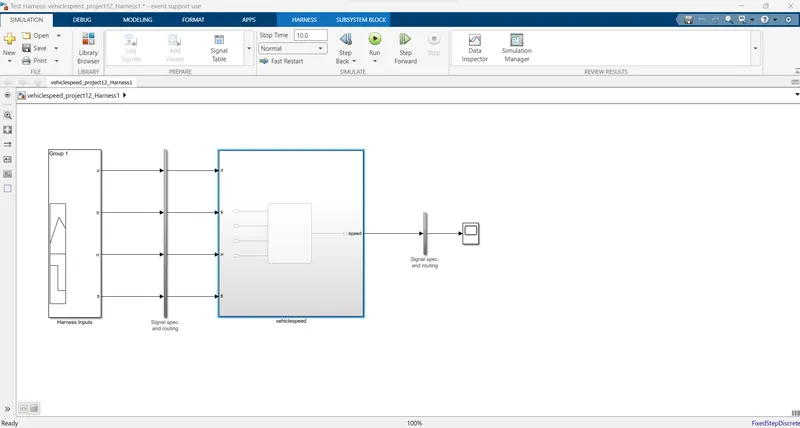

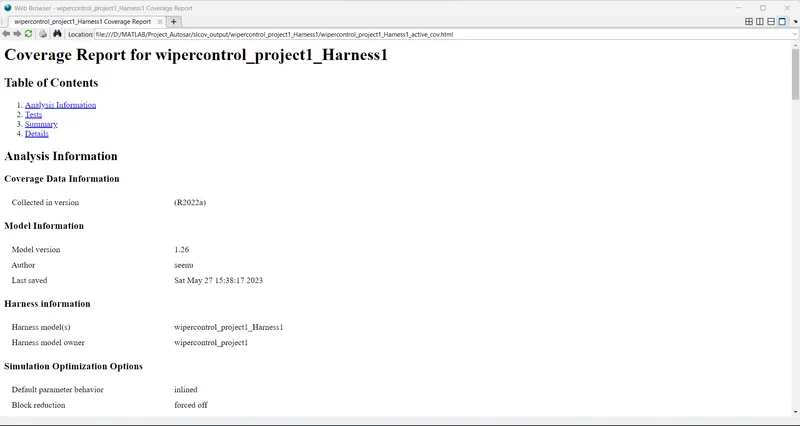

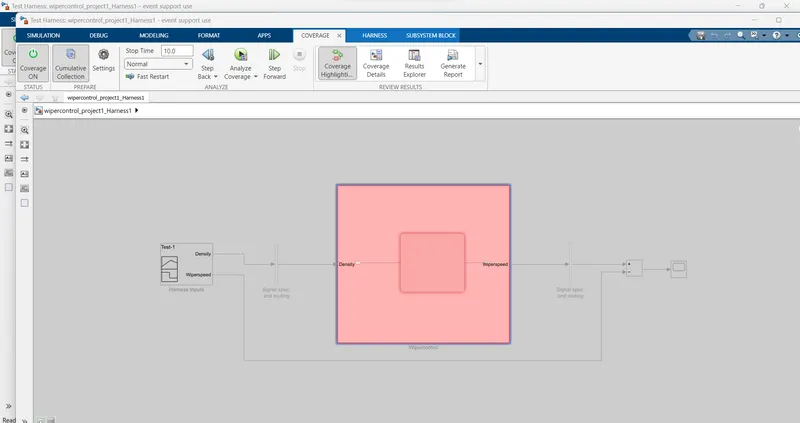

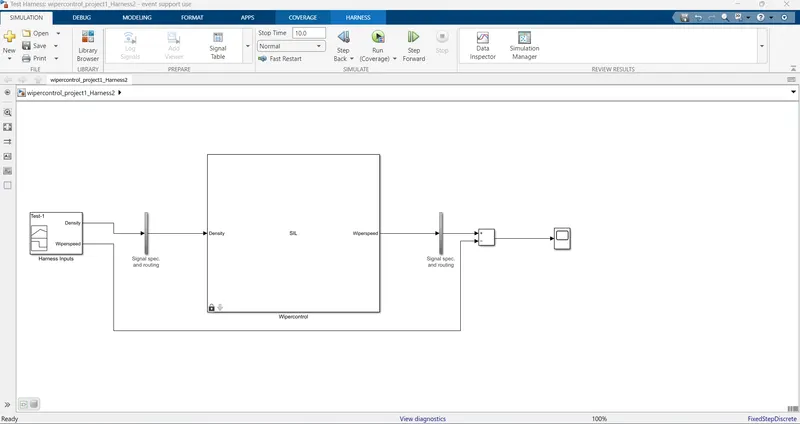

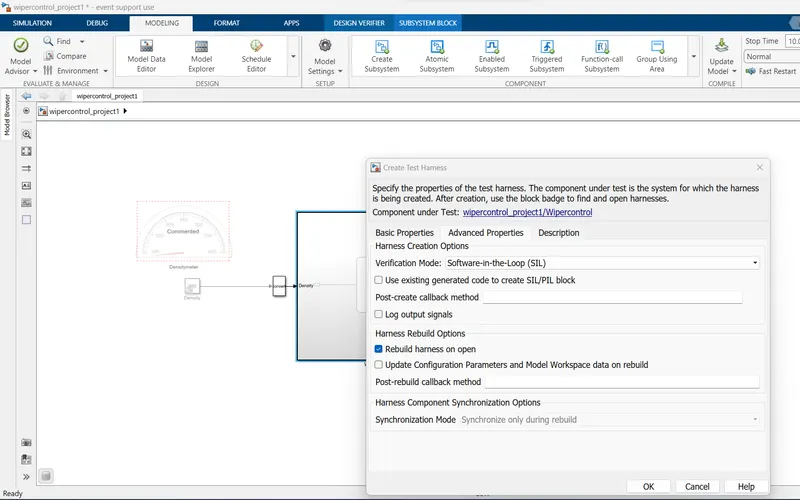

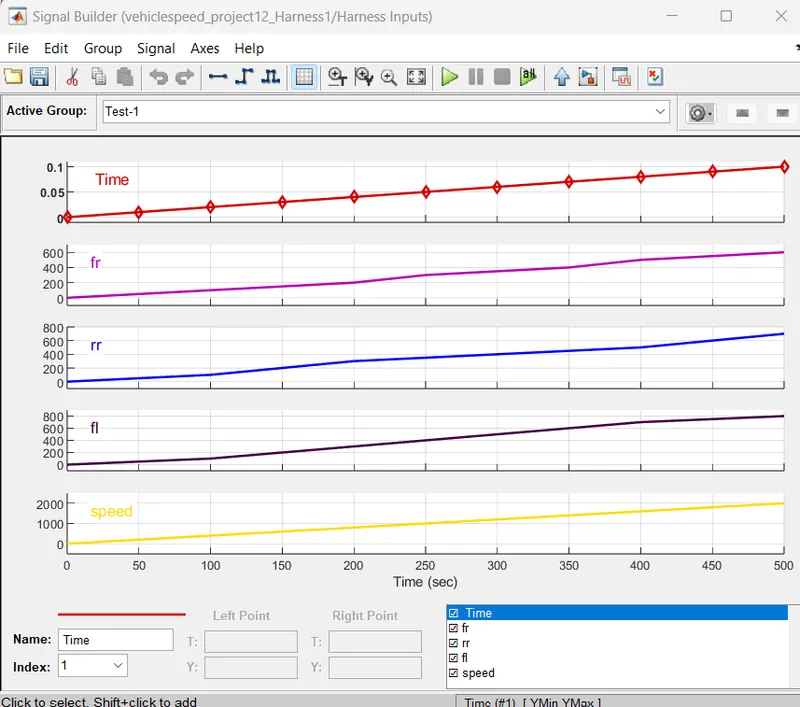

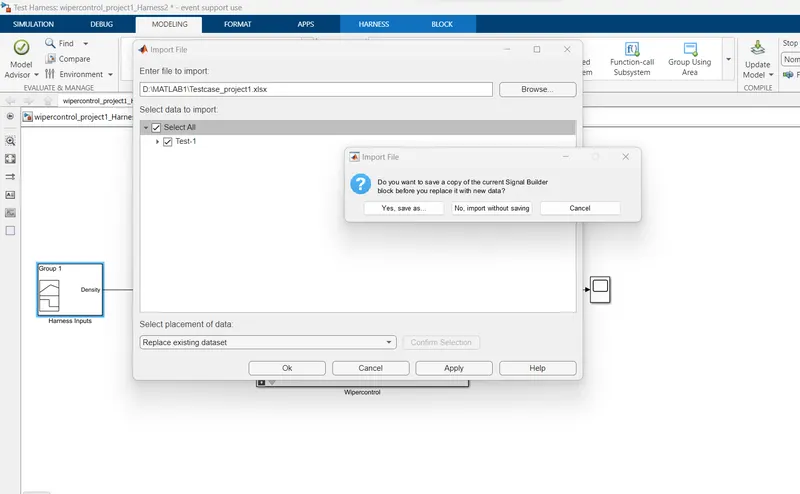

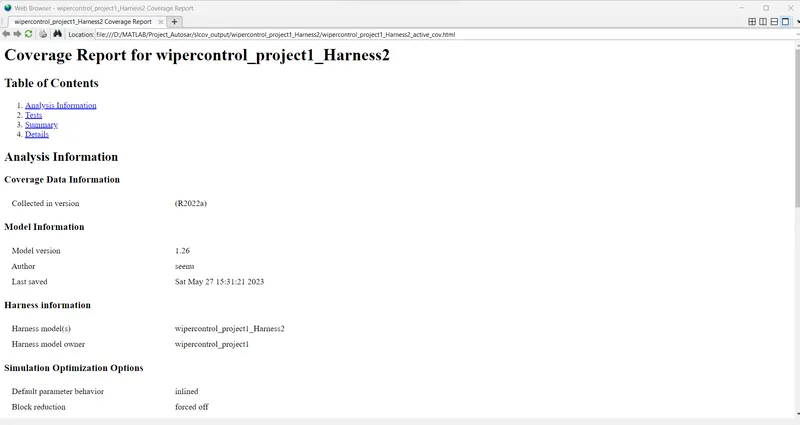

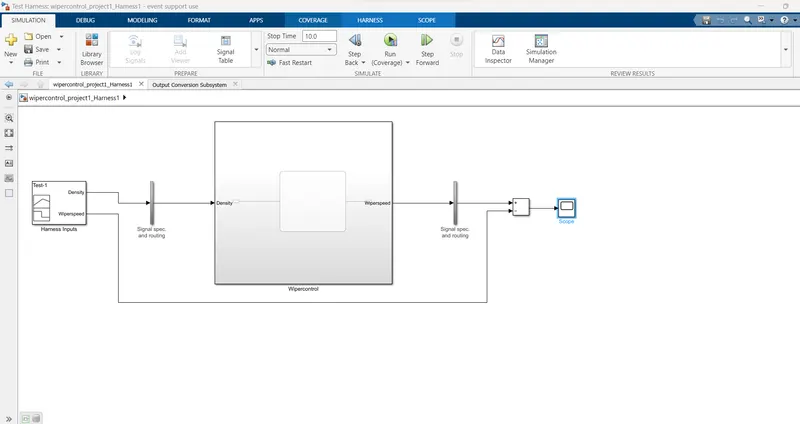

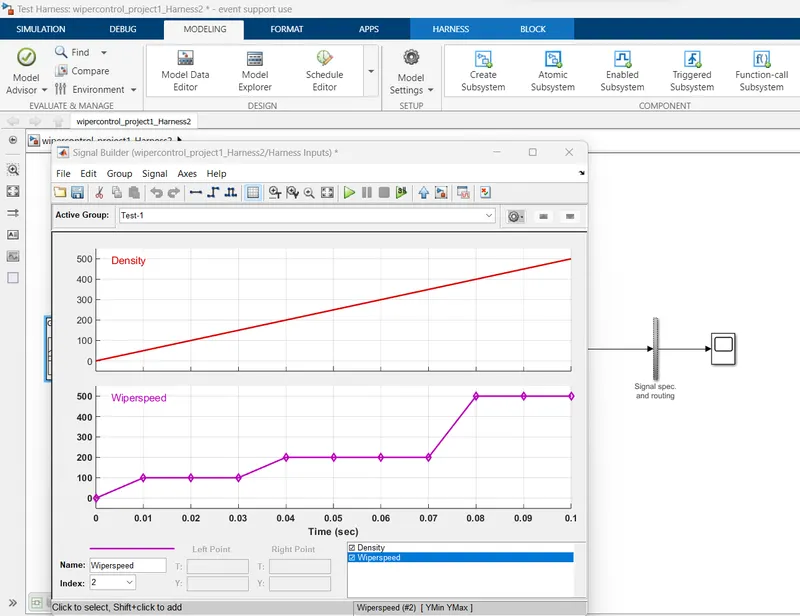

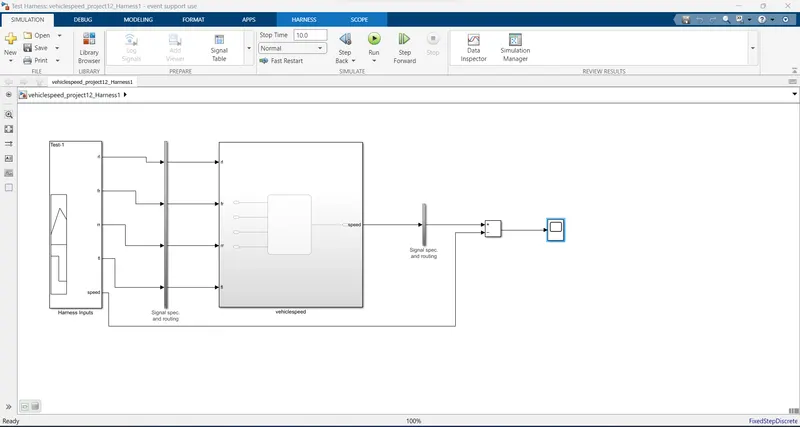

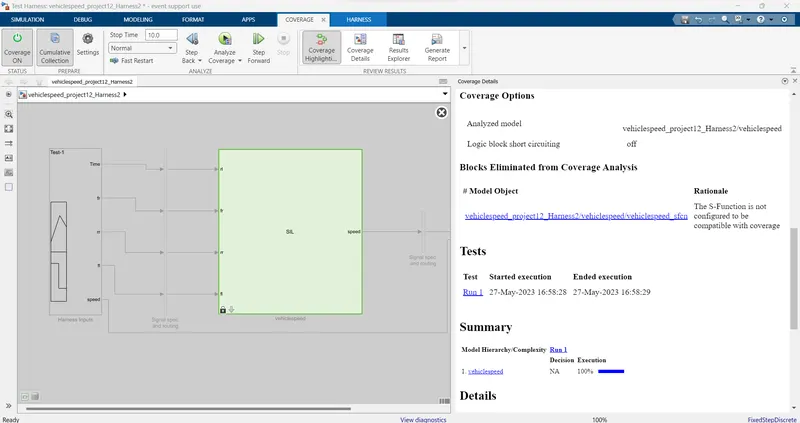

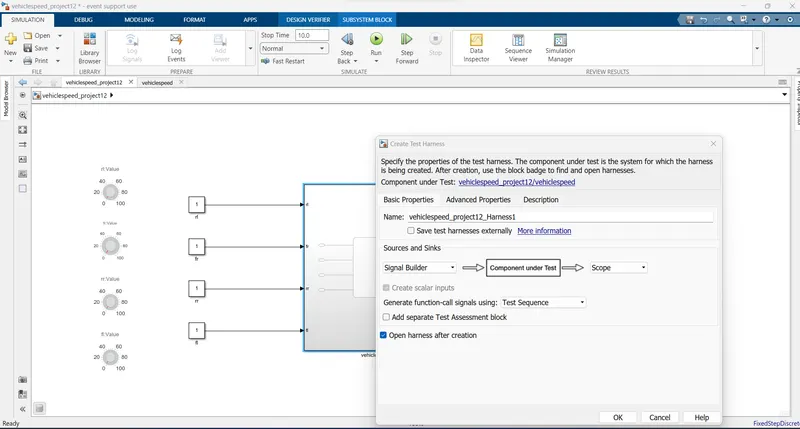

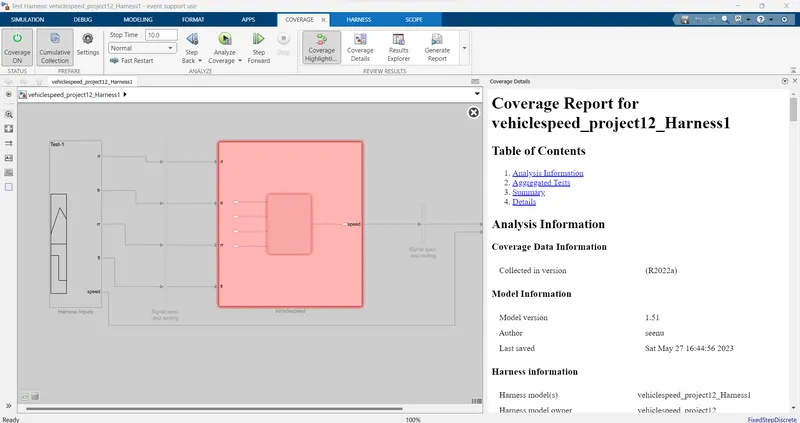

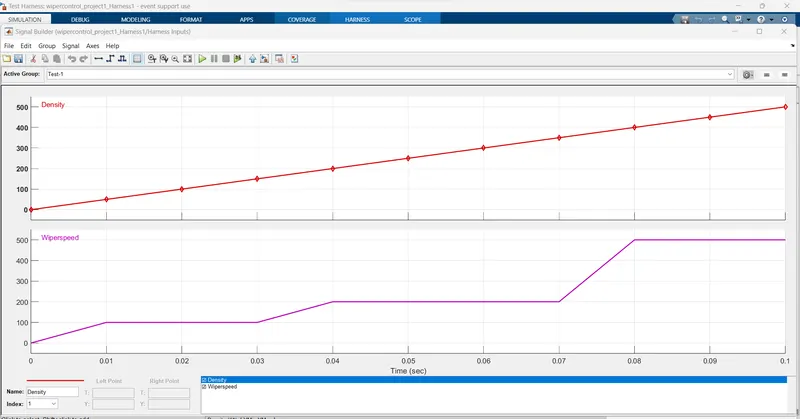

Functional test case, MIL and SIL harness created.
Polyspace anaylsis report:
Open poly space software.
Start new project.
Enter name of project and author name.
Browse location of file. Click next.
Project would be linked to source folder.
In configuration, select source code language as C, compiler as generic , target processor type.
Under coding standards, enable Check MISRA C:2004.
Under Bug finder analysis, enable find defects.
Under reporting tab, enable generate report and format fo out put.
Run Bug finder.
Result shows with graphical visualization regarding code covered by analysis, how many defects found, what are the MISRA C: 2004 violation by rule.
In result view, status could be changed such as unreviewed, to investigate, to fix, justified, no action planned, not a defect, other.
In source window, error positions were showed.

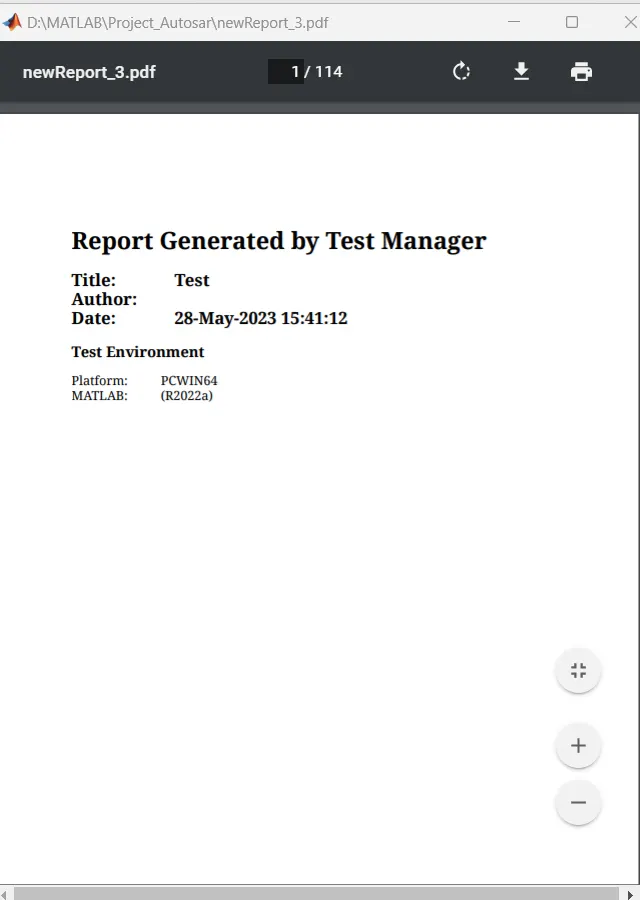

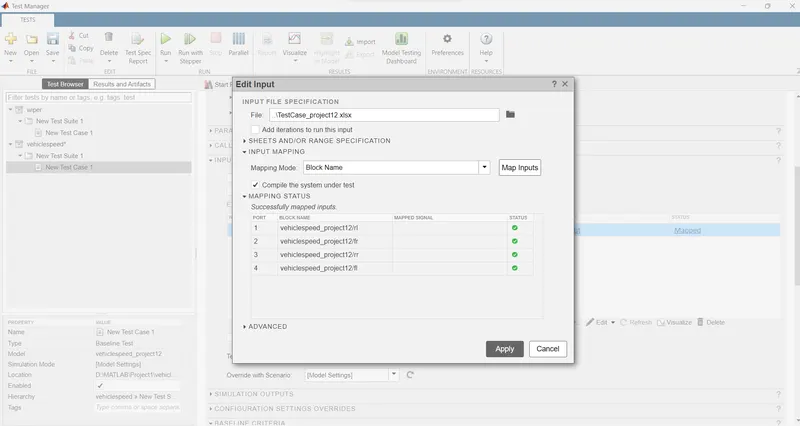

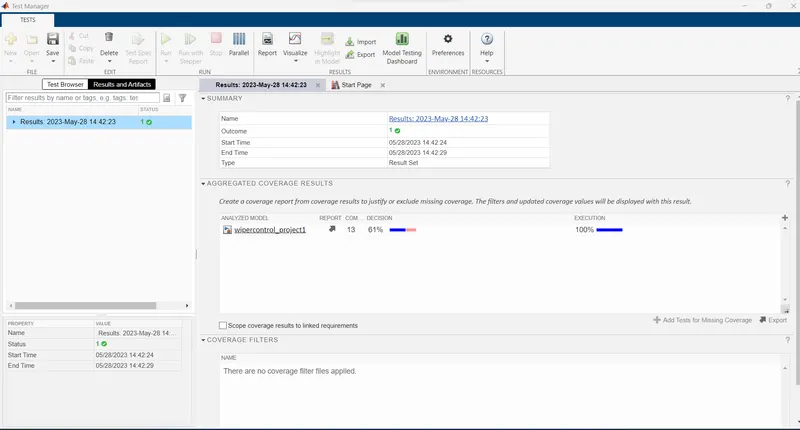

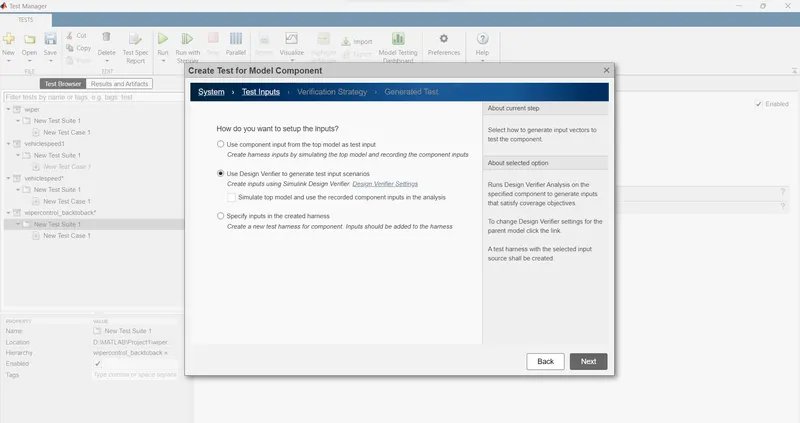

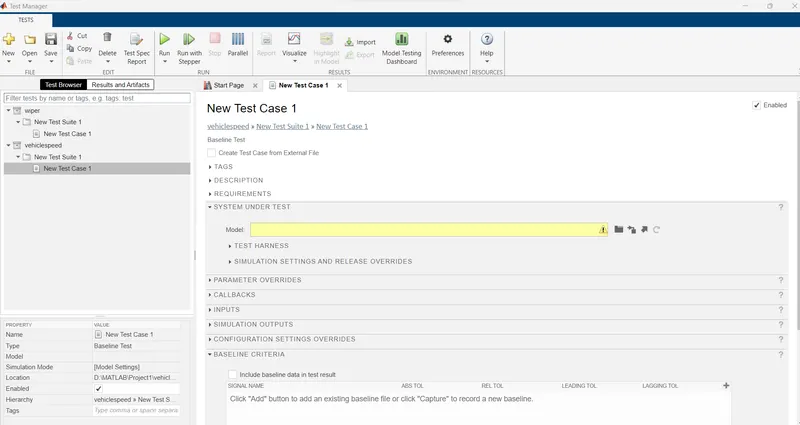

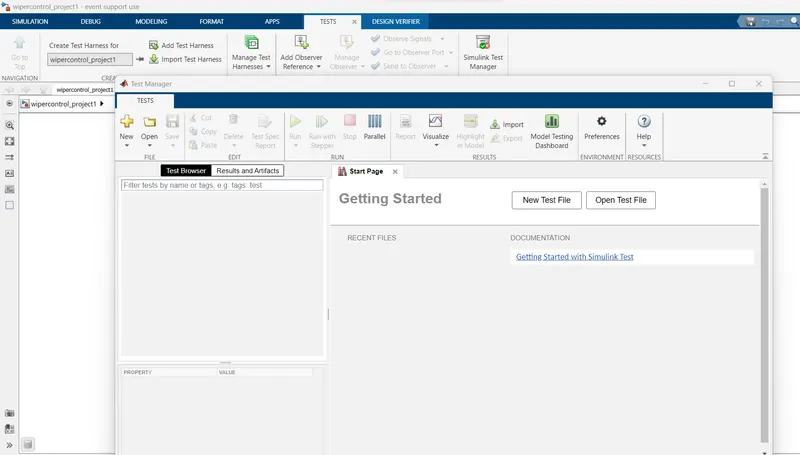

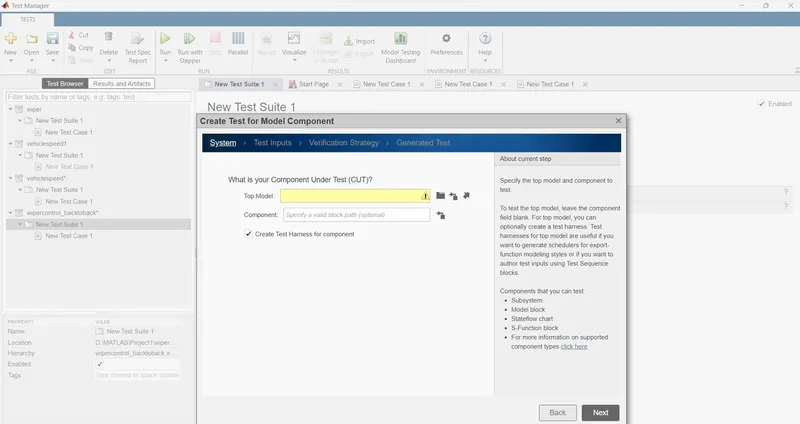

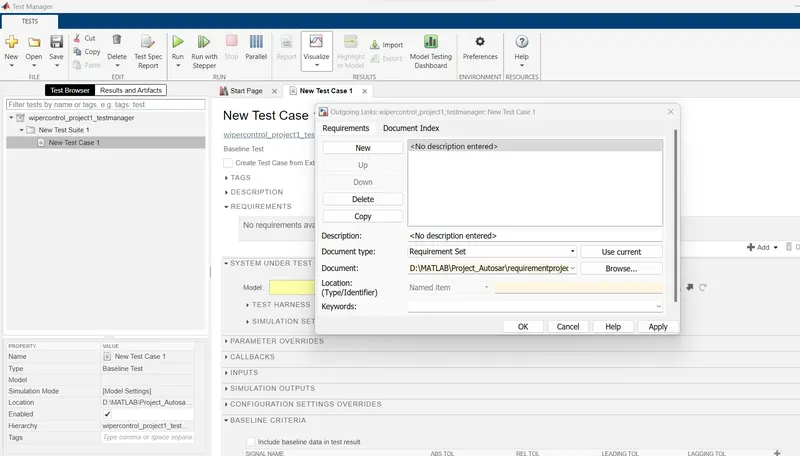

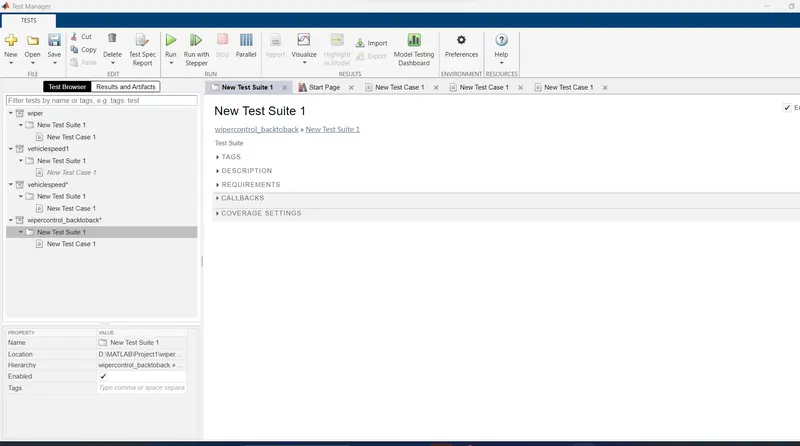

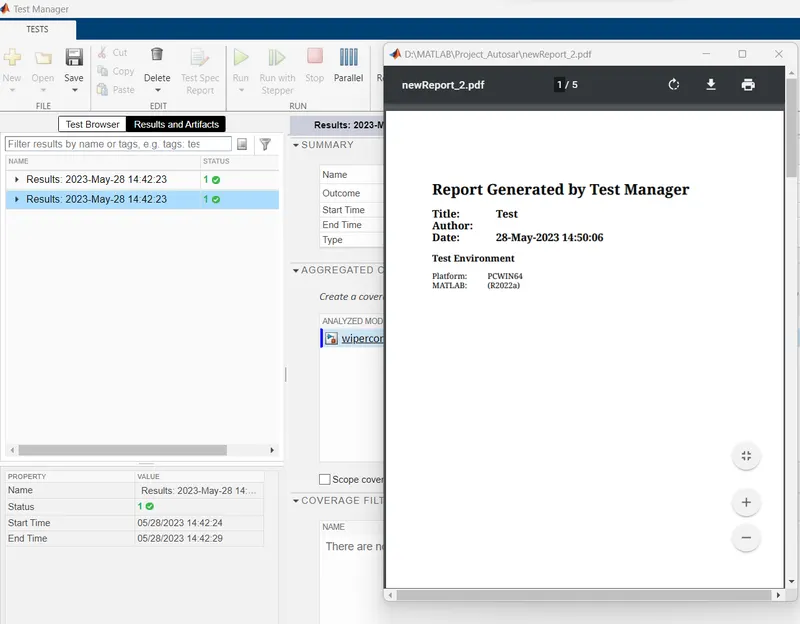

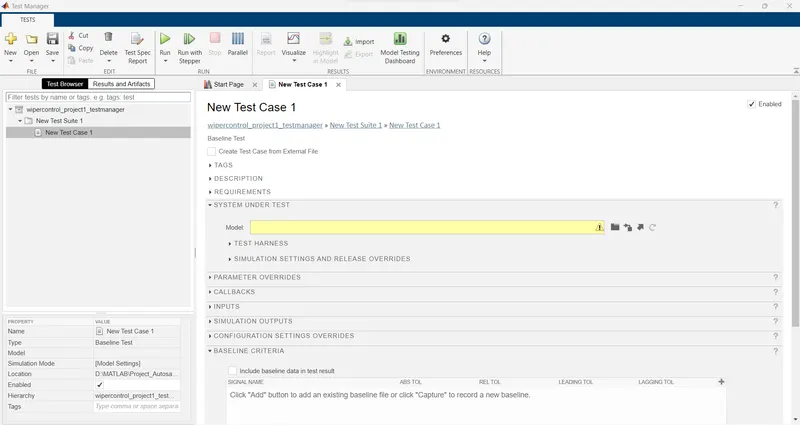

Test Manager:

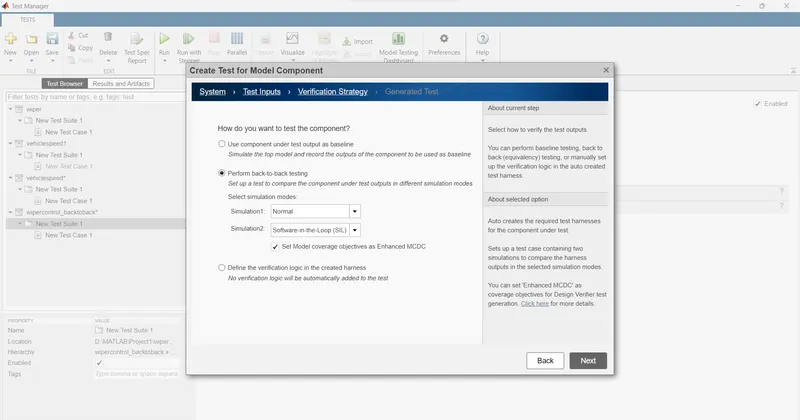

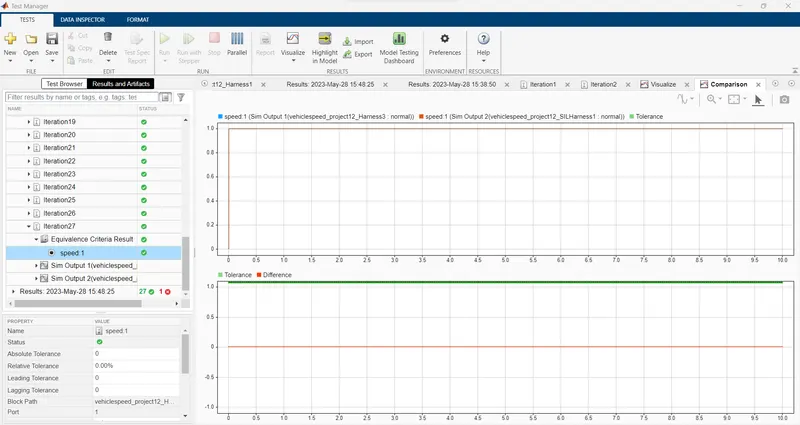

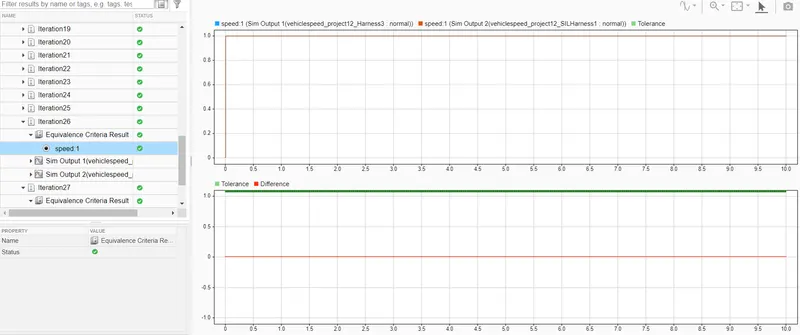

Back to Back testing:
2.

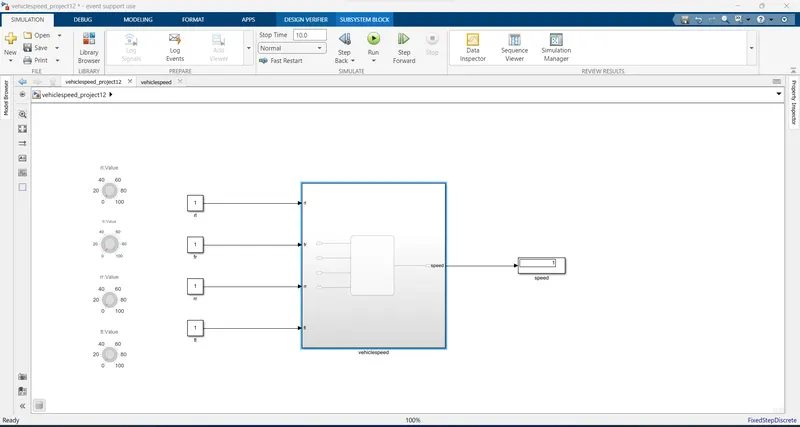

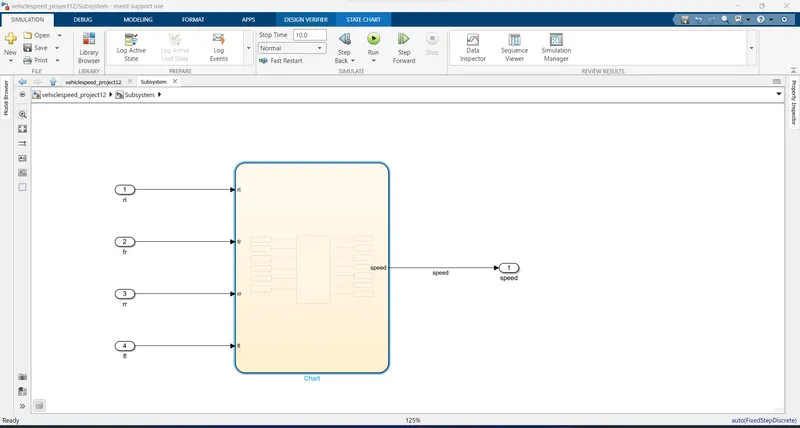

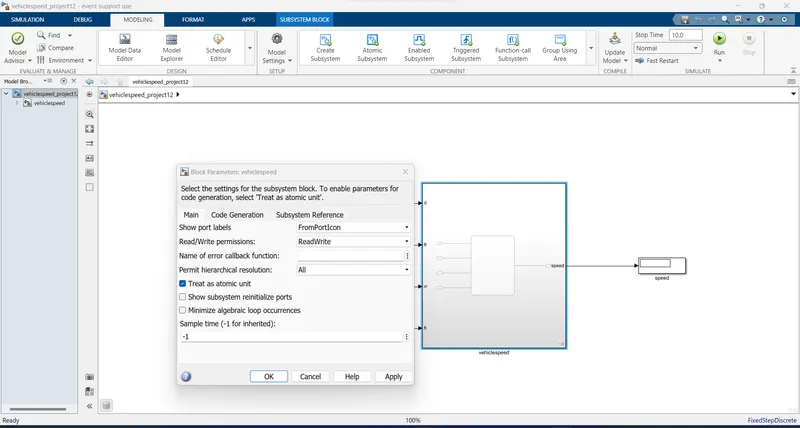

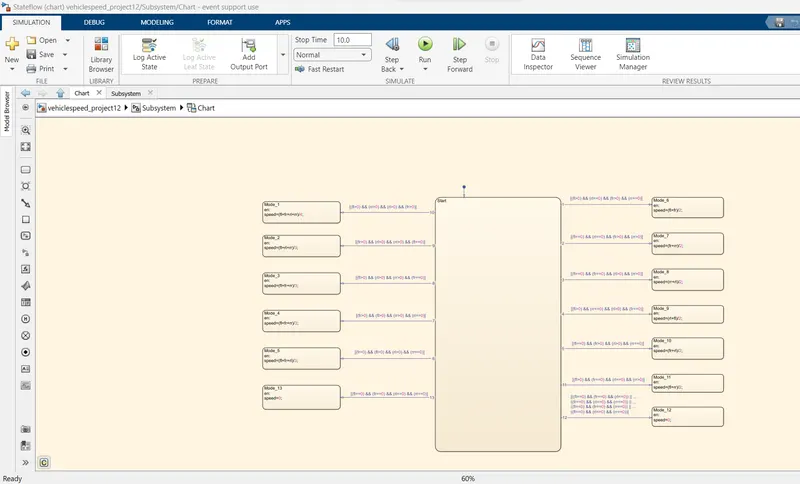

Simulink model created.
Created SLDD file.

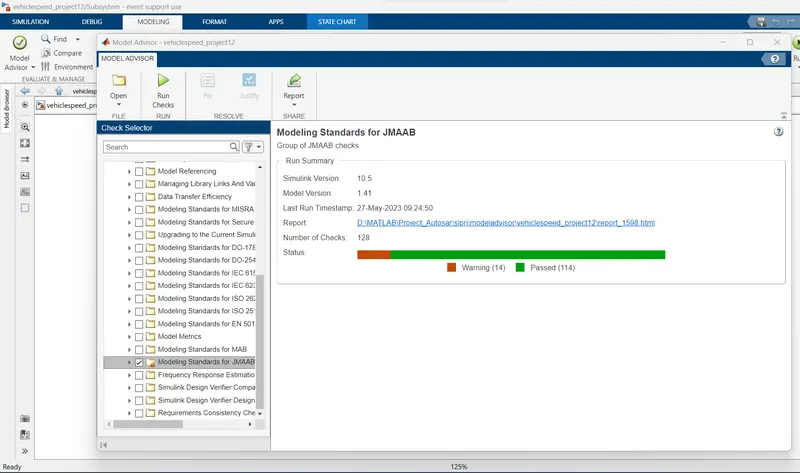

Moder advisor report generated.
Requirement tagged.
Fixed point tool analysed.

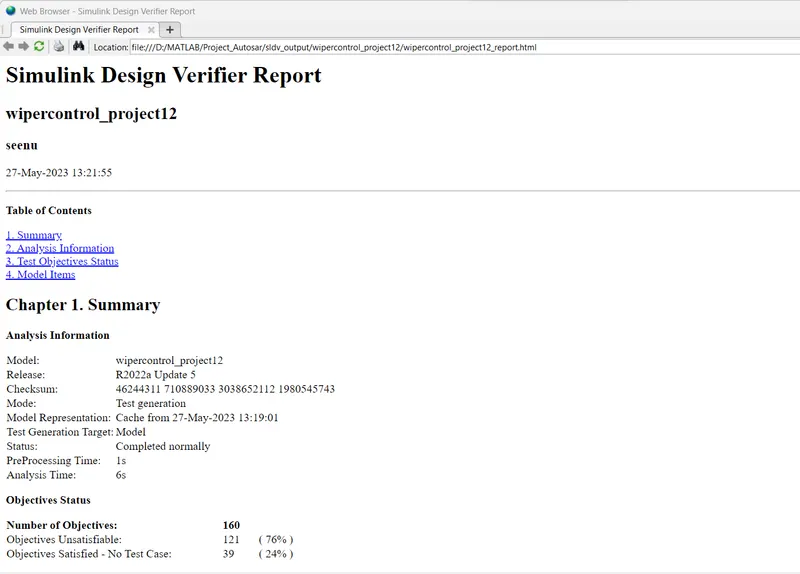

SLDV design error detection report attached.

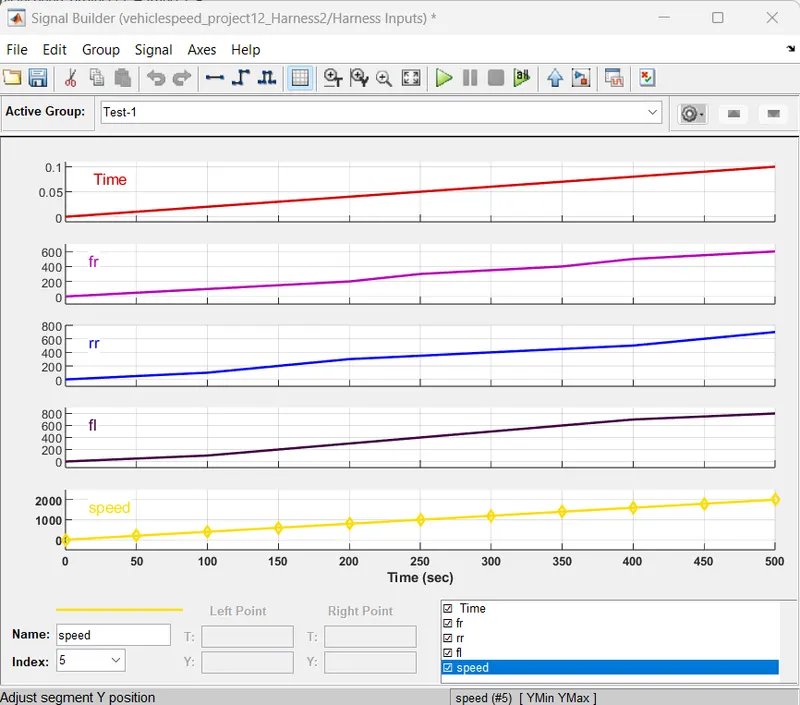

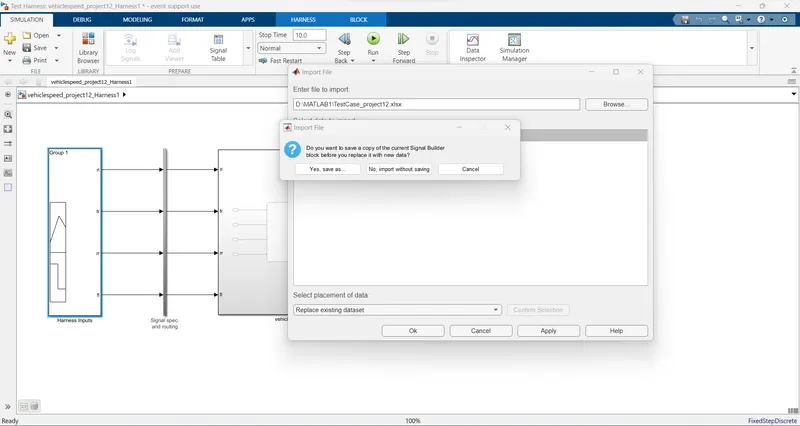

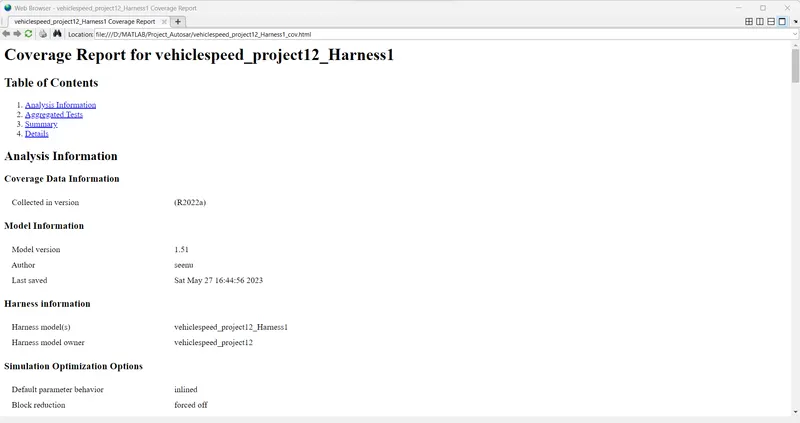

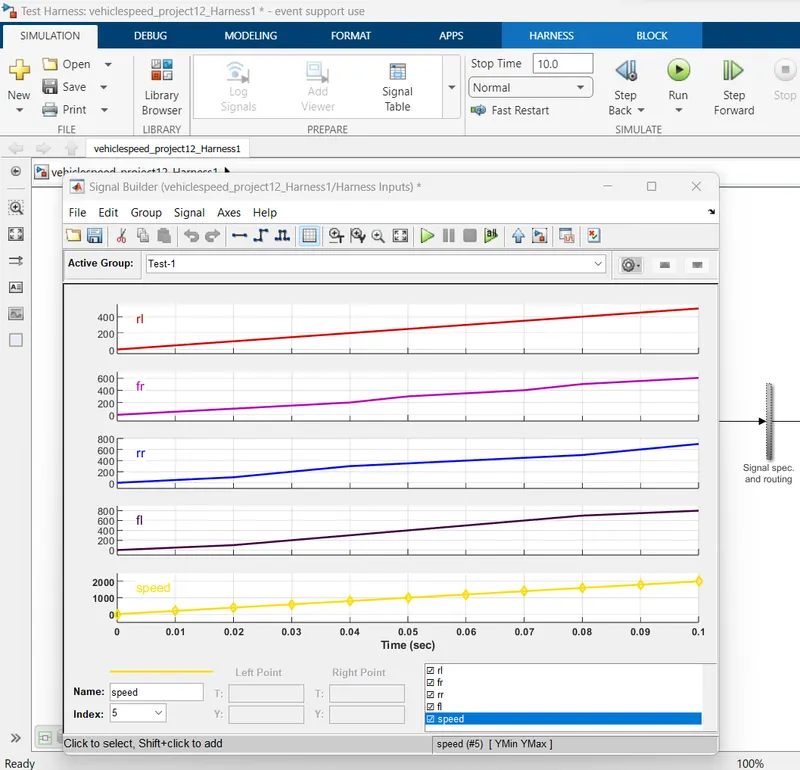

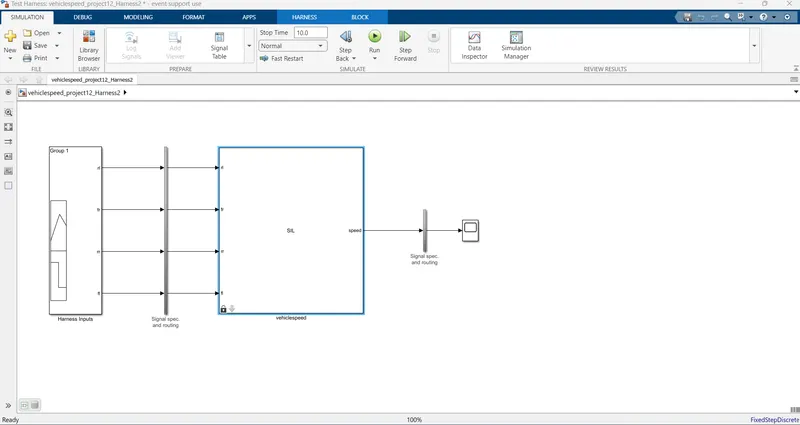

Functional test case, MIL and SIL harness created.
Polyspace anaylsis report:
Open poly space software.
Start new project.
Enter name of project and author name.
Browse location of file. Click next.
Project would be linked to source folder.
In configuration, select source code language as C, compiler as generic , target processor type.
Under coding standards, enable Check MISRA C:2004.
Under Bug finder analysis, enable find defects.
Under reporting tab, enable generate report and format fo out put.
Run Bug finder.
Result shows with graphical visualization regarding code covered by analysis, how many defects found, what are the MISRA C: 2004 violation by rule.
In result view, status could be changed such as unreviewed, to investigate, to fix, justified, no action planned, not a defect, other.
In source window, error positions were showed.

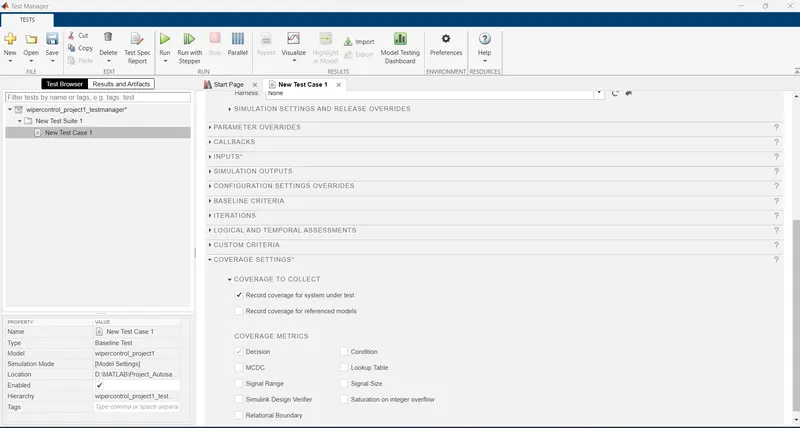

Test manager:
