Project 2_Design & Analysis of a Hostel building at Guwahati, Assam
Aim: To design and analysis of G+3 hostel building in Etabs and Foundation in SAFE.
Given:
- The walls will be made of AAC blocks.
- The buildings rests on type 3 soil. Piles of length 10 meters and 500 mm diameter with a load-carrying capacity of 280 KN is to be used.
- The ground floor level will be at a height of 2 meters above the existing site level to avoid floodwater enter the building.
- M25 grade of concrete with Fe500 for longitudinal reinforcement and Fe 415 for shear reinforcement is to be used.
Procedure:
Open Etabs and open a new model

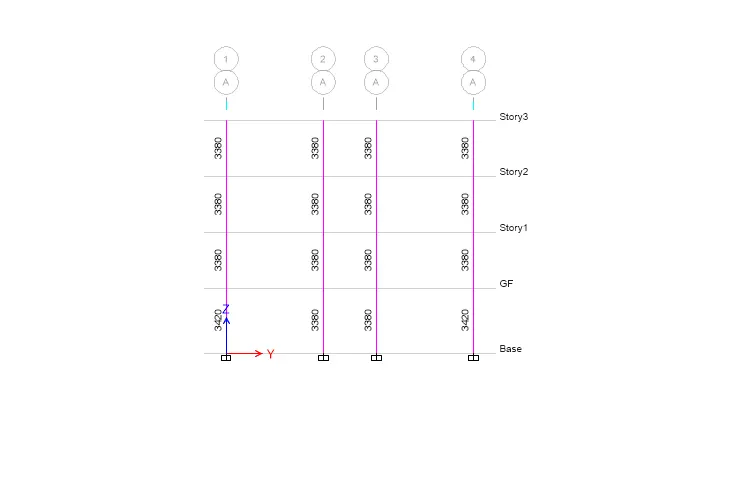

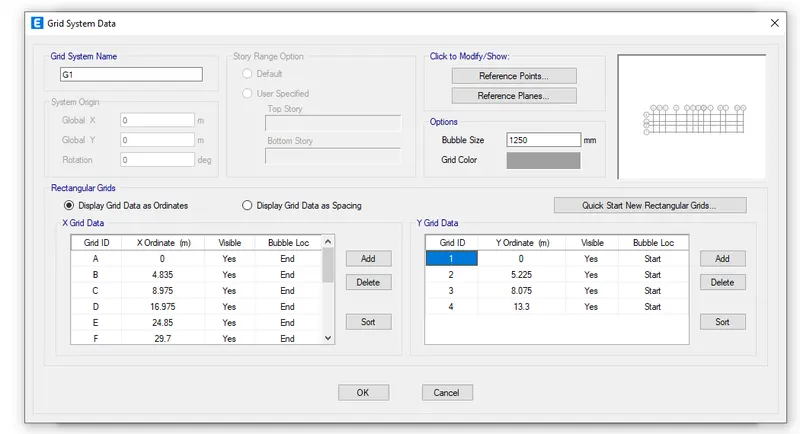

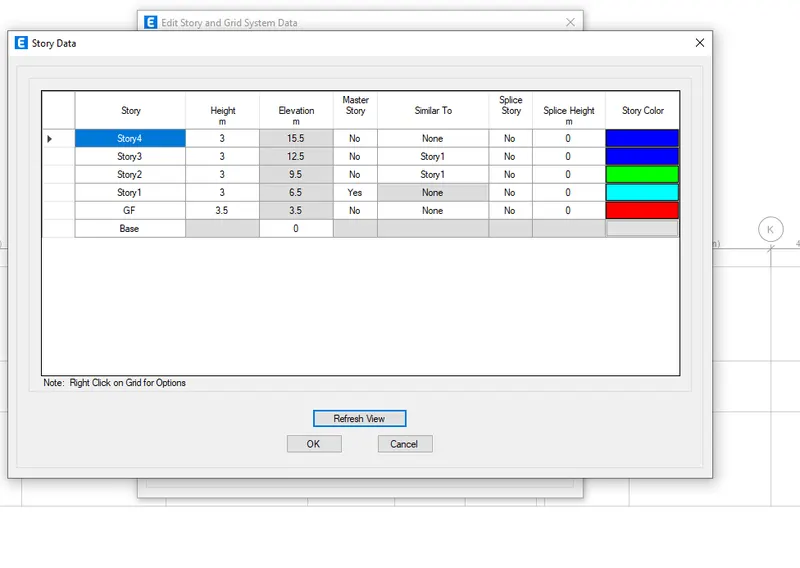

Enter the story height and grids according to the architectural plan

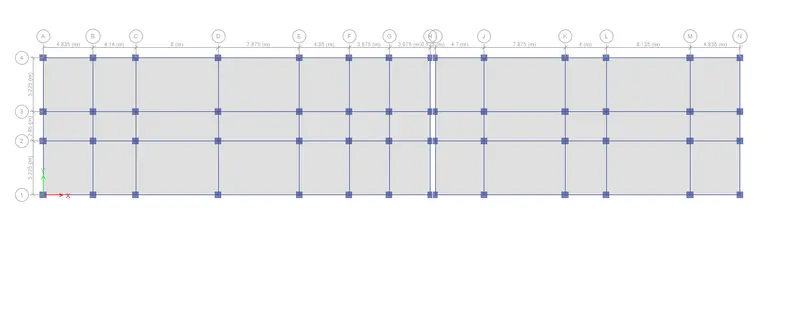

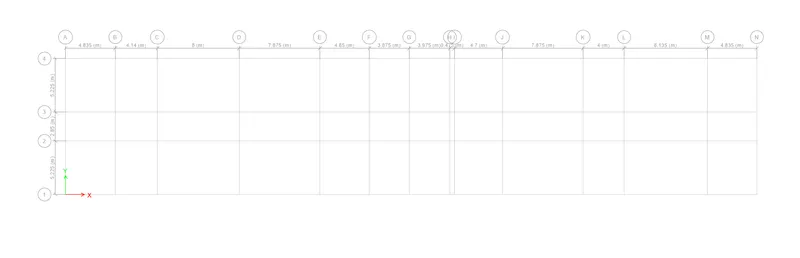

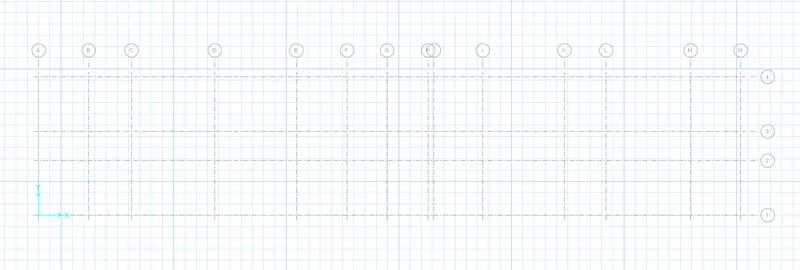

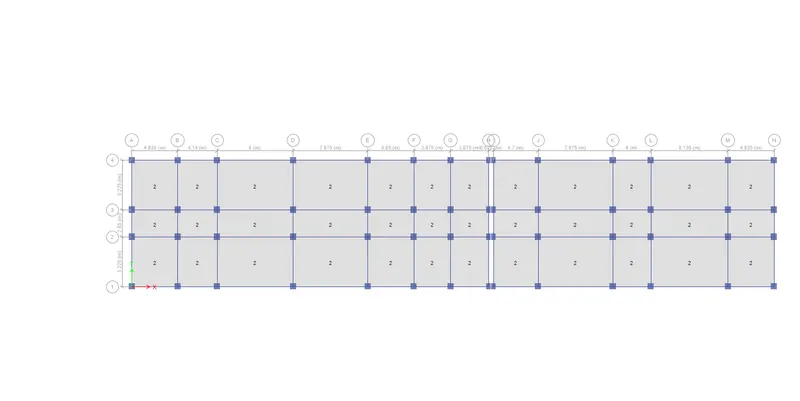

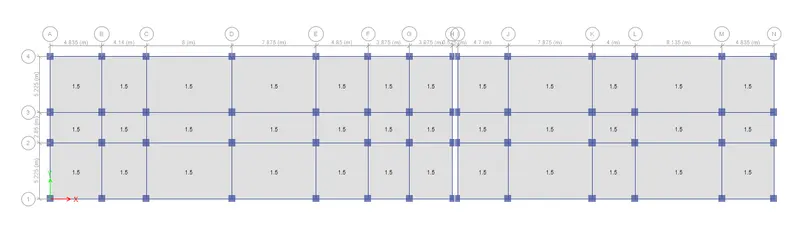

After this we will get a plan

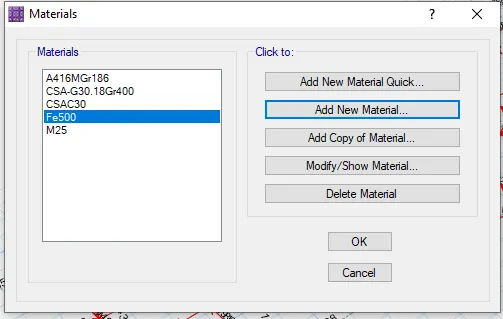

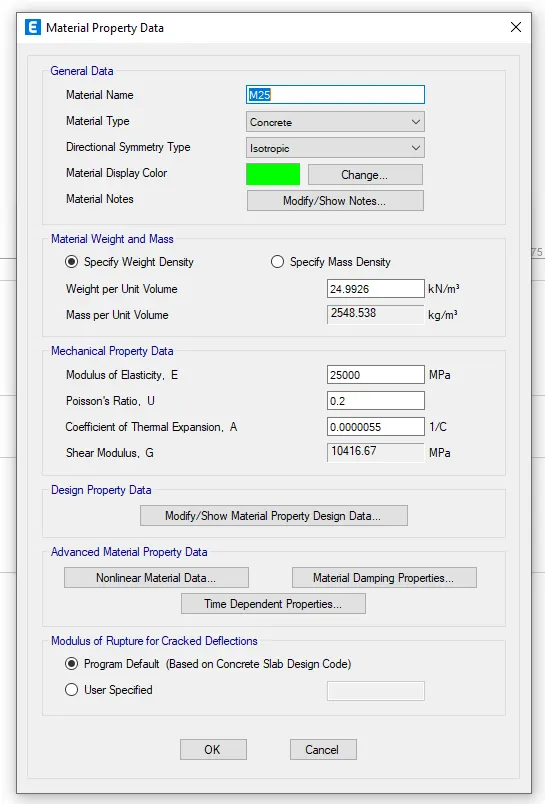

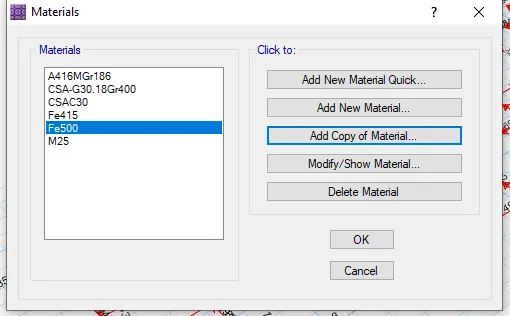

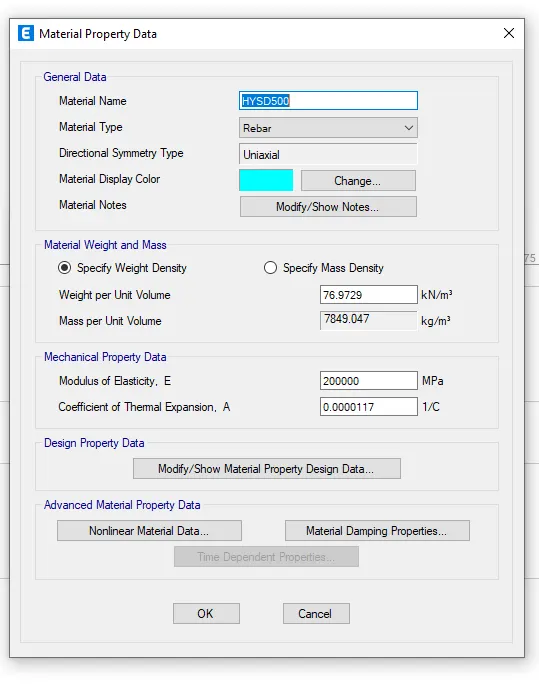

Define materials

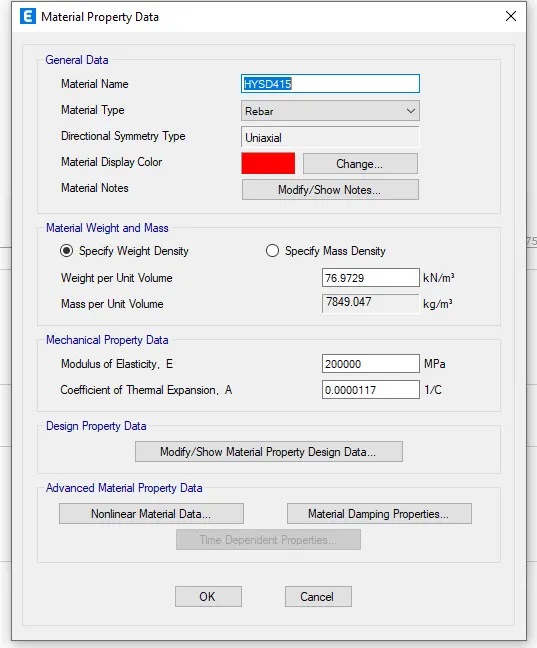

For shear reinforcent

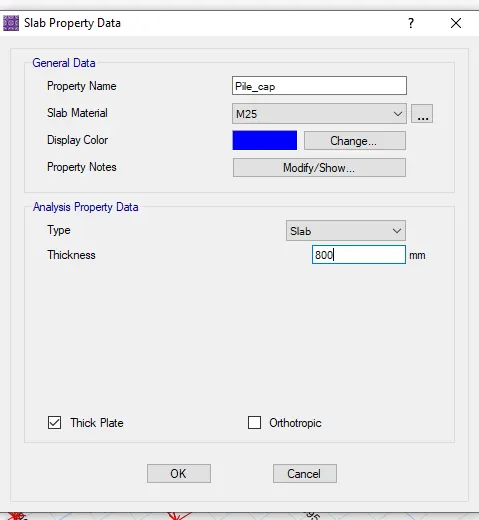

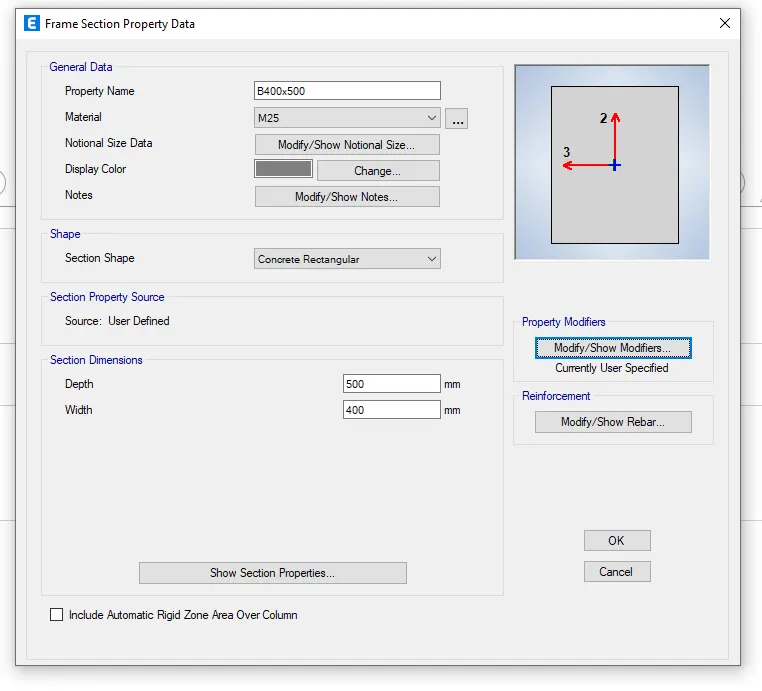

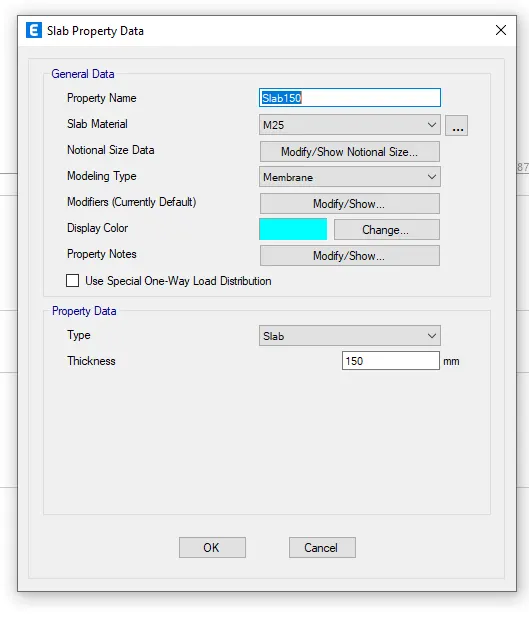

Define secion properties
Beam

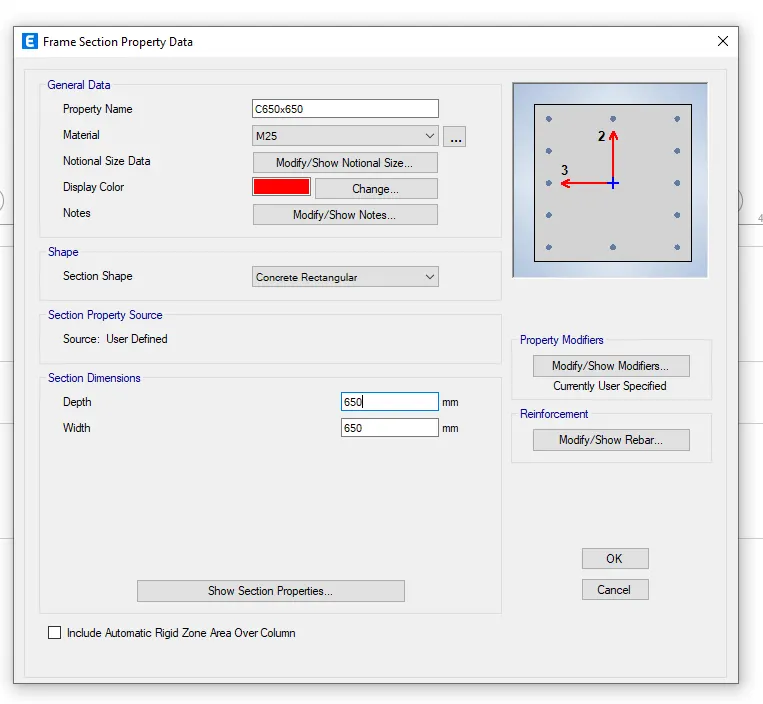

Column
Slab
Start geometric modelling of beams,columns and slabs

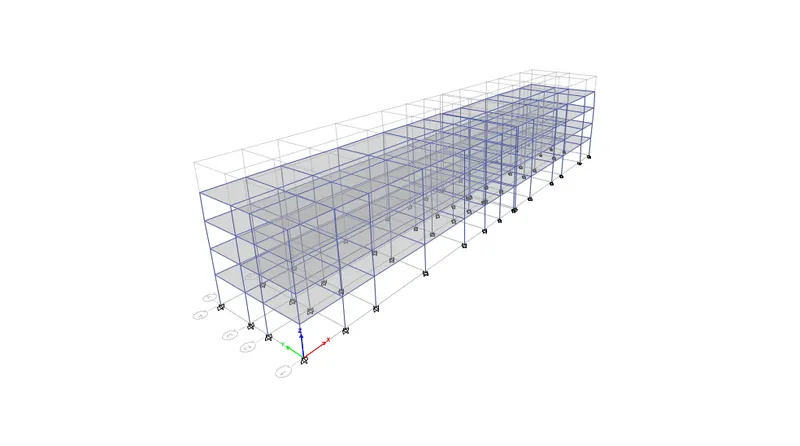

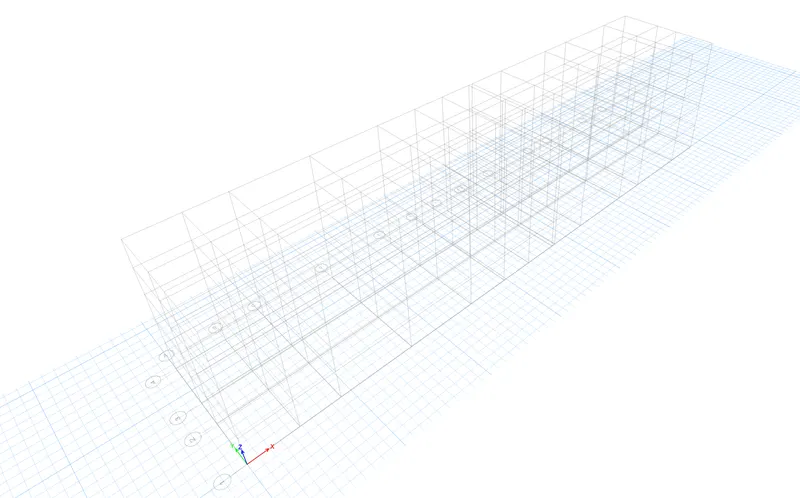

The result will be this
Applications of load:

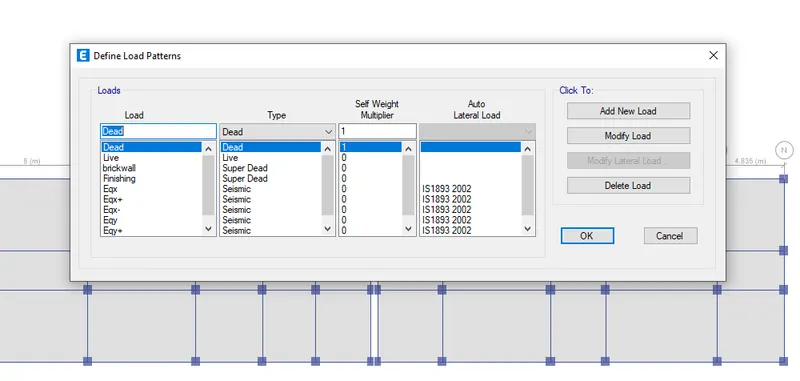

Define load pattern

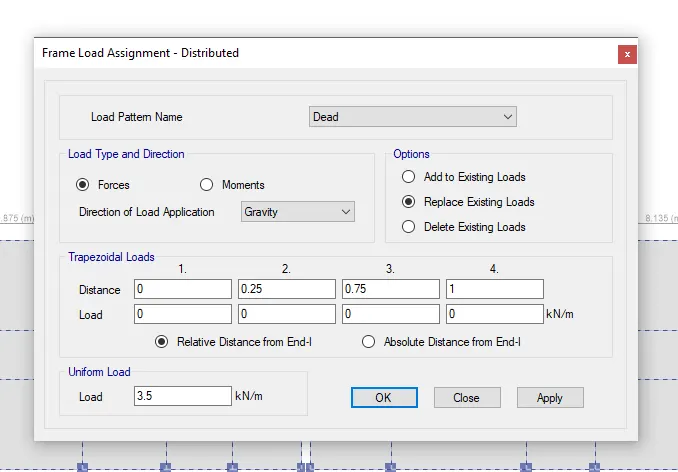

Define dead load

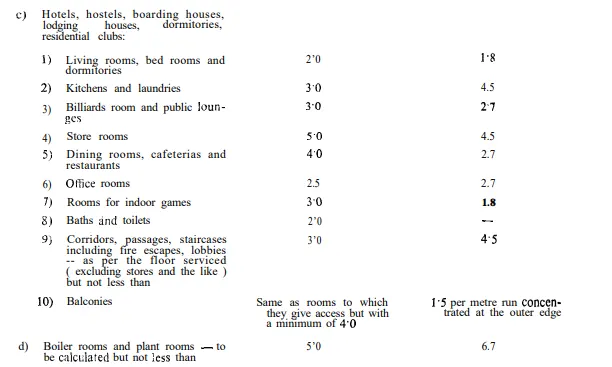

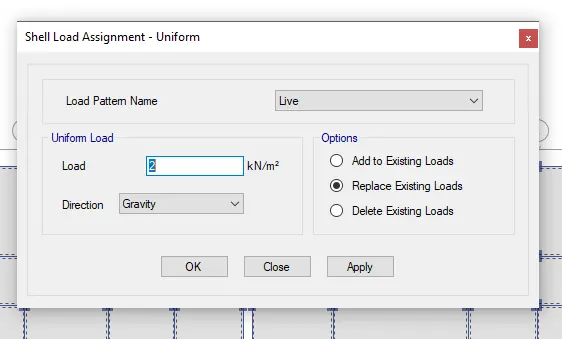

Define live load

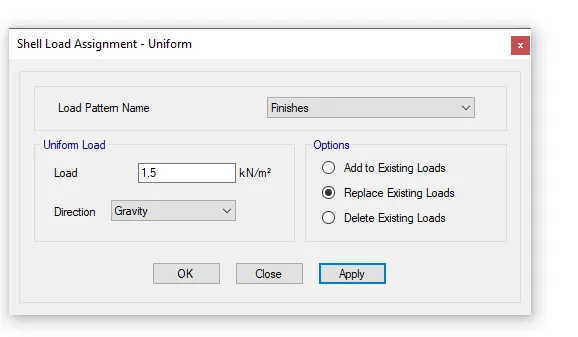

Define floor finishes

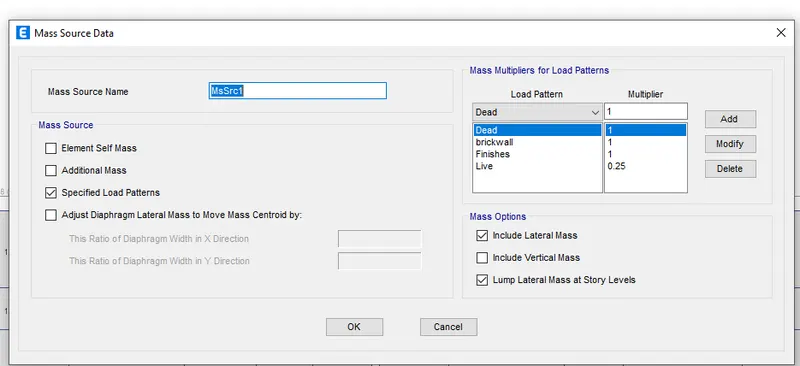

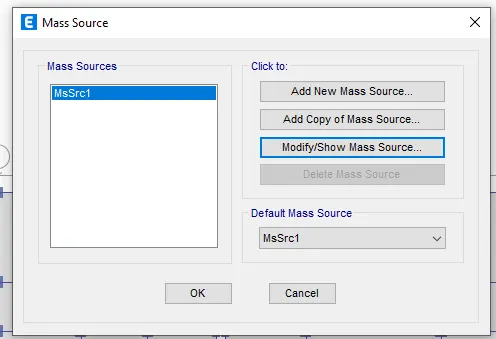

Define mass source

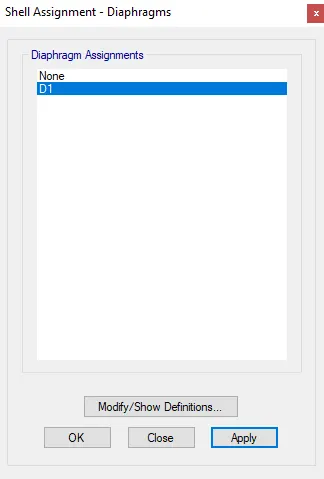

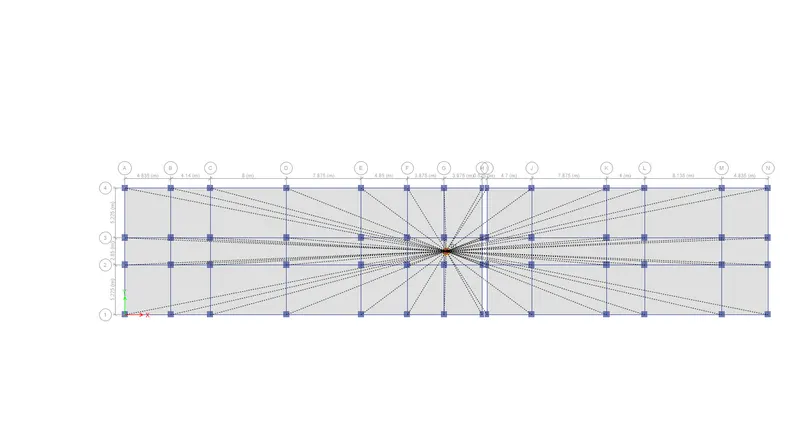

Define diaphragms

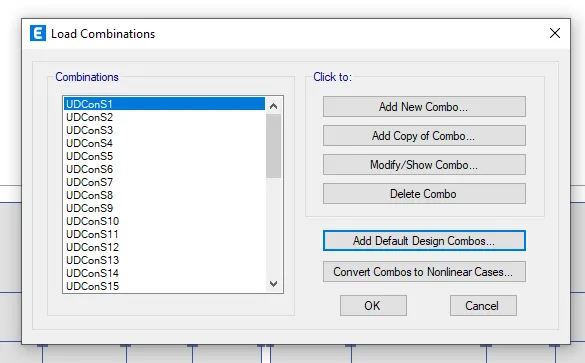

Define load combinations

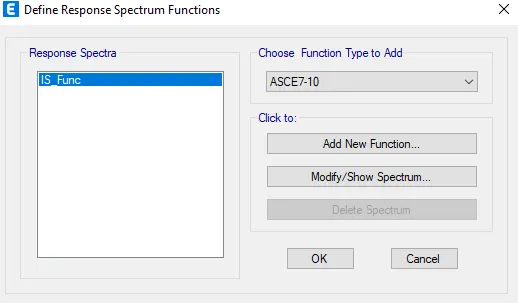

Define response spectrum

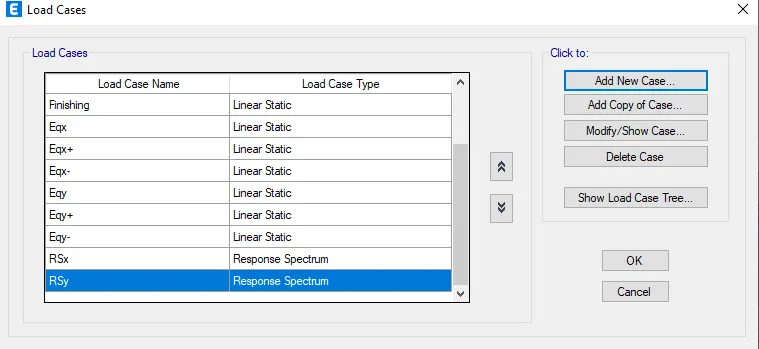

Add response spectrum in load cases

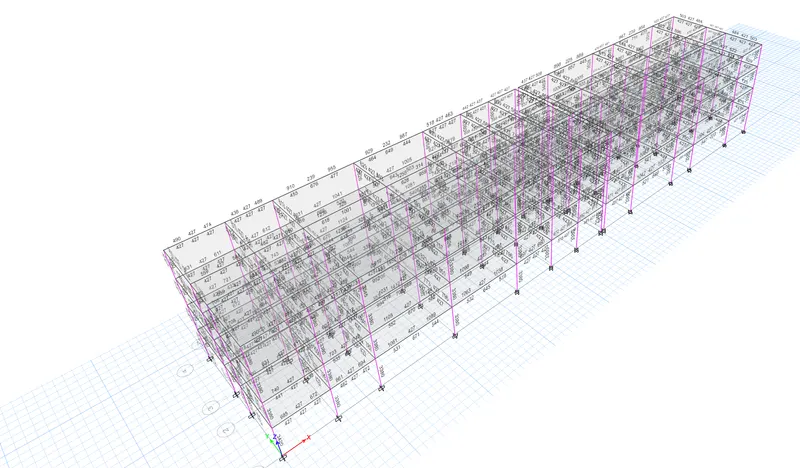

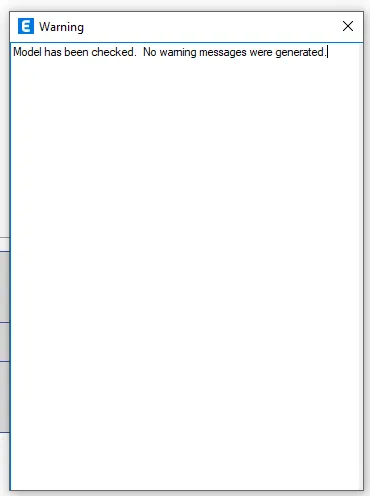

Check the model

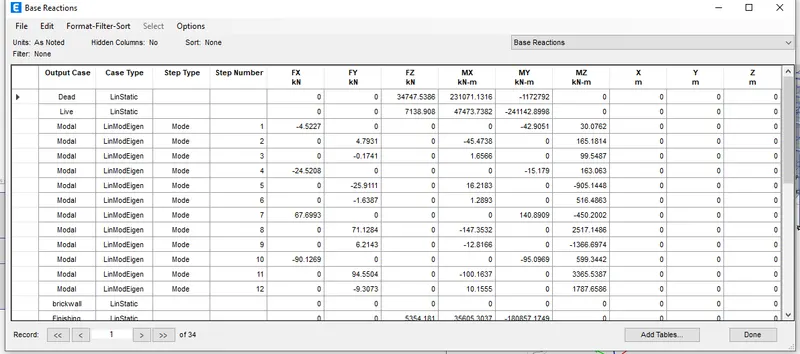

View base reactions

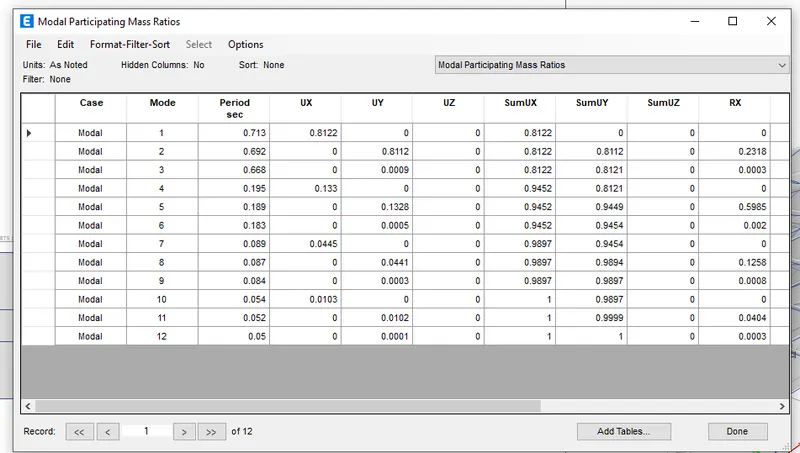

Modal participating mass ratio

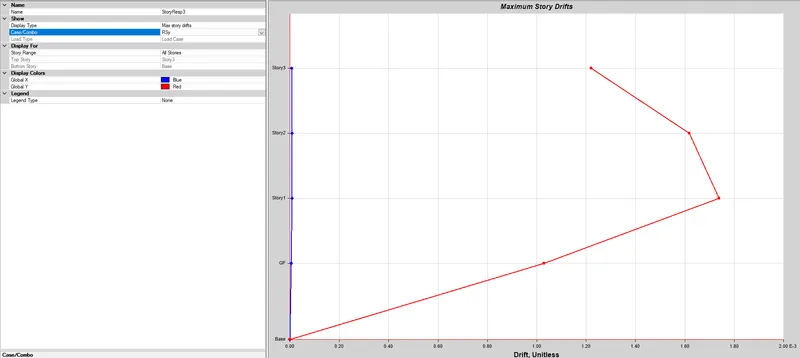

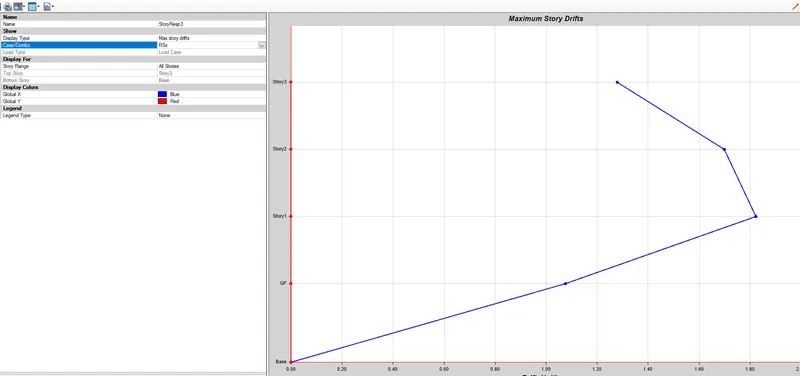

Story drift in RSx direction
Story drift in RSy direction
After everthing's alright, run concrete design

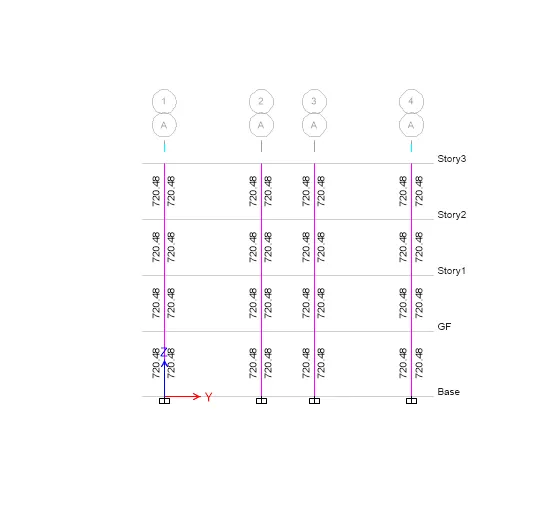

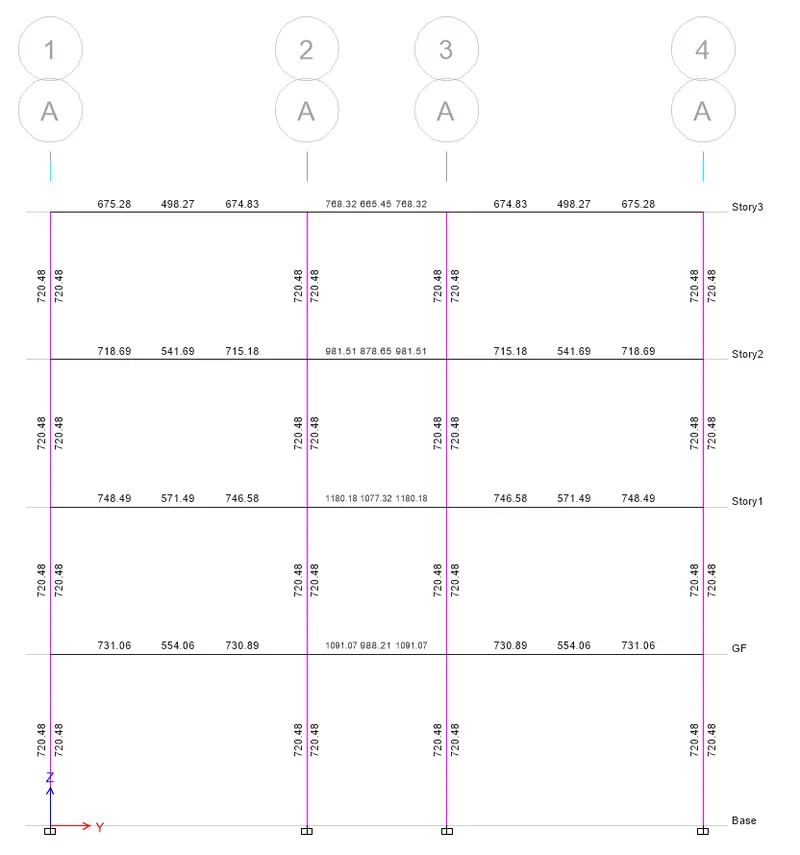

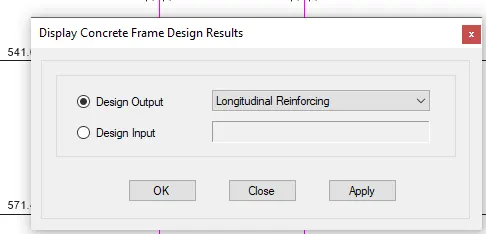

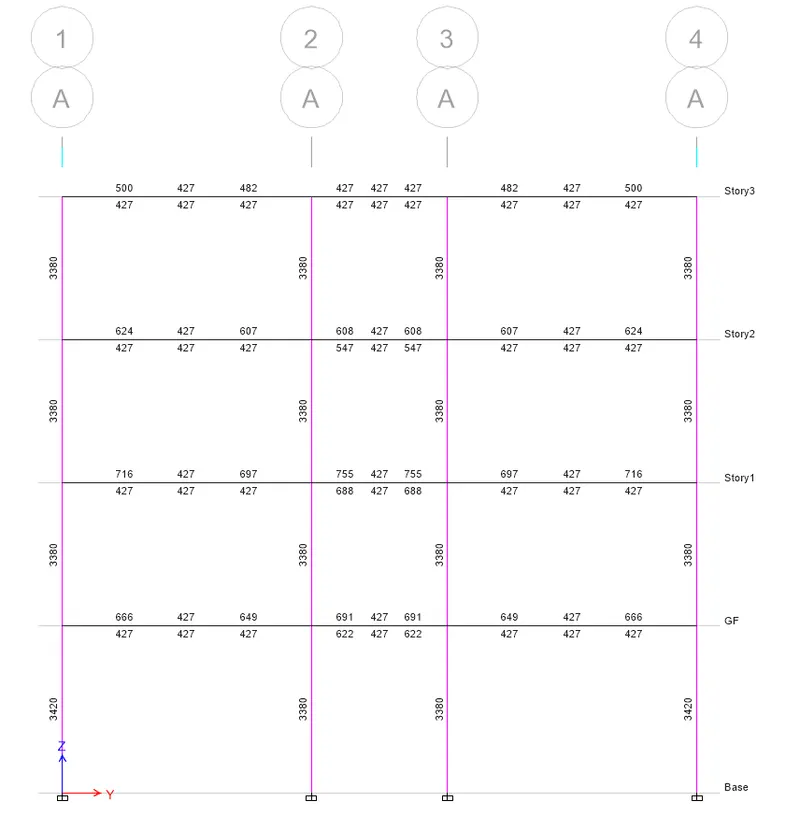

Elevation A view of column for longitudinal Reinforcement

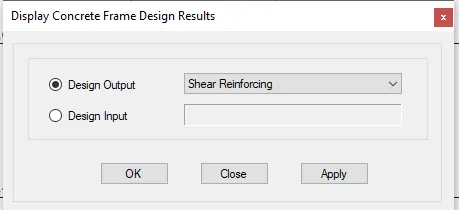

Shear reinforcement
Designing beam along grid 1

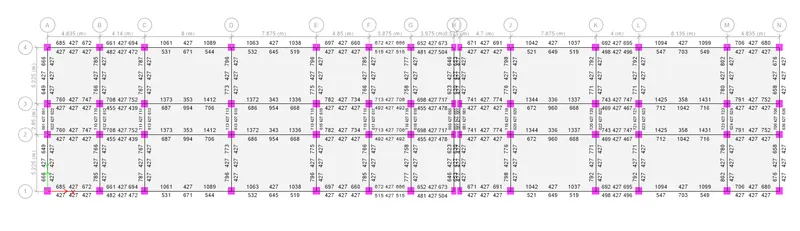

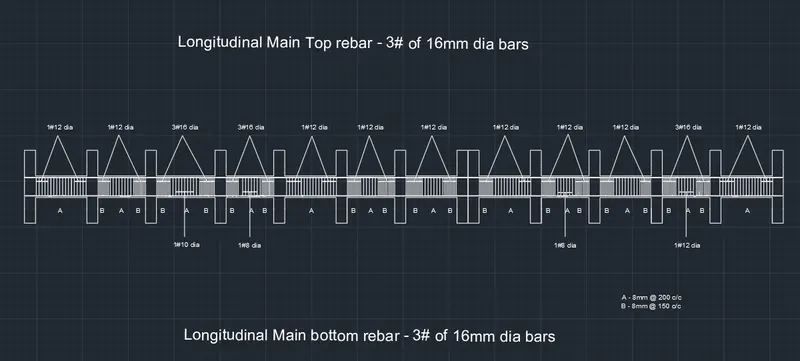

The reinforcement detailing for beam along grid 1
Designing the reinforcement for column in grid A
Shear value

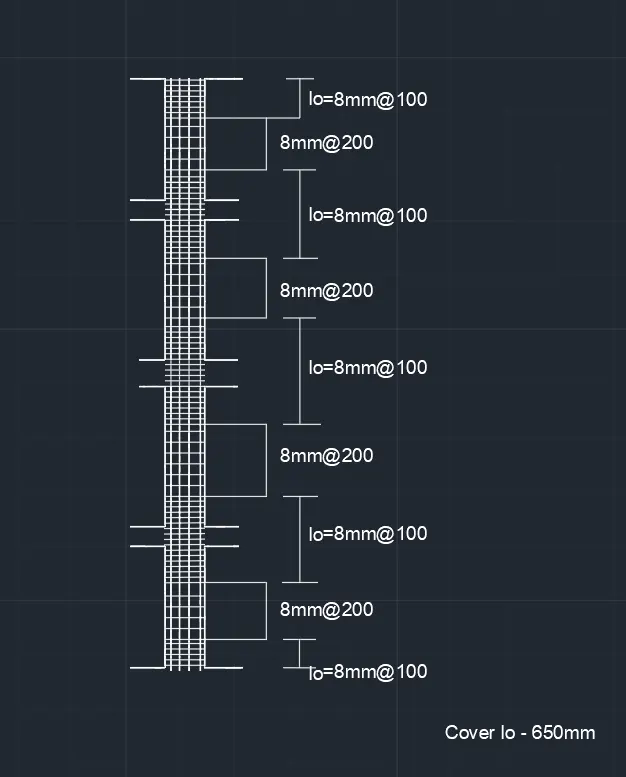

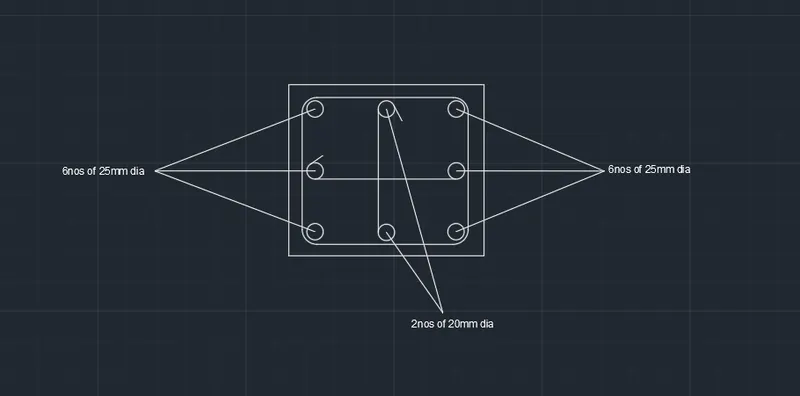

Reinforcement detailing for column

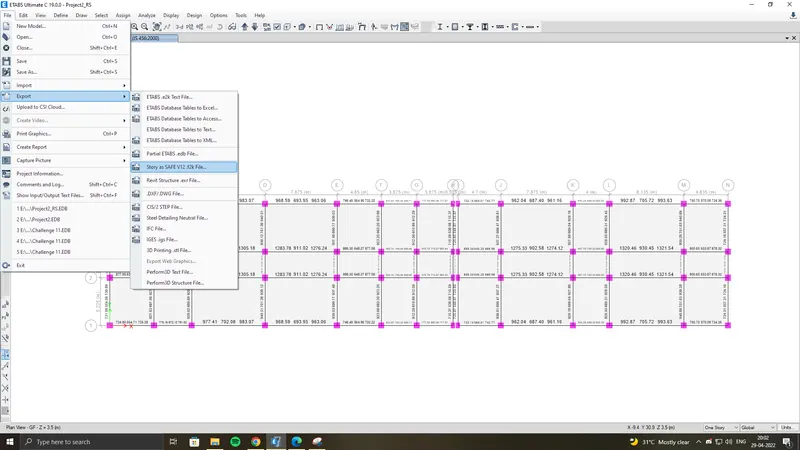

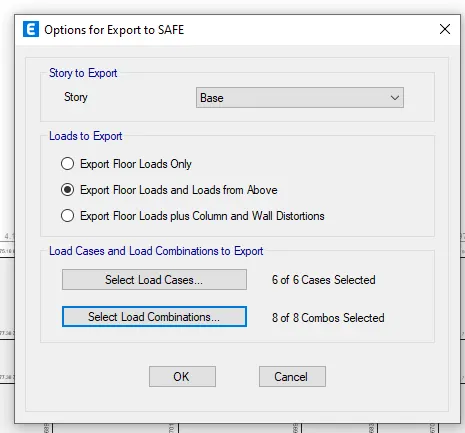

Export this model to SAFE software to design and analys the foundation

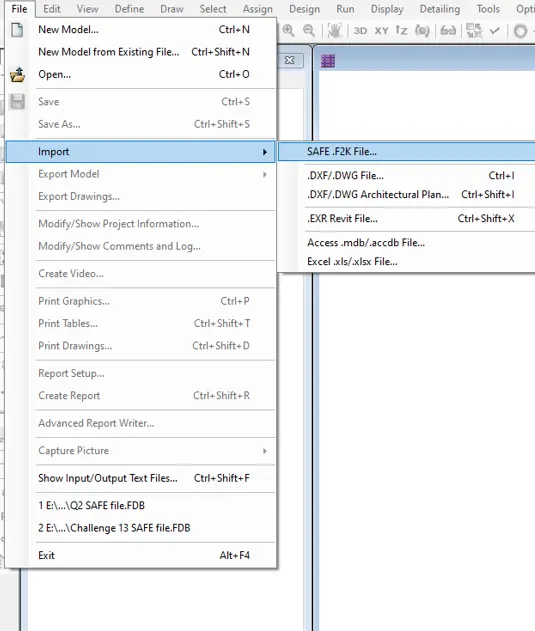

Open SAFE software and import the saved Etabs file
After defining material property,section property

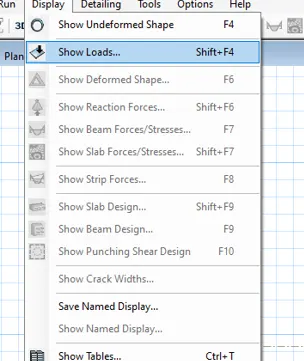

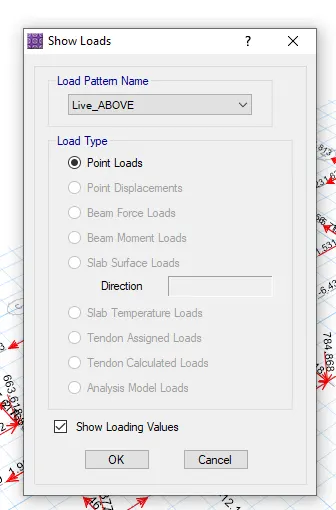

View live load above

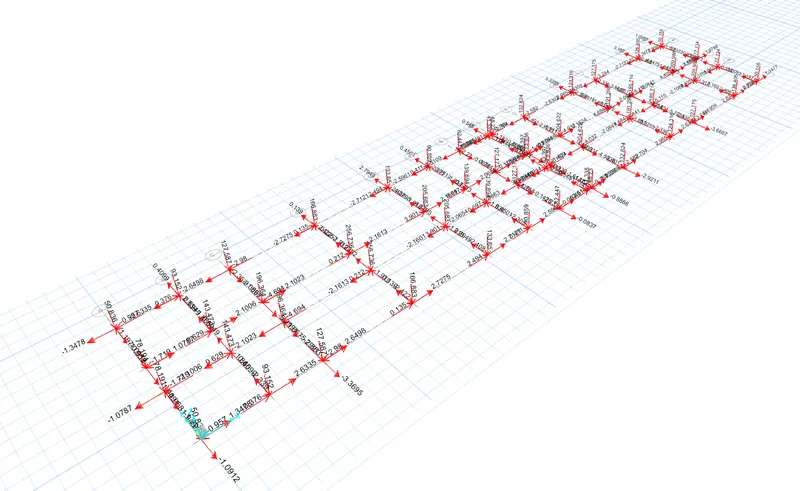

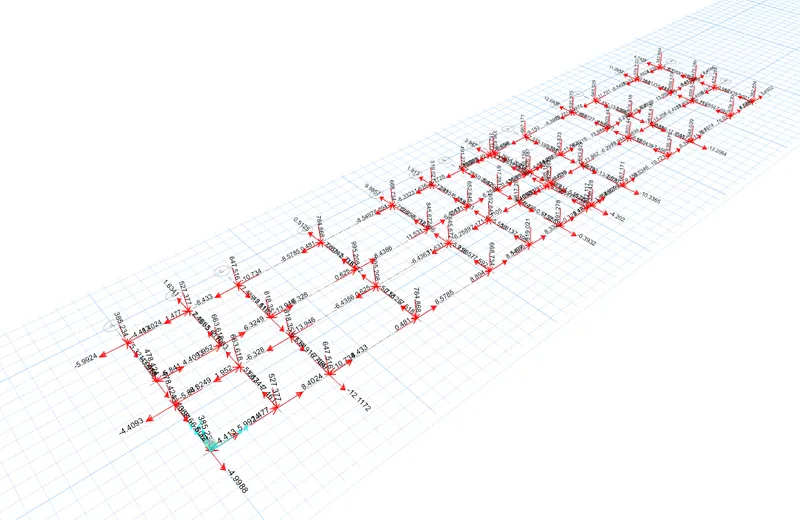

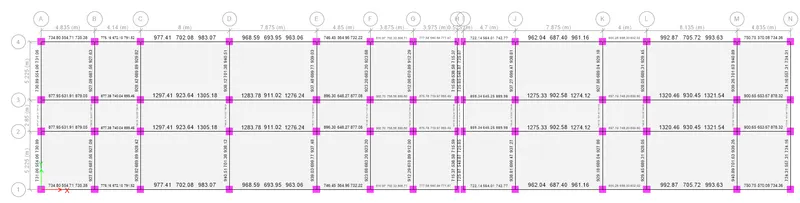

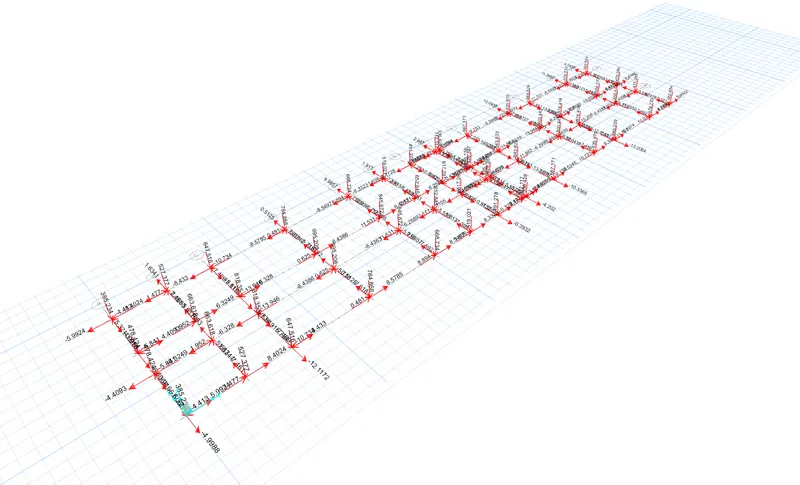

Loads on the foundation

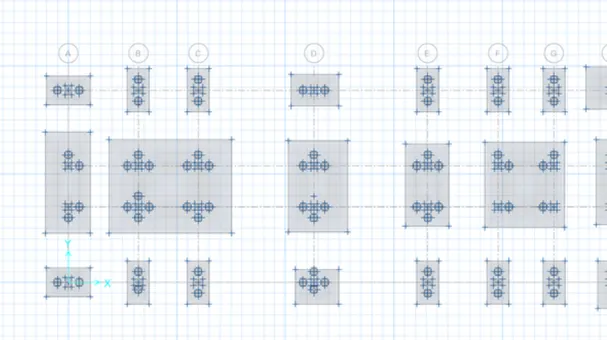

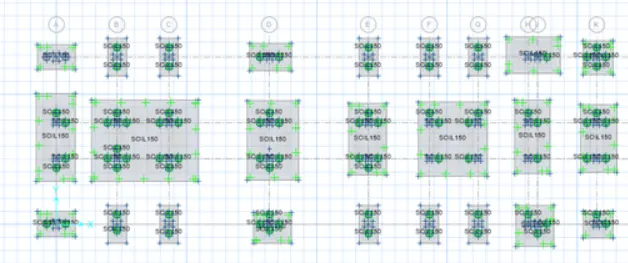

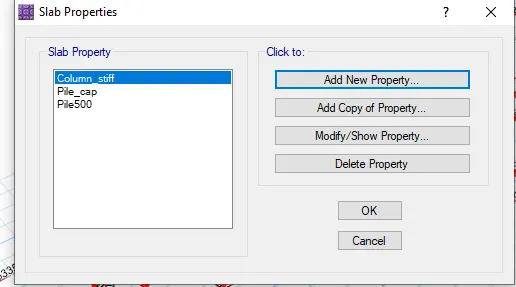

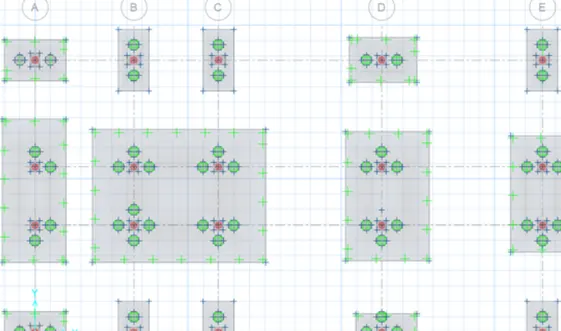

Draw piles and beams accordingly

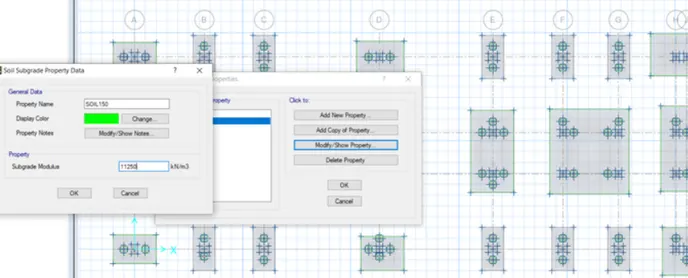

Add soil subgrade property to the foundation

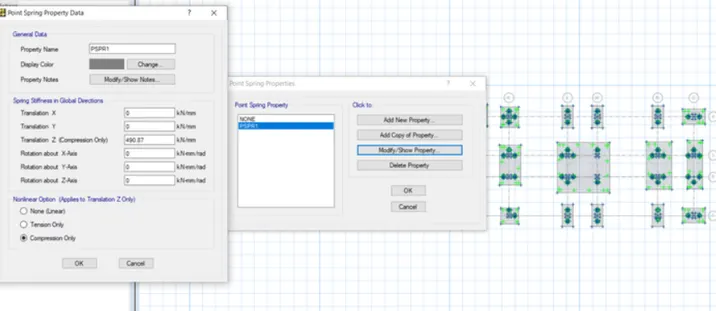

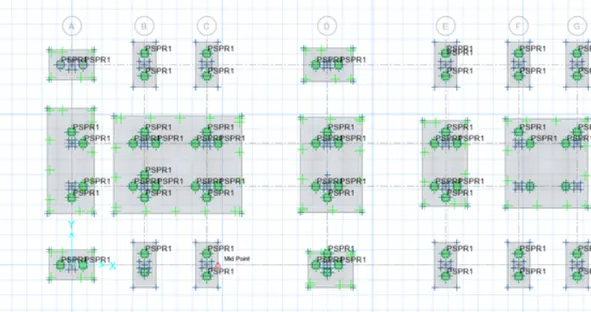

Add point spring to tge piles
The design value

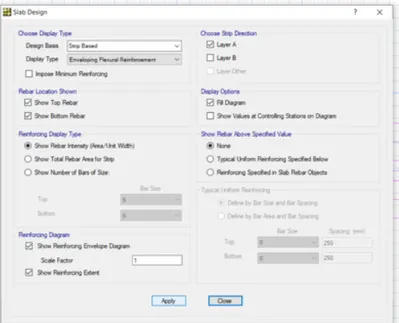

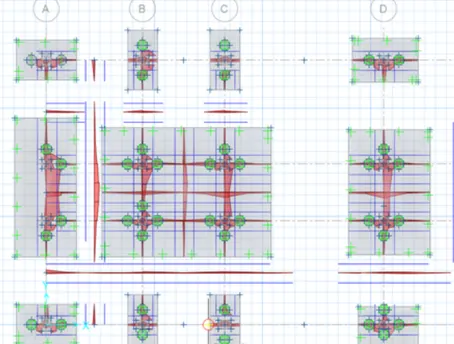

Add slab design strips
Result:
A G+3 hostel building and its foundation has been designed and analysed using Etabs and SAFE softwares.
