Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

Design and analysis of a Hostel Building at Guwahati, Assam

In this project, participants will get to experience the entire design process from modelling, analysis, design, and preparation of construction drawings. The architectural drawings of a G+3 RCC building is provided. The following information on the building is to be used:

• Location – Guwahati, Assam
• Function – Hostel block in an academic institute

Aim:-

To Carryout Modeling analysis Design and Preparation of Construction Drawings of a G+3 Building Situated in Guwahati, Assam

Introduction :-

• Etabs an Engineering Software Product that Cater must to Multi Storey building analysis & design
• Safe Represents the state of art in three dimesional finefite element technologies for structural Engineering
• Here in the Project We are Carrying out the Design analysis of a G+3 Building Situated in Guwahati, Assam Using Etabs Software and then Foundation Design is Carried out Using Safe Software

Procedure:-

• Open Etabs Application and Click on New Model Option From File Menu

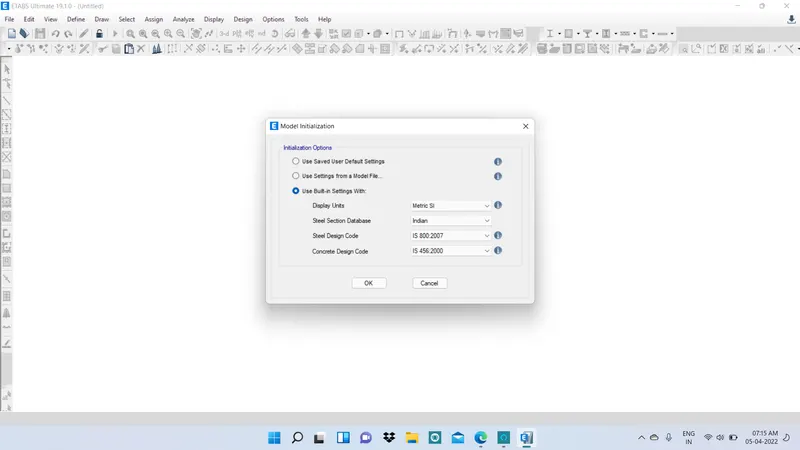

• Give the Desired Units and Codes and Click OK
•

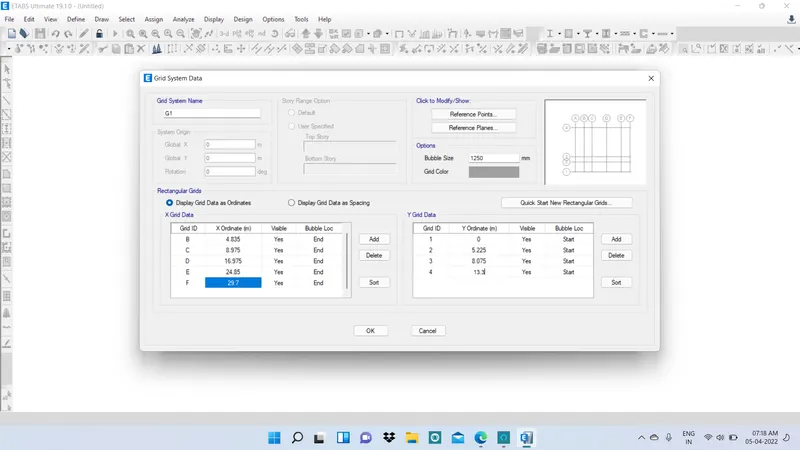

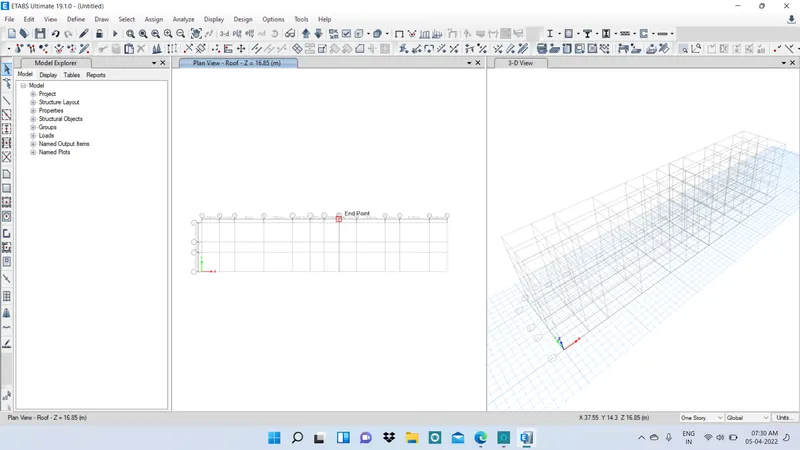

• In New Model Quick Templates Under Grid Dimesions, Custom Grid Spacing then Edit Grid Data as per Drawing Details Ok.
•

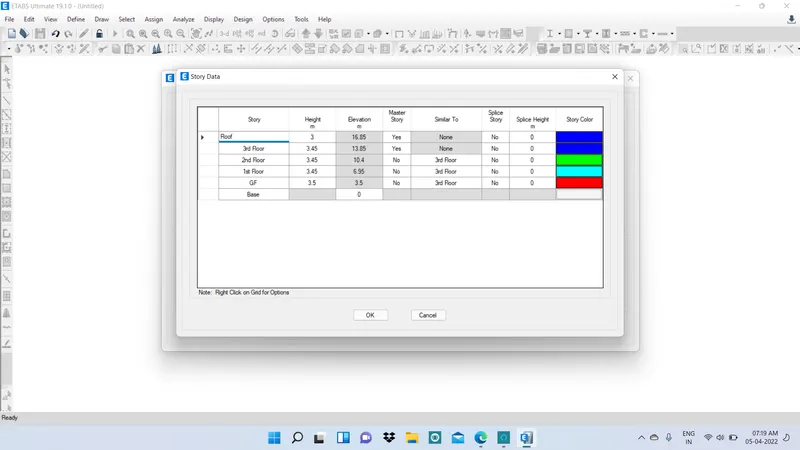

• In New Model Quick Templates Under Story Dimesions, Custom Story Data & then Edit Soty Data as per Drawing Details Ok.
•
•

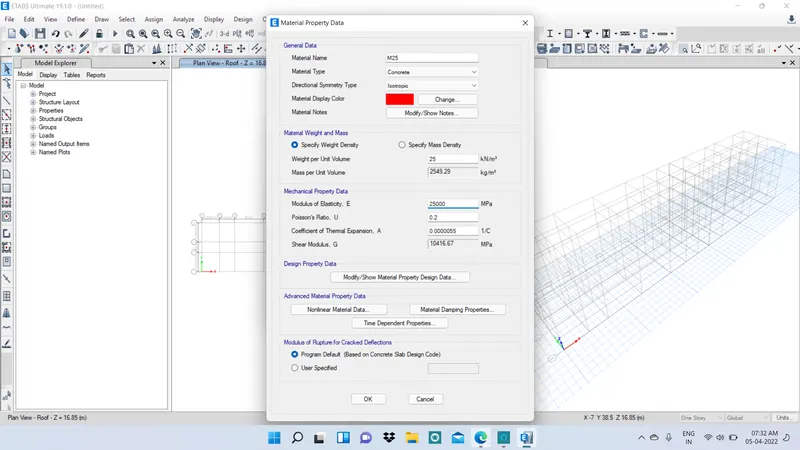

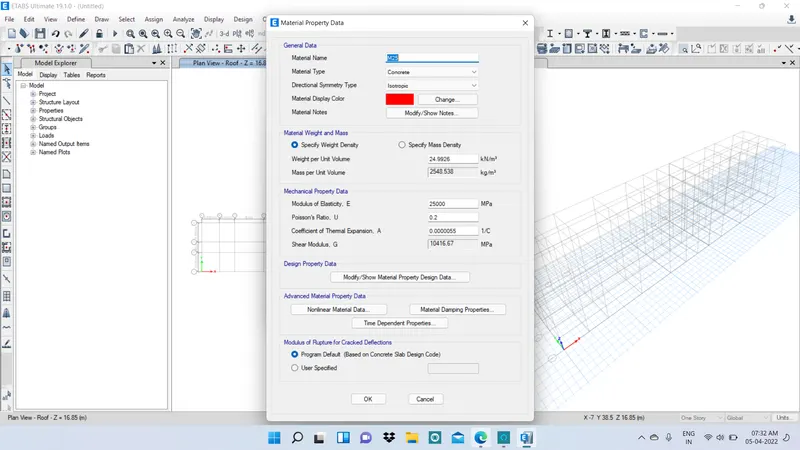

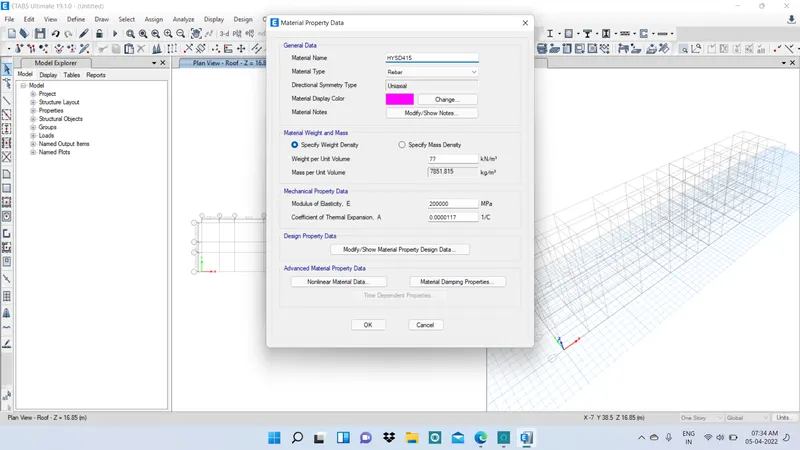

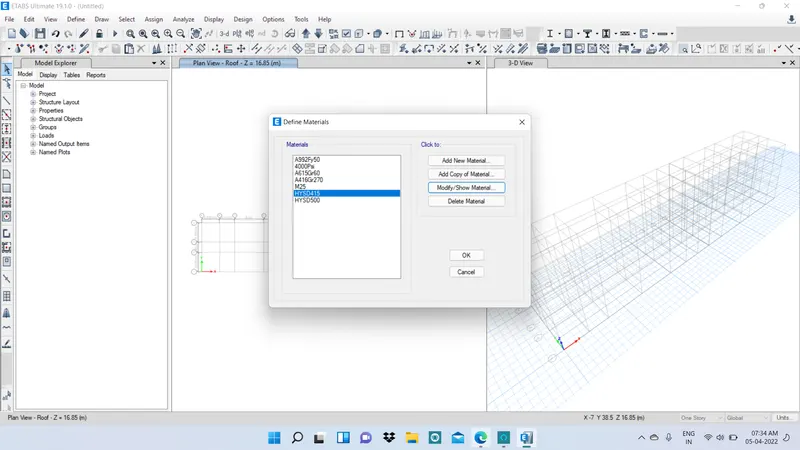

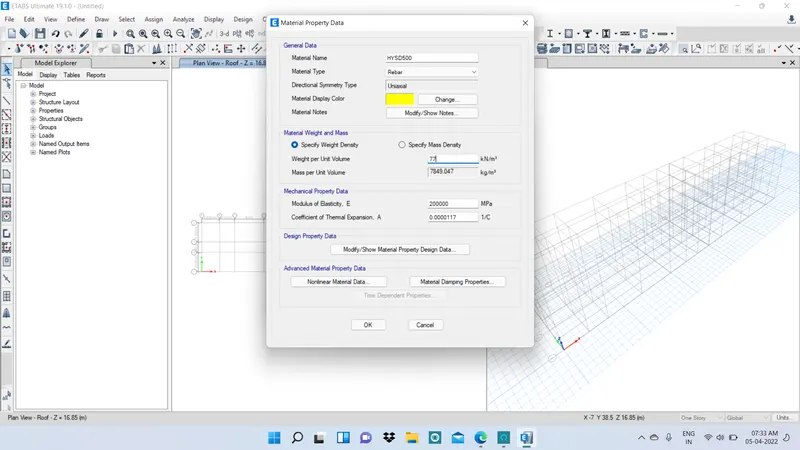

• Go to Define Menu Define Mateirals and Properties . Select thr Grade of Concrete Then Press Ok
•
•
•
•
•

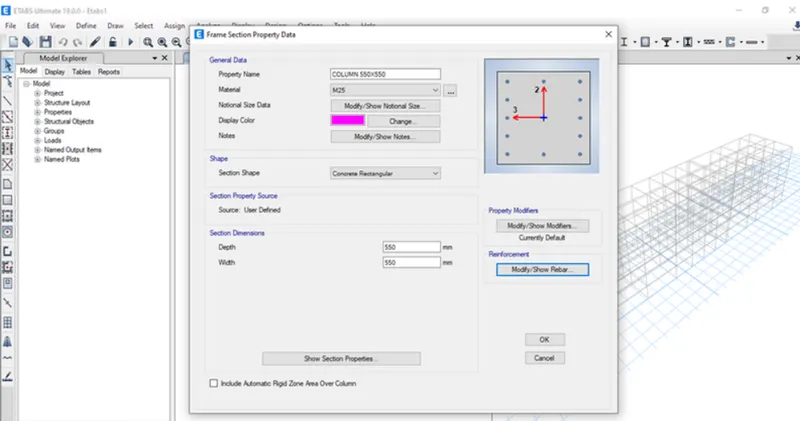

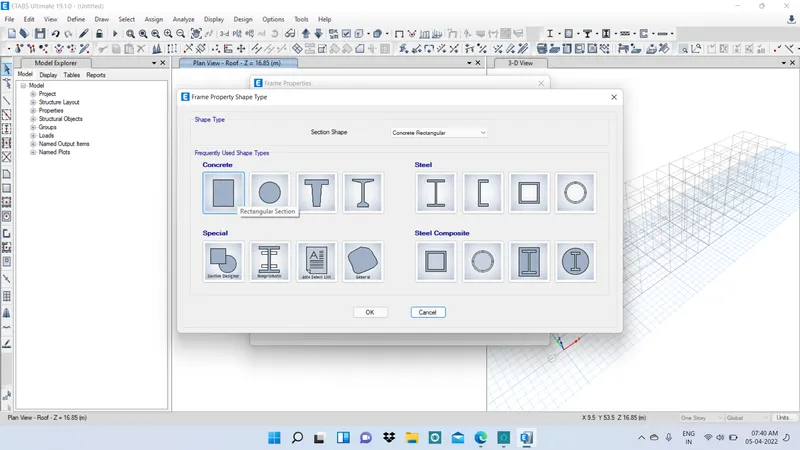

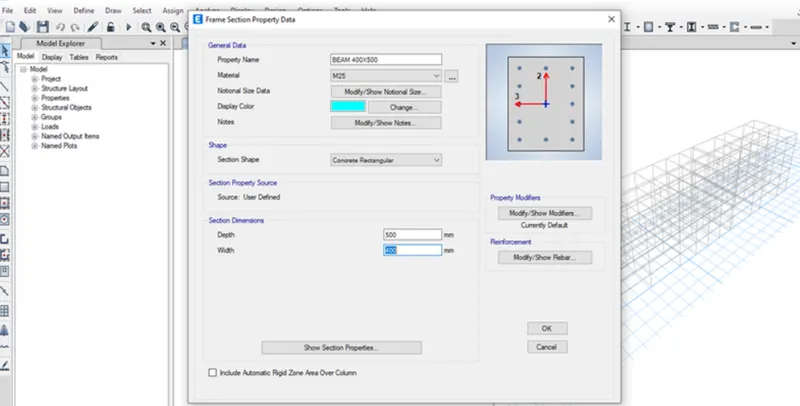

• Add Frame Members like, Beams, Columns, Slabs. Go to Define Property > Section Properties> Frame Sections> add new Property
•
•

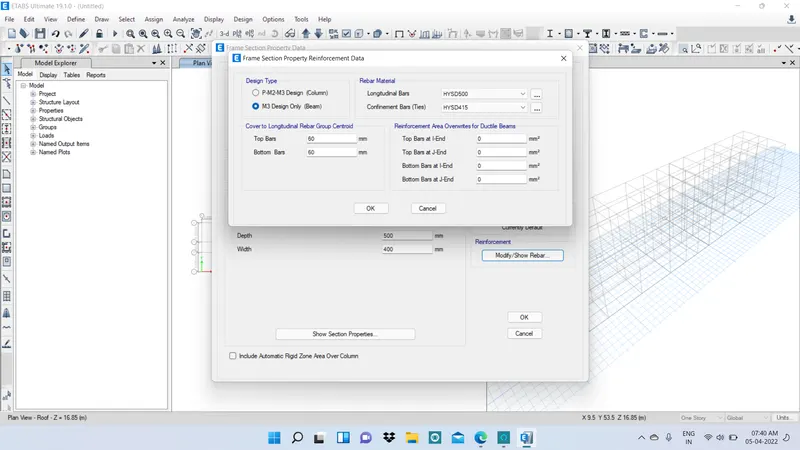

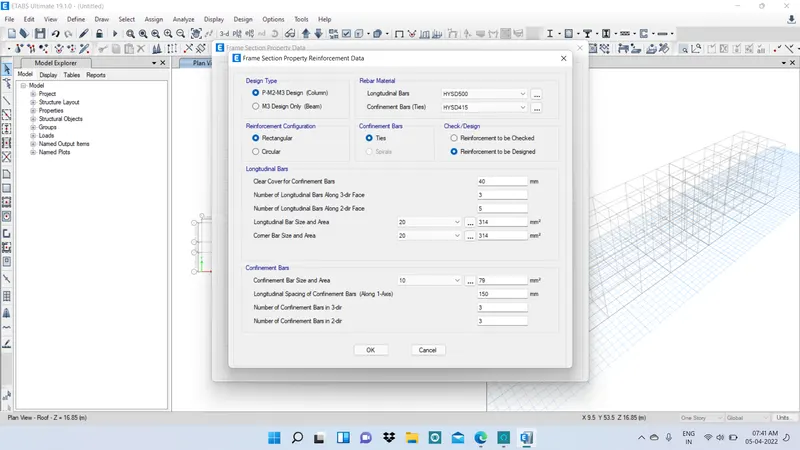

• Modify the Reinforcement Data
•
• Enter Column Data
•
•

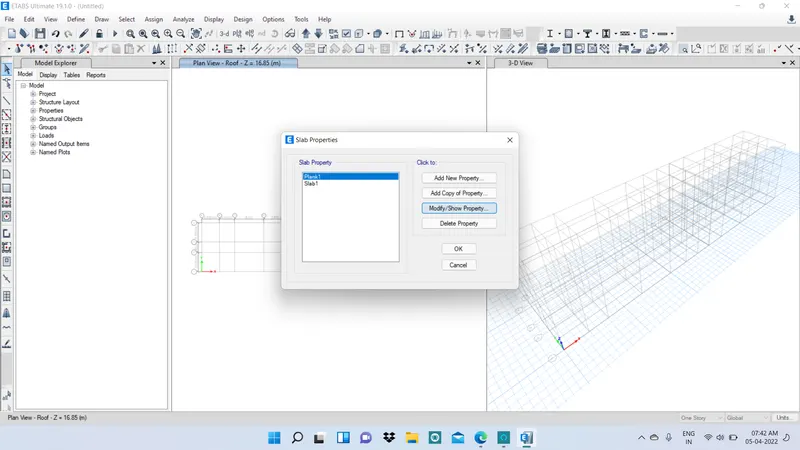

• Select Slab Section and Add Slab Properties
•
• all the Properties have been added corrctly, now we need to add Structural Members, From the Select Column Quick Draw Option, and also Select all Storeys Options Below
•

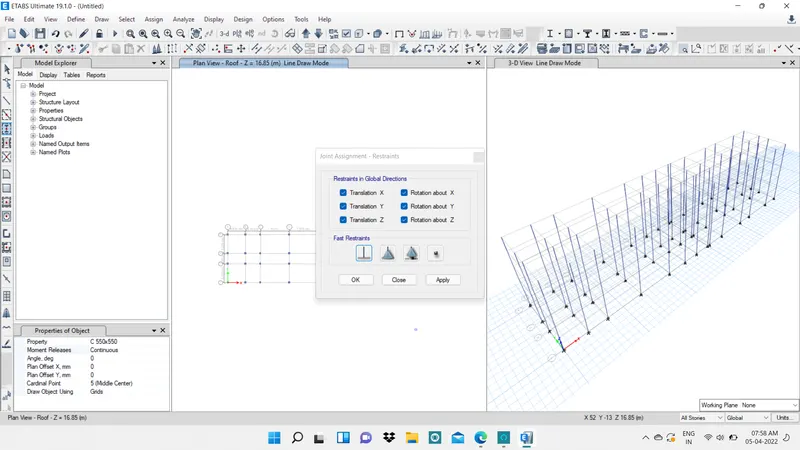

• Now Change the base Connections, Assign>Select Joints>Restraints
•

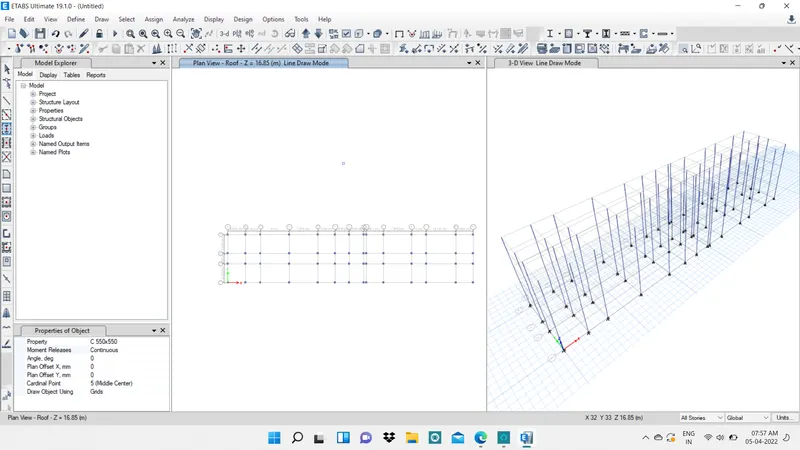

• After that Select Quick Draw Beams & Draw Beams
•

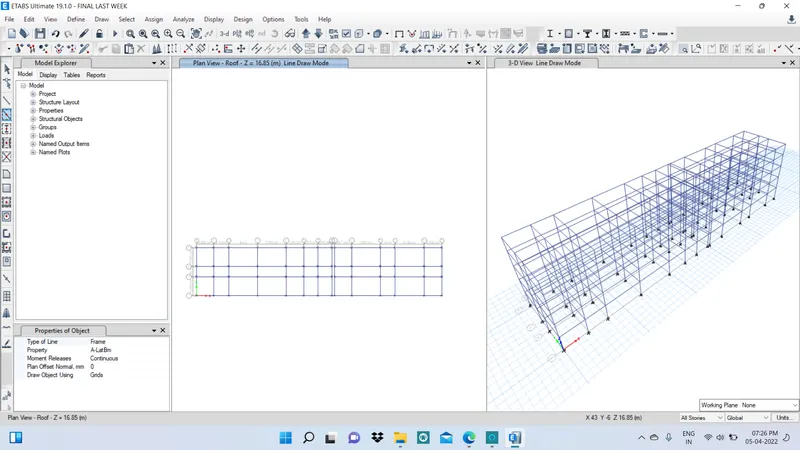

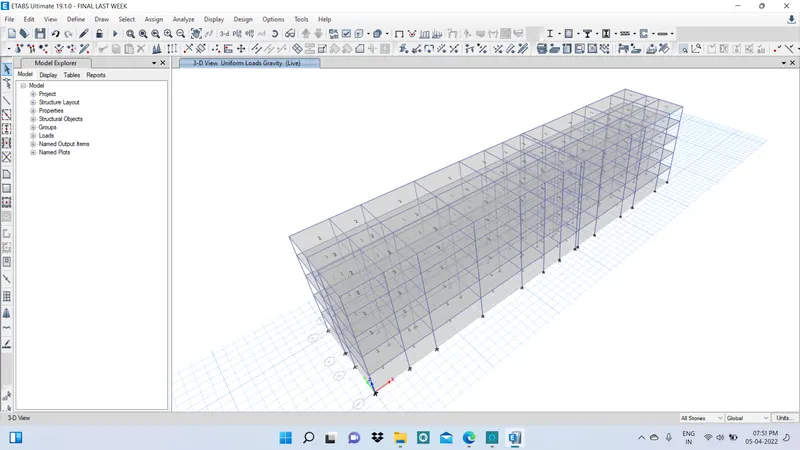

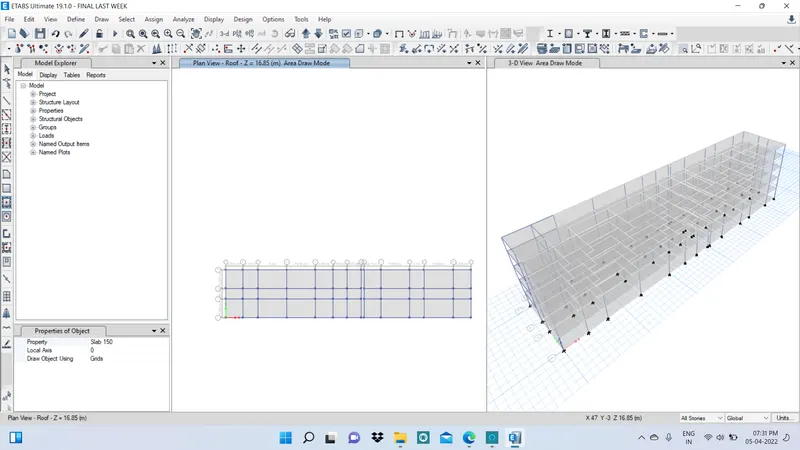

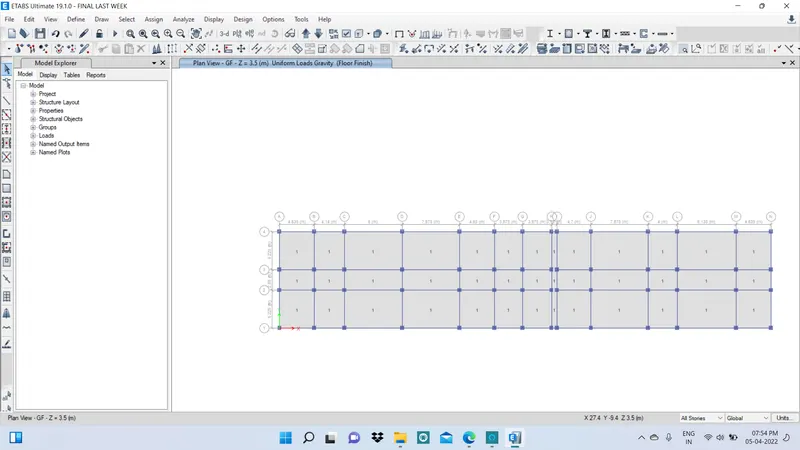

• After Placing of Beams Selet Quick Draw Slabs Place it Slabs
•

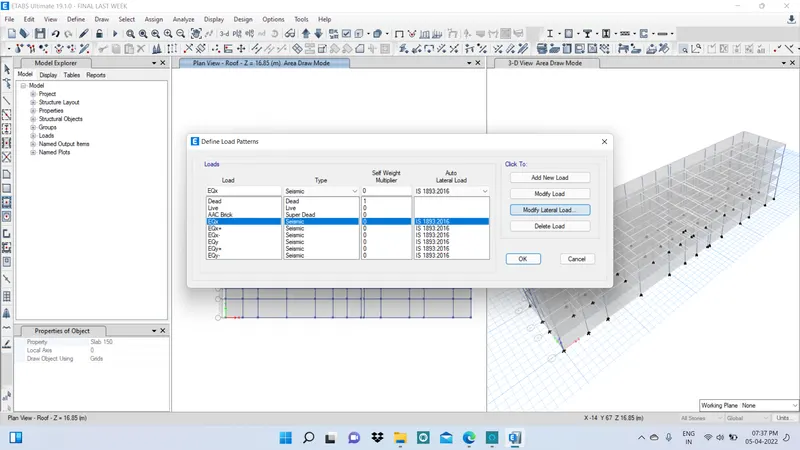

• Define the Load Patterns
•

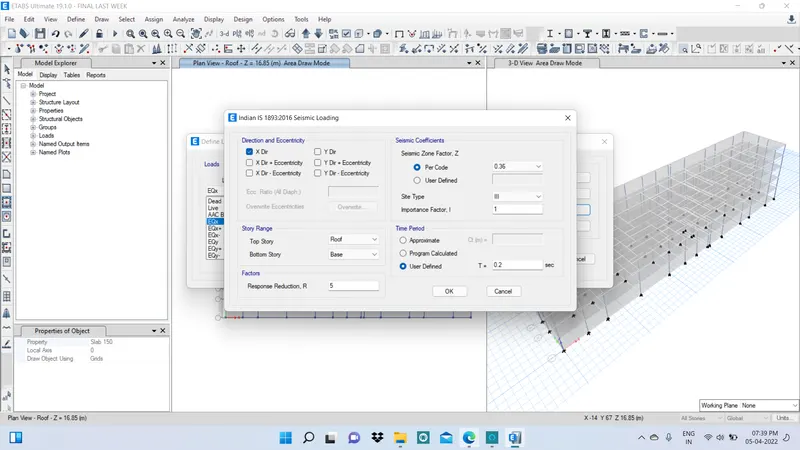

• Define the Seisimic Factors as per requirement
•

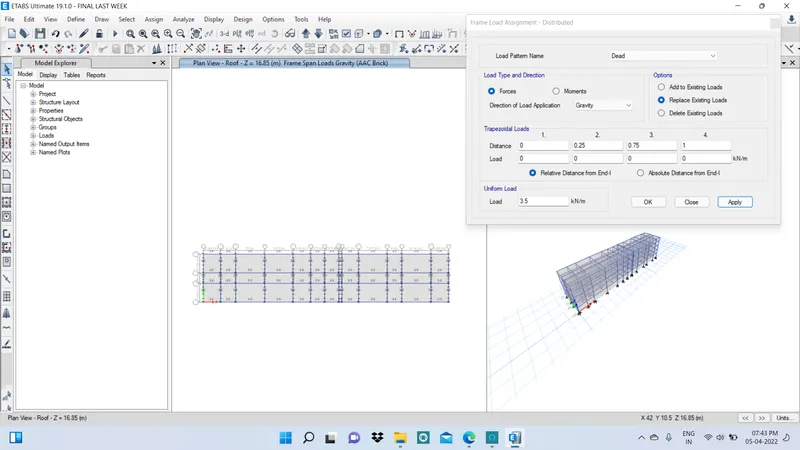

• In order to Assign Loads in to Structure
•
•
•

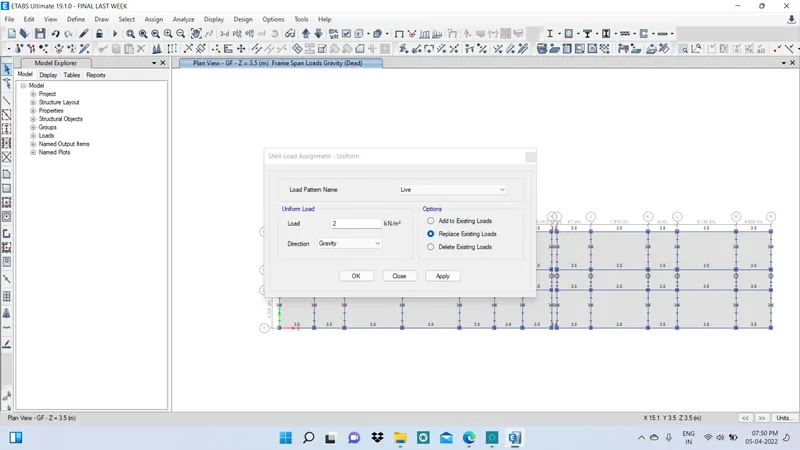

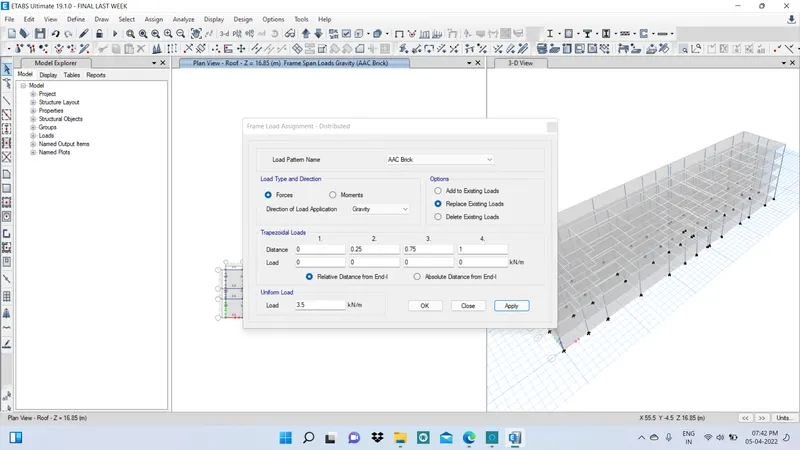

• Now we need to add loads for Slabs
•
•

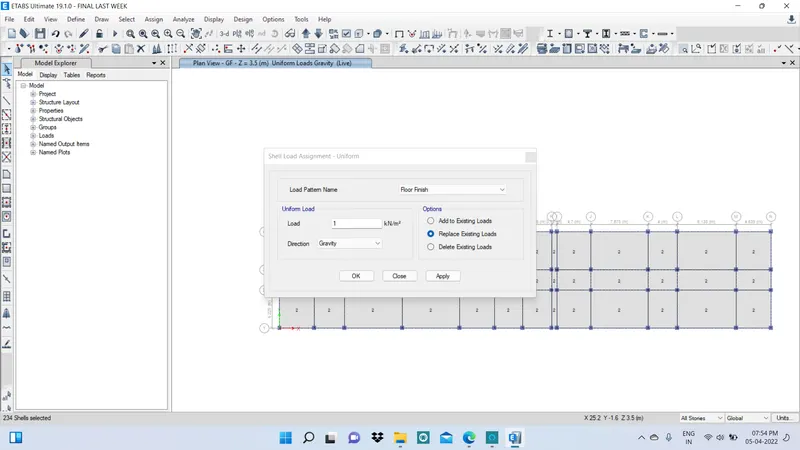

• Now we need to add Load for FLoor Finish
•
•
• Define> Mass Source>Modify Mass Source Data
•

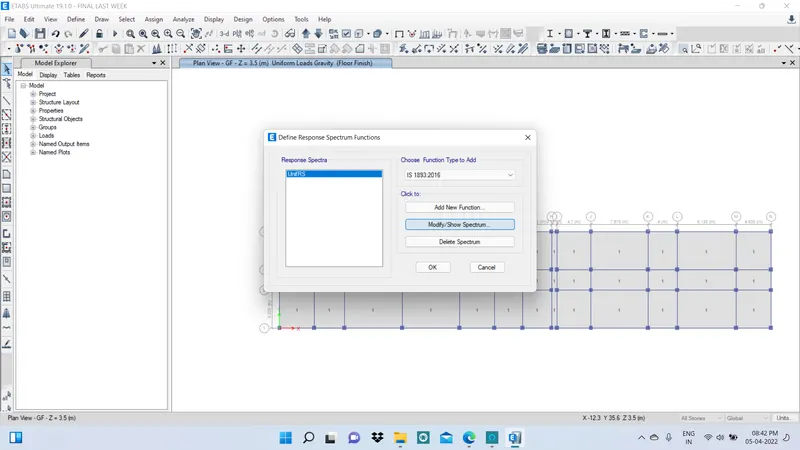

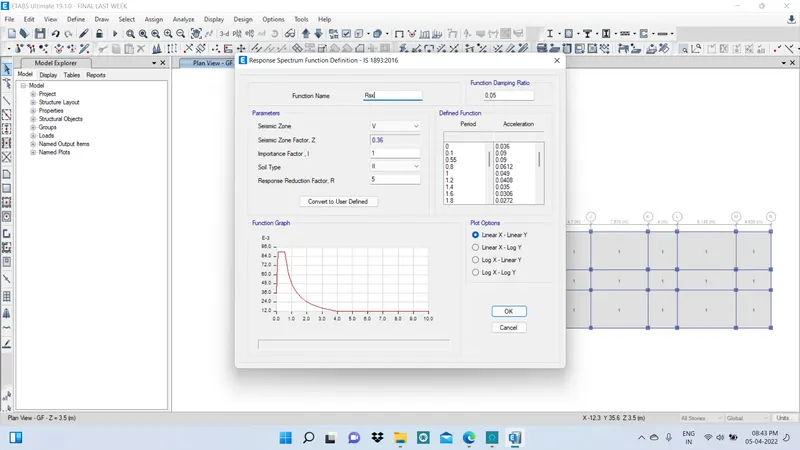

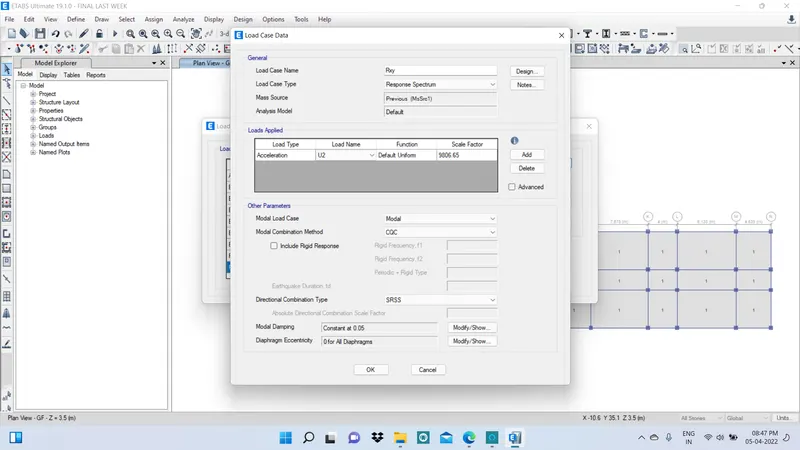

• Next we need to add Responce Spectrum data
•
•
•
•

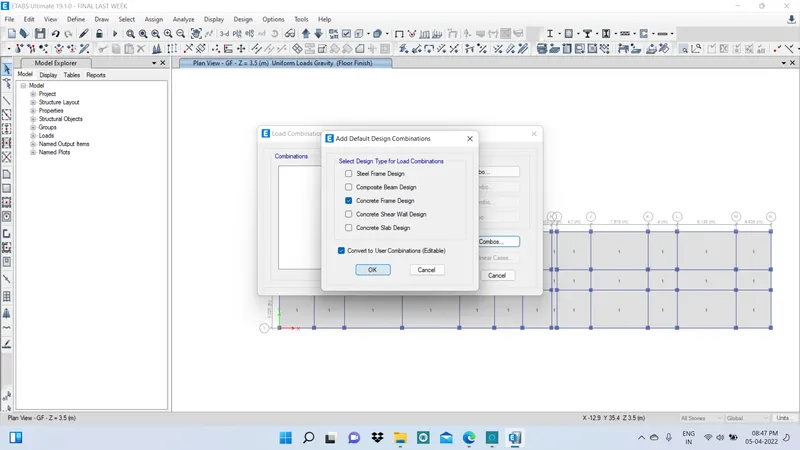

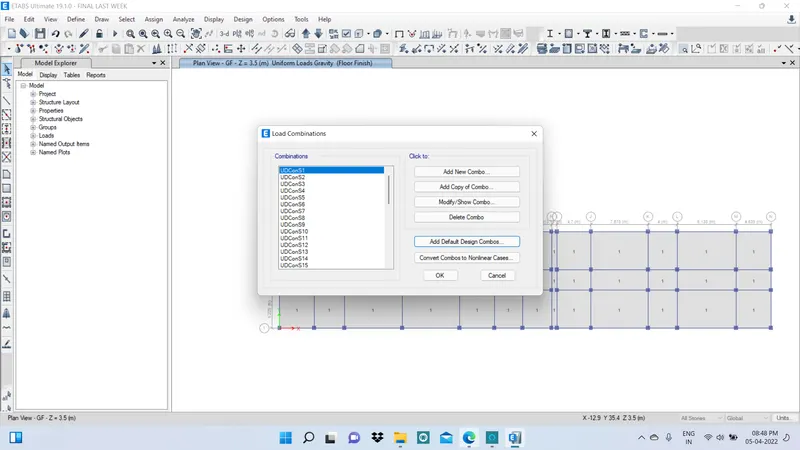

• Add Default Design Combinations
•
• Add Default Load Combinations
•

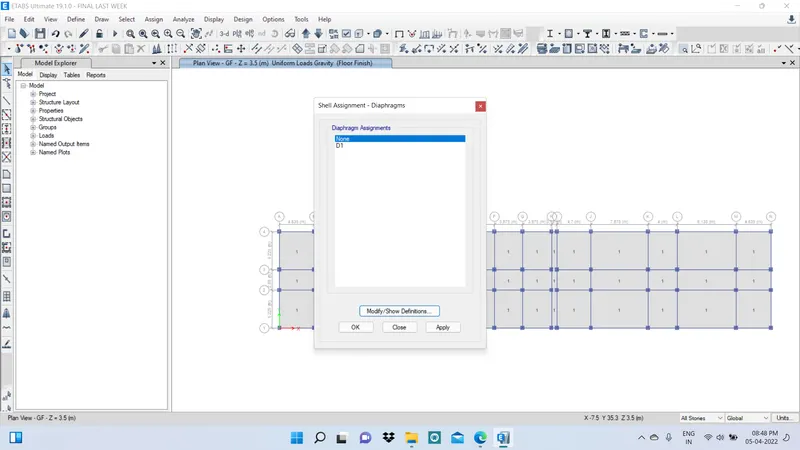

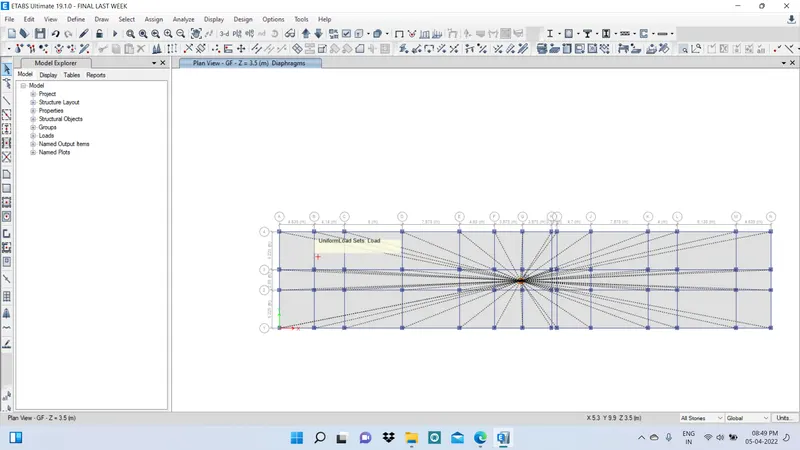

• assign>shell>Diaphragm>D1
•
•

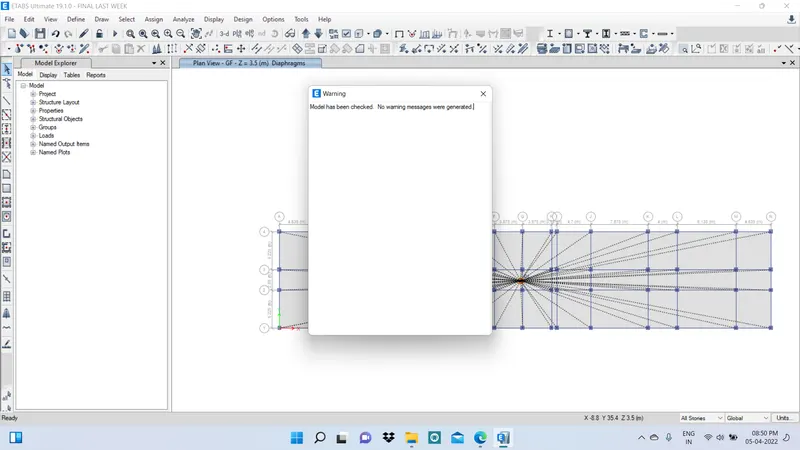

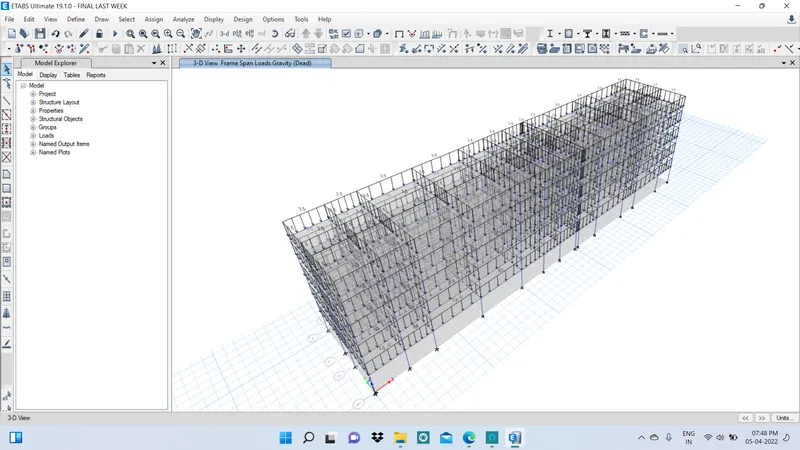

• Check the Model
•

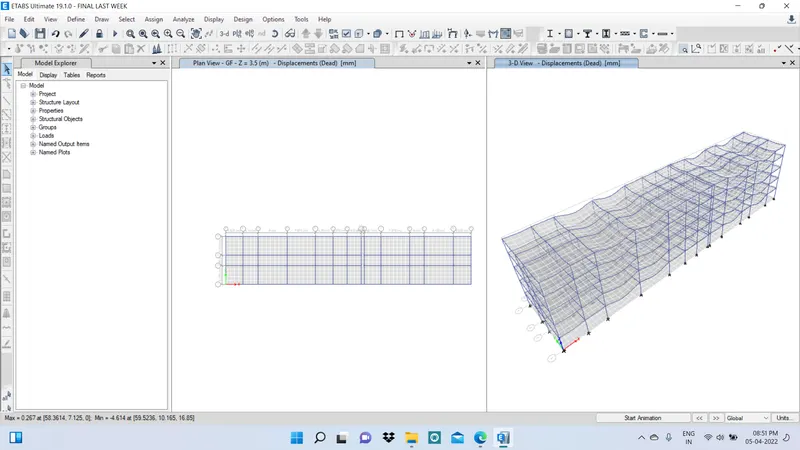

• analysis the Model
•

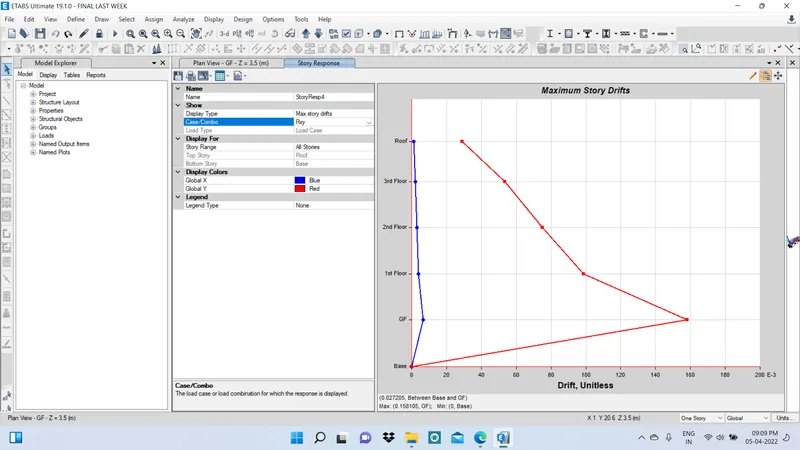

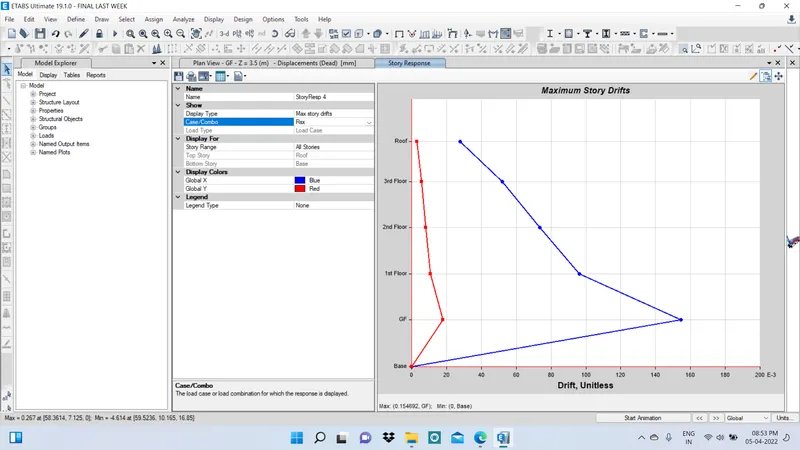

• Story Responce Plot > Maximum Story Drift
•
•

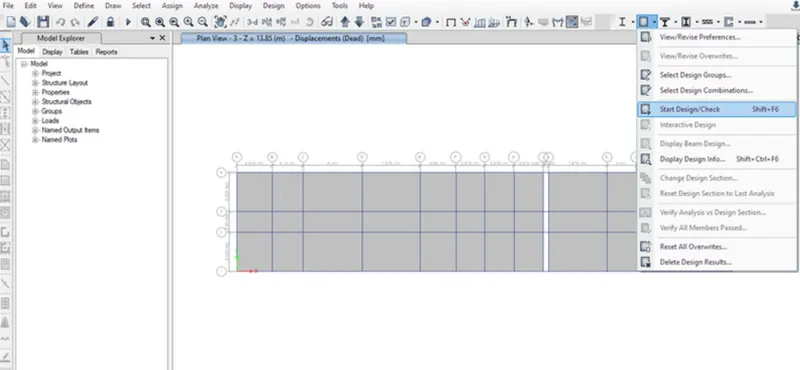

• Start Design Check Model
•

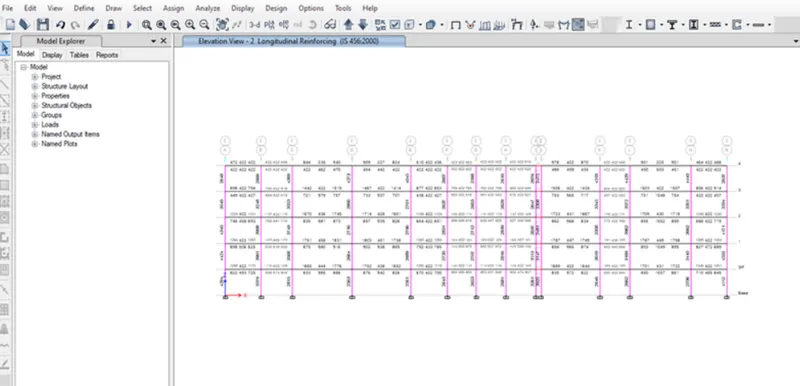

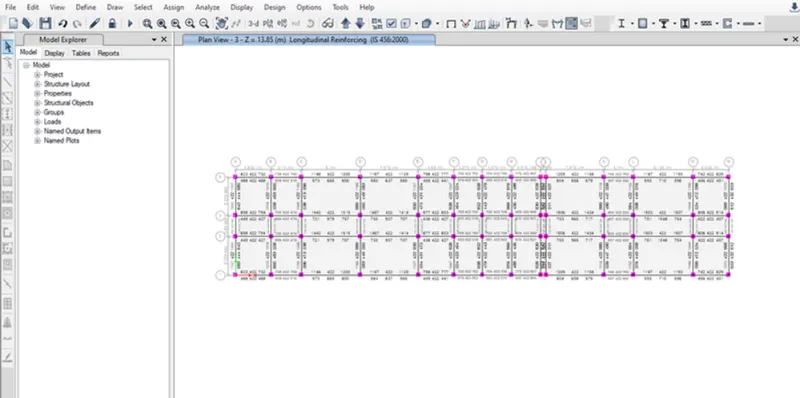

• Design>Display Info> Longitudinal Reinforcement
•

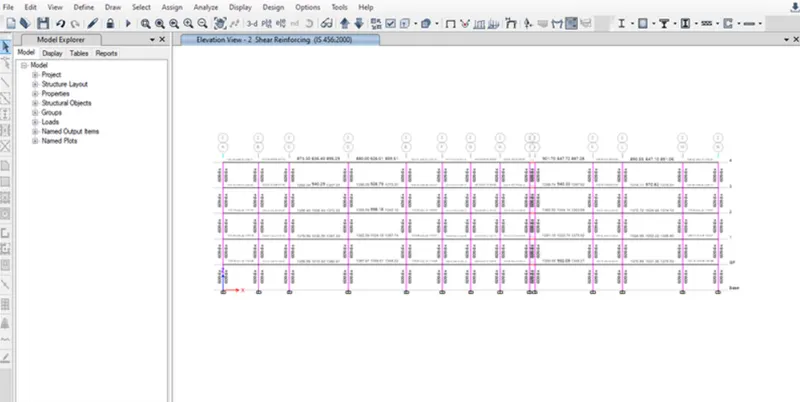

• Shear Reinforcement
•
• Column Longitudinal Reinforcemt
•
• Column Shear Reinforcment
•

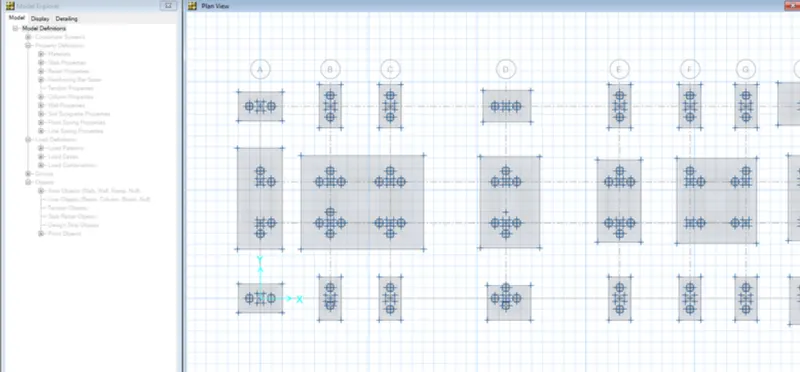

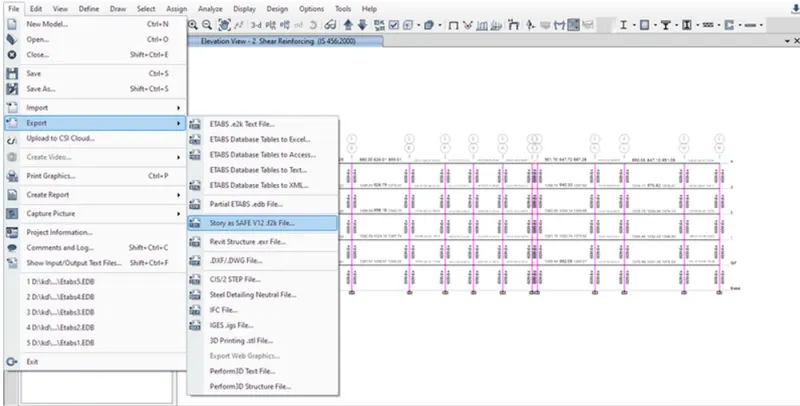

• Export the File to Safe V12.f2k File Option
•

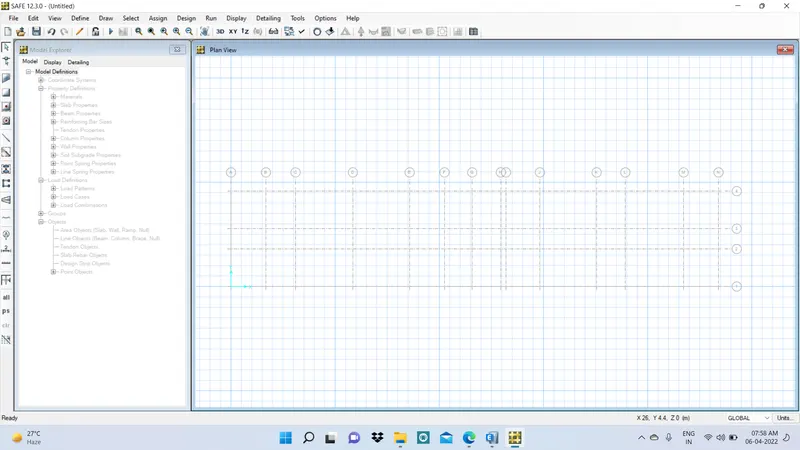

• Import the File in to Safe Software
•

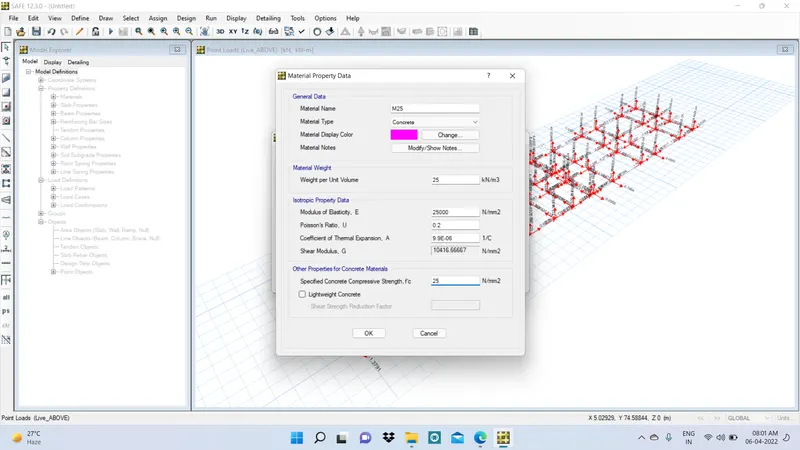

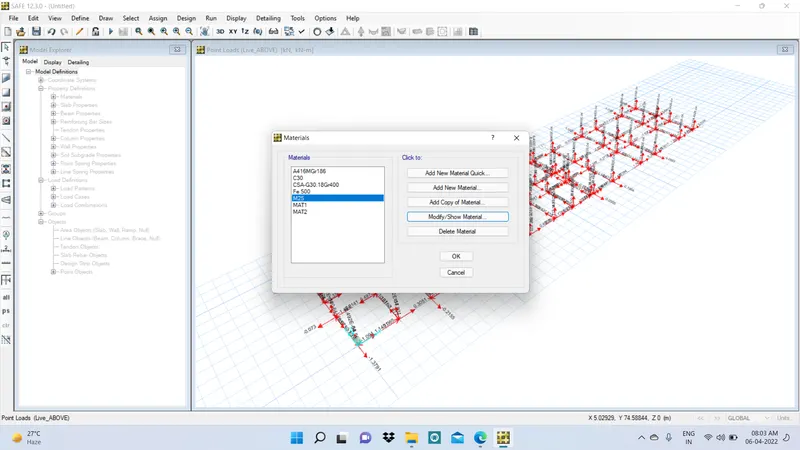

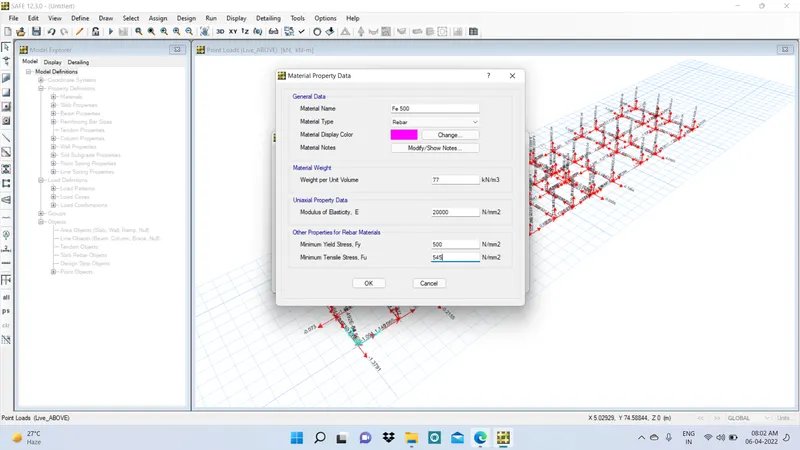

• Define the Materials
•
•
•

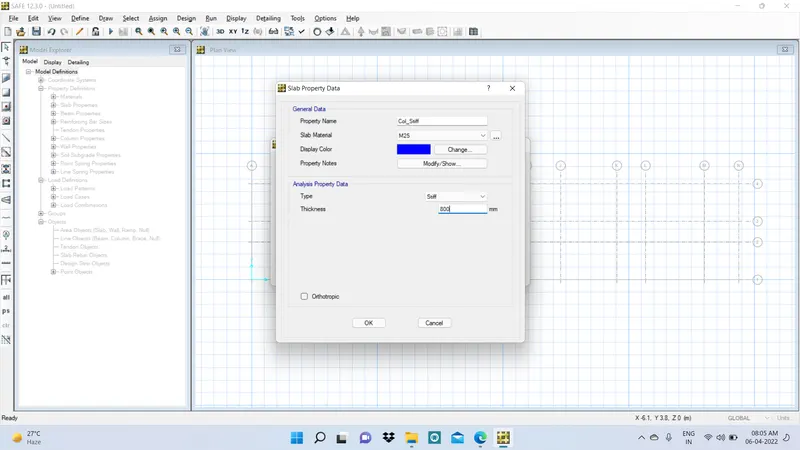

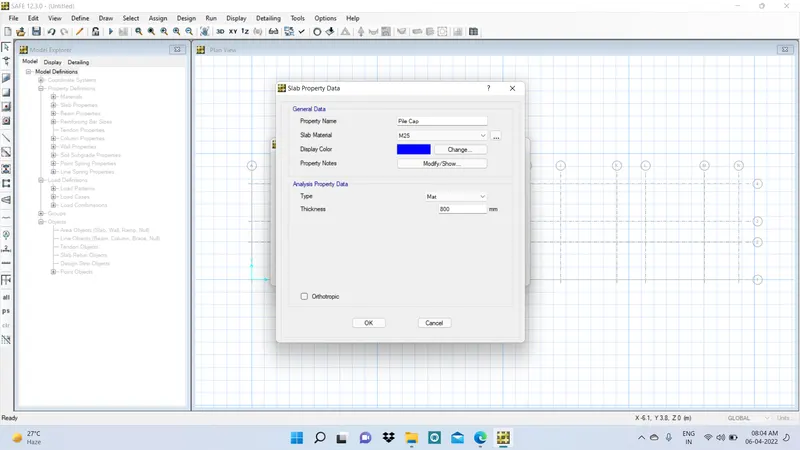

• Define Slab Propeties
•
•
• Pile Caps Columns are applied
•

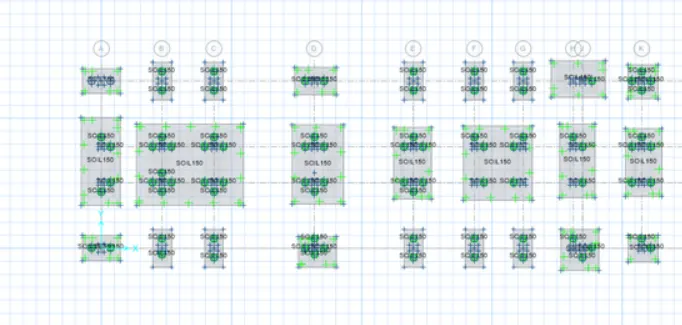

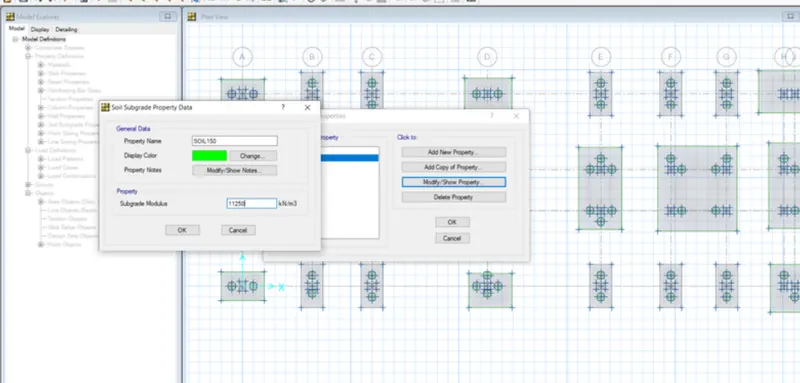

• Assign Soil Properties
•
•

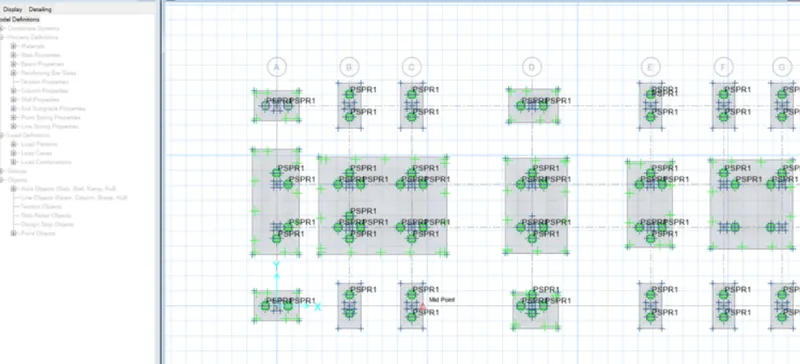

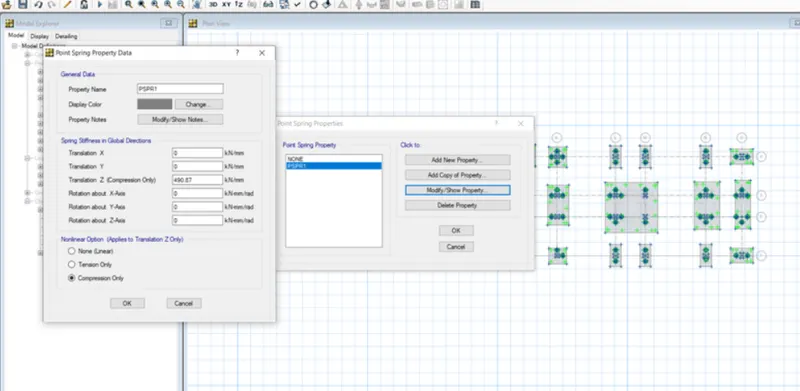

• Springs are Assigned Where Piles are Placed
• Spring Constant =AE/L
• E=500`under root 25=25000
• L=10000mm
• Spring Constant = 490.87 kn/mm
•
• Springs are assigned Successfully
•

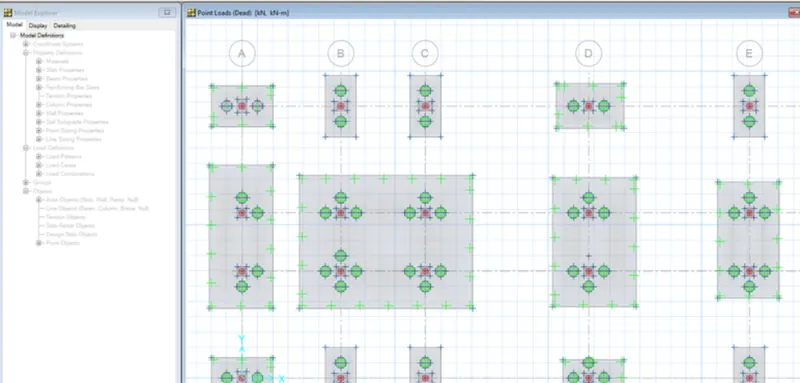

• add Point Loads on Columns
•

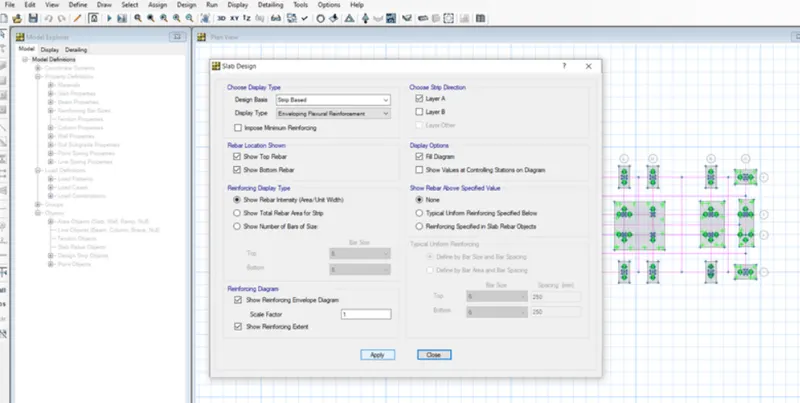

• In the Display Menu Click on Show Slab Design and then apply the Settings as shown and Click apply
•

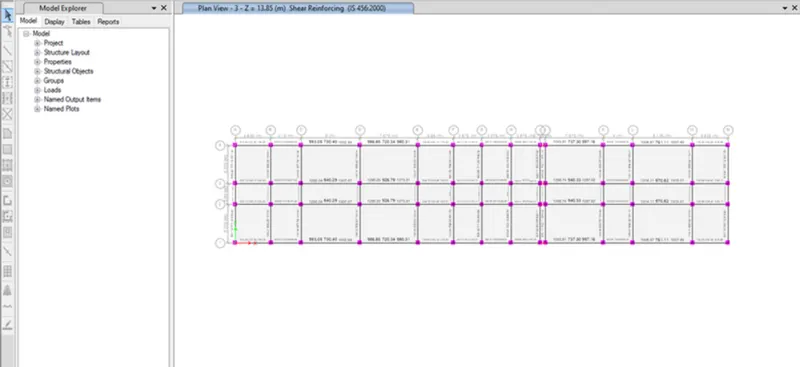

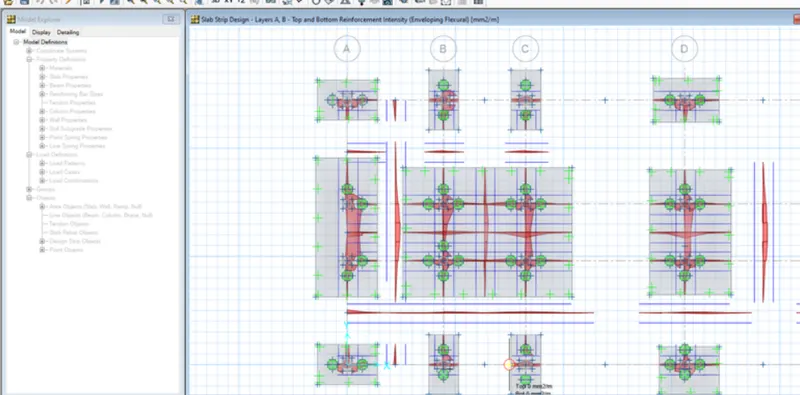

• Slab Strip Design Results
•

Result:-

• G+3 RCC building is Designed & Analysed in Etabs
• Foundation was Designed & Analysed in Safe
