Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

AIM : Design & Analysis of a Hostel building at Guwahati, Assam

INTRODUCTION :

• Sizes taken as
  • Beam size 400x600mm
  • Column size 450x800
  • Slab size thickness as 150mm

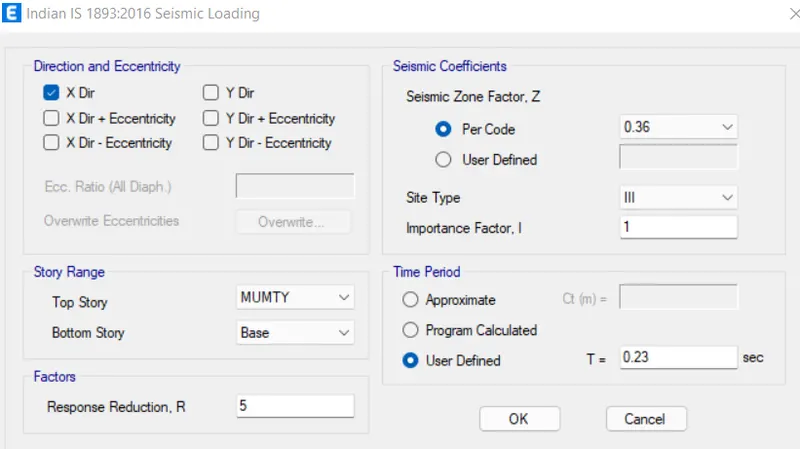

• According to IS 1893 Clause 7.6, Time period T is calculated as 0.23
  • Soil type is taken as 3
  • Zone of the area is 0.36
  • Importance factor is 1
• According to IS 875 Part 2 live loads taken as
  • Bathroom : 2 KN/m2
  • Bedroom : 2 KN/m2
  • Balcony : 3 KN/m2
  • Kitchen : 3 KN/m2
  • Corridor : 3 KN/m2
• Load on terrace and mumty is taken as 1KN/m2
• Brick load is taken as 3.5KN/m2
• Pile length is 10m and diameter is 500mm
• Calculation for spring constant K = EA/L = (250000x196349.5)/(10000) = 490873.75 N/mm = 490.873KN/mm

PROCEDURE :

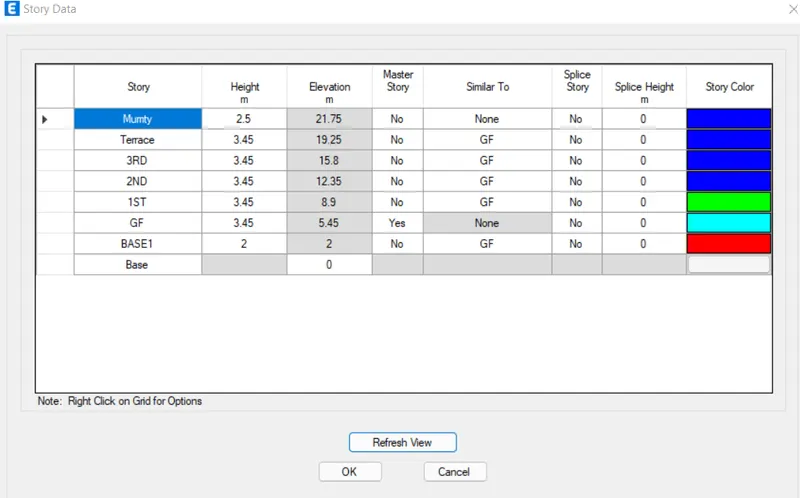

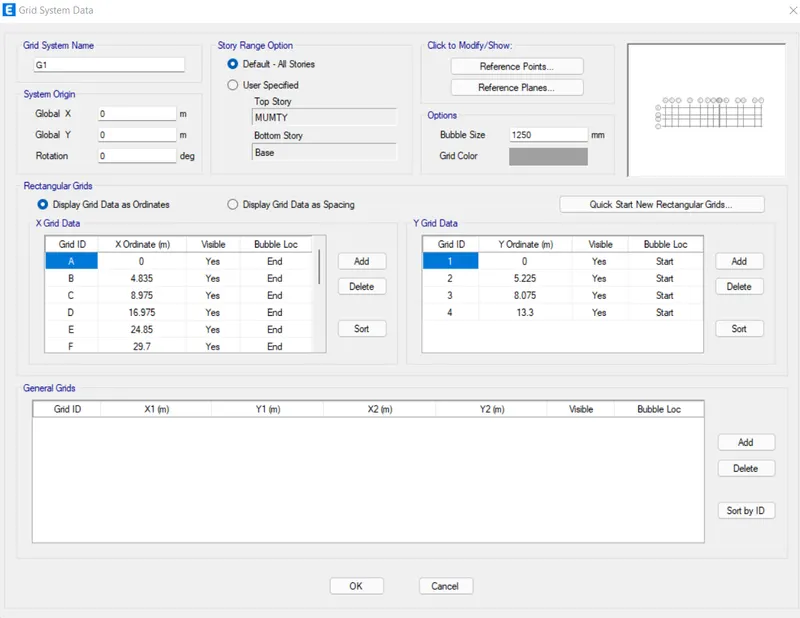

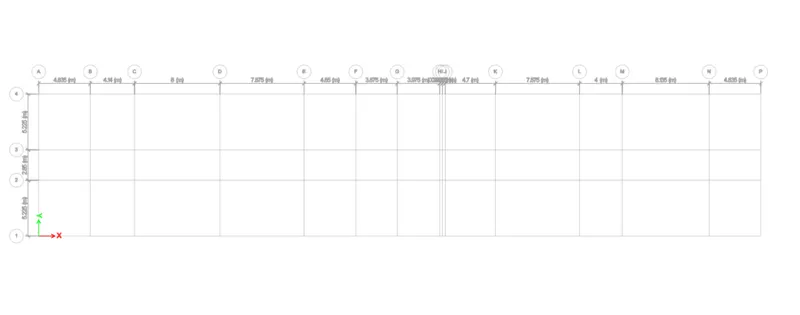

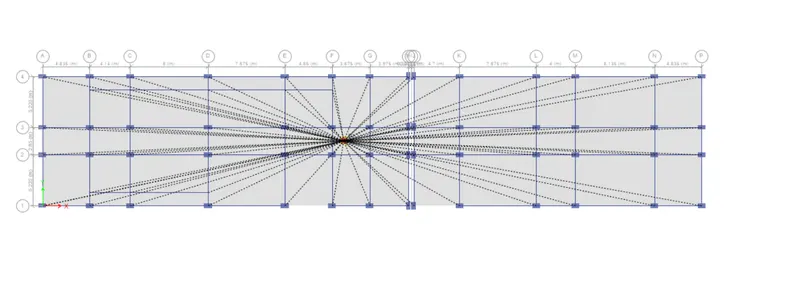

Modelling grid system and storey height

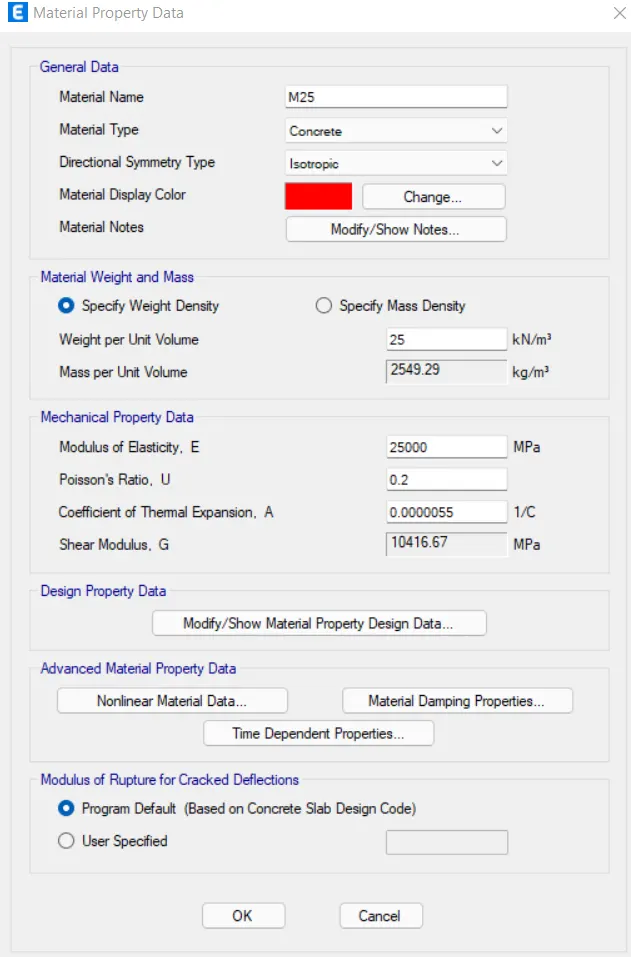

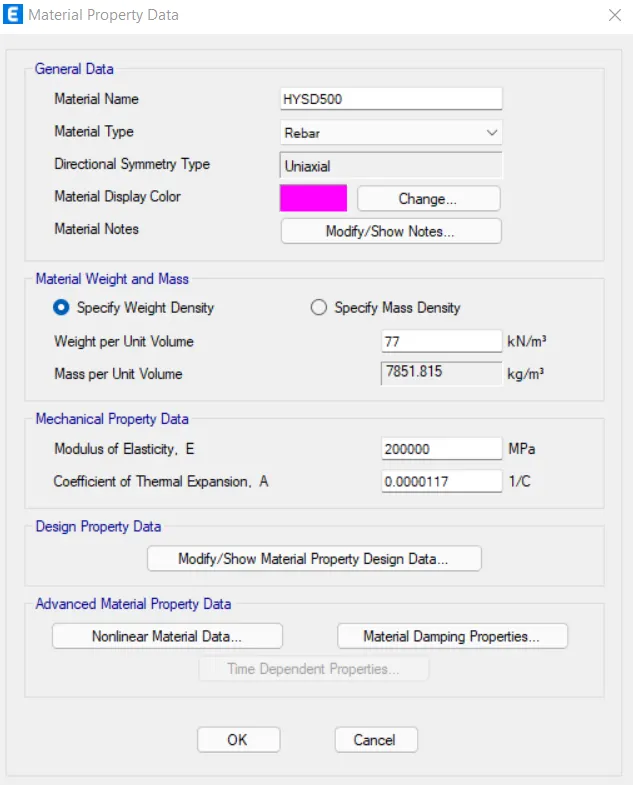

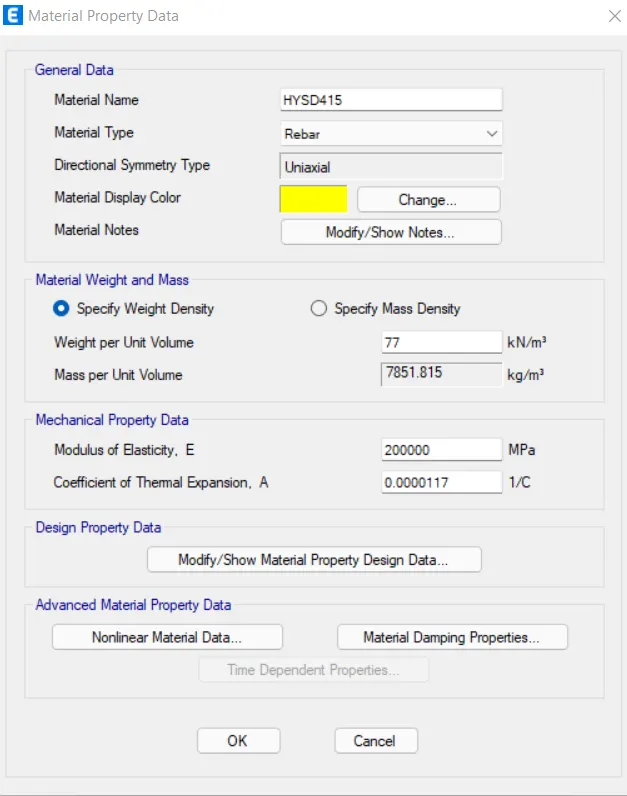

Material properties

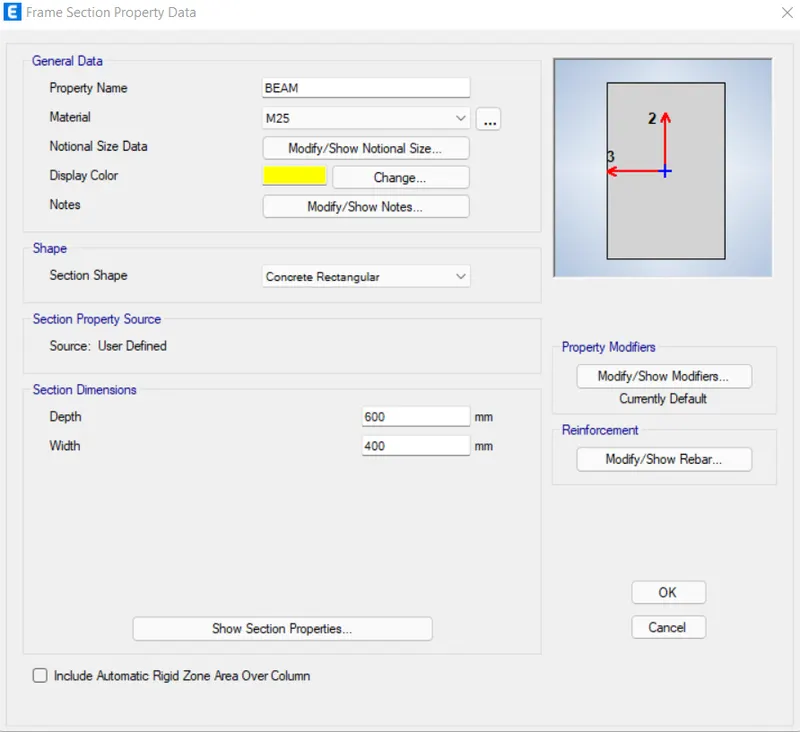

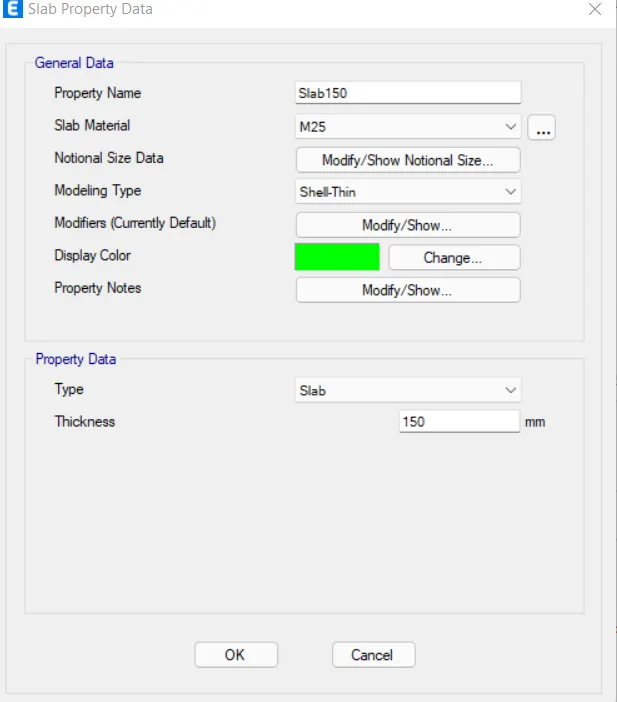

Section properties

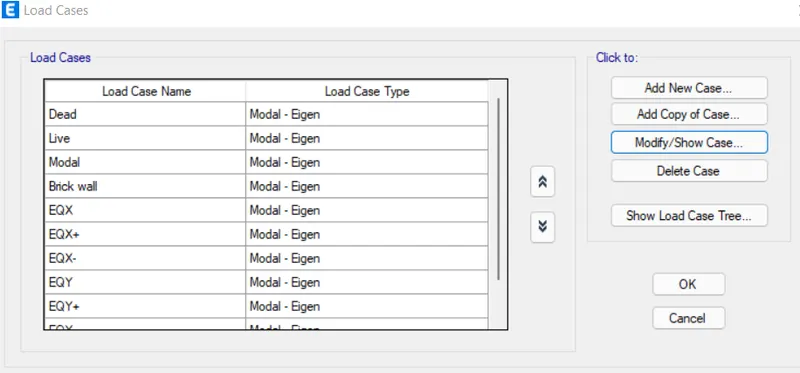

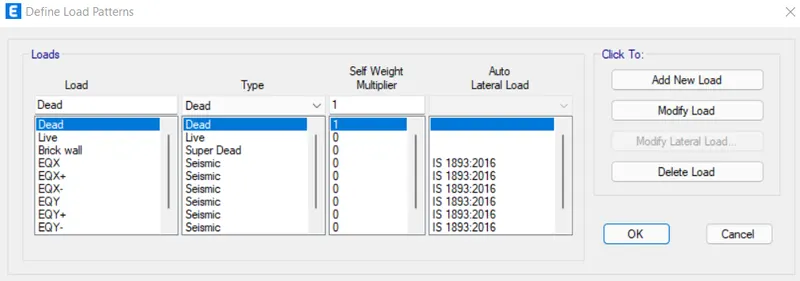

Defining loads

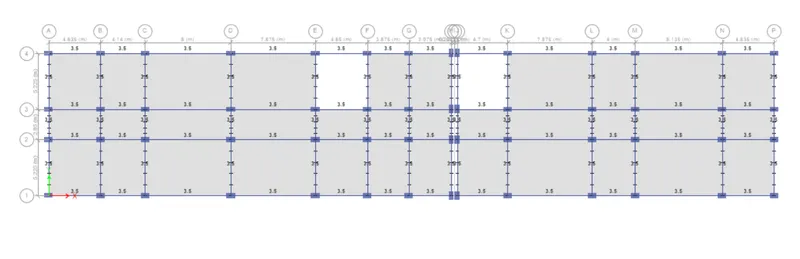

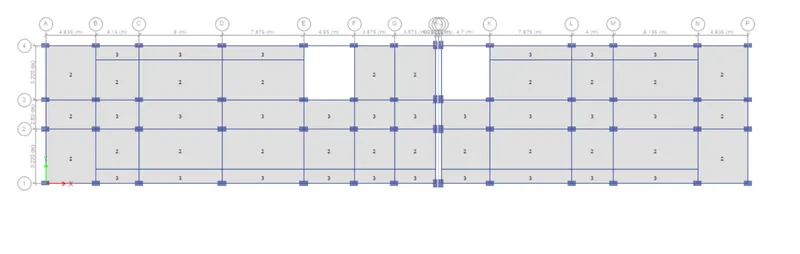

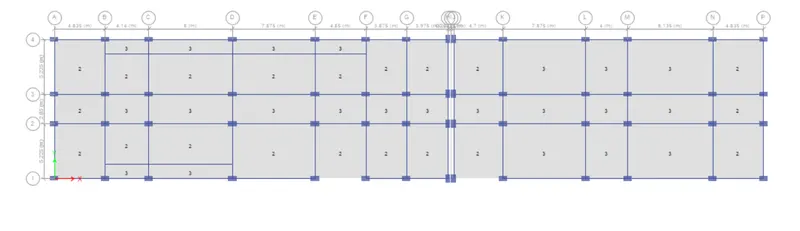

Assigning loads

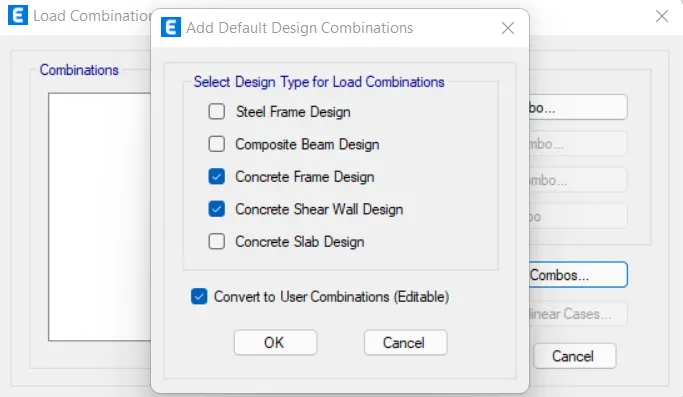

Defining load combinations

Run analysis

Click on concrete check design

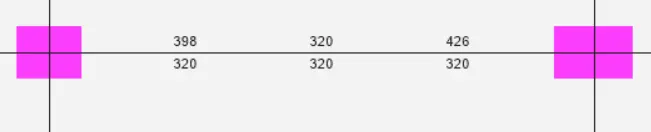

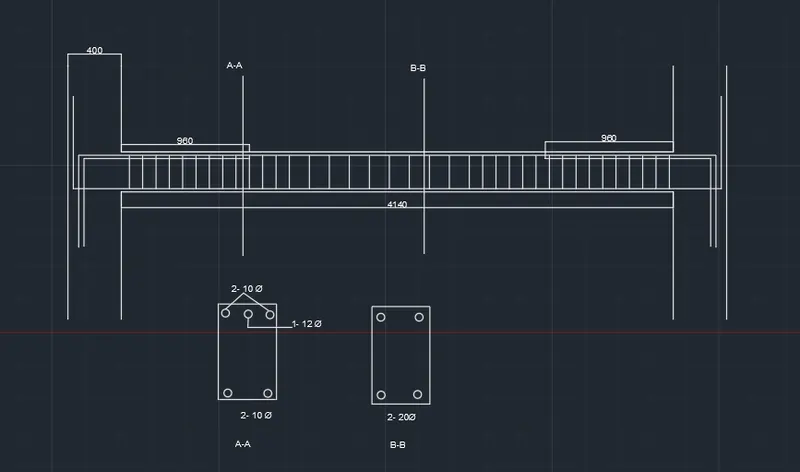

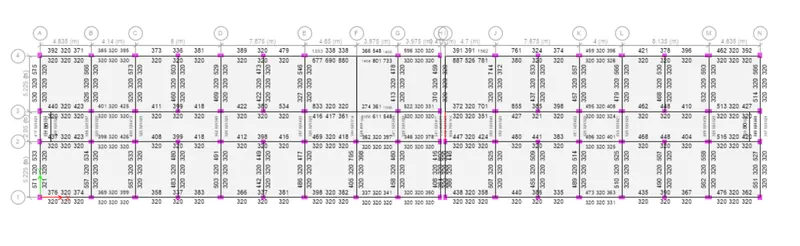

Reinforcement details of a beam

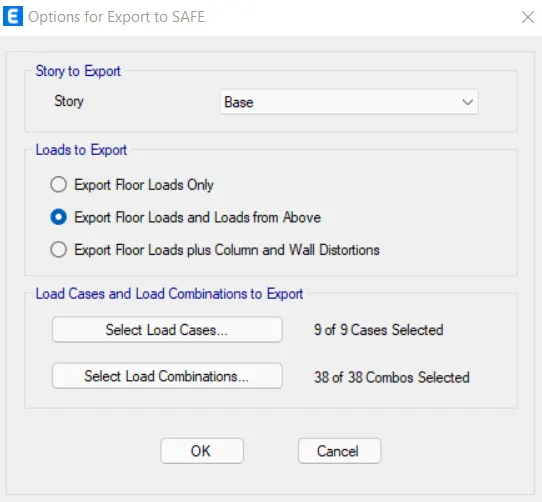

Export to SAFE

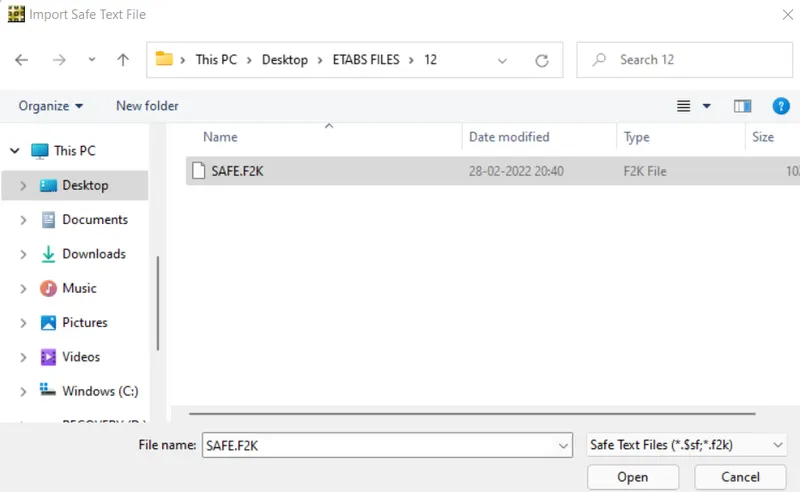

Now import file in SAFE software

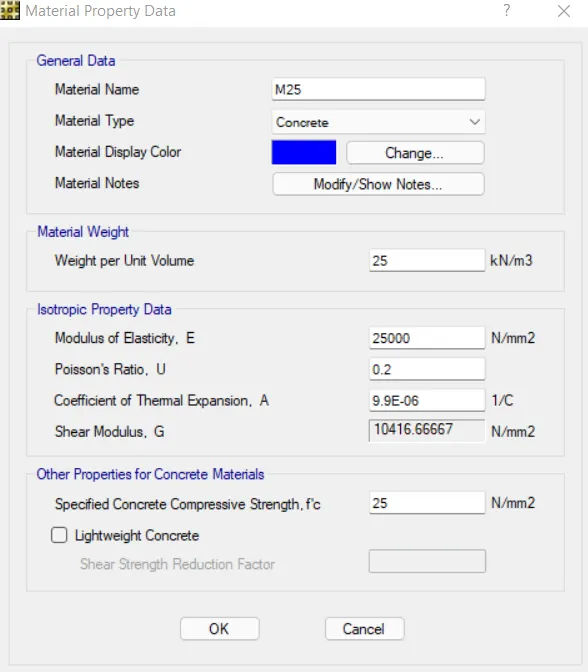

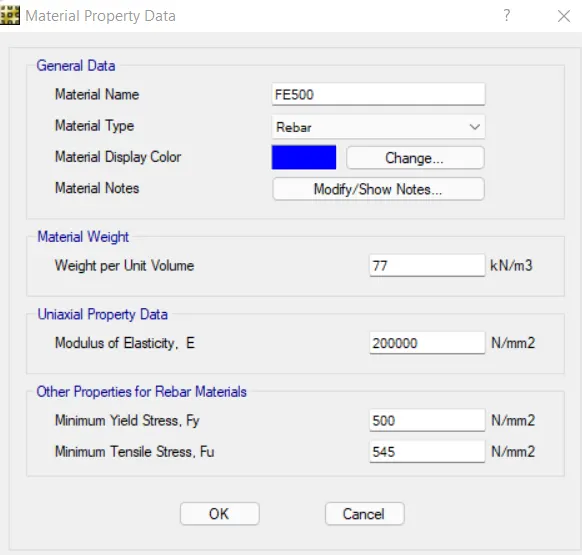

Define material properties

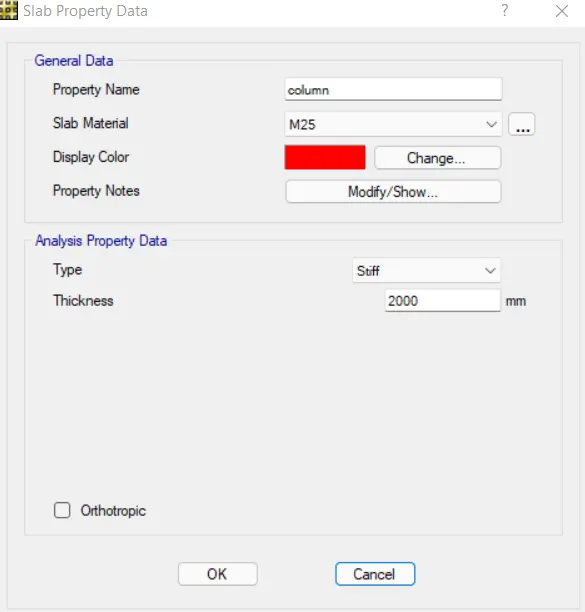

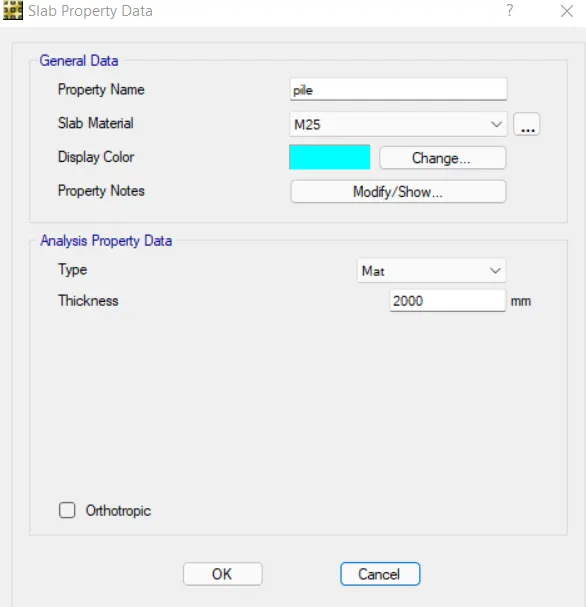

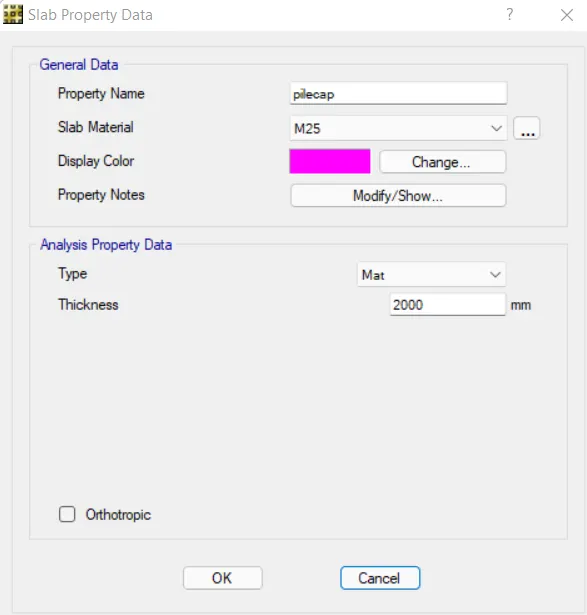

Define column, pilecap, pile

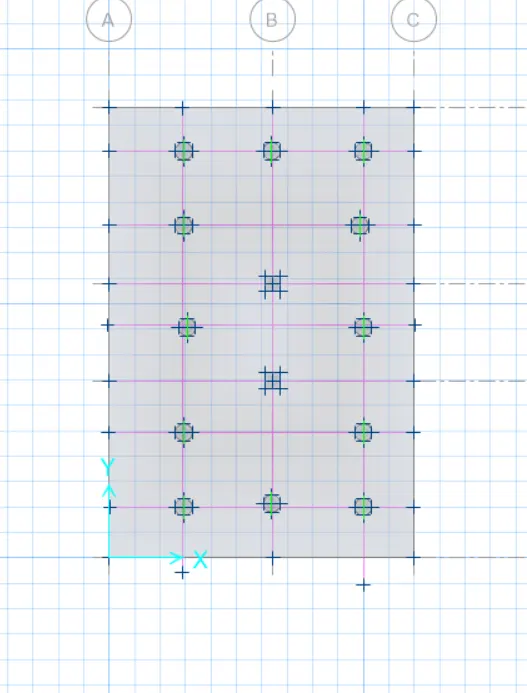

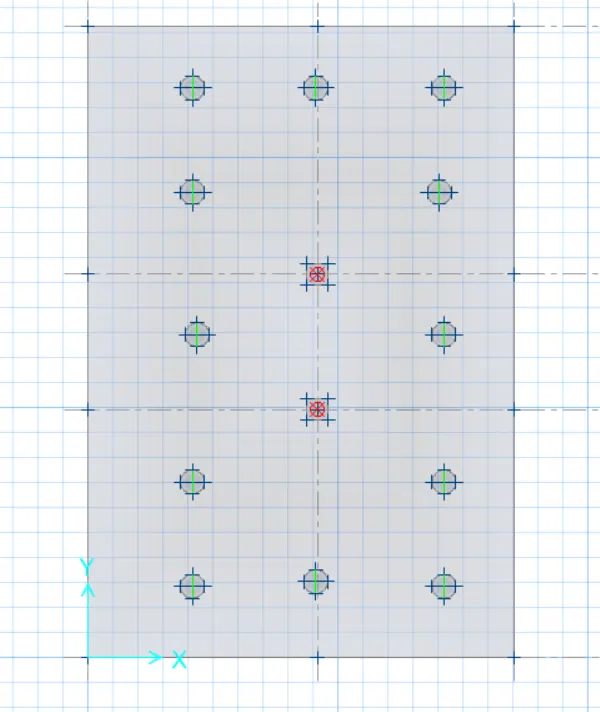

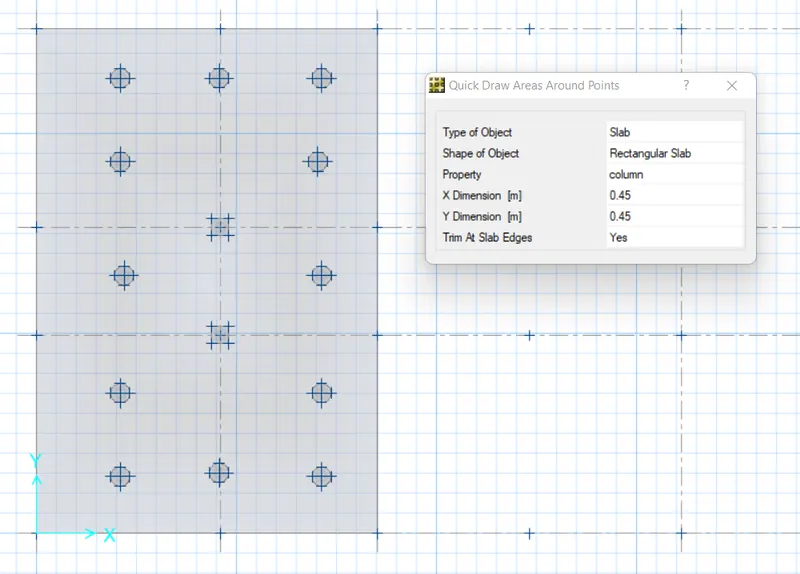

Draw piles and columns

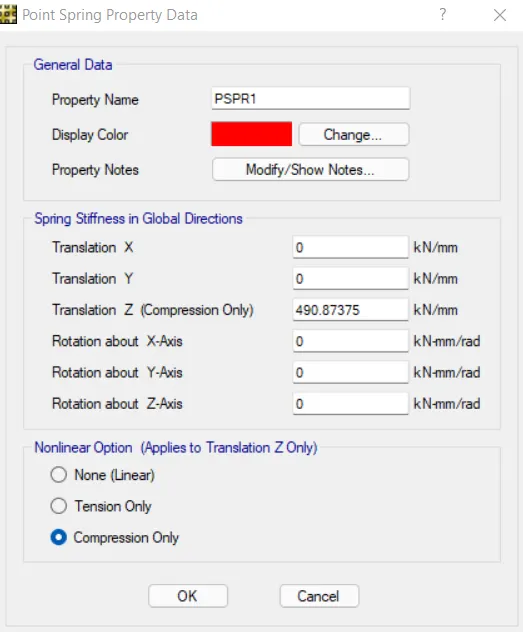

Assign spring constant to pile

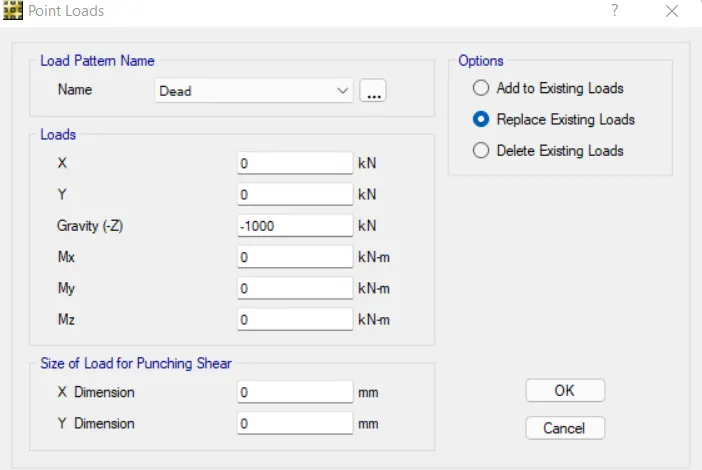

Assign load to column

Run analysis

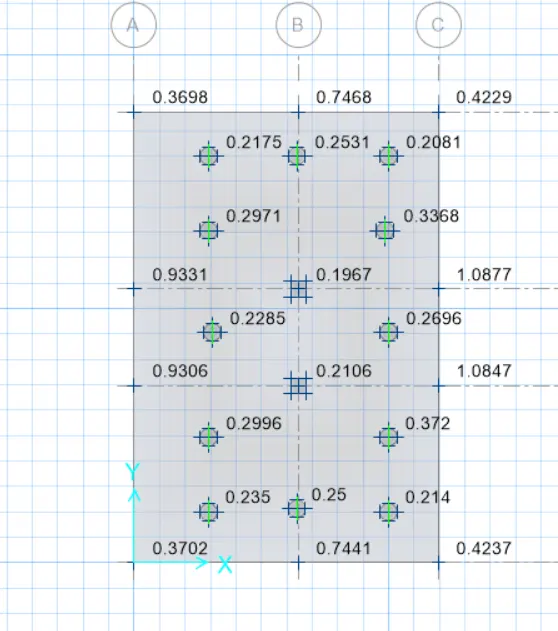

Punching shear less than 1

Draw design strips

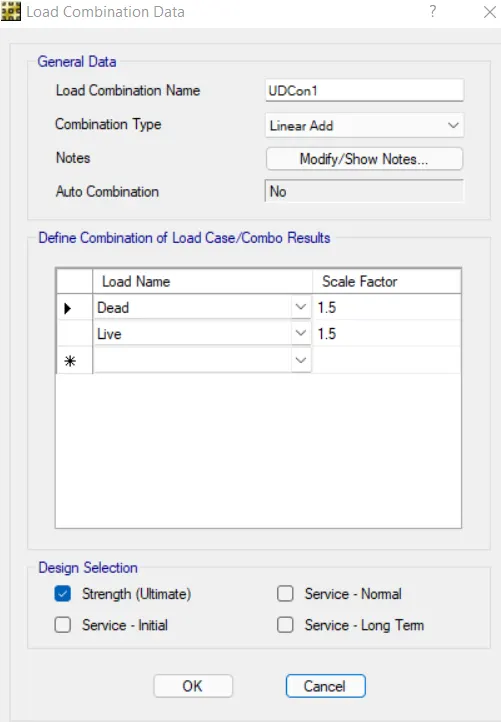

Asssign load combination

Run analysis

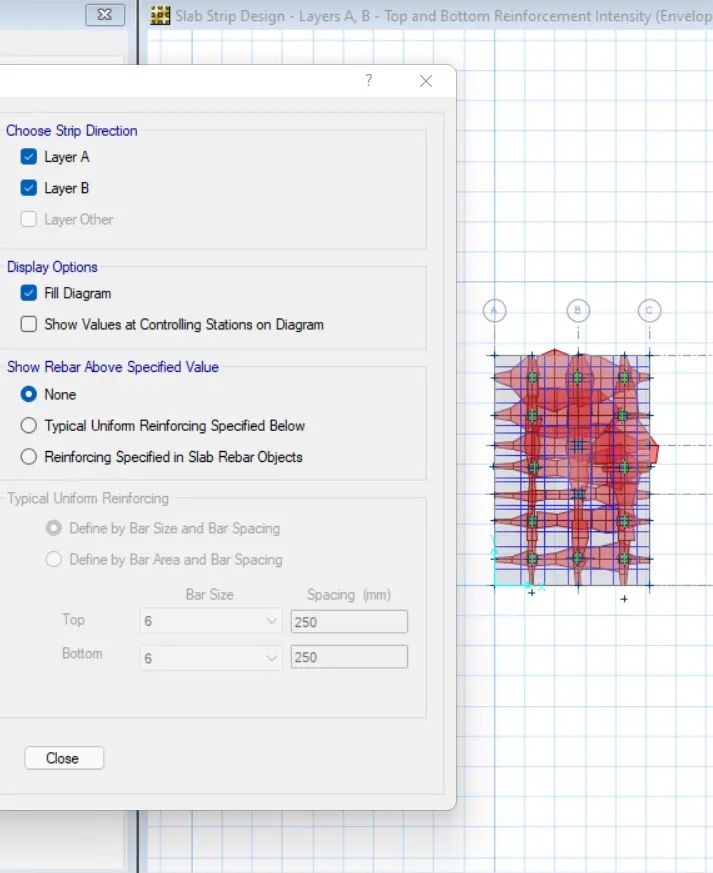

Display slab design

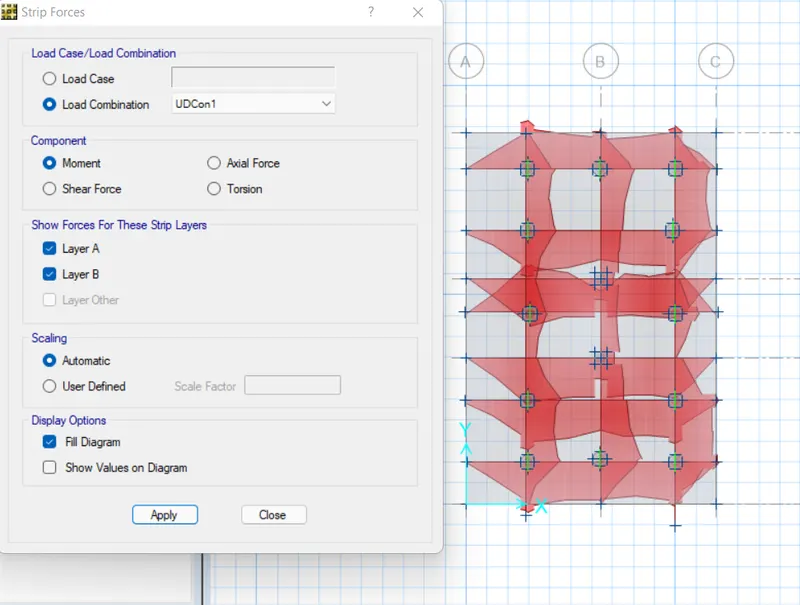

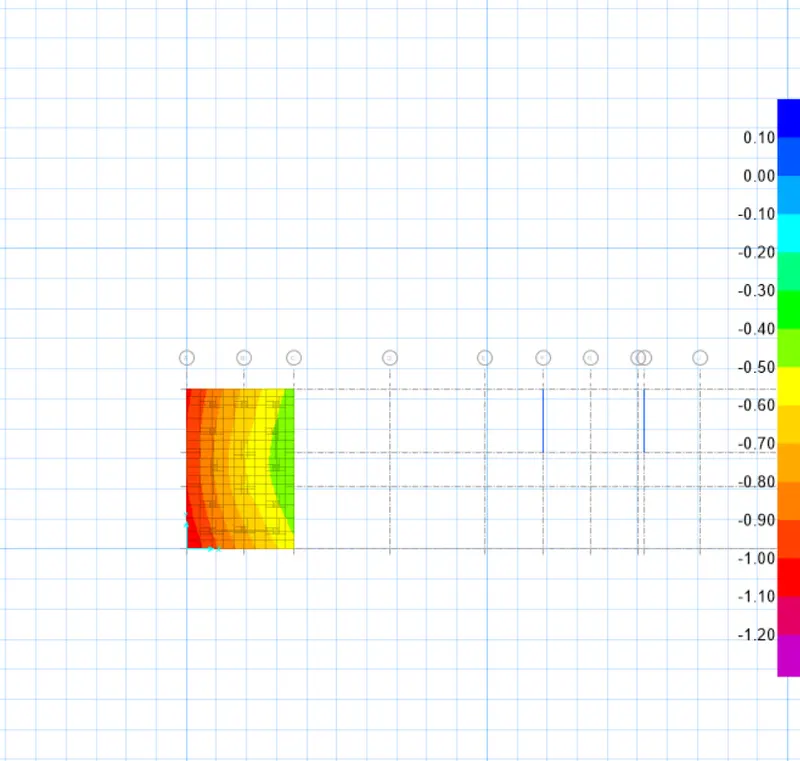

Strip forces
