Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

AIM - to perform analysis in ETABS and SAFE for the given hostel building in Guwhati, Assam

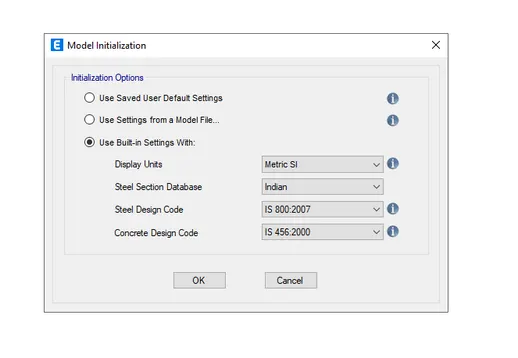

Procedure - 1. Select new model, choose metric system and code details

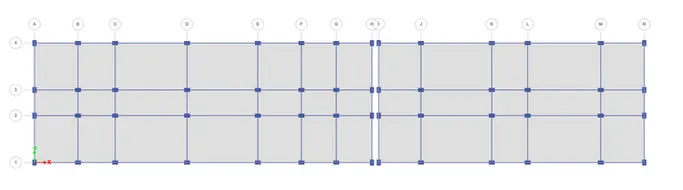

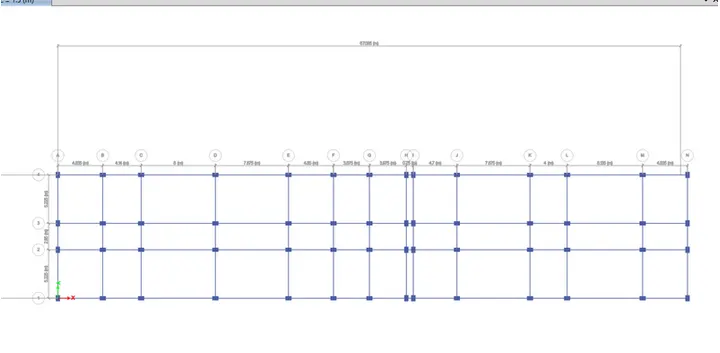

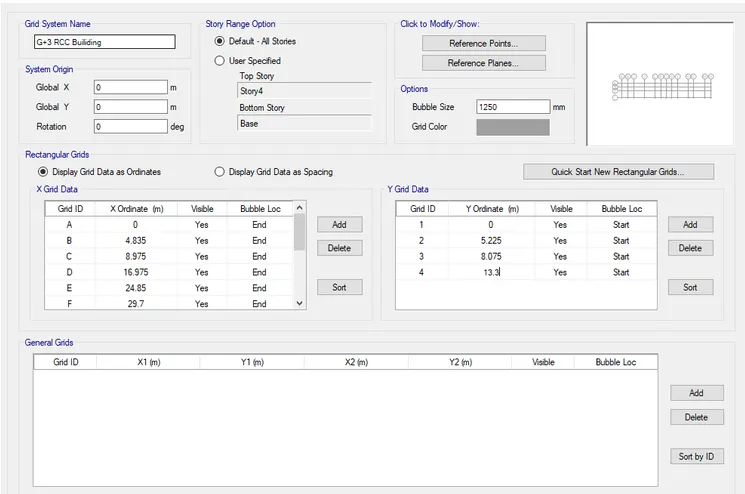

2. edit grid data as per the plan

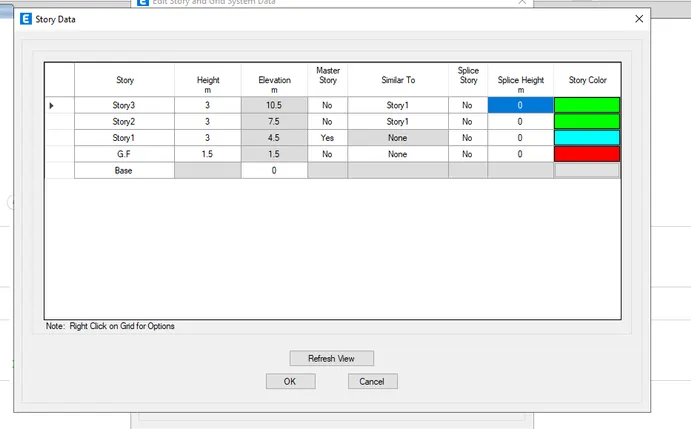

3. edit story data

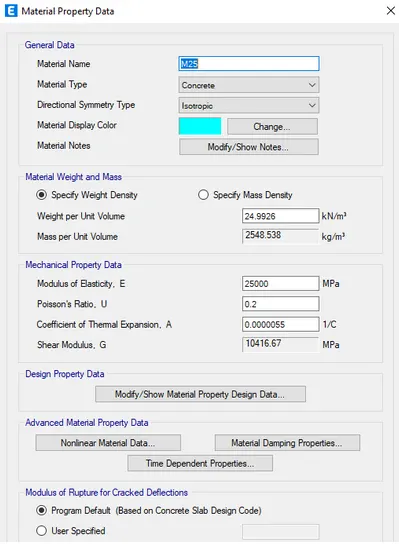

4. defin the material properties from define tab

for M25 concrete

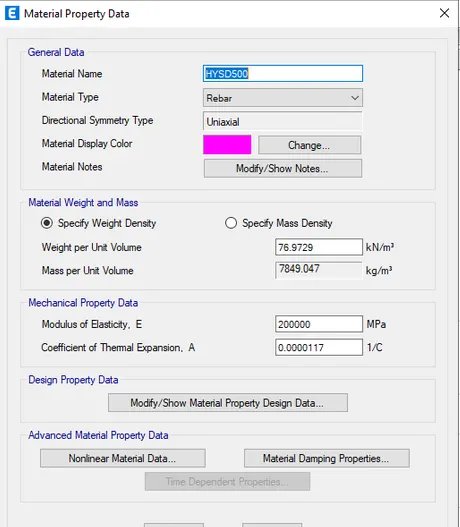

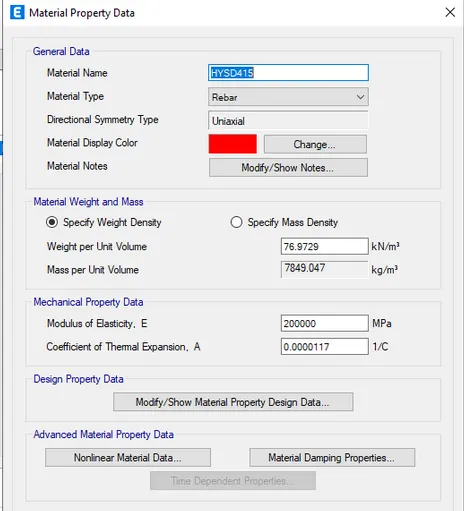

For rebar reinforcement

for longitudnal reinforcement

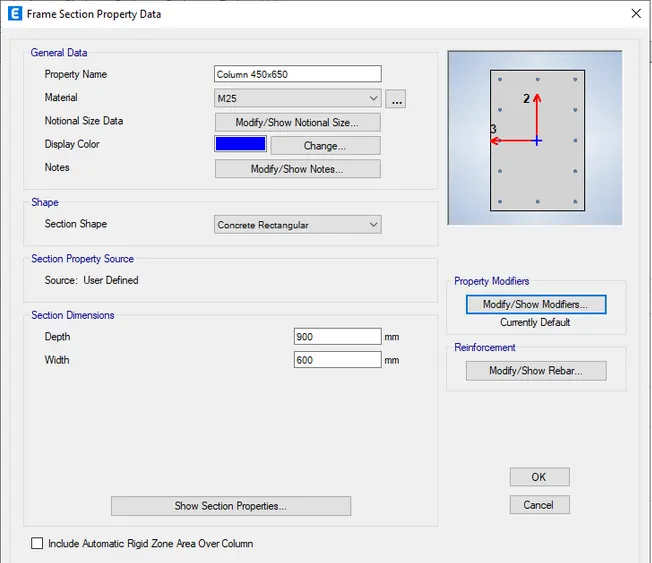

5. create column of 450x650

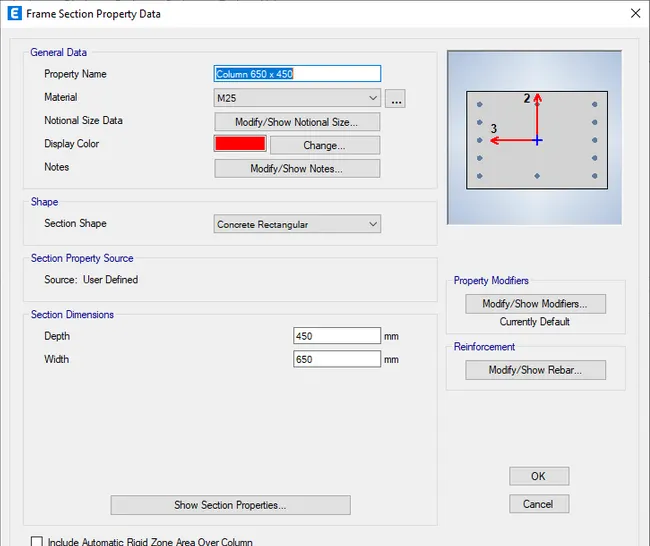

6. create new column of 650x450

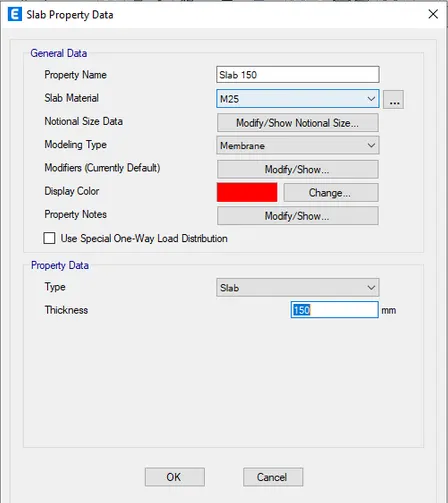

7. create new slab property of slab 150 and give thickness of 150mm

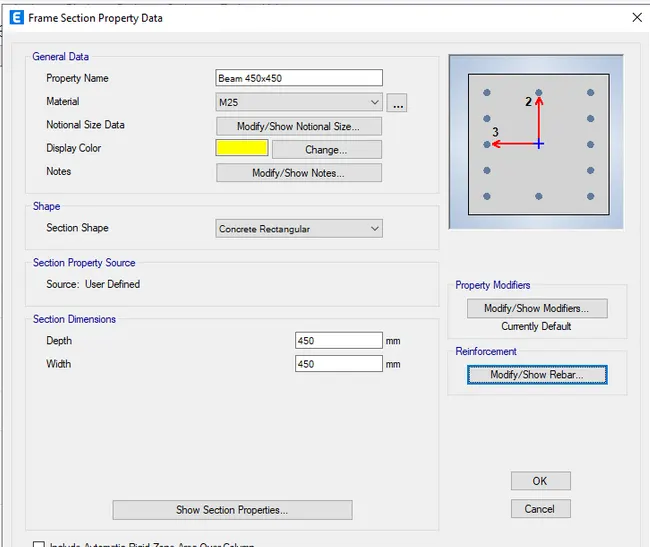

8. create beam size of 450x450

9. assign beams and column using draw tool

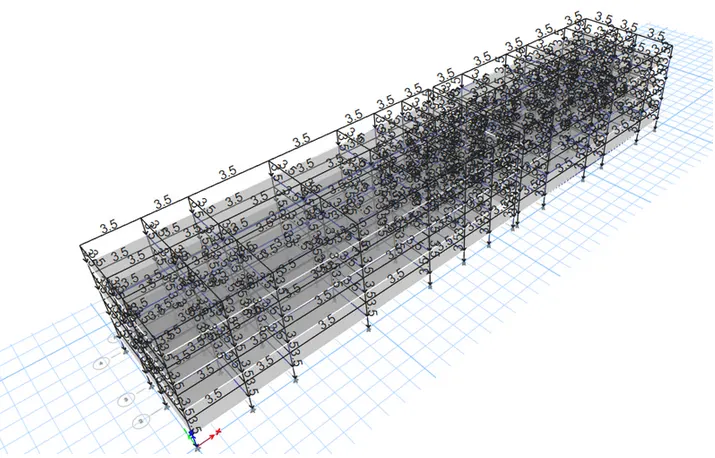

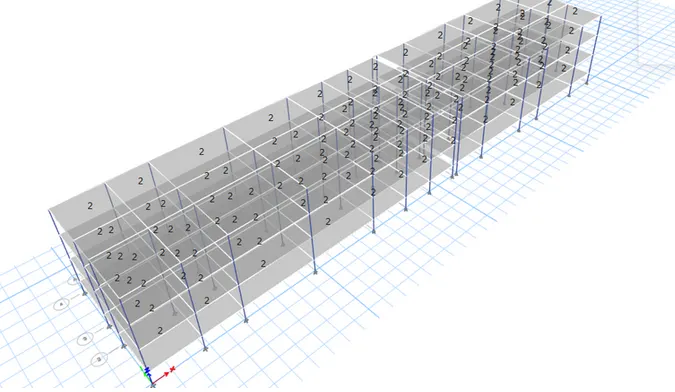

10. apply slabs in model

11. load case

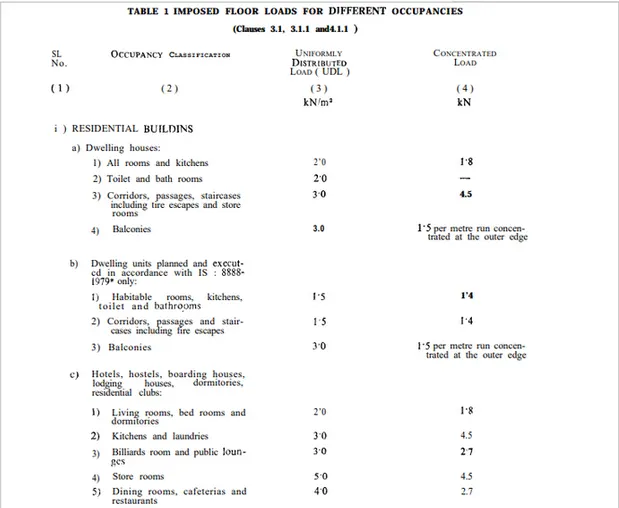

live load will be 2kN, brickwall load will be 3.5 kN and finishing load as 1.2kN as per IS875 PT2

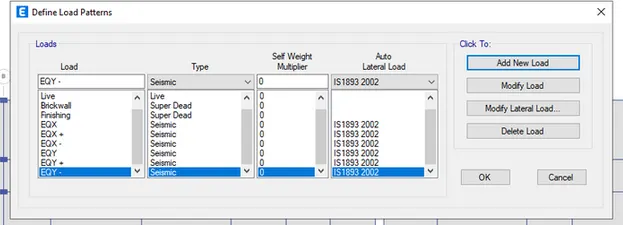

zone factor for guwhati, assam is 0.36 and 5th zone

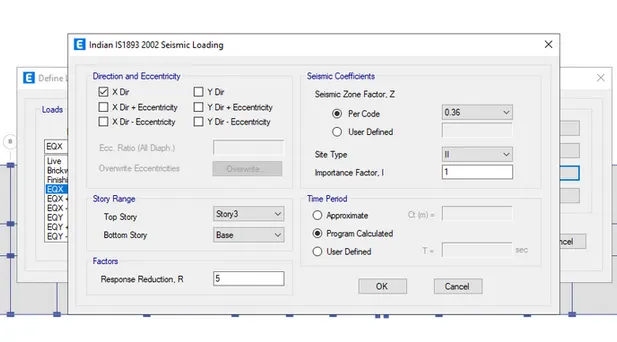

12. modify zone factors as per IS code

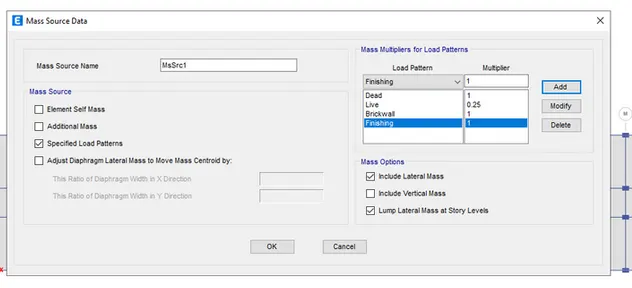

13. assign mass source data

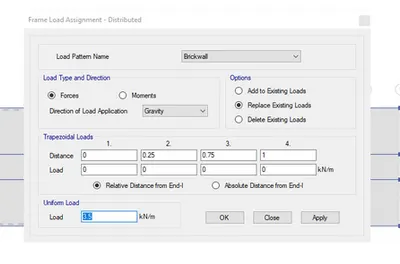

14. apply brickwall load

15. apply loads on model

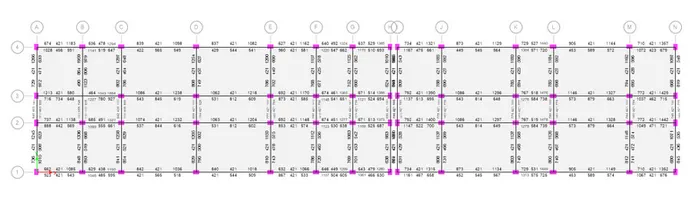

16. run analysis and take Ast values for beam and reinforcement

17.save and export this model and open it in safe

detials - soil type = 3

pile length = 10 meters

pile dia = 500mm

load carrying capacity = 280kN

18. run analysis in SAFE

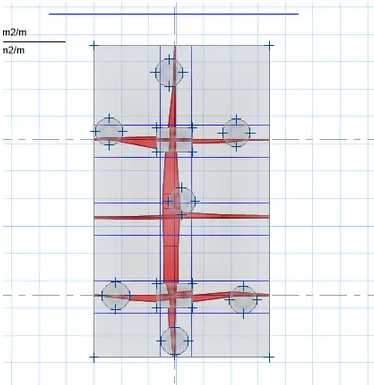

some of the punching shear value are greater than 1

therfore we will increase slab size

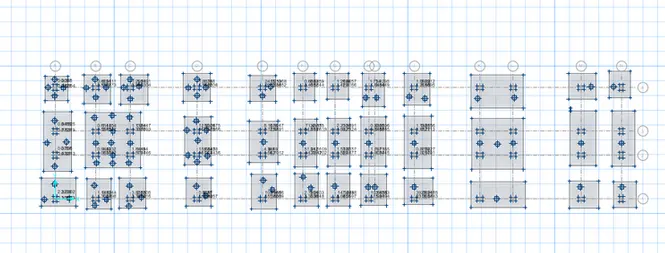

reinforcement details for one cap
