Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

AAbhinav Chaudhary25 Feb 2023

Aim:

To carry out modelling analysis design and preparation of construction drawing of G+3 RCC building situated in Guwahati Assam

Introduction:

In this project participants will get to experience the entire design process from Modelling and laces design and preparation of the construction drawings. The architectural drawing of A G plus 3 RCC building is provided the following information of the building is to be used sacchai location, function

The following design IS course will be required for reference;

IS 875 part 1
IS 875 part 2
IS 13920
IS 1893
IS 2911 part 2
IS 456
SP 34

Procedure:

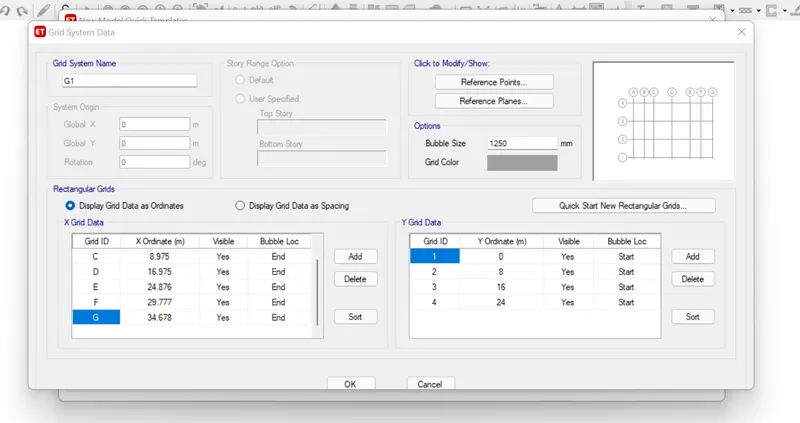

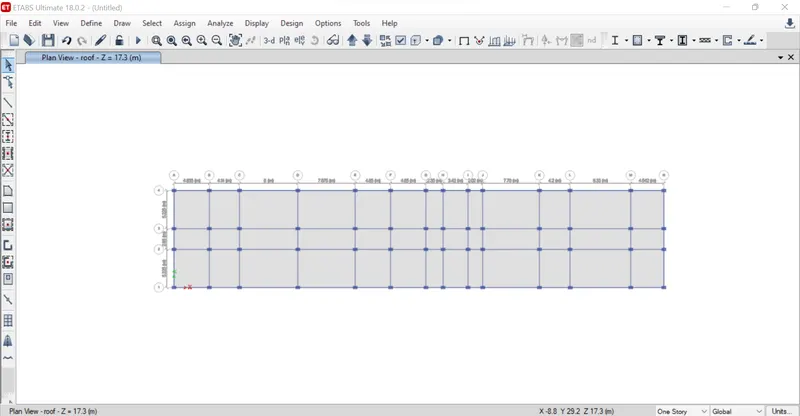

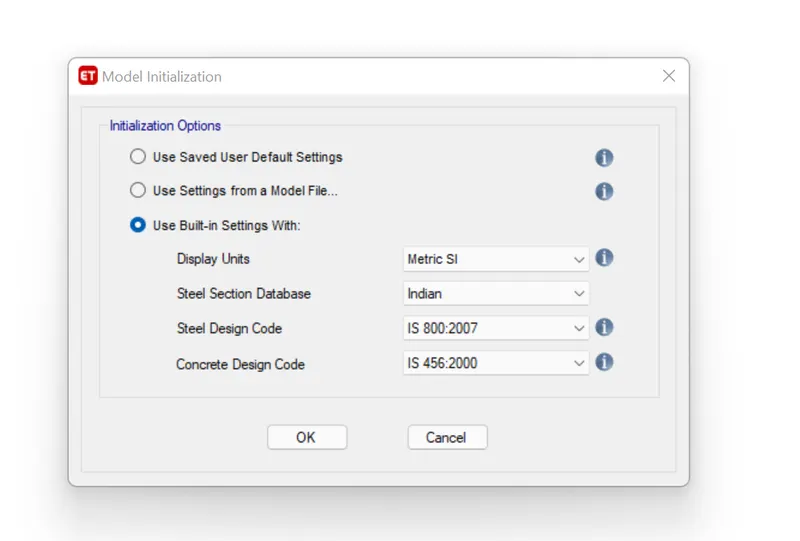

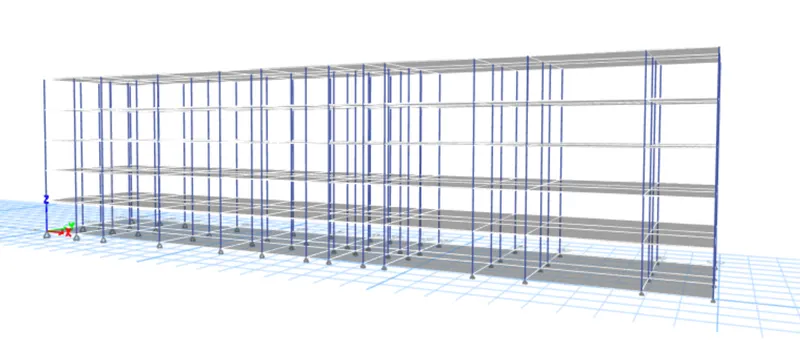

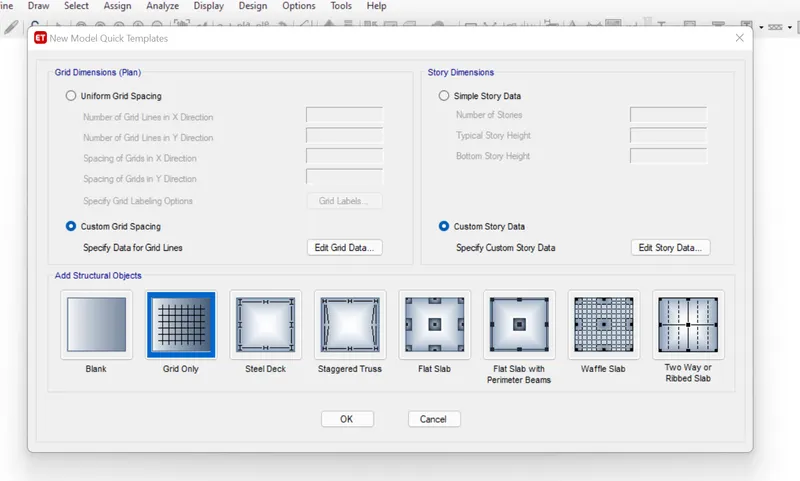

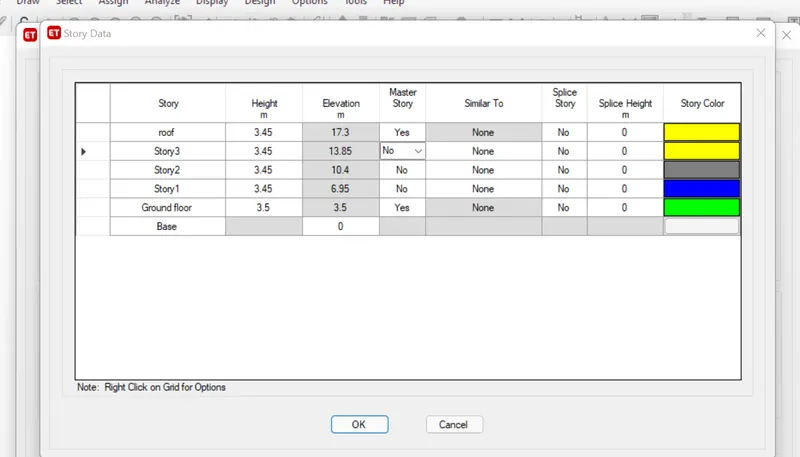

Firstly we have to open the tab software and then provide the great and story information

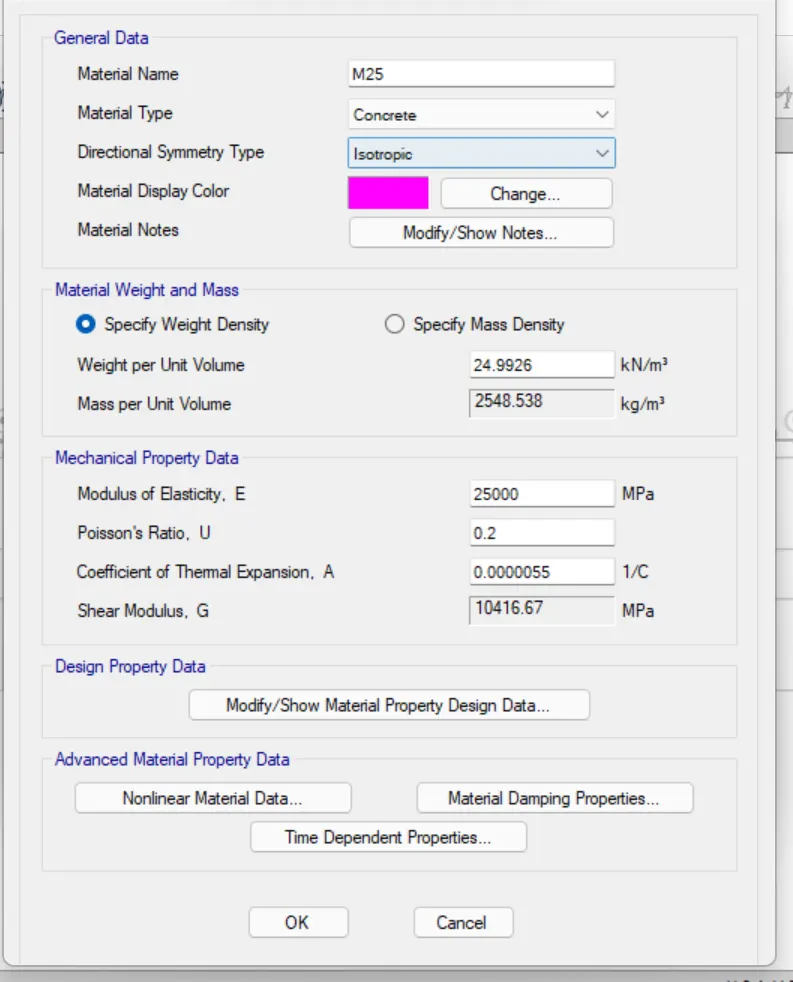

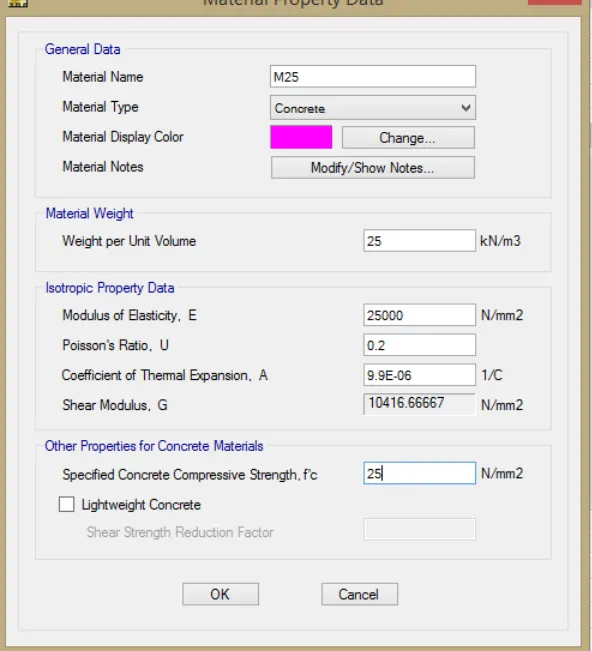

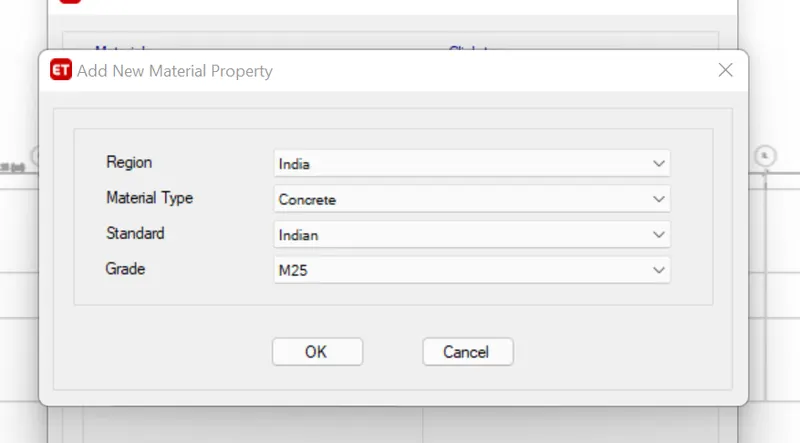

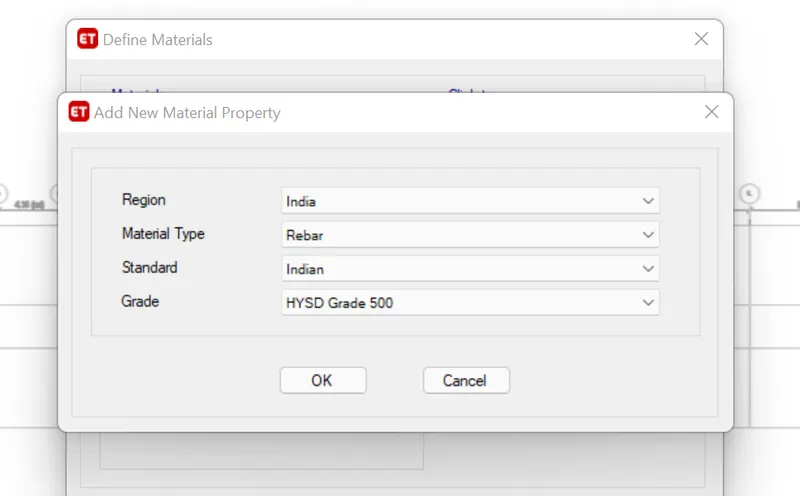

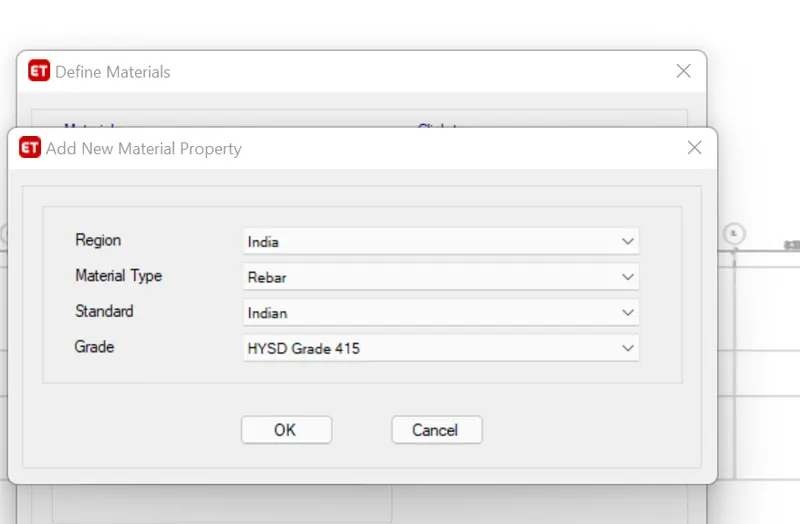

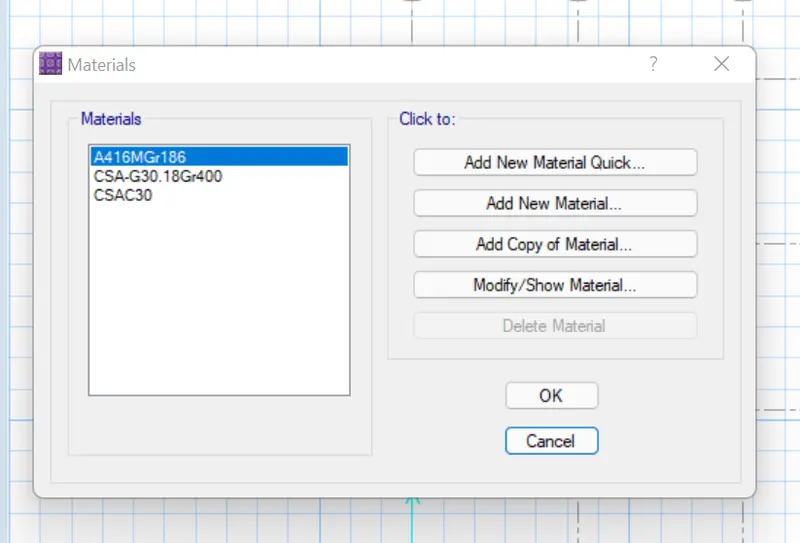

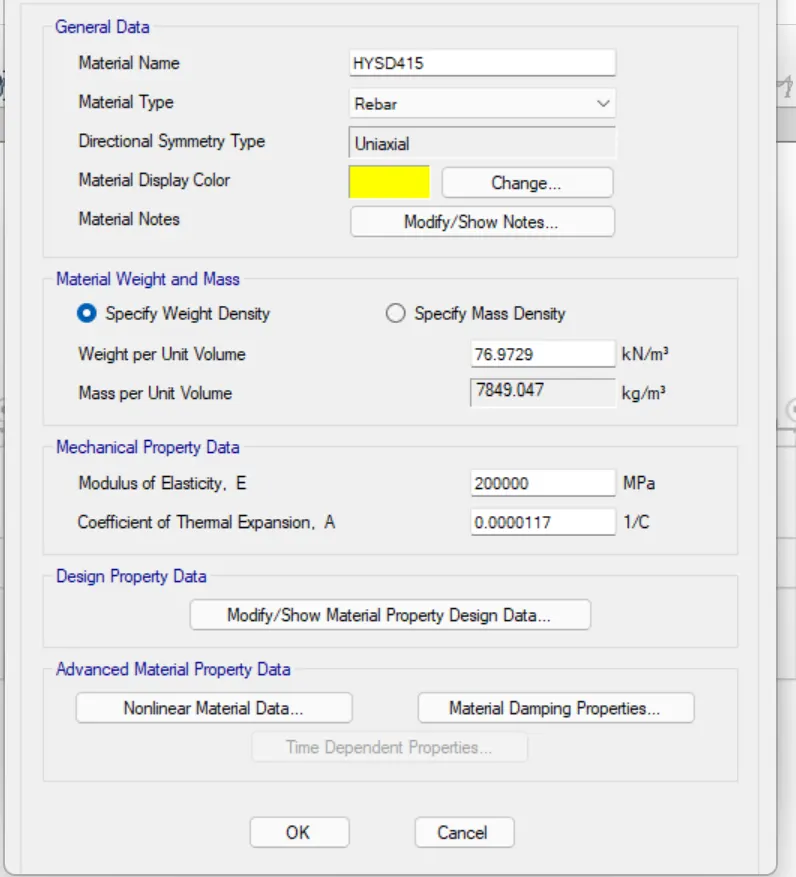

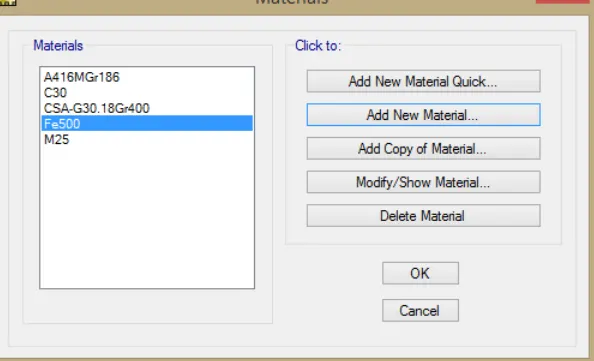

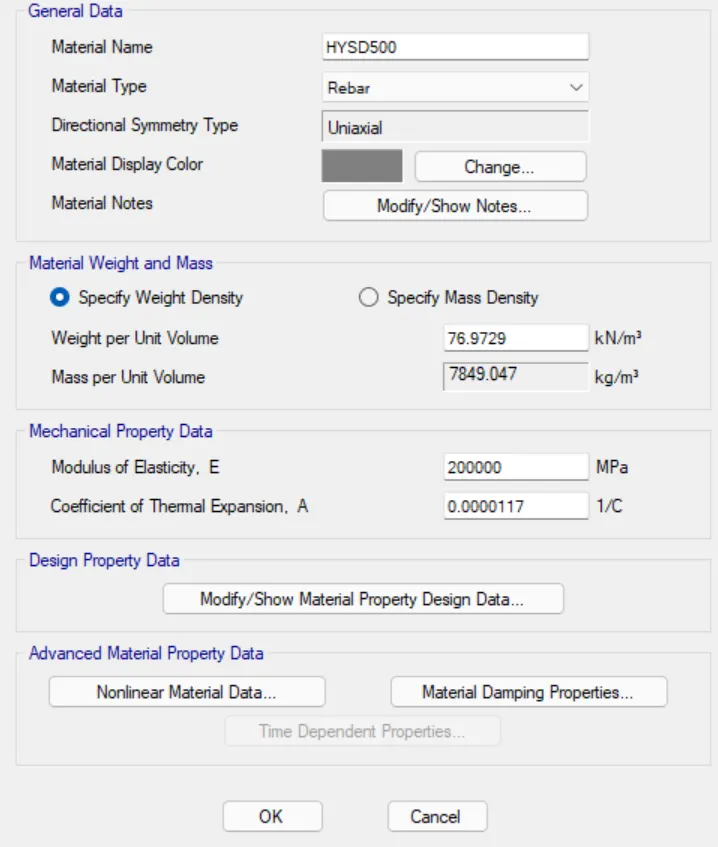

Then we have to add the material properties to the required model

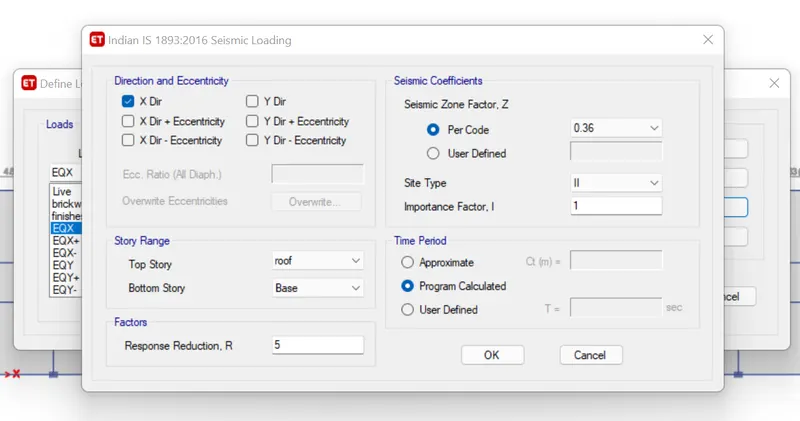

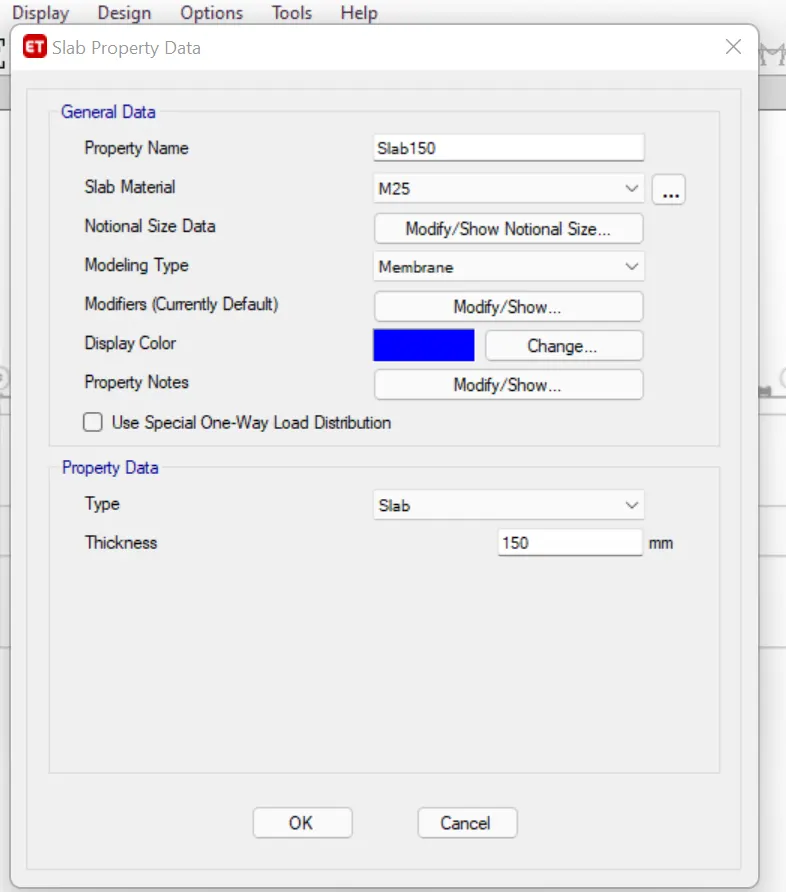

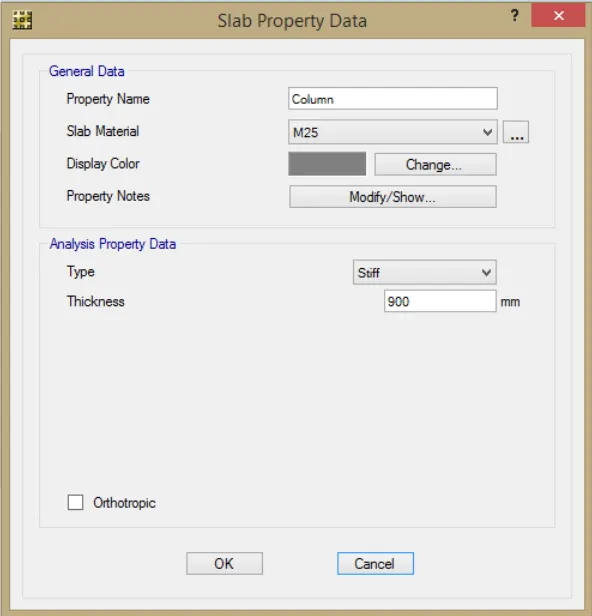

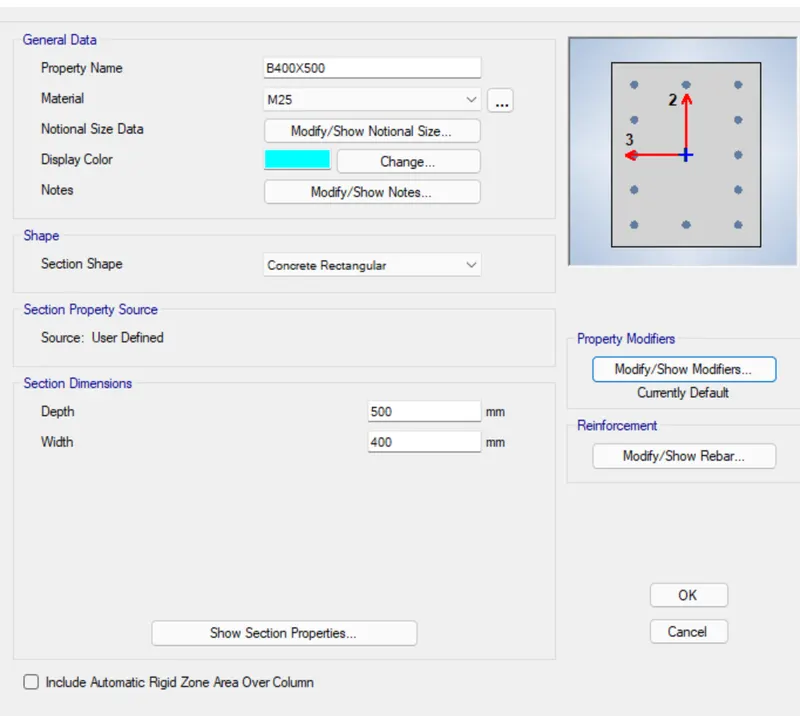

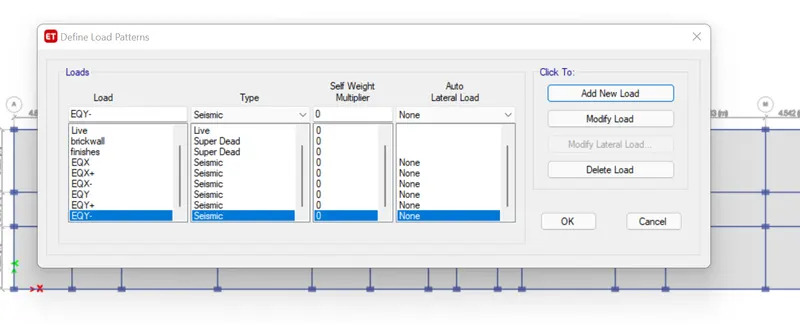

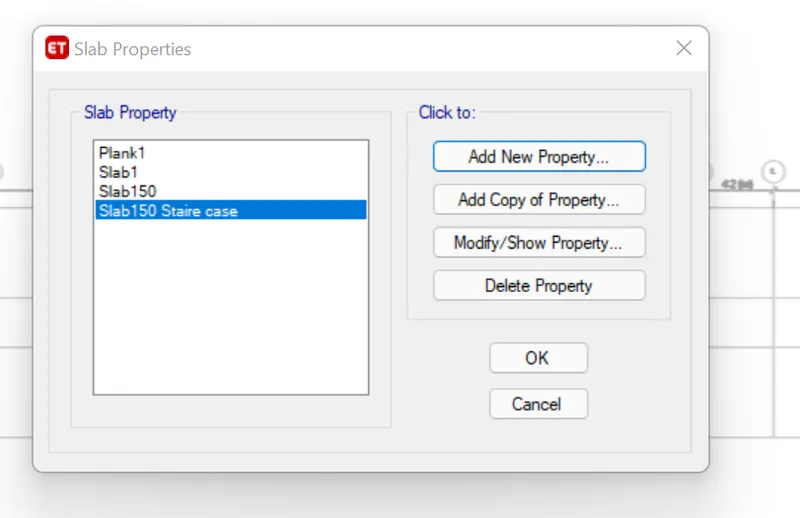

After giving the material properties loading the section properties we need to add the load cases that require mention below:

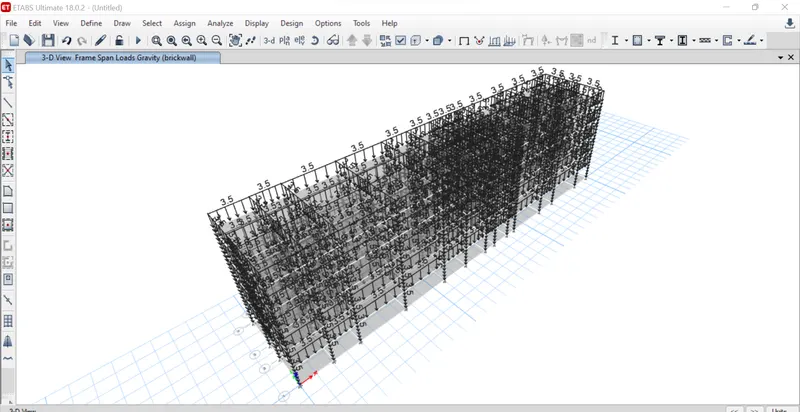

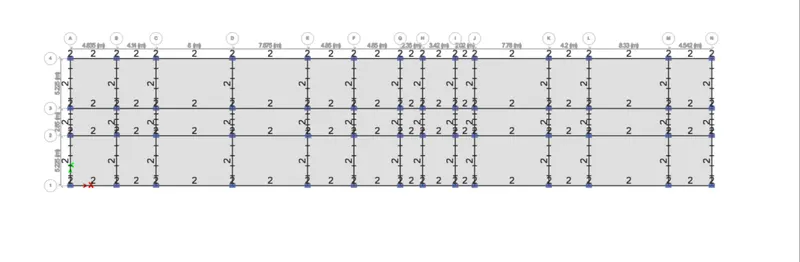

Now we need to assign these loads:-

Live load: 2KN/m2 with reference to IS875:part2

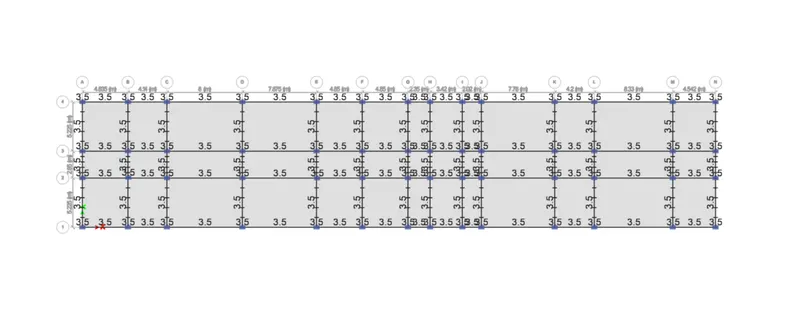

Take brick wall load as 3.7 km per metre
Floor finish is 1.5 km per metre square

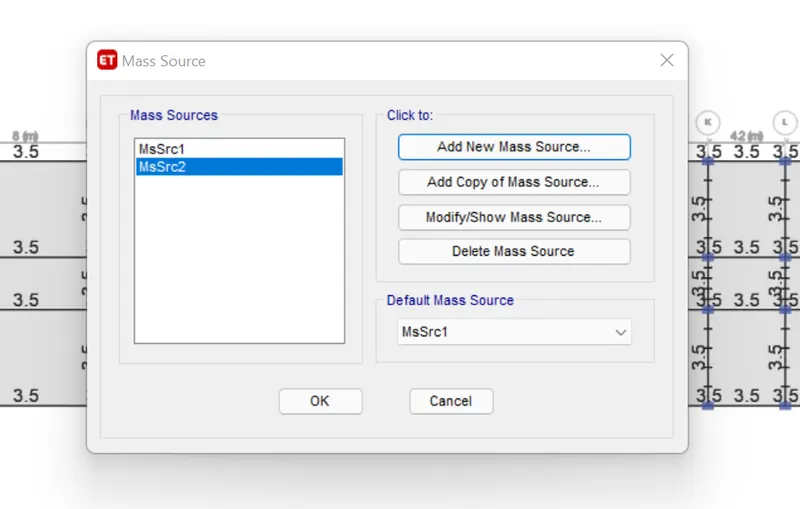

Also we have to define the mass source and response spectrum function

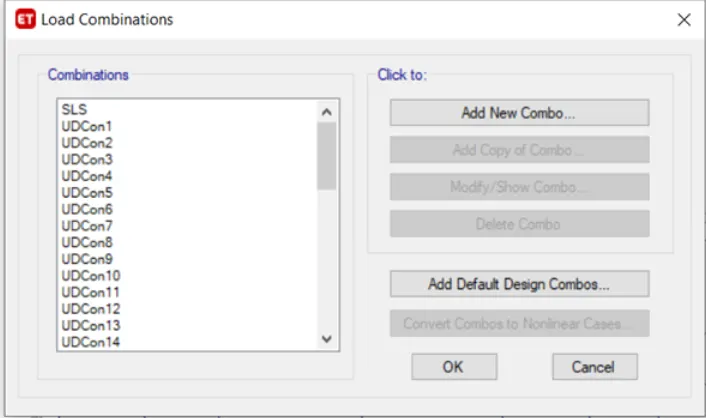

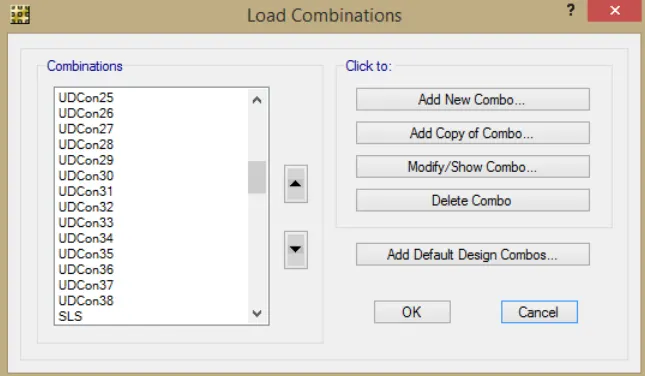

After that we have to define the load combination

After asigning the load combination we have to assign the diaghpharm

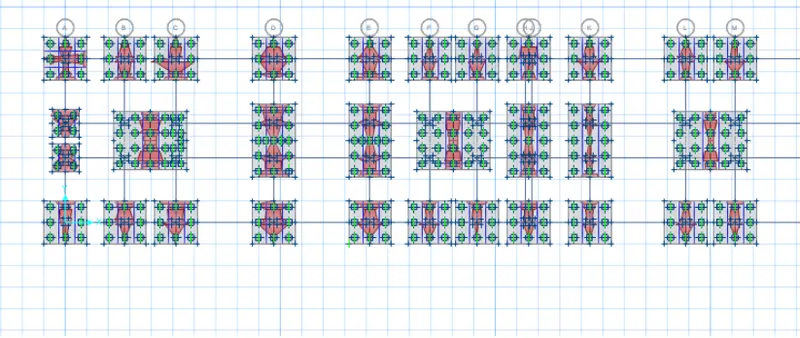

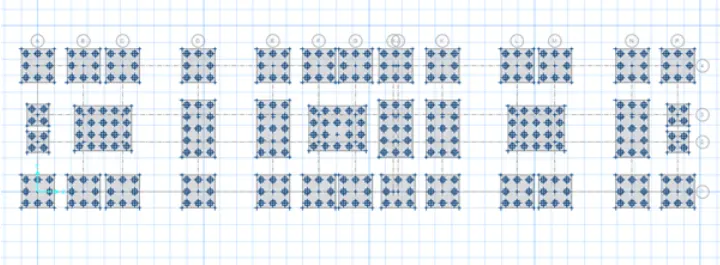

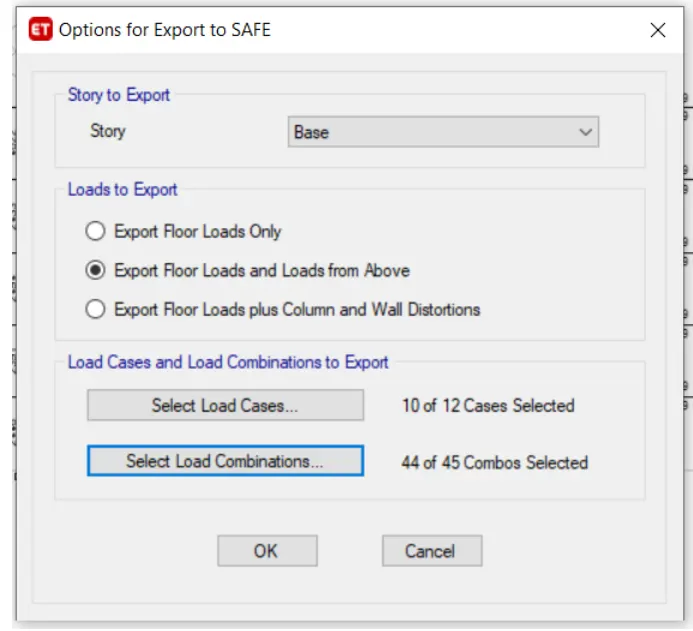

After completion of design we need to export the base reactions and local conditions in f2k format for footing design using the saved software and then we need to export the f2k file into safe software import the old reactions and loads
