Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

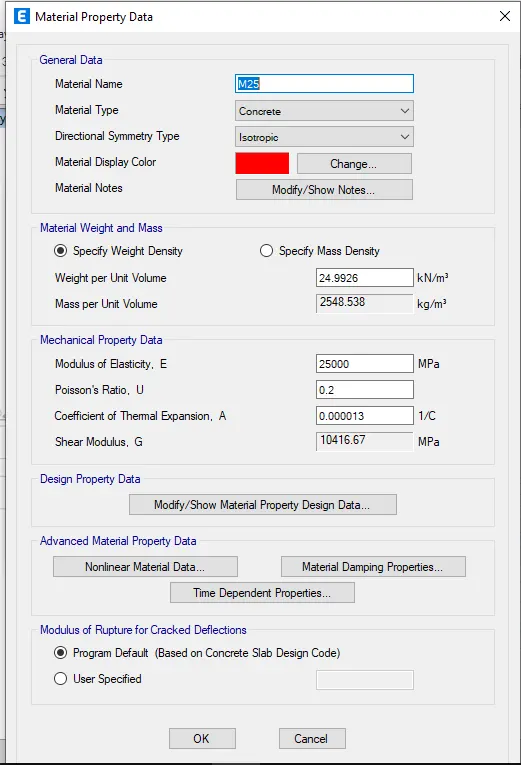

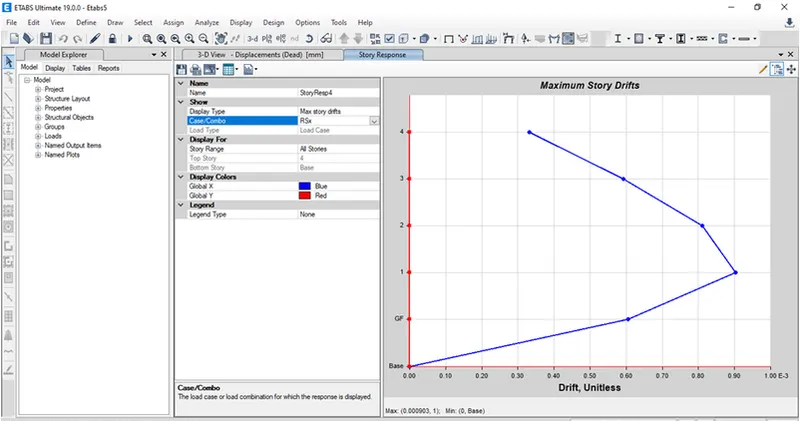

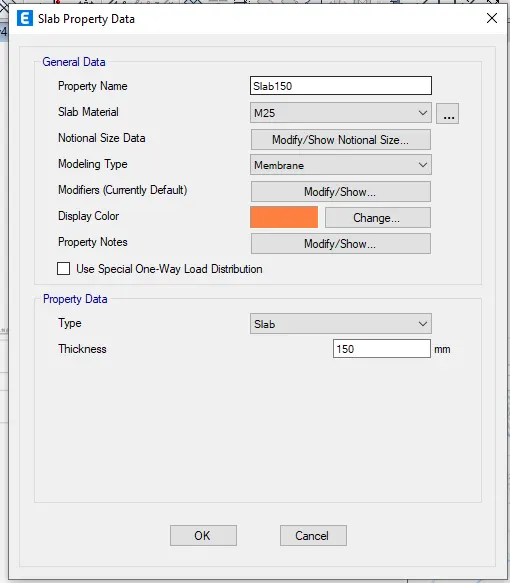

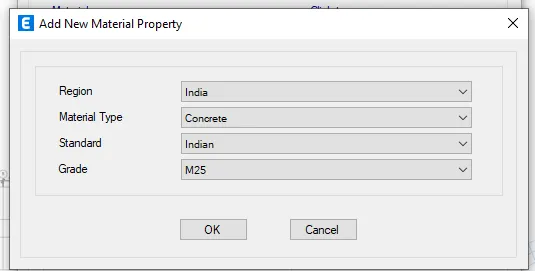

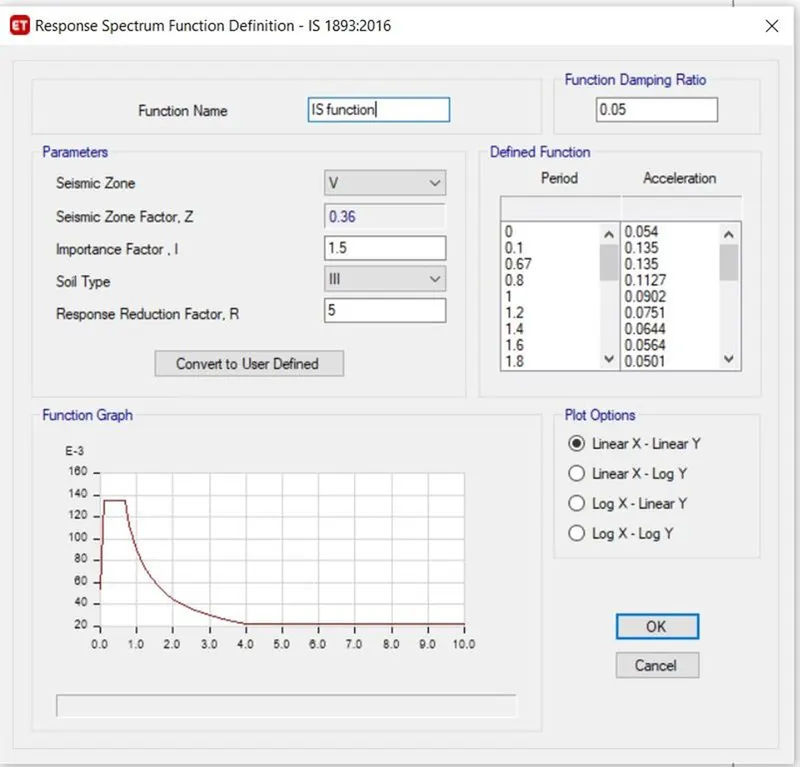

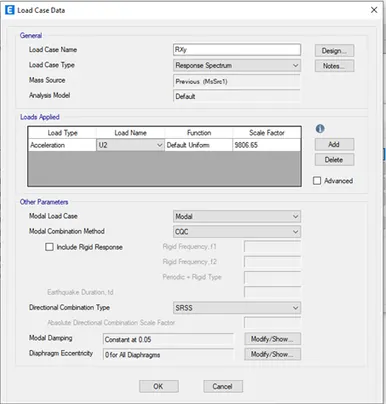

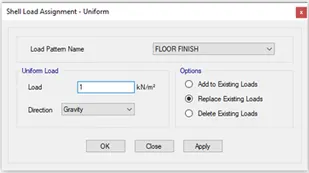

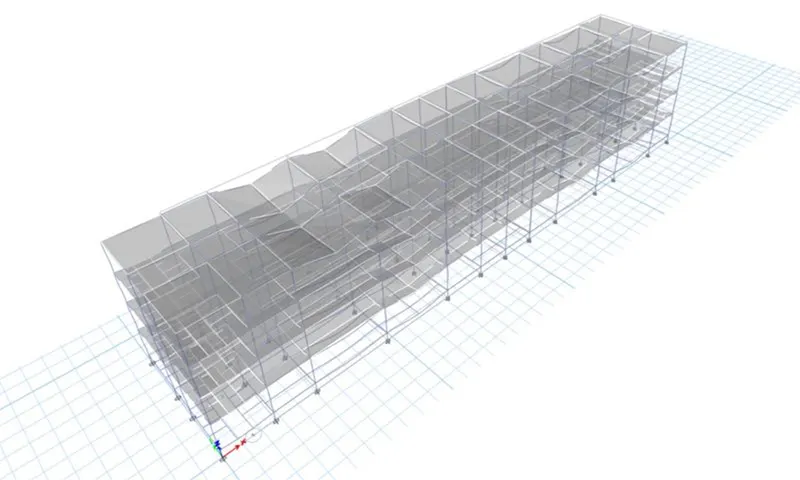

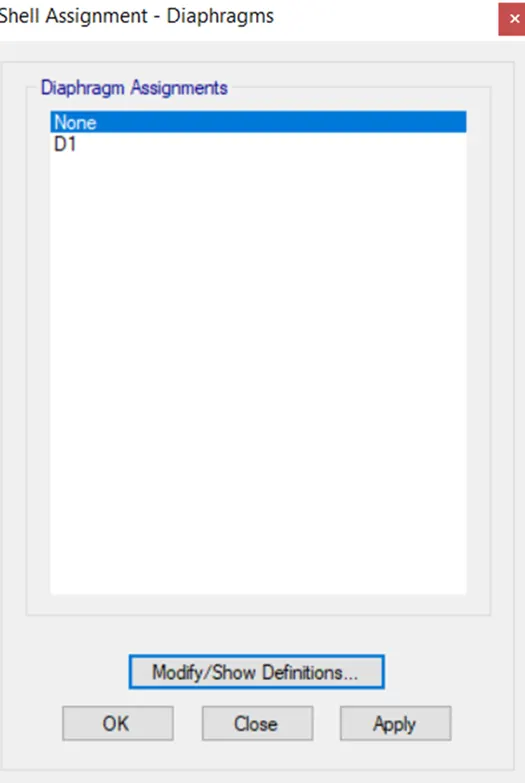

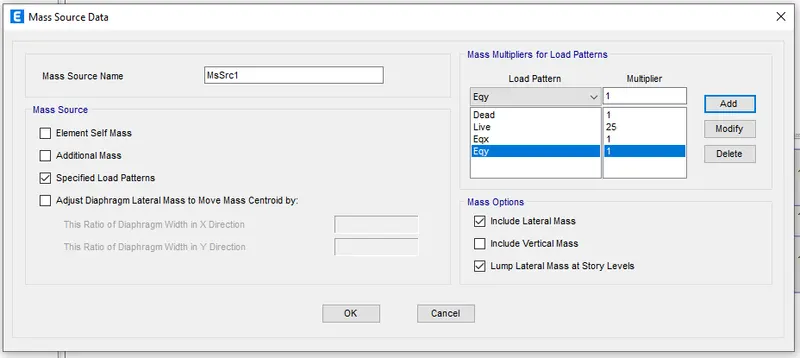

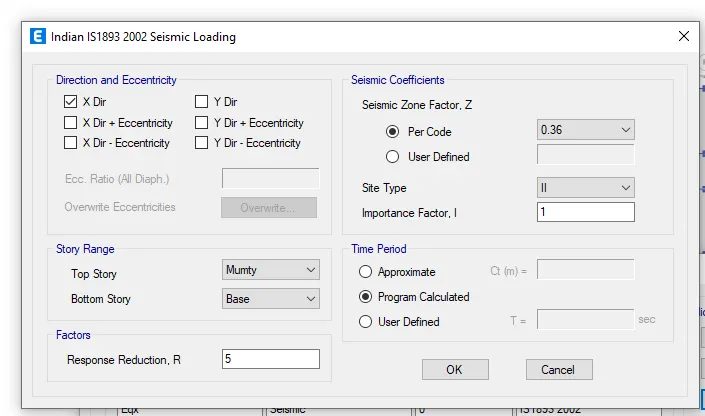

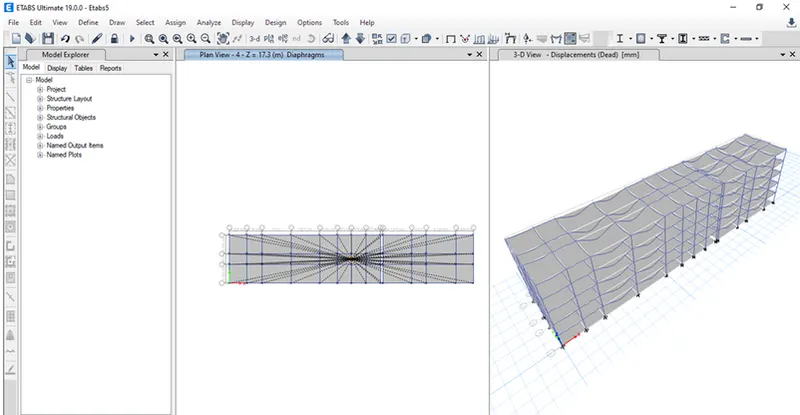

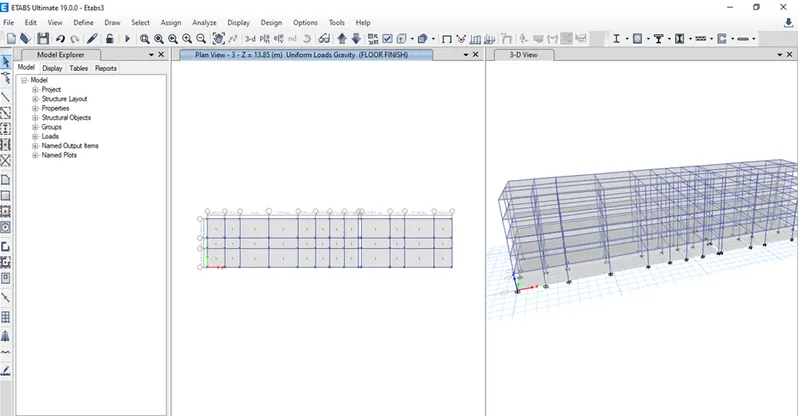

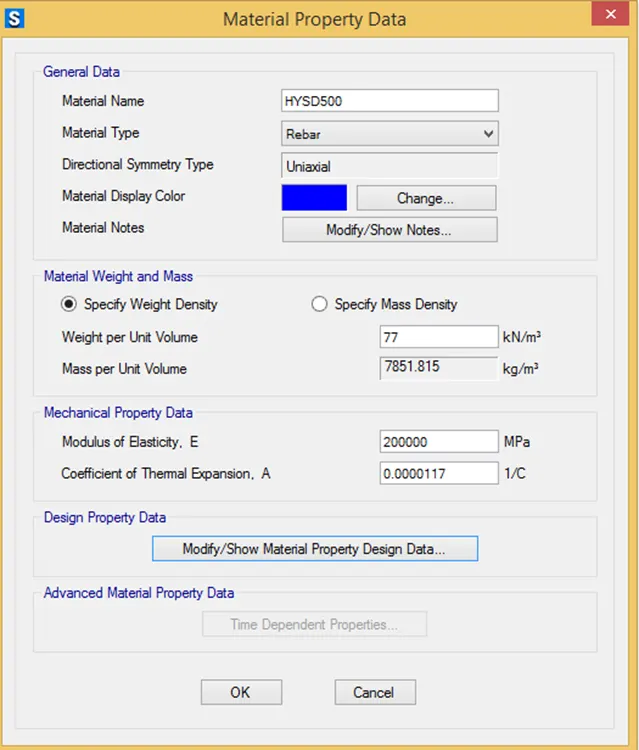

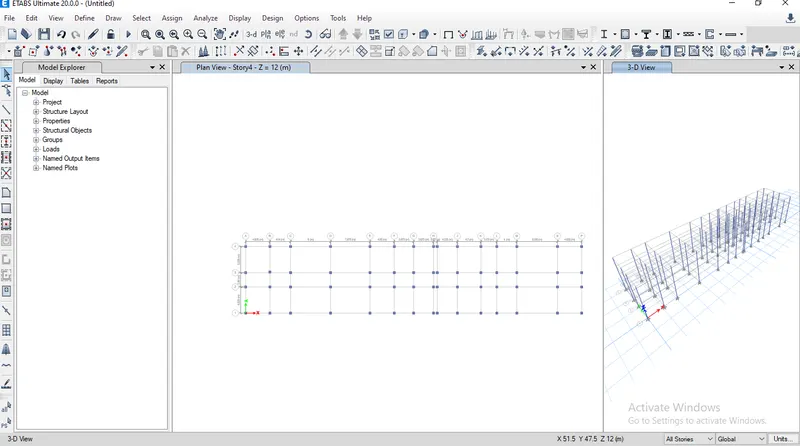

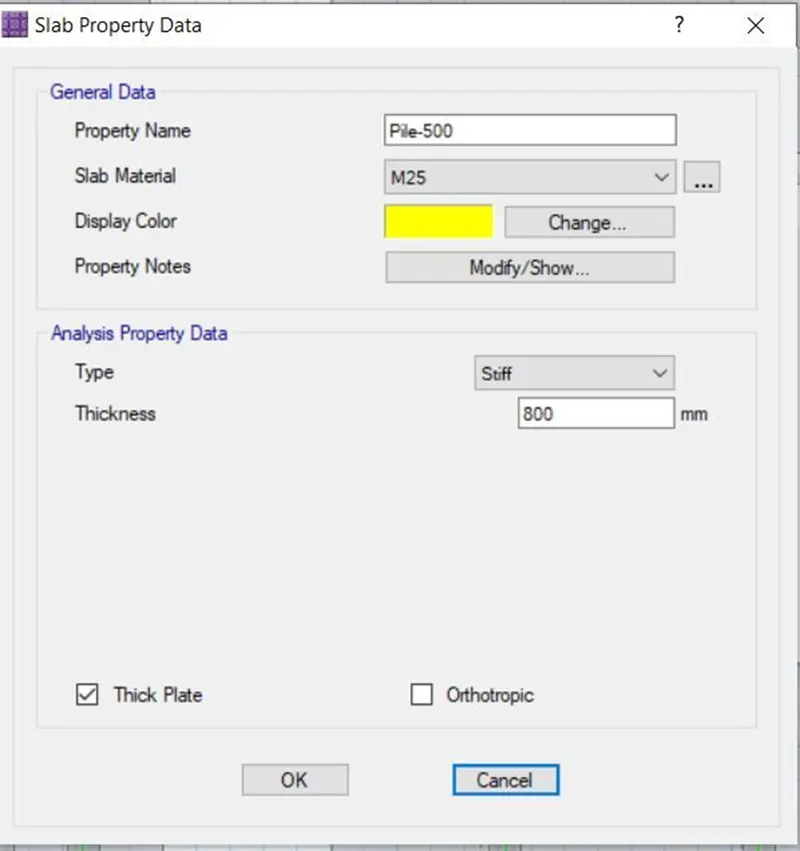

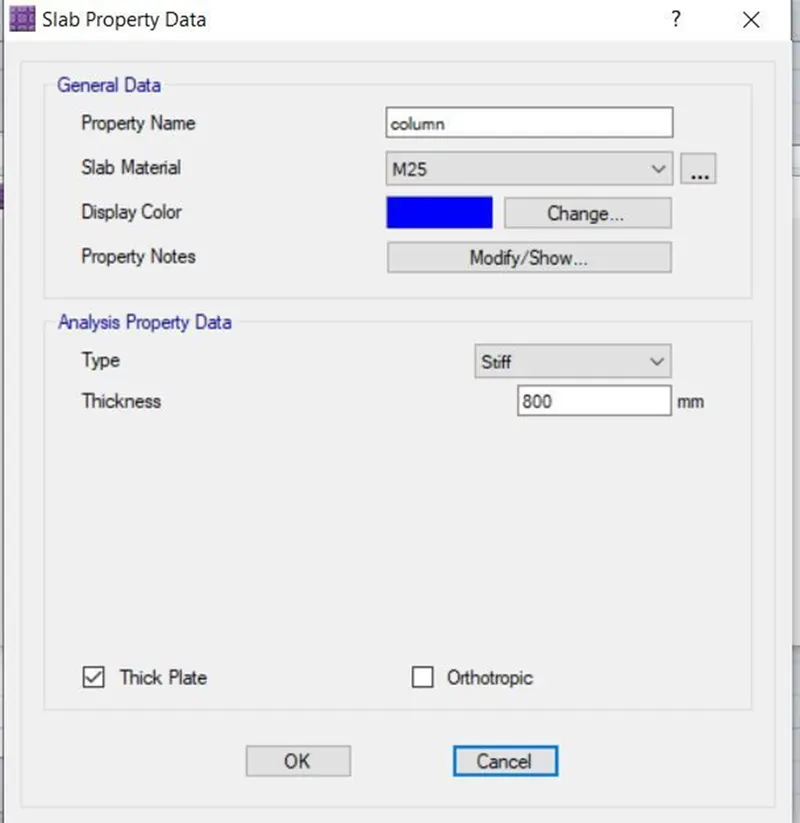

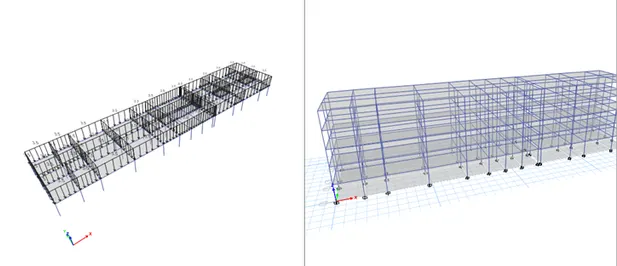

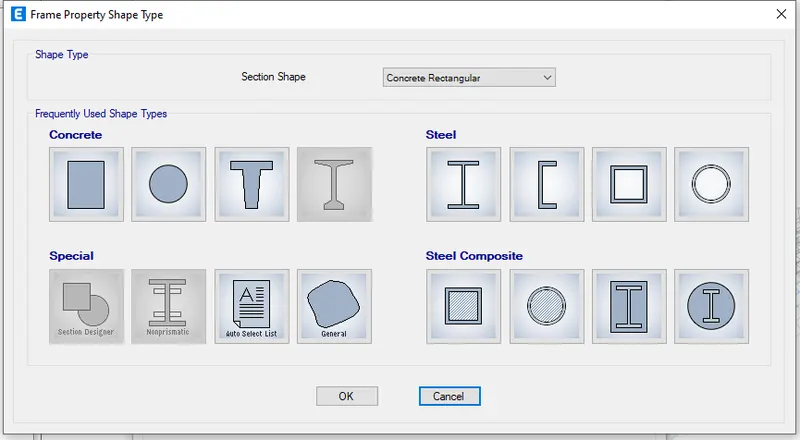

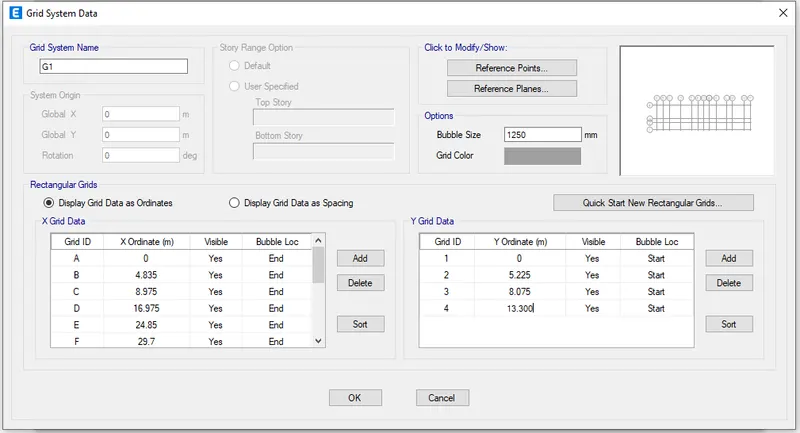

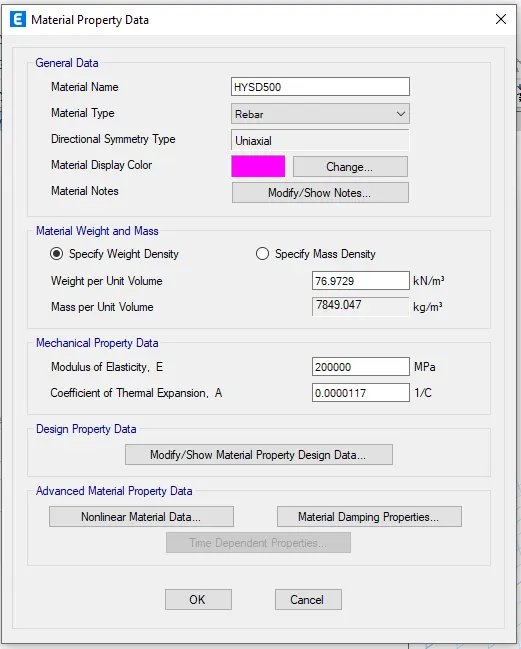

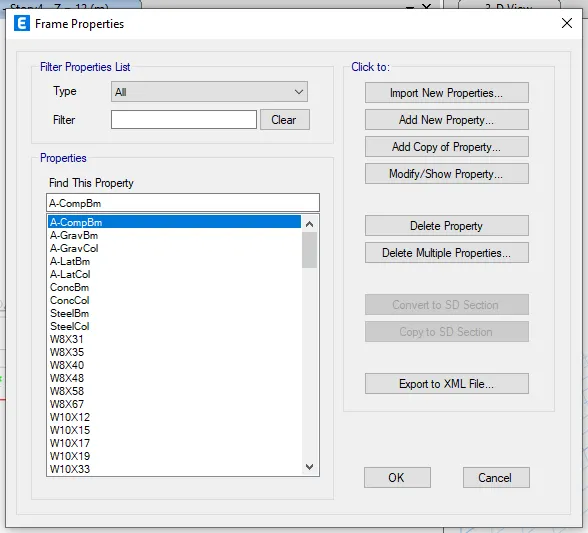

Create column properties for different types of pedestal members and model in the grids created as per the assignment 1 Create column properties for steel columns and model columns in the grid created as per assignment 1. Create beam properties and model primary and secondary beams on the ground floor  Click here…

AIM:-  1. Summarize the user interface in TSD with the for the following items: - Project Workspace – How to access and usage:- Project Workspace  provide the information  releted to the model  workspace loading and valedation  This is the Project Workspace     Scene Content – Demonstrate the use of scene content Scene…

AIM:- Given below is a floor plan of a building. The red lines running East-west are beams supported by the girders spanning North-South between columns. The floor system is 120 mm thick normal weight concrete floor. The floor finish and mech loads on the floor is 3 kPa. The live load on the floor is 5 kPa. All beams have…

1) Design a Warehouse Building located in Chennai using STAAD Pro Connect Edition. The specification must be as follows:      Width  30m Length 50m Eave Height 9m Bay spacing 6m Soil type Medium Safe Bearing Capacity 200 kN/m2 Roof slope 1 in 12 Assume suitable sections for structural elements. Follow IS800:2007, IS1893…

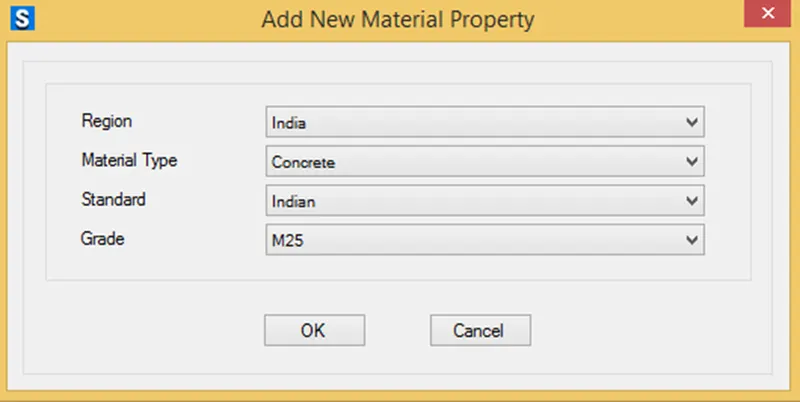

1. Design a multi-story Residential Building located in Bangalore using STAAD Pro Connect Edition. The specification must be as follows: Building floors G + 6 + R Plan dimension B = 25m ,  L = 16m Storey Height h = 3.5m Soil  Hard soil Use Residential Purpose Safe Bearing Capacity 180 kN/m2 Maximum slab thickness 150mm…

Aim:- 1) 1. State the primary load cases to be considered for design.     The primary load cases to be considered for design are , Answar:- Dead Load Live Load/Imposed Load Wind Load Earthquake Load 2. What is One – Way slab? Answar:- The ratio of the longer span to the shorter span is greater…

AIM:- 1. 1. How will you assign Circular section to column? Procuder:- Answar:- First Go toi the Properties Than Selct the Define  Open this Diloge box Properties And Give the Radius of the member Now Create the Circular Column   2. How will you assign Unit system to a .std model file? Answar:- First Go toi the…

Aim:-  1. Write the steps involved to upload a .std file through web mail? Procuder:- Answer:-  Steps involeved to upload a .std file through web mails are as follows; Open the STAAD pro software and locate the share option available         on the  introduction screen. After clicking…

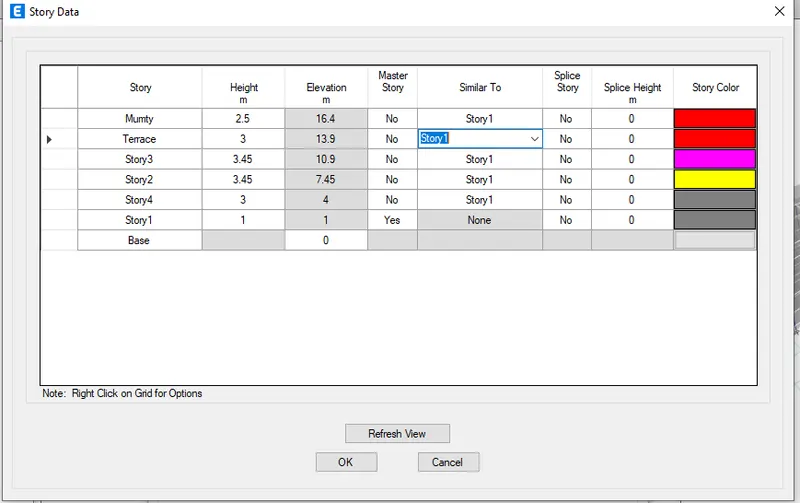

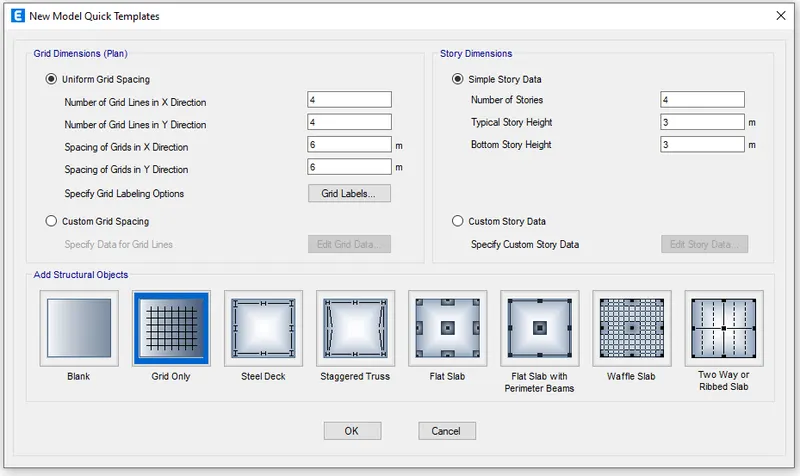

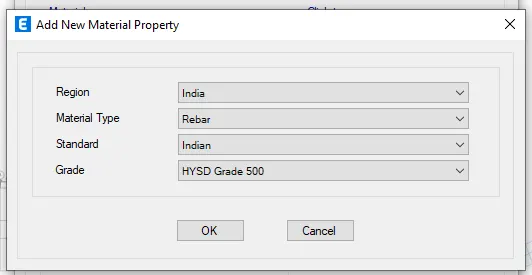

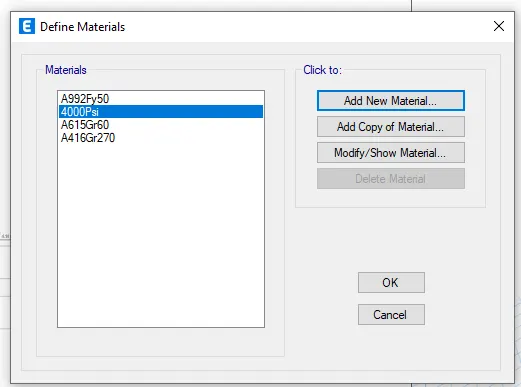

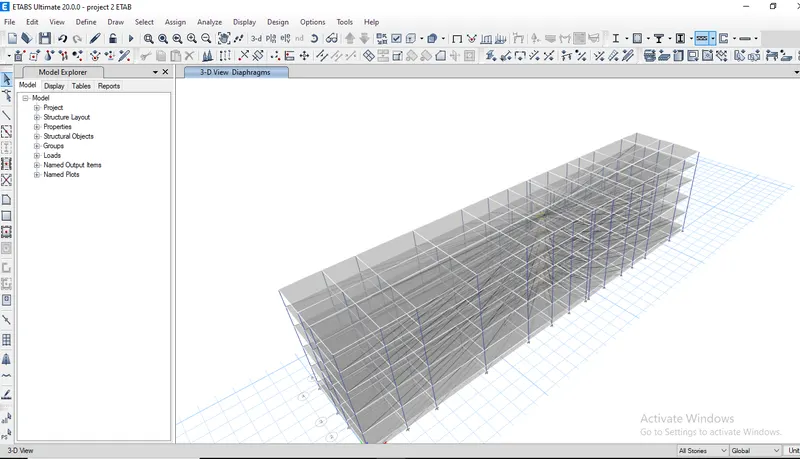

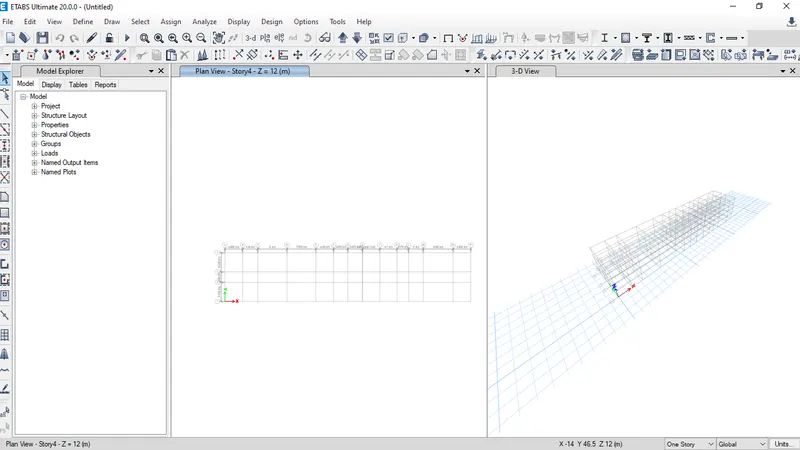

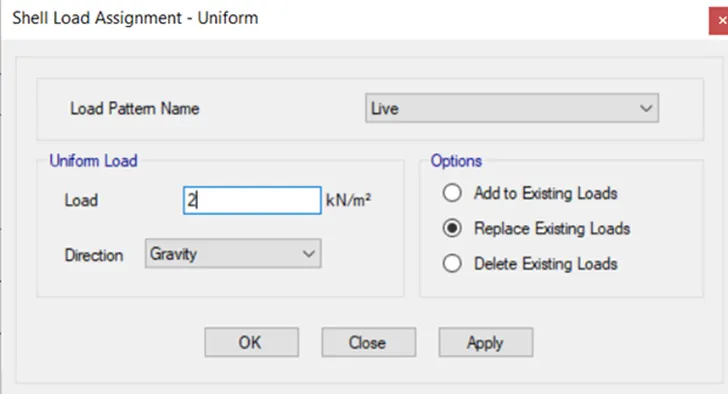

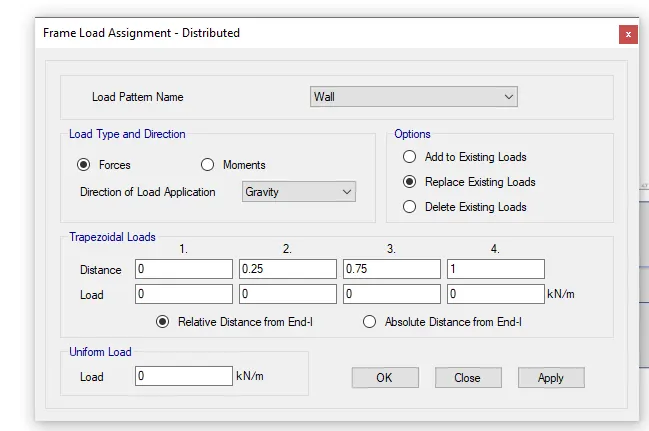

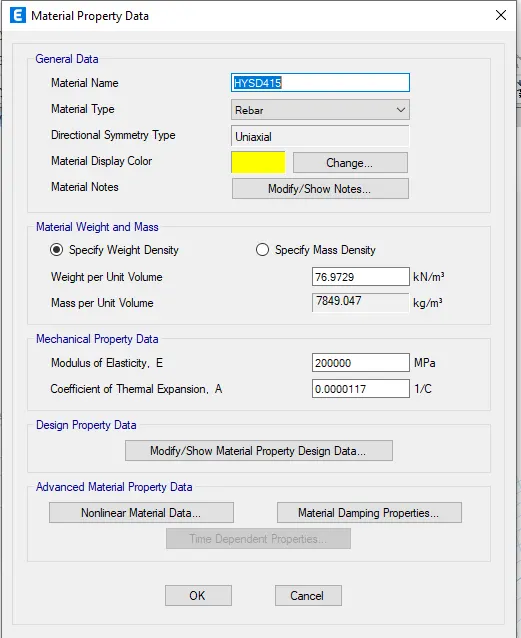

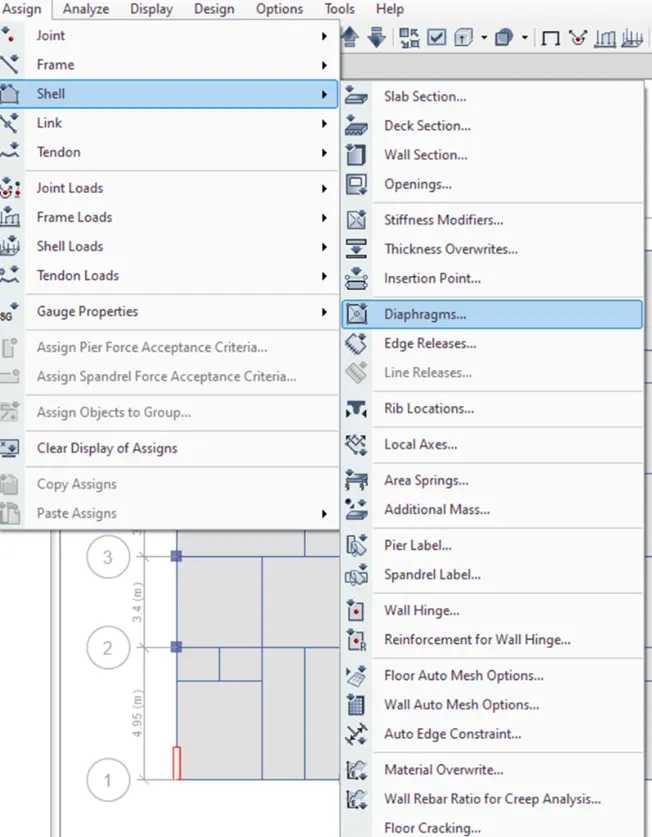

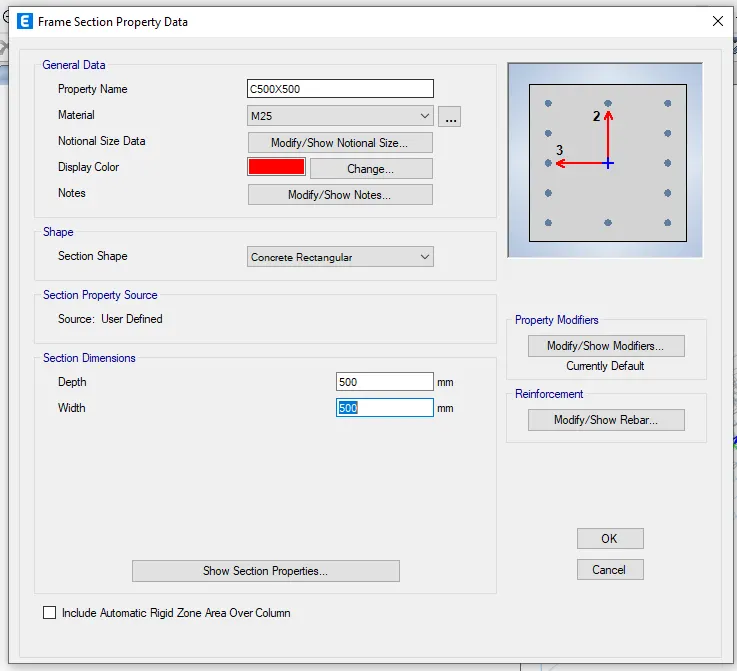

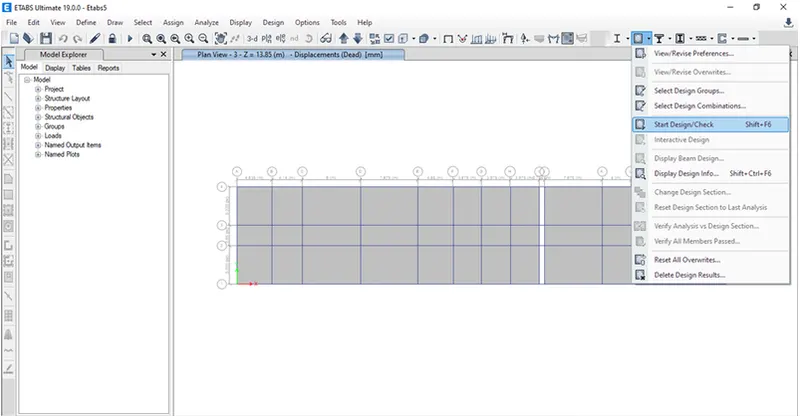

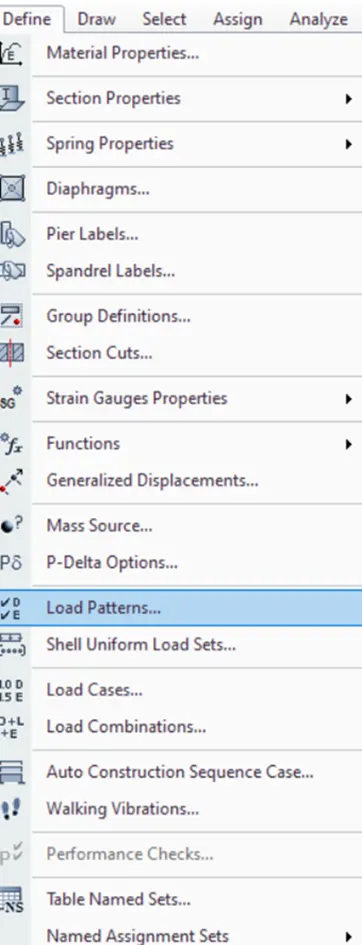

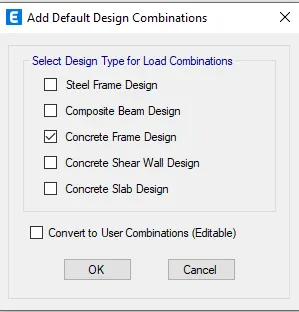

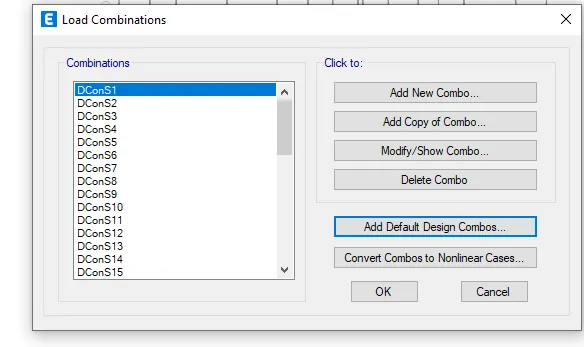

Aim - To carryout modelling, analysis, design, and preparation of construction drawings of a G+3 RCC building situated in Guwahati Assam.   Introduction -    1) ETABS is an engineering software product that caters to multi strorey building      analysis and design. 2) SAFE represents…

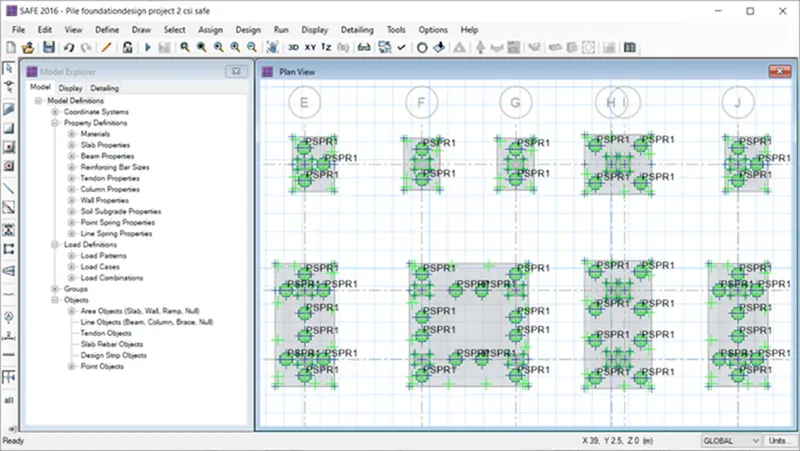

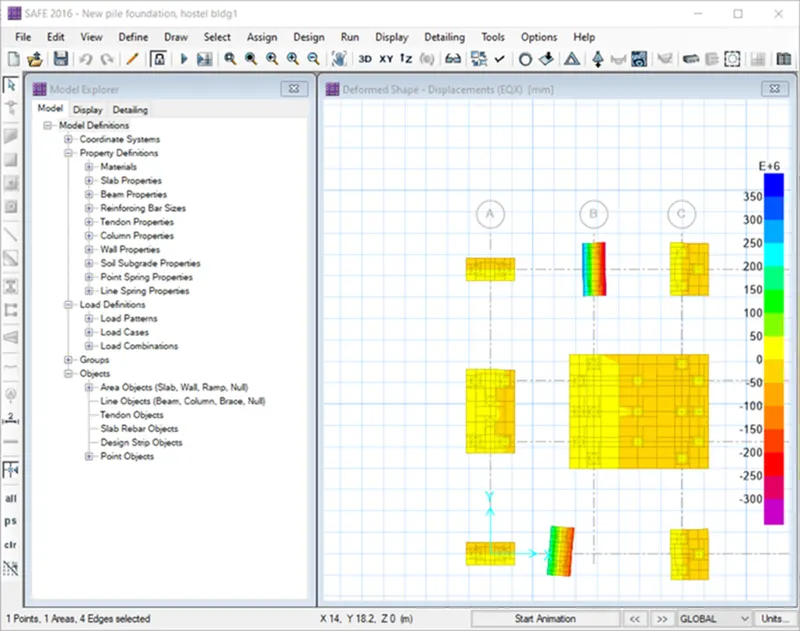

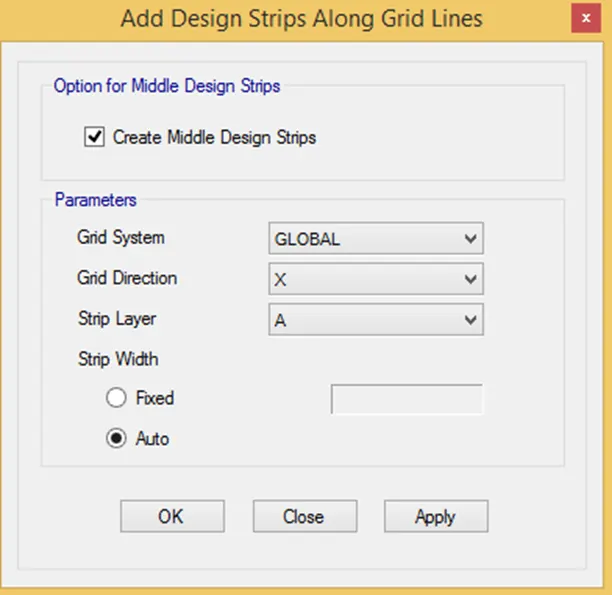

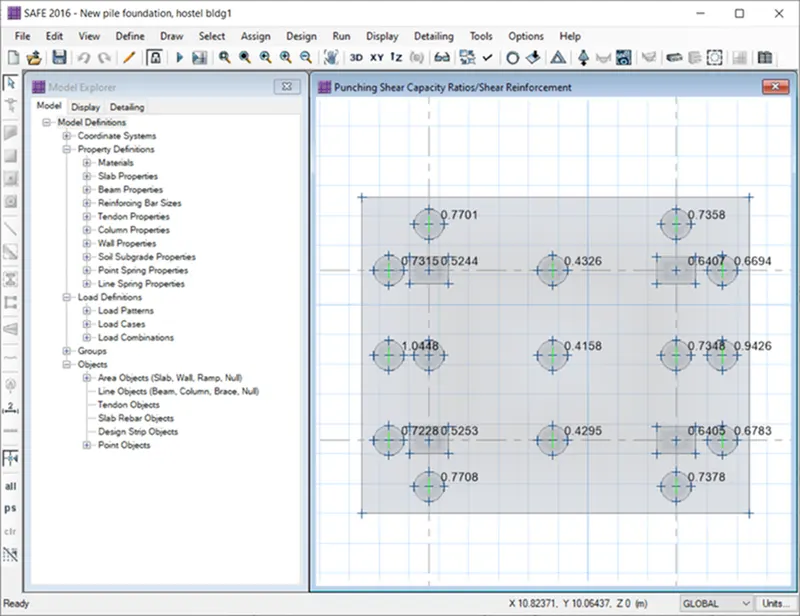

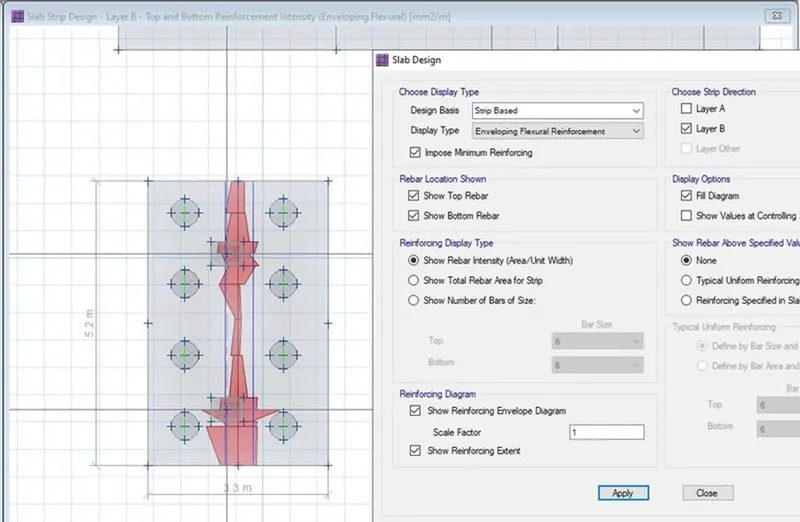

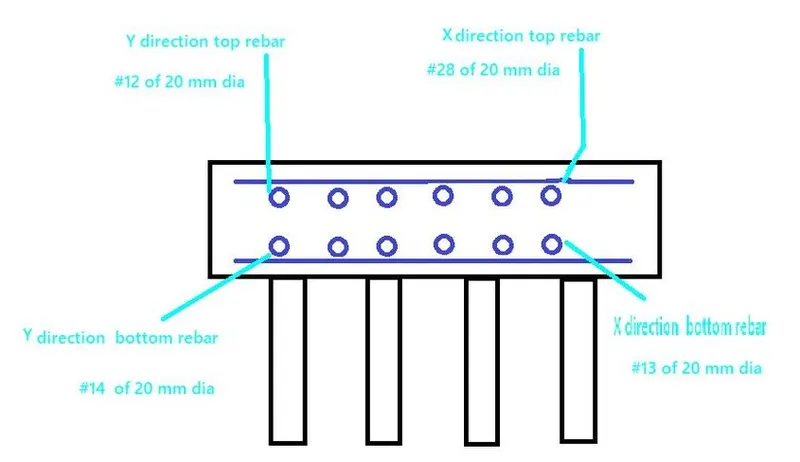

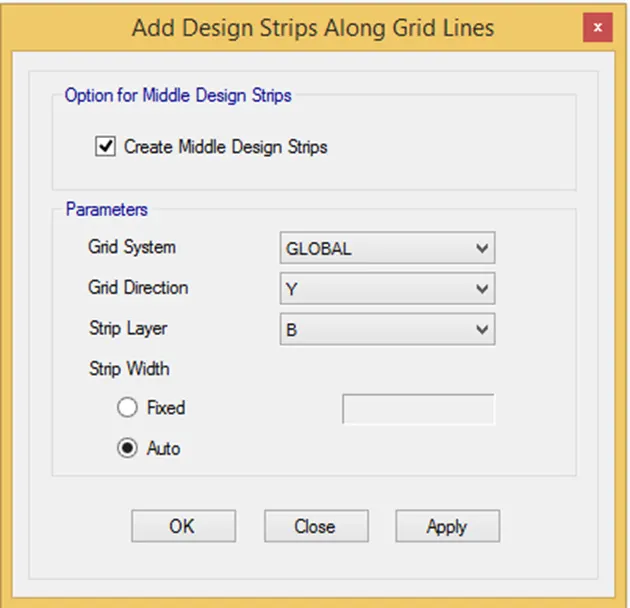

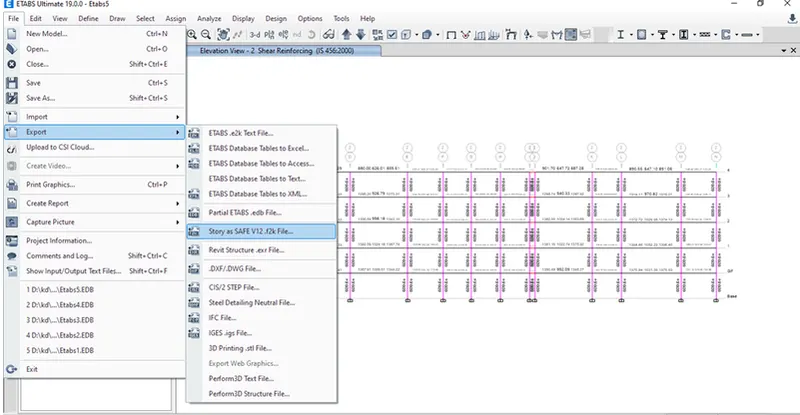

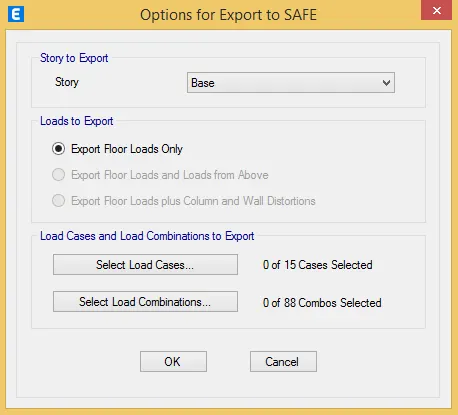

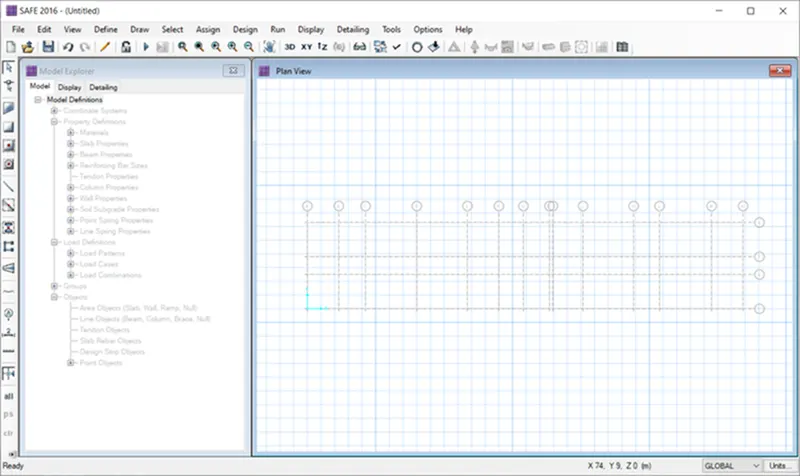

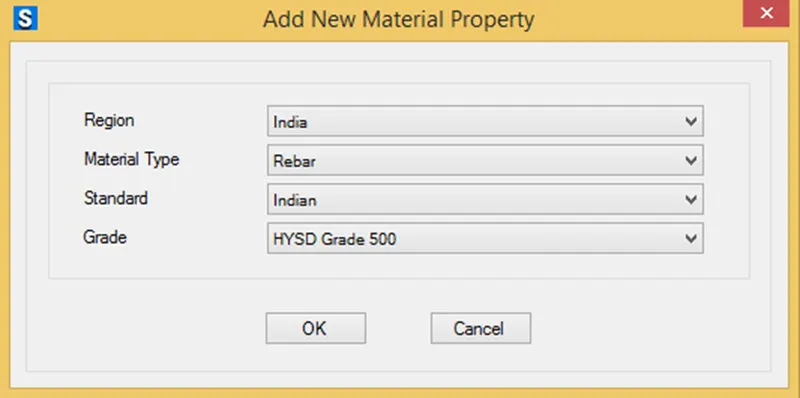

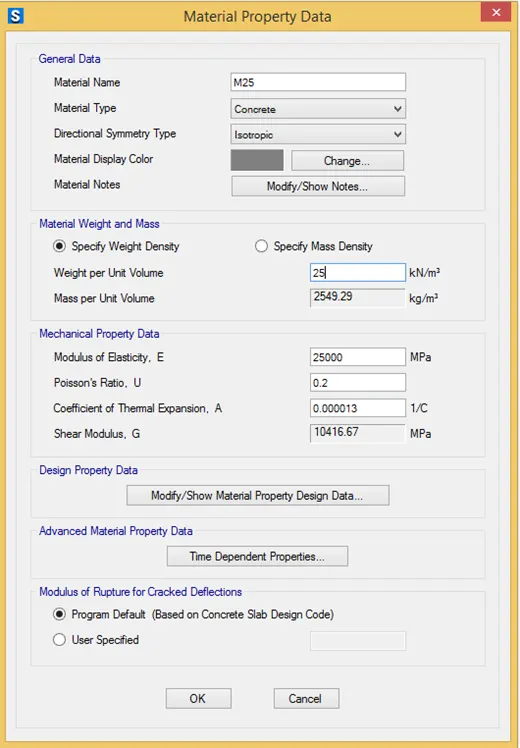

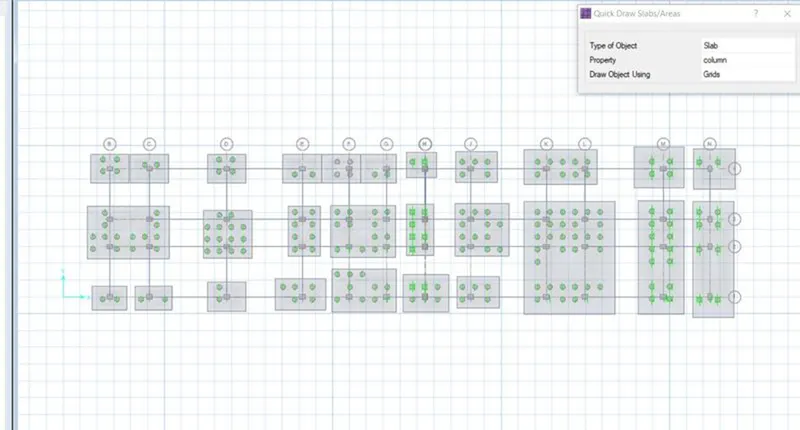

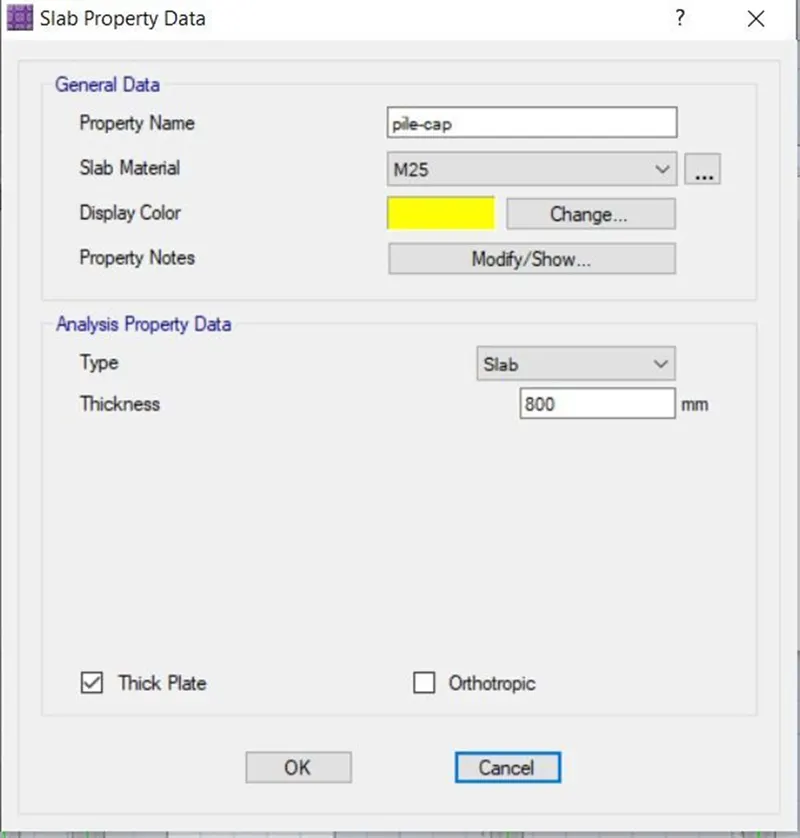

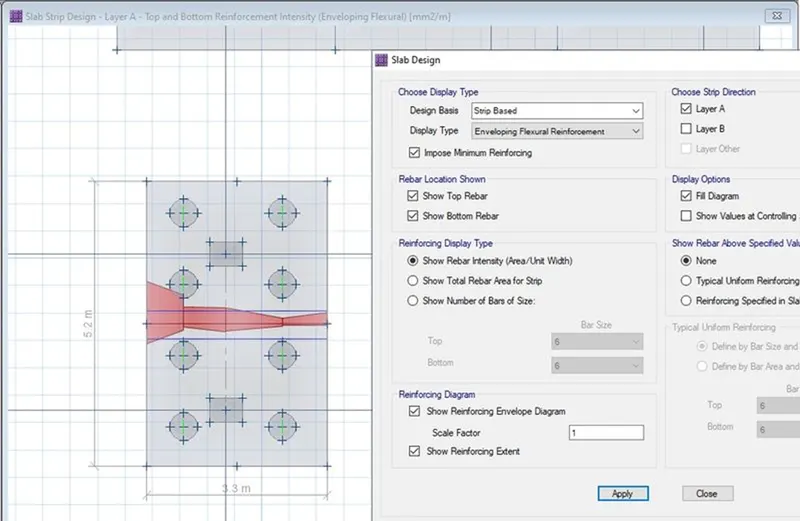

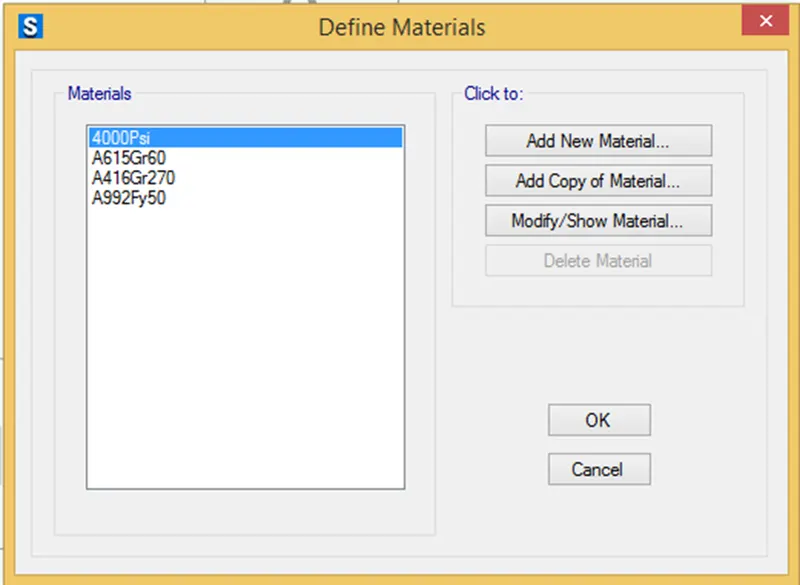

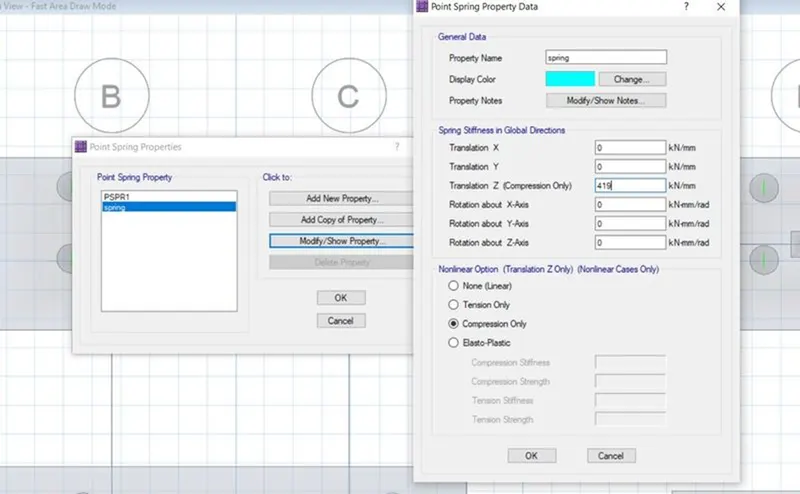

                                          FOUNDATION DESIGN USING SAFE:-    Aim: -          i) To  model the isolated footing provided in week 11 challenge on SAFE.    …

Q.1. Design a square footing for a column size of 400x400. The compression axial load for        the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The safe soil bearing capacity is 150 KN/m2 at a depth of 2 metres below E.G.L. Participants are free to go for either a tapered or stepped footing.…

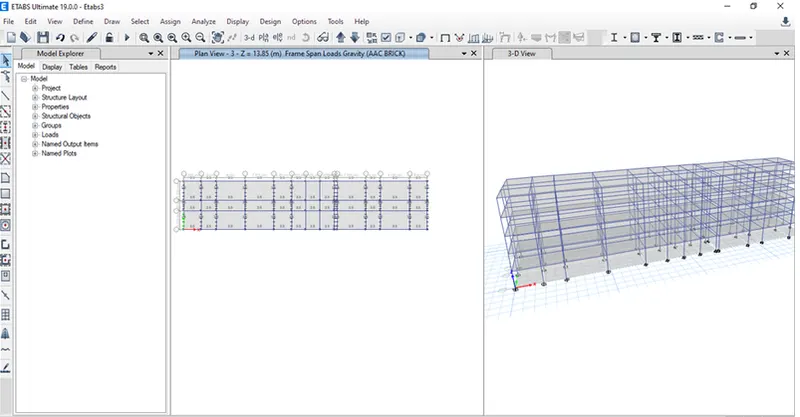

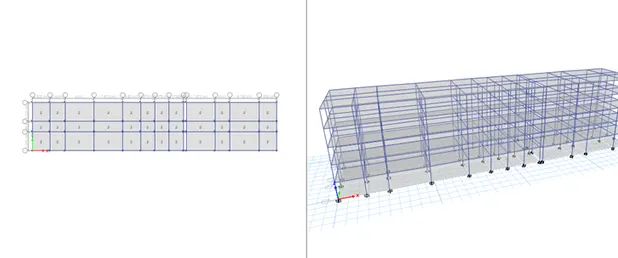

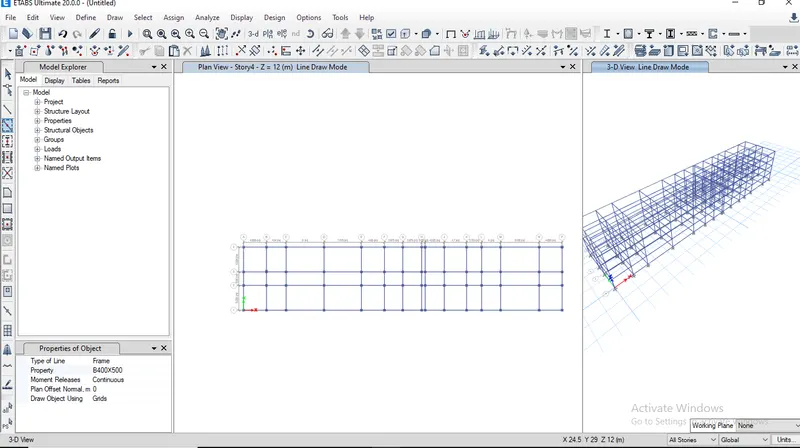

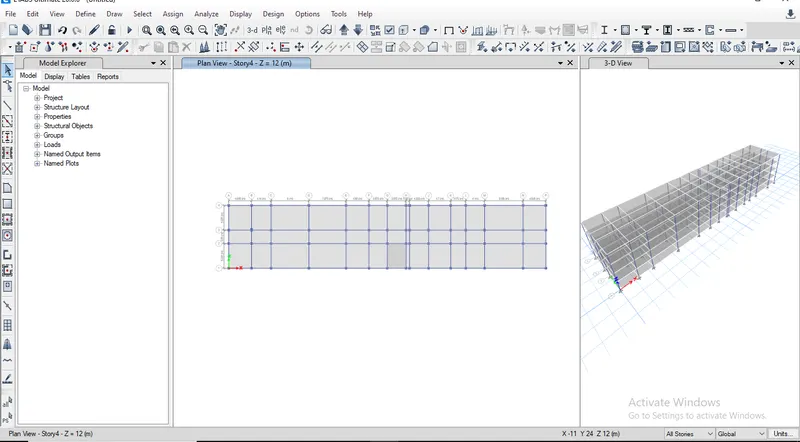

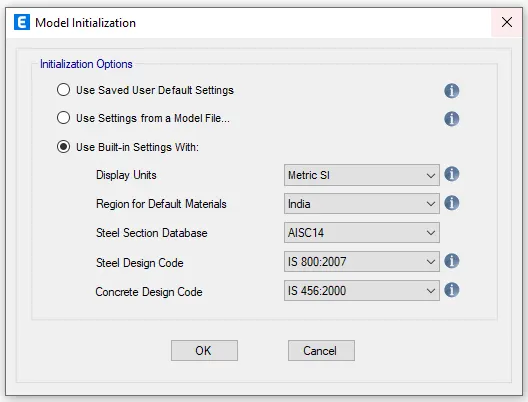

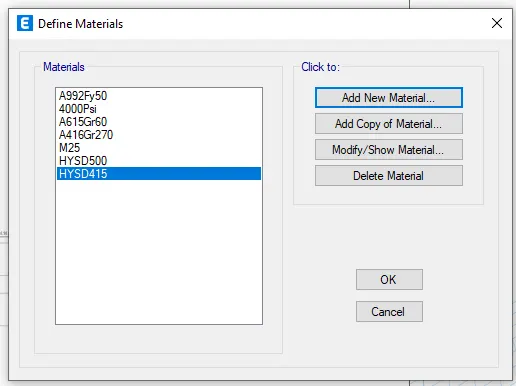

Structural Modelling of Residential Building using Etabs 2018   QUESTION:- The architectural drawings for a G+7 residential building in zone 5 has been provided. The floor plan is the same for all 7 floor levels. Possible column positions have also been provided. Conceptualize a framing plan layout and then model…

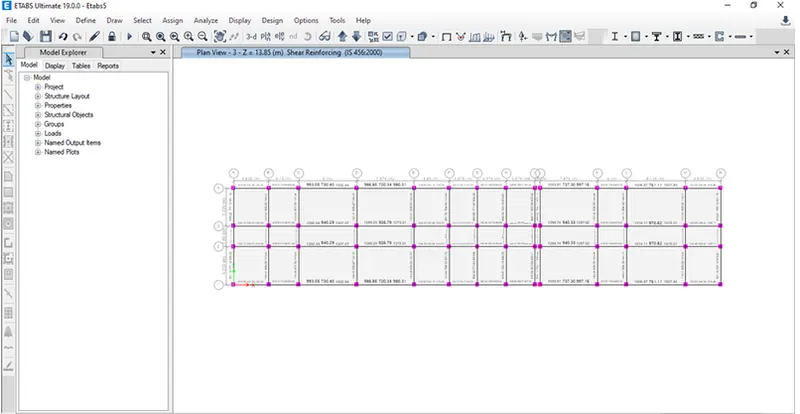

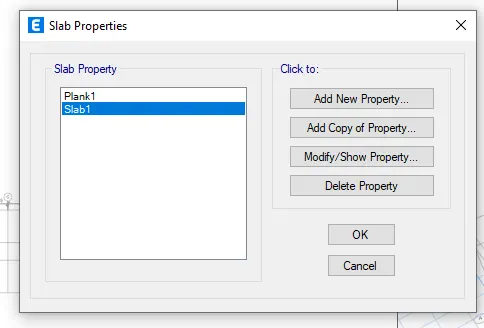

AIM:-  Analysis & Design of RCC shear walls in the model using ETABS INTRODUCTION:- Shear wall is a structural member used to resist lateral forces, that is, parallel to the plane of the wall.         For slender walls where the flexural deformation is more, shear wall resists the loads due…

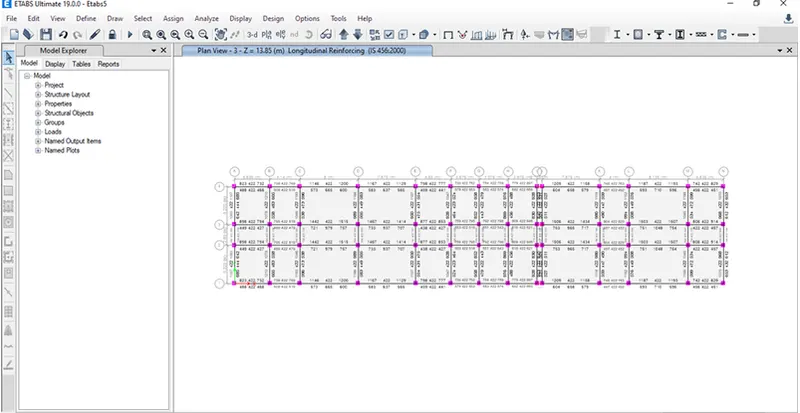

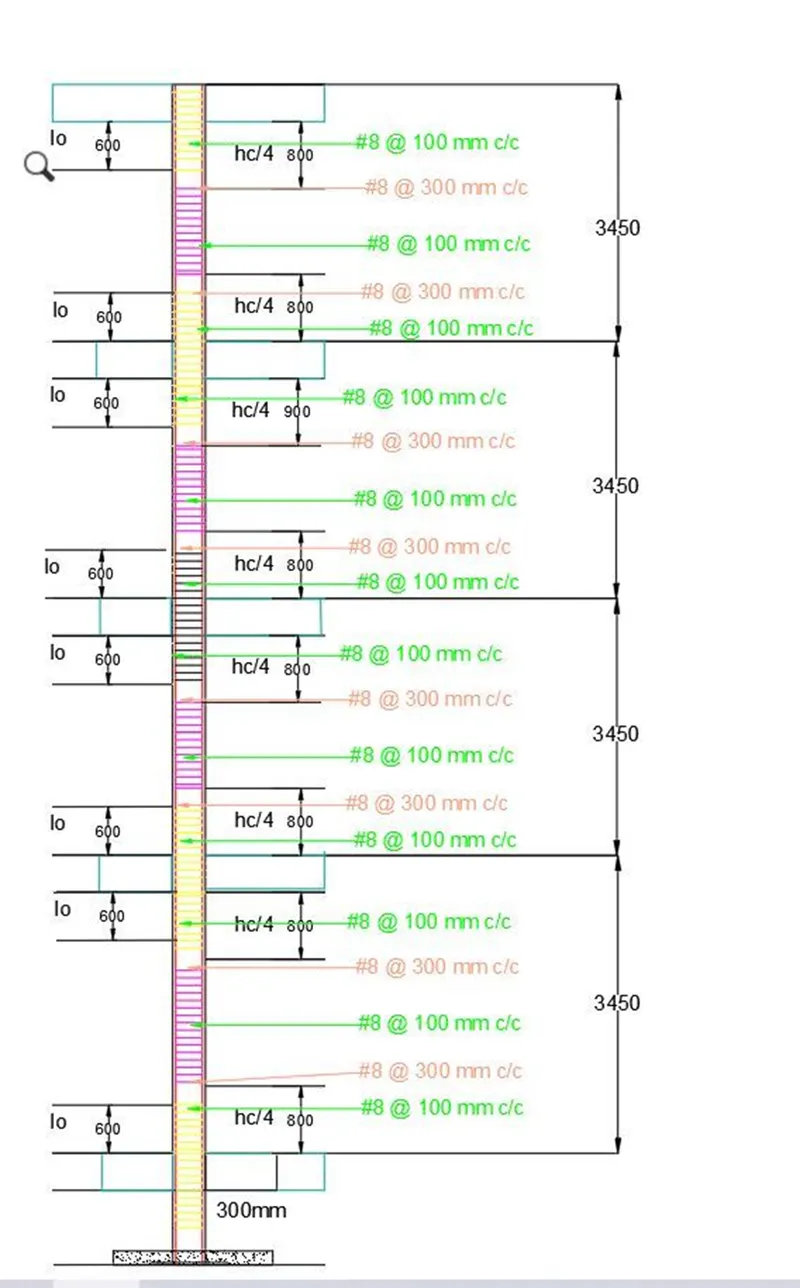

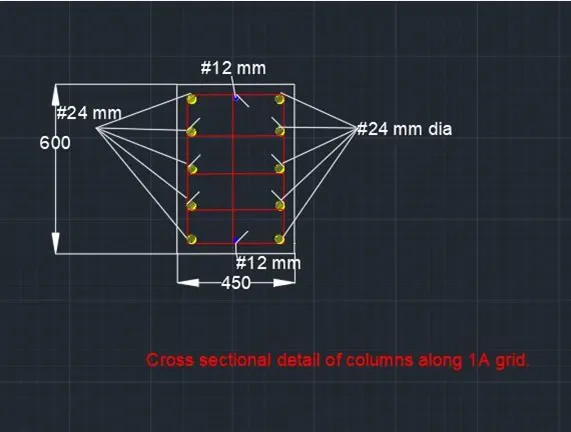

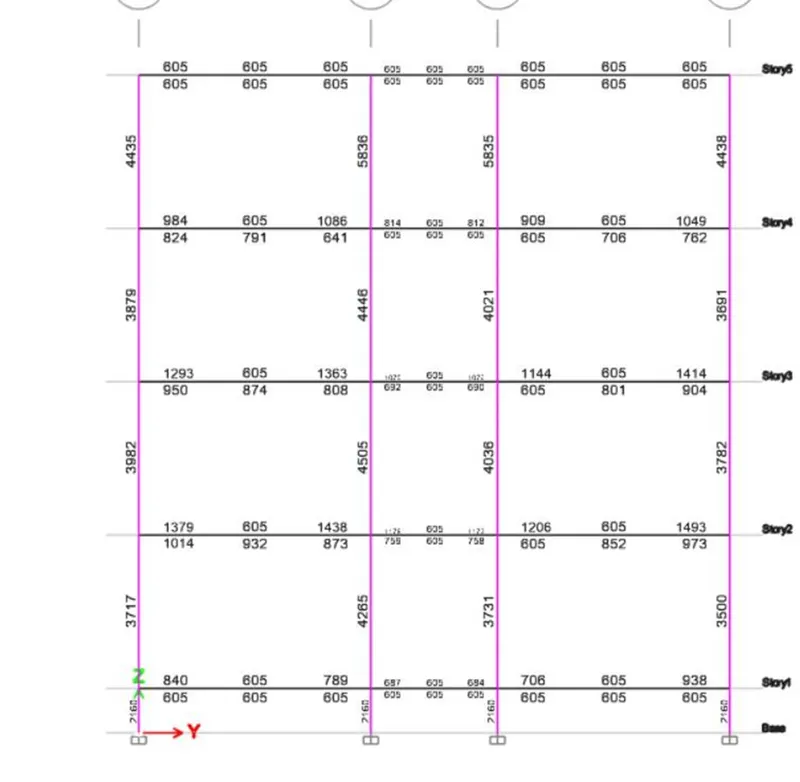

 AIM:- To provide the details of longitudinal reinforcement for the two columns (3A & 3B), from foundation to terrace level   Introduction :-     The factored axial compression stress considered all load combination relating to sesimic loads shall be       limited to 0.40…

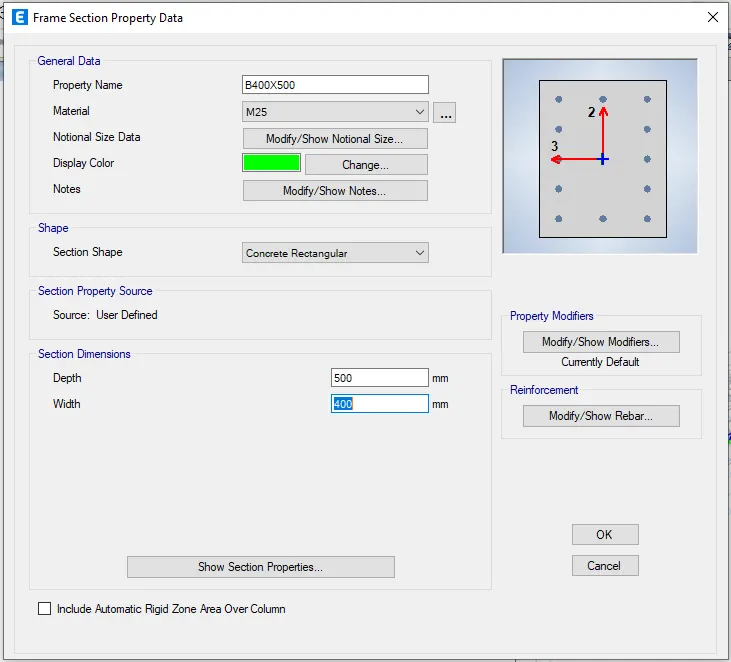

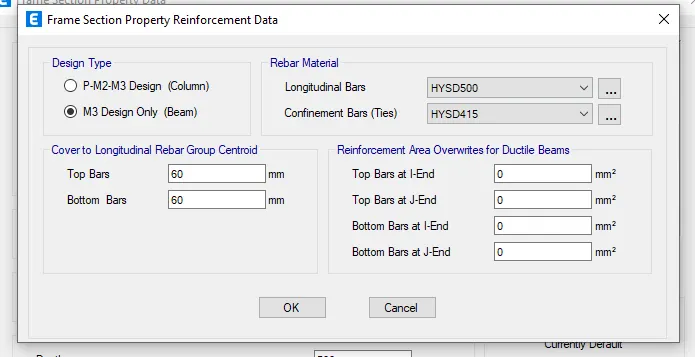

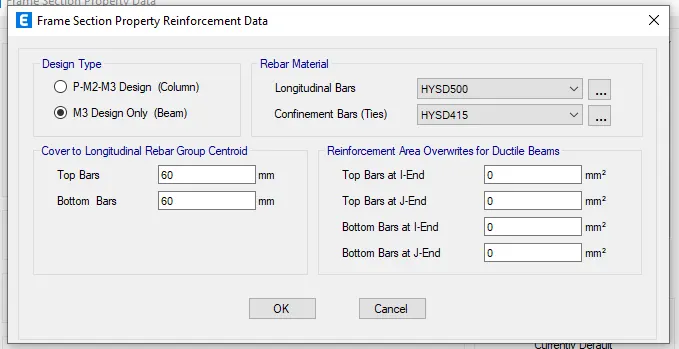

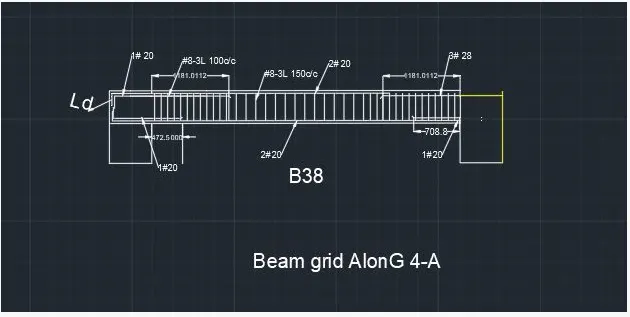

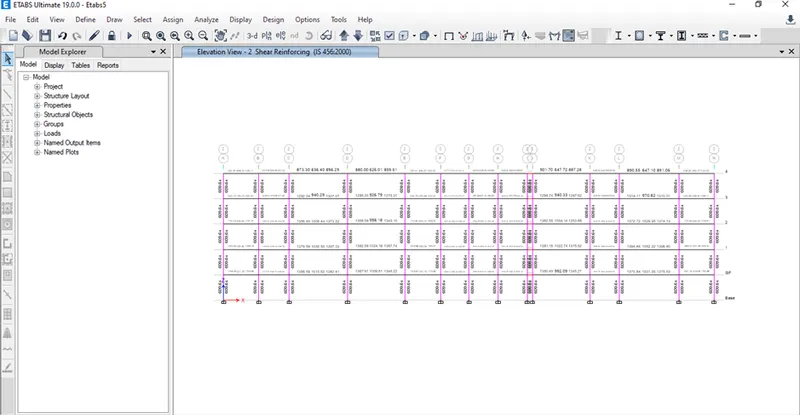

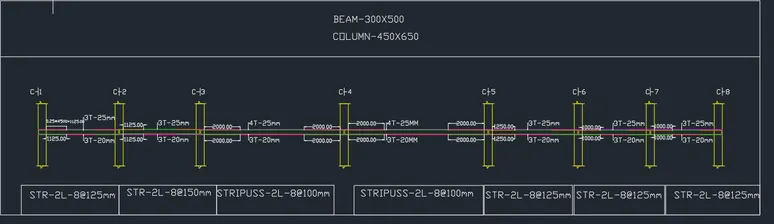

Reinforcement Detailing of Beams from ETABS output   QUESTION:- Detail design of beams in Etabs 2018.The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment ResistingFrame. The following challenge deals specifically with two continuous beams in the 1st floor.      …

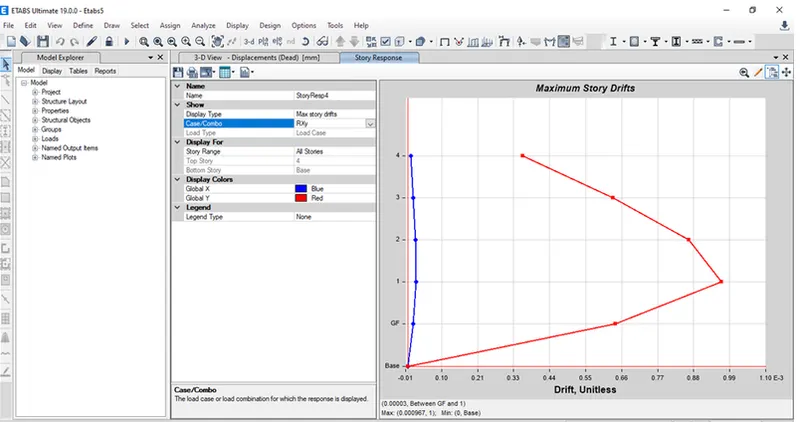

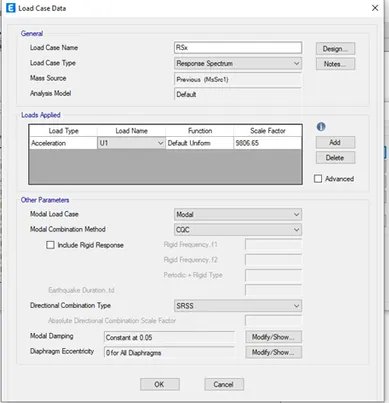

                                                         PROJECT : 1   PROJECT TITLE :  COMPARATIVE STUDY OF DIFFERENT STORY BUILDINGS FOR SEISMIC FORCES   …

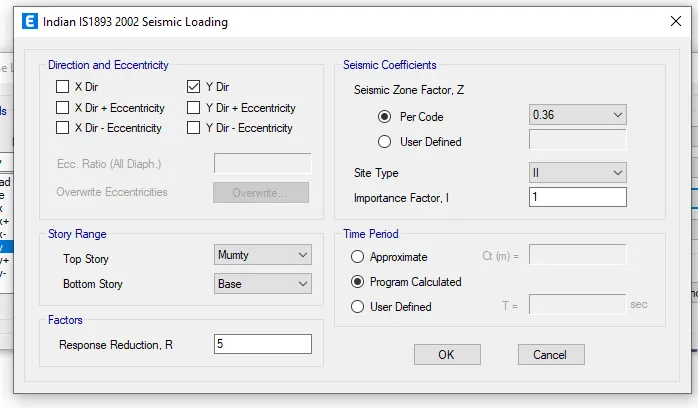

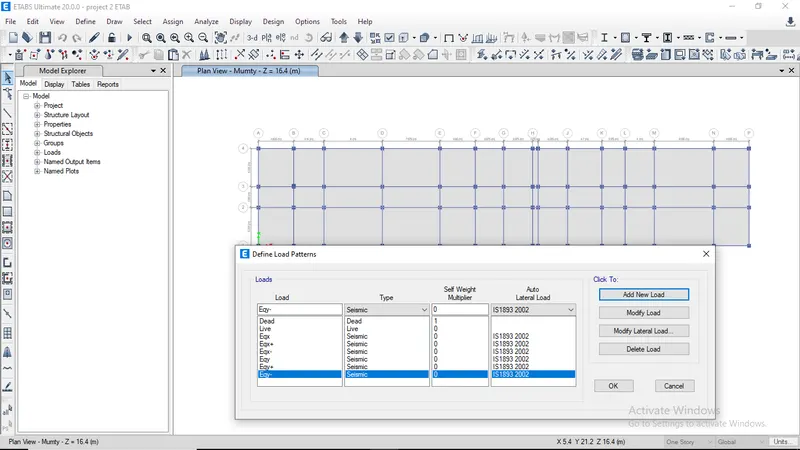

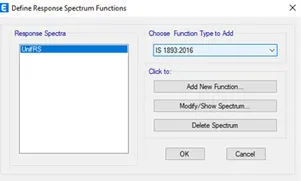

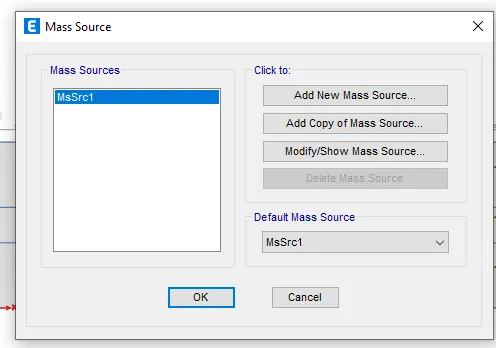

AIM:- To model a 25 storey building on ETABS with given structural properties. To check if the translational fundamental natural period of vibration in both the x and y direction is approximate, Tx1 = 4.4 seconds Ty1 = 4.2 seconds. To check if the provision in Table 5 of IS 1893 (part 1) – 2016,…

Question 1:The building shown, 20 × 35 m in plan, has columns on a 5 × 5 m grid and shear walls (with dimensions shown in m, 250 mm in thickness) in three alternative arrangements, (a), (b), (c), all with the same total cross-sectional area of the shear walls. Compare the three alternatives, taking into account…

Question 1:- Comment on the layout of the framing plan concerning earthquake resistance in the two horizontal directions X or Y (dots are columns, lines depict beams). Look into aspects of symmetry, redundancy and bi-directional stiffness and ductility.                   Answer…

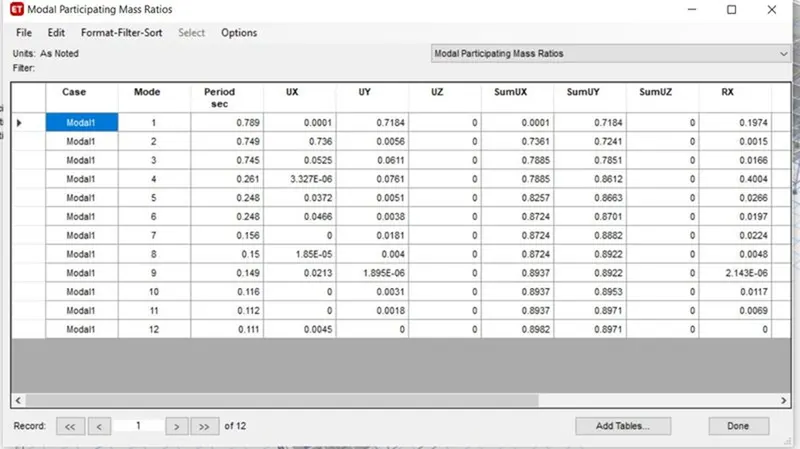

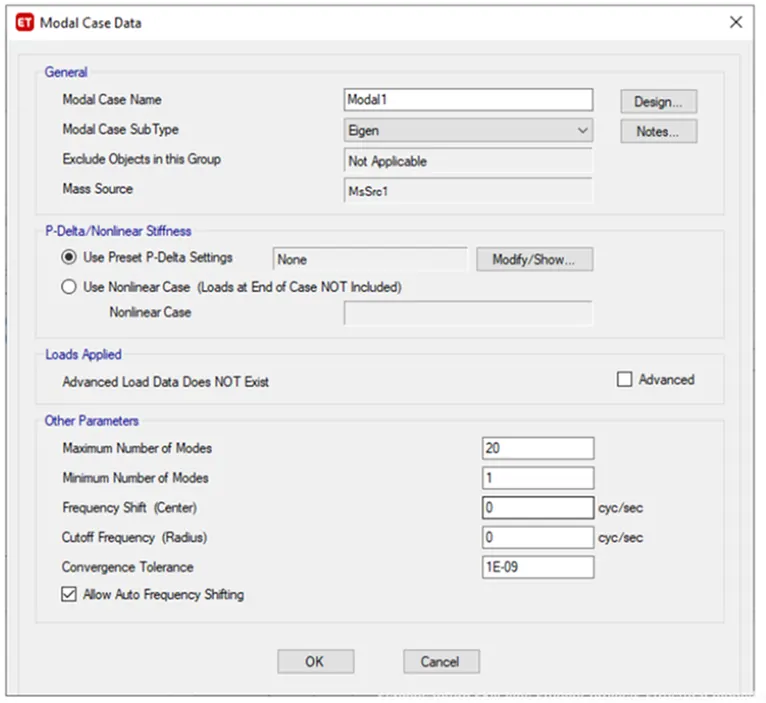

AIM:- A five storey structure with 5 translational DOF is shown here. Each storey has mass ‘m’. The eigenvalue problem has been solved and the 5 periods of vibration Tn and their corresponding mode shapes, φn has been derived.                    …

AIM:- 1. Differentiate Static analysis and Dynamic analysis with proper representing pictures   Ans:-                  Static Analysis                                       …

1.Objectives of Challenge:-  1.Awareness on Structural Failures 2.Distinguishing Structural & Non- Structural Failures 3.To Know how to Observe A Structural issue 4. Understanding Seismic Failures Questions :- A set of photos From Concrete Structures Answar:-  1. To Find out the Mode of Failure /Damage …

Aim:- 1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class INTRODUCTION :- the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit…

Aim:- 1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve. INTRODUCTION:- Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve. PRODUCER:- 1.Open the revit Software 2. Take a new file Architectural  3.Than go to…

AIM:-  1) Select the type of structure you want to build from one of the three below:        a. Multi-Unit Residential Apartment        b. Office Buildings        c. School  ANS:- I have choose the  Multi - Unit Residential  Apartment AIM:- …

AIM:- 1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level INTRODUCTION :- First floor level . Modal a celling from Architecture tab above the first floor wall at the first -floor PRODUCER:- 1.Go to the Architecture …

AIM:-  Create a 3 dimensional model of the residential building with a rendered view INTRODUCTION:- Create the Residential building BED ROOM, KITCHEN, LIVING ROOM, PARKING SPACE,BOTH ROOM,STAIR CASE, DOOR, AND WINDOWS AND DRAW The Elevetion and section A-B and creating 3D model of the residential building propare dimension …

1. Create a 3D Isometric View of the building with plan and elevation given.             2. Create the 3D View of the Building Façade as given in the plan and elevation. Also, see the detail of the window.     3. Create the ismoteric 3d view of a stair with railing as shown…

AIM:- 1. Create a 3D Furniture element as shown in the Figure. Assume dimensions which are missing.      AIM:-         AIM: 2. Create the 3d Model of an Isolated footing as shown in Figure.      RESULR:-      3. Create the 3D view of the AASTHO Type Girder.…

AIM:- 1. Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the…

Aim:- Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks wherever required. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and others as per the standards.   RESULT :-    Aim:- 2. Create the elevation of the plan created in the Challenges…

AIM:- 1. Create the templates as shown in Figures. Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required. After creating the title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock,…

Aim :- Design and Draft a layout of a residential building with the following details: AIM-: 1. Residence Plan: Sketch the layout of a residence as Consider all dimensions as reference to sketch the unit plan.  are only for reference. Also, refer the schedule for size of the doors.  INTRODUCTOIN-: 1. Skech the…

   Introduction:- 1.AutoCAD was dired from a program that began in 1977and than released in 1979 called interact CAD also referred to in early autodesk documents as micro CAD which was written prior to autodesk's than marinchip software partners formation by autodesk co-founder Michael riddle  2.The first…

Sketch a G+1 floor residential plan, according to Vaastu Shastra, and list down the names of the structural drawings required to be provided to the site for construction Aim:- Ans:  Vaastu Shastra:- 1. Vastu shastra is the ancient indian scince of architecture and acts as a guideline to design your home in the…

Aim & Introduction -:Concrete mix design 1.Concrete is a complex material and has the right mix of constituents of concrete which if not done proparly and Will have advese effect on the properties of concrete  2. Concrere mix design is a systematic process of choosing economical reletive Propration of various…
