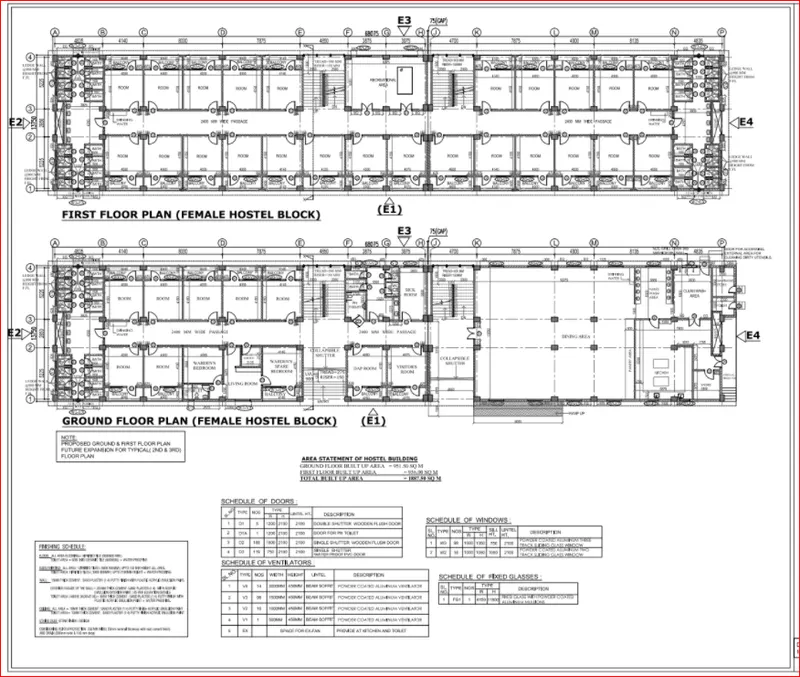

Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

AIM: The main aim of these project is to design and analysis of hostel building in guwahati,assam.

INTRODUCTION:

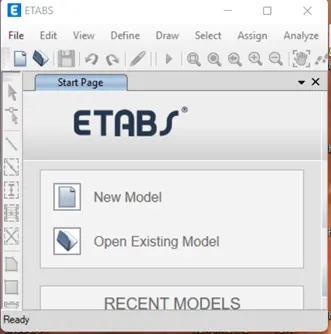

in this, i am gonna use the e-tabs and safe softwares for design and analysis of hostel building.we have the following data to design as shown below

The walls will be made of AAC blocks. the buildings rests on type 3 soil. Piles of length 10 meters and 500 mm diameter with a load-carrying capacity of 280 KN is to be used. The ground floor level will be at a height of 2 meters above the existing site level to avoid floodwater enter the building.M25 grade of concrete with Fe500 for longitudinal reinforcement and Fe 415 for shear reinforcement is to be used.
i am using beam size as 400mm*500mm, column sizes as 450mm*650mm and 650mm*650mm and slab thickness as 150mm
wall load 3.5 KN/m^2 , live load for roofs 2 KN/m^2 and for terrace 1 KN/m^2 , floor finishes load 1KN/m^2
guwahati seismic zone-v
from the design and analysis, we have to submit following details as shown below

PROCEUDURE:

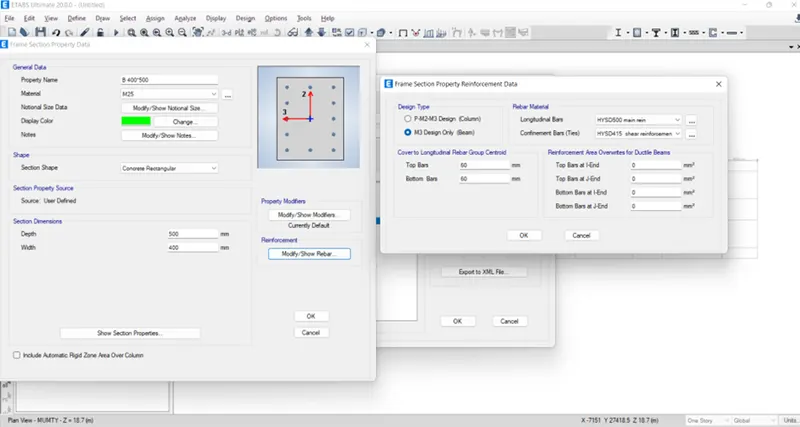

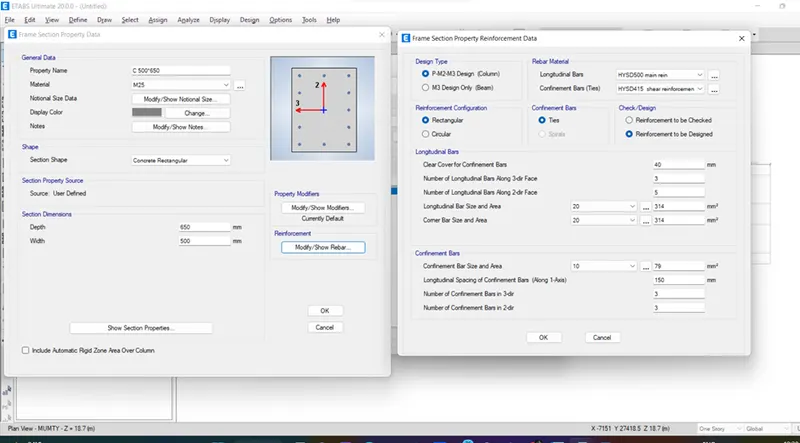

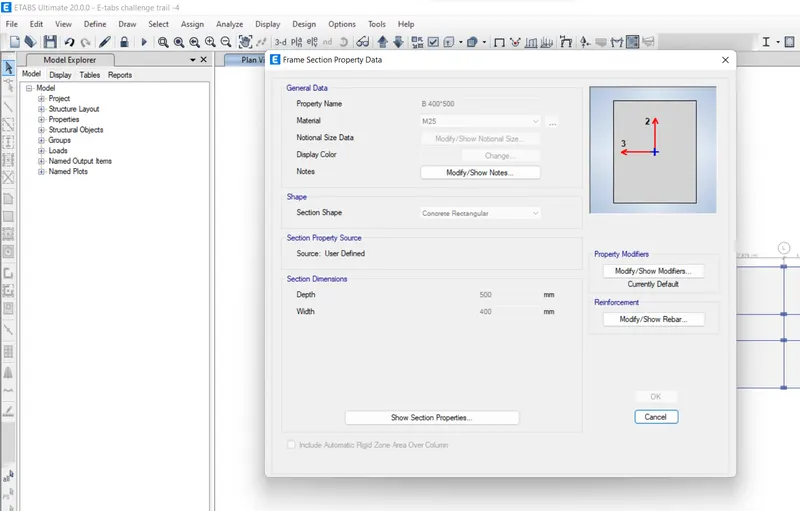

defining frame section property's such as beam (400mm*500mm) and columns (450mm*650mm and 650mm*650mm) as shown below

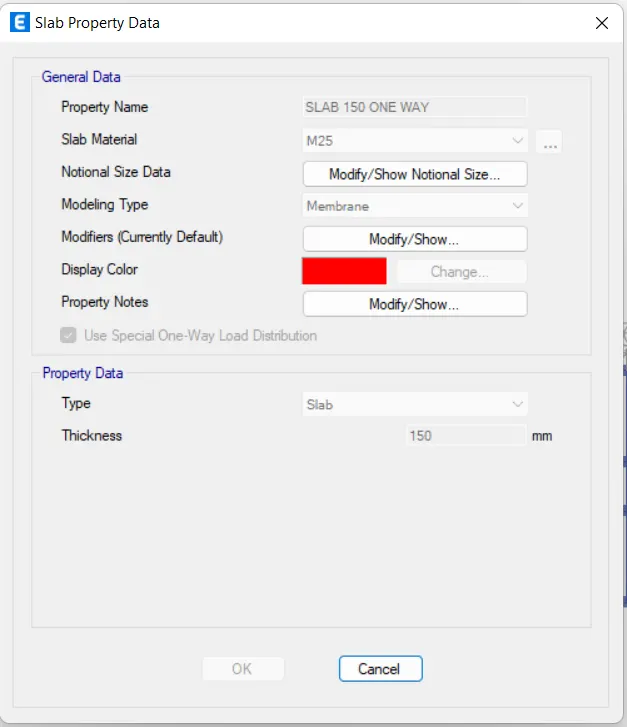

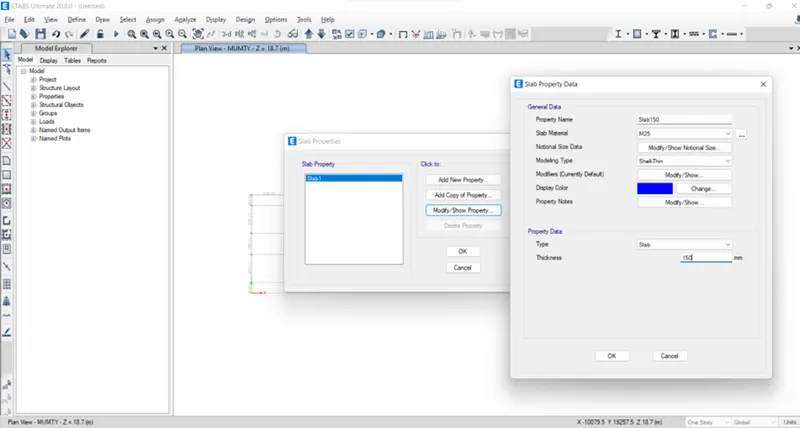

defining slab section property for one way and two way i.e, slab 150mm thickness as shown below

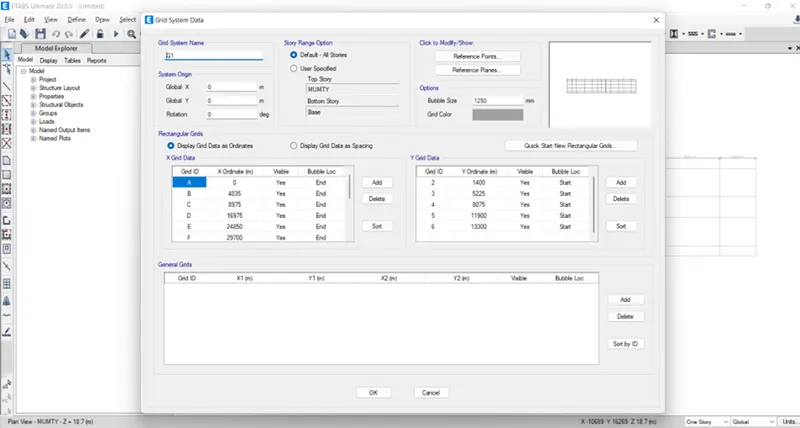

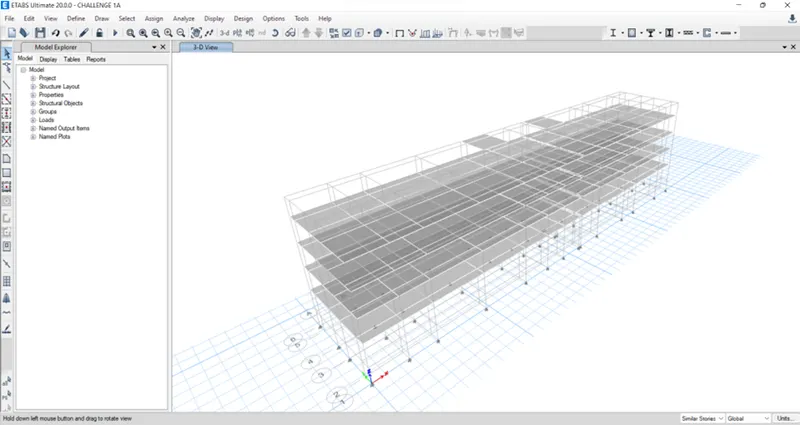

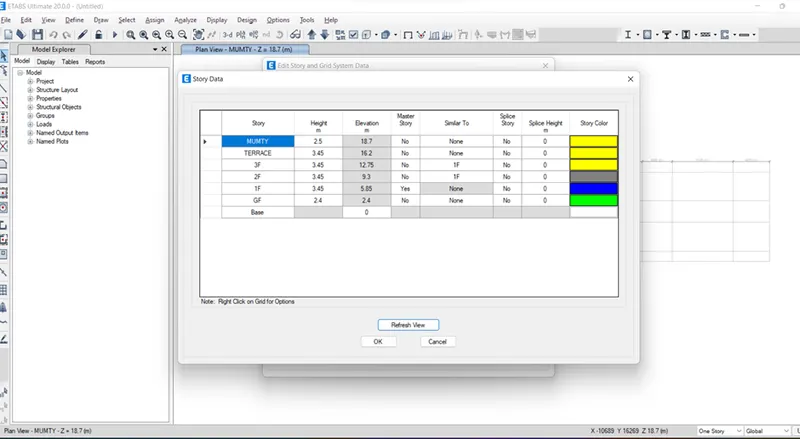

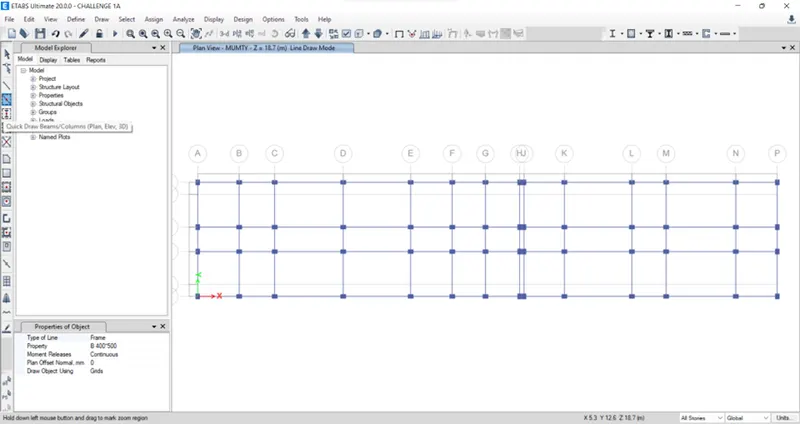

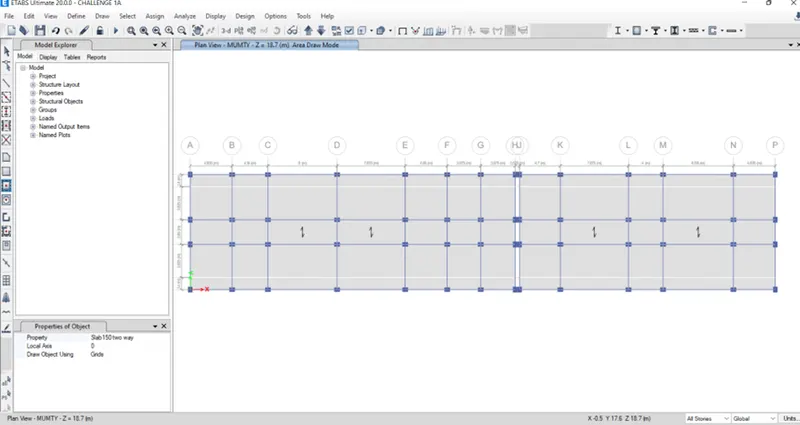

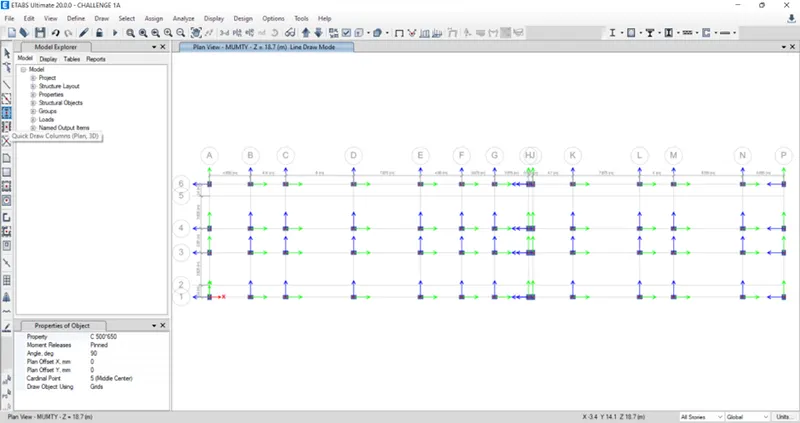

entering into the modelling, assigning all columns ,beams and slabs as shown below

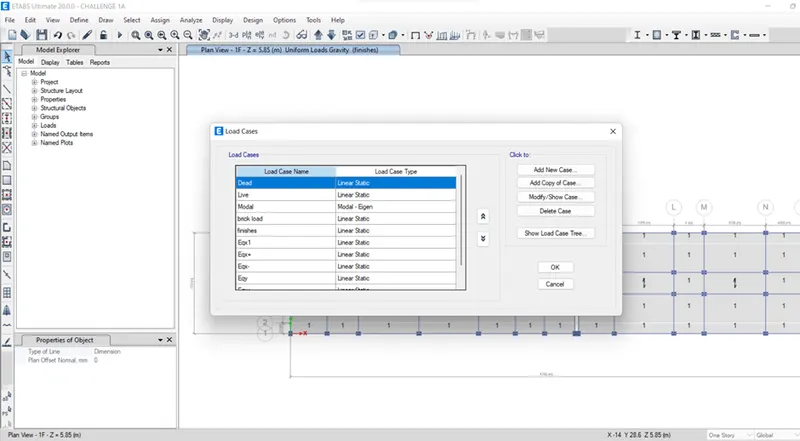

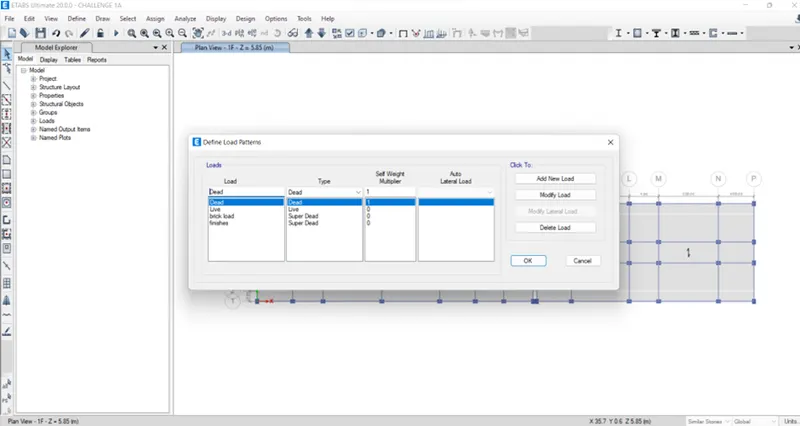

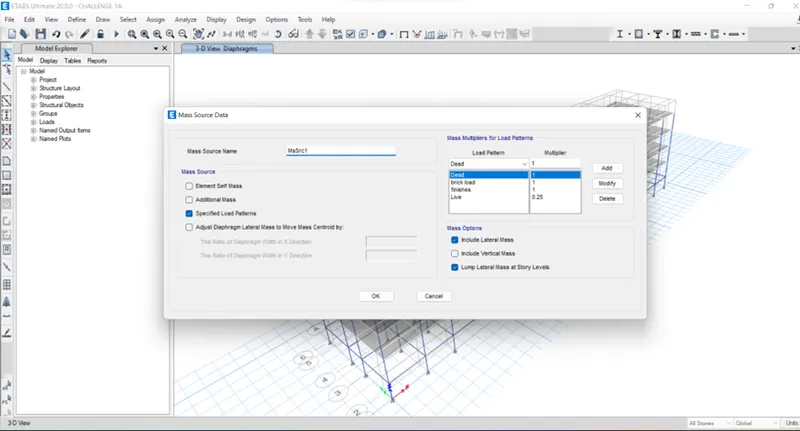

defining load patterns for dead, live, brick wall, floor finishes, equivalent seismic loads such as Eqx, Eqy in +ve and -ve direction and applying loads to model as shown below

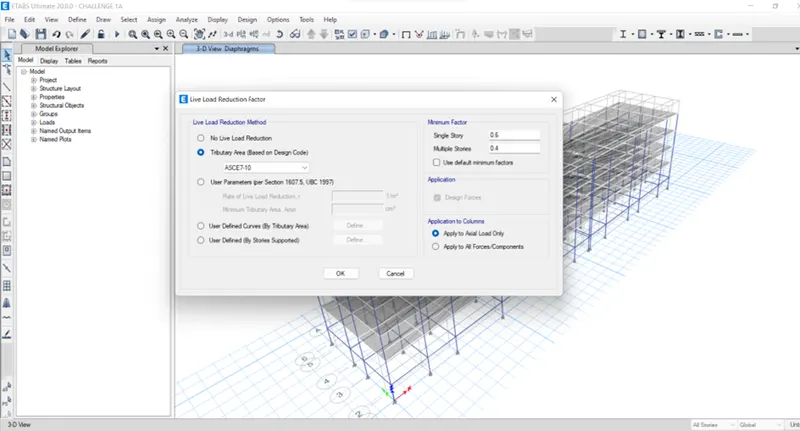

generally, we consider live load reduction factor for stories above 3 floors. so, i have neglected the live load reduction factor here as shown below

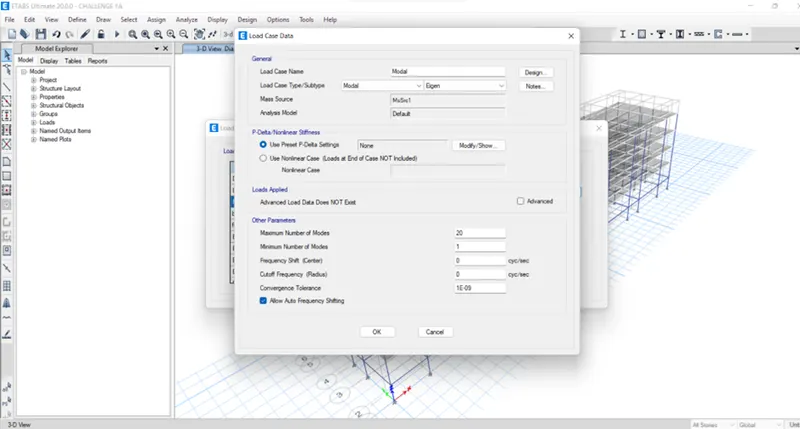

setting up number of modes to 20 to get clear values using load cases as shown below

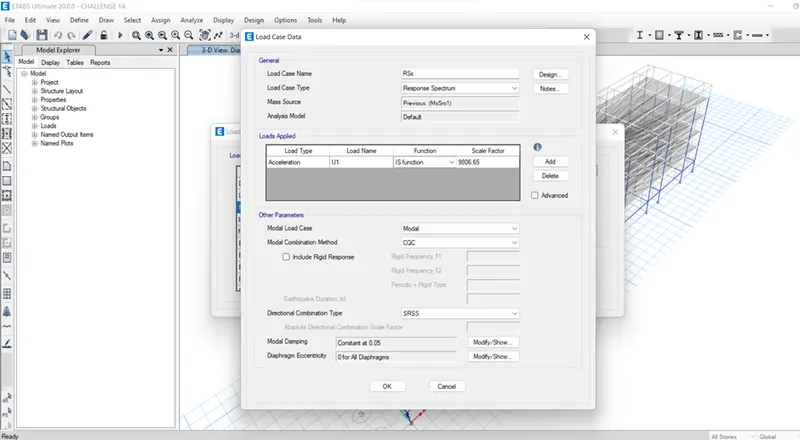

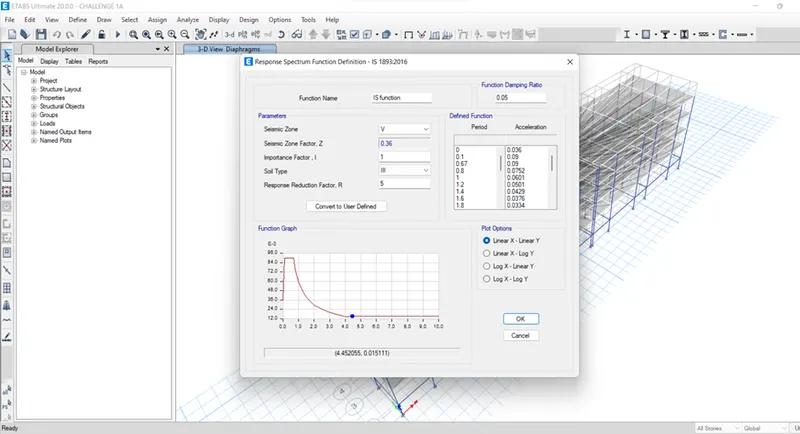

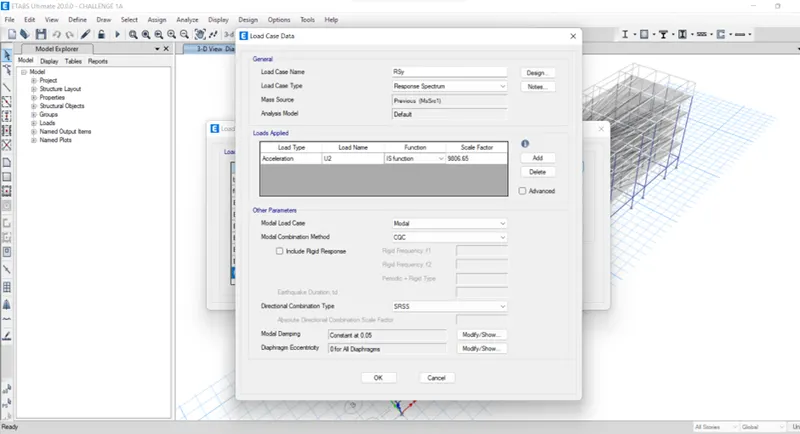

now, defining load cases using response spectrum in x and y direction. now first, is function is defined and then load cases are defined as shown below

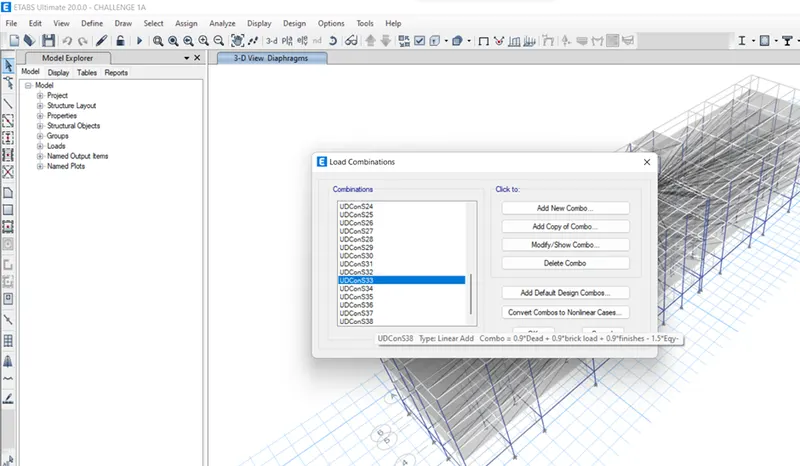

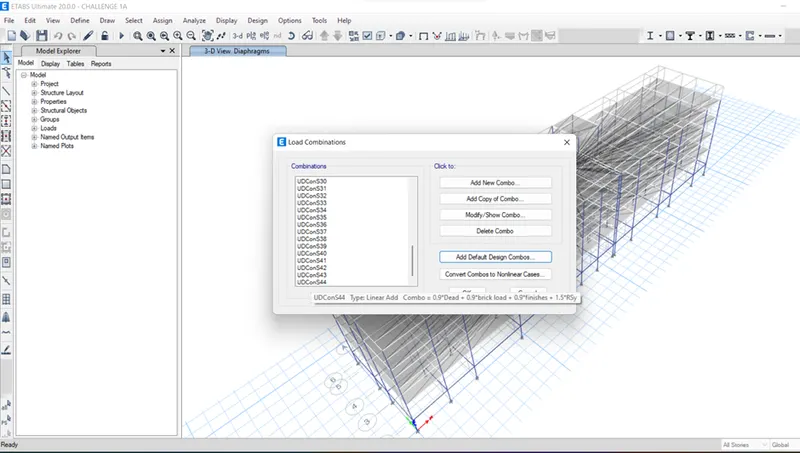

again, the load combinations are redefined for load cases of response spectrumas and also define servicibility load combination with dead,super dead and live loads for base reactions which are used in calculation of no of piles required shown below

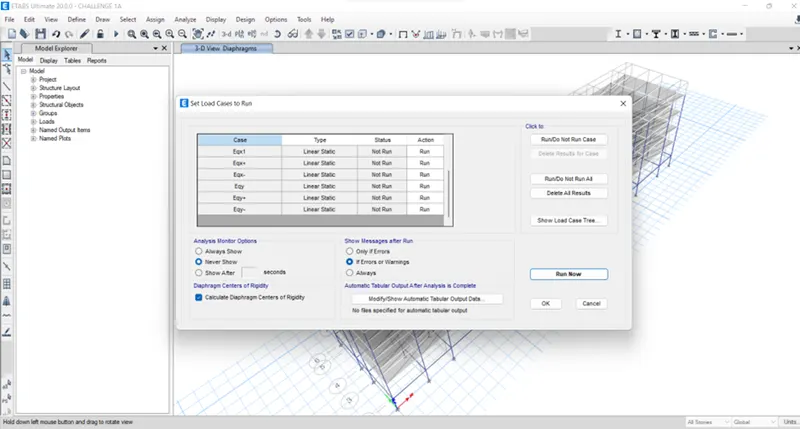

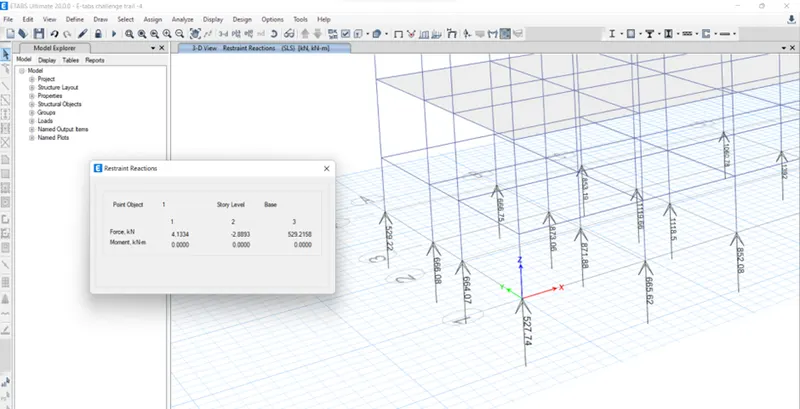

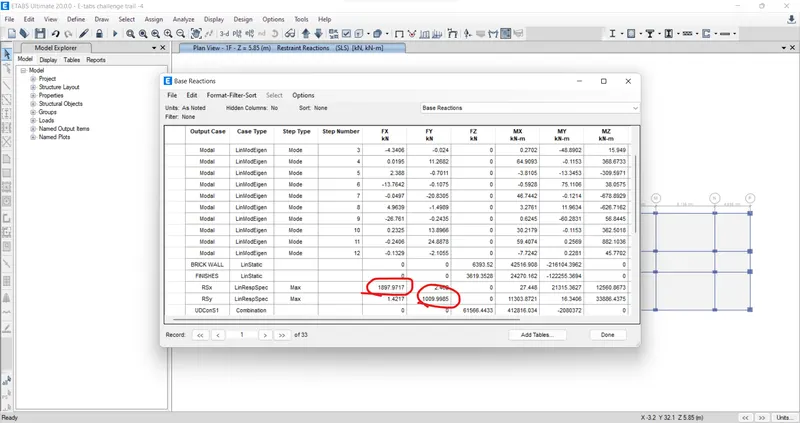

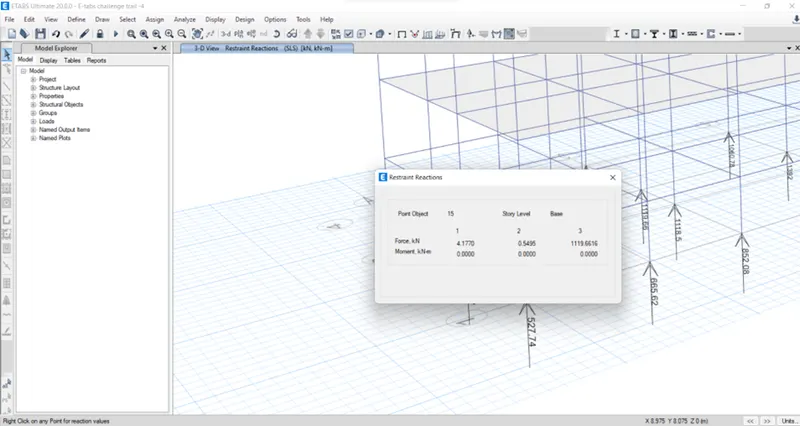

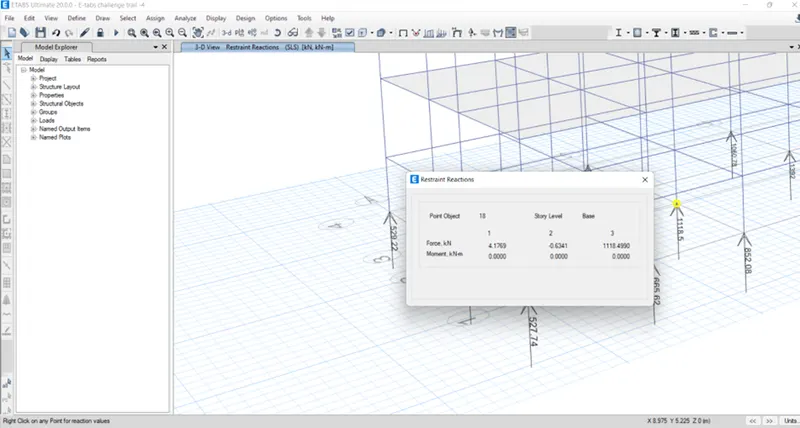

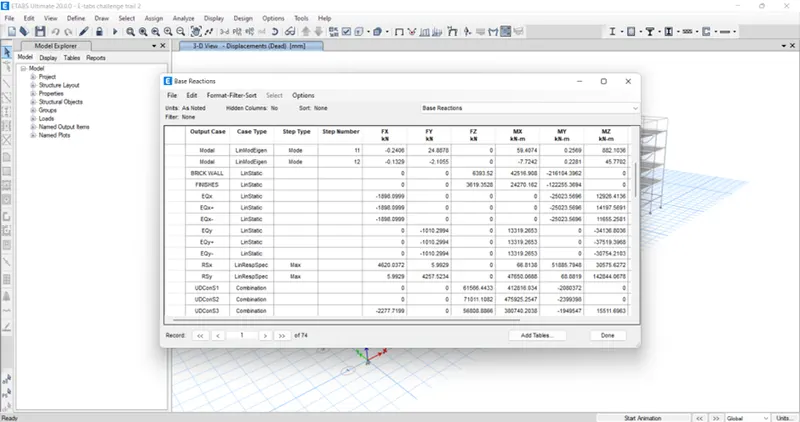

then, the model is run for analysis and we get reactions which should scaled for loads of response spectrum as shown below

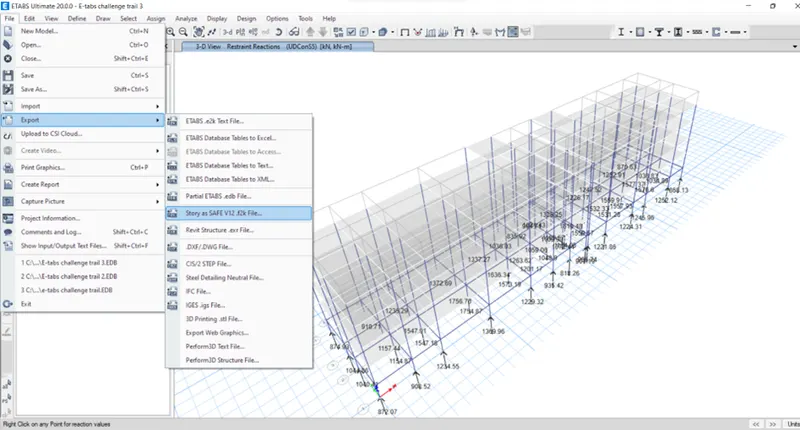

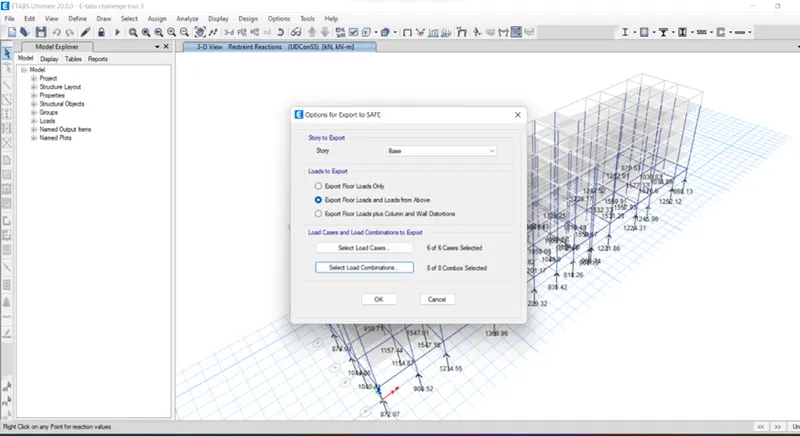

now, the model is exported as storey as safe v12.f2k file with all load case consideration on the above base as shown below

now, the safe software is opened and the file is imported from exported f2k file and loads needs to be checked whether reflected in imported file or not
using the service load base reactions, we can find the no of piles required and i am selecting one single column with single pile cap and single pile cap for two columns ,i.e A-4, C-2&3 as shown below

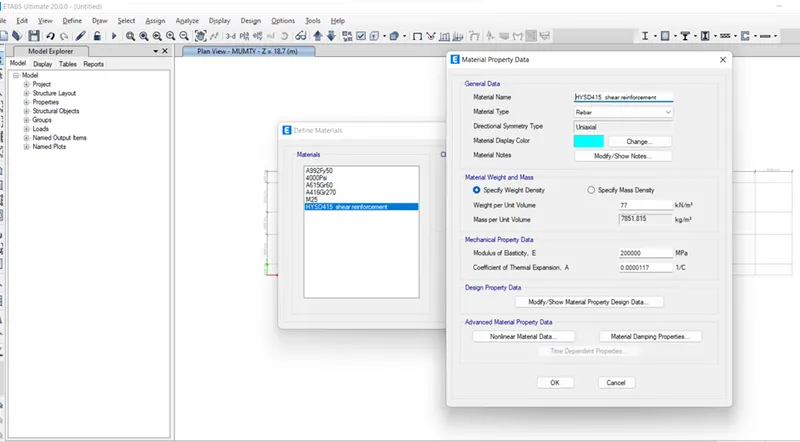

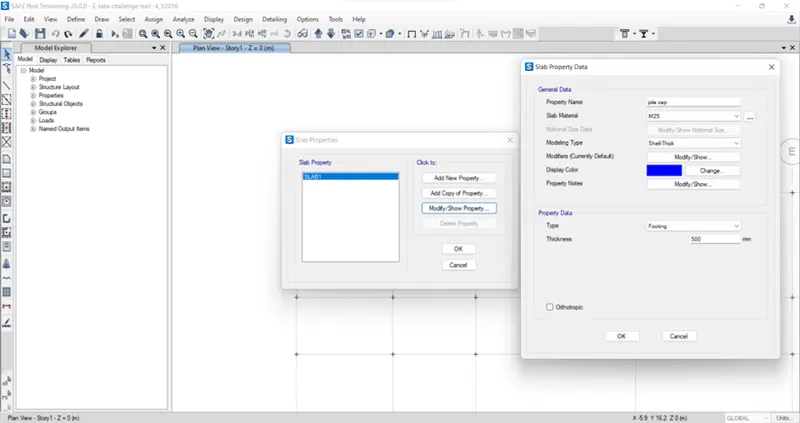

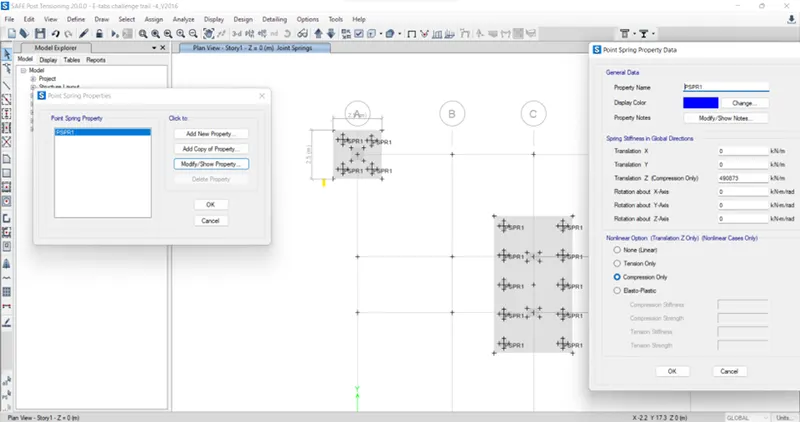

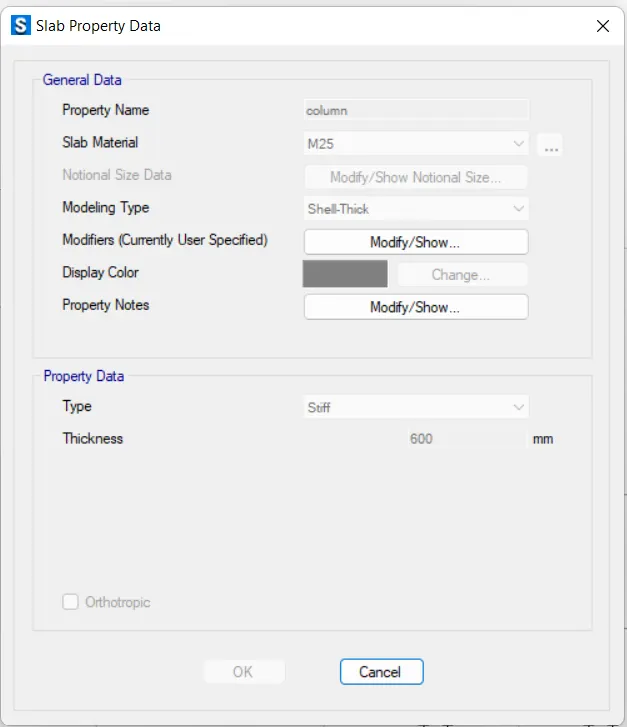

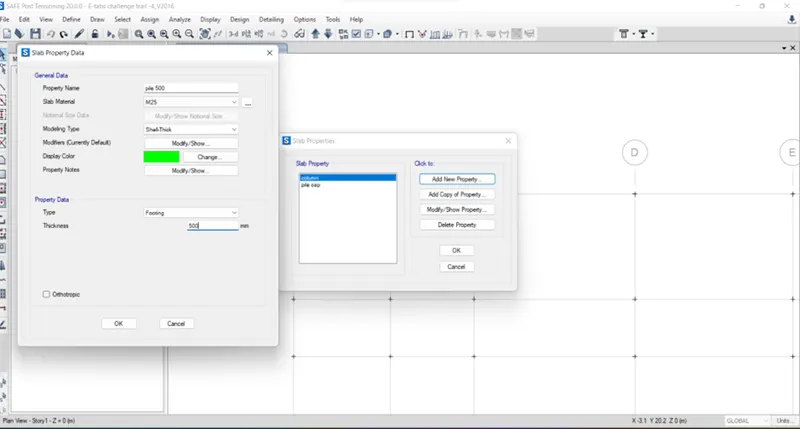

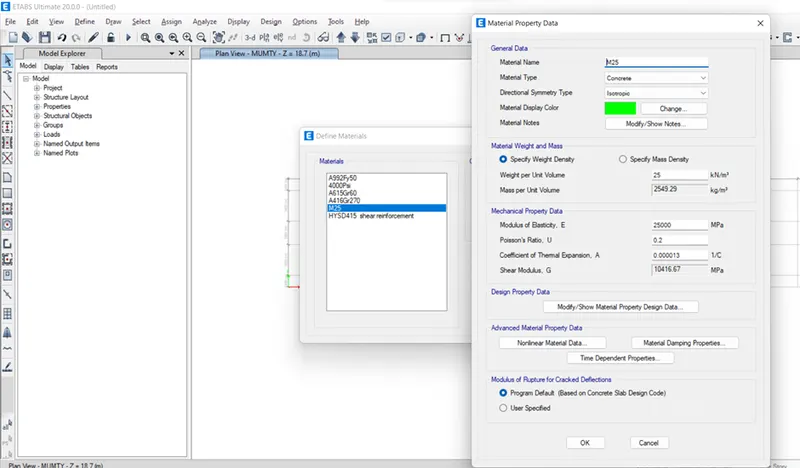

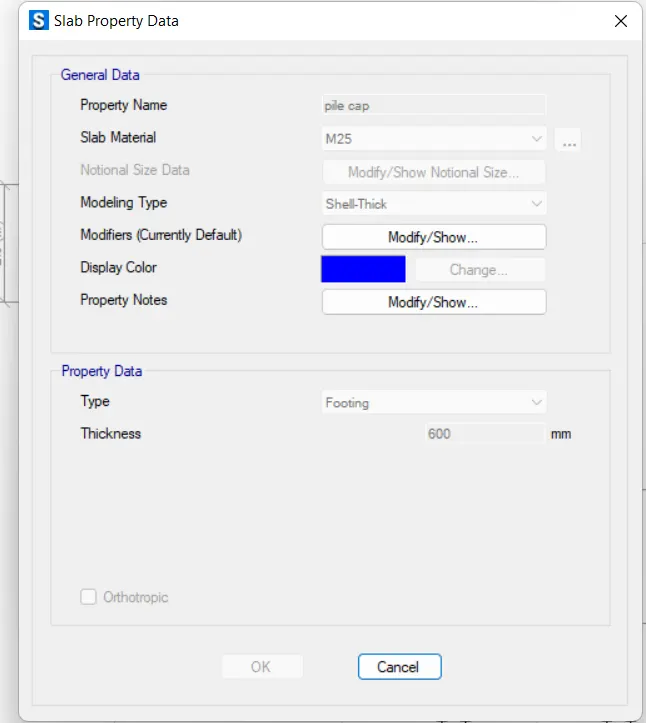

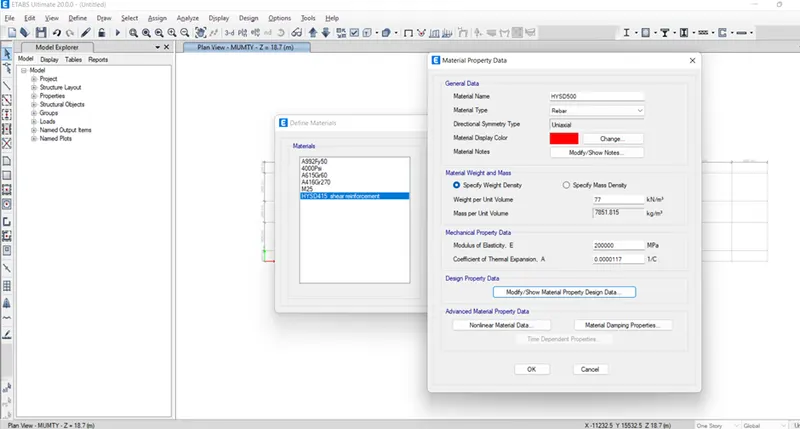

in this also, we have to define material property data for M25, Fe 500 and also slab property for pile cap, pile 500, column and also for frame section propert for beam 600*500 as shown below

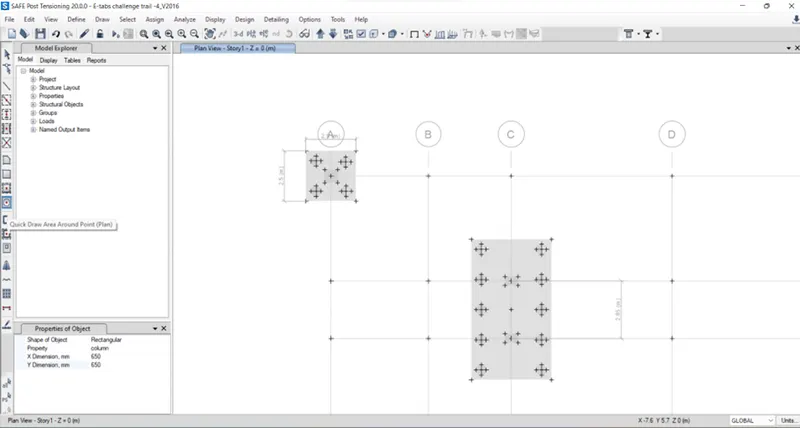

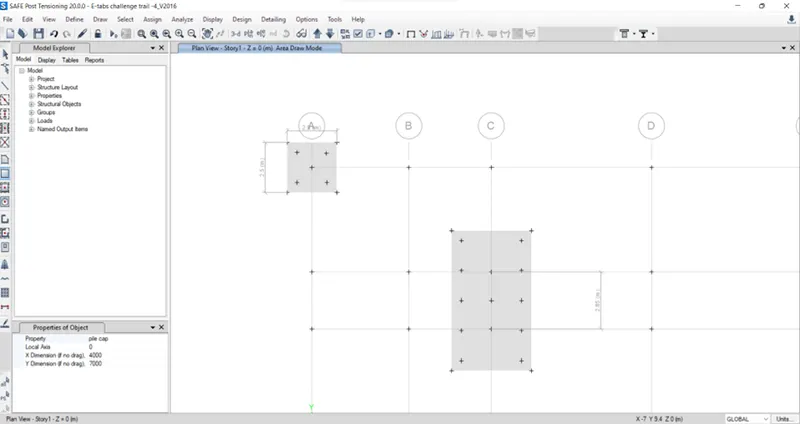

modelling all the necessery defined property's such as pile cap, pile500, column as shown below

in this, i am not able to create tie beam for piles due selecting three columns. so, i might get huge displacements in x and y direction.

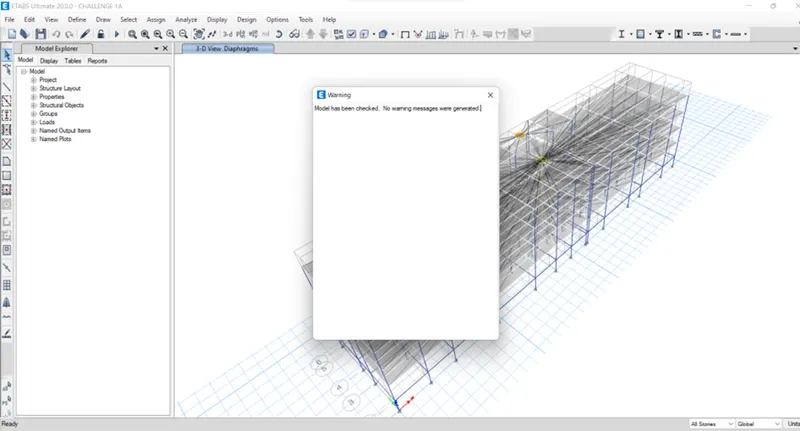

defining the servicibility load combinations and the model is checked for warnings and errors. then the model is analysed

RESULT:

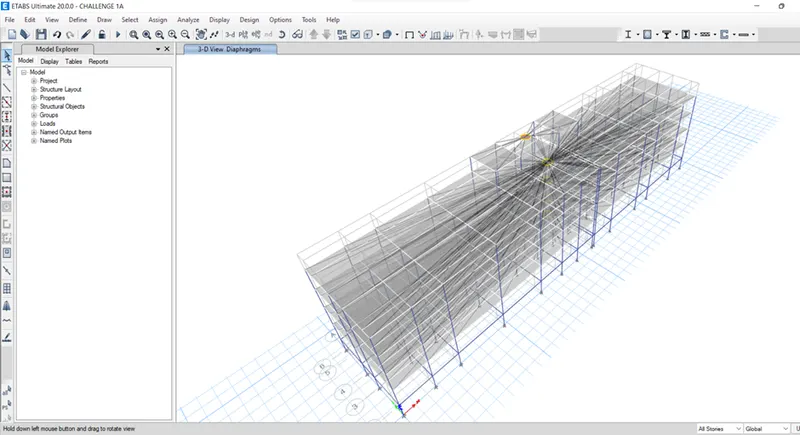

1) e-tabs model for two blocks

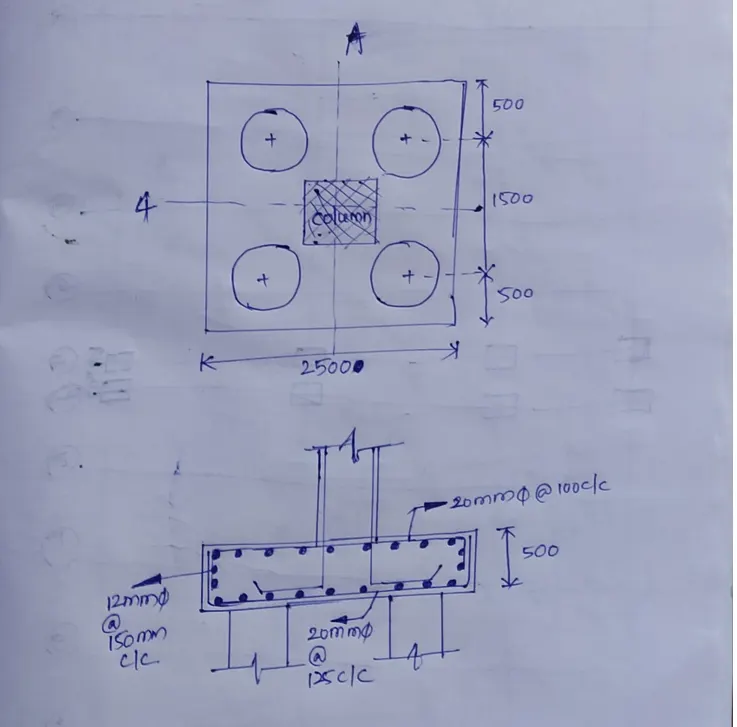

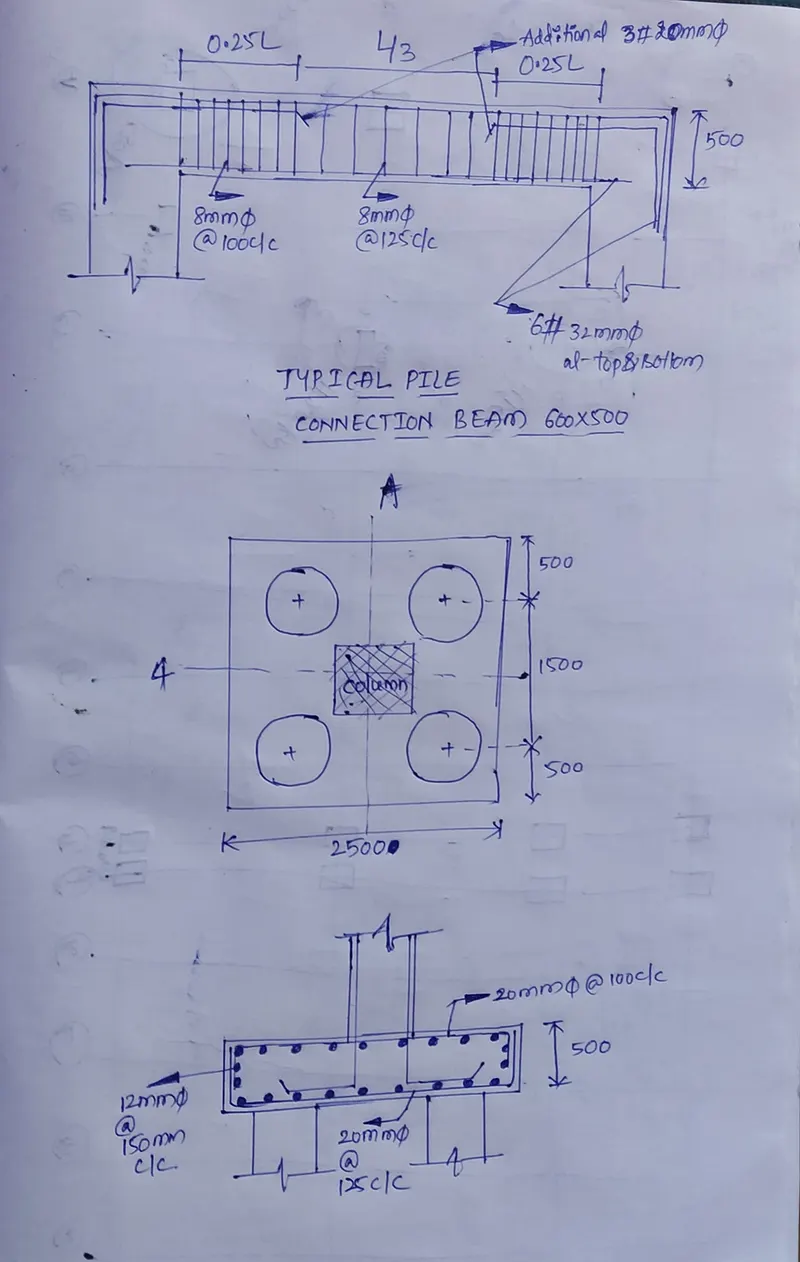

2)foundation details with pile-cap and pile reinforcement

3) tie beam connecting pile reinforcement

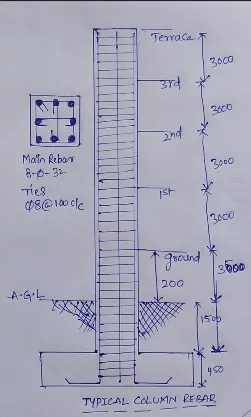

4)column reinforcement

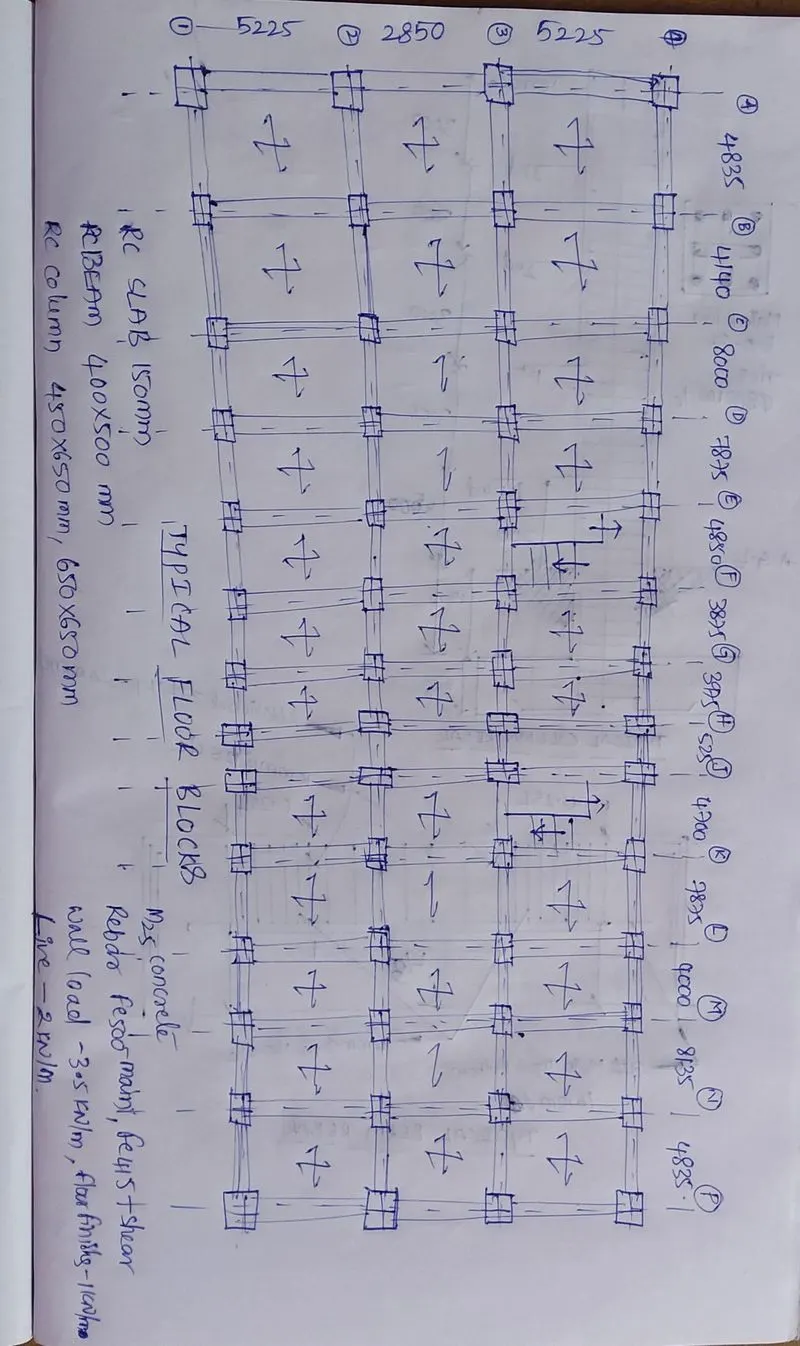

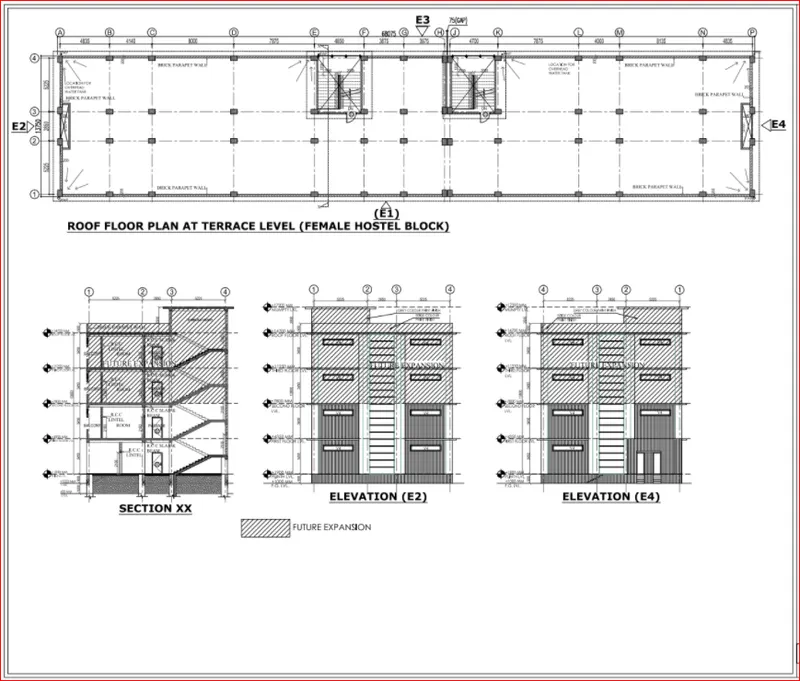

5)framing plan for typical floor

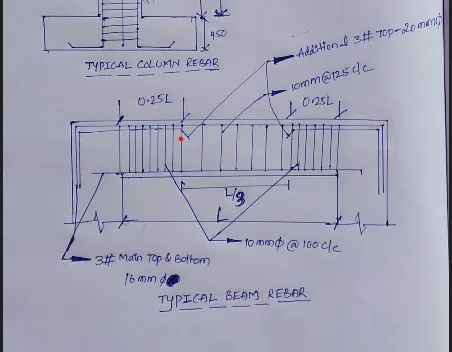

6)beam reinforcement for ground floor

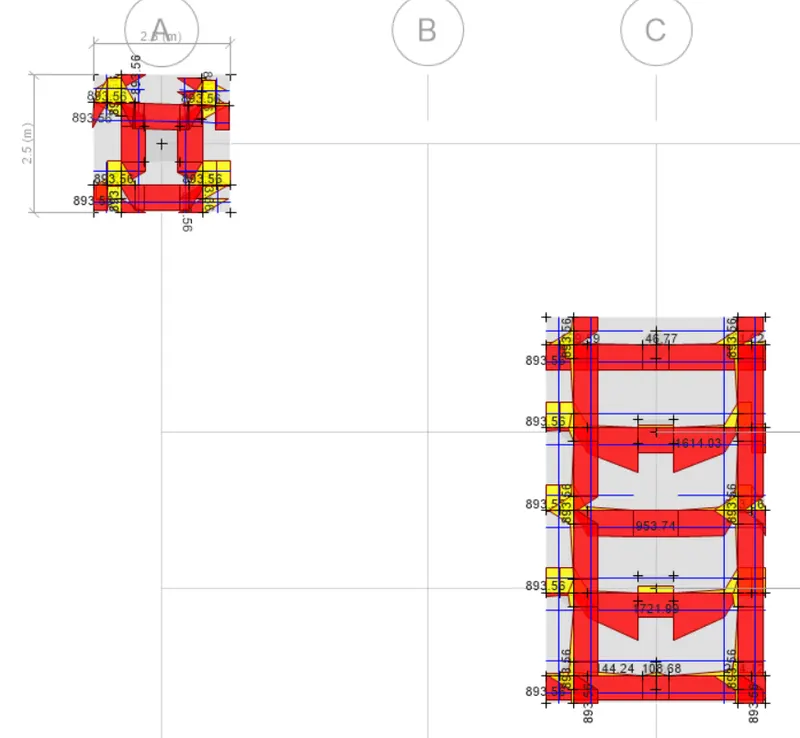

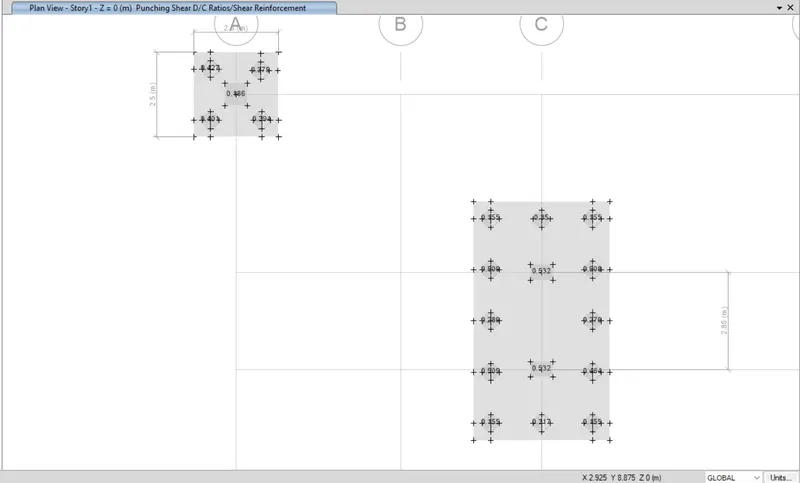

7)punching shear in safe

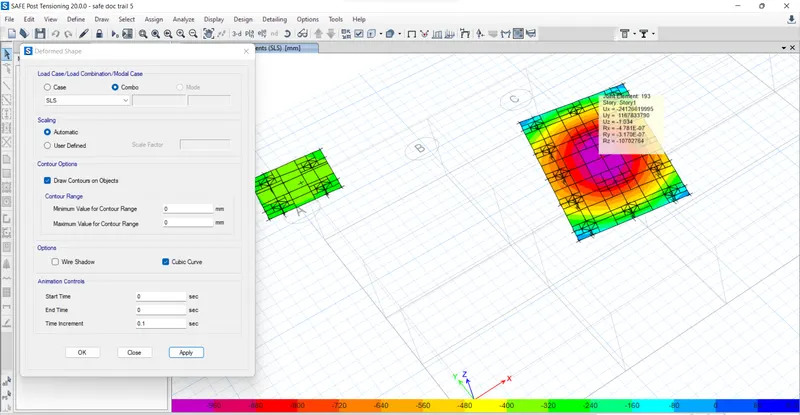

8)displacement in z direction

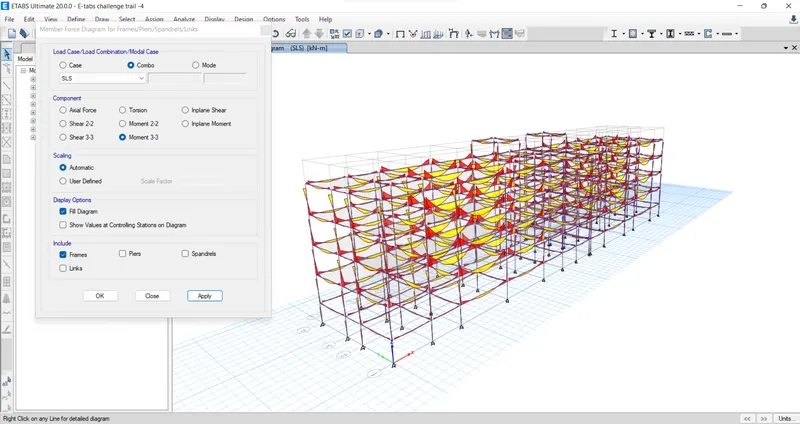

9)moment for model in e-tabs

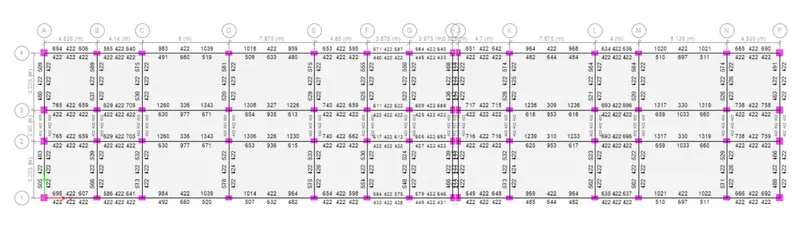

10) reinforcement for model in e-tabs
