Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

Aim: To create a 3D rendered model of a residential building

Procedure:

Step:1) Create the autocad file with units

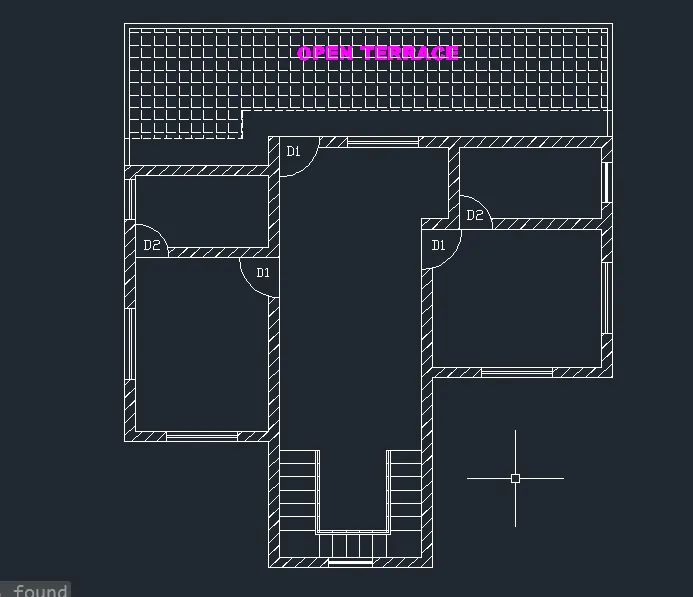

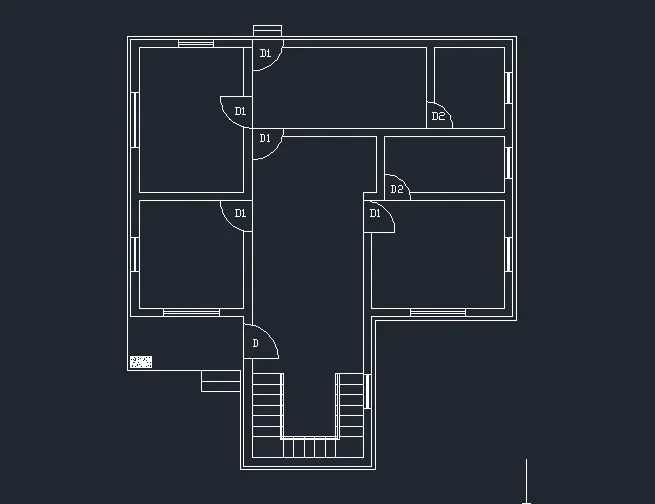

Step:2) Draw a residential layout and elevation

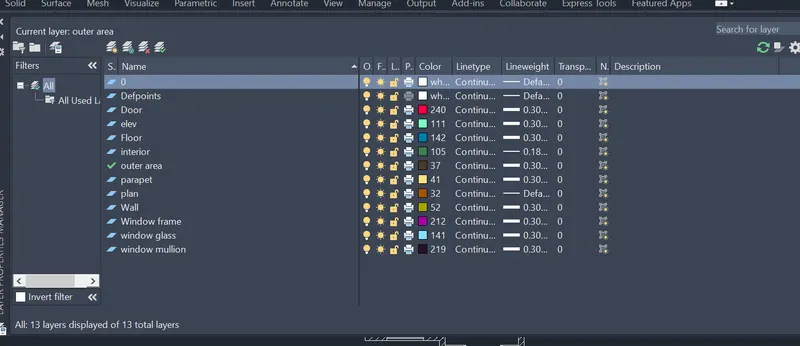

Step:3) Create layers for wall, window, door

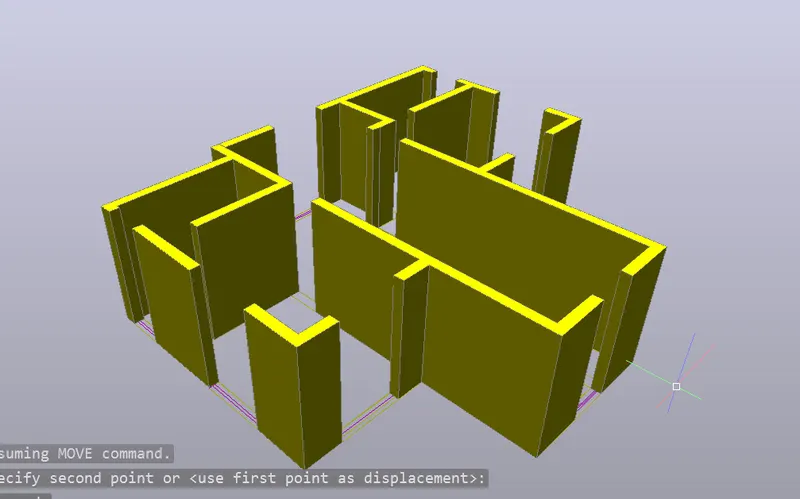

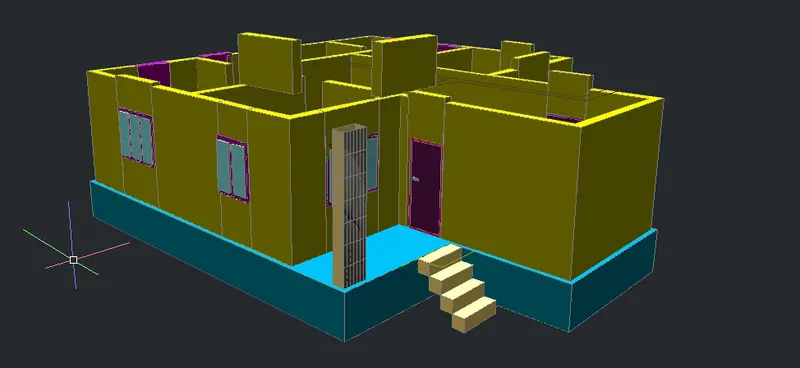

Step:4) Create region and extrude wall of ground floor.

Step:5) Create windows and door with boundary and extrude. Subtract the required portions

Step:6) Extrude the first floor layout and place on top of ground floor top

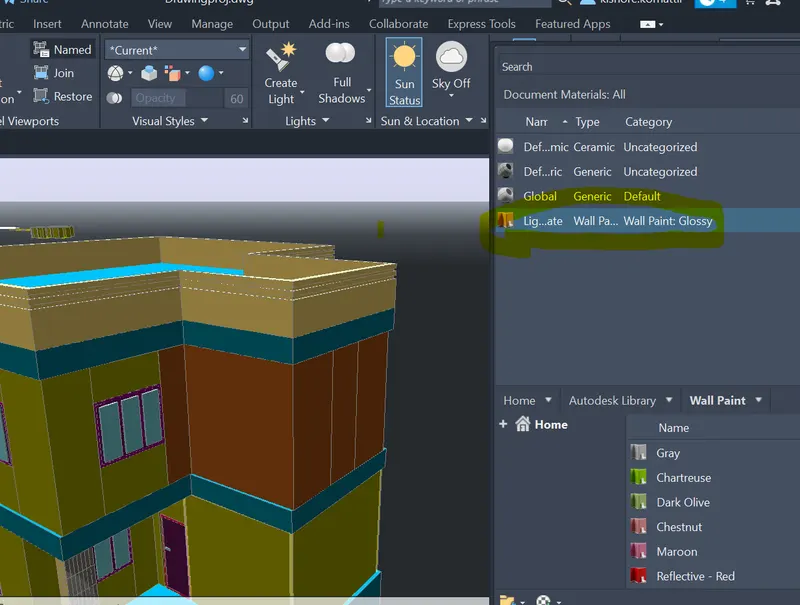

Step:7) Give materials as needed for wall, roof

Visualize > materials

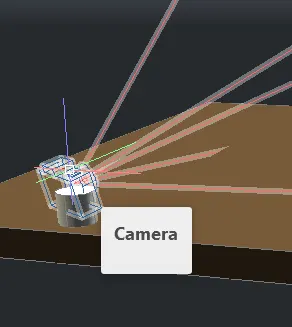

Step:8)Place camera at appopriate location

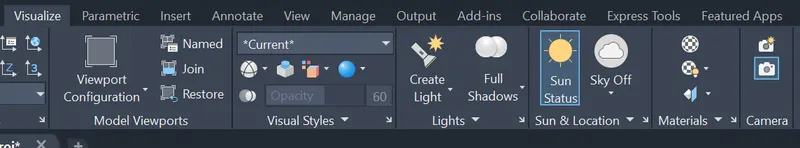

Step:9) Give light, shadows, sun status and sky

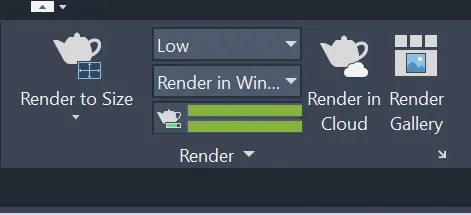

Step:10) Use rendering setting to render the views

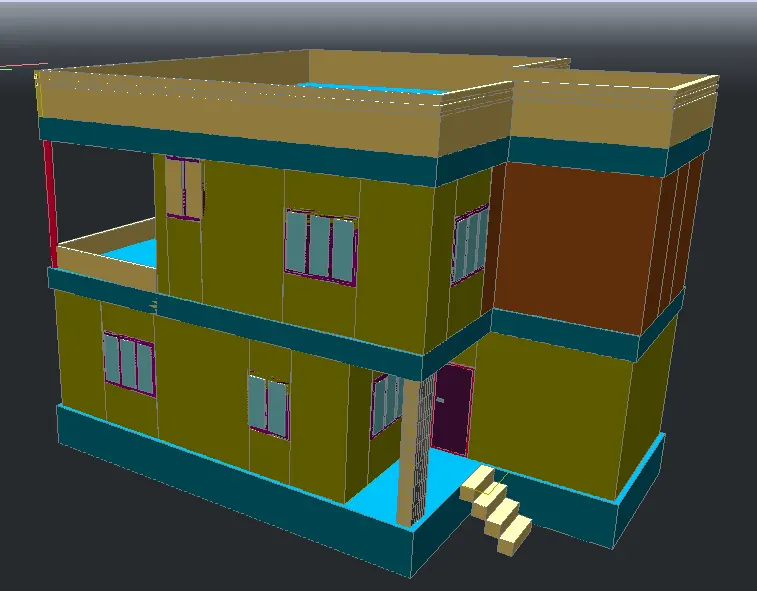

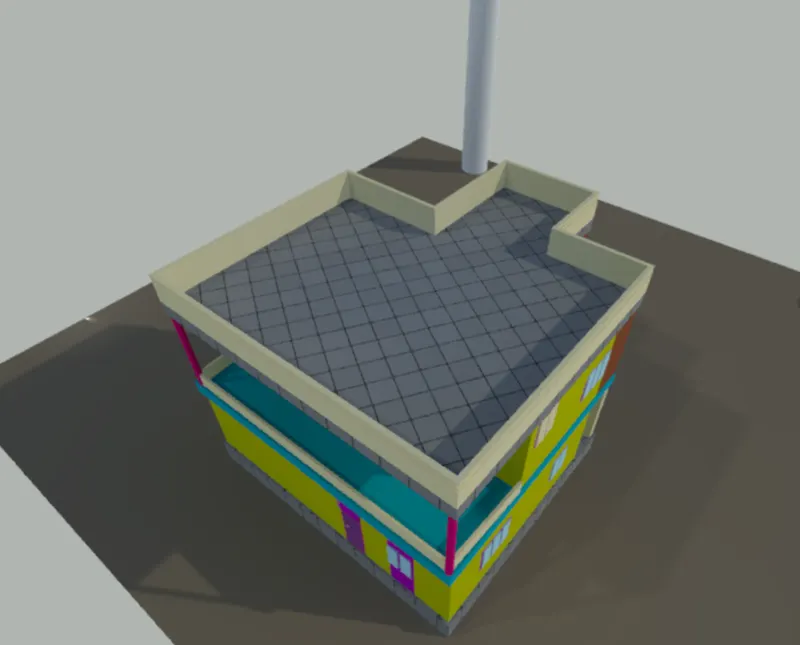

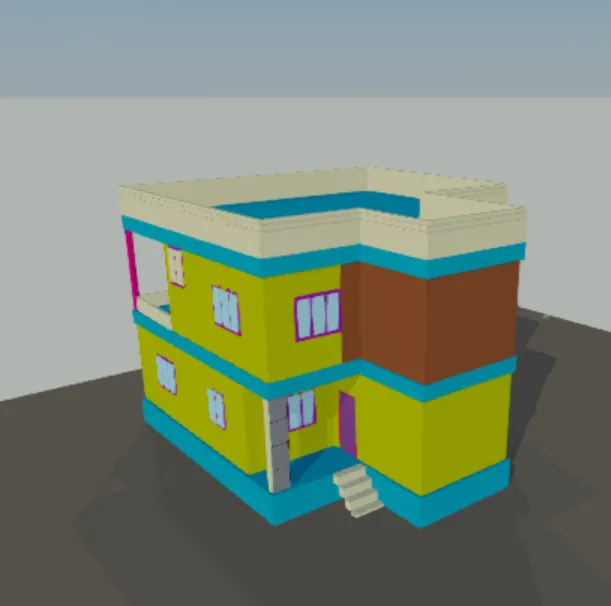

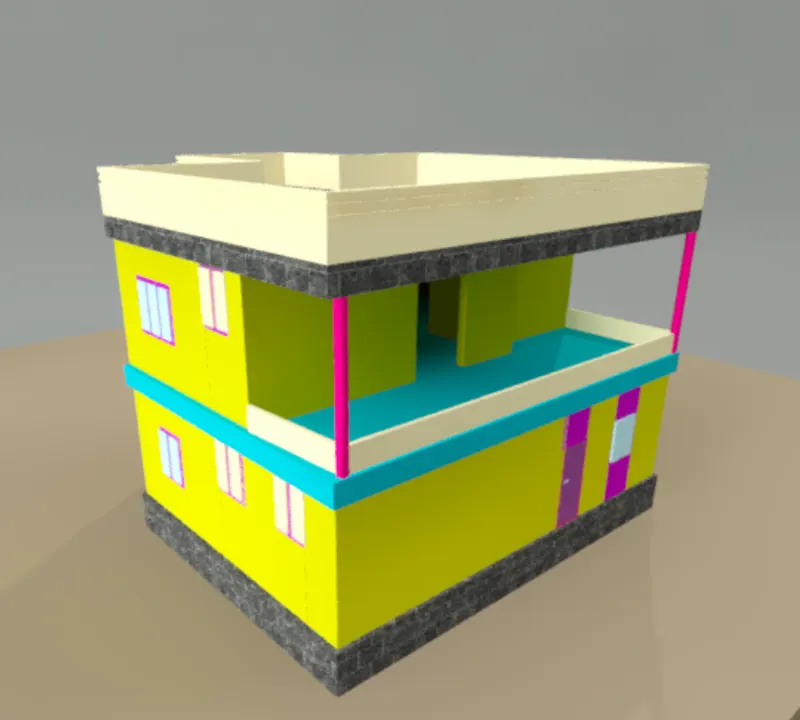

Result: The residential layout is produced in various rendered layouts
