Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

AIM AND INTRODUCTION :

TO DRAW A 3 DIMENSIONAL MODEL OF THE RESIDENTIAL BUILDING USING AUTOCADD SOFTWARE.

PROCEDURE :

1. FIRSTLY DRAW THE PLAN OF A BUILDING USING RECTANGLE AND LINE COMMANDS.
2. THEN USE DIMLIN COMMAND TO DRAW THE DIMENSIONS OF A BUILDING STRUCTURE.
3. USE LAYERS COMMAND TO DRAW THE DOORS AND WINDOWS AND INNER WALLS OF THE STRUCTURE.
4. AFTER COMPLETING THE PLAN OF A STRUCTURE THEN USING EXTRUDE COMMAND EXTRUDE THE 2D STRUCTURE INTO 3D FORM OF A STRUCTURE.
5. THEN DRAW THE ELEVATION OF A STRUCTURE WITH PROPER DIMENSIONS AND EXTRUDE THE WINDOWS AND DOORS FOR THE ELEVATION.
6. USE BOUNDARY COMMANDS TO DRAW THE WINDOWS OF THE ELEVATION.
7. FOR THE ELEVATION DESIGN USE COMMAND CYLINDER TO DRAW THE HANDLES AND VERANDAS.
8. USE RENDER COMMAND TO DRAW THE RENDERED VIEW OF THE STRUCTURE.

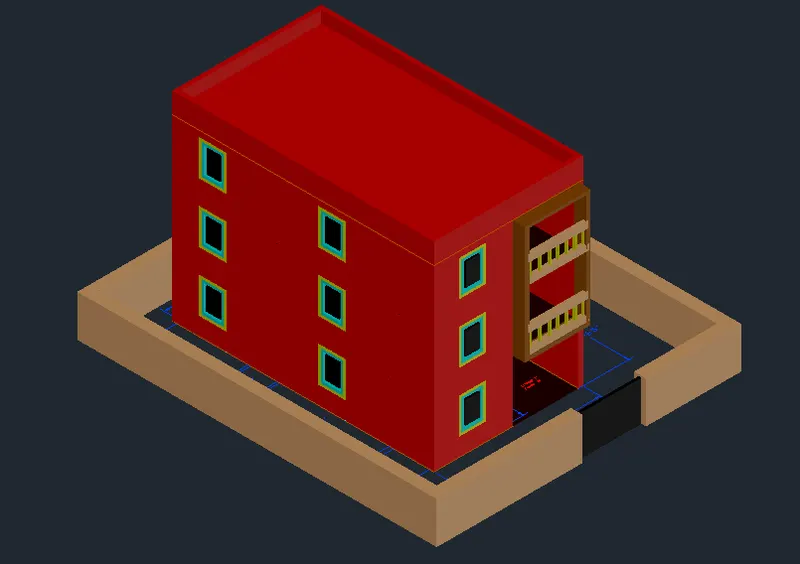

RESULTS :
