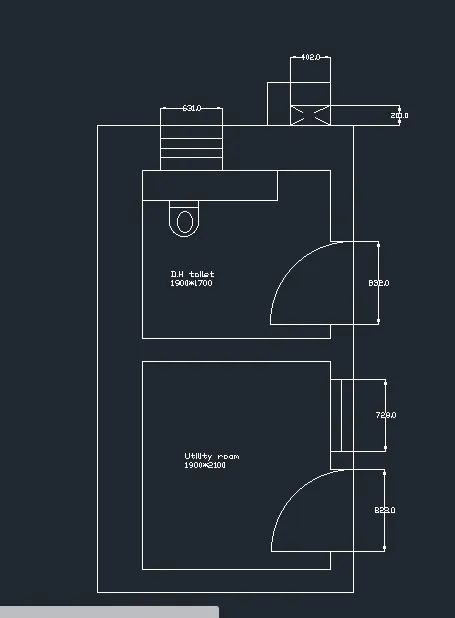

Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

1.AIM AND INTRODUCTION

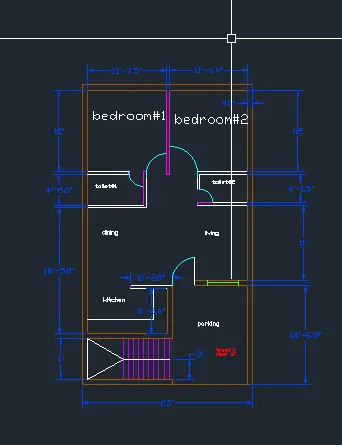

To draw the outline plan of a residential building consisting of bedrooms, living, kitchen,parking,porche etc. using autoCADD.

PROCEDURE

• first step while starting a diagram use command UNITS to change the units like feet,inches,milimeters etc from one another.
• then draw the border line of a plan using XLINE command.
• use OFFSET to draw the rooms of a house
• draw the exterior walls and interior walls as per the given dimensions.
• use trim command to trim the extra length of a line
• use offset with correct dimensions as given in the plan and to check the dimensions use DIMLIN,DIMRAD,DIMANGULAR command.
• draw the doors and windows as per required dimensions using ARC or CIRCLE command
• type the TEXT command to insert the names of the rooms.
• use LAYERS command to differentiate the parts of a building with different colours.
• use CTRL+S to save the whole diagram.

RESULT

2.

AIM AND INTRODUCTION

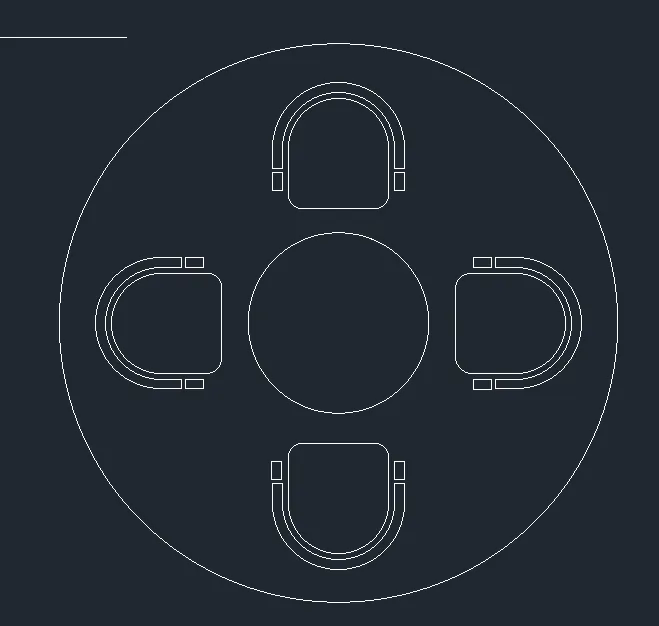

To draw the outline plan of a sitout area using autoCADD.

PROCEDURE

• first step while starting a diagram use command UNITS to change the units like feet,inches,milimeters etc from one another.
• then draw the border line of a plan using XLINE command.
• use trim command to trim the extra length of a line
• use offset with correct dimensions as given in the plan and to check the dimensions use DIMLIN,DIMRAD,DIMANGULAR command.
• draw the sitout table and chairs as per required dimensions using ARC or CIRCLE command
• type the TEXT command to insert the names.
• use LAYERS command to differentiate the parts of a building with different colours.
• use CTRL+S to save the whole diagram.

RESULT

3.

AIM AND INTRODUCTION

To draw the outline plan of a residential building consisting of bedrooms, living, kitchen,parking,porche etc. using autoCADD.

PROCEDURE

• first step while starting a diagram use command UNITS to change the units like feet,inches,milimeters etc from one another.
• then draw the border line of a plan using XLINE command.
• use OFFSET to draw the rooms of a house
• draw the exterior walls and interior walls as per the given dimensions.
• use trim command to trim the extra length of a line
• use offset with correct dimensions as given in the plan and to check the dimensions use DIMLIN,DIMRAD,DIMANGULAR command.
• draw the doors and windows as per required dimensions using ARC or CIRCLE command
• type the TEXT command to insert the names of the rooms.
• use LAYERS command to differentiate the parts of a building with different colours.
• use CTRL+S to save the whole diagram.

RESULT
