Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

AIM:-

To create a 3D model of a residential building with a rendered view.

PROCEDURE:-

• Set units>engineering>inches
• Type limax>100,100.
• Limits>0',0'.
• Type>zoom>a.
• Use L command to draft the desired lines.

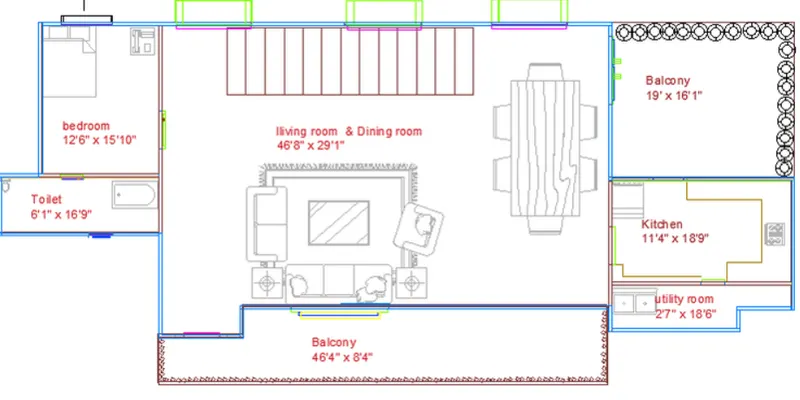

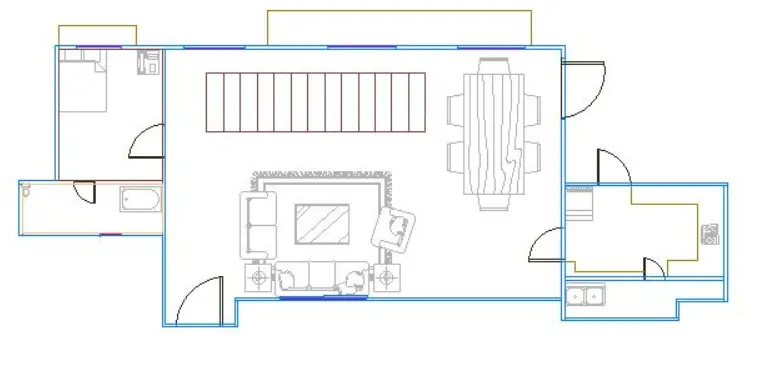

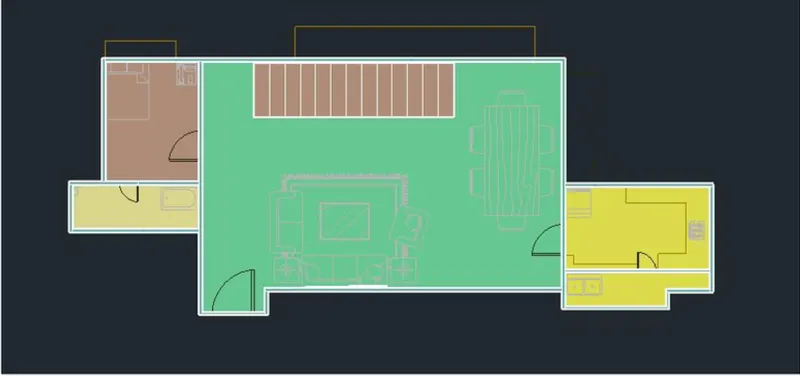

• In the 3D model it is changed to top view to draw the plan.
• set layers for walls, door and windows.
• In plan view draw the steps with R-6'' and T-1'.
• Type XL to draw infinite lines.
• Type adc to add the interior components like sofa, dinning table etc.
• Usingoffset give the thickness of wall 4''.
• Trim to trim extra lines.

• Mt to give text.
• Give dimensions using dim command.

• Go to south west view.

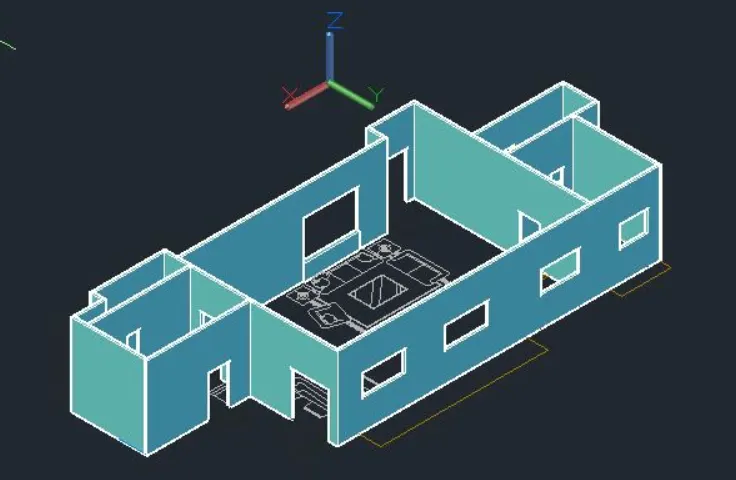

• Extrude the walls using extrude command.
• The windows and doors are not extruded.

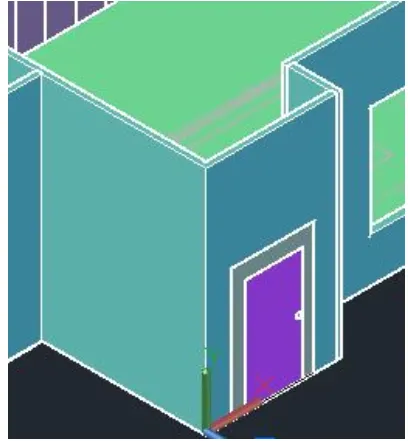

• Use rec command to draw the rectangle(frames)for door and windows.
• Type extrude to extrude the frames.
• Do it for all door and window.

• Type rec to give floor layout.
• Extrude it to-4''(to give thickness of floor).

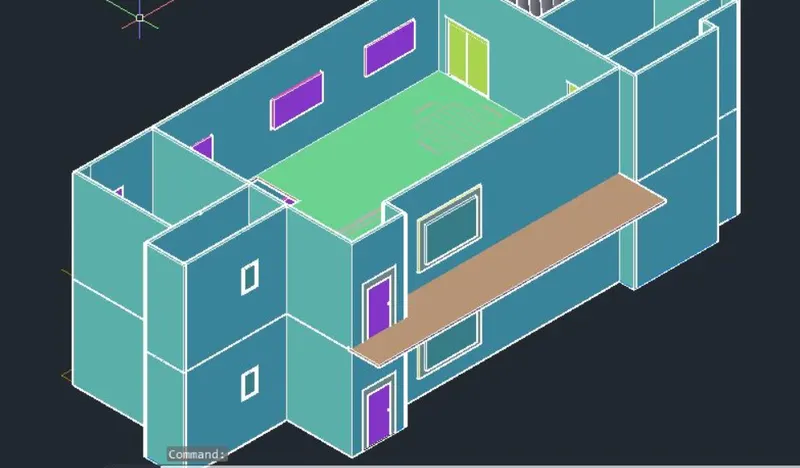

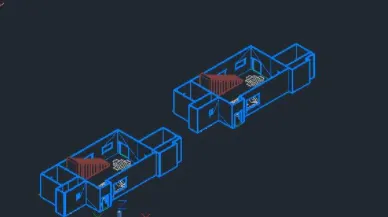

• Go to custom view and copy the whole plan and paste it on the top of ground floor.

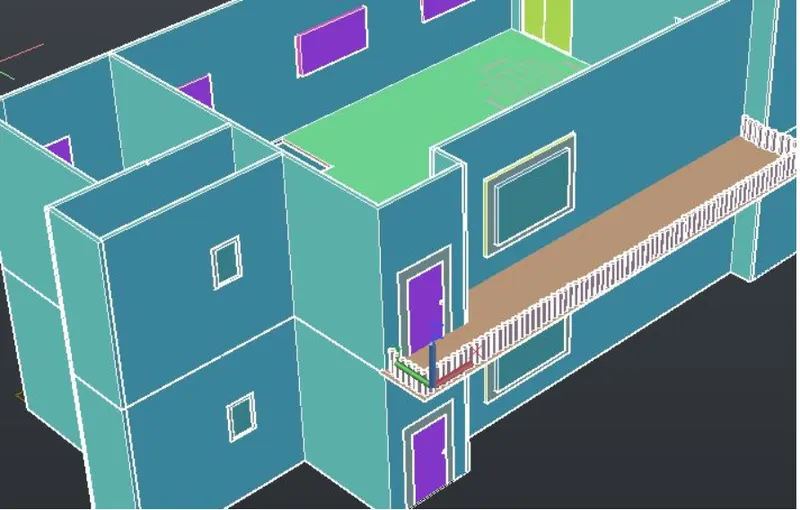

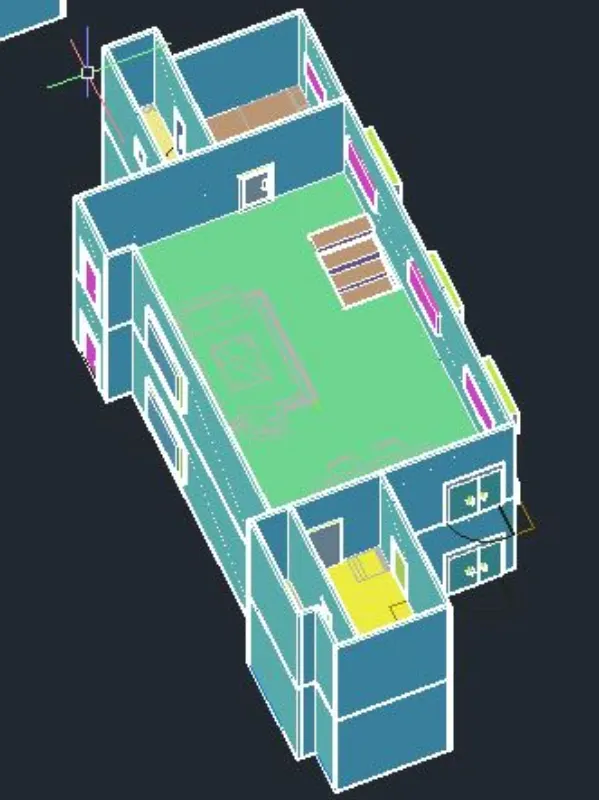

• For the first floor the opening is created for the staircase with the help of substract command.
• Type rec at staircase top and then extrude to certain height.
• With the help of substract command the opening is created.

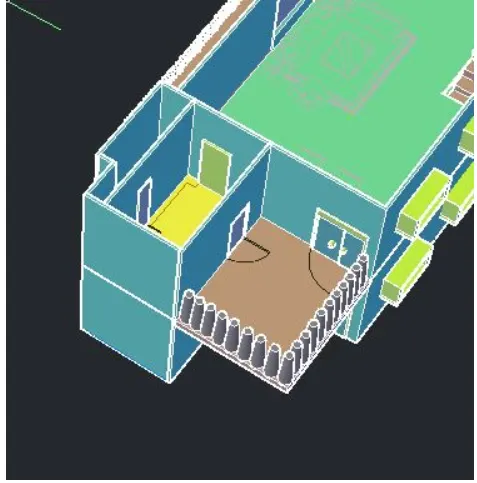

• Type rec to draw balcony layout and extrude to a particular height.
• Type circle and extrude >tapper to get the railings.
• Type polygon>4 sides>inside the circle>draw the rectangle and extrude it to get the railings.

• Type rec to draw the rectangle for ceiling and extrude to 4''.
• Type Union to join the solids.

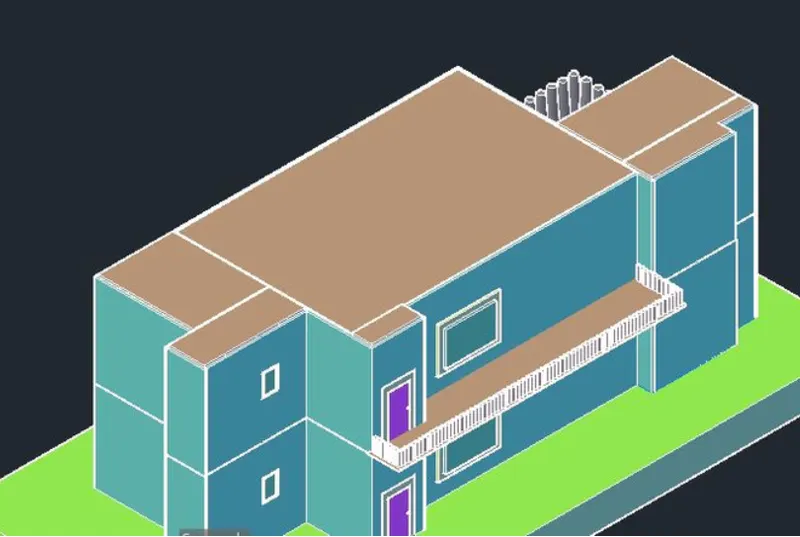

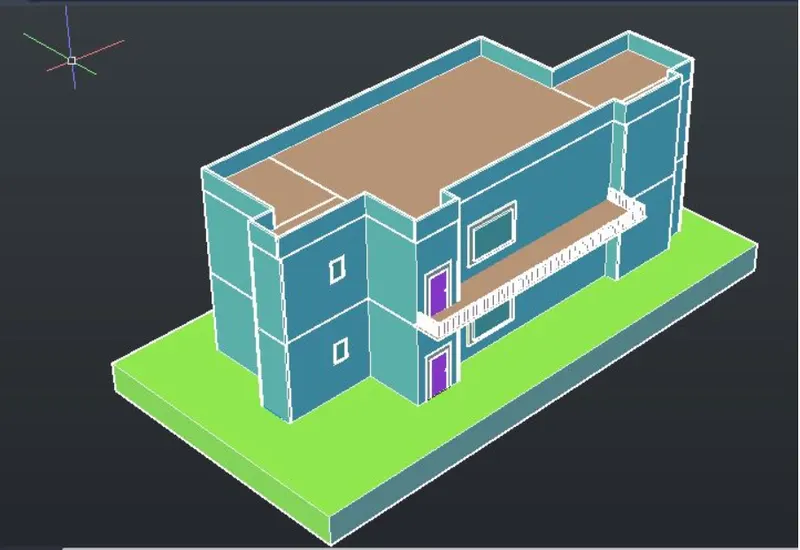

• Using box and extrude command the parapet wall is created with height 3'6''.
• Type union to join the parapet walls.

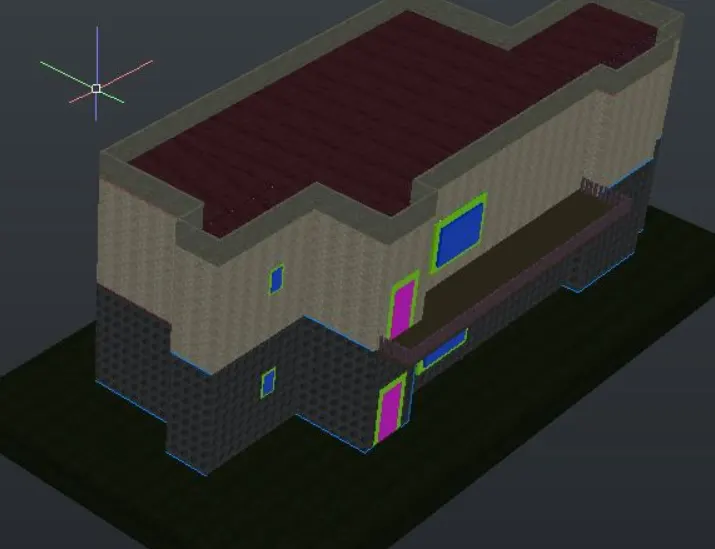

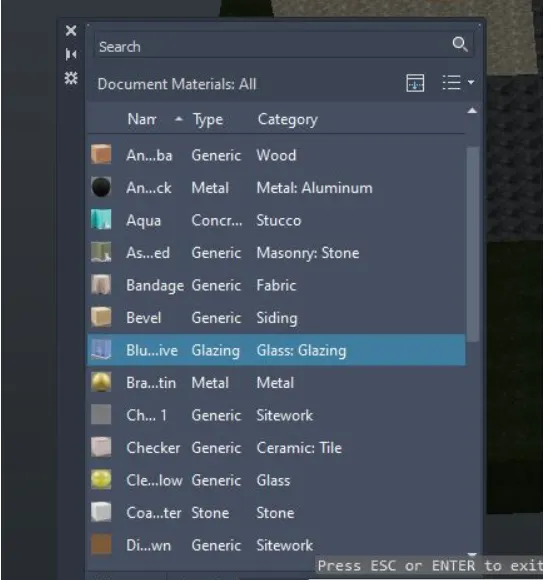

• Now in ribbon bar>visualise>material browser (to add the materials)
• For wall different stone materials are added.
• For terrace brick masonary material is added.
• For windows and door glass material is added.

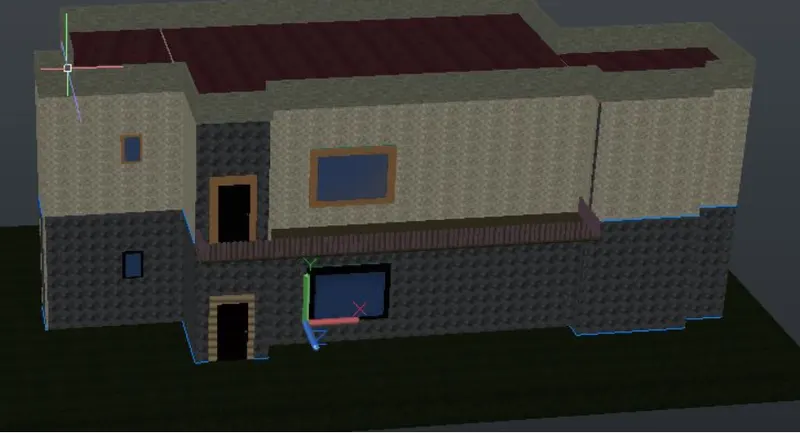

• All can be seen in realastic view.

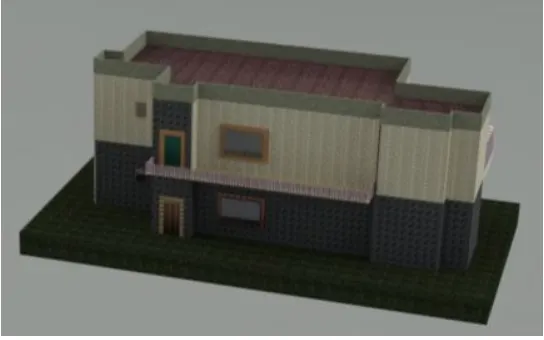

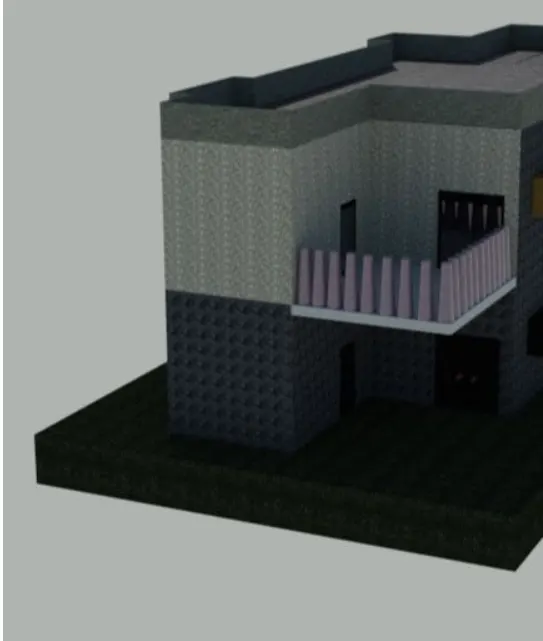

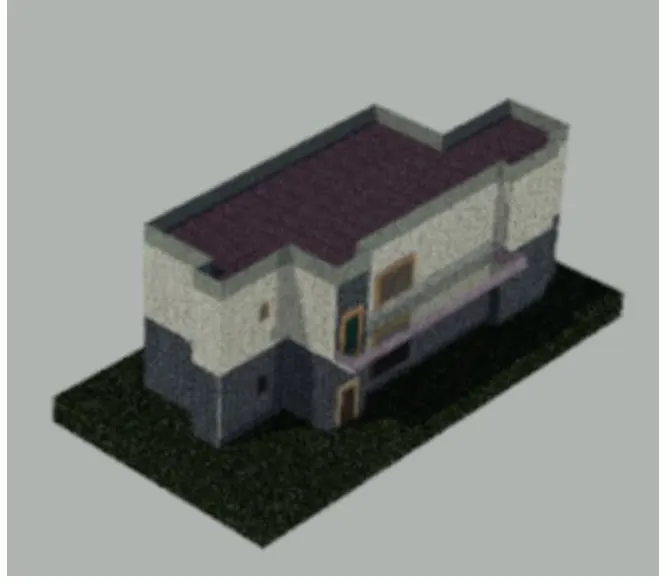

• Go to ribbon>visualize>render
• we modify the sun setting,sky background.exposure setting.

RESULT:-
