Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

AIM:

Create a 3 dimensional model of the residential building with a rendered view.

INTRODUCTION:

Drawing the 3d model of the project 1(Challage 8) by using 3D modeling and using the various commands and Rwndering view and all

PROCEDURE:

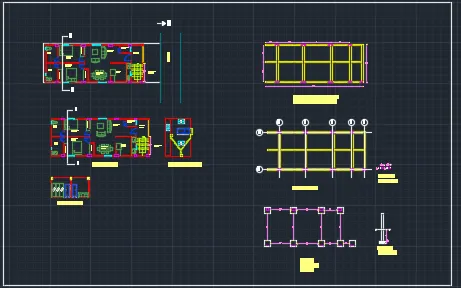

Open the existing project to complete the 3D drawing

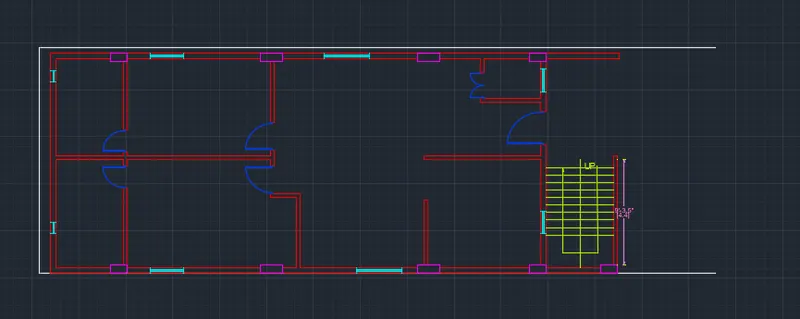

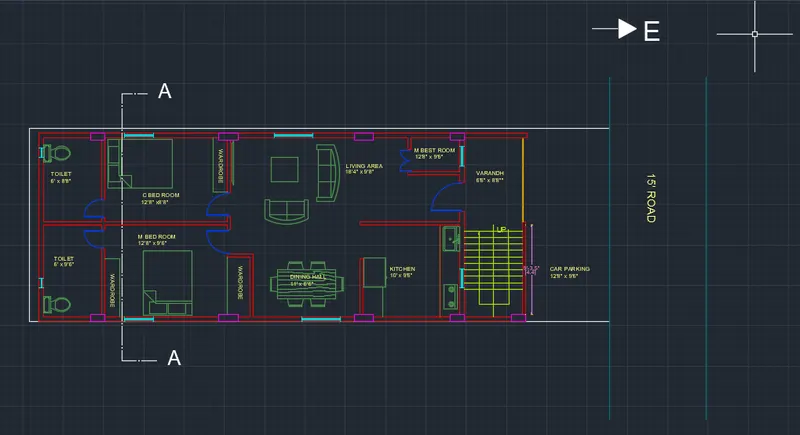

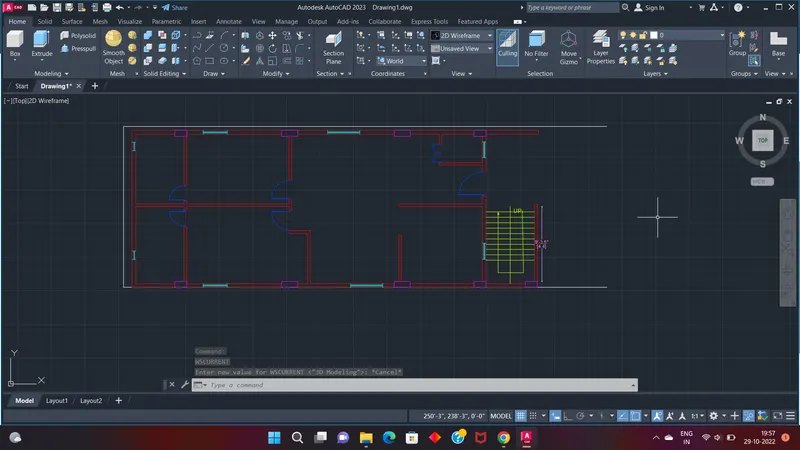

And go to the plan

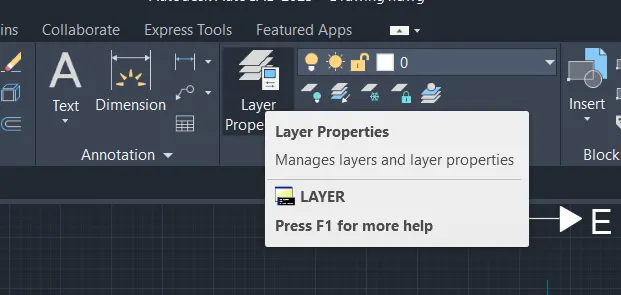

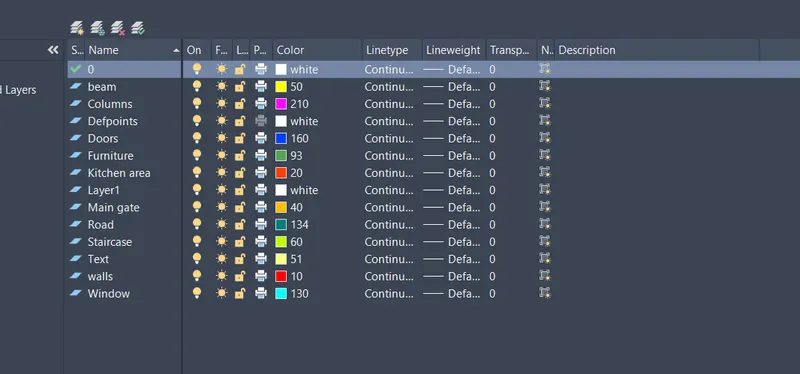

Hide the unwanted layers by using the layer properties command

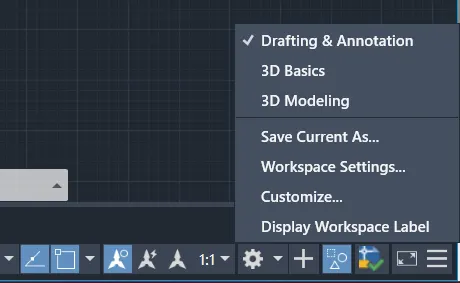

After that go to the 3d modeling

And change view to isometric view

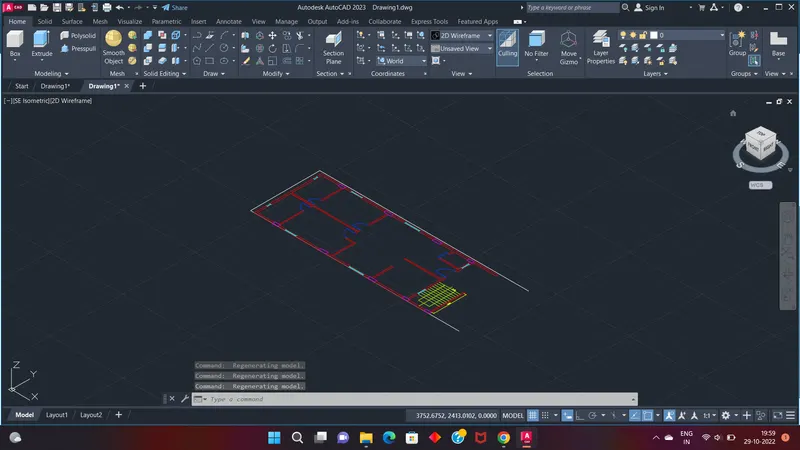

And view can be visible the below image

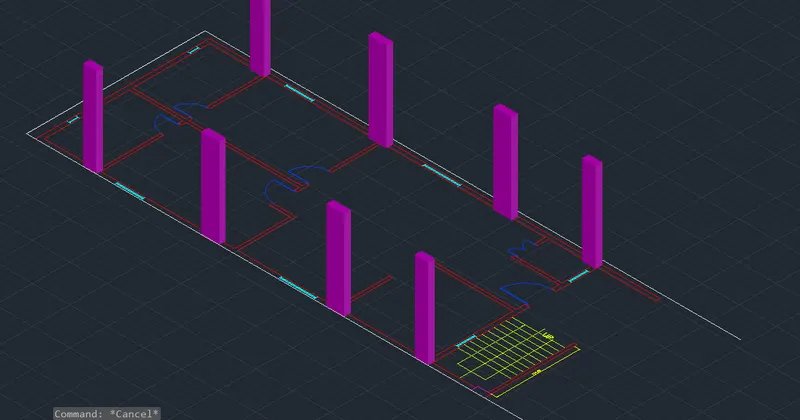

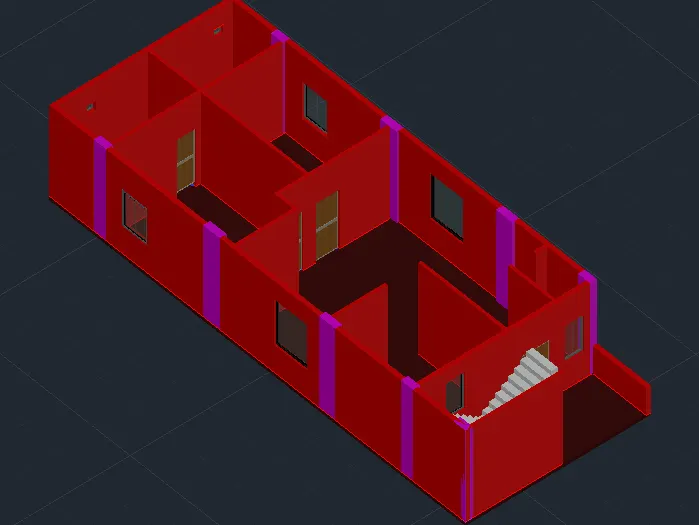

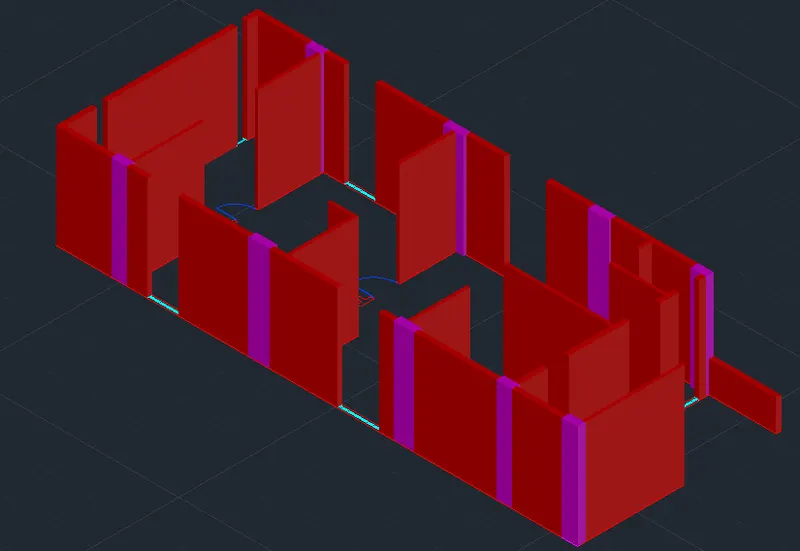

Use the extrude command and extrude all the columns by is layer properties

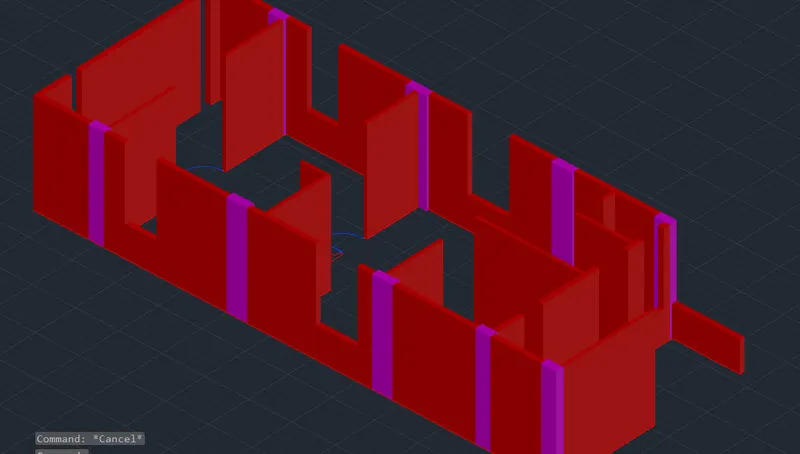

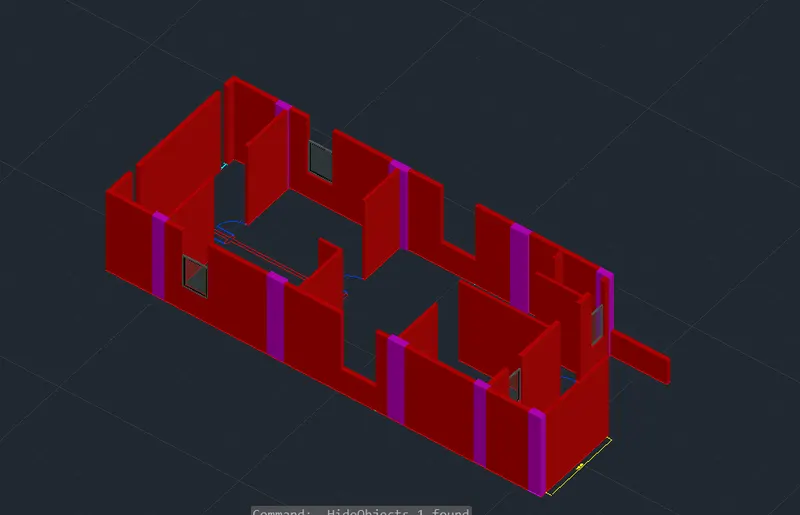

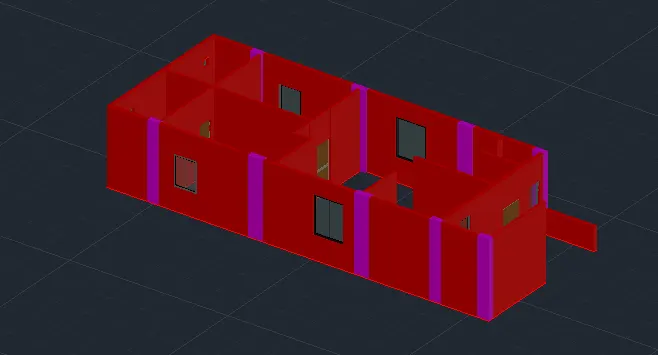

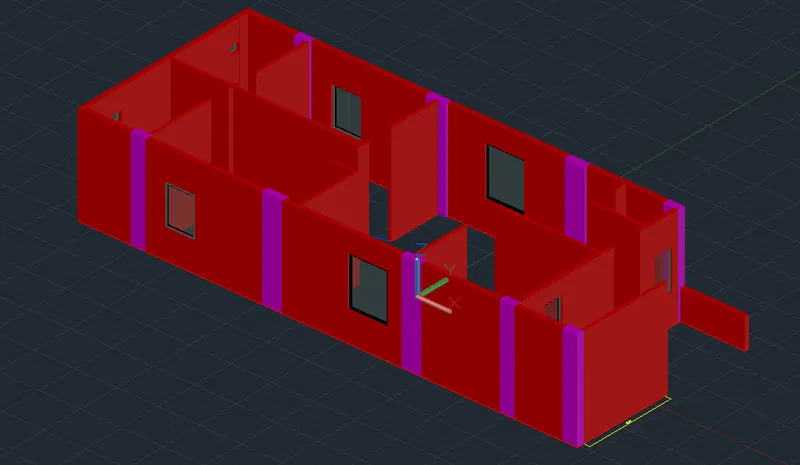

ANd again use the extrude command and extrude all the walls by its layer properties

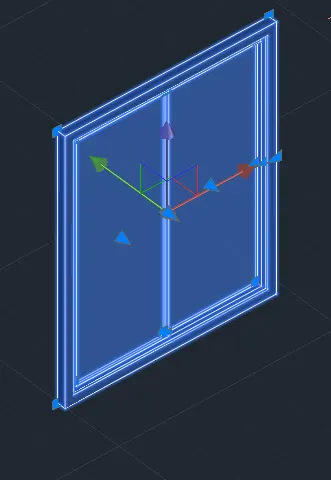

Draw the windows with its material and make it is a block

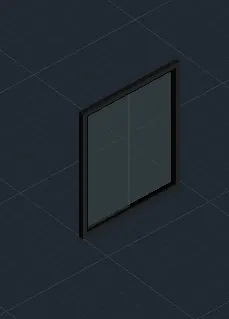

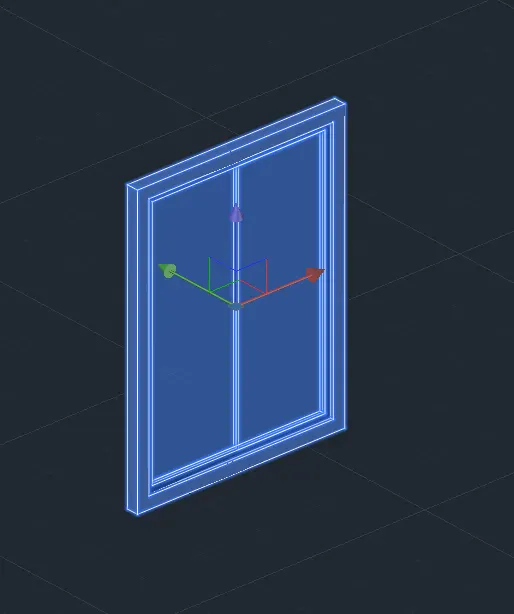

Draw the another window and make it as a block 4 feet window

after completeting the walls and windows now draw all the doors

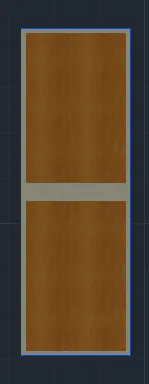

Draw all the doors and covert into 3d model and make it as a block and place the required area

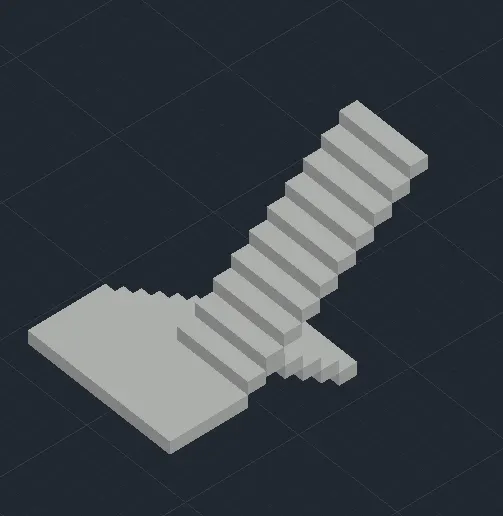

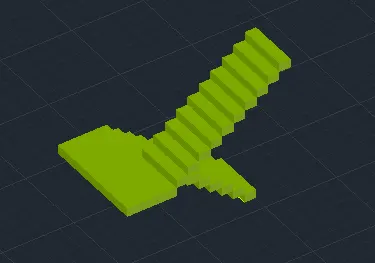

Now draw the stair case area to the house

and assign a mtaerial properties to the stair case

And draw floor and assign the carpet material in the floor

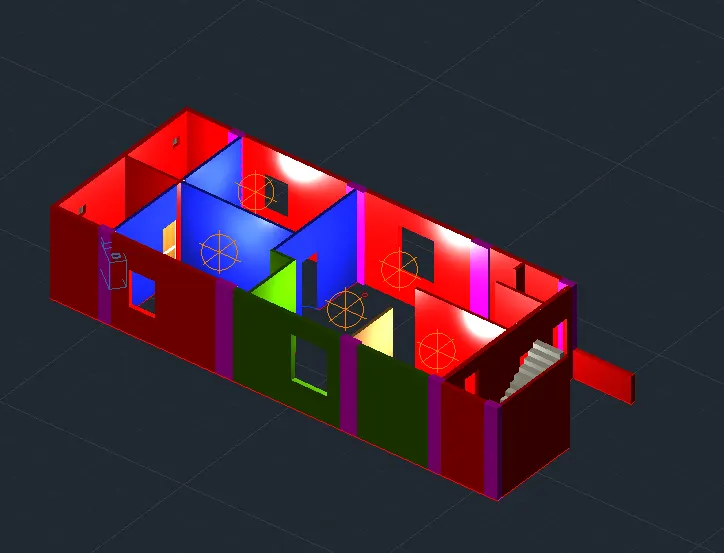

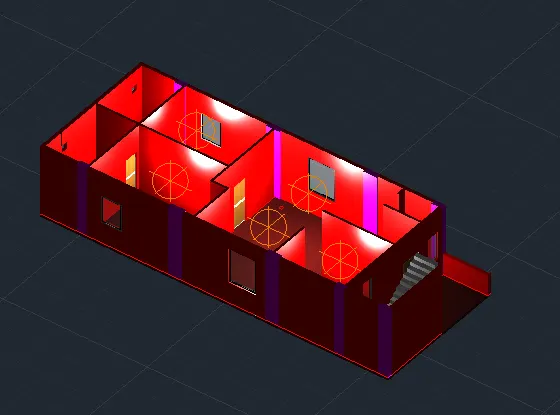

After completing all types of doors windows and staircase walls and now we are assign the lights in the house plan

Now create a cicrle on the fllor area to take the reerence object to place the light

after placing the light and delete the refenrce object

Assign the paint properties to the required walls

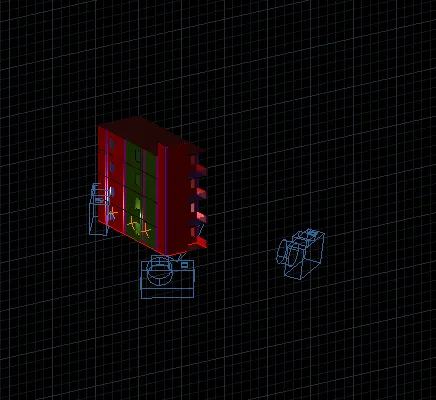

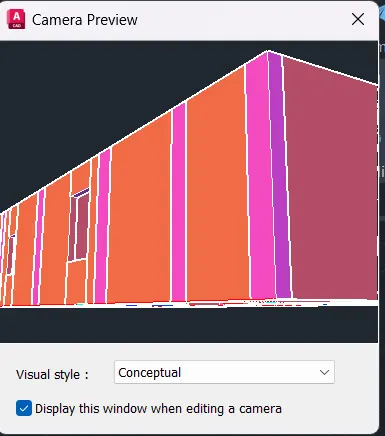

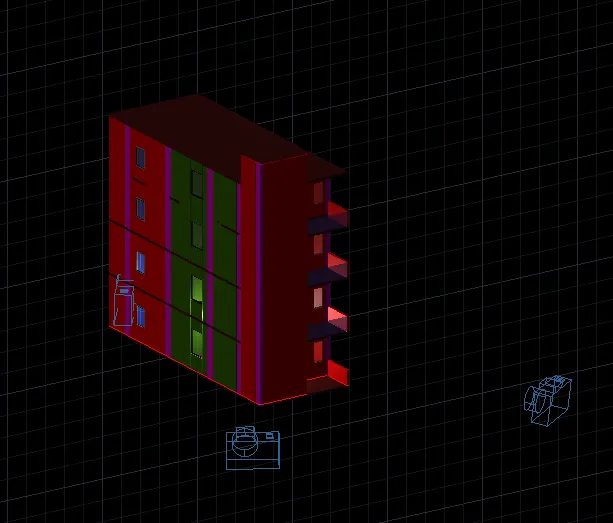

create the cemra view to the house plan

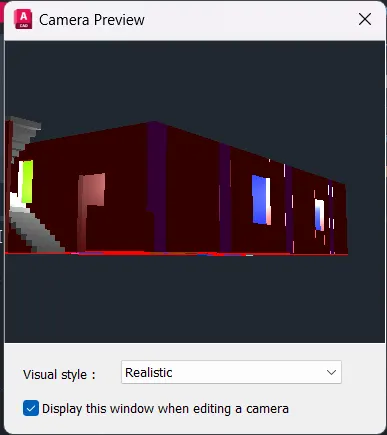

camera 1 view

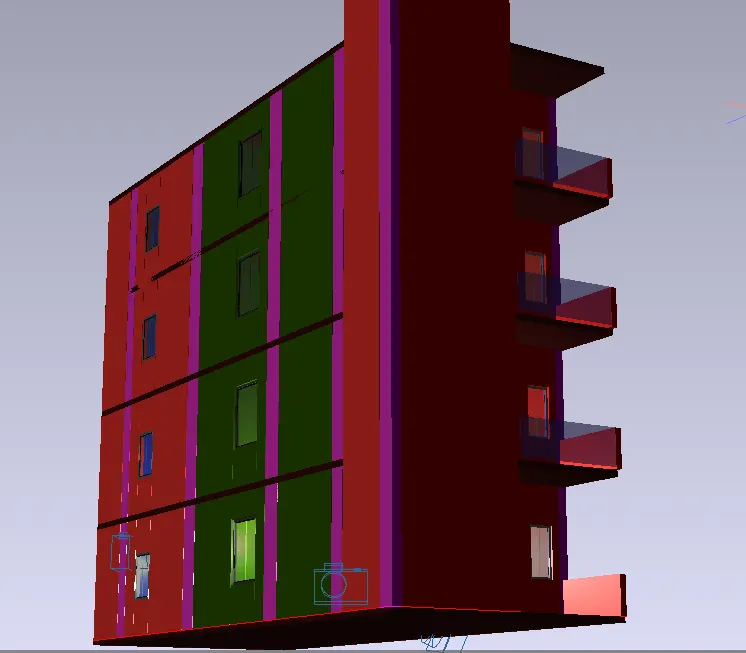

Camera 2 view

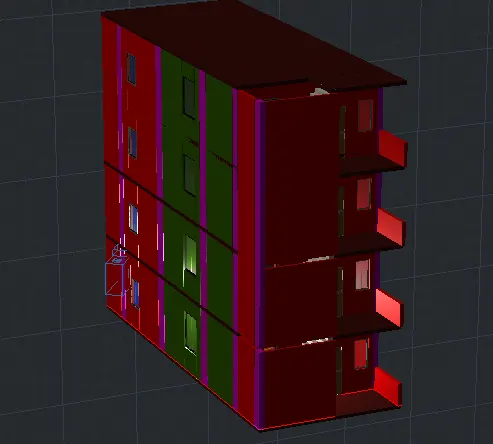

and all remaing views to shown

after the completing of all the drawings

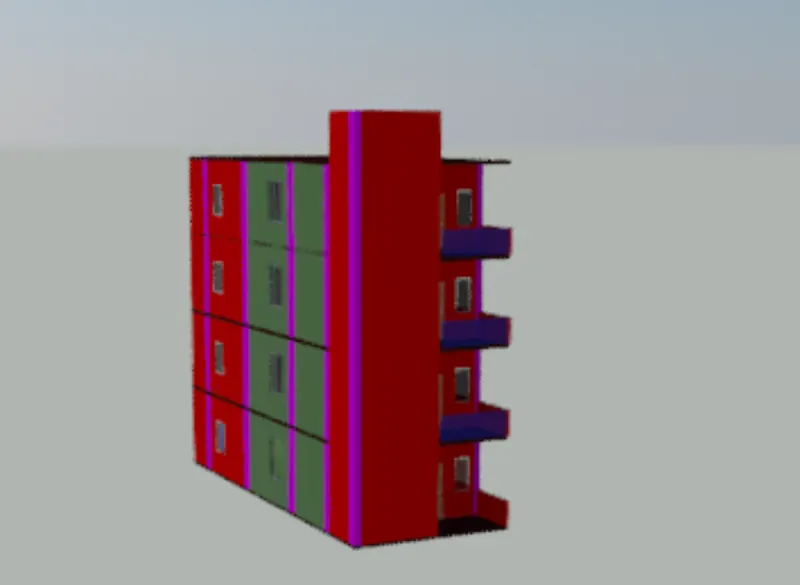

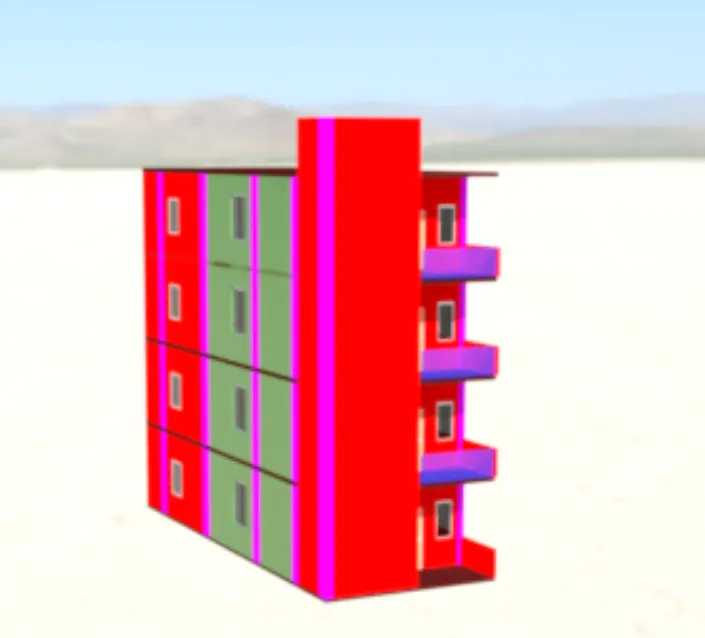

now copy all the wall windows doors and all and paste it into the firse and seconf fllor

RESULT
