Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

Aim:- To Creating a 3D rendered model for a Residential Building

Procedure:-

step 1:- create floor plan for residental building

step 2:- using extrude commend give height 3m to all external wall

step 3:- create slab and give slab thickness of 125mm.

step 4:- create window as per dimension and place at the position.

step 5:- create door and place at there position.

step 6:- create parapet wall of 1m height.

step 7:- create terace 0f 2.4m height.

step 8:- create layer and assign to every itom.

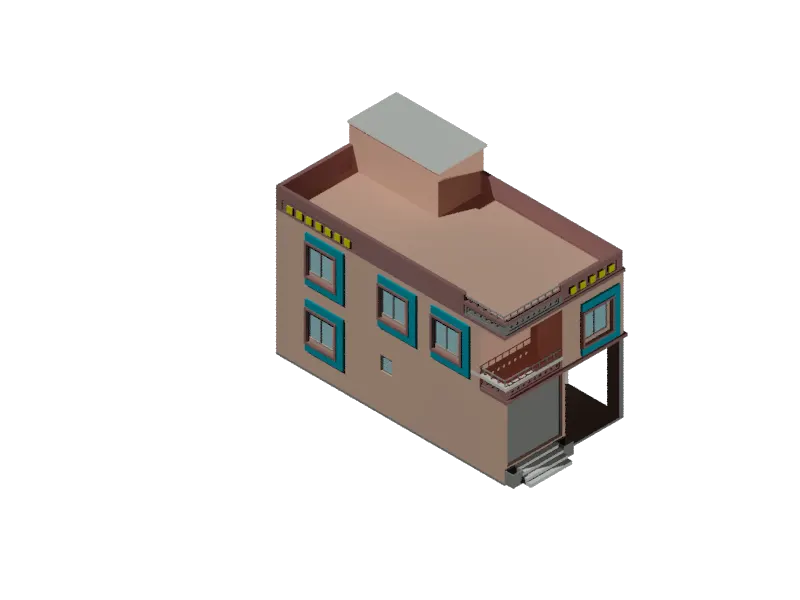

step 9:- type render command to give final view

Result:- well understood to Develop 3d
