Project 2_Creating a 3D rendered model for a Residential Building in AutoCad
AIM:
To create a 3 dimensional model of the residential building with a rendered view.
PROCEDURE:
- Go to START MENU, select AutoCAD 2023
- Click on START DRAWING .DWG File
- In the Command line type in: STARTUP [ENTER]
- Enter new value of startup: 1
- Go to Application Menu and select New
- Next select the 'Engineering' unit system from the 'Advanced Setup' option.
- Set the Units to "mm" by using the command 'un'.
- Set the limits by entering LIMITS in the Command tab. The lower-left corner is specified as 0,0, and the upper-right corner is specified as 100,100.
Commands used:
- Line command,
- Dimlinear command,
- Text command,
- Offset,
- Trim,
- Extend,
- Extrude,
- Subract,
- Region,
- Press / Pull,
- Visuals styles,
- UCS Icon.

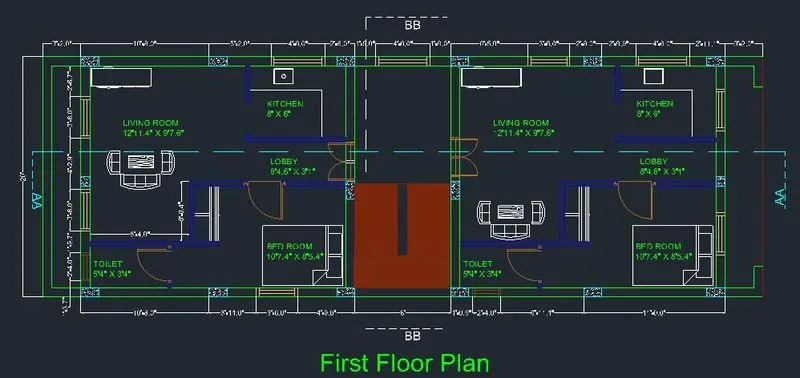

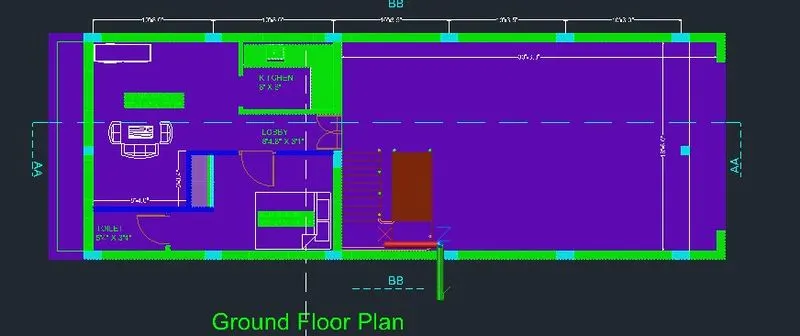

FLOOR PLAN:

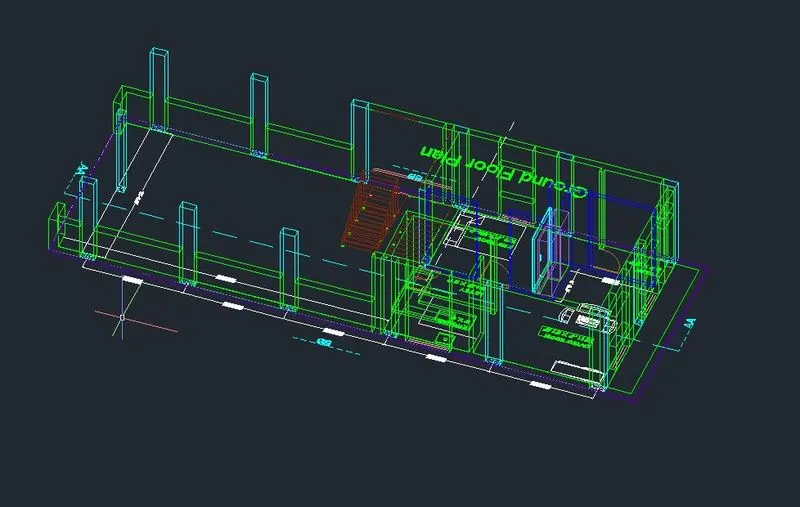

3D WIREFRAME:

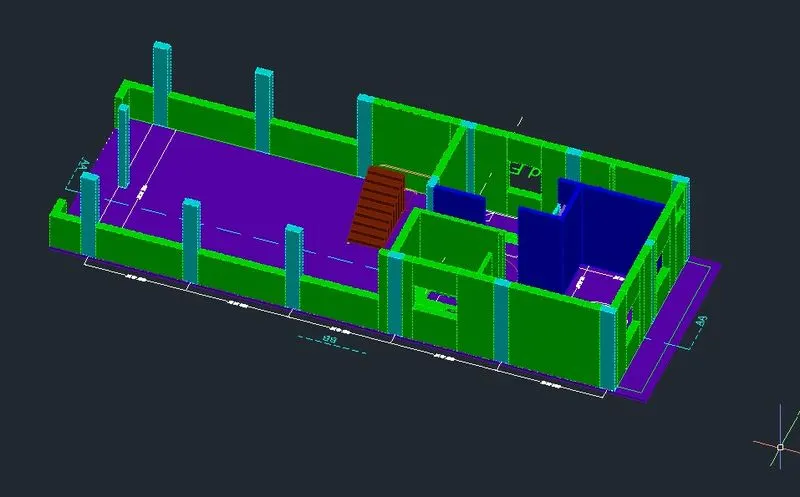

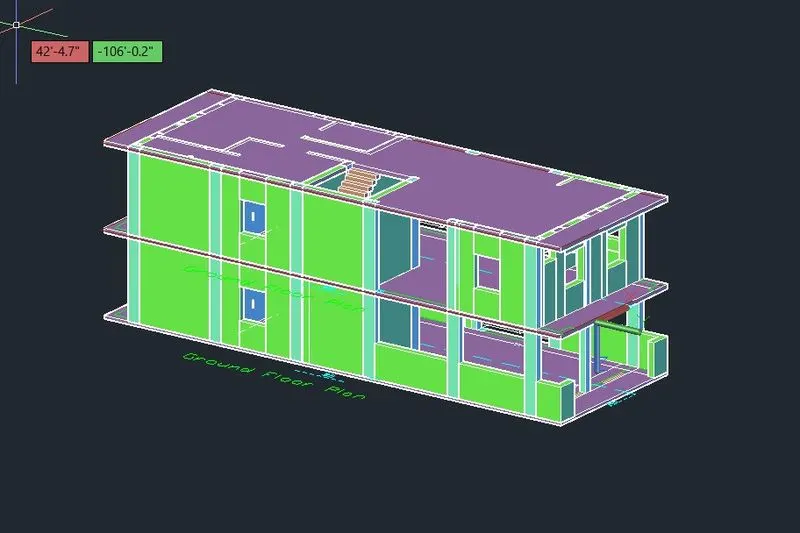

3D SHADED VIEW:

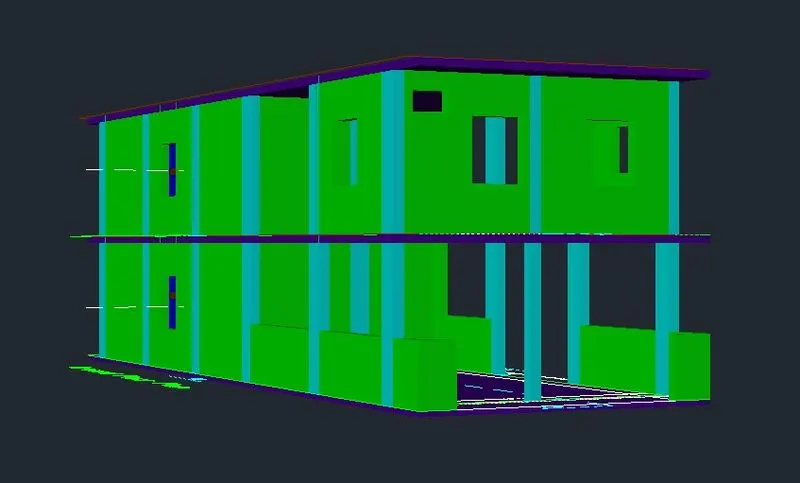

CAMERA VIEW:
RENDER VIEW
