Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

Aim: Create a 3 dimensional model of the residential building with a rendered view.

To create 3d model first we have to make 2d plan

• I am using imperial template
• Set the Unit to Engineering by command-UN
• Go to the top view

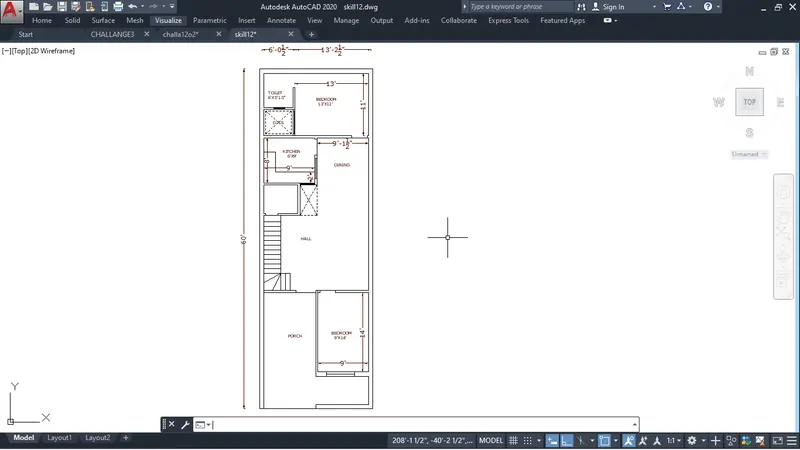

• I created a plan as you can see below fig.

• After that go to default view

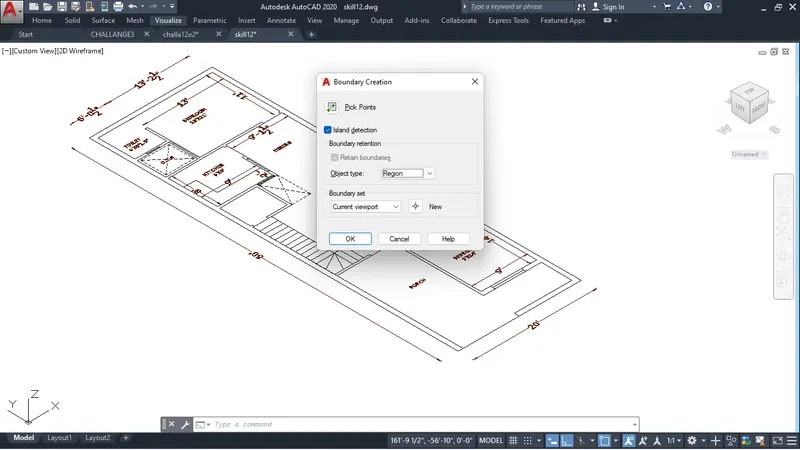

• make a Region by command-BO or Boundry

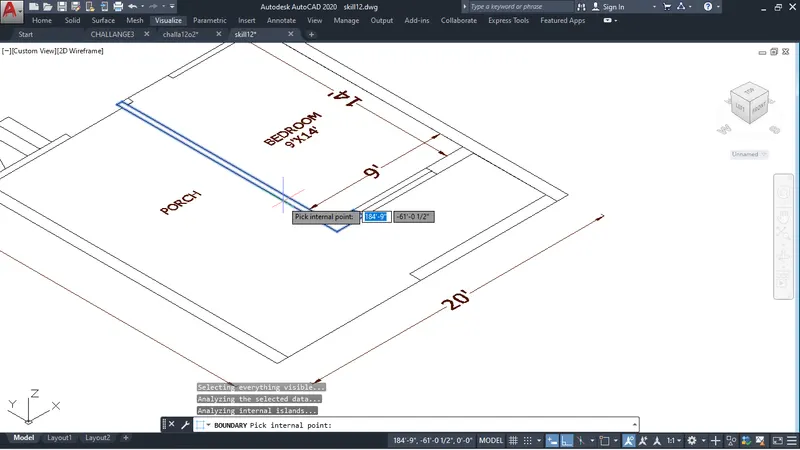

• pick the internal point for boundry

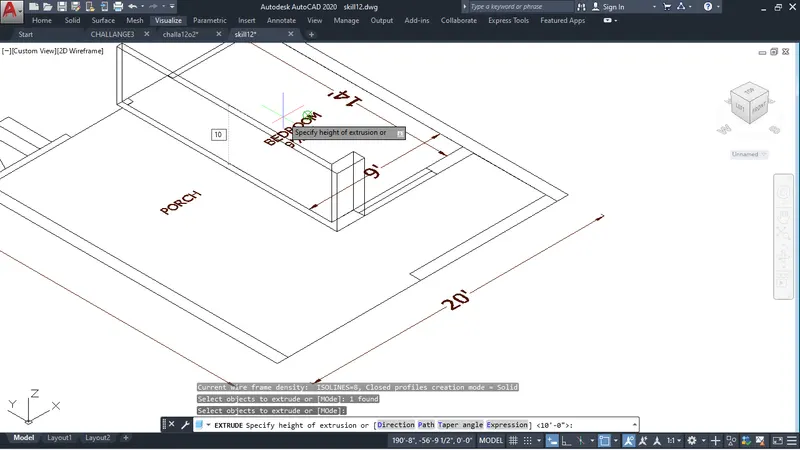

• Extrude it 10' because its a wall
• similary make the boundry of all the wall
• then extrude it at height 10'.

• After extruding wall make all the windows and doors.

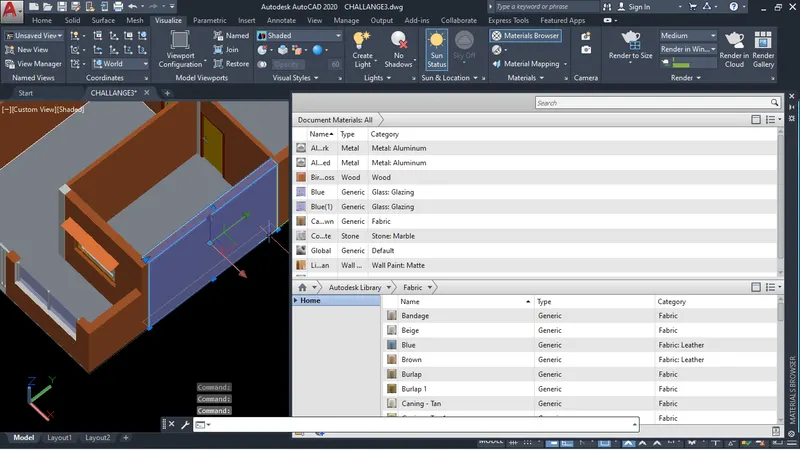

• After that assign the material by command-MAT
• there will a material list open

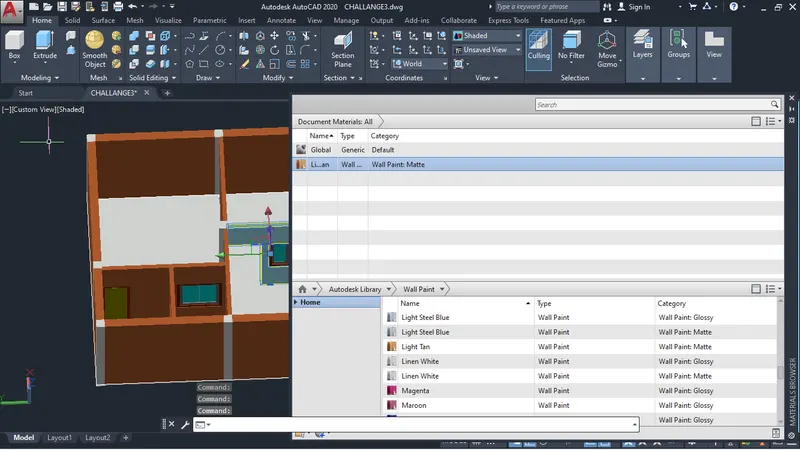

• to assign the material select object and click on the material which you want

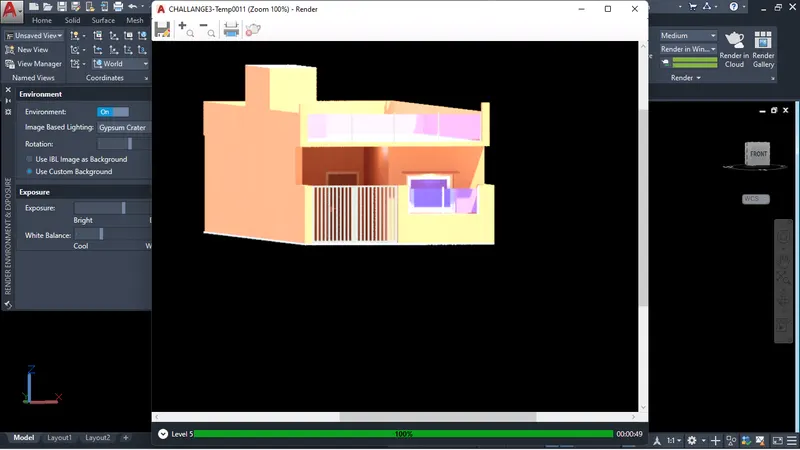

• After assigning the material we render it by command-RR or RENDER
• as you can see below fig without slab from top

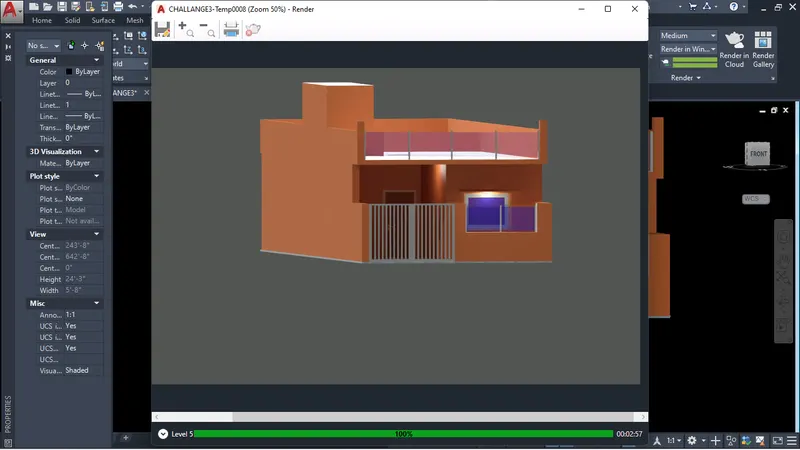

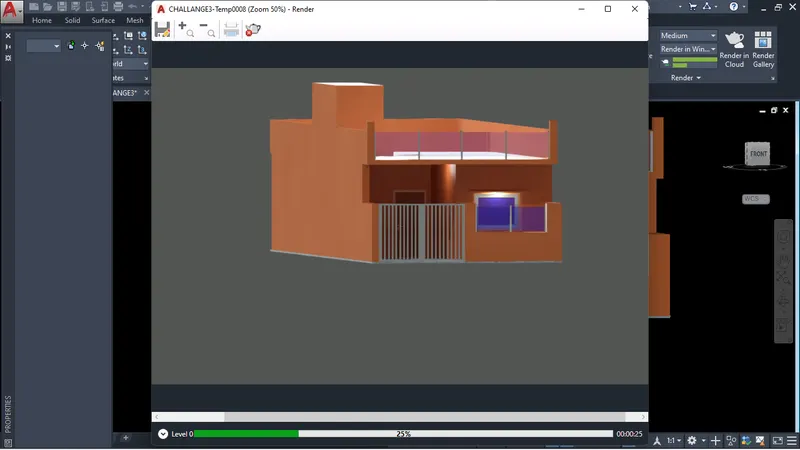

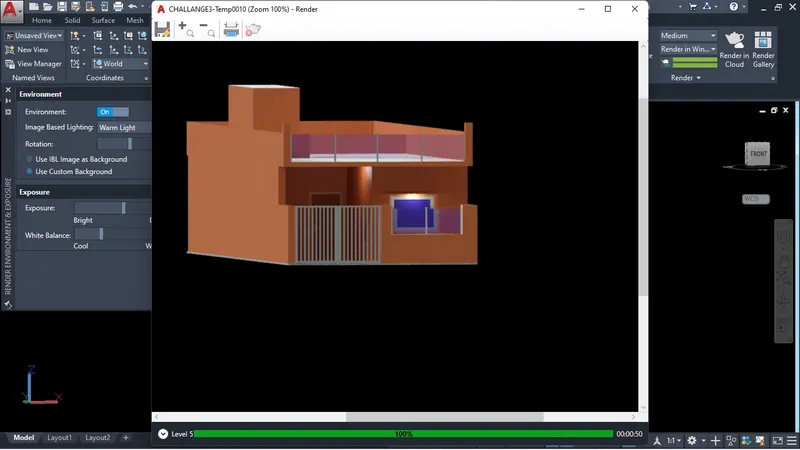

• this is front rendered view
