Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

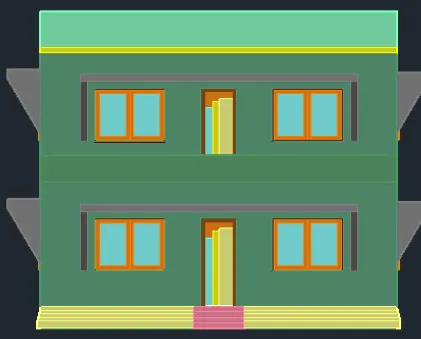

Q.1 Create a 3 dimensional model of the residential building with a rendered view.

AIM:-

To create a 3Dimensional modal of the residential building and create a render view.

Procedure:-

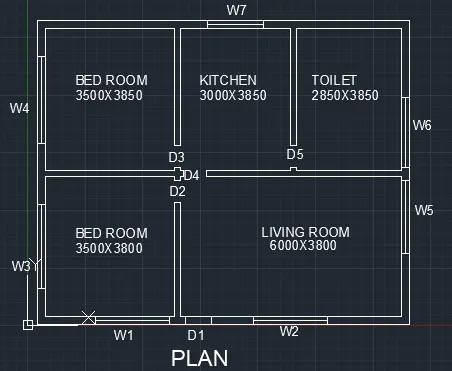

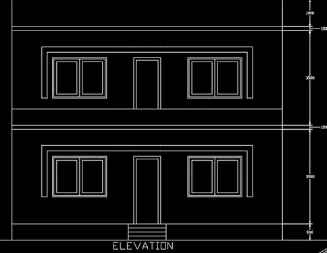

To create a 3d modal of the residential building i have drawn a random plan of size10500x8000 sq. mm which have a required rooms the plan and elevation details are below:

• Open the autocad
• Type UN and specify engineering and select precision as 100,100mm
• Draw a plan of 10500x8000mm
• type offset and specify 230mm and do the offset
• Trim the extra line using trim command
• Type offset 150mm and do the offset for room
• Draw the toilet
• Draw the window and door using line command

Procedure:

1. Extrude- To give height to a surface or giving distance or height in z axis of an object in x y plane so that i become 3d.

2. Offset- To Draw the offset line. command "o"

3. UCS- command "USC" To change the usc so as to draw in that face ie. x and y plane will be made in the selected face so that it is easy to draw in that plane. Default is UCS world.

4. BOx- To create a box. it is found in the ome toolbar.

5. UNION- Command "union" To make different 3rd object into a single enitity.

6. Move- command "m"- To move an object in a particular axis . coordinate also can be given for moving an object after the command.

7. 3dorbit - command "3do" to rotate the object so that we can view around 360 degree.

8. Loft- Command " loft' is available in home toolbar. it is used to connect two section of an object.

9. Sweep - command-"sweep' or in home toolbar. it is used to created a 3d along a path created from the cross section.

11. Cone- it is an primitive object.

12. Region- command "region". it is used to create a region in a particular face so that it can be created to a solid while extruding.

13. Boundry - Command - "BO" from this command also region can be created.if the encircled region is created by different lines.

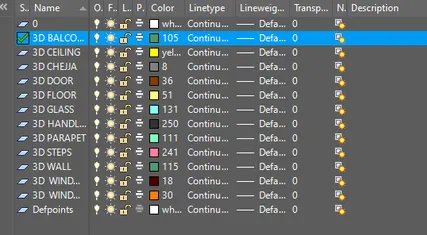

14. Layer- Layer is used to assign the different layers created to the different components with different colours to distinguish.

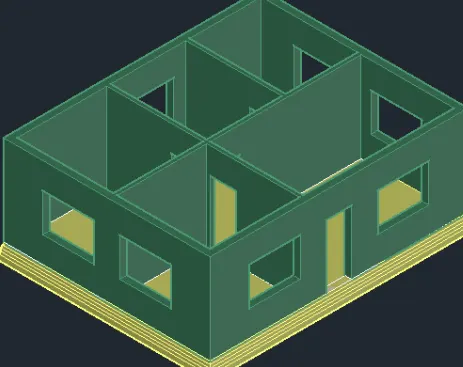

step 1: Create a plinth level and wall by using region and boundary.

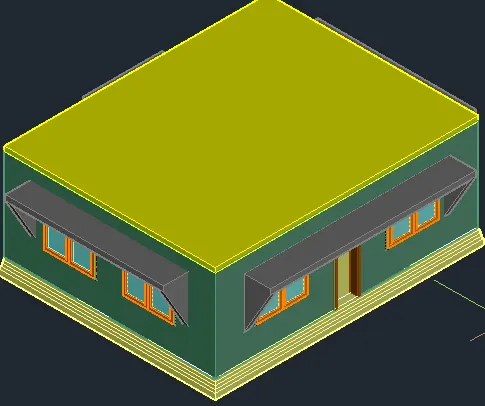

step 2: Creating window and door and placing it in a place and placing ceiling over the ground floor.

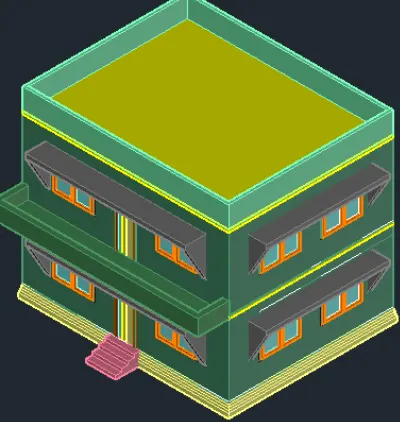

step 3: creating the ceiling of the first floor and creating the parapet wall.

Result:
